USER MANUAL ThermoTorch 10 CELESTRON

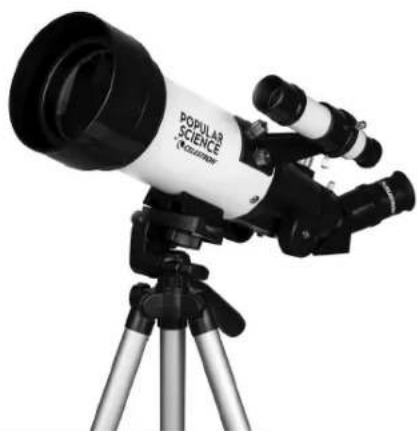

TRAVEL SCOPE™ 70 WITH SMARTPHONE ADAPTER AND BLUETOOTH REMOTE

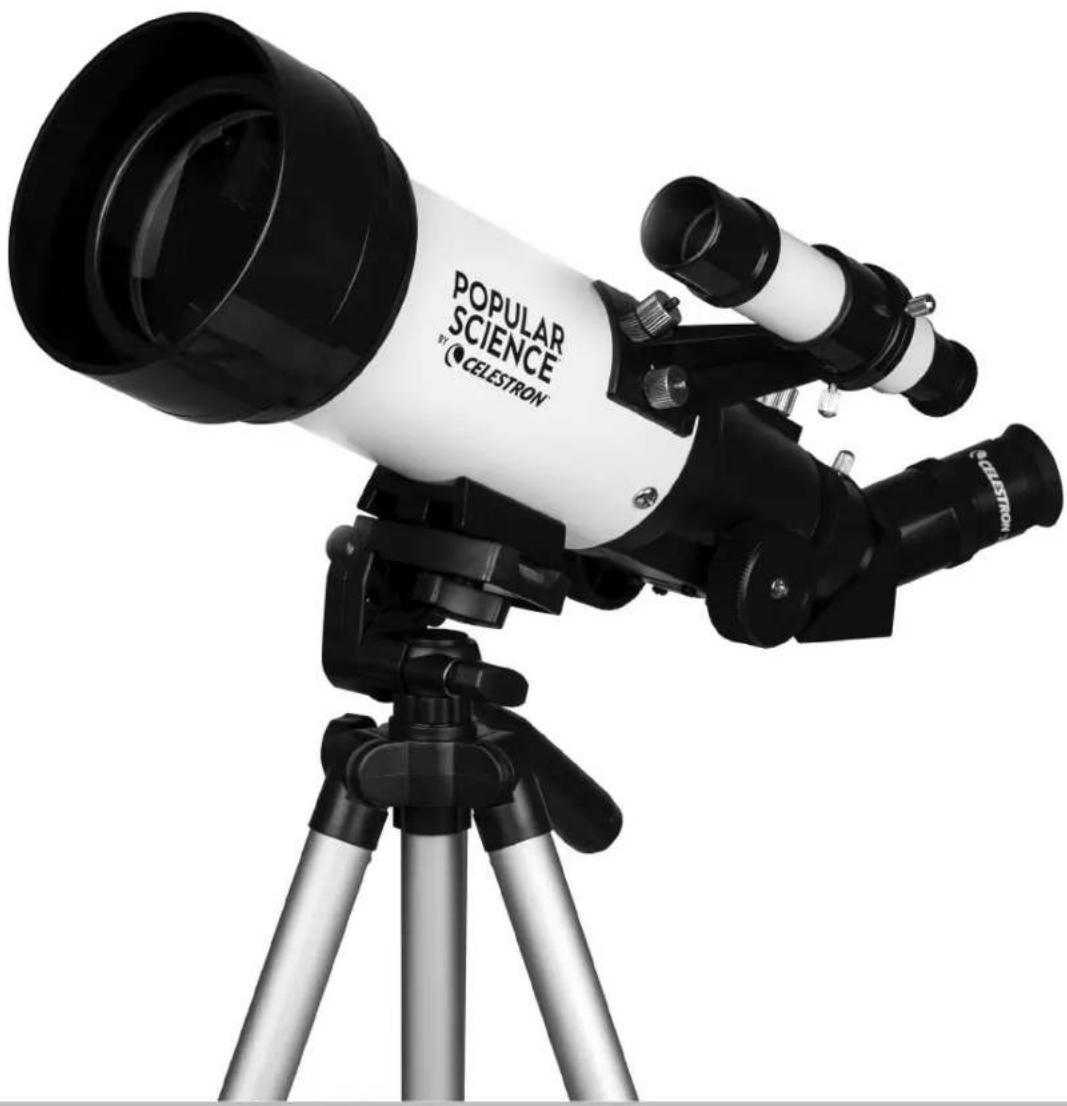

Black and white photo of a popular telescope with visible 'POPULAR SCIENCE' branding on its body, mounted on a tripod (no additional text or symbols)

POPULAR SCIENCE™

BY

CELESTRON

TRAVEL SCOPE™ 70 WITH SMARTPHONE ADAPTER AND BLUETOOTH REMOTE

QUICK SETUP GUIDE

21135

Black and white photo of a telescope on a tripod, no visible text or symbols on the instrument body

Product display of a popular science backpack with various optical and mechanical components (no visible text or labels)

Unpack your telescope and verify that all parts are present. Your Travel Scope 70 includes: a telescope tube, a tripod and mount head, two eyepieces, a 3x Barlow lens, a finderscope, an erect image diagonal, a smartphone adapter, a Bluetooth shutter remote, and a Moon filter.

tripod-mounted camera setup with tripod base and tripod legs (no text or symbols visible)

To set up the tripod, spread the legs outward until they are fully extended and push down on the center leg brace.

tripod diagram with directional arrows indicating measurement or navigation (no text or symbols)

Extend the legs of the tripod by unlocking the three tripod lock levers on each leg. Pull each leg section all the way out and push the lever on each lock downward to secure it in place.

tripod-mounted camera setup with a mounted tripod and a vertical arrow indicating upward motion (no text or symbols)

To extend the tripod's central column, turn the locking knob counterclockwise, lift up the tripod head until it is at the desired height and turn the locking knob clockwise to secure.

Mechanical device with rotating arm and directional arrows indicating motion (no text or symbols)

Loosen the knob on the side of the tripod head mounting platform and rotate the platform 90 degrees so it is standing vertically.

Close-up of a black mechanical clamp device with a circular arrow indicating rotation (no text or symbols visible)

Match the threaded bolt in the mounting platform to the threaded hole on the bottom of the telescope tube and thread the two together. Do not overtighten. This should be snug, but not tight.

Close-up of a camera setup with tripod-mounted sensors and a mechanical component (no visible text or symbols)

Rotate the mounting platform so it is horizontal and tighten the knob to secure it.

Close-up of a black mechanical component with a circular end, showing a transformation from a separate view to an arrow (no text or symbols visible)

Remove the cap from the focuser end of the telescope tube and make sure the two thumbscrews do not protrude into the opening.

Mechanical assembly diagram showing a rotating component before and after assembly (no text or symbols)

Locate the erect image diagonal and remove the plastic covers. Insert the barrel of the diagonal into the focuser and secure in place by tightening the set screws.

Close-up of a mechanical optical device with a metallic component and a curved arrow indicating rotation (no text or symbols)

Insert the barrel of the 20mm eyepiece into the diagonal and tighten the set screw.

Close-up of a mechanical component with a knob and curved arrow indicating rotation (no text or symbols)

Remove the knurled nuts on the threaded posts at the focuser end of the telescope tube.

Close-up of a telescope with visible lens and adjustment knobs (no text or symbols)

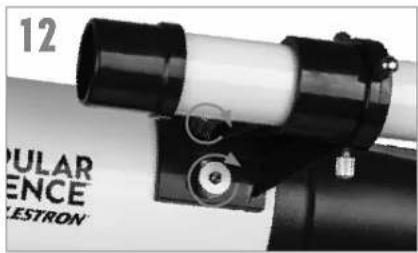

Locate the finderscope and remove the plastic caps on the front and back lens. Orient the finderscope so that the larger lens is facing towards the front of the tube as shown. Place the finderscope over the posts on the tube and replace the knurled nuts to secure it in place.

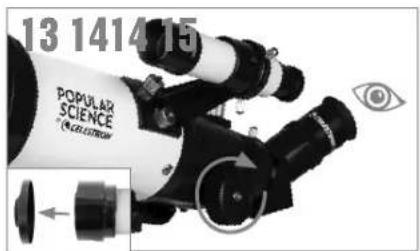

13 1414 15 POPULAR SCIENCE * (S. CLAUDITUM)

Remove the lens cap from the front of the telescope. To observe, look through the eyepiece as shown. Focus the image by turning the knobs below the focuser.

Close-up of a mechanical device with a black lever and metallic components, no visible text or symbols

For additional magnification, you can use the included 3x Barlow lens. Place the Barlow lens between the diagonal and the eyepiece.

Close-up of a cylindrical mechanical component with a black and silver body, showing rotational motion indicated by a curved arrow (no text or symbols)

To use the Moon filter, remove the eyepiece from the diagonal or Barlow lens. Thread the filter onto the bottom of the eyepiece and re-insert the eyepiece into the diagonal or Barlow.

Close-up of a tripod-mounted camera with adjustable arm and motion arrows indicating movement (no text or symbols)

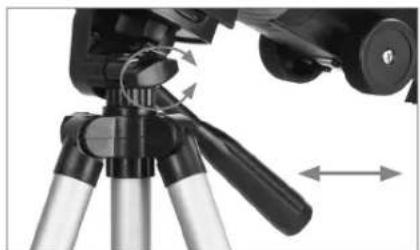

To move the scope right and left, hold a tripod leg with one hand while the other hand uses the panning handle to move the scope. The azimuth locking screw can be loosened or tightened to adjust the tension to your preference.

Close-up of a mechanical device with a black handle and curved arrow indicating rotation (no text or symbols)

To move the scope up and down, rotate the entire pan handle counterclockwise and use the handle to point the scope in the direction you want to view. Rotate the pan handle clockwise to lock it in place.

For more information on this product or to download the instruction manual, please visit the respective product page on celestron.com

SOLAR WARNING: Never attempt to view the sun through any telescope without a proper solar filter.

NEED ASSISTANCE?

Contact Celestron Technical Support celestron.com/pages/technical-support 07-21

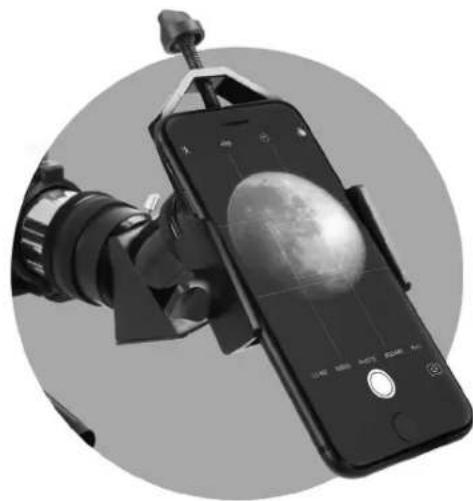

USING THE SMARTPHONE ADAPTER

Close-up of a smartphone mounted on a tripod stand with a camera lens, showing the moon's view (no text or symbols visible)

Close-up of a mechanical device with rotating components and directional arrows (no visible text or symbols)

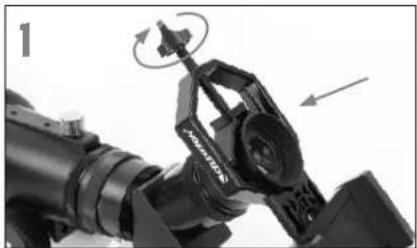

Open the eyepiece clamp and place it around the body of the eyepiece. Tighten the clamp until it's secure.

Close-up of a camera mounted on a tripod stand with an arrow indicating rotational motion (no text or symbols visible)

Use the phone clamp knob to open the phone holder so that your phone fits inside. Tighten it to secure your phone in place.

Black-and-white photo of a robotic device with a spherical object inside, accompanied by a circular symbol and a number 3 (no readable text or symbols on the device itself)

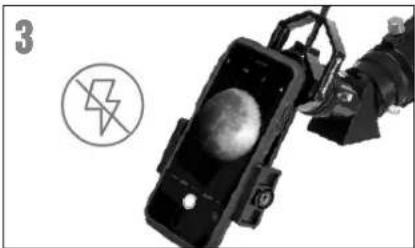

Turn on the phone and open your camera app. Make sure the flash is turned off.

Close-up of a black mechanical device with a curved arm and adjustment knob (no visible text or symbols)

Loosen the knob on the bottom of the adapter that secures the phone clamp to the eyepiece clamp. Slide the phone clamp up and down and rotate it left and right until your camera is looking down through the eyepiece of the telescope. Tighten the knob on the bottom of the adapter to secure it in place.

Close-up of a telescope's optical components with a circular dial and base mount (no visible text or symbols)

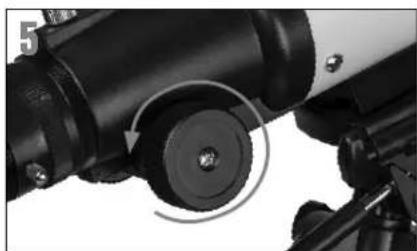

Use the telescope's focuser to adjust focus of your camera. Snap the image using your app.

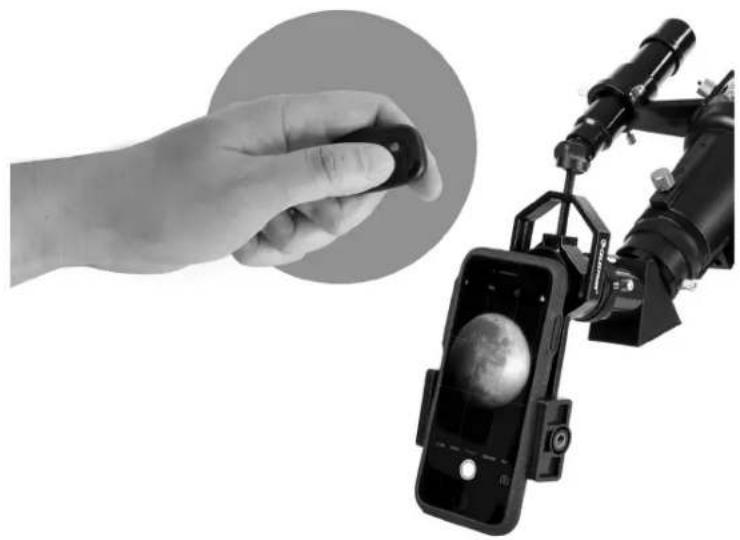

USING THE BLUETOOTH REMOTE

Hand holding a small object next to a smartphone displaying a planet image, with a camera rig visible nearby (no text or symbols)

Close-up of a black car key with a circular logo and a separate open lid showing a downward arrow (no text or symbols visible)

To insert or replace the battery, place your thumb in the center of the back cover, pressing inward and sliding downward remove the battery door. The CR2032 battery should be inserted with the positive (+) side facing upward. Replace the cover.

2

Press and hold the button on the remote for 5 seconds. A blue light will turn on and, after a few seconds, start to blink. The remote is now in pairing mode.

3 Bluetooth Bluetooth MY DEVICES CAR MULTIMEDIA Not Connected ① OTHER DEVICES GBshutter

Using the Bluetooth settings on your phone, pair the device called "GBshutter".

Close-up of a hand holding a dark circular object, possibly a coin or button (no text or symbols visible)

Open your camera app. Press the button on the remote to trigger the shutter on your phone.

Close-up of a smartphone mounted on a mechanical device with a spherical object visible inside (no text or symbols)

If your camera is in video mode, you can press the button once to start recording and again to stop the recording.

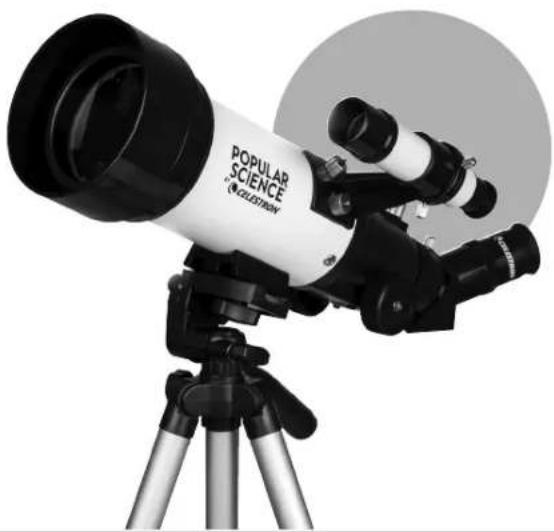

ALIGNING THE FINDERSCOPE

The finder is one of the most important parts of your telescope. It helps you locate objects and center them in the eyepiece. The first time you assemble your telescope, you need to align the finder to the telescope's main optics. It's best to do this during the day*.

* SOLAR WARNING! Never attempt to view the Sun through any telescope without a proper solar filter!

Black and white photo of a popular science telescope on a tripod, no visible text or symbols on the instrument body.

Silhouette of a telescope on a tripod with an octagonal target nearby (no text or symbols)

CHOOSE A TARGET

Take the telescope outside during the day and find an easily recognizable object, like a streetlight, license plate or sign. The object should be as far away as possible, but at least a quarter mile away.

2 Low Power Eyepiece Focus Knobs

CENTER THE TARGET IN THE EYEPIECE

Look through the telescope using your lower powered eyepiece. Move the telescope until the object you chose lies in the center of the view. If the image is blurry, gently turn the focus knobs until it comes into sharp focus.

Silhouette of a target with a circular head and two protruding rods, no text or symbols present

LOOK THROUGH FINDERSCOPE

Once the object is centered in your 20mm eyepiece, look through the finderscope and locate the crosshair reticle.

Diagram of a mechanical or optical component with rotational arrows indicating motion (no text or symbols)

ADJUST THE FINDERSCOPE

Without moving the telescope, use the three finger knobs on the finderscope bracket to move the finder around in the bracket until the crosshair appears over the same object you are observing in the telescope's 20mm eyepiece.

Silhouette of a telescope with a star pointer and dotted line, labeled '5' in top-left corner (no other text or symbols)

YOUR FINDERSCOPE IS NOWALIGNED!

It should not require realignment unless it is bumped or dropped.

TIP: Try adjusting one screw at a time. Loosen one screw by half a turn and tighten another by the same amount to ensure the finderscope is securely held in place.

The best and easiest target for you to try to view first is the Moon. Try observing the Moon at different points in its phase cycle. The best time to view the Moon is from two days after a New Moon up to a few days before a Full Moon. During this period, you will be able to see the most detail in the craters and lunar mountain ranges.

Simple circular icon with abstract gray shapes inside, resembling a stylized biological or geological symbol (no text or symbols)

Silhouette of a telescope on a tripod with Earth globe icon (no text or symbols)

With the Moon visible in the sky, set up your telescope with the 20mm eyepiece installed.

Silhouette of a telescope with a globe icon pointing to it (no text or symbols)

Move the telescope so that it is roughly pointing toward the Moon.

Silhouette of a target with concentric circles and crosshairs, no text or symbols present

Look through the finderscope and locate the crosshair reticle. Continue moving the telescope until the crosshair appears over the Moon.

4 Low Power Eyepiece Focus Knobs

Look through the telescope's 20mm eyepiece. Gently turn the focus knobs to adjust the sharpness of the image.

5 10mm 20mm

CONGRATULATIONS!

YOU HAVE NOW OBSERVED YOUR FIRST CELESTIAL OBJECT!

To get a closer view of the Moon, loosen the set screws on the focuser and remove the 20mm eyepiece. Replace it with your 10mm eyepiece and tighten the set screws to secure it in place. The 10mm eyepiece will give you significantly more magnification, making the Moon appear much larger.

NOTE: You may need to adjust the focus knobs when you change eyepieces, to make sure you are getting the sharpest image possible.

Illustration of a planet with rings and stars, no text or symbols present

You can view many other celestial objects, such as planets, star clusters and nebulae using this same technique if you know where to find them in the night sky.

CELESTRON® SkyPORTAL™

Celestron's free SkyPortal app for iOS and Android can help you locate and identify a wide array of celestial objects quickly and easily.

SAFETY INSTRUCTIONS

• Risk of explosion if battery is replaced by an incorrect type.
  • The included battery is not rechargeable.
• Please use the battery in its original purpose to avoid causing the battery to short circuit. When the conductive material is connected directly to the battery positive and negative will cause a short circuit.
• Do not use a damaged battery.
• Keeping the battery in an extremely cold or very hot location can result in shortened battery life.
• When replacing the battery, please refer to the instruction manual and pay attention to the positive and negative direction of battery.
• Do not put the battery in the fire. Dispose of the battery according to local regulations.
  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC IDENTIFIER: 2A2FG-X9

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Product design and specifications are subject to change without prior notification. This product is designed and intended for use by those 14 years of age and older.

CELESTRON®

©2021 Celestron, Celestron and Symbol are trademarks of Celestron, LLC • All Rights Reserved • celestron.com

• Torrance CA 90503 USA

Popular Science is a trademark of Camden Media, Inc. and used under license.
