Product Type	Freestanding Gas Cooker
Brand	Tisira
Model	TFGC608X
Color	Stainless Steel
Width	60 cm
Depth	60 cm
Height	85 cm
Weight	55 kg
Energy Source	Gas (LPG/Natural Gas)
Number of Gas Burners	5
Burner Types	Rapid, Semi-rapid, Auxiliary
Oven Type	Electric
Oven Capacity	65 L
Oven Functions	Grill, Fan, Conventional
Ignition	Automatic (spark)
Safety Features	Flame Failure Device (Thermocouple)
Controls	Front Knobs
Cleaning	Easy-clean Enamel Interior
Accessories Included	Grill Pan, Wire Shelf
Warranty	2 Years

Frequently Asked Questions - TFGC608X Tisira

What type of gas can the Tisira TFGC608X use?

The cooker is compatible with both LPG and Natural Gas. Conversion kits may be available; refer to the manual.

How do I clean the oven?

Use a mild detergent and a soft cloth. The interior is easy-clean enamel. Avoid abrasive cleaners. For stubborn stains, use a non-scratch pad.

What is the oven capacity?

The oven capacity is approximately 65 litres, suitable for family-sized meals.

Does the cooker have a flame failure device?

Yes, each gas burner is equipped with a flame failure thermocouple that cuts off gas if the flame goes out.

Can I convert the cooker from natural gas to LPG?

Yes, conversion is possible with the appropriate conversion kit. Please consult a qualified technician following the instructions in the manual.

What are the dimensions of the TFGC608X?

The cooker measures 60 cm wide, 60 cm deep, and 85 cm high (including knobs). Ensure adequate clearance for ventilation.

How many burners does it have?

It features 5 gas burners: one rapid burner, two semi-rapid, and two auxiliary burners for a range of cooking needs.

What accessories are included?

The cooker comes with a grill pan and a wire shelf for the oven. Additional accessories may be available separately.

Is the oven fan-assisted?

Yes, the oven includes a fan function for even heat distribution, plus conventional and grill functions.

Where can I find the user manual?

The user manual can be downloaded for free from notice-facile.com in PDF format. It includes installation, operation, and maintenance instructions.

USER MANUAL TFGC608X Tisira

IMPORTANT // Please ensure that you read through this user manual prior to installation and use. This manual contains important information to ensure optimal performance and keep you safe. Please retain your proof of purchase, as this will be required in the event that you require warranty service. Remember to retain this manual for future reference.

tisira

HELLO

CONGRATULATIONS ON THE SELECTION OF THIS TISIRA APPLIANCE. TISIRA APPLIANCES HAVE BEEN SPECIFICALLY DESIGNED FOR AUSTRALIAN AND NEW ZEALAND KITCHENS.

Please read through this user manual carefully as it contains information that will ensure that your appliance is installed correctly, important operating & care instructions and also some advice of what you need to do if this appliance is not performing as intended.

CONTENTS

HELLO 2

CONTENTS 3

WARNINGS 4

OPERATING INSTRUCTIONS 5-10

MAINTAINING YOUR COOKER 11-12

INSTALLATION 13-14

CONNECTIONS 15-17

PRODUCT SPECIFICATIONS 18

WARRANTY TERMS & CONDITIONS 19

CONTACT DETAILS 20

WARNINGS

• DO NOT MODIFY THIS APPLIANCE.
• DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
- DO NOT STORE OR USE FLAMMABLE MATERIALS IN THE APPLIANCE STORAGE DRAWER OR NEAR THIS APPLIANCE.
- NOT FOR USE IN MARINE CRAFT, CARAVANS OR MOBILE HOMES. (UNLESS EACH BURNER IS FITTED WITH A FLAME SAFEGUARD)
- WHERE THIS APPLIANCE IS INSTALLED IN MARINE CRAFT OR IN CARAVANS, IT SHALL NOT BE USED AS A SPACE HEATER.
• Servicing should be carried out only by authorised personnel.
- Do not remove the plug by pulling the cable.
- In order to prevent accidental tipping of the appliance, for example by a child climbing onto the open oven door, the anti-tilting chain must be installed. Refer to the instructions on page 14.
• To avoid burns, young children should be kept away.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
- Accessible parts may become hot when the grill is in use. Children should be kept away.
• Very important: keep this instruction booklet with the appliance for handy references
• This appliance is designed for domestic use only.
- Keep packaging out of reach of children at all times.

OPERATING INSTRUCTIONS

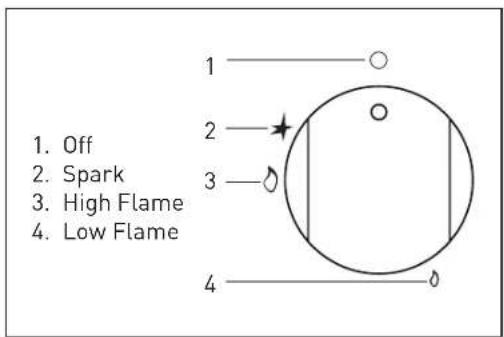

DESCRIPTION OF SYMBOLS

Front Left Burner

Rear Left Burner

Rear Right Burner

Front Right Burner

Central Burner

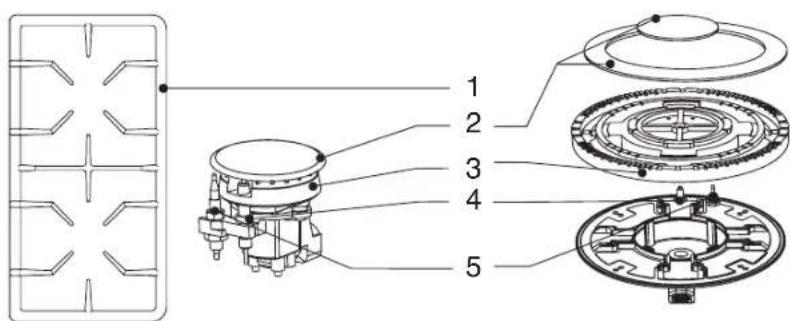

1. Trivets
2. Burner Cap
3. Diffuser
4. Ignition Candle
5. Flame Failure Device

INSTRUCTIONS FOR USE OF COOKTOP

To ignite a burner, push in the knob and rotate anti-clockwise to the High Flame symbol.
- Keep the knob depressed for 3-4 seconds to ensure that the flame failure device keeps the burners lit.
Adjust the heat level by rotating the knob between the Low Flame and High flame symbols.
To turn the burner off, rotate the knob clockwise to the Off symbol.

When the burners are lit check that the flame is always regular. Before removing the saucepans turn the burners off.

There shall be adequate ventilation of the room when a rangehood is used at the same time as appliances burning gas. When a rangehood is not in use, ensure that natural ventilation outlets are open.

Be careful not to place saucepans with unstable or deformed bottoms on the burners to avoid overturning or spilling.

If a burner shuts off accidentally, turn off at the conrol knob and wait at least one minute to re-ignite it.

OPERATING INSTRUCTIONS

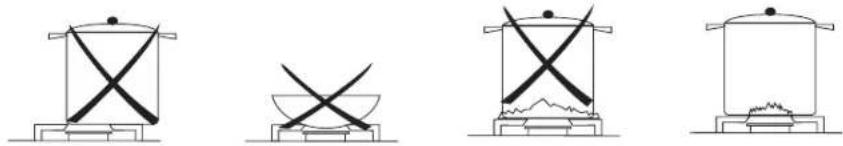

USE THE CORRECT COOKWARE.

Cookware should be centralised on the burner when in use.

- Do not use round bottomed pans (e.g. woks) without appropriate wok support recommended by the manufacturer.

Adjust the flame according to the size of your cookware, not allowing the flame to extend past the edge of the pan.

Burner	Min ∅Saucepan (mm)	Max ∅Saucepan (mm)
Auxiliary 90 160
Semi-rapid 130	180
Rapid 150 260
Wok-Burner 210	260

Four simple line drawings of cooking pots with crossed x marks, no text or symbols present

OPERATING INSTRUCTIONS

INSTRUCTIONS FOR USE OF OVEN

When adjusting or positioning your shelf, please ensure the following:

1. Ensure that the shelf / tray is located between the two wire sideracks. (see point 1)
2. The shelf stops should be facing downwards and towards the rear. (see point 2)
3. The guard rail should always be located at the rear of the oven (see point 3)

BEFORE USING THE OVEN FOR THE FIRST TIME:

Remove all the special film covering the oven door glass.
- Heat the empty oven at maximum temperature for 45 minutes.
- Wait for oven to cool down then carefully clean inside with a soft cloth moistened with warm soapy water and dry with a soft cloth.

USING THE THERMOSTAT CONTROL

- Set the temperature by turning the thermostat control to the desired level.

• When a temperature is selected, thermostat light will illuminate
• When the selected temperature is reached, the light will turn off.

°C

Thermostat Control

ATTENTION // During use, the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

Never line the oven with aluminium sheets as this can cause damage to the enamel.

OPERATING INSTRUCTIONS

USING THE OVEN FUNCTION SELECTOR

Simple circular diagram with four small icons around it, no text or symbols present.

5-Function Selector

LAMP FUNCTION

The lamp can be turned on with no heating elements and will turn on with all oven functions.

CONVENTIONAL COOKING

Conventional cooking utilises the top and bottom elements. This function is recommended for use with the middle shelf position and is good for slow cooking casseroles, etc.

Simple circular diagram with eight small icons arranged radially around it (no text or labels)

8-Function Selector

FAN BAKE

Fan Bake mode is ideal for delicate foods such as desserts. In this mode, the oven uses the bottom element and oven fan. It is recommended to use the lower shelf position with this mode.

TOP OVEN

Top Oven cooking is recommended for use to brown the top of food at the end of cooking.

GRILL COOKING

Grill Cooking should be used for melting cheese, toasting & browning. Ideally it should be used for no more than 5 minutes. Use the upper shelf postions for best results.

FAN-ASSISTED GRILL

Fan-assisted Grill uses the grill element and oven fan to cook meats, vegetables and poultry. In this mode, heat is radiated down then spread throughout the oven. To achieve the best results, use the middle tray position.

FAN-FORCED COOKING

Fan-forced cooking uses a circular element and the oven fan to evenly spread heat throughout the oven. Food can be cooked in any shelf position when using this mode.

DEFROST MODE

Defrost mode uses the oven fan to circulate room temperature air around the food. It can be used for all types of food. The defrosting process can be accelerated by using the "Fan-Forced" function on low heat. For the best results, use the middle tray position.

OPERATING INSTRUCTIONS

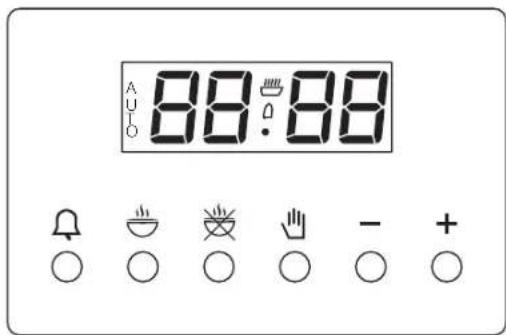

6 BUTTON DIGITAL TIMER

SETTING THE TIME

To set the time, hold down the symbol while using the '-' and '+' symbols to adjust the time up and down.

MANUAL SETTING

To remove the 'AUTO' indicator on the screen, press the 🔊 symbol. This then activates the manual operation mode.

To set the start and finish times:

1. Press the 🤨 button and use the '-' and '+' buttons to set the desired start time of cooking
2. Press the ☒ button and use the '-' and '+' buttons to set the desired finish time for the cooking period
3. Use the Thermostat and Function Selector knobs respectively to set the temperature
4. When the time has elapsed the timer will beep and the display will flash. Press the button to turn off the alarm.

TABLE OF COOKING TIMES

The table below provides examples of the function, temperature, tray position and estimated cooking times for various types of food.

IMPORTANT // Please note that this table is a guide only and times can vary according to the type of food, volume and quantity of food being cooked.

Tray Positions

Function Food to be cooked		Weight (kg)	Tray Position	Preheating Time (Mins)	Temperature (°C)	Cooking time (mins)
Conventional Cooking	Duck 1 3 15 200 65-75
	Roast Veal or Beef 1 3 15 200 70-75
	Roast Pork 1 3 15 200 70-80
	Biscuits - 3 15 180 15-20
	Tarts 1 3 15 180 30-35
Top Oven	Browning Food	-	3-4	-	220	15
Grill Cooking	Soles and Cuttlefish	1	4	5	Max	8-10
	Squid and Prawn	1	4	5	Max	6-8
	Cod Fillet	1	4	5	Max	10
	Grilled Vegetables	1	3-4	5	Max	10-15
	Cutlets	1	4	5	Max	15-20
	Veal Steak	1	4	5	Max	15-20
	Hamburgers	1	4	5	Max	7-10
	Mackerels	1	4	5	Max	15-20
	Toasted Sandwiches	-	4	5	Max	2-3
Fan-assisted Grill	Grilled Chicken	1.5	3	5	200	55-60
	Cuttlefish	1.5	3	5	200	30-35
Fan-Forced Cooking	Tarts	0.5	3	15	180	20-30
	Cupcakes	1	2-3	15	180	40-45
	Fruitcake	0.7	3	15	180	40-50
	Sponge cake	0.5	3	15	160	25-30
	Stuffed Pancakes	1.2	2-4	15	200	30-35
	Small Cakes	0.6	2-4	15	190	20-25
	Cheese Puffs	0.4	2-4	15	210	15-20
	Cream Puffs	0.7	1-4	15	180	20-25
	Biscuits	0.7	1-4	15	180	20-25
	Meringues	0.5	1-4	15	90	180
Defrost Mode	All Frozen Food	-	-	-	-	-

MAINTAINING YOUR COOKER

MAINTENANCE AND CLEANING

Before any operation disconnect the appliance from the power supply and wait for it to cool down.

Do not use steam for cleaning.
Wash the enamelled parts with lukewarm water and detergent.
- Wash the diffusers frequently with boiling water and detergent make sure to remove any deposits which could block the flame outlet.
- Rinse the stainless steel parts well with water and dry them with a soft cloth.
To clean the hob use slightly damp sponges and wiping cloths: if too much water is used it could penetrate the internal parts and damage electrical parts.
The trivets of the hob can be washed in the dishwasher.
For persistent stains use normal non-abrasive detergents, or hot vinegar.
- Clean the glass parts with hot water and a soft cloth.
To prevent lighting difficulties, carefully clean the ignition candles regularly.
It is necessary to clean the oven after each use.
- Once the oven is cold, you will be able to remove the fat deposits with a sponge or a cloth damp with warm soapy water or a common detergent.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean this appliance.

ALWAYS CLEAN THE APPLIANCE IMMEDIATELY AFTER ANY FOOD SPILLAGE. TO MAINTAIN SAFE OPERATION, IT IS RECOMMENDED THAT THE PRODUCT BE INSPECTED EVERY FIVE YEARS BY AN AUTHORISED SERVICE PERSON.

MAINTAINING YOUR COOKER

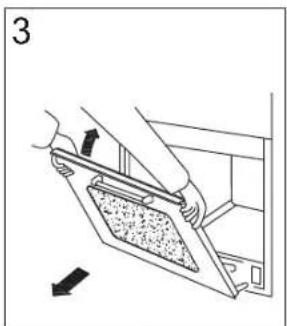

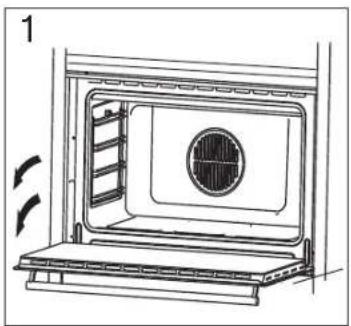

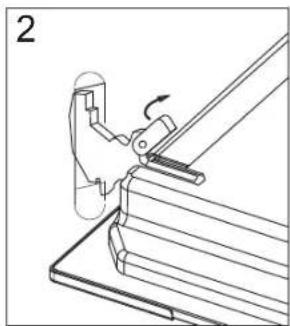

CLEANING THE OVEN DOOR

For a more thorough clean, the oven door can be removed by proceeding as follows:

1. Open the door fully
2. Lift up the small levers located on the two hinges
3. Grip the door on the two external sides and close the door halfway
4. Pull the door towards you, pulling it out of its seat
5. To replace door, reverse this sequence

Technical line drawing of an oven with a circular vent and cooling fan (no text or symbols)

Line drawing of a mechanical device with a lever and adjustment mechanism (no text or symbols)

Person using a mechanical device to remove or remove material from a tray (no text or symbols visible)

REPLACING THE OVEN LAMP

After the oven is disconnected from the mains and has cooled down replace the lamp as follows:

1. Unscrew the glass protection cap
2. With a soft cloth, unscrew the light bulb
3. With a soft cloth, replace the bulb (E14 25W 300°C)
4. Resecure the glass protection cap

Diagram of a light bulb with a rotating base and arrow indicating rotation (no text or symbols)

WARNING // It is important not to touch the bulb with your hands as acids from your skin can damage the bulb.

WARNING // Ensure that the appliance is switched off before replacing the bulb to avoid the risk of electric shock.

INSTALLATION

The manufacturer declines any and all responsibilities for damages to things or injuries to persons or animals deriving from incorrect installation or use of the equipment.

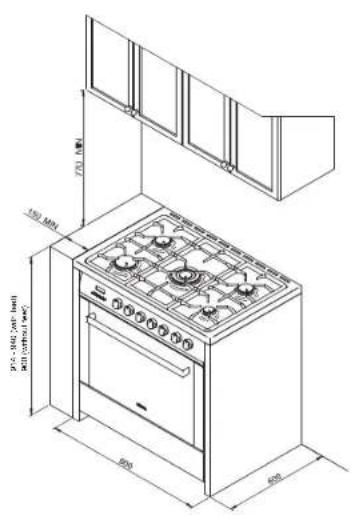

INSTRUCTIONS FOR INSTALLATION

WARNING:

• Prior to installation, ensure that the local distribution conditions [nature of the gas and gas pressure] and the adjustment of the appliance are compatible
• The adjustment conditions for this appliance are stated on the data plate or under the product specifications section on page 18
• There shall be adequate ventilation of the room when a rangehood is used at the same time as appliances burning gas. When a rangehood is not in use, ensure that natural ventilation outlets are open.
• This appliance shall be installed only by authorised persons and in accordance with the manufacturer's installation instructions, local gas fitting regulations [AS5601], municipal building codes, electrical wiring regulations, and local water supply regulations.

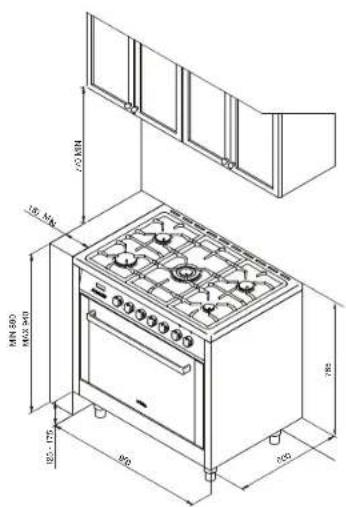

TFGC908X / TFGC908B

TFGT905X

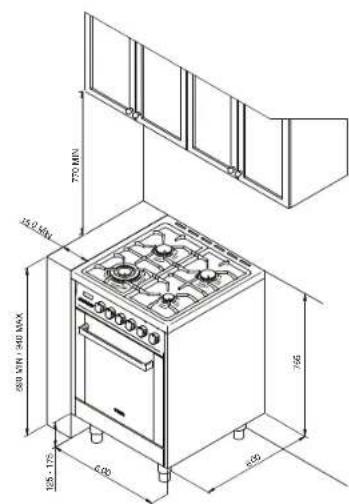

TFGC608X

INSTALLATION

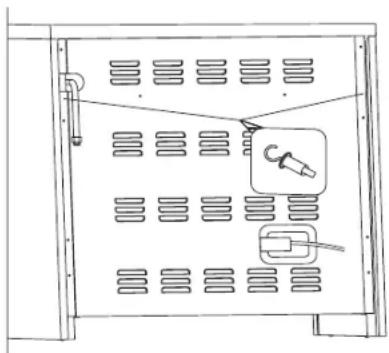

INSTALLING THE ANTI-TILTING CHAIN

The cooker is supplied with an anti-tilting chain to prevent the appliance from tilting forward and accidentally damaging the gas pipe. The anti-tilting chain should be fitted as follows:

Diagram of a cabinet or enclosure with ventilation grilles, a hanging hook icon, and a lock mechanism (no text or symbols)

1. Take the expansion with hook and make an adequate hole in the wall behind, at the same height as the chain fixing area.
2. Insert the plug into the hole and then screw in the hook until it is firmly fixed to the wall.
3. Fix the chain to the hook.
4. Adjust to level of the cooker inserting the feet provided.

In situations where the cooker is installed between two cabinets:

1. Drill a 16mm hole in each cabinet, at the same height as the chain.
2. Feed the chain through the left and right holes respectively.
3. Move cooker to desired position.
4. Tighten and fix chains to back-side of cabinet.

COMBUSTIBLE SURFACES

Any adjoining wall surface situated within 200mm from the edge of any hob burner must be a suitable non-combustible material for a height of 150mm for the entire length of the hob.

Any combustible construction above the hotplate must be at least 600mm above the top of the burner and no construction shall be within 450mm above the top of the burner. Zero clearance is permitted on side and rear adjoining surfaces below the hob.

CONNECTIONS

ELECTRICAL CONNECTION

Equipment type: Free standing (Class 1) Insulation class: Class 1

The appliance is fitted with an approved 15 Amp flexible cord and plug which must be connected to a correctly earthed socket outlet.

CONNECTION OF THE SUPPLY CABLE TO THE MAINS

Connect the supply cable to a plug suitable for the load indicated on the rating plate of the product. In case of a direct connection to the mains (cable without plug), it is necessary to insert a suitable omnipolar switch before the appliance, with minimum opening between contacts of 3 mm (the grounding wire should not be interrupted by the switch).

Before connecting to the mains, make sure that:

1. All components used to make the electrical connection are adequate to withstand the maximum load required (see rang plate).
2. The supply system is regularly grounded, according to the regulations in force.
3. The socket or the omnipolar switch can easily be reached after the installation of the oven.

Hand holding a small object with a ruler, surrounded by abstract geometric shapes (no text or symbols)

WARNING // Never use reductions, shunts, adaptors which can cause overheating or burning.

NOTE // After carrying out the connection to the mains, check that the supplying cable does not come into contact with parts subject to heating.

ATTENTION // If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

ELECTRICAL FEATURES	TFGT905XTFGC908XTFGC908B	TFGC608X
Oven Light	2 x 25W	25W
Upper Element	1250W	1050W
Bottom Element	1800W	1250W
Grill Element	2900W	2250W
Circular Element	3000W	1800W
Oven Fan Motor	20W	20W
Cooling Fan	11W	11W

CONNECTIONS

GAS CONNECTION

The gas connection is male 1/2" BSP and is situated 55mm from the right and 560mm from the floor.

Loosen the tie-in down and connect one terminal of the pipe with the gas elbow between 1-1.2m long.

The hose should not be subjected to abrasion, kinking or permanent deformation and should be able to be inspected along its entire length after installation.

Unions compatible with the hose fittings must be used and connections tested for gas leaks.

The flexible tube shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit (e.g. a drawer) and does not pass through any space susceptible of becoming congested.

The fixed consumer piping outlet should be at approximately the same height as the cooker connection point, pointing downwards and approximately 150mm to the side of the cooker.

The hose should be clear of the floor when the cooker is in the installed position.

Once the appliance has been installed, make sure that the gas pipe is neither squashed or damaged by moving parts.

Before switching the appliance on, check that it is correctly regulated for the type of gas available.

ADJUSTMENT TO DIFFERENT GAS TYPES

To perform the adjustments to different types of gas, the qualified installer shall follow the instructions given on this section.

Make sure that the gas supply pressure respects the values presented in the table "Burner and nozzle specifications" on page 18.

NATURAL GAS

This appliance leaves the factory set to operate using Natural Gas.

Make sure that the Natural Gas regulator supplied with the appliance is installed and, with the triple ring burner operating at its maximum, adjust the test point pressure to 1.0kPa.

UNIVERSAL LPG

To convert from Natural Gas to Universal LPG, ensure that the Natural Gas regulator is replaced by the Test Point Assembly supplied with the appliance. Adjust the test point pressure to 2.75kPa.

Illustration of a hand holding a container with a handle and a circular dial, no text or symbols present

Mechanical assembly diagram showing a central shaft and internal components (no text or labels)

To adapt the appliance to a gas different from that for which it was set up (see gas type label inside the warming compartment door) proceed as follows:

1. Remove the trivets
2. Remove the burners caps and diffusers
3. With a 7 mm socket spanner unscrew and remove the injectors.
4. Replace the injectors with those supplied corresponding to the gas available (see burner and injector characteristics table)
5. Replace the various parts proceeding in reverse.

CONNECTIONS

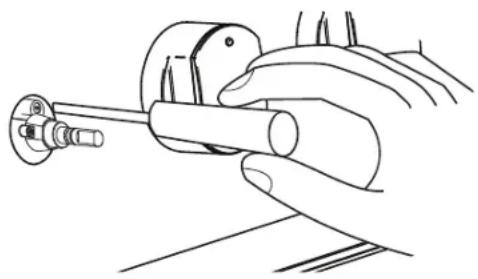

SETTING THE MINIMUM FLAME

The flame on the small output is regulated by the factory.

Line drawing of a hand holding a cylindrical tool with a knob, no text or symbols present

When the injectors have been replaced or there are special mains pressure conditions, it may be necessary to regulate the minimum flame again. The operations necessary to set the minimum flame are as follows:

1. Light the burner.
2. Turn the knob to the minimum position.
3. Take out the knob (and gasket if there is one).
4. LPG to NG: use a thin blade screwdriver to turn the bypass screw located above gas valve shaft as shown on the image above. Turn gently the bypass screw clockwise to the end completely then turn it anti-clockwise 1 turn for the triple ring, 3/4 turn for the rapid, 1/2 turn for the semi-rapid and 3/8 turn for the auxiliary.
5. NG to LPG: use a thin blade screwdriver to turn the bypass screw located above gas valve shaft as shown on the image above. Turn gently the by-pass screw clockwise to the end.

6. Put the knob back on and turn it quickly from the maximum position to the minimum position, checking that the flame does not go out.

7. For burners with safety valve make sure that the regulation obtained is sufficient to maintain heating of the thermocouple. If it is not, increase the minimum.

Before leaving check all connections for gas leaks with soap and water.

WARNING // Do not use a naked flame for detecting leaks.

Ignite all burners both individually and combined to ensure correct operation of gas valves, burners and ignition.

ABNORMAL OPERATION

If the appliance cannot be adjusted to perform correctly, it is an abnormal situation and you should contact the authorised service provider.

Any of the following are considered to be abnormal operation and may require servicing:

Yellow tipping of the burner flame.
Sooting up of utensils.
Burners not igniting properly.
Burners failing to remain alight.
Burners being extinguished by oven door.
Gas valves which are difficult to turn.

PRODUCT SPECIFICATIONS

BURNERS AND NOZZLE SPECIFICATIONS

Gas consumption - Nominal gas consumption measured in MJ/h as per tables below.

TFGT905XTFGC908XTFGC908B	Natural Gas Universal LPG
	Inj. diam.(mm)	MJ/h	Gas press(kPa)	Inj. diam.(mm)	MJ/h	Gas press(kPa)
Wok burner x 1 1.75 15	00 1.00 1.0	12.80 2.75
Rapid burner x 1 1.50 1	1.00 1.00 0.88	10.80 2.75
Semi-rapid burner x 2 1.16 6.60 1.00	0.68 6.30	2.75
Auxiliary burner x 1	0.88 3.80	1.00 0.53	3.80 2.75
Total NHGC	43.00			40.00
TFGC608X	Natural Gas Universal LPG
	Inj. diam.(mm)	MJ/h	Gas press(kPa)	Inj. diam.(mm)	MJ/h	Gas press(kPa)
Wok burner x 1 1.75 15	00 1.00 1.0	12.80 2.75
Semi-rapid burner x 2 1.16 6.60 1.00	0.68 6.30	2.75
Auxiliary burner x 1	0.88 3.80	1.00 0.53	3.80 2.75
Total NHGC	32.00			29.20

The appliance is supplied with a duplicate data plate, please attach to an adjacent surface for future reference.

ELECTRICAL SPECIFICATIONS

Model Voltage	Wattage
TFGT905X	220-240V~ 50-60Hz	3250-3550W
TFGC908X
TFGC908B
TFGC608X	220-240V~ 50-60Hz	2200-2560W

WARRANTY TERMS & CONDITIONS

These Terms and Conditions apply only to Tisira products distributed in Australia and New Zealand by Arisit Pty Limited.

1. This warranty applies for a period of 2 years parts and labour, Australia and New Zealand, commencing from date of purchase.
2. Evidence of the date of purchase must be shown to the technician, when he calls, to obtain benefit under this warranty.

3. This warranty applies only to the original purchaser/hire purchaser of this appliance and cannot be assigned or transferred. Failure to produce documentary proof of the date of original acquisition by the original purchaser will result in a charge being levied for work done, labour and parts supplied.

4. This warranty does not apply to:

a) Serviceable items such as filters, fuses, light bulbs, door seals, drive belts, external hoses, etc.
b) Damage to body work, paint work, glass, trivets and plastic items (such as, but not limited to windows, covers, baskets, trays, worktops, door handles, control and kick panels.)
c) Corrosion & rust damage.
d) Damages/blockages caused by laundry or foreign objects.

A fee for service will be charged following warranty claims where no fault is found with the appliance.

1. This warranty will not apply where:

a) The fault is caused by accident, misuse, oversuds, an infestation of vermin, fire, flood or the use of products not approved by Arisit Pty. Limited.
b) There has been a failure to comply, with the manufacturer's operating and installation instructions.
c) Service, modification or repair has been carried out by anybody other than an approved Tisira Service Technician.
d) The appliance has been used/installed anywhere other than a private dwelling, or where it has been used other than for domestic use.
e) The appliance is subject to a rental agreement.

1. Any defective part that has been replaced becomes the property of Arisit Pty Limited.

2. This warranty applies only to Tisira appliances purchased and installed in Australia and New Zealand.

3. Loss of use of the appliance or consequential loss of any nature is not covered.

4. A charge may be levied at the discretion of Arisit Pty Limited if the call is deemed unnecessary or if the cause of failure is traced to external sources such as, but not limited to: blown fuses, power failure, faulty installation, etc.

5. Where the appliance, the subject of a warranty claim or repair, is used or installed more than TWENTY [20] kilometres from the nearest

Arisit Service Division or Authorised Service Agent, the cost of delivery to the nearest Service Division or travel costs for a technician or Authorised Service Agent shall be for the account of the Purchaser. Where a built-in appliance is located or installed outside the Arisit Authorised Service Agent's normal service area, additional travel and labour costs shall be the account of the Purchaser

1. Arisit Pty Limited shall not under any circumstances be responsible in terms of this warranty for the replacement or repair of any part of the equipment which may have been damaged in transit, during and after installation or imperfections after installation.

2. Losses caused by act of God, failure to obtain spare parts, strikes or lockouts are not covered.

3. Service is offered during normal working hours only, also appliances to a have clear access in a serviceable area.

4. This warranty does not effect your statutory rights.

5. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

We reserve the right to amend any of the above without prior notice.

Registration Form

To register for your warranty please complete and return this form to Arisit Pty Limited within 30 days of purchase.

t tisira

Where did you first hear about Tisira?

Advertising Tradesman's Recommendation
☐ In Store Display ☐ Recommendation by Friend/Relative
☐ Other (please specify)....

Would you like any further information on other Tisira appliances? Please specify

□ Cooking

□ Dishwashers

□ Laundry

□ All

Please print in block letters

Date of Purchase / /

Name of Retailer

Address

Model Number

Serial Number

□ Mr □ Mrs □ Ms

Initials

Surname

Address

State Postcode

Telephone

CONTACT DETAILS

AUSTRALIA

ARISIT PTY LIMITED

40-44 Mark Anthony Drive, Dandenong South, VIC 3175, Australia

P // 1300 762 219

F // 03 9768 0838

[e-mail]

NEW ZEALAND

ARISIT PTY LIMITED

PO Box 68-140

Newton, Auckland 1145, New Zealand

P // 09 306 1020

F // 09 302 0077

[e-mail]

TISIRA IS COMMITTED TO ONGOING RESEARCH AND DEVELOPMENT, EVERY EFFORT HAS BEEN MADE TO ENSURE ALL INFORMATION IN THIS USER MANUAL IS CORRECT AT TIME OF GOING TO PRINT, DIMENSIONS SHOULD BE USED AS A REFERENCE ONLY AND ACTUAL DIMENSIONS SHOULD BE TAKEN FROM THE PHYSICAL PRODUCT ONLY.

MANUFACTURER RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE.

t tisira

Version 2.0

Solid dark gray image with no visible content, text, or symbols.
