DS-GTC-401-3 - Docking Station Havis - Free user manual and instructions

Product Type	Docking Station for Getac T800 Rugged Tablet
Model	DS-GTC-401-3
Brand	Havis
Dimensions (H x W x D)	8.1 in x 7.0 in x 3.5 in (20.7 cm x 17.8 cm x 8.9 cm)
Weight	1.6 lbs (0.75 kg)
Power Input	19.0 V DC via external certified power supply (Havis LPS-116 or equivalent)
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-51°C to 71°C (-60°F to 160°F)
Compatibility	Getac T800 Rugged Tablet
Port Replication	Full port replication capability
Antenna Pass-Through	Yes, for models DS-GTC-401-3, 402-3, 403-3 (3 antenna ports labeled A, B, C)
Locking Mechanism	Key lock for theft deterrence (2 keys included)
Mounting	Four M4 screws for secure installation
Included Accessories	Hardware kit: 4 zip ties, 2 keys, 5 M4x20mm pan head screws, 5 split lock washers, 5 M4 washers
Required Power Supply	Automotive grade, Getac approved 95W, 19V DC (Havis LPS-116 or equivalent)
Safety Warning	Do not mount in airbag deployment zone; do not dock/undock while tablet is powered on
Certification	CE marked, compliant with EN 50498 (Automotive EMC), RoHS
Manufacturer	Havis, Inc., 75 Jacksonville Road, Warminster, PA 18974 USA

Frequently Asked Questions - DS-GTC-401-3 Havis

What power supply do I need for the DS-GTC-401-3 docking station?

You must use a certified, automotive grade, Getac approved 95W power source rated for a continuous, regulated 19VDC output (Havis part number LPS-116 or equivalent). Do not connect directly to a vehicle voltage source.

Can I dock or undock the tablet while it is powered on?

No. Always power off the tablet before docking or undocking. Docking/undocking in ON, standby, hibernate, or sleep modes can cause permanent damage.

How do I install the docking station securely?

Use the included M4 x 0.7 x 20mm pan head screws, split lock washers, and flat washers. Torque screws to 20 in-lbs (2.3 Nm) ± 10%. Ensure the mounting surface is stable and avoid airbag deployment zones.

What antennas can be used with the DS-GTC-401-3?

The DS-GTC-401-3 model has three antenna pass-through ports labeled A, B, and C (downward facing on the rear). These allow connecting external antennas for improved cellular, GPS, or Wi-Fi reception.

How do I unlock and remove the tablet from the docking station?

First unlock using the supplied key. Then push down on the Barrel Lock button and release quickly. If the latch hook does not fully release, gently lift the front of the latch hook. Rock the tablet forward and lift out top end first.

What is the operating temperature range of the docking station?

The docking station operates from -20°C to 60°C (-4°F to 140°F). Storage range is -51°C to 71°C (-60°F to 160°F). Note that tablet battery charging only occurs between 0°C and 50°C (32°F to 122°F).

Can I use the docking station on a desk?

Yes. Havis offers an optional desktop stand (model DS-DA-218) for stable home or office use. The docking station itself can be mounted on a desk or in a vehicle.

What should I do if the tablet does not dock properly?

Do not force the tablet. Ensure the alignment sockets on the tablet align with the alignment posts on the docking station. If resistance is felt, check for obstructions and try again with the tablet powered off.

How do I clean the docking station?

Disconnect power before cleaning. Use a dry, soft cloth to wipe the exterior. Do not use liquids or solvents. Avoid cleaning near open ports to prevent moisture damage.

Where can I find replacement keys for the dock?

Havis sells replacement key sets under part number DS-DA-502, which includes two keys compatible with the DS-GTC-400 series docking stations.

USER MANUAL DS-GTC-401-3 Havis

Owner's Manual Havis Docking Station For Getac T800 Rugged Tablet

DS-GTC-400 Series

DS-GTC-401

DS-GTC-402

DS-GTC-403

DS-GTC-401-3

DS-GTC-402-3

DS-GTC-403-3

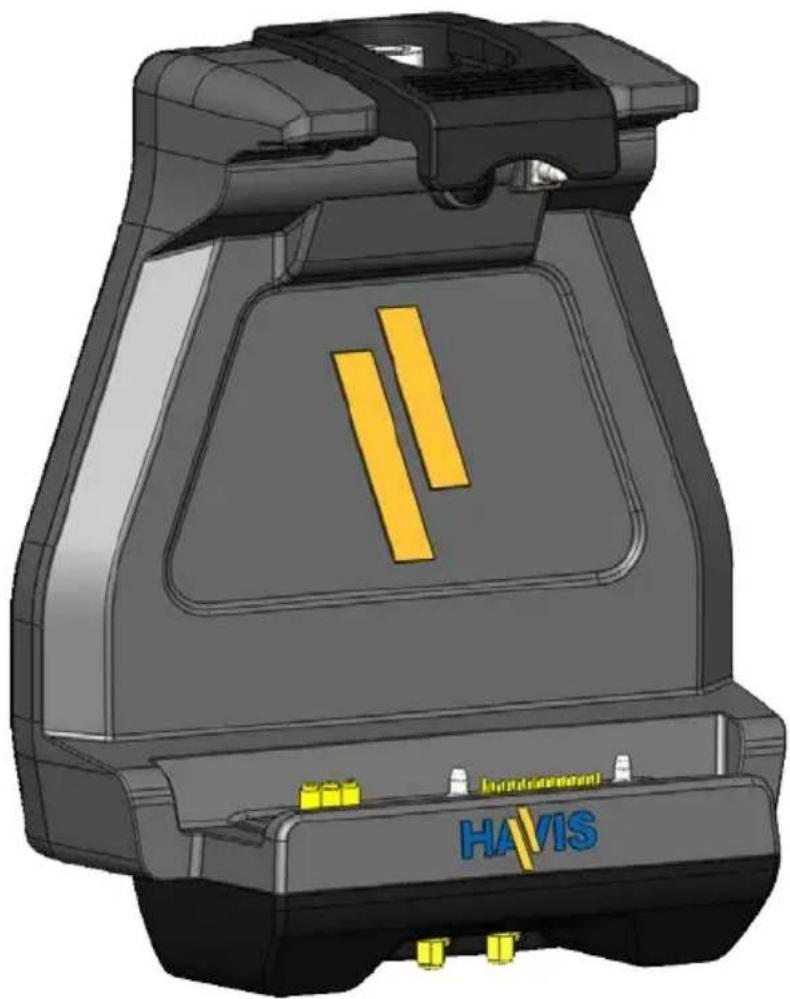

3D CAD model of a mechanical device with yellow and blue components, labeled 'HAVIS' and 'Intelligent', no readable text or symbols beyond branding.

Havis is pleased to provide this Owner's Manual to aid in the proper installation and use of the DS-GTC-400 Series Docking Station for the Getac T800 Rugged Tablet.

For questions regarding the set-up of your DS-GTC-400 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.

This Owner's Manual applies to the following Part Numbers:

DS-GTC-401

DS-GTC-402

DS-GTC-403

DS-GTC-401-3

DS-GTC-402-3

DS-GTC-403-3

WARNING

• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE AIRBAG DEPLOYMENT ZONE.
  • DO NOT USE COMPUTER WHILE DRIVING.

CAUTION

• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
• DO NOT DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF. DOCKING OR UNDOCKING WITH YOUR COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES CAN CAUSE PERMANENT DAMAGE.
• FOR THE DS-GTC-401, DS-GTC-401-3, DS-GTC-402 & DS-GTC-402-3 DOCKING STATIONS: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires a certified, automotive grade, Getac approved 95W power source rated for a continuous, regulated 19VDC output (Havis Part Number LPS-116 or equivalent). Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.
• FOR THE DS-GTC-403 & DS-GTC-403-3 DOCKING STATION: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Getac T800 tablet requires a certified, Getac approved power source rated for a continuous, regulated 19VDC output. Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.

NOTICE

• FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY (DS-GTC-402, DS-GTC-402-3) REFER TO THE SUPPLIED LIND POWER SUPPLY REFERENCE GUIDE.
- WHEN TABLET IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN 0°C to 50°C (32°F to 122°F). PLEASE REFER TO GETAC T800 OWNER'S MANUAL FOR MORE INFORMATION.

Table of Contents

Specifications 3

Parts Included 4

Port Replication Capability 5

Antenna Identification....5

Installation 6

Cable Management 7

Operation - Docking 8

Operation - Undoing 10

Precautions

• Do not place metal objects or containers of liquid on top of the Docking Station
• If a malfunction occurs, immediately unplug the Power Supply and remove the laptop
• Use only the specified Power Supply (Part # LPS-116) with this Docking Station
• Do not store the Docking Station where water, moisture, steam, dust, etc. are present
• Do not connect cables into ports other than what they are specified for
• Do not leave the Docking Station in a high temperature environment (greater than 85°C, 185°F) for a long period of time

Specifications

Power Supply Input 19.0V DC-In
Dimensions 8.1” (20.7 cm)	H x 7.0” (17.8 cm) W x 3.5” (8.9 cm) D
Weight 1.6 lbs (0.75 kg)
Operating Environment -20°C to 60°C (-4°F to 140°F)
Storage Environment -51°C to 71°C (-60°F to 160°F)

EC DECLARATION OF CONFORMITY in accordance with EN 50498

Manufacturers Name: Havis, Inc.

Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA

Declares under our sole responsibility that the product:

Product name: Havis Docking Station For Getac T800 Fully Rugged Tablet
Model: DS-GTC-40X, where 'X' may be any alphanumeric character and which describes product options.
May be followed by any alphanumeric characters which describe product options.
Product Options: This declaration covers all options of the above product which bear the CE Marking.

Is in conformity with the following standards or other normative documents:

Automotive EMC Directive EN 50498:2010, Electromagnetic compatibility (EMC) - 2004/108/EC: Product family standard for aftermarket electronic equipment in vehicles Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)

Supplementary Information:

The product herewith complies with the requirements of the Automotive EMC Directive 2004/108/EC, Annex I, 6.5, 6.6, 6.8, and 6.9. This product requires the use of a recommended e-Marked automotive power supply when used within vehicles.

Plymouth twp, MI, USA August 21, 2014 Bruce Jonik, Director of Engineering, Havis, Inc.

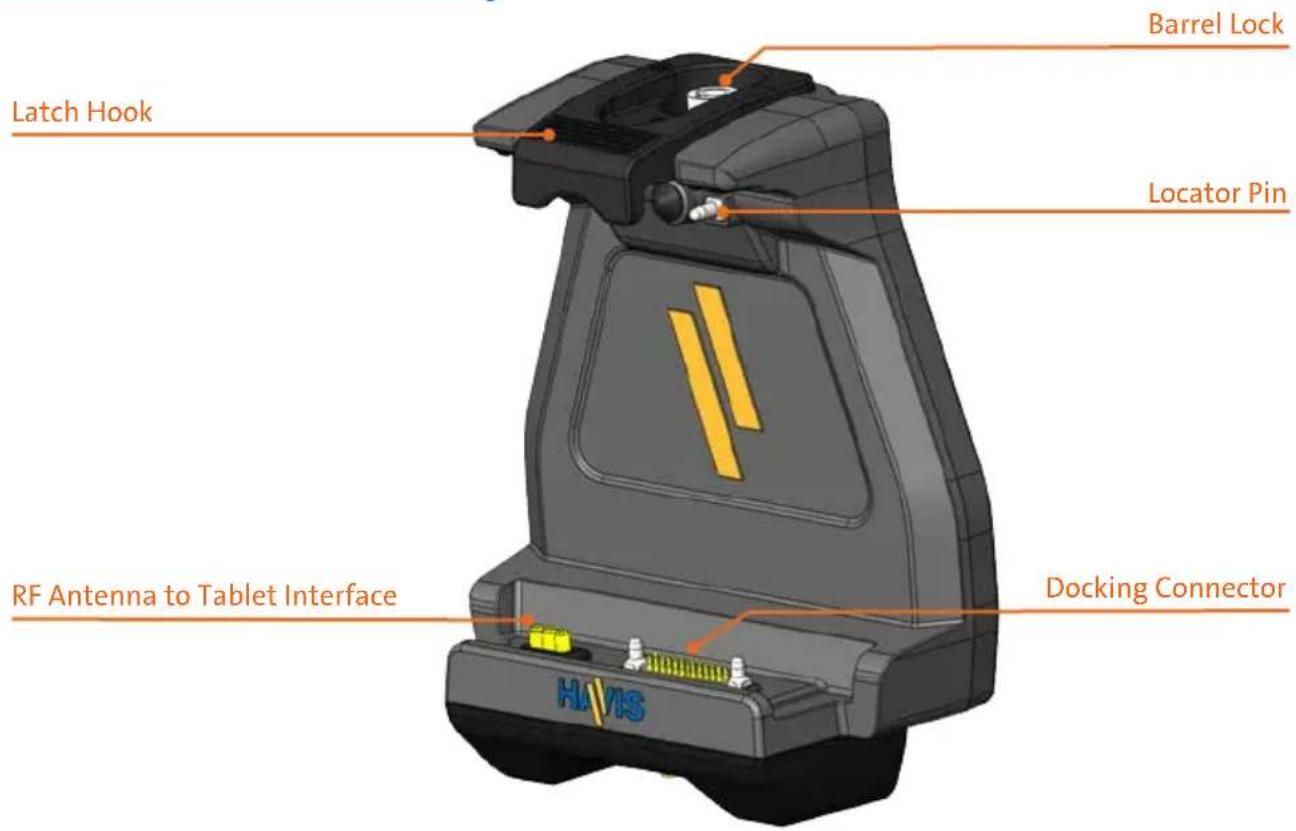

Docking Station

Hardware Kit

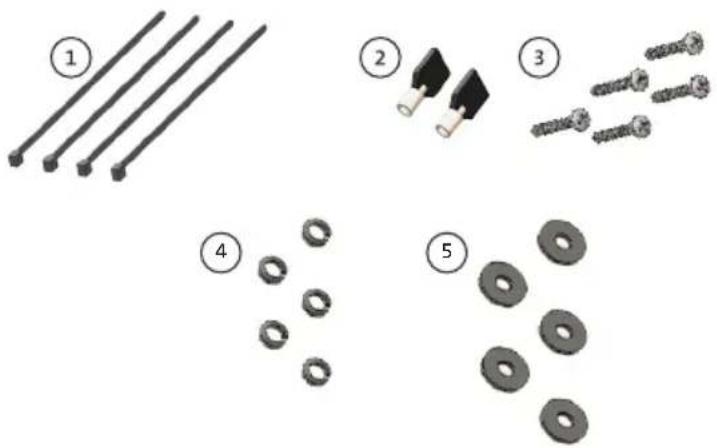

This Hardware Kit includes:

1. Zip Ties (4)
2. Keys (2)
3. M4 x 0.7 x 20mm long Pan Head Screws (5)
4. Split Lock Washers (5)
5. Washers, M4 (5)

Tools required for installation:

- #2 Phillips

(For M4 Pan Head Screws)

Illustration of five different types of electrical connectors and components, including wires, batteries, screws, washers, and washers (no text or symbols present)

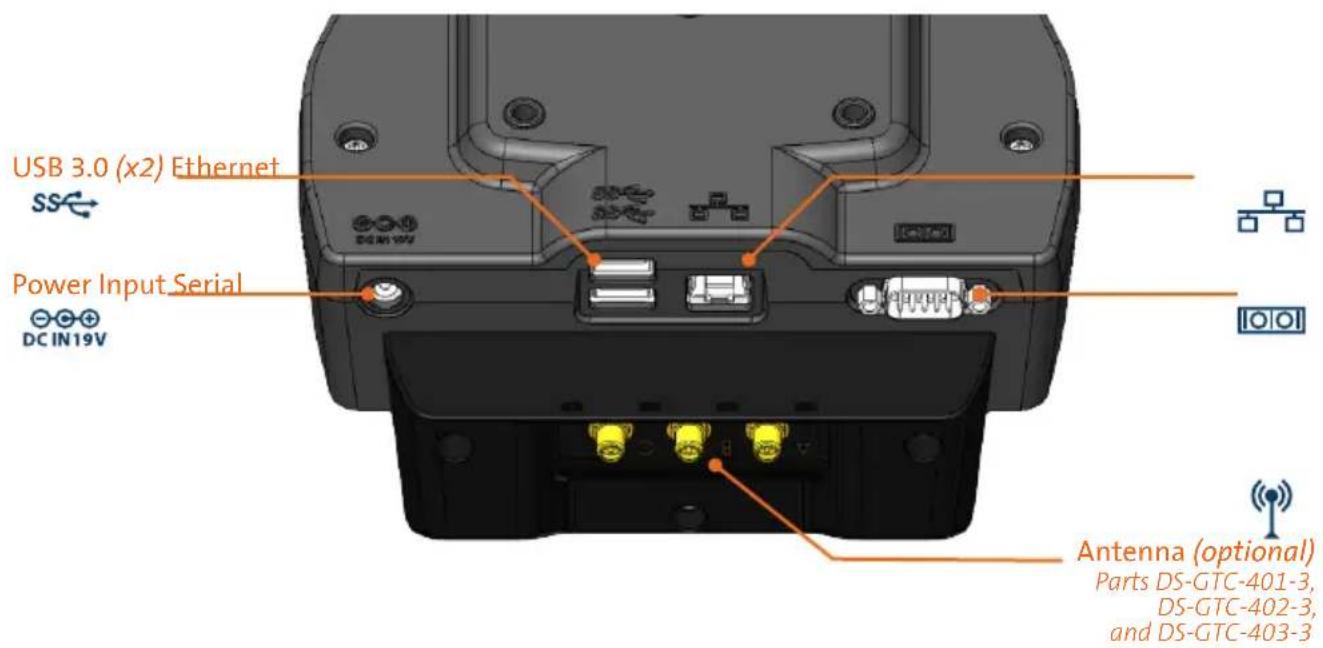

Port Replication Capability

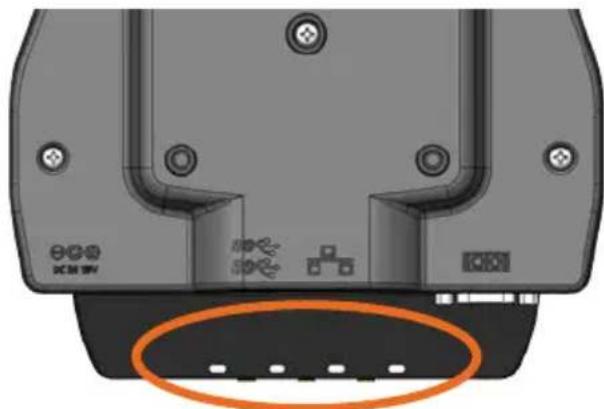

Antenna Identification (DS-GTC-401-3, DS-GTC-402-3, & DS-GTC-403-3)

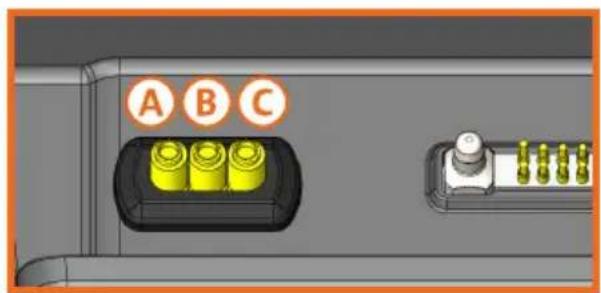

Close-up of a black electronic device rear panel with three gold connector ports labeled A, B, and C (no additional text or symbols visible)

Tablet InterfaceDownward Facing Antenn

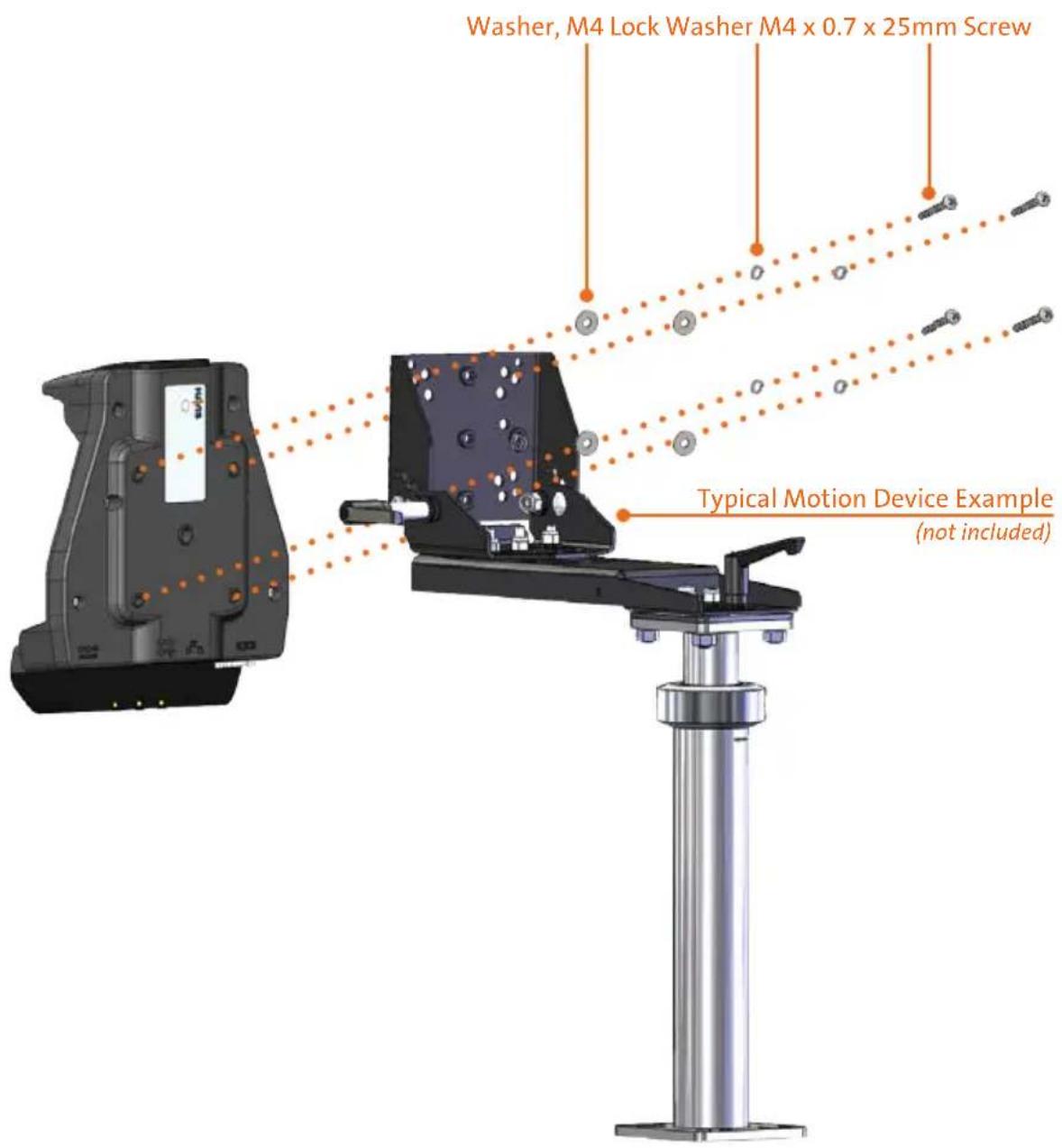

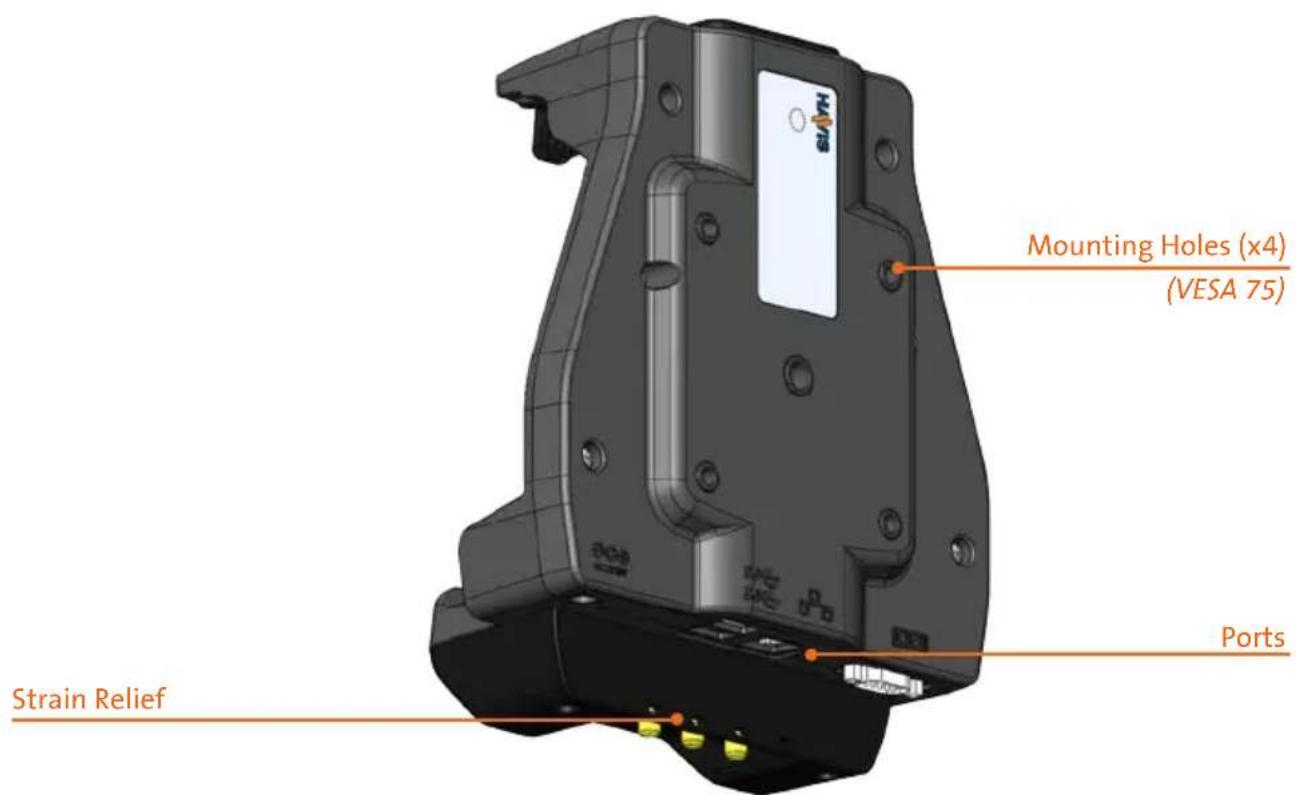

1) Install the Docking Station to the Motion Device using four (4) M4 x 0.7 x 20mm long Pan Head Screws (Hardware Kit Item 3), four (4) Split Lock Washers (Hardware Kit Item 4), and four (4) Washers, M4 (Hardware Kit Item 5). Torque screws to 20 in-lbs (2.3Nm) ± 10%.

1) Tip the Docking Station to a position that is comfortable to work with.
2) Install all cables that are necessary for computing needs.
3) Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points on the bottom of the Docking Station to secure cables and reduce risk of accidental disconnects.

Top-down view of a mechanical component with mounting holes and a highlighted circular feature (no text or symbols)

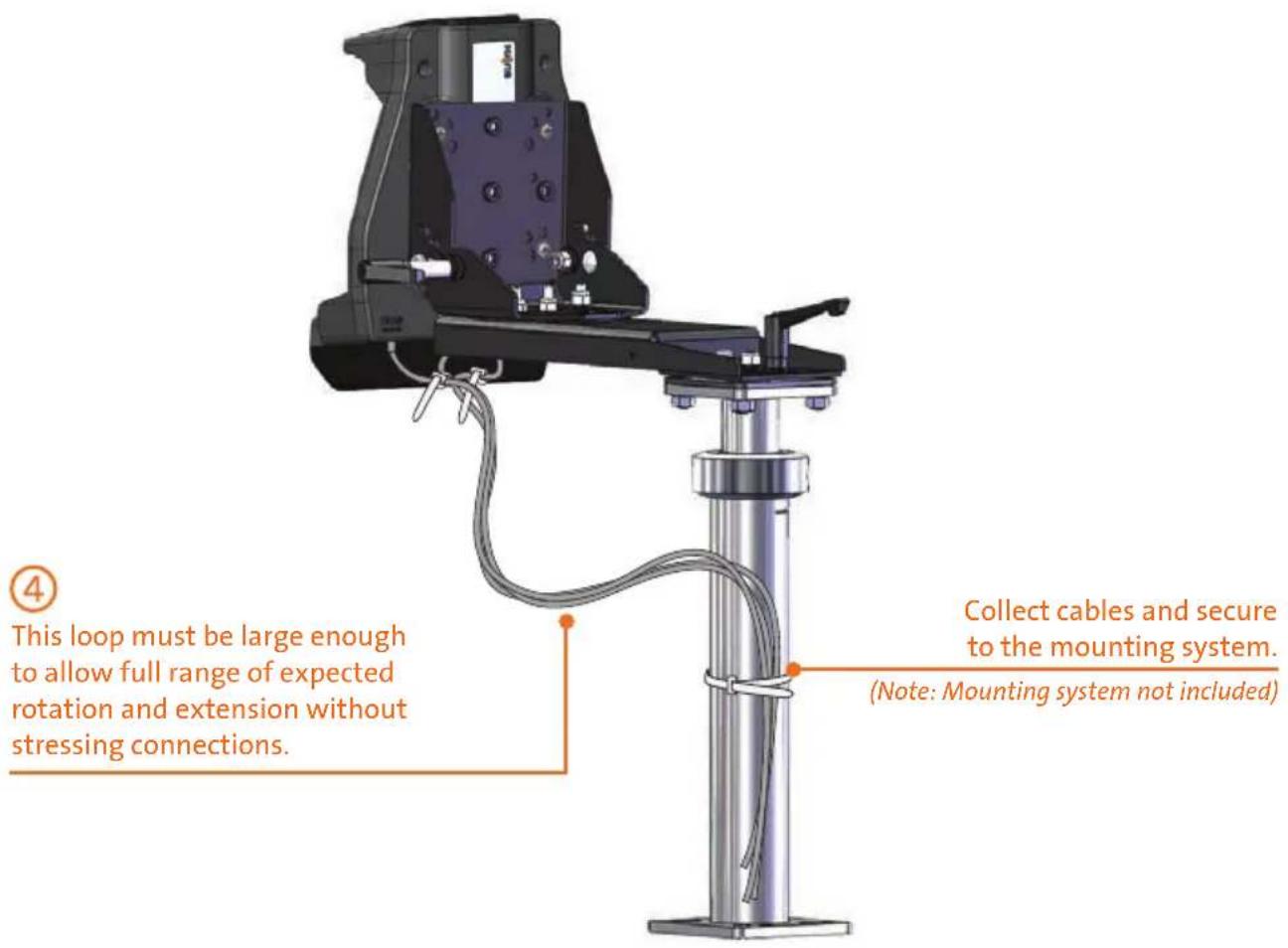

4) Create a service loop with cables to ensure that no tension is on the connectors and to enable intended motion.
5) Tie off cables onto a stationary part of the mounting system.

CAUTION

DO NOT FORCE TABLET ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK ALIGNMENT OF TABLET ON DOCKING STATION.

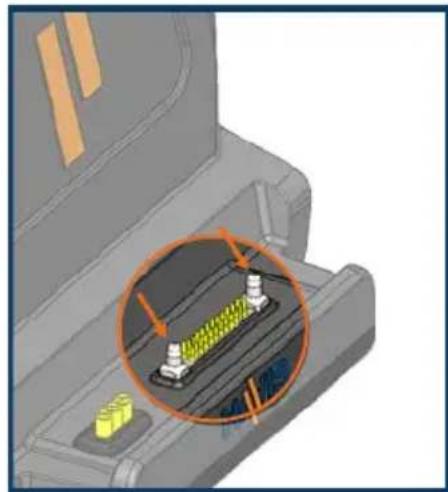

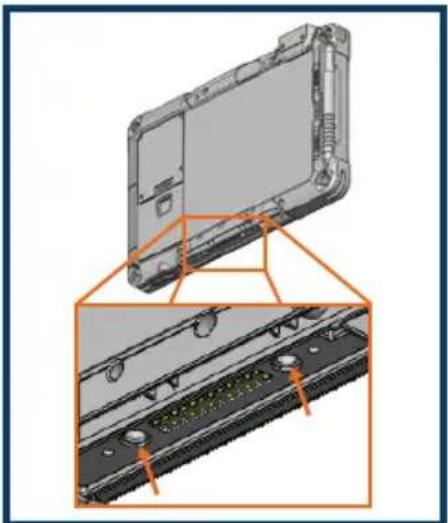

NOTE: Ensure a proper connection by aligning the tablet's Alignment Sockets with the Docking Station's Alignment Posts

3D mechanical component diagram showing internal structure with highlighted section (no text or symbols)

Alignment Posts
DS-GTC-400 Series Docking Station

3D CAD model of a laptop with an orange zoomed-in section showing internal components (no text or symbols visible)

Alignment Sockets
Bottom of Getac T800 Rugged Tablet

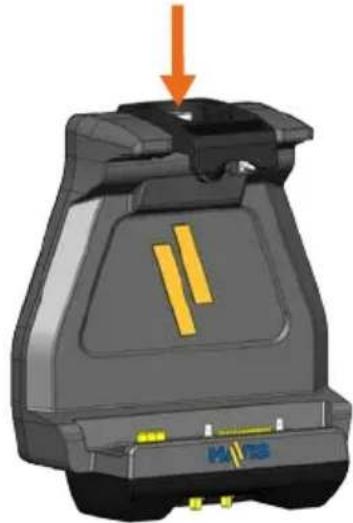

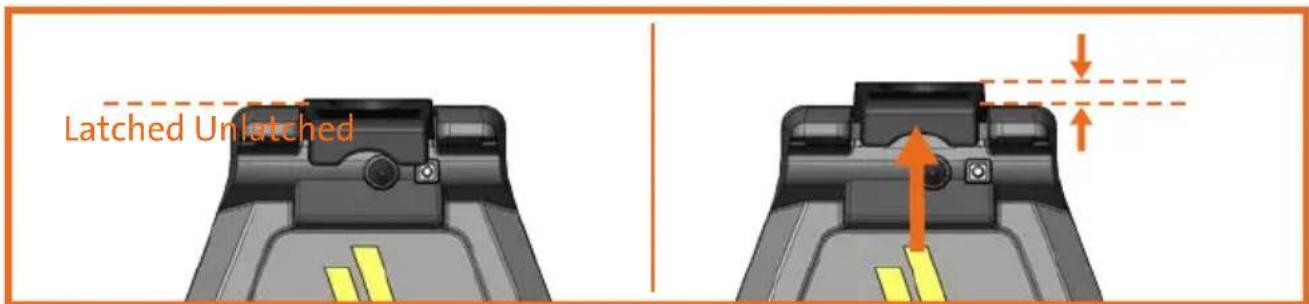

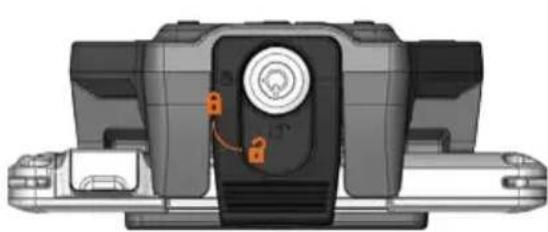

1) Docking Station must be unlatched before docking your tablet. Push down on the Barrel Lock button and release slowly. Without a tablet present you may have to lift up lightly on the front of the Latch Hook to fully release.

3D model of a mechanical device with orange arrow indicating downward motion (no text or symbols)

2) Hold tablet in landscape orientation, with bottom mounted docking connector angled toward Docking Station. Lower tablet into the bottom of the Docking Station.

3D diagram of a device interior showing internal components and an orange arrow indicating flow or movement (no text or symbols)

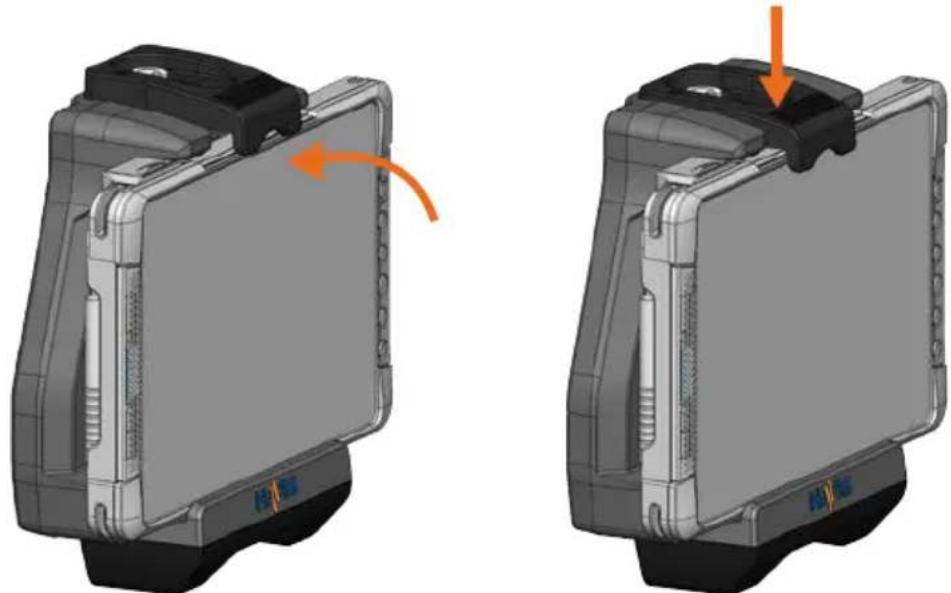

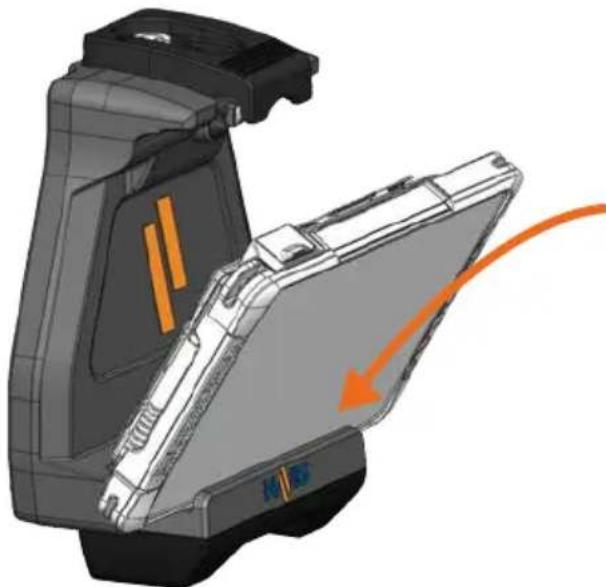

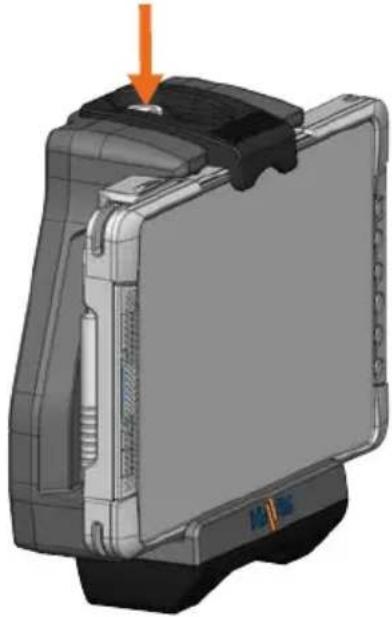

3) Pivot tablet so the top aligns with the Locator Pin at the top of the Docking Station. Depress the Latch Handle to secure tablet in place. You will hear an audible click when Latch Hook is fully engaged.

3D mechanical component diagrams showing a device with orange arrows indicating rotation or movement (no text or symbols)

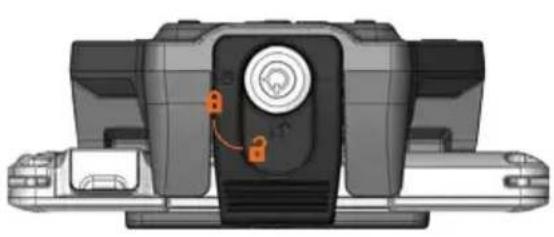

4) For theft deterrence, secure tablet by locking Docking Station with supplied key (Hardware Kit Item 2).

3D mechanical component diagram showing a central knob with orange control buttons (no text or symbols)

Close-up of a black mechanical component with a circular dial and orange arrows indicating rotation or adjustment (no text or symbols)

1) If previously locked, unlock Docking Station using supplied key.

3D mechanical component diagram showing internal components with orange arrows indicating flow or movement (no text or symbols)

Close-up of a mechanical component with orange arrows indicating rotation or adjustment (no text or symbols visible)

2) Secure tablet to avoid inadvertent ejection from Docking Station. Push down on the Barrel Lock button and release quickly taking care not to obstruct the travel of the Latch Hook. If the Latch Hook does not extend fully to its unlatched position, lift up lightly on the front of the Latch Hook to fully release.

3D model of a mechanical device with an orange arrow pointing to a component (no visible text or symbols)

3D mechanical component diagram showing a device with an orange arrow indicating upward motion (no text or symbols present)

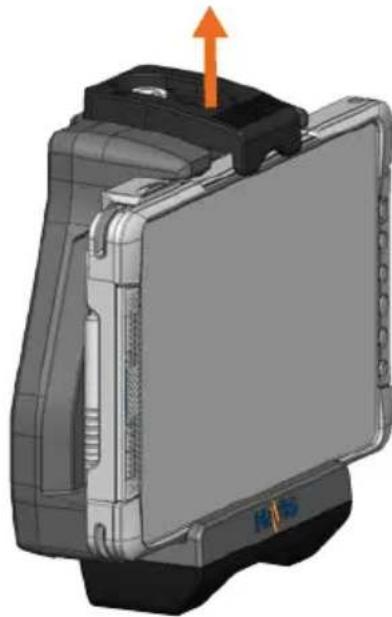

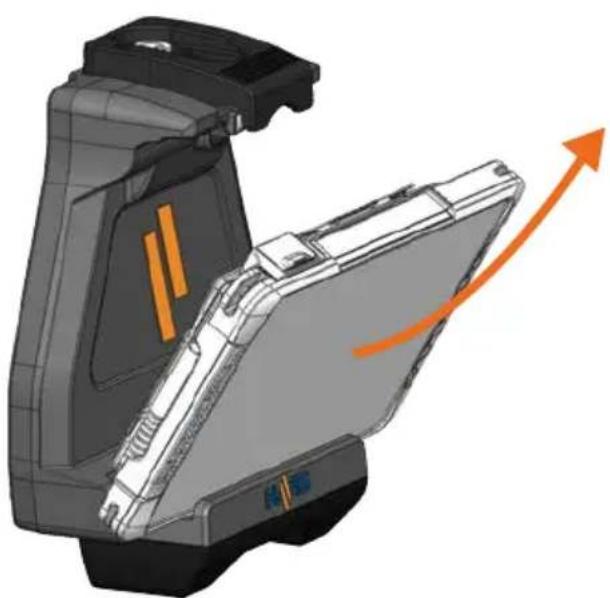

3) Once unlatched grab both sides of tablet, rock the top forward and carefully lift out of Docking Station, top end first.

3D mechanical assembly diagram showing internal components and an orange arrow indicating direction (no text or symbols)

Havis offers a wide variety of accessory products specifically for use with the DS-GTC-400 Series Docking Station. For more information or to order, please visit www.havis.com.

Black electronic device with two cables and a power adapter, no visible text or symbols

LPS-116

95W Power Supply

External in-vehicle power supply and cable for Getac T800 Rugged Tablet with cigarette lighter adaptor.

Metal bracket with four circular holes, isolated on white background (no text or symbols)

DS-DA-218

Desktop Stand for Tablet Docking Stations

Durable stand for mounting tablet Docking Stations for use in the home or office.

Close-up of a metallic key with a handle and circular base (no text or symbols visible)

DS-DA-502

Replacement Keys

Set of two (2) replacement keys for DS-GTC-400

Series Docking Stations.

Havis, Inc.

75 Jacksonville Road

Warminster, PA 18974

www.havis.com 1-800-524-9900
