USER MANUAL AAW-06CR1FHUE Admiral

Front view of an Air Conditioner with ventilation grilles and a digital display (no text or symbols visible)

Remote control

AAW-05CR1FHUE AAW-06CR1FHUE

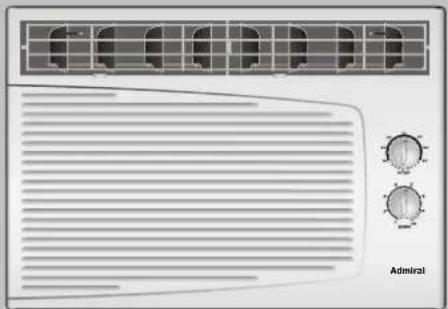

Mechanical control

AAW-05CM1FHUE AAW-06CM1FHUE

Front view of an air conditioner unit with solar panels and a 'Admiral' label (no other text or symbols)

Thank you very much for purchasing an Admiral air conditioner. Please read this Use and Care Manual carefully before installing and using this appliance. Keep this manual for future reference.

Parts Identification 2

Electrical Specifications 4

Tips Before Installation 5

Installation Instructions 6

Operating Instructions 9

Care and Maintenance 13

Trouble Shooting Guide 14

Warranty 15

í ndice

Página

Introducción 16

Thank you for choosing this room air conditioner to cool your home. This USE AND CARE MANUAL provides information necessary for the proper care and maintenance of your new room air conditioner. If properly maintained, your air conditioner will give you many years of trouble free operation. To avoid installation difficulties, read instructions completely before starting. This manual contains information for the installation and operation of your room air conditioner.

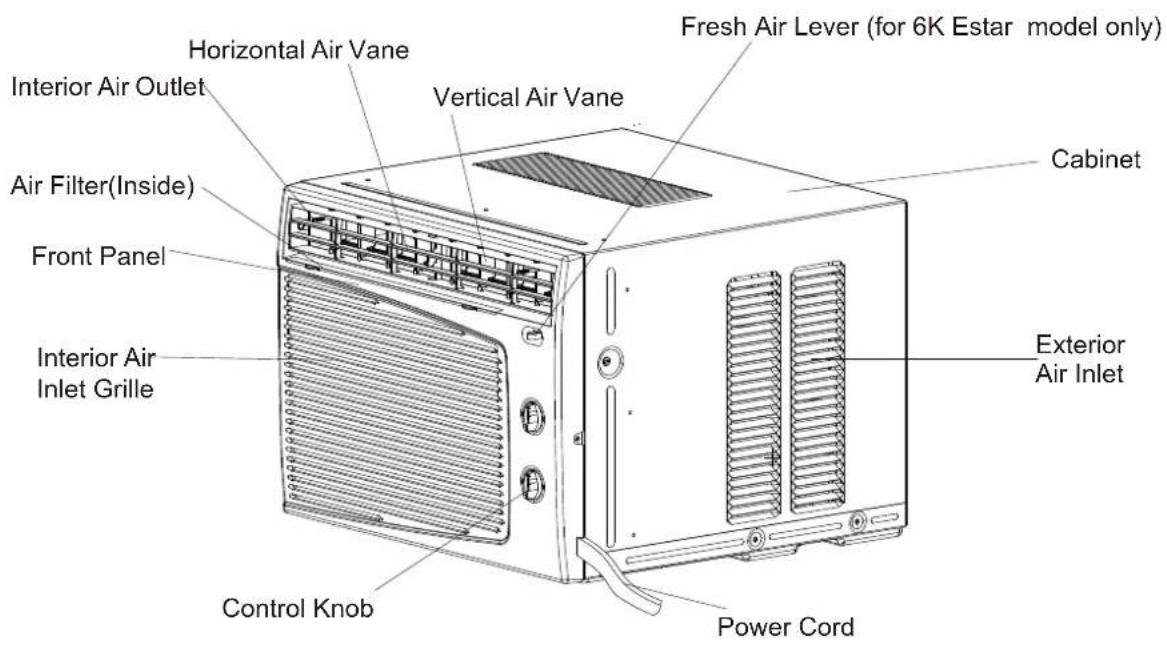

Part Identification

▶ Mechanical control model

Horizontal Air Vane Interior Air Outlet Air Filter(Inside) Front Panel Interior Air Inlet Grille Control Knob Power Cord Cabinet Vertical Air Vane Fresh Air Lever (for 6K Estar model only)

Note: The figures in this manual are based on the external view of a standard model. Consequently, the shape may differ from that of the air conditioner you have selected.

Introduction

Part Identification

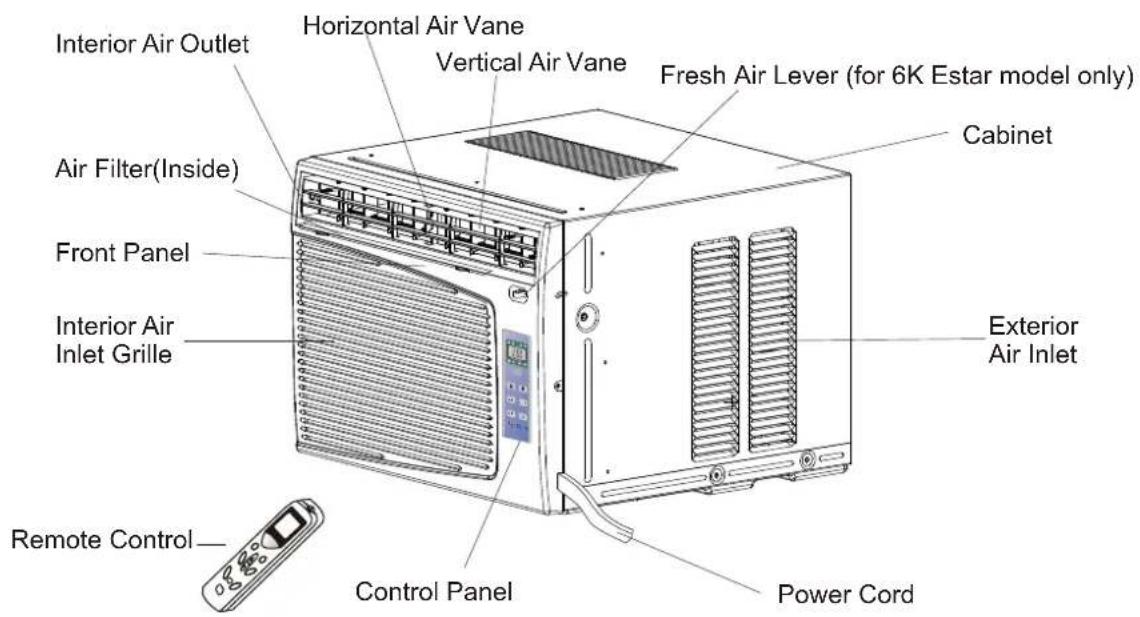

▶ Remote control model

Interior Air Outlet Horizontal Air Vane Vertical Air Vane Fresh Air Lever (for 6K Estar model only) Cabinet Air Filter(Inside) Front Panel Interior Air Inlet Grille Exterior Air Inlet Remote Control— Control Panel Power Cord

Control Panel

2.6°F h Airconditioner

Remote Control

2.6°F Vcc High Low Low High Power

Note:

The figures in this manual are based on the external view of a standard model. Consequently, the shape may differ from that of the air conditioner you have selected.

Electrical specifications

1. All wiring must comply with local and national electrical codes and must be installed by a licenced electrician. Once you have any questions regarding the following instructions, contact a licenced electrician.
2. Check available power supply and resolve any wiring problems BEFORE installing and operating this unit.
3. For your safety and protection, this unit is grounded through the power cord when plugged into a matching wall outlet. If you are not sure whether your wall outlet is properly grounded, please consult a licenced electrician.
4. The wall outlet(3-pin) must match the plug (3-pin) on the power cord supplied with the unit. DO NOT use plug adapters or extension cords. See (Table 1) for receptacle and fuse information.

Electric Shock Hazard

If the air conditioner has a serial plate rating of 115 volts and up to and including 7.5 amps the unit maybe on a fuse or circuit breaker with other devices. However, the maximum amps of all devices on that fuse or circuit breaker can not exceed the amps of the fuse of circuit breaker.

If the air conditioner has a serial plate rating of 115 volts and greater than 7.5 amps it must have its own fuse or circuit breaker, and no other device or unit should be operated on the fuse or circuit breaker.

To avoid the possibility of personal injury, disconnect the power to the unit before installing or servicing.

1. The rating plate on the unit contains electrical and other technical data. The rating plate is located on the right side of the unit.

RECEPTACLE AND FUSE TYPES
COOLING CAPACITY	5K.6K
RATED VOLTS	125
AMPS	15
WALL OUTLET	[CG4]
FUSE SIZE	15
Time Delay Fuse (or circuit breaker)	Plug type

Note: 5K including models

AAW-05CR1FHUE AAW-05CM1FHUE

Table 1

6K including models

AAW-06CR1FHUE AAW-06CM1FHUE

Tips before installation

Your Room Air Conditioner unit is designed to be highly efficient and save energy. Follow these recommendations for greater efficiency.

1. Select the thermostat setting that suits your comfort needs and leave the thermostat at that chosen setting.
2. The air filter is very efficient in removing airborne particles. Keep the air filter clean. Normally, the filter should be cleaned once a month. More frequent cleaning may be necessary depending on outdoor and indoor air quality.
3. Use drapes, curtains, or shades to keep direct sunlight from heating your room, but DO NOT obstruct the air conditioner. Allow air to circulate around the unit without obstructions.
4. Start your air conditioner before outdoor air becomes hot and uncomfortable. This avoids an initial period of discomfort while the unit is cooling off the room.
5. When outdoor temperature is cool enough, use HIGH or LOW FAN only. This circulates indoor air, providing some cooling comfort, and utilizes less electricity than when operating on a cooling setting.

Your Room Air Conditioner was designed for easy installation in a single or double-hung window. NOTE: This unit is NOT designed for vertical (slider type) windows.

CAUTION

To avoid installation/operating difficulties, read the instructions thoroughly.

NOTE: Save the shipping carton and packing materials for future storage or transport of the unit. Please check the contents of the hardware kit against the corresponding model check list, prior to installation of the unit.

See lists below.(Fig.1)

Installation Hardware

3/4"Screws (12)

2/5"Screws (8)

Top Channel(1) factory installed

L Bracket(2)

Seal(1)

Foam(1)

Tools Needed for Window Installation

Screw drivers: Both Philips and flat head

Power drill: 1/8 inch diameter drill bit Pencil

Measuring tape

Scissors

Carpenters level

Installation instructions

CAUTION

Because the compressor is located on the controls side of the unit (right side), this side will be heavier and more awkward to manipulate. Inadequate support on the control side of the unit can result in personal injury and damage to your unit and property. Therefore, it is recommended to have someone assist you during the installation of this unit.

F. Your unit was designed to evaporate condensation under normal conditions. However, under extreme humidity conditions, excess condensation may cause base pan to overflow to the outside.

The unit should be installed where condensation run-off cannot drip on pedestrians or neighboring properties.

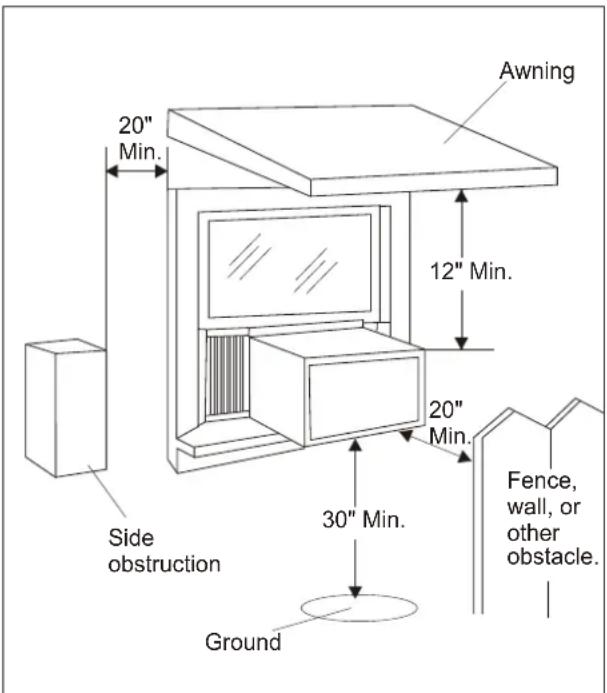

1. Select the Best Location

A. Your room air conditioner was designed to fit easily into a single or double hung window. However, since window designs vary, it may be necessary to make some modifications for safe and proper installation.

B. Make sure the window and frame are structurally sound and free from dry and rotted wood.

C. For maximum efficiency, install the air conditioner on the side of the house or building which favors more shade than sunlight. If the unit is in direct sunlight, it is advisable to provide an awning over the unit.

D. Provide sufficient clearance around the cabinet to allow for ample air circulation through the unit. See (Fig.2). The rear of the unit should be outdoors and not in a garage nor inside of a building. Keep unit as far away as possible from obstacles and obstructions and at least 30" above the floor or ground. Curtains and other objects within a room should be prevented from blocking the air flow.

E. Be certain the proper electrical outlet is within reach of the installation. Use only a single outlet circuit rated at 15 amps. All wiring should be in accordance with local and national electrical codes.

20" Min. Awning 12" Min. 20" Min. 30" Min. Fence, wall, or other obstacle. Ground

Fig.2

Window opening requirements (see table below)

SizeSize\Model	Model 5K	6K
Cabinet size (W*H*D)	17.7" *12.4" *15.7"	17875" *12347" *1517.7"
Min. Window opening	21" 21"	22" 22"
Max. Window opening	35" 35"	36" 36"

18.5" *13.7" *

Installation instructions

Window installation step

1. If your air conditioner cabinet 18" wide, it will fit window openings 21" to 32" in wide. Minimum opening height is 14" from bottom of sash to sill (Fig. 1).

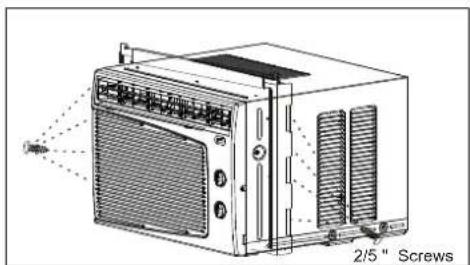

2. Insert the guide panels into the guides of the air conditioner. Fasten the curtains to the unit with screws (Fig. 2).

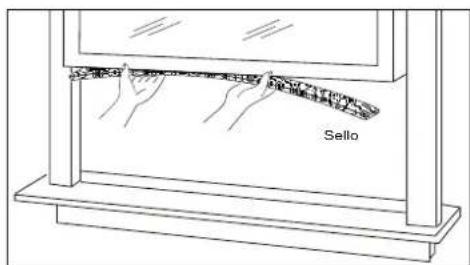

3. Cut the adhesive-backed seal strip to match the window width. Remove the backing from the seal strip and attach the seal strip to the underside of the bottom window. (Fig. 3)

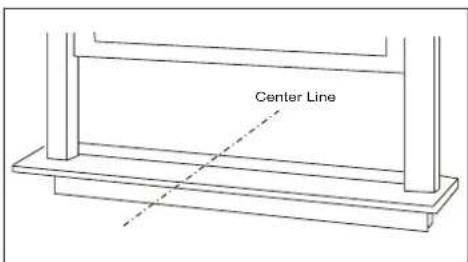

4. Measure the inside window sill width and find the center line as shown in Fig. 4.

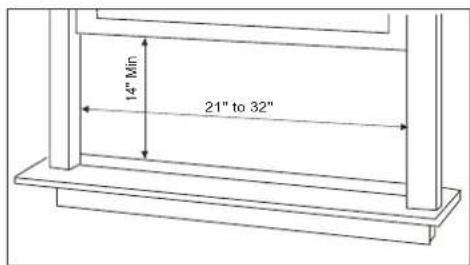

14" Min 21" to 32"

Fig. 1

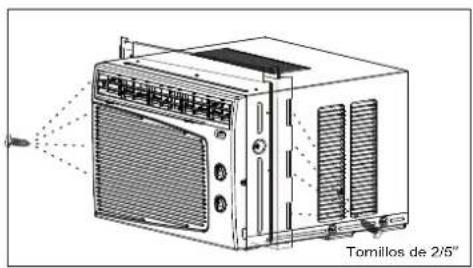

Technical line drawing of a 2/5" screw assembly with no visible text or symbols

Fig. 2

Seal

Fig. 3

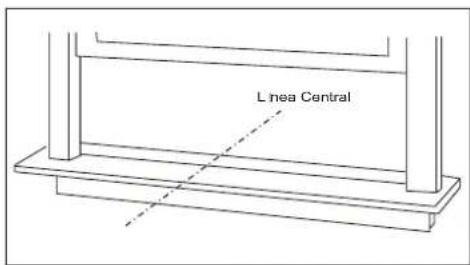

Center Line

Fig. 4

Installation instructions

1. Install the L brackets on the outer sill with the short side of the bracket against the back of the inner sill. Install one L bracket 7.5" to each side of the center line. See Fig. 5.

2. Carefully lift the air conditioner and slide it into the open window. Make sure the bottom guide of the air conditioner drops into the notches of the L brackets. When the air conditioner drops into the L brackets, the air conditioner will be centered in the window opening as show in Fig. 6.

While steadying the air conditioner, carefully bring the window sash down behind the top channel of the air conditioner, as shown in Fig. 7.

First, fix both sides onto the window sill with two 3/4" screws and one 2/5"screw (which is unscrewed from each side of the unit). Then fix top channel to window sash with one 3/4"screw and fix side curtain frames with four 3/4"screws as shown in Fig.6.

1. If storm window presents interference, fasten a 2" wide wood strip to the inner window sill across the full width of the sill. The wood strip should be thick enough to raise the height of the window sill so that the unit can be installed without interference from the storm window frame, as show in Fig. 8.

Top of wood strip should be approximately 3/4" higher than the storm window frame to help condensation to drain properly to the outside..

Install a second wood strip (approximately 6" long by 11/2"wide and same thickness as first strip) in the center of the outer sill flush against the back of the inner sill.

Screw the L brackets into this strip.

This will raise the L bracket as shown in Fig. 8.

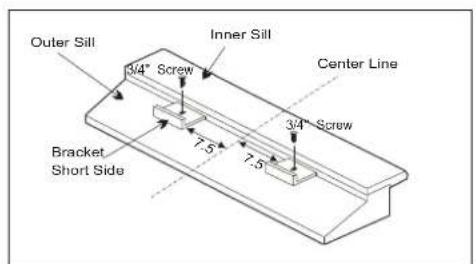

Outer Sill Inner Sill Center Line 3/4" Screw 3/4" Screw 7.5 7.5 Bracket Short Side

Fig. 5

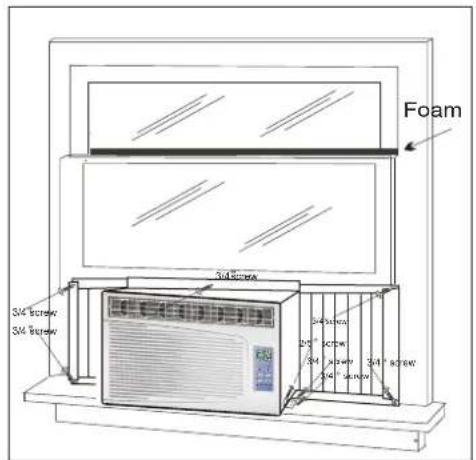

Foam 3/4 Screw 3/4 Screw 3/4 Screw 20" x 1/4" 20" x 2/4" 20" x 3/4" 3/4" x 4/4" 3/4" x 5/4" 3/4" x 6/4" 3/4" x 7/4" 3/4" x 8/4" 3/4" x 9/4" 3/4" x 10/4" 3/4" x 11/4" 3/4" x 12/4" 3/4" x 13/4" 3/4" x 14/4" 3/4" x 15/4" 3/4" x 16/4" 3/4" x 17/4" 3/4" x 18/4" 3/4" x 19/4" 3/4" x 20/4" 3/4" x 21/4" 3/4" x 22/4" 3/4" x 23/4" 3/4" x 24/4" 3/4" x 25/4" 3/4" x 26/4" 3/4" x 27/4" 3/4" x 28/4" 3/4" x 29/4" 3/4" x 30/4" 3/4" x 31/4" 3/4" x 32/4" 3/4" x 33/4" 3/4" x 34/4" 3/4" x 35/4" 3/4" x 36/4" 3/4" x 37/4" 3/4" x 38/4" 3/4" x 39/4" 3/4" x 40/4" 3/4" x 41/4" 3/4" x 42/4" 3/4" x 43/4" 3/4" x 44/4" 3/4" x 45/4" 3/4" x 46/4" 3/4" x 47/4" 3/4" x 48/4" 3/4" x 49/4" 3/4" x 50/4" 3/4" x 51/4" 3/4" x 52/4" 3/4" x 53/4" 3/4" x 54/4" 3/4" x 55/4" 3/4" x 56/4" 3/4" x 57/4" 3/4" x 58/4" 3/4" x 59/4" 3/4" x 60/4" 3/4" x 61/4" 3/4" x 62/4" 3/4" x 63/4" 3/4" x 64/4" 3/4" x 65/4" 3/4" x 66/4" 3/4" x 67/4" 3/4" x 68/4" 3/4" x 69/4" 3/4" x 70/4" 3/4" x 71/4" 3/4" x 72/4" 3/4" x 73/4" 3/4" x 74/4" 3/4" x 75/4" 3/4" x 76/4" 3/4" x 77/4" 3/4" x 78/4" 3/4" x 79/4" 3/4" x 80/4" 3/4" x 81/4" 3/4" x 82/4" 3/4" x 83/4" 3/4" x 84/4" 3/4" x 85/4" 3/4" x 86/4" 3/4" x 87/4" 3/4" x 88/4" 3/4" x 89/4" 3/4" x 90/4" 3/4" x 91/4" 3/4" x 92/4" 3/4" x 93/4" 3/4" x 94/4" 3/4" x 95/4" 3/4" x 96/4" 3/4" x 97/4" 3/4" x 98/4" 3/4" x 99/4" 3 / 1 / (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x) (x)

Fig. 6

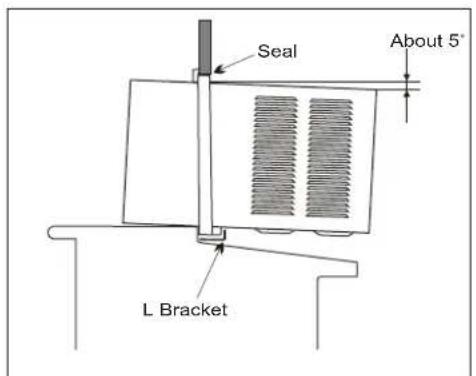

Seal About 5° L Bracket

Fig.7

Inner sill 3/4" Clearance Storm window frame

Fig.8

Operating Instructions

▶ Mechanical control model

MODE

The mode knob controls fan speeds and cooling speeds. To set desired cooling temperature, simply rotate the mode knob dial to the appropriate setting. See Fig. 9.

THERMOSTAT

The thermostat automatically controls the cooling cycle (compressor) of the air conditioner to maintain room temperature. However, the fan motor will continue to operate after the compressor (cooling cycle) is completed. See Fig.9.

LOW FAN will circulate the air at a minimum speed without cooling.

HIGH FAN will circulate the air at a maximum speed without cooling.

LOW COOL provides cooling, automatically with minimum air circulation. Recommended for nighttime use.

HIGH COOL provides cooling, automatically with quick cooling or for extremely hot days. Once room is cooled, reduce setting to LOW COOL.

OFF will completely shut-off the unit.

NOTE: After setting the mode, allow 3 minutes before switching to another mode.

Fresh Air Ventilation is usually kept in the closed position. Use only when clearing smoke and/or odors from the room. Pull to open. (See Fig.10).

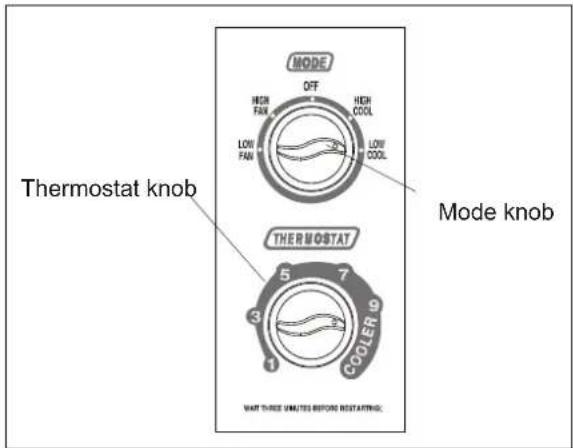

MODE OFF HIGH COOL FAN LOW COOL LOW FAN Low FAN Thermostat knob Mode knob THERMOSTAT 5 7 3 1 COOLER 10 WART THREE UNLIMITED BEFORE RESTARTING:

Fig.9

CAUTION

When using FAN control, turn slowly allowing unit to adjust.

When using THERMOSTAT, be sure to allow three minutes before changing temperature. Adjusting too quickly may cause an overload resulting in a blown fuse.

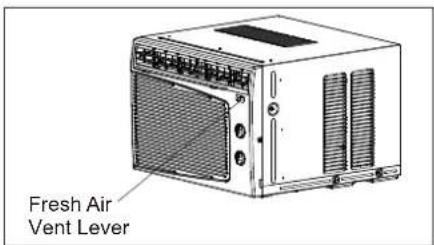

Fresh Air Vent Lever

Fig.10

Operating Instructions

▶ Control Panel

You can easily operate this air conditioner by pressing the relevant button on the control panel as well as the remote control.

button

The air conditioner will be started when it is energized or will be stopped when it is in operation, if you press this button.

Mode button

Each time the Mode button is pressed, the operation mode is changed in sequence:

COOLING FAN ONLY ENERGY SAVING COOLING

NOTE: After setting the mode, allow 3 minutes before switching to another mode.

In the FAN ONLY Mode, Room Temperature display range is from 0°(32) to 38 (99°C. °F

Room Temperature below 32° the Temperature display L0. Room Temperature above 99° the Temperature display H1.

Fan Speed button

Used to select fan speed in sequence auto, low, medium and high(low and medium are in same fan speed).

Timer button

Used to set or cancel timer operation.

When the unit is in operation, you can set OFF Timer. When the unit is off, you can set ON Timer. Timer setting range is 0 to 24 hours.

If the OFF Timer is set, the timer LED displays the remaining time to turn off the unit for only 12 seconds, then LED shifts to display set temperature. If you press Timer button within the 12 seconds, OFF Timer will be canceled.

If the ON Timer is set, the timer LED displays the remaining time to turn on the unit. If you want to cancel ON TIMER, press Timer button.

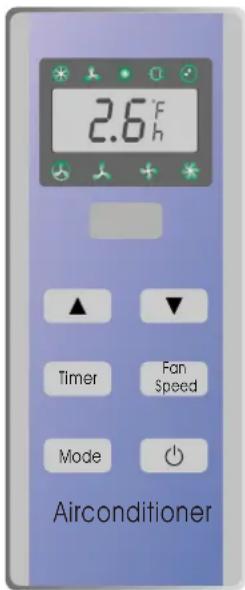

Control Panel

2.6°F h Timer Fan Speed Mode Airconditioner

Indication symbols of LED on control panel :

Above LED lights on when the relevant mode is in used.

▲▼ Button

Used to set room temperature in COOLING mode or used to set time in Timer mode. If the two keys are pressed at the same time, the temperature LED display will alternate between ^ and ^ .

NOTE: Temperature setting range is from 19(66) to 31 (88°C. F

Operating Instructions

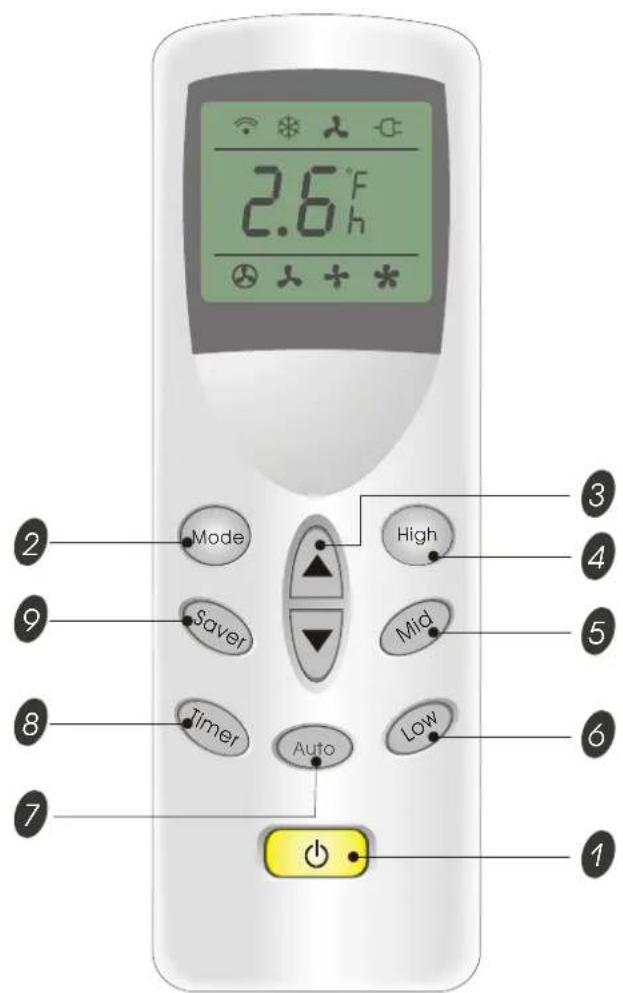

Remote control

2.6°F h Mode High Saver Mid Timer Auto Low 1 2 3 4 5 6 7

1 ⏻ BUTTON

The appliance will be started when it is energized or will be stopped when it is in operation, if you press this button.

2 Mode BUTTON

Used to select the operation mode.

Each time the Mode button is pressed, the operation mode is changed in sequence:

3 ▲▼ BUTTONS

Used to set room temperature in Cooling mode or used to set time in Timer mode. Temperature setting range is from 19°(66)°F to 31°(88).°F

4 High BUTTON

Used to select the mode.high fan speed

5 Mid BUTTON

Used to select the Mid (same as low) fan speed mode.

6 Low BUTTON

Used to select the Low mode.fan speed

7 Auto BUTTON

Used to select the Auto mode. fan speed

8 Timer BUTTON

Used to set or cancel timer operation.

9 Saver BUTTON

Used to select the mode.Energy-saving

Indication symbols of LCD on remote control:

Signal transmit

Cooling

Fan only

Energy-saving

8.8 F Display set temp h Display set timer

Auto fan speed

Low fan speed

+ Medium fan speed

* High fan speed

The Above symbols are shown when the relevant mode is in use.

When Changing modes during operation, sometimes the unit does not always respond at once. Wait 3 minutes.
- Wait 3 minutes before restarting the appliance.

Operating Instructions

Remote control

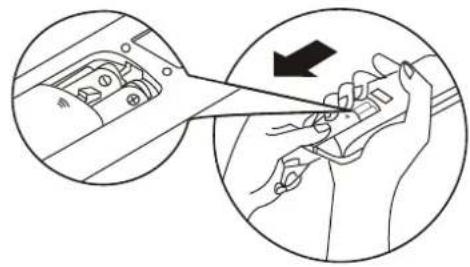

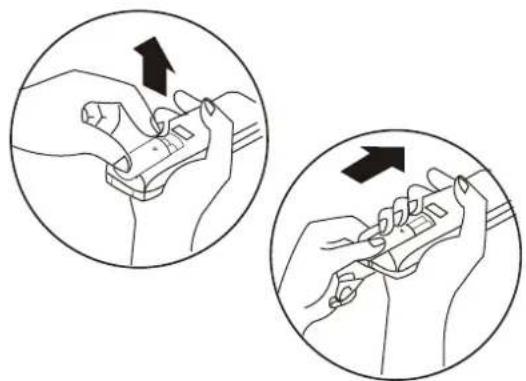

• How to Insert the Batteries

Remove the battery cover according to the arrow direction. Insert new batteries making sure that the (+) and (-) of battery are matched correctly.

Reattach the cover by sliding it back into position.

Note:

• Use 2 LR03 AAA(1.5volt) batteries. Do not use rechargeable batteries. Replace batteries with new ones of the same type when the display becomes dim.
• If the replacement is done within 1 minute, the remote control will keep original presetting.

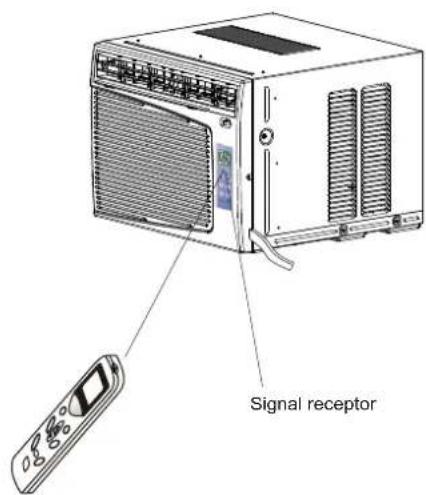

- How to Use

To operate the room air conditioner, aim the remote control to the signal receptor. The remote control will operate the air conditioner at a distance of up to 23 feet when pointing at signal receptor of indoor unit.

• Remote Control presetting

The remote control is NOT preset as Cooling only or Heat Pump by manufacturer.

Each time after the remote control replaces batteries or is energized, the Cooling indicator and Heating indicator will flashes alternately on LCD of the remote control.

User can preset the remote control type depending on the air conditioner type you have purchased as follows:

Press any button when* flashes, Heat Pump will be set.

Press any button when ✝ flashes, Cooling Only will be set.

If you don not press any button within 12 seconds, the remote control will be set as Heat Pump automatically.

- Back-light function(optional)

Hold down any button of remote control for about 2 seconds, back-light turns on. Release the button, it lights off automatically 10 seconds later.

Illustration of a hand holding a tool with a black arrow indicating direction (no text or symbols present)

Two circular diagrams showing hand manipulation or tool movement, with arrows indicating direction (no text or symbols present)

Signal receptor

Care and Maintenance

When servicing the air conditioner, be sure to turn the mode switch to the "OFF" position and disconnect the power cord from the electrical outlet.

1. DO NOT use gasoline, benzine, thinner or other chemicals on the air conditioner as these substances may cause damage to the paint finish and deformation of plastic parts.
2. Never attempt to pour water directly on the front of the unit as this will cause deterioration of the electrical insulation.

Cleaning the Air Filter

If the air filter becomes clogged with dust, air-flow is obstructed and reduces efficiency. The air filter should be cleaned once a month. More frequent cleaning may be necessary depending on outdoor and indoor air quality.

Air Filter Removal

The air filter on the above models is located behind the air intake front grill.

To remove the air filter, grasp the filter handle located on the up side of the air inlet grille and slide the air filter to the up.

To reinstall the air filter, reverse the above procedure.

CAUTION

DO NOT forget to install the air filter. If the air conditioner is left to operate without the air filter, dust is not removed from the room and may cause your air conditioner to fail.

When the air filter inlet grill and cabinet are dirty, wipe with lukewarm water (below 104^ F). Use of mild detergent is recommended.

Cleaning of Air Filter

1. Remove dust clogged in the filter by tapping it or vacuum cleaning it.
2. Wash the filter well with lukewarm water below 40^ C ( 104^ F) while rubbing lightly. To get better results, wash it with soapy water or a neutral cleaning agent.
3. Rinse the filter well using clean water then dry completely.

End-of-Season Care

1. Operate the fan alone for half a day to dry out the inside of the unit.
2. Turn off power and remove plug from wall socket.
3. Clean filter.
4. Store in a dry location.

Troubleshooting Guide

Frequently, a problem is minor and a service call may not be necessary, use this troubleshooting guide for a possible solution.

PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTION
Air conditioner will not operate	No power to the unit.	Check connection of power cord to power source.Check fuse or circuit breaker.Set MODE knob to position other than "OFF".
Inefficient or no cooling	Dirty air filter.Inappropriate capacity for application.Blocked air flow.Power interruption, settings change too quickly, or compressor overload tripped.	Clean or replace air filter.Check with dealer to determine proper unit capacity for application.Remove obstruction from grill or outdoor louvers.Let fan run to restart compressor (in approximately 10 minutes).
Noisy unit	Loose parts.Inadequate support.	Tighten loose parts.Provide additional support to unit.
Odors	Formation of mold, mildew, or algae on wet surfaces.	Remove drain plug and drain base pan.Replace drain plug.Clean unit thoroughly.
Water dripping outside	Condensation run-off is normal during hot and humid weather	Add flexible tubing to redirect water flow.
Water dripping inside	Unit is not properly angled to allow water to drain outside.	Unit must be installed on an angle for proper condensation run-off. Check the unit and make adjustments.
Ice or frost build-up Low	outside temperature.Unit air filter is dirty.	When outdoor temperature is approximately 65°F or below, frost may form when unit is in cooling mode. Switch unit to FAN (only) operation until frost melts.Remove and clean filter.

NOTE:
If circuit breaker is tripped repeatedly, or fuse is blown more than once, contact a licensed technician.

5 YEAR FULL WARRANTY

This product is warranted for 5 years from the date of original purchase. Any part which fails in materials or workmanship will be replaced within the warranty period. This warranty covers in home service. A copy of your proof of purchase, with date of purchase and product name included, is required to arrange this service repair.

For the name and location of an authorized service provider nearest you, please CALL 1-877-465-3566. Please reference product name, brand name, and model number when you call.

This warranty does not apply if the damage occurs because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted, or the use of the product for commercial use, or any other use for which it was not intended.

ALL WARRANTIES, EXPRESSED OR IMPLIED, LAST FOR 5 YEARS FROM THE DATE OF ORIGINAL PURCHASE. THIS WARRANTY DOES NOT COVER LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR ANY CAUSE WHATSOEVER.

This warranty is extended to the original owner and any succeeding owner for products purchased for home use within the USA. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific rights, and you may also have other rights which may vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Introducción

14" Min 21" to 32"

Fig. 1

Tomillos de 2/5°

Fig. 2

Sello

Fig. 3

Linea Central

Fig. 4

Diagram illustrating hand tool application steps with arrows indicating direction of movement

- C cómo use
