Product Type	Car Radio with CD/MP3 Player
Brand	Hyundai
Model	H-CDM8053
Dimensions (WxHxD)	Approx. 187 x 58 x 160 mm (1 DIN)
Weight	Approx. 0.5 kg
Power Supply	12V DC (negative ground)
Maximum Power Output	4 x 50W (peak)
RMS Power Output	4 x 15W
Playback Formats	CD, CD-R/RW, MP3, WMA
Tuner Bands	FM (87.5 - 108 MHz), AM (530 - 1710 kHz)
Preset Stations	30 (18 FM + 12 AM)
Audio Features	Equalizer presets, Bass/Treble control, Loudness
Connectivity	Front USB port, Aux-in 3.5mm, ISO connector
Display	LCD with white backlight
Remote Control	Included (wired or IR)
Detachable Faceplate	Yes, for theft prevention
Fuse Rating	10A (blade type)
Operating Temperature	-10°C to 60°C
Maintenance	Clean with a soft, dry cloth; avoid liquids
Spare Parts and Repairability	Contact authorized service center; no user-serviceable parts inside

Frequently Asked Questions - H-CDM8053 HYUNDAI

How do I install the Hyundai H-CDM8053 in my car?

First, disconnect the car battery negative terminal. Then remove the existing radio using appropriate tools. Connect the ISO wiring harness from the car to the radio's ISO connector. Securely mount the radio in the DIN slot and reconnect the battery. Refer to the vehicle-specific wiring diagram if needed.

What audio file formats are supported?

The H-CDM8053 supports playback of CD, CD-R/RW, MP3, and WMA files. Ensure MP3/WMA files are burned as data discs, not audio CDs.

Can I connect my smartphone to play music?

Yes, you can connect your smartphone via the front Aux-in jack or use the USB port for direct playback of MP3 files from a USB drive. Bluetooth is not available on this model.

How do I set the clock?

Press and hold the DISP/CLOCK button until the hour flashes. Use the volume knob or preset buttons to adjust hour and minute. Press DISP again to confirm.

Why is there no sound from the speakers?

Check if the radio is turned on and volume is not muted. Ensure speaker wires are properly connected and not shorted. Verify the fuse is intact. If external amplifier is used, check its power and connections.

How to remove the detachable faceplate?

Press the REL (release) button on the front panel. Gently pull the faceplate away from the unit. Store it in the provided case to prevent damage and theft.

What is the radio code for my H-CDM8053?

Some car radios have a security code to prevent theft. The code is usually supplied on a card or in the manual. If lost, contact Hyundai service with the device serial number. For this model, the code is typically stored in memory and not required unless power is fully disconnected.

Can I use an external amplifier with this radio?

Yes, the H-CDM8053 has RCA pre-outs (front/rear/subwoofer) to connect external amplifiers. Set the pre-out voltage (usually 2V) and adjust levels accordingly.

How do I tune radio stations?

Press BAND to select FM1, FM2, or AM. Use the SEEK buttons for automatic scanning. To manually tune, press and hold SEEK until scanning stops. For preset memory, long-press a number button (1-6) to store the current station.

The CD does not play or ejects. What should I do?

Ensure the disc is not scratched or dirty and is inserted correctly (label side up). Try a different disc. If the mechanism is stuck, press the eject button firmly. If problem persists, the laser lens may be dirty; use a lens cleaning disc. Avoid using damaged discs.

USER MANUAL H-CDM8053 HYUNDAI

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents

Table of contents....2

Important safeguards....3

Installation/Connections....4

Panel controls 6

Remote control 7

Button tips 8

RDS Menu function 9

MP3 Play back....10

MP3 Overview....11

Anti-Theft System 12

Handling compact discs 12

Cleaning 13

Components....13

Troubleshooting guide 14

Specification....15

Important safeguards

• Read carefully through this manual to familiarize yourself with this high-quality sound system.
• Use only in a 12-volt DC negative-ground electrical system.
• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.
• If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
• Keep the volume at a level at which you can hear outside warning sounds (horns sirens, etc.).
• DO NOT open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a qualified technician check the system.
• DO NOT raise the volume level too much, as this will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated operation.

Installation/Connections

First complete the electrical connections, and then check them for correctness.

Installation opening

This unit can be install in any dashboard having an opening as shown below. The dashboard should be 4.75 - 5.56 mm thick in order to be able to support the

unit.

1. Insert mounting collar into the dashboard, and bend the mounting tabs out with a screwdriver.
   Make sure that lock lever (※) is flush with the mounting collar (not projecting outward).
2. Secure the rear of the unit.
   After fixing mounting bolt and power connector, fix the rear of the unit to the car body by rubber cushion.
3. Insert trim plate.
   When you prepare to insert trim plate, please check it's direction. Once it was up side down, it cannot be fixed.

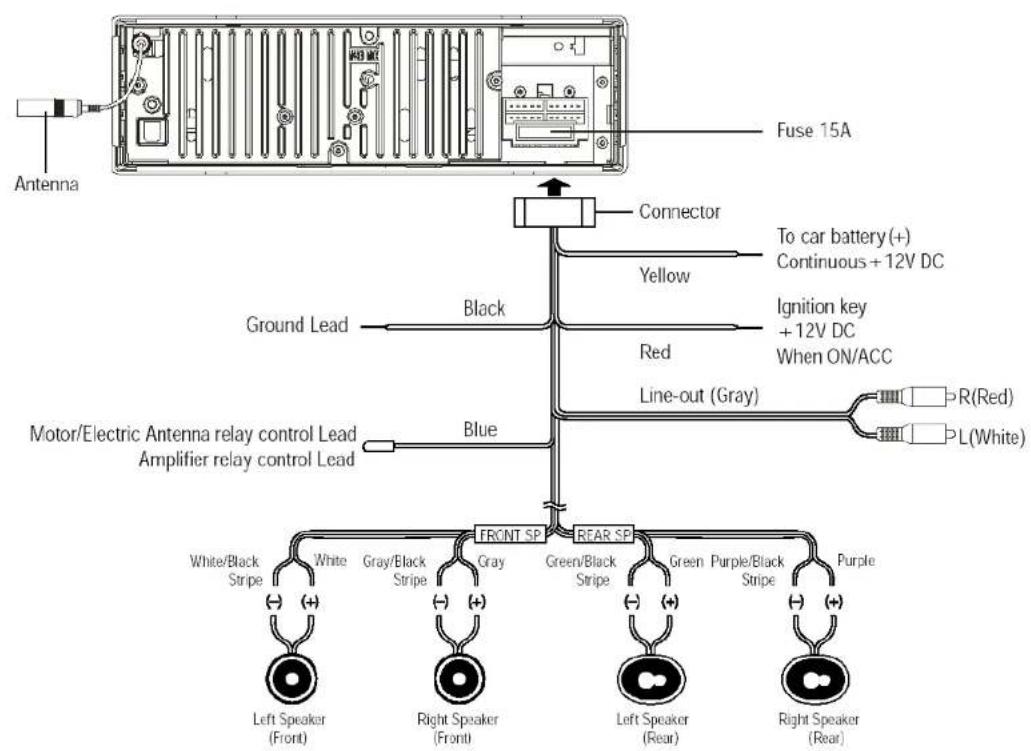

Electrical connections


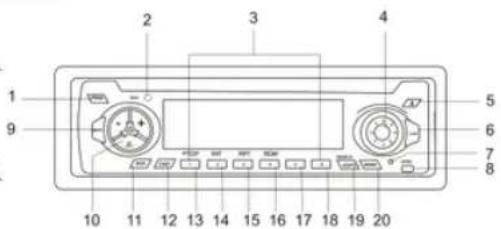

Panel controls

Power on: press any button on the panel except ▲ and OPEN button to turn on the unit.

1. Press more than 2 seconds to power off

2. Remote sensor.

3. Radio preset

Press to tune in a preset station. Hold for more than 2 seconds to store station.

1. Radio tune/ Track seek.

2. Disc elect.

3. Traffic announcements.

4. Reset switch

Press the RESET button with a pointed object to reset the unit to the original

status. Press the RESET button will erase the clock setting and stored stations.

1. Panel Open.

2. Mute.

3. Press - or to adjust volume level.

Press MENU/SEL to select VOL/BAS/TRE/BAL/FAD, press- or + to adjust level.

Press MENU/SEL more than 2 seconds to Menu mode.

MP3 track / file search.

1. Radio/Display play (when disc is in).

2. Display switch

3. Play/pause. Top play (press more than 2 seconds).

4. Intro play (10 seconds).

5. Track repeat play.

6. Track random play.

7. MP3 track-10 down

8. MP3 track +10 up.

9. AS/PS: Radio preset scan.

Press more than 2 seconds. Radio auto preset.

SEARCH MP3 track/ file search.

20 Band switch FM1 ◆ FM2 ◆ FM3 ◆ AM1 ◆ AM2.

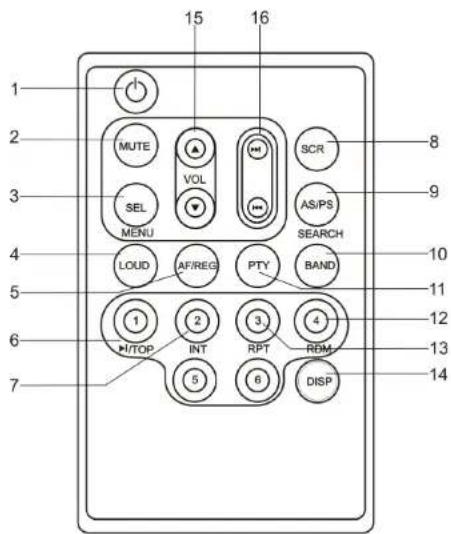

Remote control

Power on: press any button on the panel except ▲ and OPEN button to turn on the unit.

1. Power on/off.
2. Mute.
3. Push to select VOL/BAS/TRE/BAL/FAD, use Volume button to adjust level. Push more than 2 seconds to Menu mode.
4. Traffic Announcements Identification.
5. Alternative Frequency list. REG (Region) mode.
6. Disc Playback: Play / Pause Top play (press more than 2 sec.). Radio Preset: Press to tune in a preset station. Hold for more than 2 seconds to store station.
7. Intro play (10 sec.).
8. Radio. Disc Play (when disc is in). Aux-in (optional).
9. SEARCH: MP3 track / file search. AS/PS:
10. Radio Preset scan.
11. Radio Auto Preset.
12. Band Switch: FM1 → FM2 → FM3 → AM1 → AM2.
13. Program Type.
14. Track Random Play.
15. Track Repeat Play.
16. Display switch.
17. Volume.
18. Radio Tune. Track Seek.

Inserting the batteries in the remote control

1. Pull out the battery holder while pressing the stopper.

1. 1. Insert the button-type battery with the stamped(+) mark facing upward. Insert the battery holder into the remote control.

Note:

- When the range of the operation of the card remote control becomes short or no functions while operating. Replace the battery with a new lithium battery. Make sure the battery polarity replacement.

Button tips

Disc Load / Eject

OPEN Load: press OPEN button to slide down the panel. Insert the disc into the slot. In addition to ordinary CDs, this unit can playback a CD - R or CD - RW.

Eject: press OPEN button to slide down the panel. Press ▲ to eject the disc.

Note:

- When close the panel, press button should no function.

Radio

Radio tune by step: rotate the dial less than 0.5 seconds. Radio seeks automatically: rotate the dial more than 0.5

Disc Playback

Track skip: rotate the dial less than 0.5 seconds to go to the next or previous track. Track seeks: rotate the dial more than 0.5 seconds and hold it to fast forward or reverse back the track.

AS/PS: Auto Memory Store And Preset Scan Store

Press less than 2 seconds to scan the preset station for 5 seconds each. Press more than 2 seconds, the 6 strongest available stations will be automatically saved in the memory of preset button.

Set clock

Press DISP button, time displays. Press again more than 2 seconds, time display blinks. Press + button to set hours. Press - button to set minutes.

RDS Menu function

Press SEL / MENU button more than 2 seconds to enter menu mode, then each press changes the mode as follows:

TA mode — MASK mode — DSP mode — LOUD ON / OFF mode — BEEP ON / OFF— SEEK1/2 mode (only in tuner mode) — ST / MO mode — LOCAL / DX mode — VOL mode

TA mode

To choose TA ALARM or TA SEEK mode, Press _/+ button When TA is turned on and no traffic program identification code has been received during the specified time, no TA/TP is displayed and according to the MENU SELECT, alarm is set off, or TA SEEK is activated. TA ALARM mode: NO TA/TP is displayed and alarm is set off. TA SEEK mode: TA SEEK is activated.

TA ALARM

MASK mode

Press _/+ button to choose MASK DPI or MASK ALL mode.

MASK DPI mode: Only the AF which has different program identification is masked.

MASK ALL mode: The AF which has different program identification and NO RDS signal with high field strength is masked.

DSP mode

To choose DSP sound effect: Press + button POP - ROCK - CLASSIC - FLAT - DSP OFF

LOUD mode

Press 1+ button to choose loud on or off.

BEEP ON/OFF mode

Press _/+ button to choose button beep sound on or off.

TA SEEK

MASK DPI

MASK ALL

SEEK 1/2 mode

Press 1* button to choose radio seek mode 1 or 2.

SEEK 1: searching station will stop when next station is received.

SEEK 2: searching station will stop when ◀ or ▶ button is released and next station is received.

LO/DX mode

Press _/+ button to choose tuner sensitivity local or distant.

ST/MO mode

Press /+ button to choose FM stereo or mono.

VOLLAST/ADJUST MODE

Press SEL / MENU button to choose VOL LAST: the turn-on volume level is the volume level of latest power off.

Press -/+ button to choose VOL ADJ, then press -/+ button to set the turn-on volume level.

MP3 Play back

While playing MP3 disc, the folder/file name and ID3 TAG (song title, album and artist) can entirely scroll displayed on the LCD display.

Elapsed playing time and Track number — Folder name and number — File name and number — Song title — Album title — Artist name

MP3 Track search

SEARCH

Press AS/PS button to select "TRACK SCH" mode.

ASPS

Press SEL button and LCD display will show "001".

I'OL LAST

I'OL ADJ

MP3 DISC

IF your desired track number is more than 100, press or + to select the hundredth digit and press SEL button to confirm, press - or + to select the tenth digit and press SEL button to confirm, press - or + to select the first digit and press SEL button to confirm, press MENU SEL button again to play the track.

Note:

- If the track number you enter is beyond the maximum file number, last song will be played.

TRX SCH

TRK 001

MP3 File search

Press AS/PS button twice to select "FILE SCH" mode. Press SEL button to enter.

Press or +- to select folder.

IF you just want to play songs of this folder, press SEL button more than 0.5 seconds to play the first track of the folder.

IF you want to play desired track of the folder, press SEL button and press - or + to select the track you want. Press SEL button again to play the track.

MP3 Overview

Notes on MP3

• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
  • This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs.
• The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
• The unit can not read an MP3 file that has a file extension other than ".mp3".
• If you play a non-MP3 file that has the “.mp3” extension, you may hear some noise.
• In this manual, we refer to what are called "MP3 file" and "folder" in PC terminology as "track" and "album", respectively.
  • Maximum number of directory level is 8, including the root directory. Maximum number of files and folders per disc is 256.
• The unit may not play tracks in the order of Track numbers.
• The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.
• When playing a disc of 8 kbps or "VBR", the elapsed playing time in the display window will not be correct and also the intro play may not function properly. "VBR": Variable Bit Rate.

Notes on creating your own CD-Rs or CD-RWs containing MP3 files

• To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate of 128 kbps.
• DO NOT store more than 256 MP3 files per disc.
- For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).
- When CD-R disc is used, playback is possible only for discs, which have been finalized.
- Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc.
- You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.
- With some CD-R or CD-RW media, data may not be properly written depending on their manufacturing quality. In this case, data may not be reproduced
correctly. High quality CD-R or CD-RW disc is recommended.
- Up to 16 characters are displayed for the name of an Album or a Track, ID3TAG version 1.x is required.
- Note that the unit may not play Tracks in the order that you wrote them to the disc.

Anti-Theft System

This unit is equipped with a slide-down detachable and mask panel. Panel can be detached and taken with you, helping to deter theft.

Removing the panel

1. Press POWER button more than 0.5 seconds to switch off the power of the unit.
2. Press OPEN button to slide down the panel.
   3.Hold the panel to pull it out, and then push back the panel bracket.
3. Place the panel into the case and take it with you when you leave the car.

Install the panel

1. Hold the panel so that the panel faces toward you and set the left side of the panel bracket.
2. Press the right side of the panel unit it locks.
3. Check the panel was fasten or not before you operation.

Remove the unit

1. Remove the panel and the trim plate.
2. Insert both T-Keys into hole in front of the set until they lock.
3. Pull out the unit.

Handling compact discs

• Dirty, scratched or warped discs may cause skip ping or noise.
• Handle the disc only by the edges. To keep clean do not touch its surface.
• Discs should be stored in their cases after use to avoid scratches.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature can wrap the disc (such as leaving the discs in your car during summertime).
• Do not stick or write anything on either side of disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage its surface.
• DO NOT touch the unlabeled side.
• DO NOT attach any seal, label or data protection sheet to either side of a disc.
• This unit cannot play 3-inch (8cm) CDs.
• Never insert a 3-inch CD contained in the adapter or an irregularly shaped CD. The unit may not be able to eject it, resulting in a malfunction.

Cleaning

1. Cleaning the cabinet

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

1. Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Components

1. Mounting collar 1 pc.

2. Tapping screws M5x6 mm 4 pcs.

M4x6 mm

4 pcs.

1. Mounting bolt (50 mm) 1 pc.

2. Wire connector 1 pc.

3. Removable faceplate case 1 pc.

4. Trim plate 1 pc.

5. T-key 2 pcs.

6. Operating instructions 1 pc.

7. Rubber cushion 1 pc.

8. Remote control 1 pc.

Troubleshooting guide

GeneralNo power or no sound	Car's engine switch is not on.Turn your car's key to ACC or ON.Cable is not correctly connected.Check connection.Fuse is burnt. Replace fuse.Check volume or mute on / off.
DiscDisc is inside but no sound	Disc is upside down.Place disc in the correct direction, and the label side up.Disc is dirty or damaged.Clean disc or change another disc.
Disc sound skips, tone quality is low	Disc is dirty or damaged.Clean CD or change another CD.
Sound skips due to vibration	Mounting angle is over 30°.Adjust mounting angle to less than 30°.Instable mounting.Mount the unit securely with the mounting parts.
RadioMuch noise in broadcasts	Station is too far, or signals are too weak.Select other stations of higher signal level.
Preset station is reset Battery cable is not correctly connected. Connect the battery cable to the terminal that is always live.
Error display messages	NO FILE: Disc is not CD or contains no MP3 files.ERR-7: Disc upside down.ERR-10: Recovery error, check the disc.ERR-11: MP# error, check the disc.ERR-3: ERR-4: Disc mechanism error.Press ▲ button to eject the disc. In case that the disc cannot be ejected by pressing ▲ button, press the RESET switch and press the▲ button again. If still not ejecting consult your Durabrand dealer.

Specification

GeneralPower supply:	12V DC (11V-16V)Test voltage 14.4V, negative ground
Maximum power output: 50Wx4 channels
Rated power output (RMS): 20Wx4 channels (4 10% T.H.D.)
Suitable speaker impedance: 4-8 ohm
Pre-Amp output voltage: 2.0V(CD play mode: 1KHz, 0 dB, 10K load)
Fuse: 15A
Dimensions (WxHxD) 178x50x187 mm
Weight: 1.8kg
FM Stereo RadioFrequency range:	87.5 - 108.0 MHz
Usable sensitivity: 12 dB
Frequency response: 30 Hz-15kHz
Stereo separation: 25dB (1kHz )
Image response ratio: 50dB
IF response ratio:	70dB
Signal/noise ratio	55dB
AM RadioFrequency range:	522-1620 KHz
Usable sensitivity(S/N=20dB):	30 dB
Disc PlayerSystem:	Disc digital audio system
Frequency response: 20 Hz - 20 kHz
Signal/noise ratio: >80 dB
Total harmonic distortion:	Less than 0.5%(1 kHz)
Wow and flutter:	Below measurable limits
Channel separation:	>60 dB
