Product Type	Car Radio / Multimedia Receiver
Brand	Hyundai
Model	H-CMD4003
Dimensions (W x H x D)	178 x 50 x 160 mm (approx. 1-DIN)
Weight	1.2 kg (approx.)
Power Supply	12V DC (negative ground)
Max Power Output	4 x 50 Watts
Tuner Bands	FM/MW/LW
Playback Media	CD, CD-R/RW, MP3 (via CD/USB)
Audio Inputs	Front AUX (3.5mm), USB port
Bluetooth	Hands-free calling and audio streaming
Display	LCD with white backlight
Remote Control	Included wireless remote
Equalizer	Preset EQ modes (Pop, Rock, Classic, etc.)
Clock	Built-in clock with RDS time sync
Steering Wheel Control Compatible	Yes (requires adapter)
Safety Features	Detachable faceplate anti-theft
Maintenance	Clean with soft dry cloth; avoid liquids
Repairability	Spare parts available; consult service center

Frequently Asked Questions - H-CMD4003 HYUNDAI

How do I reset the Hyundai H-CMD4003 to factory settings?

Press and hold the Reset button (located behind the faceplate) with a pointed object for 3 seconds. This will clear all user settings and return the unit to default.

What are the dimensions of the H-CMD4003?

The unit has standard 1-DIN dimensions: approximately 178 mm (W) x 50 mm (H) x 160 mm (D). Check your dashboard depth for proper fit.

How do I pair my phone via Bluetooth?

Enable Bluetooth on your phone, then press the BT button on the radio to enter pairing mode. Select 'H-CMD4003' from the list of devices on your phone. If prompted, enter the PIN 0000.

Why is there no sound from the speakers?

First, check that the volume is not muted and that the Mute function is off. Ensure speaker wires are properly connected. If using an external amplifier, verify power and signal cables. Also check the fader and balance settings.

Can I play music from a USB flash drive?

Yes, insert a USB flash drive with MP3/WMA files into the USB port. The radio will automatically switch to USB mode. Supported file systems: FAT32. The maximum capacity is 32 GB.

How do I set the clock?

Press and hold the DISP button until the hour starts flashing. Rotate the volume knob to adjust the hour, then press DISP again to set minutes. Rotate to adjust, and press DISP once more to confirm.

What should I do if the CD does not eject?

Press the EJ button firmly. If the disc still does not eject, try turning the unit off and on. As a last resort, insert a thin plastic card gently behind the disc to assist removal. Avoid using metal objects.

Is the faceplate detachable?

Yes, the front faceplate can be removed for theft prevention. Press the Release button at the bottom, then lift the faceplate off. Store it in the provided protective case when not in use.

How do I improve FM radio reception?

Make sure the antenna cable is securely connected and the antenna is fully extended. If reception is still poor, try repositioning the antenna or using a signal booster. The LOC setting (local/distant) can also help.

What is the maximum power output of the H-CMD4003?

The built-in amplifier delivers 4 x 50 Watts maximum power (peak). RMS power is typically around 4 x 20 Watts. For higher output, connect external amplifiers via RCA pre-outs.

USER MANUAL H-CMD4003 HYUNDAI

MULTIMEDIA DVD/CD/MP3 RECEIVER WITH BUILT-IN 4.3" TFT DISPLAY AND TV TUNER

Instruction manual

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents

Table of contents ......2

Important safeguards ....3

Accessories....4

Installation/Connection....5

Panel controls....11

General operation ...... 14

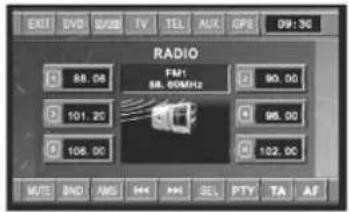

Radio operation....17

USB/SD/MMC cards/Disc operations....20

MP3 overview 28

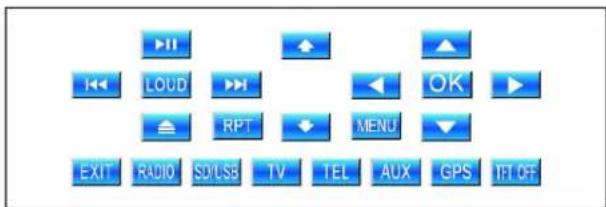

AUX touch screen operations 30

Audio/video settings....31

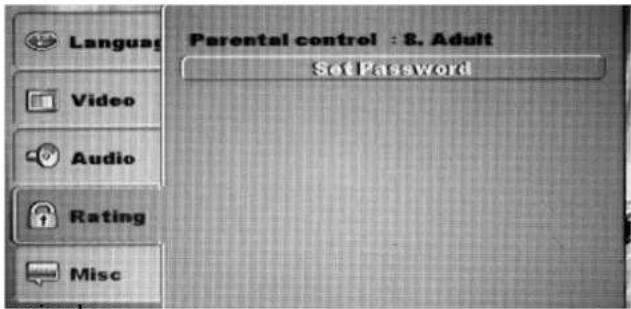

System setup menu....32

TV Operation....35

Rear view camera 36

Handling discs....37

Cleaning 37

Troubleshooting guide ....38

Specification....39

Important safeguards

• Using the device at temperature below -10°C may cause the breakage of the device. Before using please heat up the passenger compartment to the recommended temperature!
• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• Do not attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
• Do not use the unit in places where it can be exposed to water, moisture and dust.
• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.
• If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
  • Do not open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a qualified technician check the system.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please confirm it before installation.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.

Accessories

Remote control

ISO connector

USB cable

Mounting parts

Instruction manual

Consumer information

Warranty card

Black front panel case

Receiver

Installation method

Disassembly of the control panel

Line drawing of a rectangular electronic device casing with mounting holes and a central screen (no text or symbols)

Before disassembly of the control panel, power disconnection is required. Then press OPEN button. The panel will fall down to horizontal position. Push the panel leftwards. Meanwhile put the panel towards yourself to the right.

Attaching of the front panel

Line drawing of a device front panel with buttons and a screen (no text or symbols)

Firstly insert the left part of the front panel into the left part of the main unit, have the concave part of the panel hold the protruding point of the main unit. Insert the right side of the front panel into the main unit and fix it secure the time, it is required to hold the protruding point on the main unit with the concave part on the right side of the panel.

Precautions

Do not touch the contacts on the front panel or on the unit body, since this may result in poor electrical contact. If dirt or dust gets on the contacts, wipe them with a clean, dry cloth.

Electrical connection

The user can connect the 4 RCA to the external amplifier; please connect “backstage/rear out” to the “rear input” of the external amplifier. When you use the Dual zone play function for Radio/DVD/SD/MMC/USB, Front out should be connected with the front speaker (L/R) for the Radio function, and the Backstage out should be connected with the rear monitor for the DVD audio output.

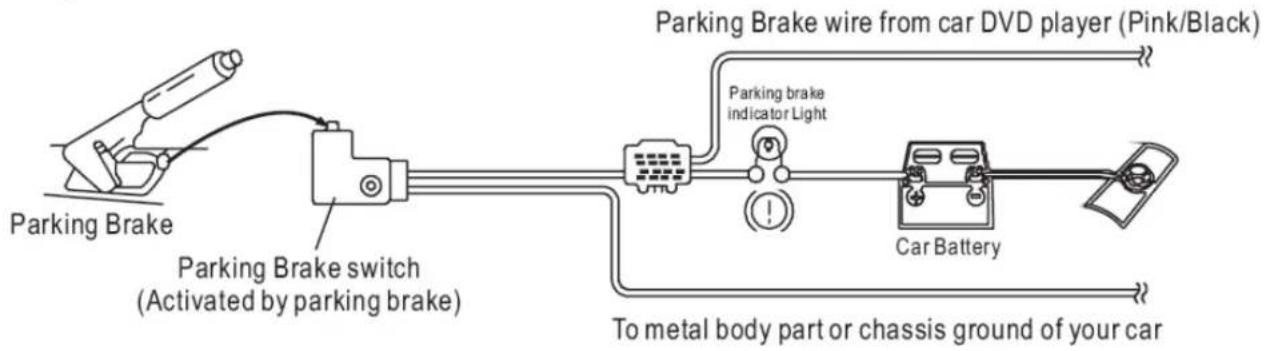

Note: The parking wire is connected with brake signal; for safety, the programs can be seen on the monitor after braking the car.

Using the ISO Connector

Diagram showing two electrical connector assemblies with wires and connectors (no text or symbols)

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

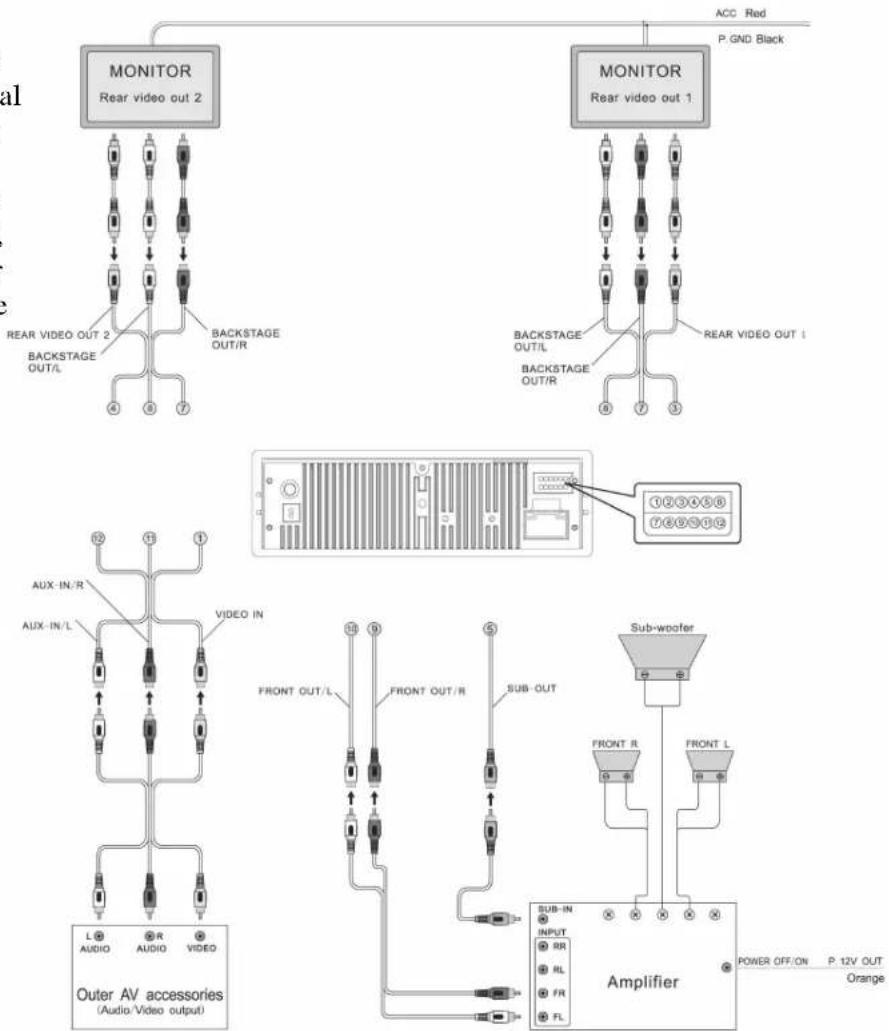

Output connection chart

Note: Before connecting the front/rear monitors with the unit, the total electric current of the rear monitor cannot be bigger than 2A, and the cathode must be connected with the "P. GND" derivation cable of the unit, otherwise the image of the monitor will be disturbed by the volume of the unit.
    subgraph_Monitor_Rear_2["Rear video out 2"]
        A1["REAR VIDEO OUT 2"] --> B1["BACKSTAGE OUT/L"]
        A2["REAR VIDEO OUT 2"] --> B2["BACKSTAGE OUT/R"]
        A3["REAR VIDEO OUT 2"] --> B3["Backstage OUT/R"]
        A4["REAR VIDEO OUT 2"] --> B4["Backstage OUT/R"]
        A5["REAR VIDEO OUT 2"] --> B5["Backstage OUT/R"]
        A6["REAR VIDEO OUT 2"] --> B6["Backstage OUT/R"]
        A7["REAR VIDEO OUT 2"] --> B7["Backstage OUT/R"]
        A8["REAR VIDEO OUT 2"] --> B8["Backstage OUT/R"]
        A9["REAR VIDEO OUT 2"] --> B9["Backstage OUT/R"]
        A10["REAR VIDEO OUT 2"] --> B10["Backstage OUT/R"]
        A11["REAR VIDEO OUT 2"] --> B11["Backstage OUT/R"]
        A12["REAR VIDEO OUT 2"] --> B12["Backstage OUT/R"]
        A13["REAR VIDEO OUT 2"] --> B13["Backstage OUT/R"]
        A14["REAR VIDEO OUT 2"] --> B14["Backstage OUT/R"]
        A15["REAR VIDEO OUT 2"] --> B15["Backstage OUT/R"]
        A16["REAR VIDEO OUT 2"] --> B16["Backstage OUT/R"]
        A17["REAR VIDEO OUT 2"] --> B17["Backstage OUT/R"]
        A18["REAR VIDEO OUT 2"] --> B18["Backstage OUT/R"]
        A19["REAR VIDEO OUT 2"] --> B19["Backstage OUT/R"]
        A20["REAR VIDEO OUT 2"] --> B20["Backstage OUT/R"]
        A21["REAR VIDEO OUT 2"] --> B21["Backstage OUT/R"]
        A22["REAR VIDEO OUT 2"] --> B22["Backstage OUT/R"]
        A23["REAR VIDEO OUT 2"] --> B23["Backstage OUT/R"]
        A24["REAR VIDEO OUT 2"] --> B24["Backstage OUT/R"]
        A25["REAR VIDEO OUT 2"] --> B25["Backstage OUT/R"]
        A26["REAR VIDEO OUT 2"] --> B26["Backstage OUT/R"]
        A27["REAR VIDEO OUT 2"] --> B27["Backstage OUT/R"]
        A28["REAR VIDEO OUT 2"] --> B28["Backstage OUT/R"]
        A29["REAR VIDEO OUT 2"] --> B29["Backstage OUT/R"]
        A30["REAR VIDEO OUT 2"] --> B30["Backstage OUT/R"]
        A31["REAR VIDEO OUT 2"] --> B31["Backstage OUT/R"]
        A32["REAR VIDEO OUT 2"] --> B32["Backstage OUT/R"]
        A33["REAR VIDEO OUT 2"] --> B33["Backstage OUT/R"]
        A34["REAR VIDEO OUT 2"] --> B34["Backstage OUT/R"]
        A35["REAR VIDEO OUT 2"] --> B35["Backstage OUT/R"]
        A36["REAR VIDEO OUT 2"] --> B36["Backstage OUT/R"]
        A37["REAR VIDEO OUT 2"] --> B37["Backstage OUT/R"]
        A38["REAR VIDEO OUT 2"] --> B38["Backstage OUT/R"]
        A39["REAR VIDEO OUT 2"] --> B39["Backstage OUT/R"]
        A40["REAR VIDEO OUT 2"] --> B40["Backstage OUT/R"]
        A41["REAR VIDEO OUT 2"] --> B41["Backstage OUT/R"]
        A42["REAR VIDEO OUT 2"] --> B42["Backstage OUT/R"]
        A43["REAR VIDEO OUT 2"] --> B43["Backstage OUT/R"]
        A44["REAR VIDEO OUT 2"] --> B44["Backstage OUT/R"]
        A45["REAR VIDEO OUT 2"] --> B45["Backstage OUT/R"]
        A46["REAR VIDEO OUT 2"] --> B46["Backstage OUT/R"]
        A47["REAR VIDEO OUT 2"] --> B47["Backstage OUT/R"]
        A48["REAR VIDEO OUT 2"] --> B48["Backstage OUT/R"]
        A49["REAR VIDEO OUT 2"] --> B49["Backstage OUT/R"]
        A50["REAR VIDEO OUT 2"] --> B50["Backstage OUT/R"]
        A51["REAR VIDEO OUT 2"] --> B51["Backstage OUT/R"]
        A52["REAR VIDEO OUT 2"] --> B52["Backstage OUT/R"]
        A53["REAR VIDEO OUT 2"] --> B53["Backstage OUT/R"]
        A54["REAR VIDEO OUT 2"] --> B54["Backstage OUT/R"]
        A55["REAR VIDEO OUT 2"] --> B55["Backstage OUT/R"]
        A56["REAR VIDEO OUT 2"] --> B56["Backstage OUT/R"]
        A57["REAR VIDEO OUT 2"] --> B57["Backstage OUT/R"]
        A58["REAR VIDEO OUT 2"] --> B58["Backstage OUT/R"]
        A59["REAR VIDEO OUT 2"] --> B59["Backstage OUT/R"]
        A60["REAR VIDEO OUT 2"] --> B60["Backstage OUT/R"]
        A61["REAR VIDEO OUT 2"] --> B61["Backstage OUT/R"]
        A62["REAR VIDEO OUT 2"] --> B62["Backstage OUT/R"]
        A63["REAR VIDEO OUT 2"] --> B63["Backstage OUT/R"]
        A64["REAR VIDEO OUT 2"] --> B64["Backstage OUT/R"]
        A65["REAR VIDEO OUT 2"] --> B65["Backstage OUT/R"]
        A66["REAR VIDEO OUT 2"] --> B66["Backstage OUT/R"]
        A67["REAR VIDEO OUT 2"] --> B67["Backstage OUT/R"]
        A68["REAR VIDEO OUT 2"] --> B68["Backstage OUT/R"]
        A69["REAR VIDEO OUT 2"] --> B69["Backstage OUT/R"]
        A70["REAR VIDEO OUT 2"] --> B70["Backstage OUT/R"]
        A71["REAR VIDEO OUT 2"] --> B71["Backstage OUT/R"]
        A72["REAR VIDEO OUT 2"] --> B72["Backstage OUT/R"]
        A73["REAR VIDEO OUT 2"] --> B73["Backstage OUT/R"]
        A74["REAR VIDEO OUT 2"] --> B74["Backstage OUT/R"]
        A75["REAR VIDEO OUT 2"] --> B75["Backstage OUT/R"]
        A76["REAR VIDEO OUT 2"] --> B76["Backstage OUT/R"]
        A77["REAR VIDEO OUT 2"] --> B77["Backstage OUT/R"]
        A78["REAR VIDEO OUT 2"] --> B78["Backstage OUT/R"]
        A79["REAR VIDEO OUT 2"] --> B79["Backstage OUT/R"]
        A80["REAR VIDEO OUT 2"] --> B80["Backstage OUT/R"]
        A81["REAR VIDEO OUT 2"] --> B81["Backstage OUT/R"]
        A82["REAR VIDEO OUT 2"] --> B82["Backstage OUT/R"]
        A83["REAR VIDEO OUT 2"] --> B83["Backstage OUT/R"]
        A84["REAR VIDEO OUT 2"] --> B84["Backstage OUT/R"]
        A85["REAR VIDEO OUT 2"] --> B85["Backstage OUT/R"]
        A86["REAR VIDEO OUT 2"] --> B86["Backstage OUT/R"]
        A87["REAR VIDEO OUT 2"] --> B87["Backstage OUT/R"]
        A88["REAR VIDEO OUT 2"] --> B88["Backstage OUT/R"]
        A89["REAR VIDEO OUT 2"] --> B89["Backstage OUT/R"]
        A90["REAR VIDEO OUT 2"] --> B90["Backstage OUT/R"]
        A91["REAR VIDEO OUT 2"] --> B91["Backstage OUT/R"]
        A92["REAR VIDEO OUT 2"] --> B92["Backstage OUT/R"]
        A93["REAR VIDEO OUT 2"] --> B93["Backstage OUT/R"]
        A94["REAR VIDEO OUT 2"] --> B94["Backstage OUT/R"]
        A95["REAR VIDEO OUT 2"] --> B95["Backstage OUT/R"]
        A96["REAR VIDEO OUT 2"] --> B96["Backstage OUT/R"]
        A97["REAR VIDEO OUT 2"] --> B97["Backstage OUT/R"]
        A98["REAR VIDEO OUT 2"] --> B98["Backstage OUT/R"]
        A99["REAR VIDEO OUT 2"] --> B99["Backstage OUT/R"]
        A100["AUX-IN-R\nAUX-IN/L\nL AUDIO\AUDIO\VIDEO\nOuter AV accessories\n(Audio/Video output)"]

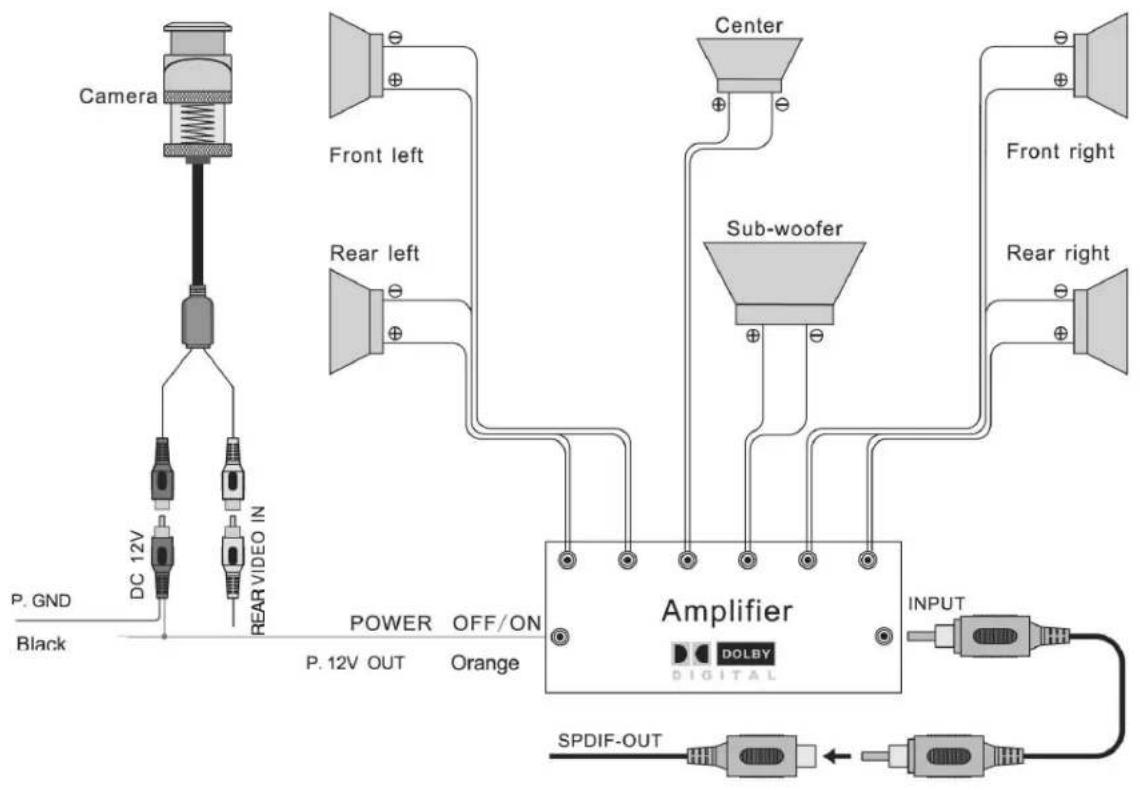

Rear camera and amplifier output connections

For your driving safety, please link your brake detecting wire with low power level, and keep it controlled by manual brake switch. Wire should be high power level and the unit cannot play DVD or VCD disc. And this caution displays on the screen: "Warning. Please stop watch video player".

Panel controls

1. A in
2. V in
3. MUTE button
4. VOL-button
5. PREVIOUS button
6. SEL button
7. VOL+ button
8. POWER/SRC button
9. NEXT button
10. Touchable display
11. RPT/PTY button
12. EJECT button
13. OPEN button
14. UP button
15. PLAY/PAUSE button
16. L/R/TA/AF button
17. DOWN button
18. BAND button
19. RESET button
20. USB jack
21. RC sensor

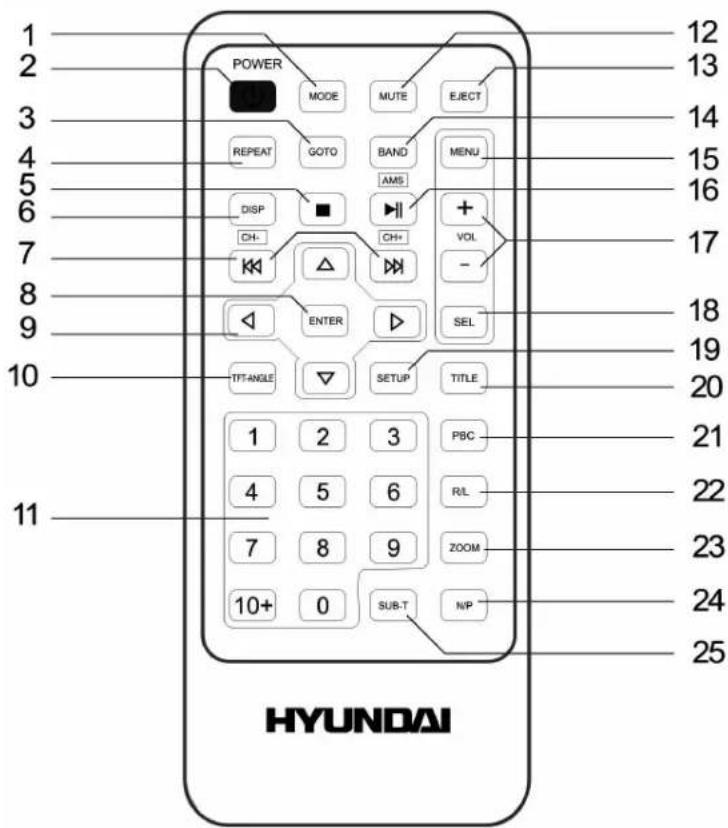

Remote control

1. MODE button
2. POWER button
3. GOTO button
4. REPEAT button
5. STOP button
6. DISP button
7. PREVIOUS/CH-/NEXT/CH+ button
8. ENTER button
9. Cursor buttons (LEFT/RIGHT/UP/DOWN)
10. TFT-ANGLE button
11. Digit buttons
12. MUTE button
13. EJECT button
14. BAND button
15. MENU button
16. PLAY/PAUSE/AMS button
17. VOL+/VOL- button
18. SEL button
19. SETUP button
20. TITLE button
21. PBC button
22. R/L button
23. ZOOM button
24. N/P button
25. SUB-T button

Changing the battery

1. Press the catch and at the same time pull out the battery tray.

1. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control.

Warning:

• Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.
• Do not recharge, short, disassemble or heat the battery or dispose it in a fire.
• Do not expose or bring into contact the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.
• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give off heat, crack or start a fire.

General operation

In any mode (except for VIDEO) touch the screen once, and then press EXIT on the top left-hand corner to enter the source menu.

1. POWER button, press to turn off or on the unit
2. SETTING button, press to enter setting mode. You can set: clock (press +/- icons near H (hour) and M (minute)), TFT on/off/auto (automatic screen off) mode, camera view (left (normal) or right (mirror)), if the rear view camera is connected, radio frequency (Europe, USA1, USA2, Japan, Russia), choose the language (option). Choose “Russia” to enable enhanced frequency range.

Note: The operations in this menu are available via touch screen. Press the item you want to adjust on the left column and adjust it in the right column.

1. TFT UP button, press to change the angle of the panel upwards.

2. TFT DOWN button, press to change the angle of the panel downwards.

3. EJECT button, press to eject the disc.

4. RADIO button, press to choose radio mode.
5. DVD button, press to choose DVD mode.
6. SD button, press to choose SD mode.
7. GPS button (option).
8. TV button, press to choose TV mode.
9. AUX button, press to choose AUX mode.
10. B.TOOTH button (option).
11. TFT ON/OFF button, press to turn on or off TFT screen.

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must press RESET button with a pointed object to restore the unit to the original factory settings.

Note: Resetting the unit will erase the time setting and some memorized functions.

Power on/off

Press POWER button on the panel or on the RC to turn the unit on. Press and hold POWER button on the front panel or press POWER button on the RC to turn the unit off.

Note: After the unit is off, the volume level will be memorized, and when you turn the unit on it will resume the stored status, which you set (if the volume is lower than 20).

Volume control

Press VOL+/- buttons on the RC or on the unit to adjust the volume level.

Mute function

Press MUTE button on the panel or on the RC or MUTE button on the touchable screen to disable the sound. "MUTE" will appear on the display. Press these buttons again or press VOL+/- buttons to resume the volume.

Blank screen

Press and hold MUTE button on the unit to disable the picture and have the blank screen. To resume the picture, press MUTE button on the unit again.

Audio adjustment

Press SEL button to select a parameter: VOL (volume) => BAS (bass) => TRE (treble) => BAL (balance) => FAD (fader). Press VOL+/- buttons to adjust each parameter.

Notes:

• If you turn on EQ function, Bass and Treble cannot be adjusted.
- If you don't perform any operations within 5 seconds after selecting a parameter, the unit will automatically return to the current mode.

Mode control

Press SRC button on the panel or MODE button on the RC to select different source modes: RADIO => DVD (if a disc is inserted into the unit) => SD (if a memory card is inserted) => AUX IN => TV.

Screen angle adjustment

Press UP/DOWN buttons on the unit or TFT-ANGLE button on the RC to adjust the angle of the screen downwards or upwards.

Radio operation

This unit is equipped with a touch screen. To perform various operations you can use buttons on the RC, on the front panel as well as screen touchable buttons.

Band selection

Press BAND button repeatedly to select FM1, FM2, FM3, AM1, AM2. Display will show the wave band, frequency and preset station number if already stored. To select a band you can also press BND button on the touchable screen.

Manual/Automatic tuning

• Manual tuning: Press PREVIOUS/NEXT buttons on the panel or CH+/- buttons on the RC or correspondent buttons on the screen to select a station upward or downward step by step.
• Automatic tuning: Press and hold for 3 seconds PREVIOUS/NEXT buttons on the panel or CH+/- buttons on the RC or correspondent buttons on the screen, the automatic search will start. It will play when finds the station.

Store function

You can store up to a total of 30 radio stations in the memory (18 FM, 12 AM).

• To store a station

• Select a band (if needed)
• Select a station with PREVIOUS/NEXT buttons on the panel or CH+/- buttons on the RC.
• Press and hold for 3 seconds a number button (1-6) on the RC or press the corresponding station button on the touchable screen, under which you want to store the station.

• To recall a station:

• Select a band (if needed)
• Press a number button (1-6) briefly to recall the stored station or press the corresponding station button on the touchable screen.

Preset scan function

Press PLAY/PAUSE button on the unit or PLAY/PAUSE/AMS button on the RC or AMS button on the touchable screen to scan for several seconds each preset station in the memory of the current band. To stop preset scan, press this button again.

Auto memory store function

Press and hold PLAY/PAUSE button on the unit or PLAY/PAUSE/AMS button on the RC or AMS button on the touchable screen to enter auto store mode. The radio will automatically store the 6 strongest available stations to the 6 preset memories of the current band. To stop auto store, press AMS button.

RDS function

RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either.

PTY (Program Type) function

Press RPT/PTY button on the unit or PTY button on the touchable screen to turn the PTY function on. Press these buttons to select a program type. 2 seconds later the unit will automatically search a broadcasting station of such program type.

Notes:

• When PTY is selected, the radio starts to search corresponding PTY information and stops of the corresponding PTY information is detected.
  • If corresponding PTY information is not found, normal radio reception is resumed.

AF (Alternative Frequencies) function

Press and hold L/R/TA/AF button on the unit or press AF button on the touchable screen to switch on/off the AF function. The function is active by default. The tuner will return to Alternative Frequencies whenever the reception signals getting worse.

TA (Traffic Announcement) function

Press L/R/TA/AF button on the unit or TA button on the touchable screen to select the TA mode on/off. Traffic announcement interrupts CD play or radio listening when being broadcasted.

USB/SD/MMC cards/Disc operations

USB/SD/MMC notes

USB functions (flash memory type) MP3 music play.

1. SD/MMC card support, 2in1 (SD/MMC) support.
2. USB flash memory.
3. FAT 12/ FAT 16/ FAT 32 is possible

- FAT 12/16 (dir: 200 support, file: 500 support),

- FAT 32 (dir: 200 support, file: 500 support).

1. Filename: 32 byte/ Dir name: 32 byte.
2. Tag (id3tag ver2.0)

- Title/Artist/Album: 32 byte support.

1. Multi card reader not support.
2. USB 2.0 support.

Notes:

USB format supports 2.0.

Capacity: 8 Mb \~ 2 Gb.

SD cards brands: Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc.

Capacity: 8 Mb \~ 2 Gb.

MMC cards brands: Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, etc.

Capacity: 16 Mb \~ 2 Gb.

Disc glossary

PBC (Play Back Control)

PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.

Title

The title is the important part of DVD disc. The memory volume of the disc is rather big, that makes possible to record several films on one disc. For example, if a disc contains three films, they may be divided into Title 1, Title 2 and Title 3. You can easy use the functions of looking-for.

Chapter

A title can be divided into several blocks, so that every block can be operated as a unit, the unit is called chapter. The chapter contains a unit at least.

Track

It is the biggest component of VCD. Generally, every song of karaoke disc is a track.

Loading a disc

Press EJECT button on the panel to flip it down. Insert the disc with the printed side facing upward into the slot. Close the panel. The disc will be loaded and played automatically. If the unit is in another mode, press MODE button on the RC or SRC button on the unit to select DISC mode.

Press EJECT button on the panel to eject the disc.

Inserting a SD/MMC card/USB device

Insert the MMC/SD card into the corresponding slot on the top of the panel and insert USB device into the USB jack on the panel. The unit will automatically switch to the needed mode.

If a USB driver is connected to the unit, the unit cannot switch to SD/MMC reading mode automatically when you insert a SD/MMC card, except after taking out the USB. If the unit is reading the files i card, the unit cannot switch to USB reading mode automatically when you connect a USB driver, except after taking out the SD/MMC card.

Note: Some USB driver models cannot be supported by this unit.

Playing/pausing

When the disc/card/USB has been loaded, the playback of the first track starts automatically. To ensure good system performance, wait until the unit finishes reading the disc information before proceeding. Or press the PLAY/PAUSE button to start playback. Press it again to pause the playback playback.

Stop playback

During playback, press STOP button on the RC. Playback will be stopped.

For DVD discs: If PLAY/PAUSE button is pressed, playback will start from the stopped. If the disc is removed, the resume function is cancelled. Press STOP button on the RC again to finally stop the playback.

Playing the previous/next track

During playback press PREVIOUS/NEXT buttons on the panel or CH + / - buttons on the RC (or on the screen) to select the next or previous track to play.

Fast forward and backward playback

Press and hold for 2 seconds PREVIOUS/NEXT buttons on the panel or CH+/- buttons on the RC to select the speed of fast playing in forward or backward direction: X2 => X4 => X8 => X16. Press PLAY/PAUSE button on the unit to return to normal playback.

Repeat playback

Press the RPT/PTY button on the unit or REPEAT button on the RC to select a repeat playback mode:

• For VCD/CD: display appears Repeat Single => Repeat All=>.
  • For DVD: display appears Repeat Chapter => Repeat Title =>.
• For MP3 disc: display appears Repeat Single => Repeat Folder=>.

Menu navigation (for DVD only)

1. Press TITLE button on the RC to activate the disc title list on the screen.
2. Press the cursor buttons to select the desired title. Then press ENTER button or PLAY/PAUSE button to open the root menu of the selected title.
3. Press the cursor buttons to select desired track, then press ENTER or PLAY/PAUSE button to play the selected track.

PBC (Playback Control) function (for VCD only)

If you insert a VCD with PBC, playback starts from the beginning of the 1st track automatically.

1. Press PBC button on the RC to activate PBC menu on screen during playback.
2. If the menu consists of a list of titles, you can select a desired one using the number buttons on the RC to play.

Time

Press DISP button on the RC to show the current time.

Subtitles

Press SUB-T button to choose subtitle language (if available).

Audio channel

In DVD mode press R/L button on the RC or L/R/TA/AF button on the unit to change the audio language. In VCD and CD mode press this button to choose Left => Right => Mix => Stereo.

Changing size (for DVD/VCD)

During playback press ZOOM button on the RC continuously to change the size of the picture on the screen: Zoom 1 => Zoom 2 => Zoom 3 => ZOOM OFF. Using cursor buttons you can move the enlarged picture.

TV type select (for DVD/VCD)

Press N/P button on the RC to select the TV type: NTSC => PAL => AUTO.

GOTO function

During playback press GOTO button, the goto menu will appear on the display. Use UP/DOWN cursor buttons to move to the needed menu item; use number buttons to input the needed number of chapter/title and the needed time. The unit will go to playback the disc according to the input data.

Root menu

During DVD or VCD playback press MENU button to enter the root menu.

Rear-Play mode

In USB/SD/MP4/CD/VCD/DVD mode press and hold SEL button on the panel to activate rear-play mode. The below menu will appear.

1. Current time display
2. Current radio frequency. Touch FM1 position to switchover waveband, and same panel band.
3. Pre-stored station number. Touch station number 1-6 to listen to the desired station.
4. Function display area for Volume, Mute and other functions.

Press:

• MUT button to turn mute on/off.
  • AMS to preview 6 radio stations. Long press to search radio station.
• |◀/▶| button to search the stations manually. Press and hold this button to search the stations automatically.
  • TA, AF for RDS station search; if no RDS function available, they are LOUD and BAND function.
  • REAR DVD to directly turn back to the current play mode.

Touch screen menu

MP4/VCD/DVD operations

This touch screen menu will appear after touching the screen. Press the needed button to choose setting, mode or navigate in playing mode. (TEL and GPS are optional).

SD/USB/CD/MP3/JPG operations

This touch screen menu will appear after touching the screen. Press the needed button to choose: repeat mode (RPT button), loud mode (LOUD button), equalizer setting (EQ button) modes (RADIO, DVD, TV, TEL, AUX, GPS (option), SD/USB) or navigate in playing mode (PLAY/PAUSE, NEXT, PREVIOUS buttons), to adjust the monitor angle (Arrow buttons), TFT on or off.

Note:

• You can launch the file directly touching it on the screen.

- If the storage has folders, step on it using cursor buttons and enter the folder by pressing ENTER button on the RC or just press the folder

MP3 overview

Notes on MP3:

• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
• This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs.
- The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
- The unit can not read an MP3 file that has a file extension other than ".mp3".
- If you play a non-MP3 file that has the ".mp3" extension, you may hear some noise.
- In this manual, we refer to what are called "MP3 file" and "folder" in PC terminology as "track" and "album", respectively.
- Maximum number of directory level is 8, including the root directory. Maximum number of files and folders per disc is 448.
• The unit may not play tracks in the order of Track numbers.
• The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.
- When playing a disc of 8 kbps or "VBR", the elapsed playing time in the display window will not be correct and also the intro play may not function properly. "VBR": Variable Bit Rate.

Notes on creating your own CD-R or CD-RW containing MP3 files:

• To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate of 128 kbps.
  • Do not store more than 448 MP3 files per disc.
• For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).

• When CD-R disc is used, playback is possible only for discs, which have been finalized.

• Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc.

• You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.
• With some CD-R or CD-RW media, data may not be properly written depending on its manufacturing quality. In this case, data may not be reproduced correctly. High quality CD-R or CD-RW disc is recommended.
• Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required.
  • Note that the unit may not play Tracks in the order that you wrote them to the disc.

AUX touch screen operations

In AUX mode touch the screen once, the below menu will appear.

• Mute operation: press to turn off/on the sound.
  • Loud operation: press to turn LOUD off/on.
  • EQ: Press to select equalizer mode: POP->ROCK->CLASS->EQ OFF.
  • Volume level: press to select volume level form 0 to 39.
• Exit: press to enter the main menu.
  • RADIO, DVD, SD/USB, TV, TEL (option), GPS (option): press to choose the corresponding mode.
• SEL: press to enter audio adjustment mode. See the picture below.

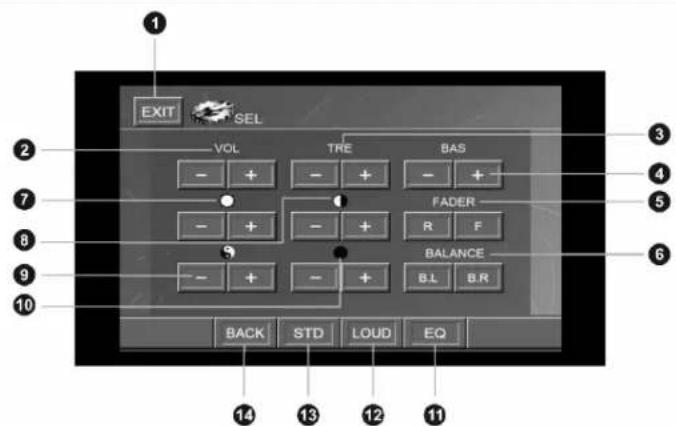

Audio/video settings

1. Exit: press exit to enter the main menu.
2. Volume Adjustment. Press "-" + " button under volume.
3. Treble Adjustment. Press "-" + " button to set up treble.
4. Bass Adjustment. Press "-"+" +" button to set up bass.
5. Front and rear output adjustment. Click R (Rear), F (Front) button to adjust fader.
6. Left Right Balance Adjustment. Click BL, BR button under the output to adjust the rear balance.
7. Brightness Adjustment. Press "-" + " button to adjust brightness of the screen.
8. Contrast Adjustment. Press "-" + " button to adjust contrast of the screen.
9. Chrominance Adjustment. Press "-"+" +" button to adjust chrominance of the screen.
10. Sharpness Adjustment. Press "-"+" +" button to adjust sharpness of the screen.
11. EQ. Press to select equalizer mode: POP->ROCK->CLASS->EQ OFF.
12. Loud operation. Press to turn LOUD off/on.
13. Standard Adjustment. Press to resume the image modes to the standard display mode.
14. BACK. Press to return to the previous mode.

System setup menu

Press the SETUP on the RC to enter the setup menu. Press it again to leave setup menu.

• Use UP/DOWN buttons to select the category.
- Press RIGHT button to enter submenu.
• Use UP/DOWN buttons to select the setting you need to change.
- Press ENTER button to confirm changes.
- Press LEFT button until you reach the main menu window.

Language

Choose OSD menu language, subtitle language, DivX subtitle language, audio language, DVD menu language. Note: Some DVDs may not include the pre-selected language. In this case, the unit will automatically display menus in the disc's initial language setting.

Video

Aspect Ratio

Selecting the TV Aspect setting allows the user to select the aspect ratio of the TV (DVD and VCD only). The following options are available:

• 4:3 = Aspect ratio of TV is 4:3.
• 16:9 = Aspect ratio of TV is 16:9.

Notes:

• Most widescreen DVDs will not allow pan and scan conversion. If 4:3 PS is selected on these DVDs, letterboxing will be used instead.
• If 16:9 is selected and a 4:3 TV is connected, 16:9 content will appear distorted during playback (objects look thin).

View mode

Choose fill, original, auto fit or pan scan view mode.

TV system

Multi: the TV system is auto switched according to the disc system.

NTSC: this system is used in USA, Taiwan, Japan etc.

PAL: this system is used in China, Europe, Hong Kong etc.

Video out

S-video is default setting and cannot be changed.

Smart picture

Chose Standard, Vivid, Cool, Personal mode of color of background.

Audio

Digital output

Choose Digital output: off, PCM or ALL.

Night mode

Choose night mode on or off.

Down Sampling

Choose down sampling on or off.

Rating

Parental Control

The Rating allows the user to have parental control feature of the player. Press the ENTER button the window will pop up where you need to enter a password (the factory default password is 8888).

Set password

User can set new password in the Set password setting. Press ENTER to pop up the “Enter Password” enter the old password. Press ENTER twice, then the “Enter New Password” window will pop up, enter the new password, press ENTER to confirm.

Misc

Use default settings

Select “use default settings” and confirm to restore factory settings.

Screen saver

Choose screen saver on or off.

window,

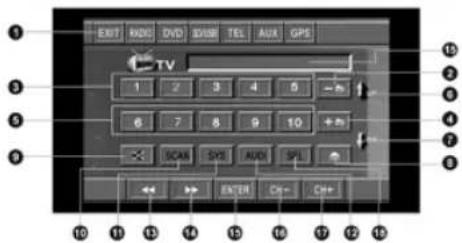

TV Operation

Scanning /Automatically memorizing channels

Press AMS button, SCAN ONE will be displayed on the screen. It will search the first channel. Press and hold AMS button, the unit will automatically search the stations. SCAN ALL will display on the screen. It will search and memorize all channels. (Maximum 95 stations can be programmed).

Note: Also you can press and hold NEXT or PREVIOUS buttons to search the station.

Select the needed program by number button or press NEXT or PREVIOUS button to choose the channel.

• Pre-set frequency selection

There are 99 pre-set channels. Press any button of 3 or 5, then 15 (ENTER), the player will play the corresponding broadcasting station. Press 4 button, next 10 preset frequencies will be displayed in 3 and 5 lines; press 2 button - previous 10 preset frequencies will be displayed.

- TFT Box Up/Down-arrow Operation

Press UP button (6) to change the angle of the panel upwards.

Press DN button (7) to change the angle of the panel downwards.

- Mute Operations

Press 9 button to turn off/on the sound.

- Scan Operations

Press 10 button to scan the channels, the player automatically adjusts and searches the channels and save the searched broadcasting stations automatically and then plays the first broadcasting station.

• Television system switchover/Sound system switchover

Press 11 (SYS) button to choose the TV system.

Press 12 (AUDI) button to choose the sound system.

• Manual Channel Search

Press 13 button the player will search for programs upward, when it finds the first broadcasting station, it will stop and start to play this broadcasting station. Press 14 button the player will search for programs downward, when it finds the first broadcasting station, it will stop and start to play this broadcasting station.

Note: Upon the first use, please set up the television system and sound system.

• Channel Selection

Press 16 button, the player will select broadcasting stations upward. Press 17 button, the player will select broadcasting stations downward.

- Eject disc

Press 8 (EJECT) button to eject the disc.

- SEL

Press 18 (SEL) button to enter audio adjustment mode.

Rear view camera

This unit is equipped with back view camera output. The camera is used to observe the situation behind the vehicle when you are backing the car.

Please connect your back view camera with the back car video input. And connect the detecting wire for back a car with the rear gear light. Rear view camera picture will be enabled when you are backing the car.

Handling discs

• Dirty, scratched or warped discs may cause skip ping or noise.
• Handle the disc only by the edges. To keep clean do not touch its surface.
  • Discs should be stored in their cases after use to avoid scratches.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature can wrap the disc (such as leaving the discs in your car during summertime).
• Do not stick or write anything on either side of disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage its surface.
• Do not touch the unlabeled side. Do not attach any seal, label or data protection sheet to either side of a disc.

Cleaning

Cleaning the cabinet

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth

should remove must panicles. Wipe in a straight motion from the center to the edge. Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Troubleshooting guide

Symptom Cause Solution
No power	The car ignition is not on.The fuse is blown.	If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.Replace the fuse.
Disc cannot be loaded.	Presence of disc inside the player.	Remove the disc in the player then put a new upward.
Disc cannot be read. Inserting the disc in upside down.Compact disc is extremely dirty or defective.Temperature inside the car is too high.		Insert the compact disc with the label facing upward.Clean the disc or try to play a new one.Cool off until the ambient temperature returns to normal.
No sound Volume is in minimum.Wiring is not properly connected.		Adjust volume to a desired level.Check wiring connection.
The operation keys do not work.	The built-in microcomputer is not operating properly due to noise.Front panel is not properly fix into its place.	Press RESET button.Reinstall the front panel.
Sound skips. The installation angle is more than 30 degrees.The disc is extremely dirty or defective.		Adjust the installation angle to less than 30 degrees.Clean the compact disc/try to play a new one.
The radio does not work, the radio station automatic selection does not work.	The antenna cable is not connected the signals are too weak.	Insert the antenna cable firmly select a station manually.

Specification

General
Power supply:	12 V DC
Maximum power output:	50 W x 4 channels
Compatible formats:	DVD/SVCD/V CD/DVCD/HDCD/MP3/WMA/CDDA/DVD Audio/Super Audio CD/Picture-CD/JPEG /MPEG4 (DivX)
Supported disc types:	DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/USB/SD/MMC card
Dimensions (D x W x H)With metal frame:Without metal frame:	185 x 182 x 53 mm (H size of front panel 74 mm)185 x 178 x 50 mm
ESP function:	40 sec. for Audio CD, 120 sec. for MP3
TFT display
Screen size:	4.3" TFT
Resolution:	480 x 272
Aspect ratio:	16:9
Contrast ratio:	300:1
Brightness:	400 cd/m2
View angle:	V: 120°, H: 120°
FM Stereo Radio
Frequency range:	65.0 - 74.0/87.5 - 108.0 MHz
Preset memory stations:	18
AM section
Frequency range:	522 kHz - 1620 kHz
Preset memory stations:	12
Audio specification
S/N ratio:	65 dB
Separation	60 dB (1 kHz)
Line out
Output:	4 channel RCA line-out (2V)

Specifications are subject to change without notice. Dimensions are approximate.
