Product Type	MP3 Player
Brand	Sunstech
Model	Rome 2012
Storage Capacity	4 GB Internal Memory
Display	1.5-inch LCD Screen
Audio Formats Supported	MP3, WMA, WAV
Battery Type	Rechargeable Lithium-Ion
Battery Life	Up to 10 Hours Playback
Charging Method	USB via Computer or Charger
Connectivity	USB 2.0
Headphone Jack	3.5 mm Stereo
Dimensions	90 x 40 x 10 mm
Weight	30 g
Operating Systems Supported	Windows, Mac OS
Controls	Play/Pause, Volume, Skip, Menu
Radio	FM Tuner (Optional)
Recording	Voice Recording via Built-in Mic
Cleaning Instructions	Wipe with a soft, dry cloth

Frequently Asked Questions - Rome 2012 Sunstech

How do I turn on the Sunstech Rome 2012?

How can I transfer music to the device?

How long does the battery last?

How do I charge the device?

What audio formats are supported?

Can I use the device while charging?

My device is not turning on. What should I do?

How do I organize my music into folders?

Is there a built-in FM radio?

How do I clean the device?

USER MANUAL Rome 2012 Sunstech

Simple line drawing of a rectangular device with rounded corners and a blank center (no text or symbols)

1

Diagram of a device rear panel with labeled ports and connectors, showing front, top, and side views.

00:08 Recorder FM Radio EBook Calendar Browser Setting Stopwatch Calculator FLASH Staroby Music Pictures Videos

Carga de la batería

04:33 Tuesday, August 3 Slide to unlock

Hotel California 00:04:07 00:07:00 Normal A → B are calling from far away, Wake you up in the middle of the night 15

Reproducir música

Video Music 00:00:19 00:00:31 15

Volumen

EBook All Ebooks Bleachers.jar Lolita.txt Old Man and The Se... sons and lovers.txt The little prince.txt The wind in the willo... Uncle Tom's Cabin.txt White Fang(Jack Lon...

En reproducción

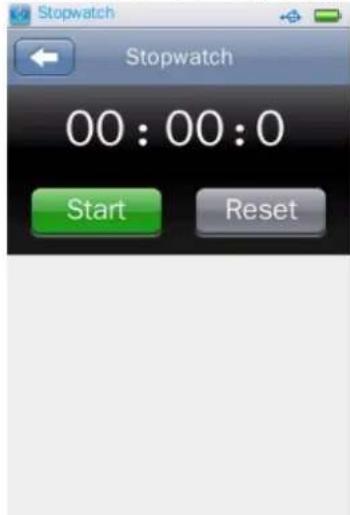

Stopwatch 00:00:0 Start Reset

Simple line drawing of a rectangular device with rounded corners and a blank center (no text or symbols)

What's in the box

Operating Unit,

User Manual

Warranty Card

USB Cable

Earphone

Optional Accessories

Micro SD card

Battery Charger

Content

Buttons location and usages.... 4

Basic Operation.... 5

Main interface.... 5

Charging the batteries.... 5

Music Player interface....6-11

Video mode.... 12-14

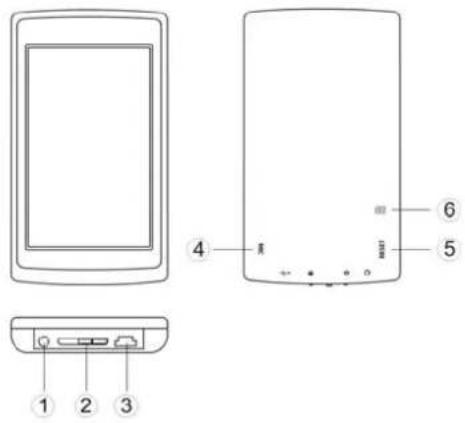

Buttons location and usages

Diagram of a device rear panel with labeled ports and connectors, showing front, top, and side views.

(7) Earphone Jack
(8) ON/OFF/Lock Button
(9) USB Port
(10) Microphone
(11) Reset
(12) Micro SD Card Slot

Basic Operation

Power on/off and Lock

Slide the ON/OFF/HOLD switch to the on position and hold for 3 seconds to switch on the device. Slide the switch to the LOCK position to key-lock the player.

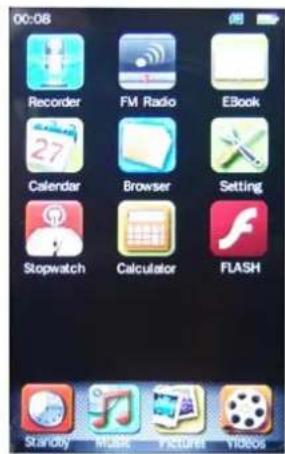

Main interface

Once your switch the player on you'll reach to the main interface as below...

00:08 Recorder FM Radio EBook Calendar Browser Setting Stopwatch Calculator FLASH Staroby Mask Picture Videos

Charging the batteries

Connect the player to PC via USB cable and select "USB Charge" or "Charge & Play", the device will

be charging. While charging, if the battery logo is running, means it is still charging, if the battery logo is full, means the charging finished.

Standby

Touch "Standby" icon on the main menu to enter the standby mode, slide the → icon to unlock and return to the main menu.

04:33 Tuesday, August 3 Slide to unlock

Operation of Music mode

Touch on the main menu to enter the music mode. Once you've entered the music mode, the

following screen would show up.

Now Playing

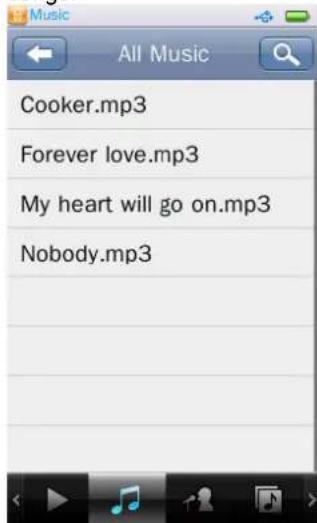

The screen will show all the now playing songs All Music

Click in the bottom of screen to browse all of songs.

Cooker.mp3 Forever love.mp3 My heart will go on.mp3 Nobody.mp3

Artist

Click on at the bottom of screen to browse the songs of that artist. click any particular artist to show the songs of that artist. click a song to start playing.

Album

Click icon to browse all of your artists, click any particular artist to show the songs of that artist. click a song to start playing.

Genre

Click icon to show the genre of all songs.

My Music list

Click 📋 icon to show all the music lists.

Directory Browser

Click icon to enter the Directory Browsing, If you inserted a Micro SD card, there are Internal Memory and Card Memory for selection, if no card inserted, only Internal memory will be showed here.

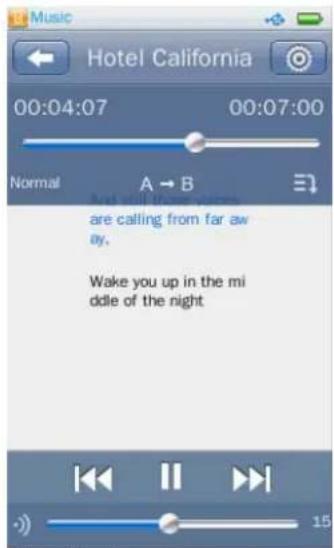

Music Player interface

Whenever you start playing a song you'll reach the Music Player Interface as below.

Hotel California 00:04:07 00:07:00 Normal A → B And do these places are calling from far away. Wake you up in the mi dcle of the night 15

Play Music

Click ▶ in the middle to start playing, click again to pause.

Volume

Slide the volume bar at the bottom of screen to adjust the volume.

Previous / Next

Click ▶to jump to the next song, and click to jump back to the previous song.

While playing the music, the scroll bar will be hidden; click the screen, the scroll bar will be showed.

EQ Selection

Click “Normal” to change the EQ sel, there are Normal, Rock, Pop, Classic, Soft, Jazz, DBB, SRS WOW and SRS WOWHD for selection.

A - B Repeat

Click "A-B" to select the A-B repeat mode.

Play mode

Click icon to select the play mode from Normal / Repeat One / Folder / Repeat Folder / Repeat All / Intro.

Click icon to enter the submenu:

Variable Speed Playback

Click it to select the playback speed from -2X / -1X / 0X / 1x / 2X / 3X / 4X, click Back to return.

Add Tag

Click Add Tag, the current music and its current time point can be added to tag list, then it returns to playing interface. You may find the music in the

corresponding list in

Delete

Click it to delete the current song, and the screen will pop up "Confirm to delete?" Click Ok to delete, click Cancel to exit.

Information

Click it to check the detailed information of current playing song.

Set Rating

Click to select the Rating.

Add to my playlist

Click it to add the current song into the Music List.

User EQ

Click it to adjust your own EQ Setting. Slide the bar to adjust your desired sound effect.

SRS user mode

Click it to adjust the SRS user mode. Slide the bar to adjust the SRS 3D (0 \~ 10), TruBass(0 \~ 10), FOCUS(0 \~ 10), Center(1 \~ 10), Definition(0 \~ 10), Speaker (60Hz, 100Hz, 150Hz), Limiter (On / Off),

Advanced

Click it to select the Replay Times / Replay Interval

from 1 to 8, select ON / OFF for Fade in/Out.

Click Back to exit the submenu, click ← icon to return to the main menu.

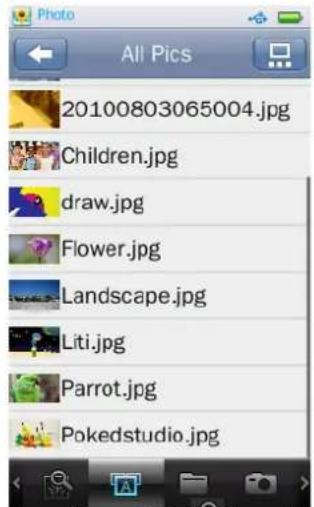

Pictures

Click pictures to enter its mode.

All Pics 20100803065004.jpg Children.jpg draw.jpg Flower.jpg Landscape.jpg Liti.jpg Parrot.jpg Pokedstudio.jpg

Now Browsing: Click icon to browse the now

playing photos.

All Pics.: Click icon to browse all pictures.

Directory Browsing: Click 📄 icon to enter the Directory browsing. If you inserted a Micro SD card, there are Internal Memory and Card Memory for selection, if no card inserted, only Internal memory will be showed here.

Click any particular photo enter the photo playing mode,

Auto mode / Manual mode: Click 📄 icon to start the slide show, click it again to enter the manual mode.

Background picture: Click 📄 icon to set the current playing photo as the background picture.

Zoom in /out: Click the Scale Bar on the right of the picture to zoom in/out the picture; when the picture is zoomed in, you may drag it up/down/left/right correspondingly; to exit Scale mode, click 📋 (note: the previous or next file cannot be selected in Zoom-In state).

Rotate: Click Icon to rotate the current picture

by 90 degrees.

Click 📄 icon to enter the submenu of Picture.

Slide Effect: Click it to select the slide effect from Move page / Louver / Fade Display.

Delete: Click delete, it will pop up "Confirm to delete?", click Ok to delete the picture, click Cancel to exit.

Information: Click it to check the file name ./ Resolution / Created Date of playing picture.

Screen size: Click it to select the screen size of picture from Full screen / Original Size / Scale.

Click Back to exit the submenu, click icon to return to main menu.

Videos

Click it to enter the Video mode.

Now playing

Click ▶ icon to browse the now playing videos.

All Videos

Click 📄 on to browse all video files.

Directory Browsing

Click ☐, If you inserted a Micro SD card, there are Internal Memory and Card Memory for selection, if no card inserted, only Internal memory will be showed here.

Tag list

Click icon to browse all the videos with tag list.

Search

Click to search videos by inputting the file name.

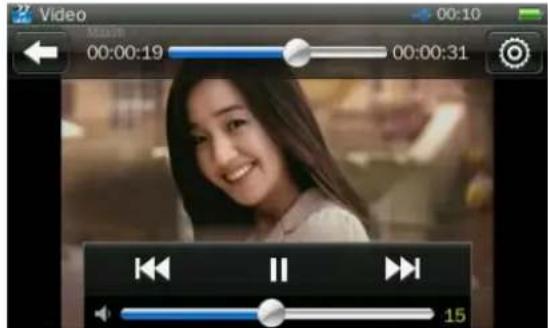

Click any particular video to enter the playing mode

Video 00:00:19 00:00:31 15

Volume

Slide the volume bar at the bottom of screen to adjust the volume.

Previous / Next

Click ▶ to jump to the next video, and click ▶ to jump back to the previous video.

Click icon to enter the submenu.

Subtitle

Click it to select the subtitle On / Off, if the video without subtitle, there is only Off option.

Playback mode

Click it to select the play mode from Sequence / Repeat one / Repeat All / Shuffle / Shuffle + Repeat

Add Tag

Click it add the tag for current playing video.

Screen size

Click it to select the screen size from Full screen / Original size / Scale.

Click Back to exit the submenu, click to return to main menu.

Note: The videos will be played in horizontal direction.

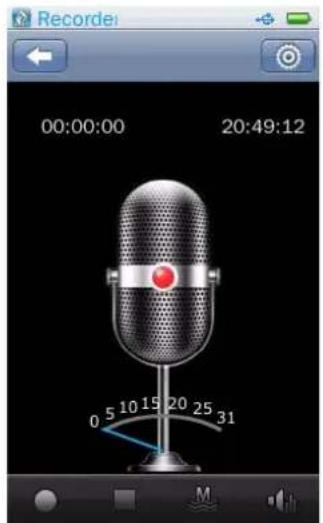

Recorder

Click Recorder to enter its mode.

Click icon to start the recording, click it again to

pause, click icon, it will pop up" Stop recording?" click Ok to stop the recording and saved the recorded files directly, it could be found in menu of Browser, click Cancel to resume the recording.

00:00:00 20:49:12 0 5 10 15 20 25 31

Real time indication of external sound

energy value.

Record Quality

Click the select the quality from: Low, Mid,

High.

Record gain

Click adjust the volume from 1 to 5. In stop mode, click to return to the main menu.

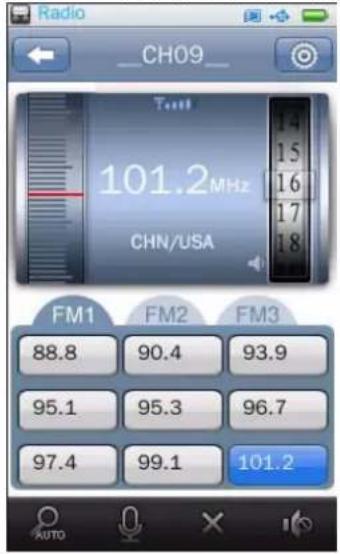

FM Radio

Click FM Radio to enter its mode.

Radio CH09_ Test 14 15 16 17 18 101.2MHz CHN/USA FM1 FM2 FM3 88.8 90.4 93.9 95.1 95.3 96.7 97.4 99.1 101.2 AUTO

Listen In

It will enter the frequency which the system exited last time. Default is 87.5MHz.

Volume Control

adjust the volume by sliding up and down, 31

levels in total.

Manual Search

Tune the frequency by clicking the upper or lower

part of the red line of

Auto Arch

click ATO start auto search. When the search finishes, it will automatically saves the channels searched and play the first one. If no channel is found, it will stop at the first frequency point. During searching, exit by clicking ATO, the system stops at the last channel.

FM Record

Click to enter FM Record interface, options are the same as . Files will be automatically

saved to .

Channel List:

to 9 channels can be saved in each list.

Save/Remove Channel

click save the current channel; if a channel is broadcasting, it functions as Delete; otherwise, it functions as Save.

Click icon to enter the submenu.

Channel list

Click it to select the channel list from Default / M2 / M3.

Tuner Region

Click it to select the tuner region from China / USA / Japan / Europe.

FM Sensitivity.

Click it to select FM sensitivity from High / Medium / Low.

Record Quality

Click it to select record quality from High / Medium / Low.

Record gain

Click it to select the record gain from 1 to 5.

Save path

Options include Internal Memory Device, Card Device. It just shows Internal Memory in case no card is plugged in.

Record format

Click it to select the record format from WAV / MP3 / WMA.

Click Back to exit the submenu, and click return to the main menu.

E-book

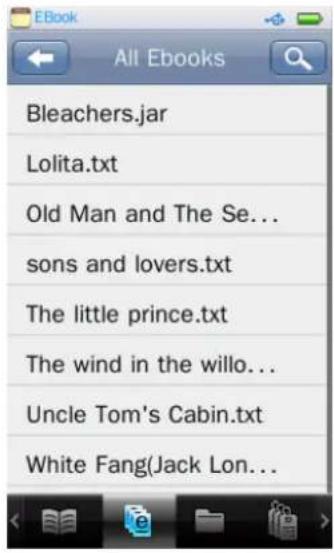

Touch "E-book" on the main menu to enter the e-book menu. Once you've entered the e-book menu, the following screen would show up.

EBook All Ebooks Bleachers.jar Lolita.txt Old Man and The Se... sons and lovers.txt The little prince.txt The wind in the willo... Uncle Tom's Cabin.txt White Fang(Jack Lon...

Now reading

Click 📄 icon to check all the now now-playing or previously played ebook in the now reading ebook files, click the file name to select one and begin to play. It shows "No files" if no ebook file

exists.

All Ebooks

Click

to browse all Ebook files

Directory list

Click ☐, If you inserted a Micro SD card, there are Internal Memory and Card Memory for selection, if no card inserted, only Internal memory will be showed here.

Tag list

Click

to check all tag files with page

number.

Search

Click to search ebook files by inputting the file name.

Click any particular ebook files to read.

Slide the progress bar

to turn to certain

page quickly.

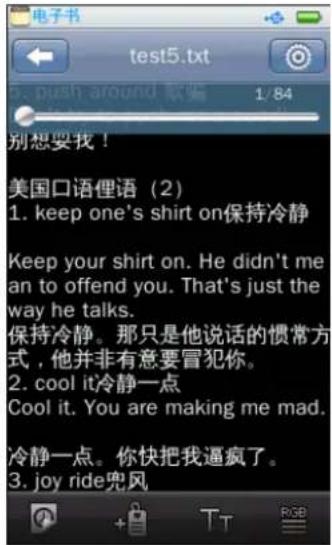

电子书 test5.txt 1/84 别想要找！ 美国口语俚语（2） 1. keep one's shirt on保持冷静 Keep your shirt on. He didn't me an to offend you. That's just the way he talks. 保持冷静。那只是他说话的惯常方 式，他并非有意要冒犯你。 2. cool it冷静一点 Cool it. You are making me mad. 冷静一点。你快把我逼疯了。 3. joy ride兜风

Manual / Auto page turning

Click 📷 icon, the text will stop in manual mode and start the auto page up / down, click 🔊 to return the manual page up / down, slide left/right to turn to

the previous or next page.

Add Tag

Click + icon to add the tag to Tag List automatically. Up to 32 tags supported.

Font size

Click T T icon to select the font size from Small (12) / Mid (16) / Big (24).

Font color

Click RGB to select the font color from Pure White, Blue, Dark Grey, Pure Black.

Click in Text Browser interface to enter submenu, in which options include <Select

Coding>, ,

Select Coding: support up to 22 languages.

: page turning effects; options include move page / turn page / water wave.

Delete: Click it, screen pop up "Confirm to delete?"

click OK to delete the file, click cancel to exit.

click to return to the main menu.

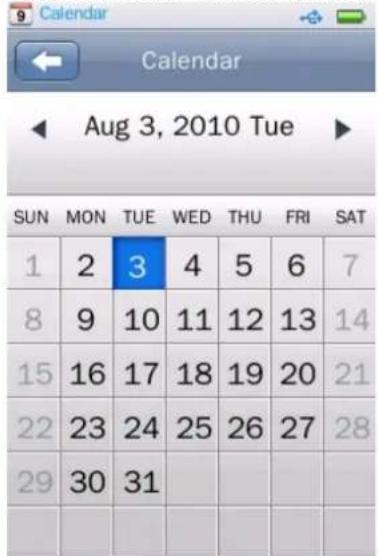

Calendar

Click Calendar in the main menu to enter the mode.

9 Calendar Calendar ◀ Aug 3, 2010 Tue ▶ SUN MON TUE WED THU FRI SAT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

Click / to switch to the previous or next Year,

Month, or touch any digital directly to change the date. click to return to the main menu.

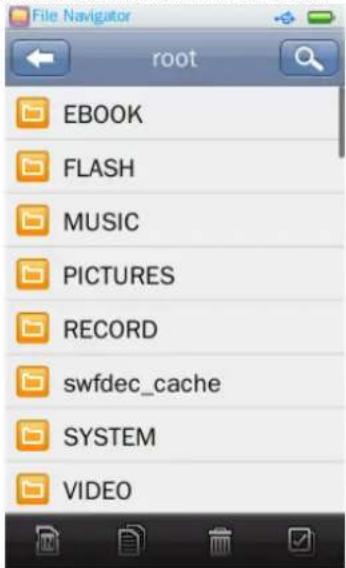

Browser

Click Browser to enter its mode

File Navigator root EBOOK FLASH MUSIC PICTURES RECORD swfdec_cache SYSTEM VIDEO

If no external card plugged in, it shows Internal

Memory only, which includes EBOOK, FLASH, MUSIC, PICTURES, RECORD, SYSTEM, VIDEO and other files.

Select the folder to be browsed and enter by clicking it. All the files under the folder will be listed. Click a file and enter, Click ← to exit.

Operations of external card are the same as Internal Memory.

1. ☐: Switch between Internal Memory and External card.

2. Click to select the file/ folder to be

copied, and then click 📄 to copy the selected file or folder to external card.

1. Click to select the file/folder to be

deleted; it pops out the confirmation box.

1. ☑: select all files/folders under the current folder/dir. Once selected, a red √ will show on the

small icon before the file/folder. Click it again to cancel the Select All.

click to return to the main menu.

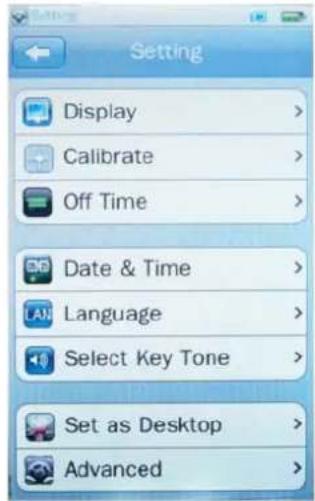

Setting

Click Setting in the main menu to enter its mode.

Setting Display > Calibrate > Off Time > Date & Time > Language > Select Key Tone > Set as Desktop > Advanced >

8. Display

Backlight: 0S means Off; 0 \~ 60s; step: 5s. If backlight time is set as Off, the screen will not shut down automatically; if it is not set as Off, the player will shut down in case no operation during the set backlight time. In picture display interface, Camera/DV Framing interface, Video Playing interface, E-book Reading interface, Flash Game Playing Interface (including Pause), Stop Watch Operation interface, FM Auto Search interface, Backlight Time are ineffective.

Backlight Brightness: level 1\~5 for your selection.

9. Calibrate

Calibrate the touch screen.

3. Off Time

Idle Time: 0Min means Off, 0 \~ 60Min; Step: 2Min. The player will not be shut down automatically if it is set as Off; otherwise, the player is shut down automatically if no operation is done during the set power saving time. In Now-playing music mode (including foreground

and background playing, excluding Pause/Stop Mode), picture viewing interface (excluding manual browsing mode), now-recording interface (excluding Stop mode), now-listening radio mode (including foreground and background, excluding Stop mode), Now-recording DV interface (excluding Stop mode), video playing interface, E-book reading interface (excluding manual reading mode), now-playing Flash game interface, stop watch operation interface, now-charging (including foreground and background charging), Idle time set are ineffective.

Sleep Time: 0Min means Off, setting range:: 0 \~ 120Min; Step: 5Min; the player will shutdown automatically after the set time period.

10. Date & Time

Set Date: Click it to set the system date: Year, Month, and Date. Slide the three bars up or down to change the system date and click ← to confirm and exit.

Adjust Date & Time: Set system time, including Hour, Min, AM/PM, slide the three values bars up or down to choose, click → to confirm and exit.

11. Language

Click Language to select the any particular language as default, there are English, Spanish, Portuguese, French, Chinese, German, Italian etc for selection.

12. Select Key Tone

Click it to select the key tone from Off / Key Tone 1 / Key Tone 2 / Key Tone 3 / Key Tone 4 for selection.

13. Set as desktop

Default: On / Off selection

User Setting: If the default in Off mode, you can choose the User setting and select any favorite picture as desktop.

14. Advanced

Player Info: User name, Firmware Version, Memory Total Space, Memory Free Space, Card Capacity, Card Free Space, All Music, All Pictures, All Video, All E-books, Flash Game.

Set Font: System Default Font

Set User Name: Enter user name by handwriting, delete by clicking 📧 and confirm by clicking Ok.

Check System: Click and enter, dialog box "May require a few minutes" pops out; now select Yes, the system starts checking and prompts "Self-checking..."

Reset: The system prompts whether to recover factory setting; settings of each application will be recovered to factory setting if Yes is selected.

Format Internal Memory: The player's memory can be formatted; make sure to copy the data necessary before formatting.

Format Card: Card can be formatted; make sure to copy the data necessary before formatting.

click to return to the main menu.

Stopwatch

Click it to enter the mode of Stopwatch

Stopwatch 00:00:0 Start Reset

Click Start to start timing; click Stop to save counts

and continue to time. When timing is stopped, click Reset to clear the records.

click to return to the main menu.

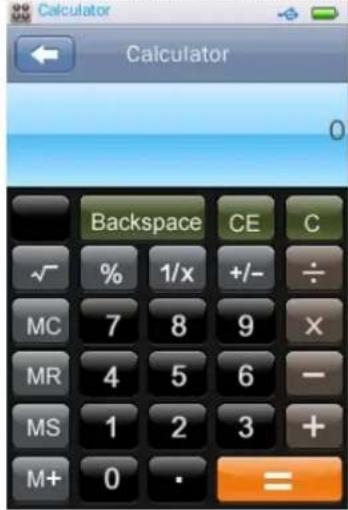

Calculator

Click it to enter the mode of Calculator.

Calculator Calculator Backspace CE C ✓ % 1/x +/- ÷ MC 7 8 9 X MR 4 5 6 - MS 1 2 3 + M+ 0 · =

Input any digits to calculate.

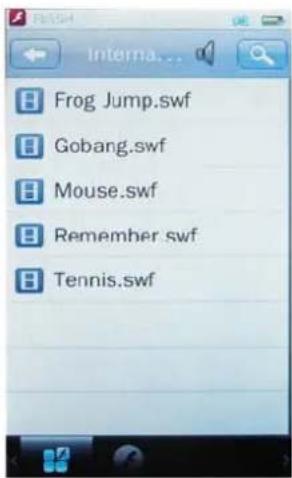

Flash

Frog Jump.swf Gobang.swf Mouse.swf Remember.swf Tennis.swf

Select FLASH Main Interface to enter FLASH

game list.

1. Click ← to exit to Main Interface.
2. Search: Click 🔒 to enter the search mode and input any files to search the games
3. Volume: Click 📋 to adjust the volume for the music of Flash game
4. FLASH Game List: click to select FLASH game.
5. f: Animation list
6. No key operation is supported. In Flash Game, load game and save game are not available.

Technical Specification

External Memory Card	MicroSD card up to 32GB
MP3 compressed rate supported	MP3(8 – 320 kbps)WMA(5-384kbps)
Video format supported	AVI,RM,RMVB, DAT
Photo format supported	JPEG / BMP / GIF /PNG
Battery	Li-Polymer
Interface USB2.0 high speed
Display	3.0" Co
Frequency Response 20Hz – 22KHz
Distortion	<0.5%

battery

TFT

Rate of Signal-to-noise >85dB
Speaker Output 8ohm1W
Weight	70g
Dimensions 90(W) * 50(H) * 12(D) mm

Trouble Shooting

What should I do if there's no sound when playing? You should check the volume first. If the volume has been turned up, maybe the memory format of the device is incorrect..

Specifications are subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any mean, electronics or

mechanical

including photocopying and recording

or translated to another language for any purpose

without the prior written consent of the manufacturer.

All brand names, logos and registered trademarks mentioned

are property of their respective owners.

2008 © Sysbay International Technology. All right reserved.

Warranty conditions

• The warranty of this product is for 2 years since the purchase date.
• The warranty will exclude breakdowns caused by bad use of the product, wrong installation or installation in not desirable places for a proper maintenance of the product, rips, updates of the products that are not the supplied by the brand, pieces wore away for its use or for not domestic or

inappropriate use. Also are excluded breakdowns caused for manipulations of the products by people or companies alien to our company.

- For any request regarding the warranty terms, the purchase receipt must be attached.

Warranty conditions

• The warranty of this product is for 2 years since the purchase date.
• The warranty will exclude breakdowns caused by bad use of the product, wrong installation or installation in not desirable places for a proper maintenance of the product, rips,

updates of the products that are not the supplied by the brand, pieces wore away for its use or for not domestic or inappropriate use. Also are excluded breakdowns caused for manipulations of the products by people or companies alien to our company.

- For any request regarding the warranty terms, the purchase receipt must be attached.

ROME NV

Manual do Utilizador

Português

Simple line drawing of a rectangular device with rounded corners and a blank center (no text or symbols)

O que há na caixa

Diagram of a device rear panel with labeled ports and connectors, showing front, top, and side views.

00:08 Recorder FM Radio EBook Calendar Browser Setting Stopwatch Calculator FLASH Stanoby Music Pictures Videos

Carregar as baterias

04:33 Tuesday, August 3 Slide to unlock

Hotel California 00:04:07 00:07:00 Normal A → B And still music calls are calling from far away. Wake you up in the middle of the night

Tocar música

Click if you inserted a Micro SD card, there are Internal Memory and Card Memory for selection, if no card inserted, only Internal memory will be showed here.

Todos os vídeos

Video 00:00:19 00:00:31 15

Volume

EBook All Ebooks Bleachers.jar Lolita.txt Old Man and The Se... sons and lovers.txt The little prince.txt The wind in the willo... Uncle Tom's Cabin.txt White Fang(Jack Lon...

Lendo agora

Clique no ícone

电子书 test5.txt 5. push around 联编 1/84 别想要我！ 美国口语俚语（2） 1. keep one's shirt on保持冷静 Keep your shirt on. He didn't me an to offend you. That's just the way he talks. 保持冷静。那只是他说话的惯常方 式，他并非有意要冒犯你。 2. cool it冷静一点 Cool it. You are making me mad. 冷静一点。你快把我逼疯了。 3. joy ride兜风

Setting Display > Calibrate > Off Time > Date & Time > Language > Select Key Tone > Set as Desktop > Advanced >

no seu modo.

1. Exibir

Stopwatch 00:00:0 Start Reset
