Product Type	Cellphone
Brand	ZTE
Model	Libra
Dimensions	110 x 45 x 12 mm
Weight	80 g
Battery Type	Li-Ion 1000 mAh
Standby Time	Up to 300 hours
Talk Time	Up to 8 hours
Display Type	TFT
Display Size	2.4 inches
Display Resolution	240 x 320 pixels
Internal Memory	32 MB
Expandable Memory	microSD up to 8 GB
Rear Camera	VGA
Front Camera	No
Network	GSM 900/1800
Bluetooth	v2.0
USB	microUSB 2.0
FM Radio	Yes
Headphone Jack	3.5 mm
SIM Card	Mini SIM
Operating System	Proprietary
SAR Value	0.5 W/kg

Frequently Asked Questions - Libra ZTE

How do I insert the SIM card and battery?

Power off the phone. Remove the back cover by sliding it downwards. Insert the SIM card with the gold contacts facing down and the cut corner aligned. Insert the battery, aligning the contacts, then press down to secure. Replace the back cover.

How do I charge the phone?

Connect the microUSB charger to the charging port on the phone. Plug the charger into a wall outlet. The battery icon will indicate charging. It takes about 2-3 hours to fully charge.

How do I turn on/off the phone?

Press and hold the Power button (usually located on the top or side) for a few seconds until the screen lights up. To turn off, press and hold the Power button, then select 'Power off' from the menu.

How do I make a call?

Unlock the phone. Enter the phone number using the keypad. Press the Call button (green handset icon) to dial. Press End (red handset) to hang up.

How do I send a text message?

From the main menu, select Messages > Create Message. Enter the recipient's number or select from contacts. Type your message using the keypad (multi-tap or T9). Press Send.

How do I take a photo?

Open the Camera app from the main menu. Frame your subject using the screen. Press the OK or Capture button to take a photo. Photos are saved in the Gallery.

How do I set an alarm?

Go to Alarms or Clock app. Select 'Add alarm' or press Options. Set the time, repeat days, and alarm tone. Save the alarm. Ensure the phone is not in silent mode for the alarm to ring.

How do I increase the volume?

During a call or media playback, press the Volume Up button on the side of the phone. To adjust ringtone volume, go to Settings > Sound > Volume and use the slider.

How do I reset the phone to factory settings?

Go to Settings > Phone Settings > Reset. Enter the phone password (default 0000) if prompted. Confirm reset. All data will be erased. Backup important data first.

How do I transfer files via Bluetooth?

Enable Bluetooth on both devices. On the ZTE Libra, go to Settings > Bluetooth and turn it on. Pair with the other device by selecting it and confirming the passkey. Then select the file (e.g., photo) and choose Send via Bluetooth.

USER MANUAL Libra ZTE

ZTE Libra User Manual

LEGAL INFORMATION

Copyright © 2011 ZTE CORPORATION.

All rights reserved.

No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation.

The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Every effort has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this manual do not constitute a warranty of any kind, expressed or implied.

Version No.: R1.0

Edition Time : 20110823

Service Hotline : [phone]

Contents

For Your Safety 12

General Safety 12

Radio Frequency (RF) Exposure ....13

General Statement on RF Energy 13

Specific Absorption Rate (SAR) 13

Body Worn Operation....14

Limiting Exposure to Radio Frequency (RF) Fields..14

Distraction....15

Driving 15

Operating Machinery 15

Product Handling 15

General Statement on Handling and Use......15

Small Children 17

Repetitive Motion Injuries ......19

Emergency Calls 20

Loud Noise ....20

Phone Heating....20

Electrical Safety 20

Accessories 20

Connection to a Car 21

Faulty and Damaged Products 21

Interference 21

General Statement on Interface....21

Pacemakers 21

Hearing Aids 22

Medical Devices.... 22

Hospitals 22

Aircraft.... 22

Interference in Cars 23

Explosive Environments 23

Petrol Stations and Explosive Atmospheres...... 23

Blasting Caps and Areas 23

Getting Started....24

Overview 24

Keys Explained.... 25

Starting up 26

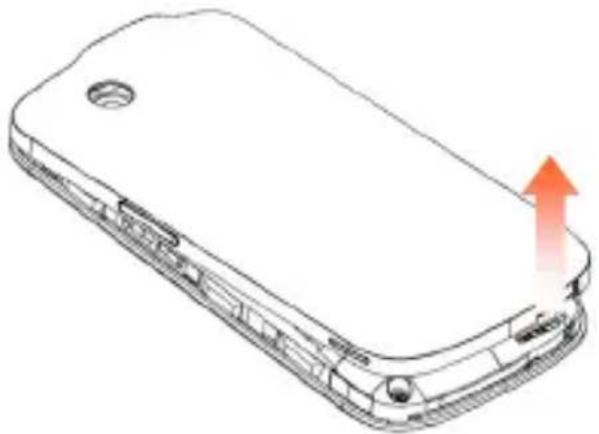

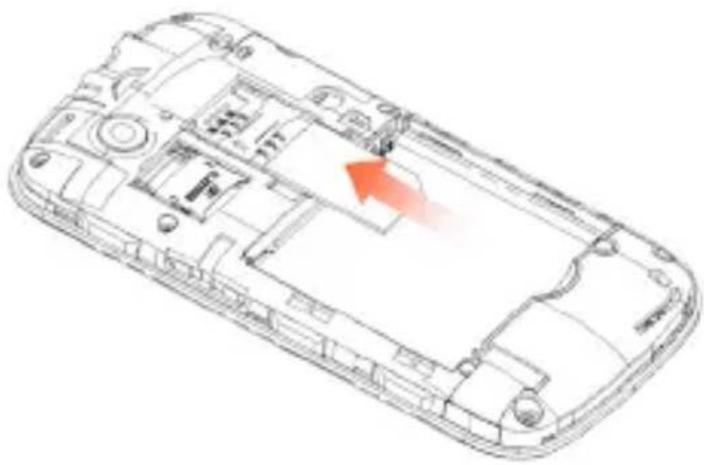

Installing the SIM/microSD Card and Battery .....26

Removing the Battery and SIM/microSD Card ..... 28

Charging the Battery 29

Switching Your Phone On/Off 30

Setting Up Your Phone for the First Time 30

Switching to Sleep Mode ....31

Waking up Your Phone.... 31

Getting Around Your Device.... 31

Touch Control 31

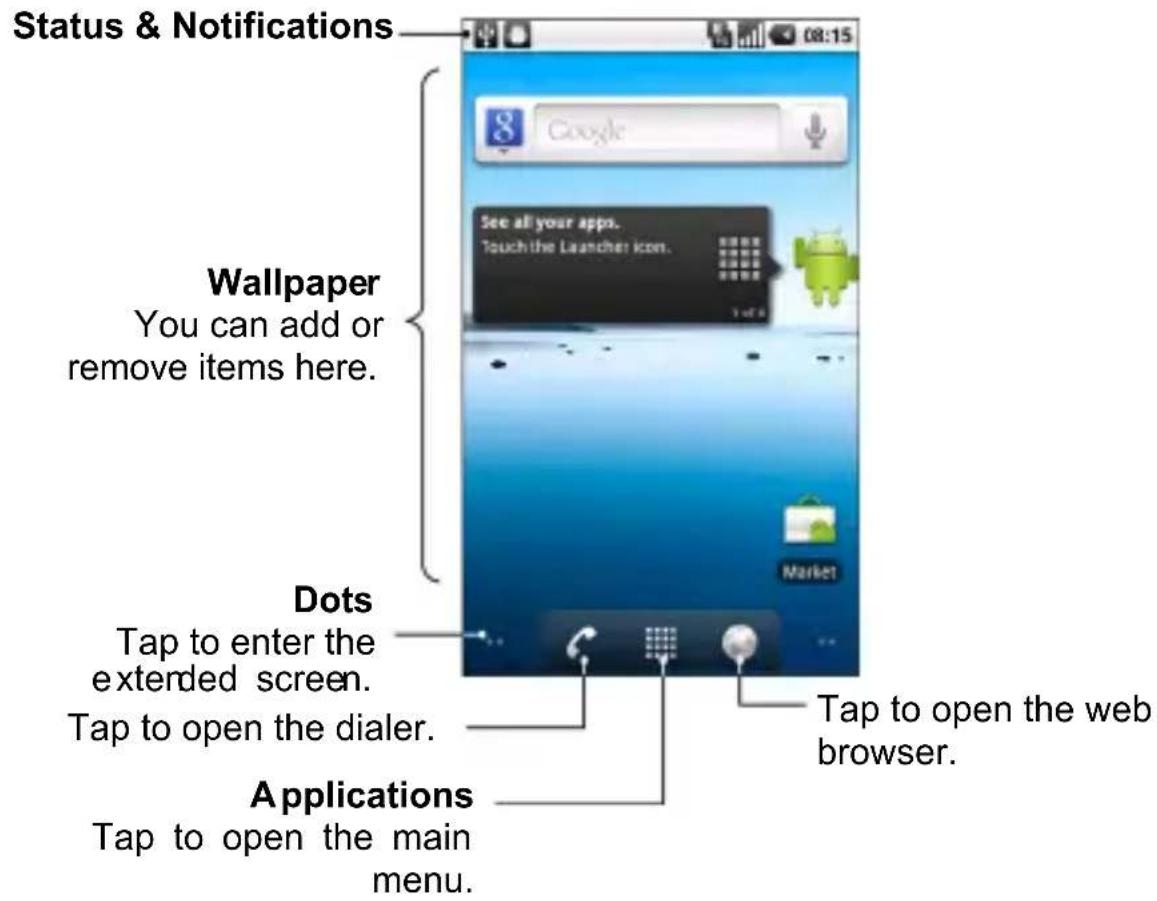

Home Screen 32

Status and Notification Icons....34

Applications and Settings Preview ....36

Phone Calls 41

How to Make Calls....41

Calling from the Dialer....41

Calling from Your Contacts ....41

Calling from Your Call History ....42

Calling from a Text Message....42

Using Speed Dial....42

Making Emergency Calls....43

Making International Calls 43

How to Receive Calls....44

Answering a Call 44

Rejecting a Call 44

Muting a Call ....44

Putting a Call on Hold....44

Turning the Speakerphone On/Off 45

Ending a Call 45

Adjusting Your Call Settings 45

Contacts 47

Importing and Exporting Contacts ....47

Import Contacts from the SIM Card or Export to the

Card....47

Import Contacts from the microSD Card or Export to the Card 48

Creating a Contact 48

Adding a Contact to Favorites 48

Searching for a Contact.... 49

Editing a Contact 49

Deleting a Contact....49

Creating a New Group.... 50

Entering Text....51

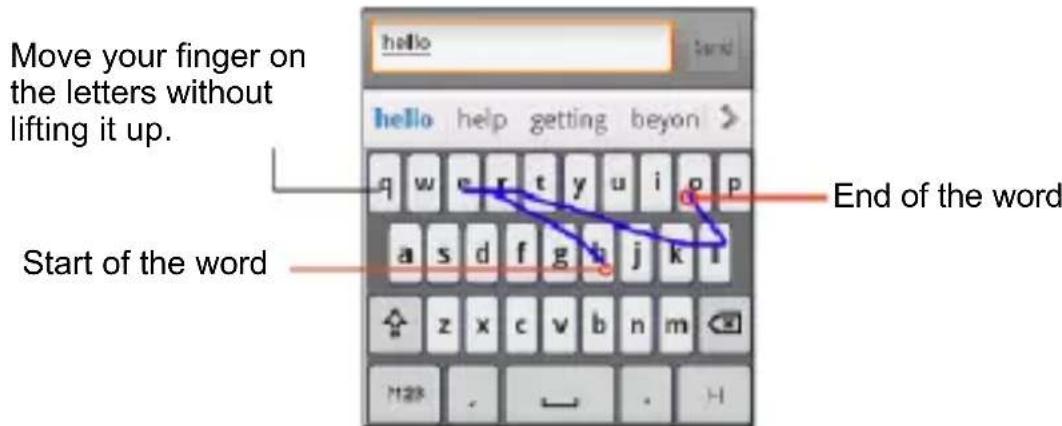

Android Keyboard.... 51

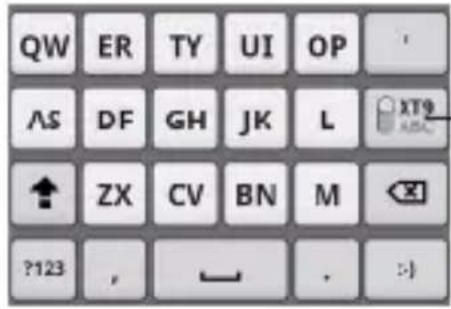

XT9 Text Input 52

Entering Text through Handwriting....54

Choosing Touch Input Settings 55

Android Keyboard Settings 55

XT9 Text Input 55

Messaging 56

Sending an SMS 56

Sending an MMS....56

Managing Messages and Their ‘Threads’.... 58

Replying to a Message 58

Deleting a Message Thread.... 58

Message Settings ....58

Email 61

Creating an Email account 61

Composing and sending an Email.... 62

Replying to or Forwarding an Email....63

Email Settings....63

Getting Connected to the Internet......65

Adding a New GPRS/EDGE/3G Connection ....65

Turning on Wi-Fi 66

Connecting to a Wi-Fi Network 67

Checking the Wi-Fi Network Status ....67

Using the Phone as a Modem 67

Enabling the Phone as a Modem 68

Disabling the Modem Function....69

Using the Phone as a Wi-Fi Hotspot....69

Enabling the Wi-Fi Hotspot....69

Disabling the Wi-Fi Hotspot....70

Browsing the Internet....71

Browsing Options....71

Opening Links in Web Pages 72

Downloading Apps from the Web 73

Using Bookmarks....73

Editing a Bookmark 73

Deleting a Bookmark 73

Browser Settings....74

Bluetooth ^® 76

Turning Bluetooth on/off 76

Making Your Phone Visible....76

Change Your Phone's Name 77

Hook up with Another Bluetooth Device.... 77

Making the Most of Multimedia....78

Taking Pictures with Your Camera.... 78

Adjusting Camera Settings 78

Shooting Video with Your Camcorder ....78

Adjusting Your Video Settings 79

Listening to Your FM Radio.... 79

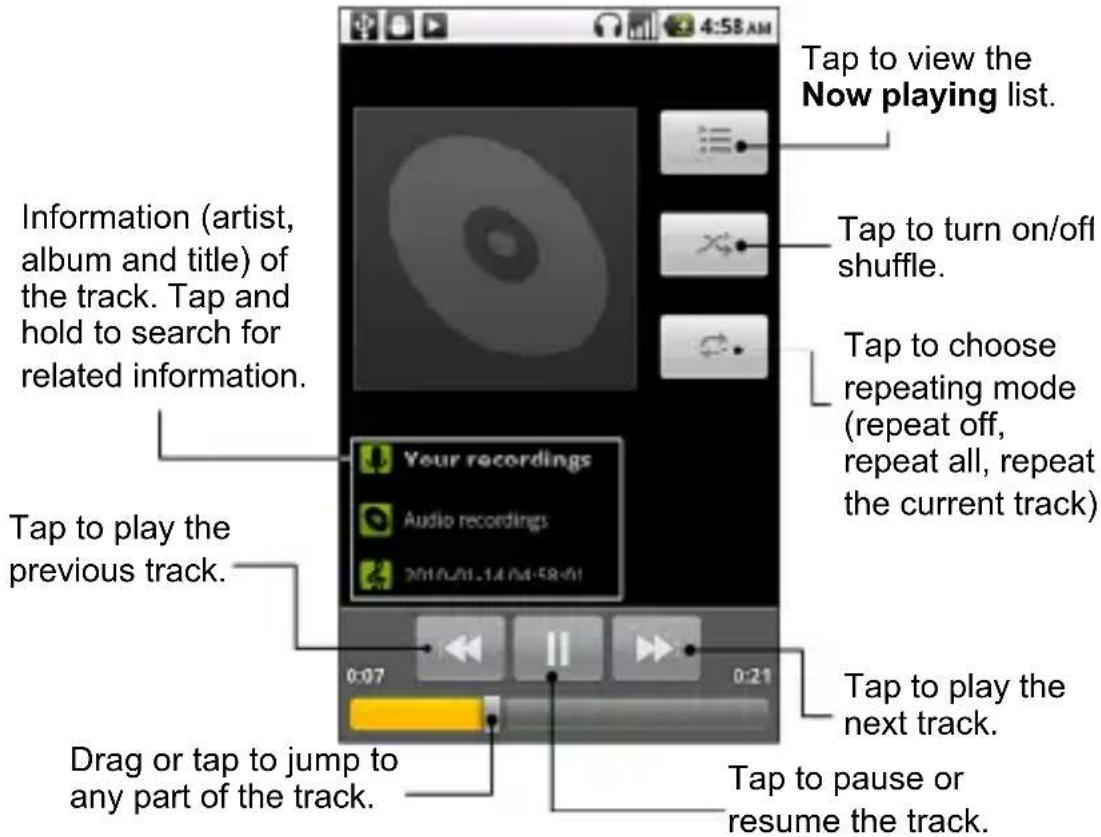

Playing Your Music.... 80

Creating Playlists 81

Managing Playlists 82

Setting a Song as Ringtone 82

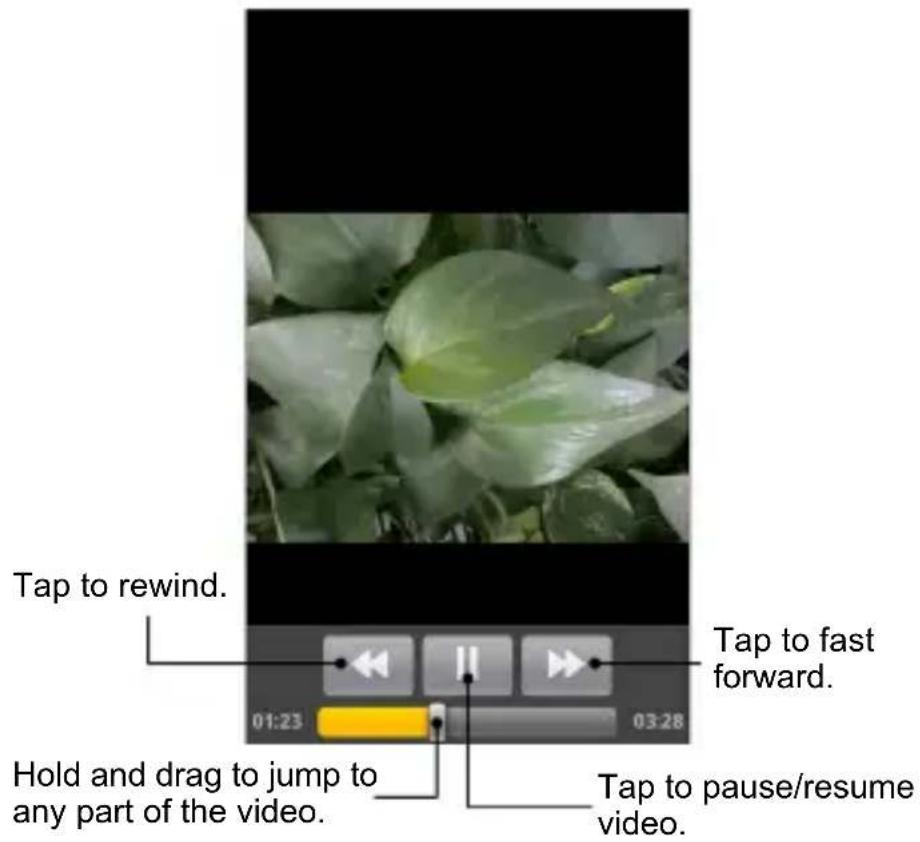

Playing Your Videos 82

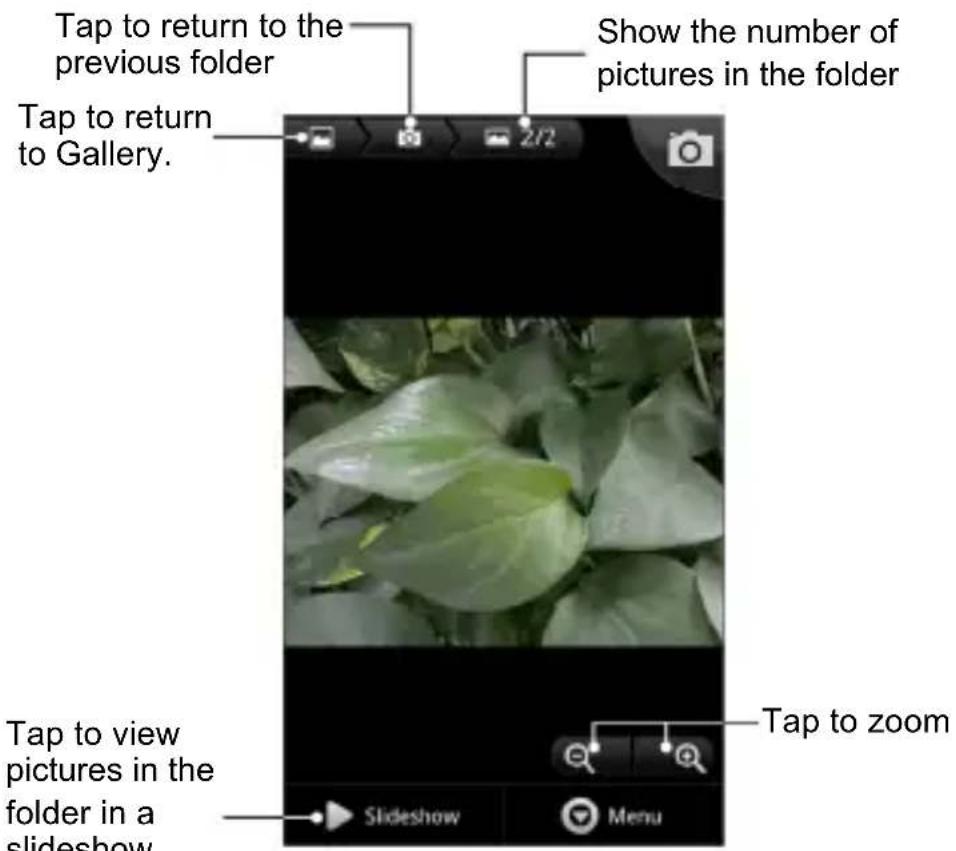

Opening Your Gallery.... 83

Making Memorable Memos 84

Using Your Google™ Applications ....86

Gmail 86

Using Google Calendar 87

Using Google Talk.... 87

Opening Google Talk 87

Adding a New Friend 87

Changing Your Online Status 88

Starting a Chat 88

Places....88

Latitude....89

Sorting out Your Phone Settings....90

Setting Time and Date 90

Changing Display Settings....90

Adjusting Screen Brightness 90

Adjusting Screen-timeout 91

Switching Screen Orientation Automatically....91

Showing Animation when Opening/Closing Windows 91

Sound Settings....91

Choosing Your Ringtone 92

Setting the Default Notification Ringtone....92

Switching Your Phone to Silent Mode 92

Switching to Vibrate....93

Flipping to Turn off Ringtone 93

'Haptic' (touch) Keypad Feedback 94

Adjusting Volume 94

Turning on Touch Tones 94

Turning on Selection Tones 94

Turning on Screen Lock Sound....95

Language Settings....95

Mobile Network Services 95

Getting Data Services while Roaming....95

Enabling Data Services 96

Enabling Always-on Data Services 96

Switching Network Modes 96

Switching Networks 96

Setting Access Point Names 97

Security Settings 97

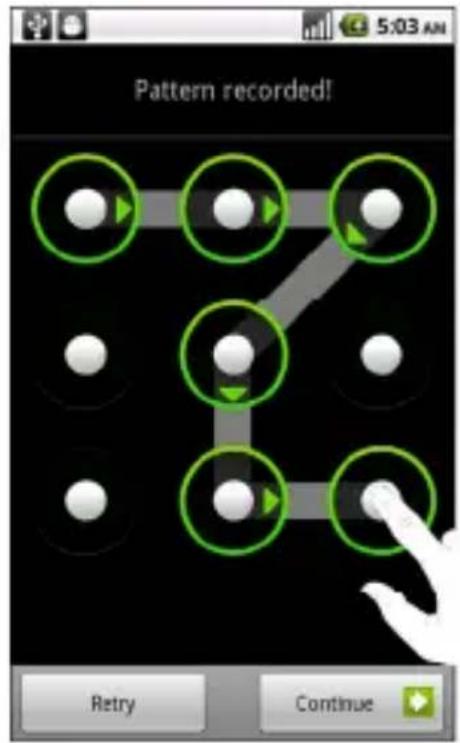

Protecting Your Phone with a Screen Unlock Pattern 97

Protecting Your Phone with a PIN or Password ...... 99

Disabling Screen Unlock Security.... 100

Protecting Your SIM with a PIN 100

Setting up Credential Storage.... 101

Managing Your Memory Card 102

Checking Memory Card Space 102

Unmounting Your Memory Card 102

Formatting Your Memory Card ....102

Managing Phone Memory 103

Privacy: Reset to Factory Settings 103

Managing Applications and Their Settings 103

Viewing Your Phone's Applications ....103

Allowing Installation of Non-market Applications ...104

How to Install an Application.... 104

Removing an Application 104

Moving an Application to or from the Memory Card 105

Managing Other Settings.... 105

Search Settings.... 105

Voice Interaction 106

Other Applications....107

Alarms 107

Note Pad 107

Calculator....107

SIM Toolkit....108

Task Manager 108

Stopwatch 108

Specifications 109

Declaration of RoHS Compliance....110

Disposal of Your Old Appliance 111

EC DECLARATION OF CONFORMITY...... 112

For Your Safety

General Safety

	Don’t make or receive handheld calls while driving. And never text while driving.		Don’t use at petrol stations.
	Keep your phone at least 15mm away from your ear or body while making calls.		Your phone may produce a bright or flashing light.
	Small parts may cause a choking.		Don’t dispose of your phone in fire.
	Your phone can produce a loud sound.		Avoid contact with anything magnetic.
	Keep away from pacemakers and other electronic medical devices.		Avoid extreme temperatures.
	Switch off when asked to in hospitals and medical facilities.		Avoid contact with liquids. Keep your phone dry.
	Switch off when told to in aircrafts and airports.		Don’t take your phone apart.
	Switch off when near explosive materials or liquids.		Only use approved accessories.
	Don’t rely on your phone for emergency communications.

Radio Frequency (RF) Exposure

General Statement on RF Energy

Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits.

Specific Absorption Rate (SAR)

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.

The guidelines use a unit of measurement known as Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when tested at the ear was 1.1 W/kg*. As mobile devices offer a range of functions, they can be used in other positions, such as on the body as described in this user guide**.

As SAR is measured utilizing the device's highest transmitting power, the actual SAR of this device while operating is typically below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum power required to communicate with the network.

* The tests are carried out in accordance with EN50360, EN 62209-1, IEC 62209-2.

** Please see body worn operation.

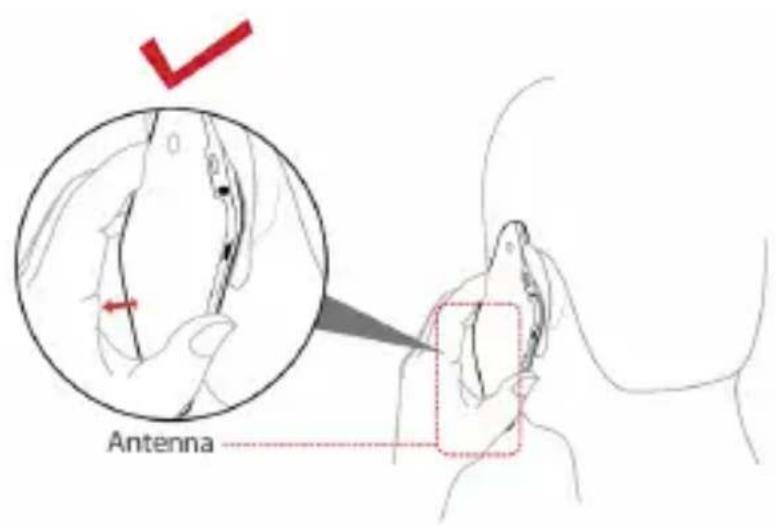

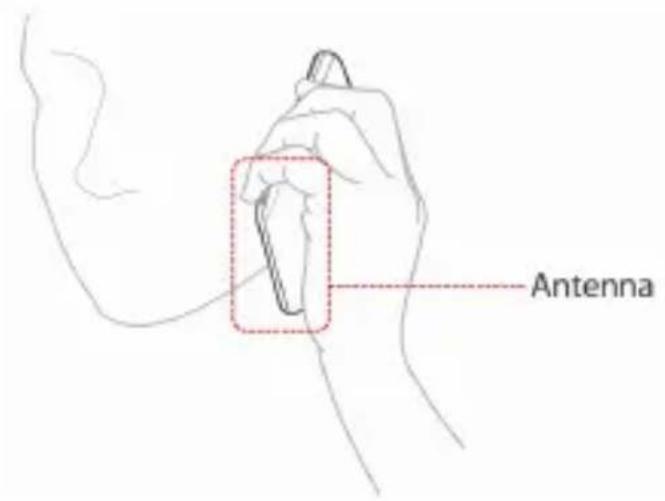

Body Worn Operation

Important safety information regarding radio frequency radiation (RF) exposure:

To ensure compliance with RF exposure guidelines the phone must be used with a minimum of 15 mm separation from the body.

Failure to observe these instructions could result in your RF exposure exceeding the relevant guideline limits.

Limiting Exposure to Radio Frequency (RF) Fields

For individuals concerned about limiting their exposure to RF fields, the World Health Organization (WHO) provides the following advice:

Precautionary measures: Present scientific information does not indicate the need for any special precautions for the use

of mobile phones. If individuals are concerned, they might choose to limit their own or their children's RF exposure by limiting the length of calls, or using ‘hands-free’ devices to keep mobile phones away from the head and body.

Further information on this subject can be obtained from the WHO home page http://www.who.int/peh-emf (WHO Fact sheet 193: June 2000).

Distraction

Driving

Full attention must be given to driving at all times in order to reduce the risk of an accident. Using a phone while driving (even with a hands free kit) can cause distraction and lead to an accident. You must comply with local laws and regulations restricting the use of wireless devices while driving.

Operating Machinery

Full attention must be given to operating the machinery in order to reduce the risk of an accident.

Product Handling

General Statement on Handling and Use

You alone are responsible for how you use your phone and any consequences of its use.

You must always switch off your phone wherever the use of a phone is prohibited. Use of your phone is subject to safety measures designed to protect users and their environment.

• Always treat your phone and its accessories with care and keep it in a clean and dust-free place.
• Do not expose your phone or its accessories to open flames or lit tobacco products.
• Do not expose your phone or its accessories to liquid, moisture or high humidity.
• Do not drop, throw or try to bend your phone or its accessories.
• Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its accessories.
• Do not paint your phone or its accessories.
• Do not attempt to disassemble your phone or its accessories, only authorized personnel can do so.
• Do not expose your phone or its accessories to extreme temperatures, minimum - [5] and maximum + [50] degrees Celsius.
• Please check local regulations for disposal of electronic products.
• Do not carry your phone in your back pocket as it could break when you sit down.

Small Children

Do not leave your phone and its accessories within the reach of small children or allow them to play with it.

They could hurt themselves or others, or could accidentally damage the phone.

Your phone contains small parts with sharp edges that may cause an injury or may become detached and create a choking hazard.

Demagnetisation

To avoid the risk of demagnetization, do not allow electronic devices or magnetic media close to your phone for a long time.

Electrostatic Discharge (ESD)

Do not touch the SIM card's metal connectors.

Antenna

GPS antenna Bluetooth antenna Antenna

Do not touch the antenna unnecessarily.

Normal Use Position

When placing or receiving a phone call, hold your phone to your ear, with the bottom towards your mouth.

Antenna

Antenna

Air Bags

Do not place a phone in the area over an air bag or in the air bag deployment area.

Store the phone safely before driving your vehicle.

Seizures/ Blackouts

The phone can produce a bright or flashing light.

Repetitive Motion Injuries

To minimize the risk of RSI when texting or playing games with your phone:

• Do not grip the phone too tightly.
• Press the buttons lightly.
• Use the special features which are designed to minimize the times of pressing buttons, such as Message Templates and Predictive Text.

• Take lots of breaks to stretch and relax.

Emergency Calls

This phone, like any wireless phone, operates using radio signals, which cannot guarantee connection in all conditions. Therefore, you must never rely solely on any wireless phone for emergency communications.

Loud Noise

This phone is capable of producing loud noises, which may damage your hearing. Turn down the volume before using headphones, Bluetooth stereo headsets or other audio devices.

Phone Heating

Your phone may become warm during charging and during normal use.

Electrical Safety

Accessories

Use only approved accessories.

Do not connect with incompatible products or accessories.

Take care not to touch or allow metal objects, such as coins or key rings, to contact or short-circuit in the battery terminals.

Connection to a Car

Seek professional advice when connecting a phone interface to the vehicle electrical system.

Faulty and Damaged Products

Do not attempt to disassemble the phone or its accessories.

Only qualified personnel can service or repair the phone or its accessories.

If your phone or its accessories has been submerged in water, punctured, or subjected to a severe fall, do not use it until you have taken it to be checked at an authorized service centre.

Interference

General Statement on Interface

Care must be taken when using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids.

Pacemakers

Pacemaker manufacturers recommend that a minimum separation of 15 cm be maintained between a mobile phone and a pacemaker to avoid potential interference with the pacemaker. To achieve this, use the phone on the opposite ear to your pacemaker and do not carry it in a breast pocket.

Hearing Aids

People with hearing aids or other cochlear implants may experience interfering noises when using wireless devices or when one is nearby.

The level of interference will depend on the type of hearing device and the distance from the interference source, increasing the separation between them may reduce the interference. You may also consult your hearing aid manufacturer to discuss alternatives.

Medical Devices

Please consult your doctor and the device manufacturer to determine if operation of your phone may interfere with the operation of your medical device.

Hospitals

Switch off your wireless device when requested to do so in hospitals, clinics or health care facilities. These requests are designed to prevent possible interference with sensitive medical equipment.

Aircraft

Switch off your wireless device whenever you are instructed to do so by airport or airline staff.

Consult the airline staff about the use of wireless devices on board the aircraft. If your device offers a ‘flight mode’, this

must be enabled prior to boarding an aircraft.

Interference in Cars

Please note that because of possible interference to electronic equipment, some vehicle manufacturers forbid the use of mobile phones in their vehicles unless a hands-free kit with an external antenna is included in the installation.

Explosive Environments

Petrol Stations and Explosive Atmospheres

In locations with potentially explosive atmospheres, obey all posted signs to turn off wireless devices such as your phone or other radio equipment.

Areas with potentially explosive atmospheres include fuelling areas, below decks on boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles, such as grain, dust, or metal powders.

Blasting Caps and Areas

Power off your mobile phone or wireless device when in a blasting area or in areas posted power off “two-way radios” or “electronic devices” to avoid interfering with blasting operations.

Getting Started

Overview

Headset Jack Power Key Earpiece Volume + Volume - Touch Screen Home Key Back Key Menu Key

Charger/ USB Jack Camera Battery Cover

Keys Explained

Key	Function
Power Key • Hold to select phone modes: Silent, Vibration, Airplane or Power off. • Press to switch your phone to Sleep mode. • Press to wake up your phone.
Home Key • Press to return to the Home Screen from any application or screen. • Hold to see recently used applications.
Menu Key Press	ss to get the options on the current screen.
Back Key Press	s to go to the previous screen.
Volume Keys	Press Volume Up Key to turn the volume up.Press Volume Down Key to turn the volume down.

Starting up

Installing the SIM/microSD Card and Battery

Switch off your phone before installing or replacing the battery, SIM, or memory card.

1. Remove the back cover.

Line drawing of a smartphone rear panel with a red arrow indicating the portion of the lid (no text or symbols present)

1. Hold the SIM with the cut corner oriented as shown and slip it into the card holder.

Line drawing of a smartphone interior showing internal components and a red arrow indicating a specific area (no text or symbols present)

1. Open the microSD card holder, hold your microSD card by the cut corner end and slide it in.

Diagram illustrating a device's internal components and assembly, showing labeled parts and directional arrows.

microSD logo Micro SD is a trade mark of the SD Card Association.

1. Insert the battery by aligning the gold contacts on the battery with the gold contacts in the battery compartment. Gently push down on the battery until it clicks into place.

Line drawing of a smartphone internal structure with a red arrow indicating a component (no text or symbols present)

1. Press the cover gently back into place until you hear a click.

Line drawing of a smartphone with a red downward arrow indicating compression or disassembly (no text or symbols)

Removing the Battery and SIM/microSD Card

1. Make sure that your mobile phone is off.
2. Remove the back cover.

3. Lift the battery up and out.

4. Slide the SIM out.

5. Open the microSD card holder. Sliding the microSD card down gently and remove it.

Charging the Battery

When you first get your new phone you'll need to charge the battery like this...

1. Connect the adapter to the charger jack. Ensure that the adapter is inserted with the correct orientation. Do not force the connector into the charger jack.

Line drawing of a smartphone with a USB cable emitting a red arrow (no text or symbols)

1. Connect the charger to a standard AC wall outlet.
2. Disconnect the charger when the battery is fully charged.
   If the phone is on, you'll see this charging icon appear on the status bar. As soon as charging is completed, this icon appears on the status bar.

Switching Your Phone On/Off

1. Make sure the SIM is in your device and the battery is charged.
2. Hold Power Key to switch on your phone.
3. To switch it off, hold Power Key to get the phone options. Select Power off, and then tap OK.

Setting Up Your Phone for the First Time

When you first power on your phone after you purchase it or reset it to factory settings (see Sorting out Your Phone Settings – Privacy: Reset to Factory Settings), you need to do some settings before using it.

1. Tap Change language to change the language you want to use, if needed.
2. Tap the Android robot on the screen.
3. Tap Skip to skip the tutorial, or tap Begin to continue. In the tutorial, learn how to use the onscreen keyboard and how to set up your phone with a Google account.
4. Create a Google Account or Sign in your account. You can also tap Skip to set up an account later.
5. Configure the Google location options and tap Next.
6. Configure the date and time options, and tap Next.

Switching to Sleep Mode

To save battery power, Sleep Mode suspends your device to a low-power-consumption state while the display is off. Your device also goes into Sleep Mode by itself when the display is automatically turned off after a certain period of time, which you can set in Settings > Display > Screen timeout.

Press Power Key to switch to Sleep Mode.

Waking up Your Phone

1. Press Power Key to activate your screen display.
2. Drag the icon to the right.

NOTE: If you have set an unlock pattern, PIN or password for your phone (see Sorting out Your Phone Settings – Security Settings) you’ll need to draw the pattern or enter the PIN/password to unlock your screen.

Getting Around Your Device

Touch Control

You can use finger gestures to control your phone. The controls on your touch screen change dynamically depending on the tasks you're performing.

1. Tap the buttons, icons, or applications to select items or to open applications.

2. Keep your finger on an item to see the available options.

3. Flick the screen to scroll up, down, left or right.

4. Point, drag and drop to move particular items across the screen.
5. Pinch with two fingers, or double-tap the screen, to zoom in/out on a web page or an image.

NOTE: You can view the phone screen in portrait or landscape orientation simply by holding it upright or turning it on its side.

Home Screen

You choose what is shown on your Home Screen. Just add or remove stuff to make it your own.

Status & Notifications Wallpaper You can add or remove items here. Dots Tap to enter the extended screen. Tap to open the dialer. Applications Tap to open the main menu. See all your apps. Touch the Launcher icon. Market Tap to open the web browser.

Extended Home Screen

The Home Screen extends beyond the screen width, giving you loads more space to add more stuff. Simply slide your finger to the left or right, or tap the dots on the bottom corners of the screen, to see the extended Home Screen.

Choosing Your Wallpaper

1. Tap Home Key to return to the Home Screen.
2. Tap Menu Key and select Wallpaper.
3. Select the wallpaper you want to use from Gallery, Live wallpapers, or Wallpapers.
4. Tap Save or Set wallpaper.

Adding Things to Your Home Screen

1. Tap Home Key to return to the Home Screen.
2. Slide left or right to find an extended Home Screen where there is space to add an item.
3. Tap Menu Key and select Add.
   You can also tap and hold the blank area of the Home Screen to get the Add to Home screen menu.
4. Select a category and the item you want to add to the Home Screen.

Removing Things from Your Home Screen

1. Tap Home Key to return to the Home Screen.
2. Tap and hold the item you want to delete until the icon appears on the screen.

3. Drag the item to 📄.

See all your apps. Touch the Launcher icon. 1:47.4 Market 07:26 07:26 Google

Status and Notification Icons

Your phone will tell you exactly what's going on by showing you simple icons. Here's what they mean.

	GPRS connected		No signal
	GPRS in use		Signal strength
	EDGE connected		Roaming
	EDGE in use		Phone speaker off
	3G connected		Phone microphone off
	3G in use		No SIM installed
	USB connected		GPS connecting
	Battery very low		GPS connected
	Battery low	[A3HZ]	Connected to a Wi-Fi network
	Battery partially drained	[SX4D]	Alarm set
	Battery full	[WCS88]	Wired microphone headset
[DX35]	Battery charging		Bluetooth on
[07X6]
	Vibrate mode		Speaker on
	Airplane mode	[765X]	Problem with SMS/MMS delivery
	New mail		New instant message
[KZZT]	New SMS/MMS/voicemail	[027T]	Upcoming event
	New Gmail message	[5C44]	Song is playing
[H0XC]	Missed call		Downloading data
	Call in progress	[0C3Z]	Content downloaded and installed successfully
[X06H]	Call on hold		Sending data
	Call forwarding	[RKBH]	USB tethering is on
	More (not displayed) notifications	[50X0]	Portable Wi-Fi hotspot is on

Using the Notification Panel

Flick the status bar downwards to open the Notification Panel, where you can see your calendar events, new messages, and current settings – such as call forwarding or call status. From here you can also open new messages, reminders, etc.

TIPS: You can also open the Notification Panel by tapping Menu Key > Notifications from the Home Screen.

Applications and Settings Preview

Programs Preview

Your device has lots of functions. Tap to see the following.

Applications	Benefit
Alarm	Set alarms.
Browser	Browse the Internet.
Calculator Do basic calculation.
Calendar	Schedule appointments and events.
Call log View the calls you made, received, and missed.
Camcorder Shoot video clips.
Camera Take some great pictures.
Contacts Keep contact details of friends and colleagues.
Dialer Dial a number.
Email Send and receive Emails.
Filer Manage files	on your microSD card.
FMRadio Search,	listen to and save radio channels.
Gallery Manage multimedia files.
Gmail	Access your Gmail account and check your Gmail on your mobile phone.
Google Search Search for information online or on your phone.
Latitude	See your friends’ locations and share yours with them via Google Maps Latitude.
Maps	Track your current location, view real-time traffic, and receive detailed directions to your destination.
Market	Access useful applications and fun games to download.
Messages	Open the Messages screen, where you can send and receive SMS and MMS messages.
Music Browse your audio files and listen to them.
Navigation Find your way with Google Maps Navigation.
News & Weather Check out the latest news and weather forecast.
Note pad	Create text notes.
Places	Find restaurants, ATMs, and other businesses or attractions near you.
Settings Adjust phone settings.
SIM Toolkit	Only appears on the screen if your SIM provides this function. Please contact your service provider for more information.
Sound Recorder	Capture audio clips.
Stopwatch	Measure exactly how long it takes to do something.
Talk Use Google	Talk.
Task Manager Manage all the programs running on your phone.
Videos Browse and watch video files.
Voice Search	Use your voice to search, control, and communicate.
YouTube Watch YouTube videos and upload your own.

Check Your Settings

To change or view your phone's settings, tap Home Key >

> Settings.

Or From the Home Screen tap Menu Key > Settings.

Wireless & networks	Configure and manage wireless connections, such as Wi-Fi, Bluetooth®, mobile networks, mobile data connection sharing, and Virtual Private Networks. You can also select Airplane mode from here.
Call settings	Set up fixed dialing numbers, voicemail, speed dial, call barring, call forwarding, call waiting, and caller ID.
Sound	Set sound settings, such as ringtones and notifications.
Display	Set display settings, such as screen brightness.
Location & security	Set up screen locks or SIM lock, or manage the phone's credential storage. You can also select the sources to use when determining locations from My Location.
Applications	Manage your apps and the installation of new ones.
Accounts & sync	Manage your accounts and configure synchronization settings.
Privacy	Configure privacy settings, such as back-up settings, and personal data.
SD card & phone storage	Check available memory on the external card and the internal phone storage.
Search Set the search options.
Language & keyboard	Set the system language and region, plus text input options.
Voice input & output	Set up voice recognition and text-to-speech options.
Accessibility	Choose accessibility options after you have installed accessibility-related applications.
Date & time	Set the date, time, time zone, and date/time format.
About phone	View phone status, battery use, and legal information. You can also check for system updates.

Open Recently-used Applications

1. Hold Home Key from any screen until the following recently used applications screen appears.

Recent Browser Calendar Contacts Alarm Dialer Settings

1. Tap the application you want to open.

Phone Calls

How to Make Calls

There are many ways to make a call with your phone. And they're all easy to do.

Calling from the Dialer

1. Tap Home Key > 📄 > Dialer or 📞 on the Home Screen.

2. Enter the phone number or the contact name you want to call.

If you make a mistake, tap 📋 to erase a wrong entry, or hold this key to clear all digits. Your phone automatically lists the matching contacts. You can tap 📋 to hide the keypad and to see if there are more matching numbers or contacts.

1. Tap Call.

Calling from Your Contacts

1. Tap Home Key > □ > Contacts.

2. Slide your finger to scroll the contacts list and tap the contact you want to call.

You can search for a contact by tapping Menu Key > Search.

1. Tap

Calling from Your Call History

1. Open the call log in one of the following ways.

➢ Tap Home Key > □ > Call log.
➢ Tap Home Key > □ > Dialer >
Tap Home Key > □ > Contacts > Call log.

1. Tap 📋 next to the number you want to call.

Calling from a Text Message

If a text message contains a phone number that you want to call, you can make the call while viewing the text message.

1. Tap Home Key > Messages and tap the conversation and then the message that contains the phone number you want to call..
2. Tap the number.
3. Tap

Using Speed Dial

Press and hold 1 \~ 9 key from the dialer to call the corresponding speed dial number.

The number key 1 is reserved to speed dial your voicemail.

Assigning a speed dial key:

1. Tap Menu Key > Settings > Call settings > Speed dial from the Home Screen.

2. Tap a speed dial key.

3. Enter a phone number or tap to select one from the contact list.

4. Tap OK.

Making Emergency Calls

1. Enter the emergency number for your location from the dialer.
2. Tap Call

TIPS: It's possible to dial emergency numbers when your SIM is not inserted. Please call your service provider to find out more information. For instance, what emergency numbers are supported.

Making International Calls

1. Hold ^0 from the dialer to enter ‘+’.
2. Enter the full phone number.

For example: [phone] in the following format: + country code / area code / phone number.

1. Tap Call.

Whether you can make international calls depends on network status and/or your tariff. Please call your service provider to find out more.

How to Receive Calls

Answering a Call

Drag to the right to answer the call.

Rejecting a Call

Drag to the left to reject the call.

Muting a Call

During a call, you can mute your microphone so that the person you are speaking to cannot hear you, but you can still hear them:

Tap Mute to turn your microphone off. The mute icon will appear on the status bar. To turn your microphone back on, tap Mute again.

Putting a Call on Hold

During a call, you can put it on hold by tapping Menu Key > Hold. The 📄 icon will appear on the screen.

TIPS: If you accept an incoming call while you're on another call, the first call automatically goes on hold. Just tap Menu Key > Swap calls to switch between the two callers.

Turning the Speakerphone On/Off

Tap Speaker during a call to turn the speakerphone on. This icon will appear in the status bar. Tap Speaker again to turn off the speakerphone.

Ending a Call

Tap to finish a call.

Adjusting Your Call Settings

From the Home Screen, you can open the call settings menu by going from Menu Key > Settings > Call settings.

Fixed dialing numbers	Restrict outgoing calls to a fixed set of numbers. To do this you must know your SIM's PIN2 code.
Voicemail service	Select a voicemail service provider.
Voicemail settings	Specify a voicemail number.
Speed dial Set speed dialing keys and numbers.
GSM/WCDMA call settings	Call forwarding	Forward your incoming calls to a different number. And choose when to forward: Always forward; Forward when busy; Forward when unanswered, or Forward when unreachable.

	Additional settings	Caller ID	Choose whether people you call can see your number.
		Call waiting	See new incoming calls while you’re on another call.
Call barring settings	Forbid certain types of calls.

Contacts

You can save contacts to your phone memory or your SIM. More information can be saved on the phone memory for a contact than on the SIM. For instance, postal addresses, pictures, nicknames, websites, etc.

To go your contacts, tap Home Key > □ > Contacts.

There are four tabs on the Contacts Screen: Call log, Contacts, Favorites, and Groups.

Importing and Exporting Contacts

You can import/export contacts from/to your SIM card (or microSD card).

Import Contacts from the SIM Card or Export to the Card

1. Tap Menu Key > Import/Export from the Contacts Screen.

2. Choose to import or export contacts. Your phone will automatically read the contacts.

3. Select the contacts you want to import/export. Or, just tap Menu Key > Select all.

4. Tap Done.

Import Contacts from the microSD Card or Export to the Card

1. Tap Menu Key > Import/Export from the Contacts Screen.
2. Choose to import or export contacts. If you want to import contacts from the microSD card, you should have vCard files saved in the microSD card. If there's more than one vCard file, you need to select the vCard file and tap OK.

Creating a Contact

1. Tap Menu Key > New contact from the Contacts Screen.
2. Select where you want to save your contact.
3. Enter their name and phone number(s), email addresses, chat addresses, postal addresses, etc.
4. Tap Done to save the contact.

Adding a Contact to Favorites

1. Tap and hold from the Contacts Screen the contact you want to add to Favorites.
2. Tap Add to favorites from the shortcut menu.

TIPS: You can also tap a contact and then tap next to the

contact's name to add it to Favorites.

Searching for a Contact

1. Tap Menu Key > Search from the Contacts Screen.
2. Input the contact name you want to search for.

The contacts matched will be listed.

Editing a Contact

1. Tap the contact you want to edit from the Contacts Screen.
2. Press Menu Key > Edit contact.
3. Edit the contact and tap Done.

TIPS: You can also edit a contact by holding it in the Contacts Screen and selecting Edit contact from the pop-up shortcut menu.

Deleting a Contact

1. Tap and hold the contact you want to delete from the Contacts Screen.
2. Tap Delete contact from the pop-up shortcut menu.
3. Tap OK.

TIPS: You can also delete contacts by tapping Menu Key > Delete contacts from the Contacts Screen. Select the contacts you want and tap Done.

Creating a New Group

1. Tap Groups from the Contacts Screen.
2. Tap Menu Key > New Group.
3. Enter the group name and tap OK.
4. Tap the group in the group list and tap Menu Key > Add.
5. Select the contacts as the group members and tap Done.
   To send messages to the group members, you can hold a group in the group list and tap Send SMS by group from the pop-up shortcut menu.

Entering Text

When you enter a field that needs text or numbers, a keyboard automatically appears on the screen. Hold the input box and select Input method from the pop-up menu to change input method.

Android Keyboard

The Android Keyboard provides a layout similar to a desktop computer keyboard. Turn the phone sideways and the keyboard will change from portrait to landscape.

To use the landscape keyboard, just tick the Auto-rotate screen check box in Settings > Display. (The landscape QWERTY keyboard is not supported in all applications.)

Tap to switch between uppercase and lower-case. Tap twice to lock uppercase input. Tap to select digits and symbols. Tap to Google's networked voice input. Tap to delete text before the cursor. Tap or hold to input emoticons.

XT9 Text Input

XT9 Text Input can speed up text input by replacing the letter tapping/typing motion of input with a tracing gesture where you move your finger from letter to letter without lifting the finger until you reach the end of the word.

You can select to use one of the three layouts (Keyboard, Reduced keyboard, Phone keypad) of XT9 Text Input Keyboard.

- Keyboard

Tap to switch between uppercase and lowercase. Tap twice to lock on uppercase. Delete text before the cursor. Tap to select digits and symbols. Tap or hold to input emoticons.

Move your finger from letter to letter to trace a word without lifting the finger until you reach the end of the word.

The trace feature is also available in the Reduced keyboard layout and Phone keypad layout.

Move your finger on the letters without lifting it up. Start of the word End of the word

- Reduced keyboard

QW ER TY UI OP AS DF GH JK L ↑ ZX CV BN M ?123 , → . :)

Hold to switch between multi-tap and predictive text input.

- Phone keypad

! ? GHI PQRS ABC JKL TUV DEF MNO WXYZ -123 , -

Hold to switch between multi-tap and predictive text input.

Using the toolbar

Notes:

The 📋 icon is available when more than one language is activated. You can select more input languages by pressing Menu Key > Settings > Language & keyboard > XT9 Text Input > Languages and settings from Home Screen.

Tips for using XT9 Text Input:

• Ignore double letters – XT9 Text Input will figure those out for you automatically.
• Lift your finger at the end of the word. A space is added automatically when you begin to trace the next word.

Entering Text through Handwriting

1. Switch to handwriting input mode by tapping the handwriting symbol on the XT9 Toolbar.

Row of five software toolbar icons: globe, pencil, grid, wrench, and double arrow (no text or symbols)

1. When the handwriting input screen appears, write the letters of your word one letter at a time, until your word is complete.

h k h ?123 . - x :)

1. When you are finished with the word, tap the correct word in the selection list, or tap ☐.

TIPS: Flick leftwards across the handwriting area on the screen to delete one letter left of the cursor.

Choosing Touch Input Settings

Choose the touch input settings by tapping Menu Key > Settings > Language & keyboard from Home Screen.

In the Text settings section, you can choose the settings for Android keyboard and XT9.

Android Keyboard Settings

You can tick the check boxes to enable

• Vibration on keypress
• Sound on keypress
  • Auto-capitalisation of the first letter in each sentence.

You can also select multiple input languages, or set voice input option.

XT9 Text Input

• Languages and settings: Select input languages. Tap a language to set up keyboard layout, word suggestion settings, key input settings, trace input settings, and handwriting input settings.
• Preferences: Set up keypress vibration, keypress sound, auto-capitalisation, and auto-punctuation.
• About: View the XT9 version information.

Messaging

Your SMS (text message) and MMS (multimedia messaging service) files are located in Messages (Home Key > □ > Messages).

When you receive a new message, you can open it from the Notification Panel, or from the Messages Screen. Simply tap on the new message to read it.

Your phone will tell you when message(s) arrive by showing this icon 😊 in the status bar.

Sending an SMS

1. Tap Home Key > Messages.
2. Tap New message.
3. Tap the To field and enter the recipient's number, or tap Menu Key > People to select recipients from Contacts. TIPS: You can also enter the first letters of the recipient's name to display a list of matching names stored in Contacts, and then select their name from the list.
4. Tap Type to compose and type your message.
5. Tap Send to send your text.

Sending an MMS

1. Tap Home Key > Messages.

2. Tap New message.

3. Enter the recipient's number and, if necessary, message text, just like you do with a text message.

4. Tap Menu Key > Add subject to enter the subject of your MMS.

5. Tap Menu Key > Attach if you want to add an attachment to your MMS.

Pictures: Select a picture to add to your MMS.

Capture picture: Take a photo to attach to your MMS.

Videos: Select a video clip to attach to your MMS.

Capture video: Shoot a video clip and attach to your MMS.

Audio: Select an audio file to attach to your MMS.

Record audio: Record an audio file to attach to your MMS.

Slideshow: Edit a slideshow to attach to your MMS.

1. When you've finished, tap Send.

NOTE: Add an attachment to text message and it will be converted into an MMS automatically. Likewise if you remove all attachments from an MMS, it'll automatically become a text message.

Managing Messages and Their ‘Threads’

SMS and MMS messages sent to and received from the same number are grouped into one message thread in the Messages Screen. Tap the message thread and you can see the conversation you have had with someone (similar to a chat program). Message threads are sorted by the time when you received them, with the latest one on the top.

Replying to a Message

1. Tap the message thread you want to reply to from the Messages Screen.
2. Tap Type to compose and type your message.
3. Tap Send.

Deleting a Message Thread

1. Tap Menu Key > Delete threads from the Messages Screen.
2. Select the threads you want to delete. If you want to delete all threads, tap All.
3. Tap Delete.
4. Tap Delete again to confirm.

Message Settings

To configure your message settings, tap Menu Key > Settings from the Messages Screen.

Storage settings:

• Delete old messages: Select to delete old messages when your storage limits are reached.
• Text message limit: Set the maximum number of text messages allowed in a single thread.
• Multimedia message limit: Set the maximum number of multimedia messages allowed in a single thread.

Text message (SMS) settings:

• Delivery reports: Request a delivery report for every text message you send.
• Manage SIM card messages: Manage the messages saved in your SIM card.
• SMS validity: Set the validity time limit for outgoing text messages.
• SMS priority: Set the priority of outgoing messages.
• Service Center: Enables you to view and edit the service center number.

Multimedia message (MMS) settings:

• Delivery reports: Request a delivery report for every MMS message you send.

• Read reports: Request a read report for every MMS message you send.
  • Auto-retrieve: Automatically retrieve MMS messages.

• Roaming auto-retrieve: Automatically retrieve MMS messages when you're roaming.

• MMS validity: Set the validity time limit for outgoing multimedia messages.
• MMS creation mode: Select MMS creation restrictions. An MMS created under restricted mode is more likely to be displayed properly on other devices than those created under free mode.

Notification settings:

• Notifications: Show message notifications in the status bar.
• Select ringtone: Choose a ringtone for your incoming messages.
• Vibrate: Make your phone vibrate when a new message arrives.

Signature settings:

• Edit signature: Edit your signature, which can be added automatically to outgoing messages.
• Add signature: Add the signature to all outgoing messages.

Email

Tap Home Key > ☐ > Email. You can enter the Email Screen to setup your Email account and exchange Emails.

Creating an Email account

1. Enter your Email address and password. Then tap Next when you enter the Email Screen for the first time.

2. Select the type of your account, edit the incoming server settings, and then tap Next or Next [Check].

After you press Next [Check], your phone will check the incoming server settings. If you are notified that setup could not be finished, you might need to correct some settings to finish it. If there is any problem, please contact your mobile service provider and Email service provider.

1. Edit the outgoing server settings and tap Next or Next [Check].

After you press Next [Check], your phone will check the outgoing server settings.

NOTE: Your phone knows the client settings for lots of Email service providers. If the Email service you use is from those providers, the phone will automatically check the incoming and outgoing settings after you enter your Email account and password.

1. Set the Email checking frequency, select whether to use this account by default or be notified when Email arrives, and then tap Next.
2. Give your account a name and set a name displayed on outgoing messages, and then tap Done.

Your phone will show the inbox of the Email account and start to download Email messages.

Composing and sending an Email

After creating an Email account, you can compose and send Email messages.

1. Tap Menu Key > Compose from the Email Screen.
2. Tap To field if needed, and enter the recipient's address.
   When you enter the address, the matching addresses saved in your Contacts will be displayed. You can tap the recipient from the list.

TIP: You can also tap Menu Key > Add Cc/Bcc to add recipients.

1. Enter the subject and the content of your Email. If necessary, change the email priority.

Tap Menu Key > Add attachment to add files to the Email.

1. Tap Send.

Replying to or Forwarding an Email

1. Open the Email you want to reply to or forward from Email Screen.
2. Tap Reply or Menu Key > Forward to reply to/forward the Email.
   You can also tap Reply all to reply to all recipients of the Email.
3. Enter the contents/recipients of your Email.
4. Tap Send.

Email Settings

Tap the account you want to set from the Email Screen and tap Menu Key > Account settings. You can get the Email settings.

General settings

• Account name: Set your account name.
- Your name: Set the name displayed on outgoing message.
- Email address: View and change your Email address.
• Use signature: Select to use signature.
• Signature: Set your signature.
- Email check frequency: Choose how often you want the phone to automatically check for Emails.

• Power-saving mode: Enable the automatic adjustment of email check frequency when the battery is low.
• Default account: Select the check box to send email from this account by default.
• Sync deleted message: Delete an Email on the phone and the Email will be deleted on the server, too.

Notification settings

• Email notifications: Select to be notified in the status bar when Email arrives.
• Select ringtone: Select the notification ringtone for incoming Emails.
  • Vibrate: Make the phone vibrate when Emails arrive.

Server settings

• Incoming settings: Set the incoming server settings.
• Outgoing settings: Set the outgoing server settings.

Getting Connected to the Internet

Your phone's impressive networking capabilities allow you to access the Internet or your corporate network with ease.

You can use default connection settings to connect to the web via your mobile network (GPRS/EDGE/3G), or Wi-Fi.

The GPRS/EDGE/3G connection can be enabled/disabled manually. Just select > Settings > Wireless & networks > Mobile networks from the Home Screen and tick or clear the Data enabled check box.

Adding a New GPRS/EDGE/3G

Connection

To get connected via GPRS/EDGE/3G you need a data plan with your service provider. Also if the GPRS/EDGE/3G settings are not pre-configured on your phone, please contact your provider to get the following information. Changing the settings without talking to your service provider could stop your phone from working.

• Access Point Name (APN).
• Your user name and password if needed.

• Server IP and the port number if the network uses a proxy server.

• Tap Home Key > Settings > Wireless & networks > Mobile networks > GSM/UMTS Options > Access Point Names.

• Tap Menu Key > New APN.
• Tap Name to enter your APN name (it can be whatever you like).
• Tap APN to enter the APN you want to add.
• Tap Proxy and Port to enter the Server IP and port if the network uses a proxy server.
• Tap and enter Username and Password. (If there's no user name or password, leave them blank.)
• If needed, tap and enter APN type.
• Tap Menu Key > Save to complete.

TIPS: To set the APN to default settings, tap Menu Key > Reset to default.

Turning on Wi-Fi

Wi-Fi provides wireless Internet access over distances of up to 300 feet (100 meters).

1. Tap Home Key > Settings > Wireless & networks.
2. Tick the Wi-Fi box to turn it on.

Connecting to a Wi-Fi Network

1. Tap Home Key > Settings > Wireless & networks > Wi-Fi settings.

The Wi-Fi network names and security settings (open or secured) that your phone has detected are shown in the Wi-Fi networks section.

1. Tap a network to connect to it.

If the network is secured, you'll need to enter a password.

Checking the Wi-Fi Network Status

You can check the Wi-Fi network by looking at the icon in the status bar.

Or tap Home Key > Settings > Wireless & networks > Wi-Fi settings. Next, tap the wireless network that the phone is currently connected to. You can check the network status from the pop-up window.

Using the Phone as a Modem

You can access the Internet on your PC via your phone as a modem. Note the function may result in data charges from your mobile phone carrier. Please contact them for detail.

Enabling the Phone as a Modem

TIP:

• Make sure that USB storage is turned off before enabling the modem function. You can flick down the notification panel and tap Turn off USB storage > Turn off USB storage.

• The PC accesses the Internet via the phone's mobile network. Therefore, set up the GPRS/EDGE/3G connection correctly before you try to use the phone as a modem.

• When you connect your phone to your PC with the provided USB cable for the first time, a window will pop up and prompt you to install the driver.

• Double click the executable file (.exe) in the window and follow the prompt to finish the driver installation.

NOTE: If the window doesn't pop up automatically for some reason, please open the new CD-ROM drive on your PC manually and find the executable file to run it.

1. Tap on the phone Home Key > Menu Key > Settings > Wireless & networks > Tethering & portable hotspot and tick the USB tethering check box. A new network connection will be created on your PC.

2. Go to Control Panel > Network on your PC to enable the new network connection.

Now you can launch the Internet browser on your PC and start surfing.

Disabling the Modem Function

Tap Home Key > Menu Key > Settings > Wireless & networks > Tethering & portable hotspot and clear the USB tethering check box.

You can also just pull out the USB cable.

Using the Phone as a Wi-Fi Hotspot

You can use the phone as a portable WLAN router, providing Wi-Fi connection for one or multiple PC or other devices. The function need data connection on a mobile network and may result in data charges.

TIP:

• The PC accesses the Internet via the phone's mobile network. Therefore, set up the GPRS/EDGE/3G connection correctly before you try to use the phone as a Wi-Fi hotspot.
• When the portable Wi-Fi hotspot function is enabled, you cannot access the internet with any application on your phone via its Wi-Fi connection.

Enabling the Wi-Fi Hotspot

1. Tap Home Key > Menu Key > Settings > Wireless & networks > Tethering & portable hotspot and tick the Portable Wi-Fi hotspot check box.

2. Tap Portable Wi-Fi hotspot settings > Configure Wi-Fi hotspot.

3. Change the name of the hotspot and its security setting, if necessary.

The default hotspot is set as an open one. You can tap Open and choose WPA/WPA2 PSK to set up a password. The password must have at least 8 characters.

1. Tap Save. Now you can find the hotspot on other devices and connect to it.

Disabling the Wi-Fi Hotspot

Tap Home Key > Menu Key > Settings > Wireless & networks > Tethering & portable hotspot and clear the Portable Wi-Fi hotspot check box.

Browsing the Internet

You can use your phone to get on the Internet. Your phone automatically creates an GPRS, EDGE, or 3G connection while you browse web pages.

Tap Home Key > 📋 > Browser.

There are different ways to open web pages:

• Tap the address bar to enter the website you want to browse. Then tap Go.
• Tap beside the address bar or tap Menu Key > Bookmarks. Select a bookmark to open.
• Tap beside the address bar or tap Menu Key > Bookmarks. Choose an item from the Most visited tab or History tab.

Browsing Options

• Refresh: Menu Key > Refresh.
• Go to the next page: Menu Key > More > Forward.
• Add the page to Bookmarks: Menu Key > More > Add bookmark.
• Search: Menu Key > More > Find on page and enter the search item.

• Copy: Menu Key > More > Select text and slide your finger on the page to select the text you want to copy. Your phone automatically copies the selected text to the clipboard.

• Share pages: Menu Key > More > Share page to send a page by Bluetooth, Email, Gmail or Messages.

• Downloads/page info: Menu Key > More > Downloads /Page info.
• Landscape browser: Menu Key > More > Settings.
  Tick the Landscape-only display box and rotate your phone sideways to view the landscape browser screen.
• Open new browser window: Menu Key > New window.
  Then tap the address bar to enter the website you want to browse.
• Switch browser windows: If you have more than one browser windows opened, you can switch between these windows by tapping Menu Key > Windows. Then tap the page you want to browse. You can also tap ✗ to close a window.

Opening Links in Web Pages

When the web page has a link to another site, either tap the link to open the page, or hold on the link to open the shortcut menu, giving you these options:

• Open
• Open in new window
• Bookmark link
• Save link
• Share link (by Bluetooth, Email, Gmail, or Messages)

- Copy link URL

Downloading Apps from the Web

If a web page has link to an application you'd like to download, just hold on the link and select Save link. The application will be saved to your microSD card.

Using Bookmarks

To bookmark a web page, open it and tap 📄 or Menu Key > Bookmarks. Then tap Add or Add bookmark. Give the bookmark a name and tap OK.

TIPS: You can press Menu Key > List view/Thumbnail view to change how you view bookmarks on your phone screen.

Editing a Bookmark

1. Open a Browser window.
2. Tap or Menu Key > Bookmarks.
3. Select an item you want to edit and hold on it until the shortcut menu pops up.
4. Select Edit bookmark.
5. Edit the name or location, and then tap OK to save it.

Deleting a Bookmark

1. Open a Browser window.

2. Tap or Menu Key > Bookmarks.

3. Select an item you want to delete and hold on it until the shortcut menu pops up.
4. Select Delete bookmark and tap OK to confirm.

Browser Settings

You can set the browser text size, home page etc. by tapping Menu Key > More > Settings from a browser window.

Page content settings

• Text size
• Default zoom
• Open pages in overview
• Text encoding
• Block pop-up windows
• Load images.
• Auto-fit pages
• Landscape-only display
• Enable JavaScript
• Enable plug-ins
• Open in background
• Set home page

Privacy settings

• Clear cache: Delete all cached page contents.
• Clear history: Clear the browser navigation history.
• Accept cookies: Allow websites to use cookies.
• Clear all cookie data: Clear the browser cookies – deleting all history data.
• Remember form data: Remember the data you type in forms for later use.
• Clear form data: Clear all the saved form data.
• Enable location: Allow sites to request access to your location.
• Clear location access: Clear location access.

Security settings

• Remember passwords: Save usernames and passwords for web sites.
• Clear passwords: Clear saved passwords.
• Show security warnings: Warn if there’s a problem with a site’s security.

Advanced settings

• Website settings: View advanced settings for individual websites. (Only available for some websites.)
• Reset to default: Clear all browser data and reset all settings to default.

Bluetooth®

Bluetooth ^® is a short-range wireless communication technology. Phones or other devices with Bluetooth capabilities can exchange information wirelessly within a distance of about 10 meters. The Bluetooth devices must be paired before the communication is performed.

Turning Bluetooth on/off

Tap Home Key > Settings > Wireless & networks and tap the check box by Bluetooth.

When Bluetooth is on, the ⚙ icon will appear in the status bar. If you want to turn Bluetooth off, just clear the Bluetooth check box.

NOTE: If you switch off your phone while Bluetooth is turned on, when you switch on the phone again, Bluetooth will turn on automatically.

Making Your Phone Visible

In order to work with other phones or devices that have Bluetooth, you need to make your phone ‘visible’ to them.

1. Tap Home Key > Settings > Wireless & networks > Bluetooth settings.
2. Tick the Bluetooth check box if it isn't already ticked.
3. Tick the Discoverable box to make your device visible.

Change Your Phone's Name

When your phone is visible to other Bluetooth devices it will be seen by its name, and you can make that anything you want – like ‘Dave’s phone’.

1. Tap Home Key > Settings > Wireless & networks > Bluetooth settings.
2. Select the Bluetooth box if it is not already ticked.
3. Tap Device name.
4. Enter the name and tap OK.

Hook up with Another Bluetooth Device

You can pair your phone with another device that has Bluetooth capabilities. Once you do this, the two devices can exchange information with Bluetooth turned on but do not need to be visible to each other.

1. Tap Home Key > Settings > Wireless & networks > Bluetooth settings.
2. Tap Scan for devices. Your phone will show all visible Bluetooth devices (in range) in its Bluetooth devices.
3. Select the device you want to pair with.
4. If required, enter your PIN and tap OK.

If a PIN is required, the same PIN should be entered on the other device.

Making the Most of Multimedia

Taking Pictures with Your Camera

Your phone has a 5 megapixel camera. Open it by tapping Home Key > ☐ > Camera.

Aim the camera at the subject and then tap 📋 to take a shot. To view it, just tap 📋. Or select Menu Key > Gallery to view all your pictures and videos.

Adjusting Camera Settings

From the Camera Screen tap at the upper-left corner of the screen to set up focus mode, exposure, picture size/quality, color effect, ISO, anti-banding, saturation, contrast, sharpness, and camera reset.

Tap 📄 to enable or disable saving of pictures' locations.

Tap AW to change white balance.

Tap 📷 at the bottom-left corner of the screen to zoom in or out.

TIP: To change quickly from camera to camcorder or vice versa, use the switch 📷 icon. Use the bar to adjust the brightness.

Shooting Video with Your Camcorder

Open the camcorder by tapping Home Key > □ > Camcorder.

Then select ● to start shooting, and □ to stop. Select the picture in the right corner of the screen to view the video you’ve just shot. Or tap Menu Key > Gallery to see all your photos and video clips.

Adjusting Your Video Settings

From the Camcorder Screen, tap to adjust color effect, video quality, video/audio encoder, video duration, and camcorder reset.

Tap ☐ to change white balance setting.

Tap 📷 to change video quality, video/audio encoder, and video duration together based on the purpose of the video.

Listening to Your FM Radio

With the FM Radio, you can search for radio channels, listen to them, and save them on your phone. Note that the quality of the radio broadcast depends on the coverage of the radio station in your area. The wired headset that comes with your phone works as an antenna, so always connect the headset when using the radio. When you receive an incoming call while listening to the radio, the radio will be turned off.

To tune in, plug your headset into your phone. Tap Home Key > > FMRadio. This icon will pop up in the status bar.

Tap or to scan for available FM channels. If you need to fine tune the radio's reception, tap Menu Key > Adjust. Tap + / change the frequency by +/-0.1 MHz.

Once you get the best reception of a channel, hold the frequency shown until a red box appears on the screen, and then drag it into the box to save, as shown in the next diagram.

87.9 Long pre frequency and drag here to save the channel. 87.9 Long press the frequency and here to save channel. 87.9 87.9

• Press Volume Keys to adjust the volume.
• Tap Menu Key > Sleep to set the FM radio sleep timer.
• Tap to switch off the radio.

Playing Your Music

You can play digital audio files from your phone's memory card in Music.

1. Tap Home Key > Music to open the Music Screen.
2. Select Artists/Albums/Songs/Playlists to see the songs

you want to play.

1. Tap a song from the list to start playing.

2. Adjust the volume with Volume Keys.

4:58 AM Tap to view the Now playing list. Tap to turn on/off shuffle. Tap to choose repeating mode (repeat off, repeat all, repeat the current track) Your recordings Audio recordings 2016/01.14 AM-5R-01 Tap to play the previous track. 0:07 0:21 Tap to play the next track. Drag or tap to jump to any part of the track. Tap to pause or resume the track.

Creating Playlists

Playlists help you organize your music files:

1. Select a music file you want to add to a new playlist.
2. Tap and hold on the file until a shortcut menu pops up.
3. Tap Add to playlist.
4. Tap New.
5. Type the playlist name and tap Save.

Managing Playlists

1. From the Music Screen tap Playlists to see them all.
2. Hold on the playlist you want to play or edit until a shortcut menu pops up.
3. Tap Play, Delete or Rename.

Adding a Song to a Playlist

1. Open the folder where the song is.
2. Hold on the song until a shortcut menu pops up.
3. Select Add to playlist.
4. Select a playlist.

Setting a Song as Ringtone

1. Open the folder where the song is.
2. Hold on the song until a shortcut menu pops up.
3. Select Use as phone ringtone.

TIPS: You can also set a song as ringtone when you are playing it by tapping Menu Key > Use as ringtone.

Playing Your Videos

To play a video file, tap Home Key > Videos. This will open the Videos Screen and show the video files saved to your memory card.

Tap a video file and the video player will open. Tap on the screen and the control bar will appear as below. So now you can play, pause, fast forward, etc.

Tap to rewind. 01:23 Hold and drag to jump to any part of the video. Tap to fast forward. 03:28 Tap to pause/resume video.

Opening Your Gallery

Gallery helps you view pictures and play videos. You can also do some basic editing of your pictures – such as setting them as wallpaper or contact icons, and sharing with friends.

Tap to return to the previous folder Tap to return to Gallery. Show the number of pictures in the folder Tap to view pictures in the folder in a slideshow. Tap to zoom Slideshow Menu

Making Memorable Memos

Sound Recorder enables you to record your voice memos. You need a microSD card to use it.

1. Tap Home Key > □ > Sound Recorder.
2. Make sure your mouth is near the phone's microphone.
3. Tap to start recording.
4. Tap to stop recording.
5. Tap ▶ to play back the voice recording.
6. Tap OK to save the voice recording, or tap Discard to delete the recording.

TIPS: You can find your recordings in Home Key > Music > Playlists > My recordings. If you want to set an audio clip as ringtone, hold the recording and select Use as phone ringtone from the pop-up shortcut menu.

Using Your Google™ Applications

Signing in to your Google Account lets you synchronize Gmail, Calendar, and Contacts between your phone and the web. And if you don't have an account, you can easily create one.

1. Tap a Google application that need a Google account, such as Market.
2. Read the instructions and select Next.
3. If you've got a Google account, tap Sign in. Enter your user name and password. Then tap Sign in. (Or tap Create if you don't have a Google account.)
4. Choose whether to back up data to your Google account. Then tap Next.
5. Tap Finish setup.

Gmail

Gmail is a web-based email service that's configured when you sign in to your Google account. Depending on your synchronisation settings, the Gmail on your phone can be automatically synchronised with your Gmail account on the web.

This is how you create and send a Gmail:

1. Open Gmail by tapping Home Key > Gmail.

2. Press Menu Key >Compose.

3. Enter the email address of the person you're contacting in the 'To' field. If you're sending the email to several people, separate the email addresses with a comma. You can add as many recipients as you want.

4. Enter the email subject, and then write your email.
5. Tap Menu Key > Send.

Using Google Calendar

Tap Home Key > Calendar to use Google Calendar, Google's time management application. You can use the calendar to schedule appointments, including meetings and other events. Your appointments will be displayed on the screen as are scheduled. You can also synchronize appointments to your Google account, which enables you to manage your schedule online on your PC.

Using Google Talk

Google Talk is Google's instant messaging program, which enables you to communicate with other people who also use it.

Opening Google Talk

Tap Home Key > □ > Talk.

Adding a New Friend

You can only add people who have a Google Account.

1. In the Friends list, press Menu Key > Add friend.
2. Enter the Google Talk instant messaging ID or Google email address of the friend you want to add.

Your friend will receive an invitation from Google. Press Menu Key > More > Invites to see pending invitation.

Changing Your Online Status

1. Tap the online status icon beside your status message, and then select the status you want on the menu.
2. Tap the status message box and then enter your status message using the on-screen keyboard.

Starting a Chat

1. Tap a friend in the Friends list.
2. Chat with your friend by entering text in the message box.
3. Tap Send.

Places

Google Places helps you find all kinds of businesses near you.

1. Tap Home Key > Settings > Location & security and tick the Use GPS satellites or Use wireless networks check box.

2. Tap Home Key > Places. Wait while you are being located. Your location, when found, is shown at the bottom of the screen.

3. Select a business category and the information of that type of business near you will be displayed.

You can also use the Find places search box on the top to find the business you need.

Note: Tap Add to add new business categories.

1. Tap a result you are interested in and check out the details and reviews about that place. You can also see the place on Google Maps, find out how to get there, or give that business a call.

Latitude

Google's Latitude service is a social tool for sharing your location information with selected friends.

Tap Home Key > □ > Latitude to enable Latitude service.

Each time you launch Maps application, your location will be determined using GPS or the phone network, and your Latitude status will be updated. You can tap Menu Key > Latitude in

Maps or Home Key > 📄 > Latitude to see your status as well as that of your selected friends.

In Latitude, tap Menu Key to refresh friends status, see them on Maps, add new friends, or change privacy settings.

You can also turn off Latitude service by tapping Sign out of Latitude in Privacy settings of Latitude.

Sorting out Your Phone Settings

Setting Time and Date

1. Tap Home Key > Menu Key > Settings > Date & time.
2. Clear the Automatic tick box if you want to set the time and date by yourself.
3. Tap Set date. Adjust the date, and tap Set to save it.
4. Tap Select time zone and tap where you are in the world.
5. Tap Set time. Adjust the time, and tap Set to save it.
6. Tap the tick box behind Use 24-hour format if you want to change the time format.
7. Tap Select date format to select the one you prefer.

Changing Display Settings

By tapping Home Key > Menu Key > Settings > Display, you can adjust the display settings as you like – changing Auto-rotate screen, Animation, Brightness, and Screen timeout.

Adjusting Screen Brightness

1. Select Brightness from the display settings.
2. Tick the Automatic brightness box and your phone can adjust the screen brightness automatically. Clear the tick box to adjust the screen brightness manually.
3. Tap OK.

Adjusting Screen-timeout

When not in use, your phone will turn the screen off after a set length of time. If that time is too long or short, you can adjust it.

1. Tap Screen timeout from the display settings.
2. Select your preferred time from the list.

Switching Screen Orientation Automatically

You can select to switch your screen orientation to landscape or portrait automatically when rotating your phone. Simply tick the Auto-rotate screen box from the display settings.

If you want to disable this function, just clear the Auto-rotate screen check box.

Showing Animation when Opening/Closing Windows

1. Tap Animation in the display settings.
2. Select the animation type you like.

When you want to disable this function, select No animations.

Sound Settings

By tapping Home Key > Menu Key > Settings > Sound, you can adjust the sound settings, such as ringtones and alerts.

Choosing Your Ringtone

1. Tap Phone ringtone in sound settings.
2. Select the ringtone you want to use from the pop-up list.
3. Tap OK to save.

Setting the Default Notification Ringtone

1. Select Notification ringtone from the Sound settings.
2. Scroll through the ringtone list and select one as the default notification ringtone.
3. Tap OK to save.

Switching Your Phone to Silent Mode

1. In the Sound settings tick the Silent mode box.
2. You can also switch to Silent mode by holding the Volume Key (down) or – if the screen is locked – by dragging the Sound off bar to the left, as shown below.

Airplane mode Emergency calls only 02:18 Thursday, March 31 Charged. Emergency call

By default, vibration is enabled in silent mode, and the icon appears in the status bar. If vibration is disabled, the silent icon will appear in the status bar.

Switching to Vibrate

In Sound settings tap Vibrate and choose the condition for vibration. If your phone is already in Silent mode, the vibration icon 📋 will appear in the status bar when vibration is enabled.

Flipping to Turn off Ringtone

In Sound settings tick the Turn to forbid phone ring box. Then you can flip your phone over to mute the ringtone when there is an incoming call.

'Haptic' (touch) Keypad Feedback

If you'd like your phone to vibrate in response to your keypresses or certain UI interactions, then you need to turn on the haptic feedback.

1. Tap Home Key > Settings > Sound.
2. Tick the Haptic feedback box.

Adjusting Volume

1. Make sure your phone isn't in Silent mode.
2. Tap Volume from Sound settings.
3. Adjust the ringtone volume, media volume, and alarm volume and tap OK to save.

TIPS: You can adjust the media volume when a media application is in use by pressing the Volume Keys. If no media application is active, press the keys to adjust ringtone volume. And if you’d like to adjust the notification volume together with the ringer volume, tick the Use incoming call volume for notifications box.

Turning on Touch Tones

To make your phone play tones whenever you use the dial pad, tick the Audible touch tones box in Sound.

Turning on Selection Tones

Tick the Audible selection box in Sound. Your phone will

play a sound when you touch the screen to make a selection.

Turning on Screen Lock Sound

Tick the Screen lock sounds box in Sound settings. When you lock or unlock the screen, sound will be played as a notification.

Language Settings

You can change the language of your phone's operating system in two simple steps.

1. Tap Home Key > Settings > Language & keyboard > Select language.

2. Select a language from the list given.

Mobile Network Services

Both GSM and WCDMA are supported by your phone. You can configure the network settings according to the phone service you use.

Getting Data Services while Roaming

1. Tap Home Key > Settings > Wireless & networks > Mobile networks.

2. Tick the Data roaming box.

IMPORTANT: Data roaming may incur significant roaming charges.

Enabling Data Services

1. Tap Home Key > Settings > Wireless & networks > Mobile networks.
2. Tick the Data enabled box to enable data services over the mobile network. To disable data services, just clear the tick box.

Enabling Always-on Data Services

1. Tap Home Key > Settings > Wireless & networks > Mobile networks.

2. Tick the Enable always-on mobile data box to allow applications to update data automatically.

IMPORTANT: When this option is enabled, more data traffic will be generated for automatic updates of applications data. And your phone will consume more power.

Switching Network Modes

1. Tap Home Key > Settings > Wireless & networks > Mobile networks > Network Mode.
2. Select one of the following: GSM/WCDMA auto, WCDMA only, or GSM only.

Switching Networks

1. Tap Home Key > Settings > Wireless & networks > Mobile Networks > GSM/UMTS Options > Network operators. The phone automatically searches for all

available networks.

1. Tap a network to register manually, or tap Select automatically.

Setting Access Point Names

To connect to the Internet you can use the default Access Point Names (APN). And if you want to add a new APN, please contact your service provider to find out more.

1. Tap Home Key > Settings > Wireless & networks > Mobile networks > GSM/UMTS Options > Access Point Names.
2. Tap Menu Key > New APN.
3. Set the necessary parameters. (See how to add a GPRS/3G/EDGE connection on page 65.)
4. Tap Menu Key > Save.

Security Settings

Here's how to protect your phone and SIM from unauthorised use.

Protecting Your Phone with a Screen Unlock Pattern

Creating Your Screen Unlock Pattern

1. Tap Home Key > Settings > Location & security > Set up screen lock > Pattern.

2. Read the instructions and tap Next.

3. Watch the example pattern and tap Next.
4. With a finger, draw your own pattern and tap Continue.

Pattern recorded! Retry Continue

1. Draw the pattern again and tap Confirm.
2. Press Power Key to lock the screen.

TIPS: You can also clear the Use visible pattern box in the Location & security screen if you don't want your screen unlock pattern to display as you draw it on the screen.

Unlocking the Screen with Your Pattern

1. Press the Power Key.
2. Draw the pattern you set to unlock the screen.

If you make a mistake, your phone will ask you to try again.

Forgot your screen unlock pattern?

If you’ve forgotten your screen unlock pattern, you have up to five attempts to unlock your phone. If the pattern has been drawn incorrectly five times, you can enter your Google account user name and password to unlock your phone.

IMPORTANT: You must sign in or create a Google account on your phone before using the following method to reset the lock pattern.

1. Draw the unlock pattern on the screen.
2. After the fifth attempt, you're prompted to try again in 30 seconds. Then tap OK.
   Note: If the display turns off, press the Power Key to turn the display on.
3. Tap Forgot pattern? on the bottom right of the screen.
4. Enter your Google account user name and password, and then tap Sign in.
5. You will be asked to draw a new unlock pattern. If you do not need an unlock pattern, tap Cancel.

Protecting Your Phone with a PIN or Password

Creating a PIN or Password

1. Tap Home Key > Settings > Location & security > Set up screen lock.

2. Tap PIN or Password.

3. Enter the numeric PIN or any password you like, and tap Continue.

4. Enter it again and tap OK to confirm.

Unlocking the Screen with Your PIN or Password

1. Press Power Key to wake up the phone.
2. Drag the icon to the right.
3. Enter the PIN or password you set.
4. Tap OK.

Disabling Screen Unlock Security

If you have created an unlock pattern, PIN or password, you can disable it.

1. Tap Home Key > Settings > Location & security > Change screen lock.
2. Draw the screen unlock pattern or enter your PIN/password you have created.
3. Tap None.

Protecting Your SIM with a PIN

Every SIM card comes with a PIN. The initial PIN is provided by your service provider. It's best to lock your SIM as soon as you can.

1. Tap Home Key > Settings > Location & security > Set up SIM/USIM card lock.

2. Tick the Lock SIM/USIM card check box.

3. Enter the PIN you've been given and tap OK.

Changing Your SIM PIN

You can change the PIN you've been given to one easier for you to remember and harder for others to guess.

1. Tap Home Key > Settings > Location & security > Set up SIM/USIM card lock.
2. Make sure you already tick the Lock SIM/USIM card check box.
3. Tap Change SIM/USIM PIN.
4. Enter the old PIN and tap OK.
5. Enter your new PIN and tap OK.
6. Enter the new PIN again and tap OK.

Setting up Credential Storage

This lets you select applications to access secure certificates and other credentials.

Enabling Secure Credentials

1. Tap Home Key > Settings > Location & security.
2. Tap Set password and create a password for the credential storage.
3. Tick the Use secure credentials box.

TIPS: You can also install encrypted certificates from your microSD card by tapping Install from SD card.

Deleting Secure Credentials

1. Tap Home Key > Settings > Location & security.
2. Tap Clear storage to clear credentials.

Managing Your Memory Card

Checking Memory Card Space

Tap Home Key > Settings > SD card & phone storage.

You can view the space information from Total space/Available space in SD card section.

Unmounting Your Memory Card

Unmounting makes your memory card unavailable to the phone's operating system, and ready for removal or replacement.

1. Tap Home Key >> Settings > SD card & phone storage.
2. Tap Unmount SD card.

The 📄 icon will appear in the status bar. You can tap Mount SD card to mount the memory card again.

Formatting Your Memory Card

1. Unmount your memory card (as above).
2. Tap Format SD card.
3. Tap Format SD card to confirm.
4. Tap Erase everything.

Managing Phone Memory

1. Tap Home Key > Settings > SD card & phone storage.
2. Scroll down to view the Available space in the Internal phone storage section.

Privacy: Reset to Factory Settings

1. Home Key > > Settings > Privacy.
2. Factory data reset.
3. Reset phone.
4. Erase everything.

WARNING: All your personal information and downloaded applications on your phone will be erased after the resetting.

Managing Applications and Their Settings

Viewing Your Phone's Applications

Tap Home Key > Settings > Applications > Manage applications.

You can check the running applications or view the applications installed on your phone and memory card.

Allowing Installation of Non-market Applications

1. Tap Home Key > Settings > Applications.
2. Tick the Unknown sources box.

How to Install an Application

You can install an application from the Android Market (Home Key > 📄 > Market) by selecting the item you want to download and tapping Install.

You can also install a non-Marketing application if you have allowed the installation of it. Make sure that you select an application developed for your device and processor type before installing it.

1. Tap Home Key > Filer, and open the folder where the application you want to install is.
2. Tap the application to start installation.
3. Read the installation instructions that come with the application and follow it to complete the setup.

Removing an Application

1. Tap Home Key > Settings > Applications > Manage applications.
2. Select the application you want to delete.
3. Tap Uninstall and OK to confirm.

TIPS: Market applications can also be removed by going to the Downloads page in Market, selecting the unwanted application, and tapping Uninstall.

Moving an Application to or from the Memory Card

You can move the applications downloaded or installed on your phone to the memory card when the phone memory is full. You can also move applications to your phone if the memory card is getting full.

NOTE: Not all applications can be move to your phone or memory card.

1. Tap Home Key > Settings > Applications > Manage applications.
2. Tap the application you want to move on the Downloaded tab.
3. Tap Move to phone or Move to SD card.

Managing Other Settings

Search Settings

You can manage search settings and search history by tapping Home Key > Settings > Search.

Google Search Settings

• Show web suggestions: Tick the check box to allow Google to show you search suggestions while you enter the keywords.
• Use My Location: Tick the check box to allow Google to access your location data.
• Search history: Show search history as you type keywords in the Google search box.
• Manage search history: Open the browser to manage your search history.

Searchable Items

When you search for an item on your phone, only the searchable items will be looked for.

Tap Home Key > Settings > Search > Searchable items.

Clear Shortcuts

Clear shortcuts to the recently used search keywords.

Voice Interaction

You can set the text-to-speech and voice recognition options by tapping Home Key > Settings > Voice input & output.

NOTE: You need to download voice data in order to use the text-to-speech function. Just tap Install voice data in Text-to-speech settings.

Other Applications

Alarms

1. Tap Home Key > Alarm.
2. Tap the default alarm set to configure it. Or, to create a new alarm, tap Menu Key > Add alarm.
3. Tick the Turn on alarm box and set up Name, Time, Repeat, Snooze, Duration, Vibrate, Ringtone, Volume, Volume crescendo, and Delay.

Note Pad

Note pad is for your memos. Tap Menu Key to add or delete them. Hold an existing note to edit, delete it or change its title.

Calculator

Tap Home Key > □ > Calculator.

TIPS: Tap Menu Key > Advanced panel to use scientific calculation.

SIM Toolkit

SIM Toolkit will only appear on the screen if your SIM provides this function. To use SIM services, insert your SIM in the phone first.

Tap Home Key > SIM Toolkit.

Task Manager

Go to Task Manager to view or stop applications.

Stopwatch

1. Tap Home Key > □ > Stopwatch.
2. Tap Start to start timing, Pause to pause time, and Resume to continue.
3. Reset will take the stopwatch back to 00:00.0.

Specifications

Dimensions		Approx. 114mm x 56.5mm x 11.9mm
Weight About 110g (with battery)
Bearer		GSM/WCDMA
Main display dimension, resolution		3.5 inches 800*480
Back Camera	Sensor type CMOS
	Still image capture resolution	5M Pixels with auto focus
Removable memory card		Support microSD card, max. capacity 32GB
Battery	Capacity	1250mAh
	Standby time	Approx. 165 hours (subject to network status)
	Voice talk time	Approx. 240 min (subject to network status)
WAP browser version WAP2.0

sup|

Declaration of RoHS Compliance

To minimize the environmental impacts and take more responsibilities to the earth we live on, this document shall serve as a formal declaration that the ZTE Libra manufactured by ZTE CORPORATION is in compliance with the Directive 2002/95/EC of the European Parliament - RoHS (Restriction of Hazardous Substances) with respect to the following substances:

1. Lead (Pb)
2. Mercury (Hg)
3. Cadmium (Cd)
4. Hexavalent Chromium (Cr (VI))
5. Polybrominated biphenyls (PBBs)
6. Polybrominated diphenyl ethers (PBDEs)

The ZTE Libra manufactured by ZTE CORPORATION, meets the requirements of EU 2002/95/EC.

Disposal of Your Old Appliance

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

1. When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

For this product's recycling information based on WEEE directive, please send an e-mail to [e-mail]

EC DECLARATION OF CONFORMITY

C € 1588 Ⓖ

It is hereby declared that following designated product:

Product Type: WCDMA/GSM (GPRS) Dual-Mode Digital Mobile Phone

Model No: ZTE Libra

Complies with the essential protection requirements of the Radio and Telecommunication Terminal Equipment Directive (EC Directive 1999/5/EC) and the Electromagnetic Compatibility Directive (2004/108/EC)

This declaration applies to all specimens manufactured identical to the samples submitted for testing/evaluation.

Assessment of compliance of the product with the requirements relating to the Radio and Telecommunication Terminal Equipment Directive (EC Directive 1999/5/EC) was performed by American TCB (Notified Body No.1588), based on the following standards:

Safety	EN 60950-1:2006
EMC	EN 301 489-1 V1.8.1; EN 301 489-7 V1.3.1;EN 301 489-17 V2.1.1; EN 301 489-19 V1.2.1;EN 301 489-24 V1.5.1;
Radio	EN 301 511 V9.0.2;EN 301 908-1 V3.2.1; EN 301 908-2 V3.2.1;EN 300 328 V1.7.1; EN 300 487 A1:1997
Health	EN 50360:2001; EN 62209-1:2006;EN 62209-2:2010;EN 50332-1:2000;EN 50332-2:2003

This declaration is the responsibility of the manufacturer:

ZTE Corporation

ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China

Authorised person signing for the company:

Xu Feng Quality Director Of ZTE Corporation Name in block letters & position in the company

Shenzhen, 30 ^th March 2011

Place & date

Legally valid signature
