Product Type	Cordless Phone
Brand	Panasonic
Model	KX-TG6633
Technology	DECT 6.0
Frequency Band	1.9 GHz
Number of Handsets Included	1
Expandable Handsets	Up to 6
Handset Dimensions (H x W x D)	168 x 48 x 28 mm
Base Dimensions (H x W x D)	105 x 92 x 65 mm
Handset Weight	130 g
Base Weight	80 g
Power Supply	AC Adapter (Input 100-240 V, Output 6 V DC)
Battery Type	AAA Ni-MH (HHR-4EPT)
Talk Time	Up to 15 hours
Standby Time	Up to 200 hours
Charging Time	Approx. 7 hours
Answering Machine Capacity	18 minutes recording
Phonebook Capacity	50 names/numbers
Caller ID	Yes
Speakerphone	Yes
Eco Mode	Yes
Cleaning Instructions	Wipe with a soft dry cloth; avoid liquids
Safety Information	Use only supplied power adapter; keep away from water
Spare Parts Availability	Battery, Charger, Handset, Base
Operating Temperature	5°C to 40°C

Frequently Asked Questions - KX-TG6633 PANASONIC

How do I set the date and time on my Panasonic KX-TG6633?

Press the MENU key, then select Initial Settings > Date and Time. Use the dial keys to enter the date and time, then press Save.

How do I record a greeting on the answering machine?

Press MENU, select Answering Machine > Greeting > Record. Speak after the beep, then press Stop. The greeting will be saved automatically.

Can I expand the system with additional handsets?

Yes, the KX-TG6633 supports up to 6 handsets total. Additional handsets must be registered to the base station. See the manual for registration steps.

How do I change the ringer volume?

Press the VOLUME up/down buttons on the handset when idle. Alternatively, go to MENU > Settings > Ringer Volume and adjust.

What type of battery does the handset use?

The handset uses a rechargeable AAA Ni-MH battery (model HHR-4EPT). You can purchase replacements from Panasonic or authorized retailers.

How do I activate Eco Mode?

Press MENU, go to Initial Settings > Eco Mode, and select On. This reduces transmission power to save energy.

Why is my handset not charging?

Ensure the handset is properly placed on the charger with the contacts aligned. Check that the power adapter is securely plugged in and the charger is receiving power. Try cleaning the charging contacts with a dry cloth.

How do I retrieve messages from the answering machine remotely?

Dial your phone number from a touch-tone phone, enter your remote access code (default 0000) when prompted, then follow the voice prompts to listen or delete messages.

Can I use the phone during a power outage?

No, the base station requires AC power. The handset will not function without power, but a backup battery in the base is not included. Consider a backup power source.

How do I block unwanted calls?

The KX-TG6633 does not have built-in call blocking. However, you can use the Caller ID feature to screen calls. For blocking, contact your service provider or use a separate device.

USER MANUAL KX-TG6633 PANASONIC

Operating Instructions

Digital Cordless Answering System

Model No. KX-TG6632

KX-TG6633

KX-TG6641

KX-TG6643

KX-TG6644

KX-TG6645

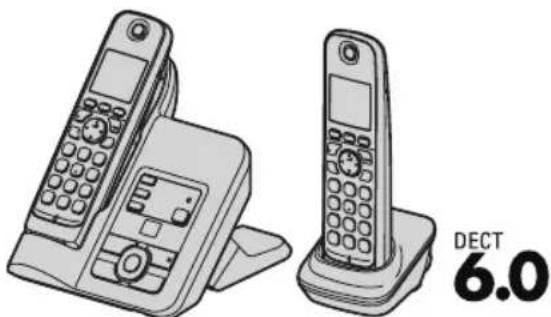

Illustration of two vintage mobile phones with a stand, one displaying the keypad and the other the front, labeled DECT 6.0 (no text on devices)

Model shown is KX-TG6632.

Before initial use, see "Getting Started" on page 9.

Thank you for purchasing a Panasonic product.

Please read these operating instructions before using the unit and save them for future reference.

This unit is compatible with Caller ID. You must subscribe to the appropriate service offered by your service provider/telephone company.

For assistance, visit our Web site: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico.

Please register your product: http://www.panasonic.com/prodreg

Table of Contents

Introduction

Model composition ....3

Accessory information ....4

Important Information

For your safety 6

Important safety instructions ....7

For best performance ....7

Other information 8

Specifications 8

Getting Started

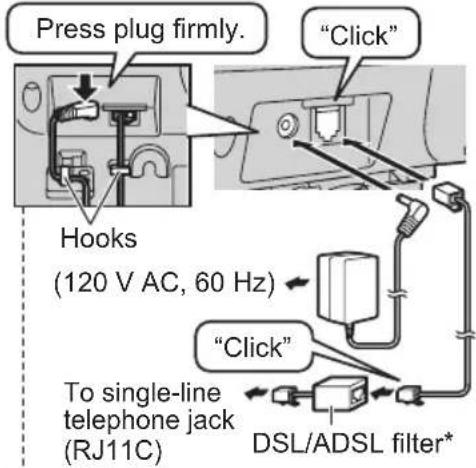

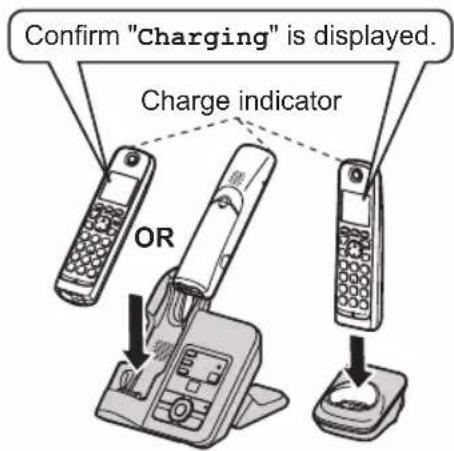

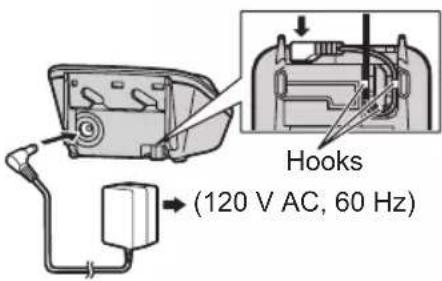

Setting up 9

Note when setting up ....10

Intelligent eco mode ....10

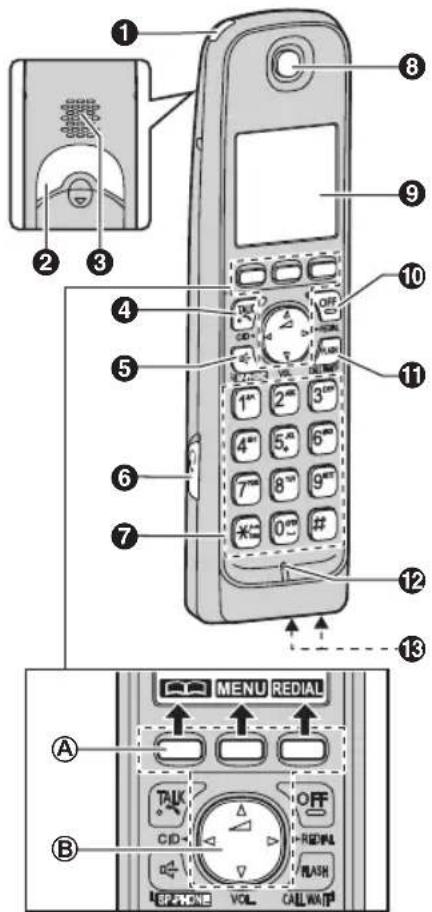

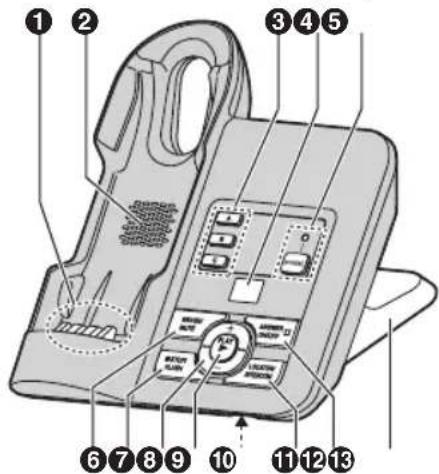

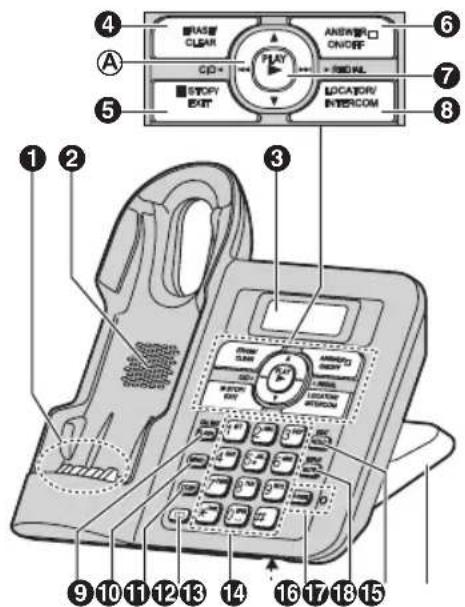

Controls ....11

Belt clip 12

Display 13

Initial settings ......13

Making/Answering Calls

Making calls ....15

Answering calls ......16

Useful features during a call .....17

Power back-up operation .....19

Shared Phonebook

Shared phonebook 22

Speed Dial

Speed dial 25

Programming

Programmable settings ......26

Special programming ....31

Registering a unit ....33

Caller ID Service

Using Caller ID service ....34

Caller list 35

Answering System

Answering system 38

Turning the answering system on/off 38

Greeting message 39

Listening to messages using the base unit ....39

Listening to messages using the handset ....40

Voice memo 41

Remote operation ....41

Answering system settings ....43

Voice Mail Service

Voice mail service ....45

Intercom/Locator

Intercom 47

Handset locator 47

Transferring calls, conference calls ....47

Useful Information

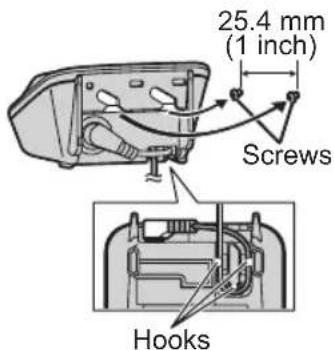

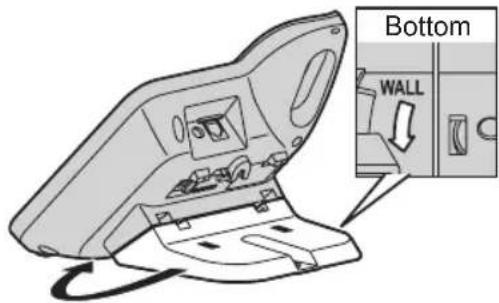

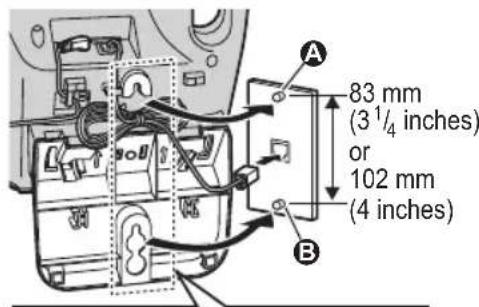

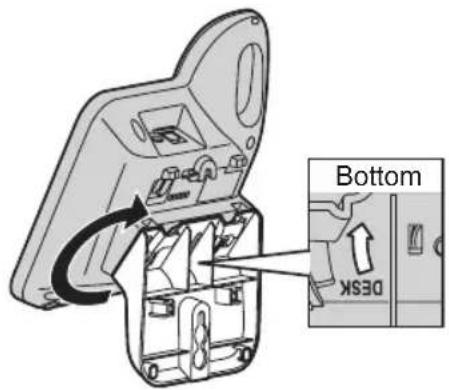

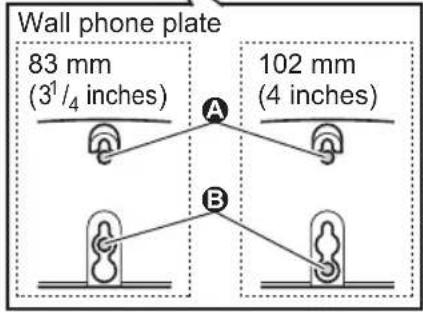

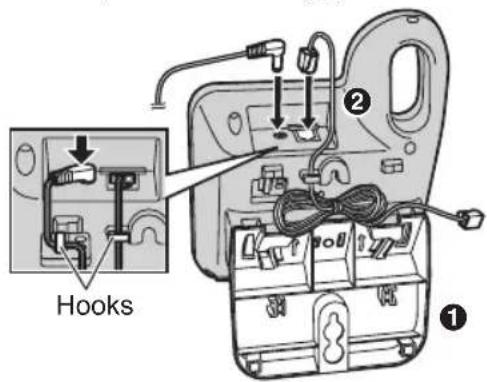

Wall mounting 49

Error messages ....51

Troubleshooting 52

FCC and other information ....57

Customer services 64

Warranty (For United States and Puerto Rico) 65

Index

Index......67

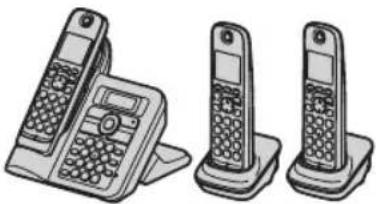

Model composition

■ KX-TG6631 series ■ KX-TG6641 series

Illustration of two vintage telephones with different sizes (no text or symbols visible)

Illustration of three different mobile phones with different sizes and buttons (no text or symbols visible)

- Model shown is KX-TG6632. - Model shown is KX-TG6643.

Series Model No.		Base unit Handset
		Part No. Part No. Quantity
KX-TG6631 series	KX-TG6632 KX	-TG6631 KX-TGA660 2
	KX-TG6633 KX	-TG6631 KX-TGA660 3
KX-TG6641 series	KX-TG6641 KX	-TG6641 KX-TGA660 1
	KX-TG6643 KX	-TG6641 KX-TGA660 3
	KX-TG6644 KX	-TG6641 KX-TGA660 4
	KX-TG6645 KX	-TG6641 KX-TGA660 5

Feature differences

Series	Call using base unit*1	Base unit display*2	Speed dial on base unit*3
KX-TG6631 series –			●
KX-TG6641 series –	●	●

*1 A call can be made or answered using the base unit keypad.
*2 Base unit display shows date and time, phonebook entries, caller information, and messages recorded on the answering system.
*3 A speed dial call can be made from the base unit after assigning up to 3 phone numbers using the handset.

Accessory information

Supplied accessories

No.	Supplied handset qty.	1 unit*1	2 unit*2	3 unit*3	4 unit*4	5 unit*5
	Accessory item/Order number	Accessory quantity
1	AC adaptor/PNLV226Z 1	2 3 4 5
2	Telephone line cord/PQJA10075Z	1 1 1	1 1
3	Rechargeablebatteries/HHR-4DPA	2 4 6	8 10
4	Handset cover*6/PNYNTGA660BR	1 2 3	4 5
5	Belt clip/PNKE1098Z1 1	2 3 4 5
6	Charger/PNLC1017ZB –	1 2 3 4

*1 KX-TG6641
*2 KX-TG6632
*3 KX-TG6633/KX-TG6643
*4 KX-TG6644
*5 KX-TG6645
*6 The handset cover comes attached to the handset.

①

④

Additional/replacement accessories

Please contact your nearest Panasonic dealer for sales information (page 64).

Accessory item Order number
Rechargeable batteries	HHR-4DPA*1To order, please call 1-800-332-5368 or visit http://www.panasonic.com/batterystore
	Battery type:-Nickel metal hydride (Ni-MH)-2 x AAA (R03) size for each handset
Headset KX-TCA60	KX-TCA93, KX-TCA94, KX-TCA400, KX-TCA430
T-adaptor KX-J66
Range extender	KX-TGA405*2

Introduction

*1 Replacement batteries may have a different capacity from that of the supplied batteries.

*2 By installing this unit, you can extend the range of your phone system to include areas where reception was previously not available. This product can be purchased online. Please visit our Web site: http://www.panasonic.com/RangeExtender

Expanding your phone system

Optional handset feature overview

You can expand your phone system by registering optional handsets (6 max.) to a single base unit.

- Optional handsets may be a different color from that of the supplied handsets.

Feature KX-TGA660 KX-TGA410 KX-TGA659
Handset
Display size 1.8 inches 1.8 inches 1.9 inches
Button size Large	Large Extra large
Speed dial*1	-	-	●
Power back-up mode during power failure*2	●	-	-

*1 You can make a call using a speed dial key on the handset as well as the base unit. (KX-TG6631 series: page 3)

*2 During a power failure, this feature allows you to make or receive calls by temporarily powering the unit with a charged handset placed on the base unit if both the base unit and handset have the power back-up mode.

Important Information

For your safety

To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product.

WARNING

Power connection

- Use only the power source marked on the product.

- Do not overload power outlets and extension cords. This can result in the risk of fire or electric shock.

- Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.

- Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.

- Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact the Panasonic Call Center at 1-800-211-PANA (1-800-211-7262).

- Unplug from power outlets and never touch the inside of the product if its casing has been broken open.

- Never touch the plug with wet hands. Danger of electric shock exists.

Installation

- To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.

- Do not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.

- Do not allow the AC adaptor or telephone line cord to be excessively pulled, bent or placed under heavy objects.

Operating safeguards

• Unplug the product from power outlets before cleaning. Do not use liquid or aerosol cleaners.
• Do not disassemble the product.
• Do not spill liquids (detergents, cleansers, etc.) onto the telephone line cord plug, or allow it to become wet at all. This may cause a fire. If the telephone line cord plug becomes wet, immediately pull it from the telephone wall jack, and do not use.

Medical

• Consult the manufacturer of any personal medical devices, such as pacemakers or hearing aids, to determine if they are adequately shielded from external RF (radio frequency) energy. (The product operates in the frequency range of 1.92 GHz to 1.93 GHz, and the RF transmission power is 115 mW (max.).)
• Do not use the product in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.

CAUTION

Installation and location

• Never install telephone wiring during an electrical storm.
• Never install telephone line jacks in wet locations unless the jack is specifically designed for wet locations.
• Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
• Use caution when installing or modifying telephone lines.
• The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.
• This product is unable to make calls when: – the handset batteries need recharging or have failed.

– there is a power failure.

Battery

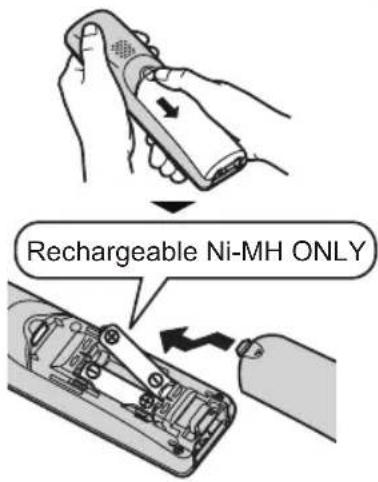

• We recommend using the batteries noted on page 4. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.

• Do not mix old and new batteries.

• Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed.

• Exercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns.
• Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual.
• Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode.

Attention:

A nickel metal hydride battery that is recyclable powers the product you have purchased.

Please call 1-800-8-BATTERY (1-800-822-8837) for information on how to recycle this battery.

Important safety instructions

When using your product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Do not use this product near water for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

SAVE THESE INSTRUCTIONS

For best performance

Base unit location/avoiding noise

The base unit and other compatible Panasonic units use radio waves to communicate with each other.

• For maximum coverage and noise-free communications, place your base unit:
  – at a convenient, high, and central location with no obstructions between the handset and base unit in an indoor environment.
  – away from electronic appliances such as TVs, radios, personal computers, wireless devices, or other phones.
• facing away from radio frequency transmitters, such as external antennas of mobile phone cell stations. (Avoid putting the base unit on a bay window or near a window.)

- Coverage and voice quality depends on the local environmental conditions.

- If the reception for a base unit location is not satisfactory, move the base unit to another location for better reception.

Environment

• Keep the product away from electrical noise generating devices, such as fluorescent lamps and motors.
• The product should be kept free from excessive smoke, dust, high temperature, and vibration.
• The product should not be exposed to direct sunlight.
• Do not place heavy objects on top of the product.
• When you leave the product unused for a long period of time, unplug the product from the power outlet.
• The product should be kept away from heat sources such as heaters, kitchen stoves, etc. It should not be placed in rooms where the temperature is less than 0 °C (32 °F) or greater than 40 °C (104 °F). Damp basements should also be avoided.
• The maximum calling distance may be shortened when the product is used in the

Important Information

following places: Near obstacles such as hills, tunnels, underground, near metal objects such as wire fences, etc.

- Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.

Routine care

• Wipe the outer surface of the product with a soft moist cloth.
• Do not use benzine, thinner, or any abrasive powder.

Other information

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Notice for product disposal, transfer, or return

- This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend that you erase information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product.

Notice

• This product is designed for use in the United States of America. Sale or use of this product in other countries may violate local laws.
• Cet appareil est conçu pour être utilisé aux États-Unis d'Amérique. La vente ou l'emploi de cet appareil dans certains autres pays peut constituer une infraction à la législation locale.
• Este producto está diseñado para usarse en los Estados Unidos de América. La venta o el empleo de este producto en ciertos países puede constituir violación de la legislación local.
• 本產品專為美國使用而設。若在其他國家銷售或使用，可能會違反當地法例。
• この製品は、日本国外での使用を目的として設計されており、日本国内での使用は法律違反となります。従って、当社では日本国内においては原則として修理などのサービスは致しかねます。

ENERGY STAR

As an ENERGY STAR® Partner, Panasonic has determined that this product meets the ENERGY STAR guidelines for energy efficiency. ENERGY STAR is a U.S. registered mark.

Specifications

Standard:
DECT 6.0 (Digital Enhanced Cordless Telecommunications 6.0)

■ Frequency range:

1.92 GHz to 1.93 GHz

■ RF transmission power: 115 mW (max.)

■ Power source:

120 V AC, 60 Hz

■ Power consumption:

Base unit:

Standby: Approx. 0.9 W

Maximum: Approx. 3.8 W

Charger:

Standby: Approx. 0.1 W

Maximum: Approx. 2.0 W

■ Operating conditions:

0 °C – 40 °C (32 °F – 104 °F), 20 % – 80 % relative air humidity (dry)

Note:

• Design and specifications are subject to change without notice.
• The illustrations in these instructions may vary slightly from the actual product.

Getting Started

Setting up

Connections

- Use only the supplied Panasonic AC adaptor PNLV226.

■ Base unit

CorrectWrong

Two diagrams showing a plug inserted into a wall, with one arrow indicating left motion and the other without a prohibition sign (no text or symbols)

*DSL/ADSL filter (not supplied) is required if you have DSL/ADSL service.

• Charger


Battery installation

• USE ONLY Ni-MH batteries AAA (R03) size.
• Do NOT use Alkaline/Manganese/Ni-Cd batteries.
• Confirm correct polarities (+) (-)

- When the date and time setting is displayed, see page 14.

Battery charging

Charge for about 7 hours.

- When the batteries are fully charged, the charge indicator goes off and "Fully charged" is displayed.

Getting Started

Note when setting up

Note for connections

• The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)
• The AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet. Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the adaptor may cause it to become disconnected.

Note for battery installation

• Use the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted on page 4, 6.
• Wipe the battery ends (+) with a dry cloth.
• Avoid touching the battery ends (+) or the unit contacts.

Note for battery charging

• It is normal for the handset to feel warm during charging.
• Clean the charge contacts of the handset, base unit, and charger with a soft and dry cloth once a month. Clean more often if the unit is exposed to grease, dust, or high humidity.

Battery level

Icon Battery level
	High
	Medium
	Low
	Needs charging.
	Empty

Panasonic Ni-MH battery performance (supplied batteries)

Operation Operating time
In continuous use	13 hours max.* ^1
Not in use (standby)	11 days max.* ^1

*1 If Eco mode is on.

Note:

• Actual battery performance depends on usage and ambient environment.
• Even after the batteries are fully charged, the handset can be left on the base unit or charger without any ill effect on the batteries.
• The battery level may not be displayed correctly after you replace the batteries. In this case, place the handset on the base unit or charger and let it charge for at least 7 hours.

Intelligent eco mode

This feature automatically reduces handset power consumption by suppressing handset transmission power when the handset is close to the base unit.

• When this feature is activated ECO displayed.
• Eco mode is turned off when the clarity booster is activated (page 18).

Getting Started

Controls

Handset

① Charge indicator Ringer indicator Message indicator
② Nonslip pad

- Nonslip pad offers support when you cradle the handset between your shoulder and ear.

③ Speaker
④ [TALK]
⑤ 【】(SP-PHONE: Speakerphone)
6 Headset jack
⑦ Dial keypad (※: TONE)

8 Receiver
9 Display
10 [OFF]
⑪ 【FLASH】【CALL WAIT】
⑫ Microphone
13 Charge contacts

■ Control type

ⒶSoft keys

The handset features 3 soft keys. By pressing a soft key, you can select the feature shown directly above it on the display.

®Navigator key

• [▲], [▼], [◀], or [▶]: Scroll through various lists and items.
• △VOL. (Volume: [▲] or [▼]): Adjust the receiver or speaker volume while talking.
  -【◀】CID (Caller ID): View the caller list.
  -【▶】REDIAL: View the redial list.

Base unit

■ KX-TG6631 series (page 3)

① Charge contacts
② Speaker
③ [A]/[B]/[C] (Speed dial keys)
④ Message counter

Getting Started

⑤ [SP-PHONE] (Speakerphone) SP-PHONE indicator
⑥ [ERASE] [MUTE]
⑦ 【■】(STOP)【FLASH】
⑧ [+] − [1]M
⑨ [▶] (PLAY) Message indicator
10 Microphone
⑪ [LOCATOR] [INTERCOM]
⑫ 【ANSWER ON/OFF】 ANSWER ON/OFF indicator
13 Bracket ^4

■ KX-TG6641 series (page 3)

① Charge contacts
② Speaker
③ Display
④ [ERASE] [CLEAR]
⑤ 【■】(STOP) (EXIT)
6 【ANSWER ON/OFF】 ANSWER ON/OFF indicator

⑦ [▶] (PLAY)
Message indicator
⑧ [LOCATOR] [INTERCOM]
⑨ 【FLASH】【CALL WAIT】
10 [MEMO]
⑪ 【CONF】(Conference)
⑫ (Phonebook)
13 Dial keypad (※: TONE)
14 Microphone
15 【SP-PHONE】(Speakerphone) SP-PHONE indicator
16 [MUTE] [DISPLAY]
17 [HOLD] [EDIT]
18 Bracket*1

*1 The base unit has an unremovable bracket for desk or wall mounting. To mount on a wall, see page 49.

■ Control type

ⒶNavigator key

• [▲], [▼], [◀◀], or [▶▶]: Scroll through various lists and items.
• 【▲】or【▼】(Volume): Adjust the speaker volume while talking.
• 【PID (Caller ID): View the caller list.
• 【▶】REDIAL: View the redial list.
  -【】: Repeat/skip messages during playback.

Belt clip

■ To attach ■ To remove

Diagram showing two views of a handheld device with a curved arrow indicating motion or adjustment (no text or symbols present)

Getting Started

Display

Handset display items

Item Meaning
Υ	Within base unit range
Υ	Out of base unit range
	The line is in use.● When flashing:The call is put on hold.● When flashing rapidly:An incoming call is now being received.
ECO	Eco mode is on. (page 10)
EQ	Equalizer is set.(page 19)
	Speakerphone is on.(page 15)
∅	Ringer volume is off.(page 28)
ZZ	Silent mode is on.(page 31)
PRIV	Call sharing mode is off.(page 29)
∅	Alarm is on. (page 31)
1	Handset number
	Battery level
	Blocked call (page 32)
BOOST	Clarity booster is on.(page 18)
In use	Answering system is being used by another handset or the base unit.
Linein use	Someone is using the line.

Base unit display items

■ KX-TG6631 series: page 3

Item Meaning
90	Answering system answers calls with a greeting message and caller messages are not recorded. ("Selecting "Greeting only" ", page 43)

■ KX-TG6641 series: page 3

Item Meaning
∅	Ringer volume is off. (page 17)
PRIV.	Call sharing mode is off. (page 29)
In use	Answering system is being used by a handset.
Line in use	Someone is using the line.
GO	Answering system answers calls with a greeting message and caller messages are not recorded. ("Selecting “Greeting only”", page 43)

Initial settings

■ Direct command code:

Programmable settings can be accessed by pressing [MENU], # and then the corresponding code on the dial keypad (page 26).

Example: Press [MENU]#101.

Getting Started

■ Symbol meaning:

Symbol Meaning
	Perform with the handset.
	Perform with the base unit.
Example: [▲]: “Off”	Press [▼] or [▲] to select the words in quotations.

Date and time

Important:

• When you install the batteries for the first time, the handset may prompt you to set date and time. First press [SELECT], then proceed to step 2.
  1 [MENU]#101
  2 Enter the current month, date, and year by selecting 2 digits for each. Example: July 15, 2011 0 7 1 5 1 1
  3 [OK]
  4 Enter the current hour and minute (12-hour clock format) by selecting 2 digits for each. Example: 9:30 0 9 3 0
  5 [AM/PM]: Select "AM" or "PM".
  6 [SAVE] → [OFF]

Note:

• When English is selected as the display language, 12-hour clock format is used. When Spanish is selected, 24-hour clock format is used.
• The date and time may be incorrect after a power failure. In this case, set the date and time again.

Display language

You can select either "English" or "Español" as the display language. The default setting is "English".

Handset

1 [MENU]#110
2 【◆】: Select the desired setting. → 【SAVE】
3 [OFF]

Base unit ^*1

*1 KX-TG6641 series: page 3

1 [DISPLAY]
2 [▲]: "Change language" → [▶]
3 【▲】: Select the desired setting. → 【▶】

Voice guidance language

You can select either "English" or "Español" as the voice guidance language of the answering system. The default setting is "English".

1 [MENU]#112
2 [▲]: Select the desired setting.
3 [SAVE] → [OFF]

Dialing mode

If you cannot make calls, change this setting according to your telephone line service. The default setting is "Tone".

"Tone": For tone dial service.

"Pulse": For rotary/pulse dial service.

1 [MENU]#120
2 [▲]: Select the desired setting.
3 [SAVE] → [OFF]

Making calls

Using the handset 🔒

1 Lift the handset and dial the phone number.

- To correct a digit, press [CLEAR].

2 Press [ ] or [CALL].

3 When you finish talking, press [OFF] or place the handset on the base unit or charger.

Using the speakerphone

1 Dial the phone number and press [播放].

- Speak alternately with the other party.

2 When you finish talking, press [OFF].

Note:

- For best performance, use the speakerphone in a quiet environment.

- To switch back to the receiver, press

【】/【】.

Adjusting the receiver or speaker volume

Press [▲] or [▼] repeatedly while talking.

Making a call using the redial list

The last 5 phone numbers dialed are stored in the redial list (each 48 digits max.).

1 [REDIAL] or [▶] REDIAL

- If there is a new message in the voice mail or answering system, [REDIAL] is not displayed.

2 [◆]: Select the desired phone number.

3 [ ]

Erasing a number in the redial list

1 [REDIAL] or [▶] REDIAL

2 [▲]: Select the desired phone number. → [ERASE]

3 [▲]: "Yes" → [SELECT]

4 [OFF]

Using the base unit

■ KX-TG6631 series: page 3

You can make calls with the base unit after storing phone number in speed dial key (page 25).

1 Press the speed dial key ([A] to [C]).

2 When the other party answers, speak into the microphone.

- Speak alternately with the other party.

3 When you finish talking, press [SP-PHONE].

■ KX-TG6641 series: page 3

1 Dial the phone number.

2 [SP-PHONE]

3 When the other party answers, speak into the microphone.

- Speak alternately with the other party.

4 When you finish talking, press [SP-PHONE].

Note:

- For best performance, use the speakerphone in a quiet environment.

- While on a call, you can switch from the base unit to the handset:

- Press [ ] on the handset, then press [SP-PHONE] on the base unit with the call sharing mode on (page 29).

- If the handset is on the base unit, simply lift it.

Making/Answering Calls

Adjusting the speaker volume

■ KX-TG6631 series: page 3 Press [+] or [−] repeatedly while talking.
■ KX-TG6641 series: page 3 Press [▲] or [▼] repeatedly while talking.

Making a call using the redial list

Available for: KX-TG6641 series (page 3)

The last 10 phone numbers dialed are stored in the redial list (each 48 digits max.).

1【】REDIAL
2 [▲]: Select the desired phone number.
3 [SP-PHONE]

Erasing a number in the redial list

Available for: KX-TG6641 series (page 3)

1【】REDIAL
2 [▲]: Select the desired phone number. → [ERASE]
3 [▲]: "Yes" → [▶]
4 [■] (EXIT)

Pause (for PBX/long distance service users)

A pause is sometimes required when making calls using a PBX or long distance service. When storing a calling card access number and/or PIN in the phonebook, a pause is also needed (page 24).

Example: If you need to dial the line access number "9" when making outside calls with a PBX:

Handset

1 9 → [PAUSE]
2 Dial the phone number. → 【】

Base unit\*1

*1 KX-TG6641 series: page 3

1 9 → [CONF]
2 Dial the phone number. → [SP-PHONE]

Note for handset and base unit:

- A 3.5 second pause is inserted each time [PAUSE] on the handset or [CONF] on the base unit is pressed. Repeat as needed to create longer pauses.

Answering calls

Using the handset

When a call is being received, the ringer indicator flashes rapidly.

1 Lift the handset and press [ ] or [ ] when the unit rings.
- You can also answer the call by pressing any dial key from 0 to 9, *, or #. (Any key answer feature)

2 When you finish talking, press [OFF] or place the handset on the base unit or charger.

Auto talk

You can answer calls simply by lifting the handset off the base unit or charger. You do not need to press [☐]. To turn this feature on, see page 28.

Adjusting the handset ringer volume

■ While the handset is ringing for an incoming call: Press [▲] or [▼] repeatedly to select the desired volume.
■ Programming the volume beforehand:

1 [MENU]# 1 6 0
2 [▲]: Select the desired volume.
3 [SAVE] → [OFF]

Temporary handset ringer off

While the handset is ringing for a call, you can turn the ringer off temporarily by pressing [A].

Using the base unit

When a call is being received, the SP-PHONE indicator flashes rapidly.

1 Press [SP-PHONE] when the unit rings.
2 Speak into the microphone.
3 When you finish talking, press [SP-PHONE].

Adjusting the base unit ringer volume

■ KX-TG6631 series: page 3

Press [+] or [-] repeatedly to select the desired volume.

- To turn the ringer off, press and hold [—] until the unit beeps.

■ KX-TG6641 series: page 3

Press [▲] or [▼] repeatedly to select the desired volume.

- To turn the ringer off, press and hold [▼] until the unit beeps.

Note:

- Even when the ringer volume is set to off, the base unit still rings for intercom calls (page 47).

Useful features during a call

Hold

This feature allows you to put an outside call on hold.

Handset

1 Press [MENU] during an outside call.

2 [♠]: "Hold" → [SELECT]

3 To release hold, press [ ]. - Another handset user can take the call by pressing [ ] - The base unit user can take the call by pressing [SP-PHONE].

Base unit

1 Proceed with the operation for your model.

■ KX-TG6631 series: page 3 Press [INTERCOM] and then press [SP-PHONE] during an outside call.
■ KX-TG6641 series: page 3 Press [HOLD] during an outside call.

2 To release hold, press [SP-PHONE].

- A handset user can take the call by pressing [→]

Note for handset and base unit:

• If a call is kept on hold for more than 9 minutes, an alarm tone starts to sound and the ringer indicator on the handset flashes rapidly. After 1 additional minute on hold, the call is disconnected.
• If another phone is connected to the same line, you can also take the call by lifting its handset.

Making/Answering Calls

- While an outside call is on hold, the SP-PHONE indicator on the base unit flashes.

Mute

While mute is turned on, you can hear the other party, but the other party cannot hear you.

Handset

1 Press [MUTE] during conversation. • [MUTE] flashes.

2 To return to the conversation, press [MUTE] again.

Note:

- [MUTE] is a soft key visible on the handset display during a call.

Base unit

1 Press [MUTE] during conversation. • The SP-PHONE indicator flashes.

2 To return to the conversation, press [MUTE] again.

Flash

Handset / Base unit

【FLASH】 allows you to use the special features of your host PBX such as transferring an extension call, or accessing optional telephone services.

Note:

- To change the flash time, see page 29.

For call waiting or Call Waiting Caller ID service users

To use call waiting or Call Waiting Caller ID, you must first subscribe with your service provider/telephone company. This feature allows you to receive calls while you are already talking on the

phone. If you receive a call while on the phone, you will hear a call waiting tone. If you subscribe to both Caller ID and Call Waiting with Caller ID services, the 2nd caller's information is displayed on the handset or base unit that is in use after you hear the call waiting tone.

Handset / Base unit \*1

*1 KX-TG6641 series: page 3

1 Press [CALL WAIT] to answer the 2nd call.

2 To switch between calls, press [CALL WAIT].

Note:

- Please contact your service provider/telephone company for details and availability of this service in your area.

Temporary tone dialing (for rotary/pulse service users)

You can temporarily switch the dialing mode to tone when you need to access touch-tone services (for example, answering services, telephone banking services, etc.).

Handset / Base unit \*1

*1 KX-TG6641 series: page 3

Press ☒ (TONE) before entering access numbers which require tone dialing.

Handset clarity booster

This feature can improve sound clarity when the handset is used in an area where there may be interference. During an outside call, this feature is turned on automatically when necessary.

- When this feature is turned on BOOST is displayed.

Handset equalizer

This feature clarifies the voice of the person you are talking to, producing a more natural-sounding voice that is easier to hear and understand.

1 Press [MENU] while talking.
2 [▲]: "Equalizer" → [SELECT]
3 [▲]: Select the desired setting.
4 Press [OK] to exit.

Note:

• When this feature is activated EQ is displayed while talking.
• Depending on the condition and quality of your telephone line, this feature may emphasize existing line noise. If it becomes difficult to hear, turn this feature off.
• This feature is not available while using the speakerphone.

Call share

You can join an existing outside call.

Handset

To join the conversation, press [7] when the other unit is on an outside call.

Base unit

To join the conversation, press [SP-PHONE] when the handset is on an outside call.

Note for handset and base unit:

• A maximum of 4 parties (including 1 outside party) can join a conversation using 3 extensions. (4-way conference)
• To prevent other users from joining your conversations with outside callers, turn call sharing mode off (page 29).

Power back-up operation

When a power failure occurs, the charged handset temporarily supplies power to the base unit (power back-up mode). This allows you to make and receive calls using a handset during a power failure. The base unit will not perform any other functions. However, some functions such as Caller ID and shared phonebook are available only when using a handset other than the handset supplying power to the base unit. You can program “Power failure” and the default setting is “Auto” (page 29).

Important:

• If a handset is not placed on the base unit when a power failure occurs, "Base no power Press OFF" is displayed. After pressing [OFF] on the handset, place it on the base unit to start power back-up mode.
• Power back-up mode will not work if the battery level of the power supplying handset is ☐ or ☐.
• Do not lift the power supplying handset from the base unit during power back-up mode.
• Do not touch the handset's charge contacts during power back-up mode.
• If the battery level is low, the unit will not work sufficiently during power back-up mode. In addition, in case handset battery power runs out, we recommend connecting a corded-type telephone (without AC adaptor) to the same telephone line or to the same telephone line jack using a Panasonic T-adaptor (page 4).

Making/Answering Calls

Panasonic Ni-MH battery performance (supplied batteries) during power back-up mode

When the batteries are fully charged, operating time of the handset in power back-up mode varies depending on usage.

• Continuous use of the handset in power back-up mode: 2 hours max.
• Continuous use of the handset other than a handset in power back-up mode: 3 hours max.
• Not in use in power back-up mode: 3 hours max.

Note:

- Actual battery performance depends on usage and ambient environment.

Making calls during a power failure

■ When only 1 handset is registered:

1 Lift the handset and dial the phone number.
2 Within 1 minute, place the handset on the base unit.
- Wait until speakerphone is turned on automatically and the call is made.
3 When the other party answers the call, keep the handset on the base unit and talk using the speakerphone.
4 When you finish talking, press [OFF].

Note:

- In step 2, if you do not place the handset on the base unit within 1 minute, the power back-up mode turns off. In this case, press [OFF] on the handset and dial the phone number. Then try again from step 2.

■ When 2 or more handsets are registered:

You should leave one handset on the base unit for supplying the power, and use another handset for making calls. For the operation, please see "Making calls", page 15.

Note:

• During a call with the handset placed on the base unit (power back-up mode), the call may be disconnected if you touch the handset. In such case, try to call back.
• The range of the base unit is limited during a power failure. Please use the handset close to the base unit.

Making a call using the redial list

■ When only 1 handset is registered:

1 Lift the handset.
2 【REDIAL】or【▶】REDIAL
3 [▲]: Select the desired phone number.
4 Within 1 minute, place the handset on the base unit.
- Wait until speakerphone is turned on automatically and the call is made.

■ When 2 or more handsets are registered:

You should leave one handset on the base unit for supplying the power, and use another handset for making calls.

For the operation, please see "Making a call using the redial list", page 15.

Making a call using the shared phonebook

Only when 2 or more handsets are registered to the base unit, you can use the shared phonebook feature during a power failure.

You should leave one handset on the base unit for supplying the power, and use another handset for making calls. For the operation, please see "Finding and calling from a phonebook entry", page 23.

Answering calls during a power failure

■ When only 1 handset is registered:

1 When the unit rings, keep the handset on the base unit and press [ ] or [ ]

- Speakerphone is turned on.

2 When you finish talking, press [OFF].

■ When 2 or more handsets are registered:

When the unit rings, use a handset which is not supplying power to the base unit. For the operation, please see "Answering calls", page 16.

- Do not use or lift the handset which is placed on the base unit during power back-up mode.

Note:

• During a call with the handset placed on the base unit (power back-up mode), the call may be disconnected if you touch the handset. In such case, try to call back.
• The range of the base unit is limited during a power failure. Please use the handset close to the base unit.

Shared Phonebook

Shared phonebook

The shared phonebook allows you to make calls without having to dial manually. The base unit ^1 and any handset registered to the base unit can use the shared phonebook. You can add 50 names and phone numbers to the shared phonebook, and assign each phonebook entry to the desired group.

*1 KX-TG6641 series: page 3

Important:

• Only 1 person can access the shared phonebook at a time.
• Caller ID subscribers can use group ringer tone features (page 35).

Adding entries

Handset

1 [book] → [ADD]
2 Enter the party's name (16 characters max.). → [OK]
3 Enter the party's phone number (24 digits max.). → [OK]
4 【◆】: Select the desired group. → 【SELECT】2 times
- To add other entries, repeat from step 2.

5 [OFF]

Character table for entering names

While entering characters, you can switch between uppercase and lowercase by pressing ☒ (A→a).

Key Character
1 & '()	* ,- . / 1
2 A B C	2
	a b c 2

Key Character
3 DEF	3
	def3
4 G H	H14
	ghi 4
5 JKL	5
	jkl 5
6 MNO	6
	mno6
7 PQ	RS 7
	pqrs7
8 TUV	8
	tuv8
9 WXY	Z 9
	wxyz9
0	_ 0
# #

• To enter another character that is located on the same dial key, first press [▶] to move the cursor to the next space.
• If you do not press any dial key within 5 seconds after entering a character, the character is fixed and the cursor moves to the next space.
• _ in the above table represents a single space.

Erasing the character or number

Press [◀] or [▶]. → [CLEAR]

- Press and hold [CLEAR] to erase all characters or numbers.

Groups

Groups can help you find entries in the phonebook quickly and easily. When adding an entry to the phonebook, you can assign it to one of 9 groups. You can change the names of groups assigned for phonebook entries

Shared Phonebook

("Friends", "Family", etc.) and then search for phonebook entries by group. The group ringer tone feature is available for Caller ID subscribers (page 35).

Changing group names

The default group name is "Group 1" to "Group 9".

Handset

1 [ ] → [MENU]
2 [▲]: "Group" → [SELECT]
3 【◆】: Select the desired group. → 【SELECT】
4 [▲]: "Group name" → [SELECT]
5 Edit the name (10 characters max.; page 22). → [SAVE]
6 [OFF]

Finding and calling from a phonebook entry

Scrolling through all entries

Handset / Base unit \*1

*1 KX-TG6641 series: page 3

1【】
2 [▲]: Select the desired entry.
3 Proceed with the operation for your unit.
Handset: [\~]
Base unit: [SP-PHONE]

Searching by first character

Handset / Base unit \*1

*1 KX-TG6641 series: page 3

1【】

2 Press the dial key (0 - 9 or #) which contains the character you are searching for (page 22).

• Press the same dial key repeatedly to display the first entry corresponding to each character located on that dial key.
• If there is no entry corresponding to the character you selected, the next entry is displayed.

3 [▲]: Scroll through the phonebook if necessary.
4 Proceed with the operation for your unit.

Handset: [ ]

Base unit: [SP-PHONE]

Searching by group

Handset

1 [book] → [GROUP]

2 [▲]: Select the group you want to search. → [SELECT]

- If you select "All groups", the unit ends the group search.

3 [▲]: Select the desired entry.

4 [ \~ ]

Base unit\*1

*1 KX-TG6641 series: page 3

1【】2 times

2 [▲]: Select the group you want to search. → [▶]

- If you select "All groups", the unit ends the group search.

3 [▲]: Select the desired entry.
4 [SP-PHONE]

Editing entries

Handset

1 Find the desired entry (page 23). → 【EDIT】

Shared Phonebook

2 Edit the name if necessary (16 characters max.; page 22). → [OK]
3 Edit the phone number if necessary (24 digits max.). → [OK]
4 [♦]: Select the desired group (page 22). → [SELECT] 2 times
5 [OFF]

Erasing entries

Erasing an entry

Handset

1 Find the desired entry (page 23).
2 [ERASE] → [▲]: "Yes"
3 [SELECT] → [OFF]

Base unit ^1

*1 KX-TG6641 series: page 3

1 Find the desired entry (page 23).
2 [ERASE] → [▲]: "Yes"
3 [▶] → [■] (EXIT)

Erasing all entries

Handset

1 [ ] → [MENU]
2 [▲]: "Erase all" → [SELECT]
3 [▲]: "Yes" → [SELECT]
4 [▲]: "Yes" → [SELECT]

5 [OFF]

Base unit ^4

*1 KX-TG6641 series: page 3

1 [ ] → [ERASE]
2 [▲]: "Yes" → [▶]
3 [▲]: "Yes" → [▶]

Chain dial

This feature allows you to dial phone numbers in the phonebook while you are

on a call. This feature can be used, for example, to dial a calling card access number or bank account PIN that you have stored in the phonebook, without having to dial manually.

Handset / Base unit \*1

*1 KX-TG6641 series: page 3

1 Proceed with the operation for your unit.
During an outside call:
Handset: [MENU] →
[▲]: "Phonebook" → [SELECT]
Base unit: [ ]

2 [▲]: Select the desired entry.
3 Proceed with the operation for your unit.

Handset: Press [CALL] to dial the number.

Base unit: Press [▶] to dial the number.

Note:

• When storing a calling card access number and your PIN in the phonebook as one phonebook entry, press [PAUSE] to add pauses after the number and PIN as necessary (page 16).
• If you have rotary/pulse service, you need to press ☒ (TONE) before pressing [MENU] on the handset or [icon] on the base unit in step 1 to change the dialing mode temporarily to tone. When adding entries to the phonebook, we recommend adding ☒ (TONE) to the beginning of phone numbers you wish to chain dial (page 22).

Speed dial

Available for: KX-TG6631 series (page 3)

You can make speed dial calls with the base unit by assigning a phone number to each of the 3 speed dial keys ([A] to [C]) using the handset.

Adding phone numbers to speed dial keys

■ By entering phone numbers:

1 [MENU]#261
2 [◆]: Select the desired speed dial key.
3 [ADD]
4 Enter the party's name (16 characters max.). → [OK]
5 Enter the party's phone number (24 digits max.). → [OK]
6 [SELECT] → [OFF]

■ From the shared phonebook:

1 [MENU]#261
2 [▲]: Select the desired speed dial key.
3【】
4 [▲]: Select the desired entry.
5 [SAVE] → [OFF]

Editing an entry

1 [MENU]#261
2 [▲]: Select the desired speed dial key. → [MENU]
3 [▲]: "Edit" → [SELECT]
4 Edit the name if necessary (16 characters max.; page 22). → [OK]
5 Edit the phone number if necessary (24 digits max.). → [OK]

6 [SELECT] → [OFF]

Erasing an entry

1 [MENU]#261
2 [▲]: Select the desired speed dial key. → [MENU]
3 [▲]: "Erase" → [SELECT]
4 [▲]: "Yes" → [SELECT]
5 [OFF]

Making a call using a speed dial key

Base unit

Press the speed dial key ([A] to [C]).

Programmable settings

You can customize the unit by programming the following features using the handset. To access the features, there are 2 methods.

■ Scrolling through the display menus

1 [MENU]

2 Press [▼] or [▲] to select the desired main menu. → [SELECT]
3 Press [▼] or [▲] to select the desired item from the next sub-menus. → [SELECT]
4 Press [▼] or [▲] to select the desired setting. → [SAVE]
- This step may vary depending on the feature being programmed.
- To exit the operation, press [OFF].

■ Using the direct command code

1 [MENU] → Enter the desired code.
Example: Press [MENU]#101.

2 Select the desired setting. → [SAVE]

- This step may vary depending on the feature being programmed.

- To exit the operation, press [OFF].

Note:

• In the following table, < > indicates the default settings.
• In the following table, indicates the reference page number.
• Display menu order and sub-menu may vary depending on your model.

Display the menu tree and direct command code table

Main menu: "Caller list"

Operation Code
Viewing the caller list. #213 35

Main menu: "Answering device"

Sub-menu 1 Sub-menu 2 Settings Code
Play new msg.(msg.:message)	-- #323 40
Play all msg.	-- #324 40
Erase all msg.*1	-- #325 41

Programming

Sub-menu 1 Sub-menu 2 Settings Code
Greeting	Record greeting*1	- #302 39
	Check greeting	- #303 39
	Pre-recorded*1 (Reset to pre-recorded greeting)	- #304 39
Settings	Ring count*1	2-7: 2-7 rings <4 rings>0: Toll saver	#211 43
	Recording time*1	1: 1 min3: <3 min>0: Greeting only*2	#305 43
	Remote code*1	<111> #306 41
	Screen call	1: <On> 0: Off	#310	38
Answer on*1	-- #327 38
Answer off*1	-- #328 38

Main menu: "V.M. access" (V.M.: Voice mail)

Operation Code
Listening to voice mail messages. #330 46

Main menu: Intercom"

Operation Code
Paging the desired unit. #274 47

Main menu: "set date & time"

Sub-menu 1 Sub-menu 2 Settings Code				#
Date and time*1	-- #101 14
Alarm	-1: Once	2: Daily0:	#720 31
Timeadjustment*1,*3	-1:IDauto>0: Manual#226 -	IDauto>0: Manual	#226 -

Programming

Main menu: ⚡ Initial setting"

Sub-menu 1 Sub-menu 2 Settings Code
Ringer setting	Ringer volume*4(Handset)	0-6: Off-6 <6> #1	60 17
	Ringer tone*5, *6, *7(Handset)	1-5: Tone 1-56-0: Melody1-5	#161 -
	Silent mode-On/Off	1: On 0:	#238	31
	Silent mode-Start/End	<11:00 PM/06:00 AM>	#237 31
Set date & time	Date and time*1	- #101 14
	Alarm	1: Once2: Daily0:	#720 31
	Time adjustment*1, *3	1:0: Manual	#226 -
Talking Caller ID	Handset	1: 0: Off	#162	34
	Base unit*1	1: On 0:	#*162
Handset name	-- #104 32
Call block*1	-- #217 32
	Block w/o num*1, *2(Block calls without phone number)	1: On 0:	#240	32
Speed dial*1, *8	-- #261 25
Voice mail	Store VM access#*1(VM: Voice mail)	- #331 45
	VM tone detect*1	1: 0: Off	#332	46
Message alert	-	1: 0: Off	#340	44
LCD contrast*9(Display contrast)	-1-6: Level 1-6<3>		#145 -
Key tone*10	-	1: 0: Off	#165	-
Caller ID edit(Caller ID number auto edit)	Handset	1: 0: Off	#214	36
	Base unit*1, *11	1: 0: Off	#*214
Auto talk*12	-	1: On 0:	#200	16

Programming

Sub-menu 1 Sub-menu 2 Settings Code
Set tel line	Set dial mode*1	1: Pulse2:	#120 14
	Set flash time*1, *13	0: 900 ms1: <700 ms>2: 600 ms3: 400 ms4: 300 ms5: 250 ms*: 200 ms#: 160 ms6: 110 ms7: 100 ms8: 90 ms9: 80 ms	#121 18
	Set line mode*1, *14	1: A 2:	#122	-
Call sharing*1	-	1: <On> 0: Off	#194	19
Registration Reg	ister handset	- #130 33
	Deregistration*2	- #131 33
Power failure	-	1: <Auto> 0: Off	#152	19
Change language	Display(Handset)	1: <English>2: Español	#110 14
	Voice prompt*1	1: <English>2: Español	#112 14

Main menu: ?customer support" *15

Operation Code
Displaying customer support Web address. #680 –

*1 If you program these settings using one of the handsets, you do not need to program the same item using another handset.
*2 This menu is not displayed when scrolling through the display menus. It is only available in direct command code.
*3 This feature allows the unit to automatically adjust the date and time each time caller information including date and time is received.
To turn this feature on, select "Caller ID auto". To turn this feature off, select "Manual". (Caller ID subscribers only)
To use this feature, set the date and time first (page 14).

*4 Ringer volume cannot be turned off for alarm, intercom calls, and paging.
*5 If you subscribe to a distinctive ring service (such as IDENTA-RING), select a tone (tone 1 to 5). If you select a melody, you cannot distinguish lines by their ringers.

Programming

*6 If you select one of the melody ringer tones, the ringer tone continues to play for several seconds even if the caller has already hung up. You may either hear a dial tone or no one on the line when you answer the call.
*7 The preset melodies in this product are used with permission of © 2009 Copyrights Vision Inc.
*8 KX-TG6631 series: page 3
*9 KX-TG6641 series base unit You can adjust the contrast of the base unit display by performing the following operation. [DISPLAY] → [◀]: “Contrast” → [▶] → [◀]: Select the desired setting. → [▶]
*10 Turn this feature off if you prefer not to hear key tones while you are dialing or pressing any keys, including confirmation tones and error tones.
*11 KX-TG6641 series: page 3
*12 If you subscribe to a Caller ID service and want to view the caller's information after lifting up the handset to answer a call, turn off this feature.
*13 The flash time depends on your telephone exchange or host PBX. Contact your PBX supplier if necessary. The setting should stay at "700 ms" unless pressing [FLASH] fails to pick up the waiting call.
*14 Generally, the line mode setting should not be changed. This setting automatically maintains receiver volume at the proper level depending on the current telephone line condition. Set the line mode to “A” if telephone line condition is not good.
*15 The handset can display the Internet address where you can download the operating instructions or get further information for this product, using your computer.

Special programming

Alarm

An alarm sounds at the set time for 3 minutes once or daily. Alarm can be set for each handset.

Important:

- Set the date and time beforehand (page 14).

1 [MENU]#720

2 [▲]: Select the desired alarm option. → [SELECT]

Off	Turns alarm off. Go to step 7.
Once	An alarm sounds once at the set time.
Daily	An alarm sounds daily at the set time. Go to step 4.

3 Enter the desired month and date. → [OK]

4 Set the desired time.

5 [AM/PM]: Select "AM" or "PM". → [OK]

6 [♦]: Select the desired alarm tone. → [SELECT]

- We recommend selecting a different ringer tone from the one used for outside calls.

7 [SELECT] → [OFF]

- When the alarm is set,① is displayed.

Note:

- To stop the alarm, press [OFF] or place the handset on the base unit or charger.

- When the handset is in use, the alarm will not sound until the handset is in standby mode.

Silent mode

Silent mode allows you to select a period of time during which the handset will not ring for outside calls. This feature is useful for time periods when you do not want to be disturbed, for example, while sleeping. Silent mode can be set for each handset.

Important:

• Set the date and time beforehand (page 14).
• We recommend turning the base unit ringer off (page 17) in addition to turning the silent mode on.
• If you have set the alarm, the alarm sounds even if the silent mode is turned on.

Turning silent mode on/off

1 [MENU]#238

2 【◆】: Select the desired setting. → 【SAVE】 • If you select "Off", press [OFF] to exit.

3 Enter the desired hour and minute you wish to start this feature.

4 [AM/PM]: Select "AM" or "PM". → [OK]

5 Enter the desired hour and minute you wish to end this feature.

6 [AM/PM]: Select "AM" or "PM".

7 [SAVE] → [OFF]

- When the silent mode is set, Zzz is displayed.

Changing the start and end time

1 [MENU]#237

2 Continue from step 3, "Turning silent mode on/off", page 31.

Programming

Changing the handset name

Each handset can be given a customized name ("Bob", "Kitchen", etc.). This is useful when you make intercom calls between handsets. You can also select whether or not the handset name is displayed in standby mode. The default setting is "No". If you select "Yes" without entering any handset name, "Handset 1" to "Handset 6" is displayed.

1 [MENU]#104

2 Enter the desired name (max. 10 characters; see the character table, page 22). - If not required, go to step 3.

3 [SAVE]

4 【◆】: Select the desired setting. → 【SELECT】2 times

5 [OFF]

Call block (Caller ID subscribers only)

This feature allows the unit to reject calls when:

- the unit receives a call from a phone number stored in the call block list as unwanted ("Storing unwanted callers", page 32). - the unit receives a call without phone number ("Blocking incoming calls without phone number", page 32). When a call is received, the unit rings for a short time while the caller is being identified. If the phone number matches an entry in the call block list, the unit sends out a busy tone to the caller, and then disconnects the call.

Important:

- When the unit receives a call from a number that is stored in the call block list or a call without a recognized phone number, the call is logged in

the caller list (page 35) with after the call is disconnected.

Storing unwanted callers

You can store up to 30 phone numbers in the call block list.

Important:

- We recommend storing 10 digits (including an area code). If only 7 digits are stored, all numbers that have the same last 7 digits will be blocked.

■ From the caller list:

1 [◀] CID

2 [▲]: Select the entry to be blocked.

- To edit the number, press [EDIT] repeatedly until the phone number is shown in the 10-digit format.

3 [SAVE]

■ By entering phone numbers:

1 [MENU]#217 → [ADD]

2 Enter the phone number (24 digits max.). • To erase a digit, press [CLEAR].

3 [SAVE] → [OFF]

Blocking incoming calls without phone number

You can reject a call when no phone number is provided, such as a call just showing "Out of area".

1 [MENU]#240

2 【◆】: Select the desired setting. → 【SAVE】→【OFF】

Viewing/editing/erasing call block numbers

1 [MENU]#217

2 [▲]: Select the desired entry. • To exit, press [OFF].

3 To edit a number: [EDIT] → Edit the phone number. → [SAVE] → [OFF] To erase a number: [ERASE] → [♦]: "Yes" → [SELECT] → [OFF]

Note:

• When editing, press the desired dial key to add, [CLEAR] to erase.
• When viewing, "Block w/o num" is displayed if the blocking incoming calls without phone number feature is turned on. To turn the feature off: [ERASE] → [▼] → [SAVE] → [OFF]

Registering a unit

Operating additional units

Additional handsets

Up to 6 handsets can be registered to the base unit.

Important:

- See page 5 for information on the available model.

Registering a handset to the base unit

The supplied handset and base unit are pre-registered. If for some reason the handset is not registered to the base unit, re-register the handset.

1 Handset:

$$ \text { [MENU] } # 1 3 0 $$

2 Base unit:

Press and hold [LOCATOR] for about 5 seconds until the registration tone sounds.

• If all registered handsets start ringing, press [LOCATOR] again to stop, then repeat this step.
• The next step must be completed within 90 seconds.

3 Handset:

Press [OK], then wait until a long beep sounds.

Note:

• While registering, "Base in registering" is displayed on all registered handsets.
• When you purchase an additional handset, refer to the additional handset's installation manual for registration.

Deregistering a handset

A handset can cancel its own registration to the base unit, or other handsets registered to the same base unit. This allows the handset to end its wireless connection with the system.

1 [MENU]#131

- All handsets registered to the base unit are displayed.

2 [▲]: Select the handset you want to cancel. → [SELECT]

3 [▲]: "Yes" → [SELECT]

4 [OFF]

Caller ID Service

Using Caller ID service

Important:

- This unit is Caller ID compatible. To use Caller ID features, you must subscribe to a Caller ID service. Contact your service provider/telephone company for details.

Caller ID features

Handset / Base unit *1

*1 KX-TG6641 series: page 3

When an outside call is being received, the caller's name and phone number are displayed.

Caller information for the last 50 callers is logged in the caller list from the most recent call to the oldest.

• If the unit cannot receive caller information, the following is displayed:
• "Out of area": The caller dials from an area which does not provide a Caller ID service.
• "Private caller": The caller requests not to send caller information.
• “Long distance”: The caller makes a long distance call.
• If the unit is connected to a PBX system, caller information may not be properly received. Contact your PBX supplier.

Missed calls

Handset / Base unit *1

*1 KX-TG6641 series: page 3

If a call is not answered, the unit treats it as a missed call. The display shows "Missed call". This lets you know if you should view the caller list to see who called while you were away.

Note:

• Even when there are unviewed missed calls, "Missed call" disappears from the standby display if the following operation is performed by one of the units:
• A handset is replaced on the base unit or charger.
• Pressing [OFF] on a handset.
• Pressing [■] (EXIT) on the base unit.

Phonebook name display

When caller information is received and it matches a phone number stored in the phonebook, the stored name in the phonebook is displayed and logged in the caller list.

Talking Caller ID

Handset / Base unit

This feature lets you know who is calling without looking at the display.

To use this feature, you must:

– subscribe to a Caller ID service of your service provider/telephone company.

- turn this feature on (page 28).

When caller information is received, the handsets and base unit announce the caller's name or phone number received from your service provider/telephone company following every ring.

The unit announces in English only.

• Name pronunciation may vary. This feature may not pronounce all names correctly.
• Caller ID service has a limit of how many characters can be displayed. If the caller's name is too long:

– the handset may not be able to display or announce the entire name.

- the base unit may not be able to display*1 or announce the entire name.

• The announcement is heard at the same level as the ringer volume (page 17, 28).
• If you turn on the answering system and set the number of rings “2 rings” (page 43), the unit does not announce the caller information. If “Toll saver” is selected and there is a new message, the unit does not announce the caller information.
• When you receive a call while on the phone, the 2nd caller's name is not announced even if you subscribe to both Caller ID and Call Waiting with Caller ID services.
  *1 KX-TG6641 series: page 3

Phonebook name announcement

When caller information is received and it matches a phone number stored in the phonebook, the stored name in the phonebook is announced.

Ringer ID

This feature can help you identify who is calling by using different ringer tones for different groups of callers. When adding an entry to the phonebook, you can assign it to the desired group (page 22). When a call is received from a caller assigned to a group, the ringer you selected for that group rings after caller information is displayed. If you select "Current ringer" (default), the unit uses the ringer tone you selected on page 28 when calls from this group are received.

1 [ ] → [MENU]
2 [▲]: "Group" → [SELECT]
3 【◆】: Select the desired group. → 【SELECT】
4 [◆]: Select the current setting of the ringer ID. → [SELECT]
5 [▲]: Select the desired ringer tone. → [SAVE]

6 [OFF]

Caller list

Important:

• Only 1 person can access the caller list at a time.
• Make sure the unit's date and time setting is correct (page 14).

Viewing the caller list and calling back

Handset / Base unit *1

*1 KX-TG6641 series: page 3

1 Proceed with the operation for your unit.
Handset:【◀】CID
Base unit: [◀]CID

2 Press [▼] to search from the most recent call, or [▲] to search from the oldest call.

3 Proceed with the operation for your unit.

Handset:

• To call back, press [\~].
• To exit, press [OFF].

Base unit:

• To call back, press [SP-PHONE].
• To exit, press [■] (EXIT).

Note:

- If the entry has already been viewed or answered, “√” is displayed, even if it was viewed or answered using another unit.

- In step 2, if is displayed, not all of the information is shown. To see the remaining information:

Handset:

Press [▶]. To return to the previous screen, press [◀].

Caller ID Service

Base unit:

Press [▶] To return to the previous screen, press [◀]

Editing a caller's phone number before calling back

You can edit a phone number in the caller list by removing its area code and/or the long distance code "1".

Handset

1 [◀] CID
2 [▲]: Select the desired entry.
3 Press [EDIT] repeatedly until the phone number is shown in the desired format.

① Local phone number Example: 321-5555
② Area code – Local phone number Example: 555-321-5555
③ 1 – Area code – Local phone number Example: 1-555-321-5555

4【】

Base unit ^1

*1 KX-TG6641 series: page 3

1【】CID
2 [▲]: Select the desired entry.
3 Press [EDIT] repeatedly until the phone number is shown in the desired format.

① Local phone number

Example: 321-5555

② Area code – Local phone number

Example: 555-321-5555

③ 1 – Area code – Local phone number

Example: 1-555-321-5555

4 [SP-PHONE]

Caller ID number auto edit feature

Handset / Base unit \*1

*1 KX-TG6641 series: page 3

Once you call back an edited number, the unit which was used to call back remembers the area code and format of the edited number. The next time someone calls from the same area code, caller information is customized by the unit as follows:

• When the call is being received, the Caller ID number is displayed in the same format as the edited number.
• After the call has ended, the caller's phone number is displayed in the same format as the edited number, when reviewed from the caller list.

For example, you can use this feature to set the unit to ignore the area code of callers in your area, so that you can call these local numbers using caller information without dialing the area code.

To activate this feature, you must edit an entry in the caller list, then call that number. After that, phone numbers from that caller's area code are edited automatically.

This feature can be set for each unit (page 28). The default setting is "On".

Note:

• Phone numbers from the 4 most recently edited area codes are automatically edited.
• If you move to another area, you can turn this feature off to erase previously edited area codes. To use this feature again, turn it on and reprogram the area codes you want to edit once again.

Erasing selected caller information

Handset

1 [◀] CID
2 [▲]: Select the desired entry.
3 [ERASE] → [▲]: "Yes"
4 [SELECT] → [OFF]

Base unit ^4

*1 KX-TG6641 series: page 3

1【】GID
2 [▲]: Select the desired entry.
3 [ERASE] → [▲]: "Yes"
4 [▶] → [■] (EXIT)

Erasing all caller information

Handset

1 [◀] CID
2 [ERASE] → [▲]: "Yes"
3 [SELECT] → [OFF]

Base unit ^4

*1 KX-TG6641 series: page 3
1【】GID
2 [ERASE] → [▲]: "Yes"
3 [ ▶ ]

Storing caller information to the phonebook

Handset

1 [◀] CID
2 [▲]: Select the desired entry.
- To edit the number, press [EDIT] repeatedly until the phone number is shown in the desired format.
3 [SAVE]

4 [▲]: "Phonebook" → [SELECT]
5 Continue from step 2, "Editing entries", page 23.

Base unit ^*1

*1 KX-TG6641 series: page 3

1 [ ]OID

2 [▲]: Select the desired entry.

- To edit the number, press [EDIT] repeatedly until the phone number is shown in the desired format.

3 [ ]→[▲]: "Yes"→[▶]

4 [■] (EXIT)

Note:

- If you stored caller information to the phonebook using the base unit, the entry is automatically assigned to group 1.

Answering System

Answering system

The answering system can answer and record calls for you when you are unavailable to answer the phone. You can also set the unit to play a greeting message but not to record caller messages by selecting "Greeting only" as the recording time setting (page 43).

Important:

• Only 1 person can access the answering system (listen to messages, record a greeting message, etc.) at a time.
• When callers leave messages, the unit records the day and time of each message. Make sure the date and time have been set correctly (page 14).

Memory capacity (including your greeting message)

The total recording capacity is about 18 minutes. A maximum of 64 messages can be recorded.

Note:

• When message memory becomes full:
• “Messages full” is shown on the handset and base unit ^1 display.
• The ANSWER ON/OFF indicator on the base unit flashes rapidly if the answering system is turned on.
• The message counter on the base unit flashes if the answering system is turned on. (KX-TG6631 series: page 3)
• If you use the pre-recorded greeting message, the unit automatically switches to another pre-recorded greeting message asking callers to call again later.
• If you recorded your own greeting message, the same message is still

announced to callers even though their messages are not recorded.

*1 KX-TG6641 series: page 3

Turning the answering system on/off

Base unit

Press [ANSWER ON/OFF] to turn on/off the answering system.

Handset

1 To turn on:

[MENU]#327

To turn off:

[MENU]#328

2 [OFF]

Note for base unit and handset:

• When the answering system is turned on:
• The ANSWER ON/OFF indicator on the base unit lights up.
• The message counter on the base unit displays the total number of messages (old and new).
  (KX-TG6631 series: page 3)

Call screening

While a caller is leaving a message, you can listen to the call through the unit's speaker.

Handset

To adjust the speaker volume, press [▲] or [▼] repeatedly. You can answer the call by pressing [→] Call screening can be set for each handset. The default setting is "On".

1 [MENU]#310

2 【◆】: Select the desired setting. → [SAVE] → [OFF]

Base unit

■ KX-TG6631 series: page 3

To adjust the speaker volume, press [+] or [−] repeatedly. You can answer the call by pressing [SP-PHONE].

To turn off while screening a call, press [—] repeatedly until the sounds goes off.

- If you adjust the speaker volume while listening to messages or having a conversation, the speaker volume for call screening is turned on again.

■ KX-TG6641 series: page 3

To adjust the speaker volume, press [▲] or [▼] repeatedly. You can answer the call by pressing [SP-PHONE].

To turn off while screening a call, press [▼] repeatedly until the sounds goes off.

- If you adjust the speaker volume while listening to messages or having a conversation, the speaker volume for call screening is turned on again.

Greeting message

When the unit answers a call, a greeting message is played to callers.

You can use either:

- your own greeting message

- a pre-recorded greeting message

Recording your greeting message

1 [MENU]#302

2 [▲]: "Yes" → [SELECT]

3 After a beep sounds, hold the handset about 20 cm (8 inches)

away and speak clearly into the microphone (2 minutes max.).

4 Press [STOP] to stop recording.

5 [OFF]

Using a pre-recorded greeting message

The unit provides 2 pre-recorded greeting messages:

- If you erase or do not record your own greeting message, the unit plays a pre-recorded greeting asking callers to leave a message.

- If the message recording time (page 43) is set to "Greeting only", callers' messages are not recorded and the unit plays a different pre-recorded greeting message asking callers to call again.

Resetting to a pre-recorded greeting message

If you want to use a pre-recorded greeting message once you record your own greeting message, you need to erase your own greeting message.

1 [MENU]#304

2 [YES] → [OFF]

Playing back the greeting message

1 [MENU]#303

2 [OFF]

Listening to messages using the base unit

When new messages have been recorded:

- [▶] on the base unit flashes.

- "New message" is displayed. (KX-TG6641 series: page 3)

Answering System

Press [▶].

• If new messages have been recorded, the base unit plays back new messages.
• If there are no new messages, the base unit plays back all messages.

Operating the answering system during playback

Key Operation
[+] or [−]*1[▲] or [▼]*2	Adjust the speaker volume
[◀◀]	Repeat message^*3
[▶▶Skip message
[CONF]*2	Pause message To resume playback, press [▶].
[■] (STOP) Stop playback
[ERASE] Erase currently playing message

*1 KX-TG6631 series: page 3
*2 KX-TG6641 series: page 3
*3 If pressed within the first 5 seconds of a message, the previous message is played.

Calling back (Caller ID subscribers only)

Available for: KX-TG6641 series (page 3)

If caller information was received for the call, you can call the caller back while listening to a message.

Press [SP-PHONE] during playback.

- To edit the number before calling back, press [EDIT] repeatedly until the phone number is shown in the desired format (page 36).

Erasing all messages

Press [ERASE] 2 times while the unit is not in use.

Listening to messages using the handset

When new messages have been recorded:

• "New message" is displayed.
• The message indicator on the handset flashes slowly if the message alert feature is turned on (page 44).

1 To listen to new messages:

[PLAY]

or

[MENU]#323

- If there are no new messages in the answering system, [PLAY] is not displayed.

To listen to all messages:

[MENU]#324

2 When finished, press [OFF].

Note:

- To switch to the receiver, press [→].

Operating the answering system

[MENU] → [▲]: "Answering device" → [SELECT]

Key Operation
【▲】or【▼】	Adjust the receiver/speaker volume (during playback)
1 or【◀】	Repeat message (during playback)*1
2 or【▶】	Skip message (during playback)
3	Enter the “Settings” menu
4 Play new messages
5 Play all messages
6 Play greeting message
7 6 Record greeting message
8 Turn answering system on
[PAUSE]	Pause message^*2
9 or [STOP]	Stop recording Stop playback
0 Turn answering system off
4^*3	Erase currently playing message
5 Erase all messages
6 Reset to a pre-recorded greeting message

*1 If pressed within the first 5 seconds of a message, the previous message is played.
*2 To resume playback: [♠]: "Playback" → [SELECT]
*3 You can also erase as follows: [ERASE] → [▲]: "Yes" → [SELECT]

Calling back (Caller ID subscribers only)

If caller information is received for the call, you can call the caller back while listening to a message.

1 Press [PAUSE] during playback.
2 [▲]: "Call back" → [SELECT]

Editing the number before calling back

1 Press [PAUSE] during playback.
2 [▲]: "Edit & Call" → [SELECT]
3 Press [EDIT] repeatedly until the phone number is shown in the desired format (page 36). → [ ]

Erasing all messages

1 [MENU]#325
2 [▲]: "Yes" → [SELECT] → [OFF]

Voice memo

Available for:

KX-TG6641 series (page 3)

Recording a voice memo

You can use the base unit to leave a voice memo (voice message) for yourself or someone else (3 minutes max.). Voice memos can be played back later with the same operation used to play back answering system messages.

1 [MEMO]
2 After the unit beeps, speak clearly about 20 cm (8 inches) away from the microphone.
3 To stop recording, press [■] (STOP).

Remote operation

Using a touch-tone phone, you can call your phone number from outside and access the unit to listen to messages or change answering system settings. The unit's voice guidance prompts you to press certain dial keys to perform different operations.

Remote access code

A 3-digit remote access code must be entered when operating the answering system remotely. This code prevents unauthorized parties from listening to your messages remotely. The default setting is "111".

Answering System

Important:

- To prevent unauthorized access to this product, we recommend that you regularly change the remote code.

1 [MENU]#306

2 Enter the desired 3-digit remote access code.

3 [SAVE] → [OFF]

Deactivating remote operation

Press ☒ in step 2 on "Remote access code", page 41.

- The entered remote access code is deleted.

Using the answering system remotely

1 Dial your phone number from a touch-tone phone.

2 After the greeting message starts, enter your remote access code.

3 Follow the voice guidance prompts as necessary or control the unit using remote commands (page 42).

4 When finished, hang up.

Voice guidance

■ When the English voice guidance is selected

During remote operation, the unit's voice guidance starts and prompts you to press 1 to perform a specific operation, or press 2 to listen to more available operations.

■ When the Spanish voice guidance is selected

To start the voice guidance, press 9. The voice guidance announces the available remote commands (page 42).

Note:

- If you do not press any dial keys within 10 seconds after a voice guidance prompt, the unit disconnects your call.

Remote commands

You can press dial keys to access certain answering system functions without waiting for the voice guidance to prompt you.

Key Operation

1 Repeat message (during playback)*1

2 Skip message (during playback)

4 Play new messages

5 Play all messages

9 Stop playback*2Start voice guidance*3

0 Turn answering system off

※4 Erase currently playing message

※5 Erase all messages

※# End remote operation (or hang up)

*1 If pressed within the first 5 seconds of a message, the previous message is played.
*2 For English voice guidance only
*3 For Spanish voice guidance only

Turning on the answering system remotely

If the answering system is off, you can turn it on remotely.

1 Dial your phone number from a touch-tone phone.
2 Let the phone ring 15 times.

- A long beep is heard.

3 Enter your remote access code within 10 seconds after the long beep.

• The greeting message is played back.
• You can either hang up, or enter your remote access code again and begin remote operation (page 41).

Answering system settings

Number of rings before the unit answers a call

You can change the number of times the phone rings "Ring count" before the unit answers calls. You can select 2 to 7 rings, or "Toll saver".

The default setting is "4 rings".

"Toll saver": The unit's answering system answers at the end of the 2nd ring when new messages have been recorded, or at the end of the 5th ring when there are no new messages. If you call your phone from outside to listen to new messages (page 41), you know that there are no new messages when the phone rings for the 3rd time. You can then hang up without being charged for the call.

1 [MENU]#211
2 [▲]: Select the desired setting. → [SAVE] → [OFF]

For voice mail service subscribers

If you subscribe to a flat-rate service package that includes Caller ID, call waiting, voice mail, and unlimited local/regional/long distance calls, please note the following:

- To use the voice mail service provided by your service provider/

telephone company rather than the unit's answering system, turn off the answering system (page 38).

- To use this unit's answering system rather than the voice mail service provided by your service provider/telephone company, please contact your service provider/telephone company to deactivate your voice mail service.

If your service provider/telephone company cannot do this:

- Set this unit's "Ring count" setting so that this unit's answering system answers calls before the voice mail service of your service provider/telephone company does. It is necessary to check the number of rings required to activate the voice mail service provided by your service provider/telephone company before changing this setting.

- Change the number of rings of the voice mail service so that the answering system can answer the call first. To do so, contact your service provider/telephone company.

Caller's recording time

You can change the maximum message recording time allowed for each caller. The default setting is "3 min".

1 [MENU]#305
2 【◆】: Select the desired setting. → 【SAVE】→【OFF】

Selecting "Greeting only"

You can select "Greeting only" which sets the unit to announce a greeting message to callers but not record messages.

Select "Greeting only" in step 2 on "Caller's recording time", page 43.

Answering System

Note:

• When you select "Greeting only":
• If you do not record your own message, the unit will play the pre-recorded greeting-only message asking callers to call again later.
• If you use your own message, record the greeting-only message asking callers to call again later (page 39).

Message alert

You can select whether or not the message indicator on the handset flashes slowly when new messages are recorded. The default setting is "On".

Important:

- If you stored the voice mail access number (page 45), the message indicator also flashes for newly recorded voice mail messages (page 46).

1 [MENU]#340

2 [▲]: Select the desired setting. → [SAVE] → [OFF]

Note:

- While message alert is on, battery operating time is shortened (page 10).

Voice mail service

Voice mail is an automatic answering service offered by your service provider/ telephone company. After you subscribe to this service, your service provider/ telephone company's voice mail system answers calls for you when you are unavailable to answer the phone or when your line is busy. Messages are recorded by your service provider/ telephone company, not your telephone. Please contact your service provider/ telephone company for details of this service.

Important:

• To use the voice mail service provided by your service provider/telephone company rather than the unit's answering system, turn off the answering system (page 38). For details, see page 43.
• You need to store the voice mail access number to activate the message alert feature (page 44) for voice mail service.

Storing the voice mail (VM) access number

In order to listen to your voice mail messages, you must dial your service provider/telephone company's voice mail access number. Once you have stored your voice mail access number, you can dial it automatically (page 46).

1 [MENU]#331

2 Enter your access number (24 digits max.). → [SAVE] → [OFF]

Note:

- When storing your voice mail access number and your mailbox password, press [PAUSE] to add pauses (page 16) between the access

number and the password as necessary. Contact your service provider/telephone company for the required pause time.

Example:

To erase the voice mail access number

1 [MENU]#331
2 Press and hold [CLEAR] until all digits are erased. → [SAVE] → [OFF]

Voice mail (VM) tone detection

Handset / Base unit \*1

*1 KX-TG6641 series: page 3

Your service provider/telephone company sends special signals (sometimes called "voice mail tones" or "stutter tones") to the unit to let you know you have new voice mail messages. If you hear a series of dial tones followed by a continuous dial tone after you press [→] on the handset or press [SP-PHONE] on the base unit, you have new voice mail messages. Soon after you hang up a call or after the phone stops ringing, your unit checks the phone line to see if new voice mail messages have been recorded.

Turn this feature off when:

• You do not subscribe to voice mail service.
• Your service provider/telephone company does not send voice mail tones.
• Your phone is connected to a PBX.

Voice Mail Service

If you are not sure which setting is required, contact your service provider/telephone company.

Turning VM tone detection on/off

The default setting is "On".

1 [MENU]#332

2 [▲]: Select the desired setting. → [SAVE] → [OFF]

Listening to voice mail messages

The unit lets you know that you have new voice mail messages in the following ways:

- “New Voice Mail” is displayed on the handset and base unit ^1 if message indication service is available.

- The message indicator on the handset flashes slowly if the message alert feature is turned on ("Message alert", page 44).

*1 KX-TG6641 series: page 3

Handset

1 [VM]

or

[MENU]#330

• The speakerphone turns on.

- If there are no new messages in the voice mail, [VM] is not displayed.

2 Follow the pre-recorded instructions.

3 When finished, press [OFF].

Base unit ^4

*1 KX-TG6641 series: page 3

To listen to voice mail messages, you have to dial your voice mail access number manually.

Note for handset and base unit:

- If the handset and base unit ^1 still indicate there are new messages even after you have listened to all new messages, turn it off by pressing and holding # until the handset or base unit ^*1 beeps.

- If your voice mail service uses voice mail tones and a message is over 3 minutes long, the unit may not indicate new messages.

- If your voice mail service uses voice mail tones, the tones are heard from any phone connected to the same line. If you want to use another phone to listen to voice mail messages, you have to dial your access number manually.

*1 KX-TG6641 series: page 3

Intercom

Intercom calls can be made:

- between handsets

- between a handset and the base unit

Note:

- If you receive an outside call while talking on the intercom, you hear 2 tones.

- To answer the call with the handset, press [OFF], then press [→]

- To answer the call with the base unit, press [SP-PHONE] 2 times.

- When paging unit(s), the paged unit(s) beeps for 1 minute.

Making an intercom call

Handset

1 [MENU] → [INT]

■ KX-TG6631 series: page 3

1 Press [INTERCOM].

- All registered handsets beep for 1 minute.

- To stop paging, press [INTERCOM].

2 When you finish talking, press [INTERCOM].

■ KX-TG6641 series: page 3

1 Press [INTERCOM]. When 2 or more handsets are registered:

- To page a specific handset, enter the handset number.

- To page all handsets, press 0 or wait for a few seconds.

- To stop paging, press [INTERCOM].

2 When you finish talking, press [INTERCOM].

Answering an intercom call

Handset

1 Press [ ] to answer the page.

2 When you finish talking, press [OFF].

Base unit

1 Press [INTERCOM] to answer the page.

2 When you finish talking, press [INTERCOM].

Handset locator

You can locate a misplaced handset by paging it.

1 Base unit: Press [LOCATOR].

- All registered handsets beep for 1 minute.

2 To stop paging:

Base unit:

Press [LOCATOR].

Handset:

Press [\~], then press [OFF].

Transferring calls, conference calls

Outside calls can be transferred or a conference call with an outside party can be made:

- between 2 handsets

– between a handset and the base unit

Intercom/Locator

Handset

1 During an outside call, press [INT] to put the call on hold.
2 【▲】: Select the desired unit. → 【SELECT】
3 Wait for the paged party to answer.

- If the paged party does not answer, press [ ] to return to the outside call.

4 To complete the transfer: Press [OFF]

- The outside call is being routed to the destination unit.

To establish a conference call: [MENU] →

[▲]: "Conference" → [SELECT]

• To leave the conference, press [OFF]. The other 2 parties can continue the conversation.
• To put the outside call on hold: [MENU] → [◆]: "Hold" → [SELECT]

To resume the conference:

[MENU] → [▲]: "Conference" → [SELECT]

Base unit

■ KX-TG6631 series: page 3

1 During an outside call, press [INTERCOM].

- All registered handsets beep for 1 minute.

2 Wait for the paged party to answer.

- If paged party does not answer, press [INTERCOM] to return to the outside call.

3 To complete the transfer: Press [SP-PHONE].

- The outside call is being routed to the handset.

To establish a conference call: Press [SP-PHONE] 2 times when the call sharing mode is on (page 29).

- To leave the conference, press [SP-PHONE]. The other 2 parties can continue the conversation.

■ KX-TG6641 series: page 3

1 During an outside call, press [INTERCOM].

When 2 or more handsets are registered:

• To page a specific handset, enter the handset number.
• To page all handsets, press 0 or wait for a few seconds.

2 Wait for the paged party to answer.

- If paged party does not answer, press [INTERCOM] to return to the outside call.

3 To complete the transfer: Press [SP-PHONE].

- The outside call is being routed to the handset.

To establish a conference call: Press [CONF].

• To leave the conference, press [SP-PHONE]. The other 2 parties can continue the conversation.
• To put the outside call on hold, press [HOLD]. To resume the conference, press [CONF].

Answering a transferred call

Handset

Press [\~] to answer the page.

Base unit

Press [SP-PHONE] to answer the page.

Wall mounting

The base unit can be mounted on a wall by revolving the bracket to "WALL" position (default: "DESK" stand position).

Note:

- Make sure that the wall and the fixing method are strong enough to support the weight of the unit.

Base unit

1 Turn the bracket 180 degrees counterclockwise in the "WALL" direction until a click is heard.

- The bracket cannot be removed. Do not turn the bracket more than 180 degrees.

2 Tuck in the telephone line cord (①). Connect the AC adaptor cord and telephone line cord (②).

3 Mount the unit on a wall then slide down to secure in place.

To stand on a desk

Turn the bracket 180 degrees clockwise from the "WALL" position to the "DESK" direction until a click is heard.

Useful Information

Charger

Drive the screws (not supplied) into the wall.

Error messages

Display message Cause/solution
Base no power or No link. Re-connect base AC adaptor. or No link.	The handset has lost communication with the base unit. Move closer to the base unit and try again.Unplug the base unit's AC adaptor to reset the unit. Reconnect the adaptor and try again.The handset's registration may have been canceled. Re-register the handset (page 33).When "No link." is displayed during a power failure, place a handset on the base unit to supply power to the base unit.
Busy	The called unit is in use.Other units are in use and the system is busy.Try again later.The handset you are using is too far from the base unit. Move closer and try again.
Call phone company for your access #	You have not stored the voice mail access number. Store the number (page 45).
Check tel line	The supplied telephone line cord has not been connected yet or not connected properly.Check the connections (page 9).
Error!!	Recording was too short. Try again.
Invalid	There is no handset registered to the base unit matching the handset number you entered.The handset is not registered to the base unit. Register the handset (page 33).
Requires subscription to Caller ID.	You must subscribe to a Caller ID service.Once you receive caller information after subscribing to a Caller ID service, this message will not be displayed.
Use rechargeable battery.	A wrong type of battery such as Alkaline or Manganese was inserted. Use only the rechargeable Ni-MH batteries noted on page 4,6.

Troubleshooting

If you still have difficulties after following the instructions in this section, disconnect the base unit's AC adaptor, then reconnect the base unit's AC adaptor. Remove the batteries from the handset, and then insert the batteries into the handset again.

General use

Problem Cause/solution
The handset does not turn on even after installing charged batteries.	Place the handset on the base unit or charger to turn on the handset.
The unit does not work. Make sure the batteries are installed correctly (page 9).Fully charge the batteries (page 9).Check the connections (page 9).Unplug the base unit's AC adaptor to reset the unit. Reconnect the adaptor and try again.The handset has not been registered to the base unit. Register the handset (page 33).
I cannot hear a dial tone.	The base unit's AC adaptor or telephone line cord is not connected. Check the connections.Disconnect the base unit from the telephone line and connect the line to a known working telephone. If the working telephone operates properly, contact our service personnel to have the unit repaired. If the working telephone does not operate properly, contact your service provider/telephone company.
The indicator on the handset flashes slowly.	New messages have been recorded. Listen to the new messages (page 40).New voice mail messages have been recorded.Listen to the new voice mail messages (page 46).

Programmable settings

Problem Cause/solution
The display is in a language I cannot read.	● Change the display language (page 14).
I cannot register a handset to a base unit.	● The maximum number of handsets (6) is already registered to the base unit. Cancel unused handset registrations from the base unit (page 33).

Battery recharge

Problem Cause/solution
The handset beeps and/orflashes.	Battery charge is low. Fully charge the batteries (page 9).
I fully charged the batteries, but–still flashes,–isdisplayed, or–the operating time seems to be shorter.	Clean the battery ends⊕)●and the charge contacts with a dry cloth and charge again.It is time to replace the batteries (page 9).

Making/answering calls, intercom

Problem Cause/solution
is displayed.	The handset is too far from the base unit. Move closer.The base unit's AC adaptor is not properly connected. Reconnect AC adaptor to the base unit.The handset is not registered to the base unit. Register it (page 33).
Noise is heard, sound cuts in and out.	You are using the handset or base unit in an area with high electrical interference. Re-position the base unit and use the handset away from sources of interference.Move closer to the base unit.If you use a DSL/ADSL service, we recommend connecting a DSL/ADSL filter between the base unit and the telephone line jack. Contact your DSL/ADSL provider for details.
The handset does not ring.	The ringer volume is turned off. Adjust the ringer volume (page 17).Silent mode is turned on. Turn it off (page 31).
The base unit does not ring.	The ringer volume is turned off. Adjust the ringer volume (page 17).
I cannot make a call. ● The	dialing mode may be set incorrectly. Change the setting (page 14).The handset is too far from the base unit. Move closer and try again.
I cannot make long distance calls.	Make sure that you have long distance service.

Caller ID/Talking Caller ID

Problem Cause/solution
Caller information is not displayed.	You must subscribe to Caller ID service. Contact your service provider/telephone company for details.If your unit is connected to any additional telephone equipment such as a Caller ID box or cordless telephone line jack, plug the unit directly into the wall jack.If you use a DSL/ADSL service, we recommend connecting a DSL/ADSL filter between the base unit and the telephone line jack. Contact your DSL/ADSL provider for details.The name display service may not be available in some areas. Contact your service provider/telephone company for details.Other telephone equipment may be interfering with this unit. Disconnect the other equipment and try again.
Caller information is displayed or announced late.	Depending on your service provider/telephone company, the unit may display or announce the caller's information at the 2nd ring or later.Move closer to the base unit.
Caller information is not announced.	The handset or base unit's ringer volume is turned off. Adjust it (page 17, 28).The Talking Caller ID feature is turned off. Turn it on (page 28).The number of rings for the answering system is set to “2 rings” or “Toll saver”. Select a different setting (page 43).If the base unit and another handset are having an intercom call, your handset does not announce caller information.
The caller list/incoming phone numbers are not edited automatically.	The Caller ID number auto edit feature is turned off. Turn it on and try again (page 28).You need to call back the edited number to activate Caller ID number auto edit.
I cannot dial the phone number edited in the caller list.	The phone number you dialed might have been edited incorrectly (for example, the long distance “1” or the area code is missing). Edit the phone number with another pattern (page 36).
Time on the unit has shifted.	Incorrect time information from incoming Caller ID changes the time. Set the time adjustment to “Manual” (off) (page 28).

Useful Information

Problem Cause/solution
The 2nd caller's information is not displayed during an outside call.	In order to use Caller ID, call waiting, or Call Waiting Caller ID (CWID), you must first contact your service provider/telephone company and subscribe to the desired service.After subscribing, you may need to contact your service provider/telephone company again to activate this specific service, even if you already subscribed to both Caller ID and Call Waiting with Caller ID services (CWID).

Answering system

Problem Cause/solution
The unit does not record new messages.	The answering system is turned off. Turn it on (page 38).The message memory is full. Erase unnecessary messages (page 40).The recording time is set to “Greeting only”. Change the setting (page 43).If you subscribe to a voice mail service, messages are recorded by your service provider/telephone company, not your telephone. Change the unit's number of rings setting or contact your service provider/telephone company (page 43).
I cannot operate the answering system.	Someone is using the unit. Wait for the other user to finish.A caller is leaving a message. Wait for the caller to finish.The handset is too far from the base unit. Move closer.
I cannot operate the answering system remotely.	The remote access code is not set. Set the remote access code (page 41).You are entering the wrong remote access code. If you have forgotten your remote access code, enter the remote access code setting to check your current code (page 41).Press each key firmly.The answering system is turned off. Turn it on (page 42).

Useful Information

Liquid damage

Problem Cause/solution
Liquid or other form of moisture has entered the handset/base unit.	● Disconnect the AC adaptor and telephone line cord from the base unit. Remove the batteries from the handset and leave to dry for at least 3 days. After the handset/base unit are completely dry, reconnect the AC adaptor and telephone line cord. Insert the batteries and charge fully before use. If the unit does not work properly, contact an authorized service center.

Caution:

- To avoid permanent damage, do not use a microwave oven to speed up the drying process.

FCC and other information

This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:ACJ----.

If requested, this number must be provided to the telephone company.

• Registration No......(found on the bottom of the unit)
  ● Ringer Equivalence No. (REN)......0.1B

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with the product. It is designed to be connected to a compatible modular jack that is also compliant.

The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for the product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3).

If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

If trouble is experienced with this equipment, for repair or warranty information, please contact a Factory Service Center or other Authorized Servicer. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.

If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.

This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section 68.316.

When you hold the phone to your ear, noise might be heard in your Hearing Aid. Some Hearing Aids are not adequately shielded from external RF (radio frequency) energy. If noise occurs, use an optional headset accessory or the speakerphone option (if applicable) when using this phone. Consult with your audiologist or Hearing Aid manufacturer about the availability of Hearing Aids which provide adequate shielding to RF energy commonly emitted by digital devices.

Useful Information

WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST CALLS TO EMERGENCY NUMBERS:

1) Remain on the line and briefly explain to the dispatcher the reason for the call.
2) Perform such activities in the off-peak hours, such as early morning or late evenings.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Privacy of communications may not be ensured when using this phone.

CAUTION:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Some cordless telephones operate at frequencies that may cause interference to nearby TVs and VCRs. To minimize or prevent such interference, the base of the cordless telephone should not be placed near or on top of a TV or VCR. If interference is experienced, move the cordless telephone further away from the TV or VCR. This will often reduce or eliminate interference.

FCC RF Exposure Warning:

• This product complies with FCC radiation exposure limits set forth for an uncontrolled environment.
• To comply with FCC RF exposure requirements, the base unit must be installed and operated 20 cm (8 inches) or more between the product and all person's body (excluding extremities of hands, wrist and feet).
• This product may not be collocated or operated in conjunction with any other antenna or transmitter.
• The handset may be carried and operated with only the specific provided belt-clip. Other non-tested belt-clips or similar body-worn accessories may not comply and must be avoided.

Notice

- FCC ID can be found inside the battery compartment or on the bottom of the units.

Compliance with TIA-1083 standard:

Telephone handsets identified with this logo have reduced noise and interference when used with T-Coil equipped hearing aids and cochlear implants.

Diagram of a mechanical device with a cable and directional arrow, no text or symbols present

CARGUE

APROXIMADAMENTE DURANTE 7 HORAS

Unidad base

Subir volumen

Cambio de idiomas (predeterminado: "English")

Customer Services Directory (United States and Puerto Rico)

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at: 1-800-211-PANA (1-800-211-7262), Monday - Friday 9 am to 9 pm; Saturday - Sunday 10 am to 7 pm, EST.

TTY users (hearing or speech impaired users) can call 1-877-833-8855.

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:

http://www.pstc.panasonic.com

or, send your request by E-mail to:

[e-mail]

You may also contact us directly at: 1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 9 pm, EST.) Panasonic Service and Technology Company 20421 84th Avenue South, Kent, WA 98032 (We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks.)

TTY users (hearing or speech impaired users) can call 1-866-605-1277.

Warranty (For United States and Puerto Rico)

PANASONIC CORPORATION OF NORTH AMERICA

One Panasonic Way, Secaucus, New Jersey 07094

Panasonic Telephone Products Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Parts

Labor

One (1) Year One (1) Year

During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts” Limited Warranty period, there will be no charge for parts. You must mail-in your product prepaid during the Limited Warranty period. This Limited Warranty excludes both parts and labor for batteries, antennas, and cosmetic parts (cabinet). This Limited Warranty only applies to products purchased and serviced in the United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser and only covers products purchased as new.

Ship-In Service

For assistance in the continental United States and Puerto Rico in obtaining repairs please ship the product prepaid to:

PSTC (Panasonic) Exchange Center,

4900 George McVay Drive, Suite B Door #12, McAllen, TX 78503

[e-mail]

When shipping the unit carefully pack in a padded shipping carton, include all accessories, and send it prepaid. Include a letter detailing the complaint, a return address and provide a day time phone number where you can be reached. P.O. Boxes are not acceptable. Keep the tracking number for your records. A copy of valid registered receipt is required under the 1 year parts and labor Limited Warranty.

For Limited Warranty service for headsets if a headset is included with this product please follow instructions above.

IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Appendix

Limited Warranty Limits And Exclusions

This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, setup adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As examples, this excludes damages for lost time, lost calls or messages, cost of having someone remove or re-install an installed unit if applicable, travel to and from the servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

When you ship the product

• Carefully pack your unit, preferably in the original carton.
• Attach a letter, detailing the symptom.
• Send the unit to PSTC (Panasonic) Exchange Center, prepaid and adequately insured.
• Do not send your unit to Panasonic Corporation of North America listed on the back cover or to executive or regional sales offices. These locations do not repair consumer products.

Index

# 4-way conference: 19

A Additional handset: 33

Alarm: 31

Answering calls: 16

Answering system

Call screening: 38

Erasing messages: 40, 41, 42

Greeting message: 39

Greeting only: 43

Listening to

messages: 39, 40, 42

MEMO: 41

Number of rings: 43

Recording time: 43

Remote access code: 41

Remote operation: 41

Ring count: 43

Toll saver: 43

Turning on/off: 38, 41, 42

Auto talk: 16

B Battery: 9, 10

Belt clip: 12

Booster (Clarity booster): 18

C Call block: 32

Call share: 19, 29

Call waiting: 18

Call Waiting Caller ID: 18

Caller ID number auto edit: 36

Caller ID service: 34

Caller list: 35

Caller list edit: 36

Chain dial: 24

CID (Caller ID): 35

Conference calls: 47

Control type: 11, 12

Customer support: 29

D Date and time: 14

Dialing mode: 14

Direct command code: 26

Display

Contrast: 28, 30

Language: 14

E Eco mode: 10

Equalizer: 19

Error messages: 51

F Flash: 18, 29

G Groups: 22, 35

H Handset

Deregistration: 33

Locator: 47

Name: 32

Registration: 33

Hold: 17

I Intercom: 47

K Key tone: 28

L Line mode: 29

M Making calls: 15

Missed calls: 34

Mute: 18

P Pause: 16

Phonebook: 22

Power failure (power back-up

operation): 19

R Redialing: 15

Ringer ID: 35

Ringer tone: 28, 35

Rotary/pulse service: 18

S Silent mode: 31

Speed dial: 25

SP-PHONE (Speakerphone): 15

T Talking caller ID: 34

Temporary tone dialing: 18

Time adjustment: 27

Transferring calls: 47

Troubleshooting: 52

TTY: 64

V VM (Voice mail): 45

Voice guidance language: 14

Voice mail: 43, 45

Volume

Receiver: 15

Ringer (Base unit): 17

Ringer (Handset): 17, 28

Speaker: 15, 16

W Wall mounting: 49

IMPORTANT!

If your product is not working properly. . .

① Reconnect AC adaptor to the base unit.
② Check if telephone line cord is connected.
③ Use rechargeable Ni-MH batteries.
(Alkaline/Manganese/Ni-Cd batteries CANNOT be used.)
④ Read troubleshooting page in the Operating Instructions.

Visit our Web site: http://www.panasonic.com/help

- FAQ and troubleshooting hints are available.

For your future reference

We recommend keeping a record of the following information to assist with any repair under warranty.

Serial No. Date of purchase

(found on the bottom of the base unit)

Name and address of dealer

Attach your purchase receipt here.

Panasonic Corporation of North America

One Panasonic Way, Secaucus, New Jersey 07094

© Panasonic System Networks Co., Ltd. 2010

Printed in Malaysia

*TG6632*

PNQX3143YA TT1110MG1120
