PRESSE AGRUMES SCJ2316ST - Citrus juicers SINGER - Free user manual and instructions

Product type	Juicer
Brand	SINGER
Model	SCJ2316ST
Power	100 W
Supply voltage	230 V, 50 Hz
Dimensions (L x W x H)	170 x 170 x 290 mm
Weight	Approximately 1860 g
Body material	Stainless steel
Filter	Stainless steel, removable
Lid	Transparent, removable
Juice container	Transparent, with pouring spout
Speed	Variable (speed box)
Compatible fruits	Oranges, mandarins, lemons
Usage	Domestic
Cord storage	Yes, at the back of the appliance
Cleaning	Filter washable with water; wipe body with a dry cloth
Safety	Do not immerse; unplug before cleaning; do not use near water
Warranty	Manufacturer's warranty (see terms)

Frequently Asked Questions - PRESSE AGRUMES SCJ2316ST SINGER

How to use the SINGER SCJ2316ST juicer?

Cut the fruit in half. Plug in the appliance, place a glass under the pouring spout, open the spout by pressing on it. Remove the transparent lid, place the half fruit on the head of the appliance and press gently. The head rotates automatically. Press gently on the filter to extract the juice. Close the spout and remove the container.

What fruits can be juiced?

This appliance is designed to juice citrus fruits like oranges, mandarins and lemons. Do not use it for other fruits or hard vegetables.

How to clean the appliance?

Unplug the appliance. Remove the filter and clean it with clear water. Wipe the body of the appliance with a dry or slightly damp cloth. Never immerse the body in water and do not put it in the dishwasher.

Why does the appliance not start?

Check that the plug is properly inserted and that the voltage matches (230 V). Make sure the head is correctly attached to the body. If the problem persists, contact after-sales service.

Is the filter removable?

Yes, the stainless steel filter can be separated from its housing for easier cleaning. Remove it carefully as indicated in the manual.

Can I use the appliance continuously?

The appliance is designed for intermittent domestic use. Let it cool for a few minutes after each prolonged use to avoid overheating.

What to do if the power cord is damaged?

Do not use the appliance. Contact SINGER after-sales service or an authorized technician for replacement. Do not attempt to repair it yourself.

Is the appliance under warranty?

Yes, the appliance has a manufacturer's warranty. Keep the proof of purchase. Any unauthorized disassembly voids the warranty.

Can I juice whole fruits?

No, always cut the fruits in half before juicing. Never insert whole fruits or fingers into the appliance.

How to store the appliance?

Store it in a dry place, away from sunlight and out of reach of children. Wrap the cord around the base provided for this purpose.

USER MANUAL PRESSE AGRUMES SCJ2316ST SINGER

Singer brand blender with clear glass lid and black base (no text or symbols on device body)

MODEL : SCM2125ST FRANÇAIS/ ENGLISH/ EΛΛΗΝΙΚΑ

FRANCAIS

MESURES DE SECURITE

Line drawing of a hand washing machine with a cup, showing no text or symbols

Illustration of a food grainer being processed with a bowl of bread, showing swirling contents and motion arrows (no text or symbols)

Line drawing of a hand washing a cup with a cloth cover, no text or symbols present

Line drawing of a showerhead spraying water over a basket filled with granular material (no text or symbols)

Line drawing of a showerhead spraying water onto a circular base (no text or symbols)

Line drawing of a hand washing a cup with a cloth, no text or symbols present

Read operating instructions carefully before the operation. This manual should be stored properly for future reference. When turning on the machine, make sure that the following requirements on the safety and related maintenance shall be complied:

1) Check if the voltage indicated on the base of the appliance corresponds to the mains voltage in your home before you connect the appliance.
2) This appliance complies with the related regulations on technical certification and safety of electrical products;
3) In no case immerge the appliance into water or any other liquid - ELECTRIC SHOCK;
4) Do not use the appliance outdoor.
5) Do not operate the machine near wet areas or containers filled with water;
6) Before start cleaning the appliance make sure that the plug has been removed;
7) Keep the cord well away from any hot surfaces. Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
8) Do not place the appliance close to hot surface such as gas stove; in no case let the cord contact with hot parts;
9) Do not plug or remove the plug when your hands are wet or damp
10) Keep the appliance away from moisture surfaces; do not place it in dish washer for cleaning;
11) This appliance is intended for house use only; it shall not be used for other purpose.
12) The appliance shall be operated and stored properly by an adult
13) When cleaning the appliance, external surface must be cleaned with dry cotton cloth; do not clean it with wet cloth or strong detergent.
14) The appliance shall be stored in dry place where it cannot be exposed to direct sunlight. Children should not have access to it.
15) Do not operate the appliance when it has failed/damaged or is destroyed as a result from falling or improper operation.
16) Do not disassemble the machine by yourselves; otherwise this will cause to relieve us from any guarantee responsibility.
17) This appliance is not intended for use by children. Children should be supervised to ensure that they do not play with the appliance.
18) Before operating the product, check and make sure that all machine parts such the plug, main body have not been damaged. In case there are missing parts or the appliance is damages you shall:
Contact with your dealer for replacing it; or
19) Contact with your dealer for replacing it; or
20) If the supply cord is damaged, it must be replaced by an authorized service agent in order to avoid a hazard.

Product Specification

JUICER

Product Name : POWERFUL CYCLONE JUICER

Model: : FP2316S

Gear-box : Gear transmission, variable speed by shift gears

Rated Input : 100 W

Voltage : 230V, 50Hz

Dimension : 170 mm X 170mm X 290 mm

Weigh : Approx. 1860 g

This product is intended for household use only. It shall only be used as described in this manual. It is intended for fruits as such as orange, citrus, lemon.

Descitpion

Main basic components are shown in the following illustration :

Operation :

1) Assemble the appliance as illustrated on the above illustration.
2) Draw the cord from the reel; insert the plug into a standard socket that will correspond with the voltage of the appliance;
3) Roughly align the juice cup to juice outlet to prevent the juice from spilling;
4) Cut the fruit into two halves;

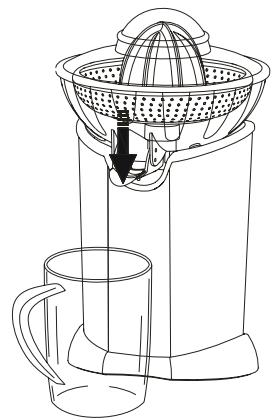

5) Press the juice outlet by the finger so that the outlet will open, as shown in illustration 2;

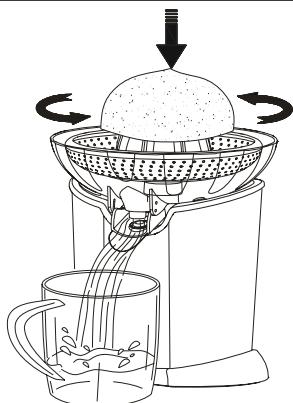

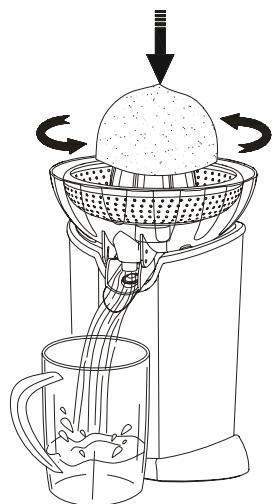

6) Juice processing: remove the transparent cover; align the cutting surface of orange to the outlet; and press it; now the head will rotate, as shown in illustration 3;
7) Important: you will hear a sound from shift gears when juice process has finished; the head will stop working. This is a normal phenomenon;

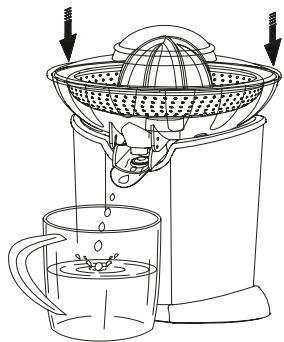

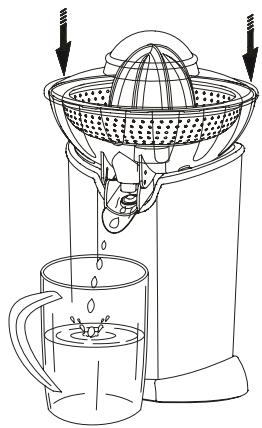

8) Throwing for dry: now put the cover evenly pressing the circumference of cover with both hands, you can see that the sieve is rotating in high speed so that the juice will be thrown out, shown as illustration 4;
9) Caution: it is necessary that you must place the cover before the throwing operation is performed; otherwise the juice will spill out and cause unnecessary problems;

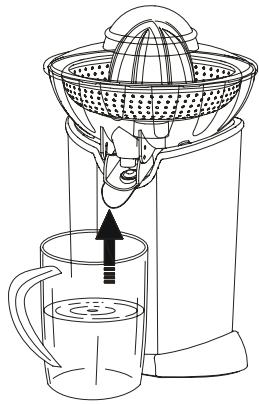

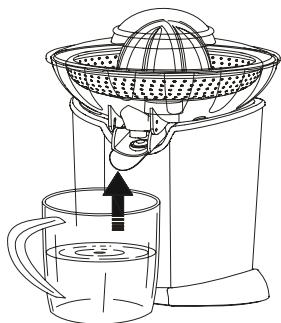

10) When the operation is finished, press and hold the cover with one hand while raise the outlet to close position with another hand, as shown in illustration 5;

Cleaning:

1) Unplug the appliance
2) Remove the cover and then directly remove the sieve from the machine;

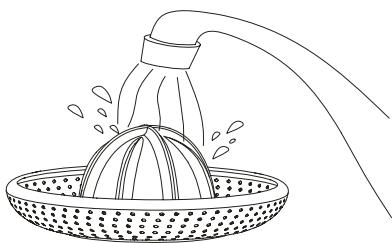

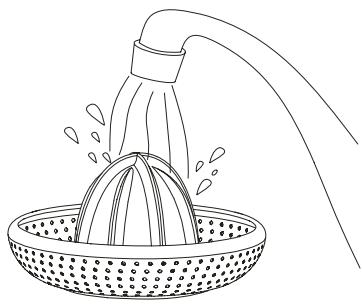

3) Clean the sieve under the tap; as shown in illustration 6;
4) Clean the dish, and juice outlet as shown in illustration 7;
5) Clean the main body (motor) with a dry cotton cloth.
6) Important: Do not immerse the main body of the appliance in water or do not wash under tap.. You can clean it with dry cotton cloth if there is a few juice or water on the body.

Troubleshooting :

When any problem occurs in this appliance, check first the following procedures. If the problem still appears, contact with your nearest service center or directly contact with customer service center.

Problem	Possible Cause	Action
The appliance fails to operate when pressing the head or cover	* The plug isn’t inserted properly into the socket* The voltage isn’t in accordance with the standard of input power* The dish isn’t positioned properly.* Power doesn’t switch on due to improper contact between the head and contact* Motor fuse has blown resulting from the overload	Insert the plug into the socket properly.Check supply voltage for 230V.Reassemble the dish properly.Make sure that the guide shall be aligned to the hole on the body.Contact with an authorized service center.

2

Line drawing of a hand washing machine with a handle and cup, no text or symbols present

3

Line drawing of a steamer with a cloth and rotating handle, showing motion arrows (no text or symbols)

4

Line drawing of a hand washing a small glass with liquid, showing the process from an open mouth to a closed lid (no text or symbols)

6

Line drawing of a showerhead spraying water into a basket (no text or symbols)

7

Line drawing of a showerhead spraying water with a funnel (no text or symbols)

5

Line drawing of a hand washing a small glass with liquid, showing the lid and handle (no text or symbols)

Instruction manual or the appliance may be changed without previous notification

ΕΛΛΗΝΙΚΑ

Σημειώσεις χρήσης:

Simple line drawing of a trash bin with two crossed lines indicating no text or symbols (no text or labels)

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
