Product Type	HD CCTV Digital Video Vandal Dome Camera
Image Sensor	2.1 Megapixel 1/3" Exmor CMOS
Effective Pixels	1984 (H) x 1105 (V)
Video Output	HD-SDI (BNC) and CVBS (BNC test cable)
HD-SDI Resolution	1080p@30fps, 1080p@25fps, 720p@60fps, 720p@50fps
CVBS Format	NTSC / PAL selectable
Minimum Illumination	0.1 Lux (Color); 0 Lux with IR (LED model)
IR Illumination	30 LEDs, 850nm, range up to 20m (65ft)
Day/Night	True Day/Night with motorized IR cut filter
Lens Control	DC Iris
Shutter Speed	Auto/Manual (1/30 to 1/60,000 sec)
WDR/BLC	Off / WDR / BLC / D-WDR
White Balance	AUTO / AUTOext / PUSH / MANUAL
S/N Ratio	More than 50 dB
Power Supply	DC12V (±10%) or AC24V (±10%)
Power Consumption (LED, no heater)	DC12V: Max. 450mA; DUAL: Max. 560mA (DC) / 6.9W (AC)
Dimensions	151 (∅) x 123.4 mm
Weight	950 g
IP Rating	IP66
Operating Temperature / Humidity	-40~50°C (20~80% RH)
Conformity	CE, FCC, KC
Mounting	3-axis gimbal (pan, tilt, rotation)
OSD Menu	Yes, for camera configuration
Remote Control	RS485 (optional)

Frequently Asked Questions - KPC-HDV122M KT&C

What is the resolution of the KT&C KPC-HDV122M camera?

The camera provides 1080p (1920x1080) resolution at up to 30fps, and also supports 720p at up to 60fps via HD-SDI output.

Does this camera have night vision?

Yes, the LED model includes 30 IR LEDs (850nm) with a range of up to 20 meters (65 feet), allowing 0 Lux viewing in complete darkness.

What power supply is required?

The camera accepts both DC12V (±10%) and AC24V (±10%) power. It is recommended to use a regulated DC12V 1A power supply for best performance.

Is the camera weatherproof?

Yes, it has an IP66 weather resistant rating, suitable for outdoor use.

What video outputs are available?

The camera provides a primary HD-SDI output via BNC and a test/setup TV out (BNC) that can be switched between NTSC and PAL.

Can I adjust camera settings?

Yes, the camera has a full OSD menu accessible via the test cable. You can adjust exposure, white balance, day/night, image settings, privacy masking, and more.

How is the camera mounted?

It features a 3-axis gimbal for easy pan, tilt, and rotation adjustment. The mounting bracket is included with screws and plastic anchors.

What is the minimum illumination for color operation?

The camera can capture color images down to 0.1 Lux. With IR LEDs, it operates at 0 Lux.

Does the camera support backlight compensation?

Yes, it offers multiple modes: WDR (wide dynamic range), BLC (backlight compensation), and D-WDR (digital wide dynamic range).

What are the dimensions and weight of the camera?

The camera measures 151 mm in diameter and 123.4 mm in height, and weighs 950 grams.

USER MANUAL KPC-HDV122M KT&C

HD CCTV Digital Video Vandal Dome Camera

OPERATION MANUAL

Two identical white surveillance cameras with black modules, showing internal camera and sensor (no text or symbols visible)

CAUTION

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Use Class 2 Power Supply Only

1. CAUTIONS
2. IMPORTANT SAFETY INSTRUCTION
3. FEATURES
4. EQUIPMENT AND ACCESSORIES
5. CAMERA COMPONENT DESCRIPTIONS
6. INSTALLATION
7. DIMENSIONS
8. SPECIFICATION

9. OSD MANUAL

10. Menu structure

11. Function Description

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions;

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Note

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense."

WARNING

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Caution

Any changes or modifications in construction of this devices which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CAUTION

1. A regulated DC12V 1A power supply is recommended for use with this camera for the best picture and the most stable operation.
   An unregulated power supply can cause damage to the camera.
   When unregulated power supply is applied, product warranty will be out of subject.
2. It is recommended that the camera is used with a monitor that has a CCTV quality 75Ω video impedance level.
   If yur monitor is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal components.
   Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reflective light, which may cause smear on the picture and possible damage to the Image Sensor.
5. Do not remove the serial sticker for the warranty service.
6. Do not expose the camera to rain or other types of liquid.
7. The apparatus must be connected to a mains socket-outlet with a protective earthing connection.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

This product should not be mixed with other commercial wastes purchased this product, or their local government office, for details of where and how they can take item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. Household users should contact either the retailer where they for disposal.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER.SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. FEATURES

• High Resolution.

SONY 1 / 3" 2.1 M Progressive Color CMOS Image Sensor, 1080p(1920x1080)@30fps

- Support Various Digital Video Output.

1080p@30fps, 1080p@25fps, 720p@60fps, 720p@50fps

• Video Outputs.

Primary HD-SDI (BNC)

Test/Setup TV Out (Test Point-adapter to BNC included), NTSC/PAL selectable

• OSD menu for setup and configuration.
• Lens Control : DC Iris
• 30 Long Life IR illuminations for 0 Lux viewing performance and range to 20m.(65 feet) (LED type model only)
• Provides True Day/Night Capability with Motorized IR Cut Filter.
  • Power Source : DC 12V / AC24V, DC12V
  • IP66 Weather Resistant.

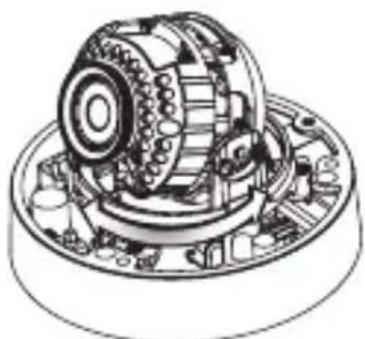

  • 3-Axis Gimbal.

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Technical illustration of a mechanical assembly with rotating components and housing (no text or symbols)

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Pan Rotation Tilt Rotation Horizontal Rotation

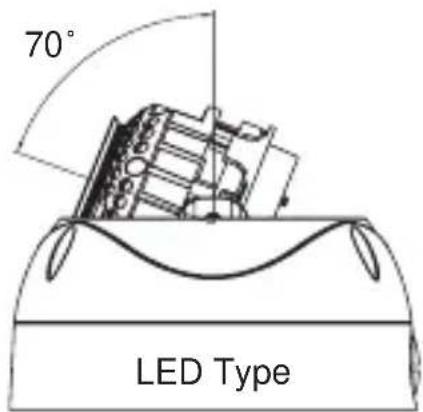

Tilting angle

CAUTION panning(Pan + Horizontal) the bracket in excess of 1 rotations in one direction may cause damage to the cable.

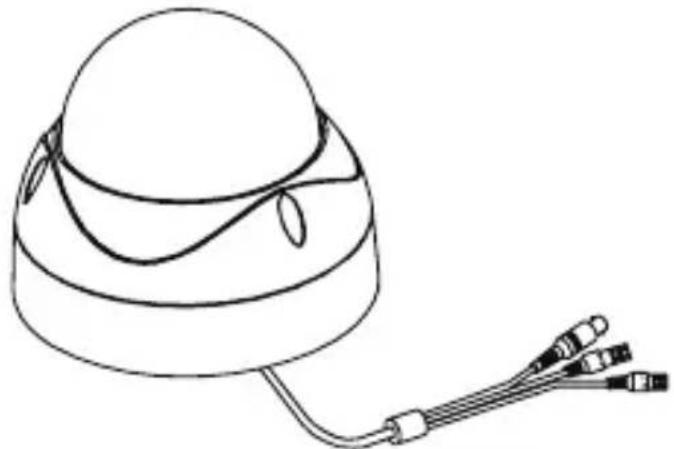

Camera
Template Manual
Screws / Plastic anchors / Wrench Service Video Output Test Cable
When using Wall Mount Bracket

5. CAMERA COMPONENT DESCRIPTIONS

• LED Type

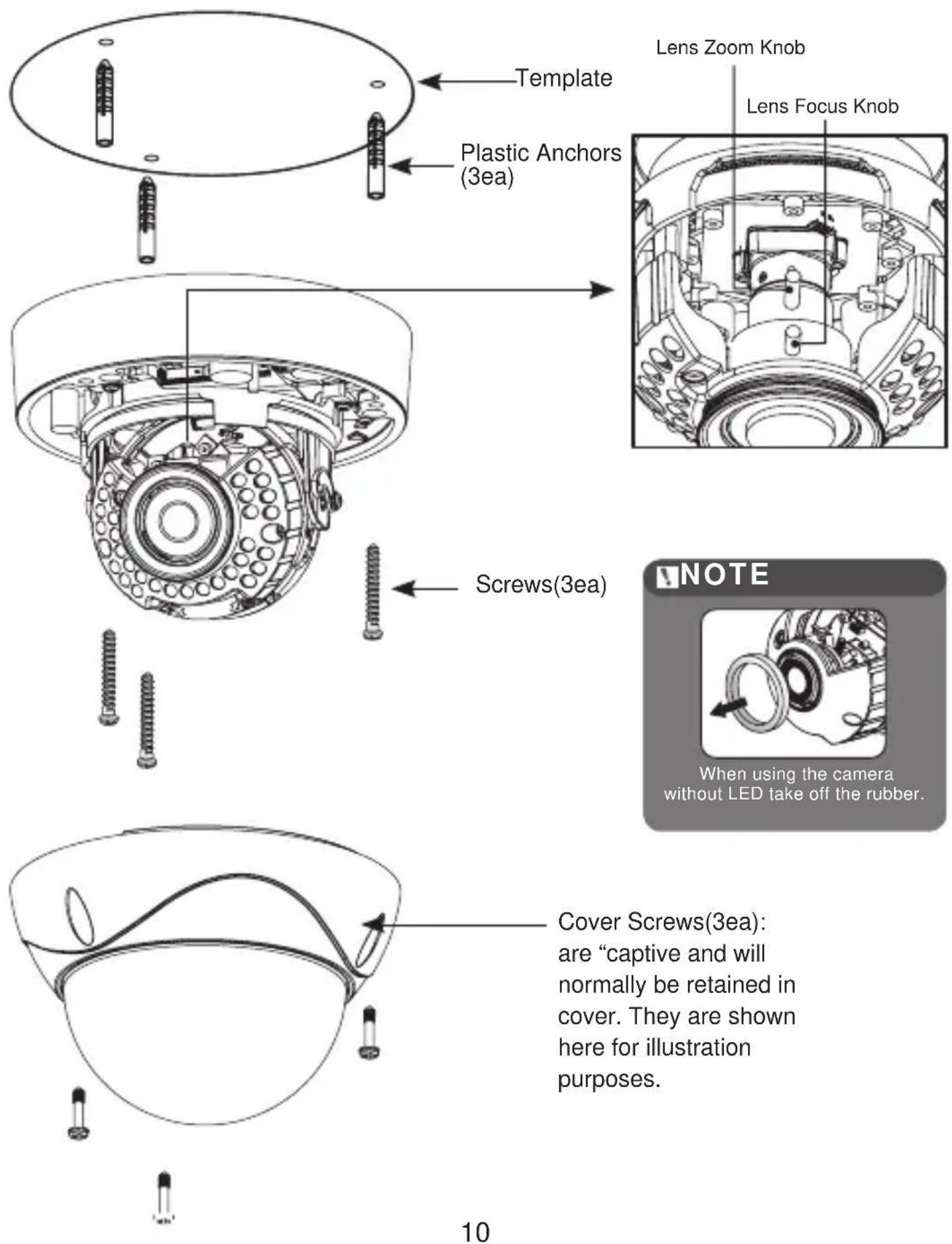

6. INSTALLATION

Cover Screws(3ea): are "captive and will normally be retained in cover. They are shown here for illustration purposes.

• MONITOR CONNECTION

When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera from the humidity problems.

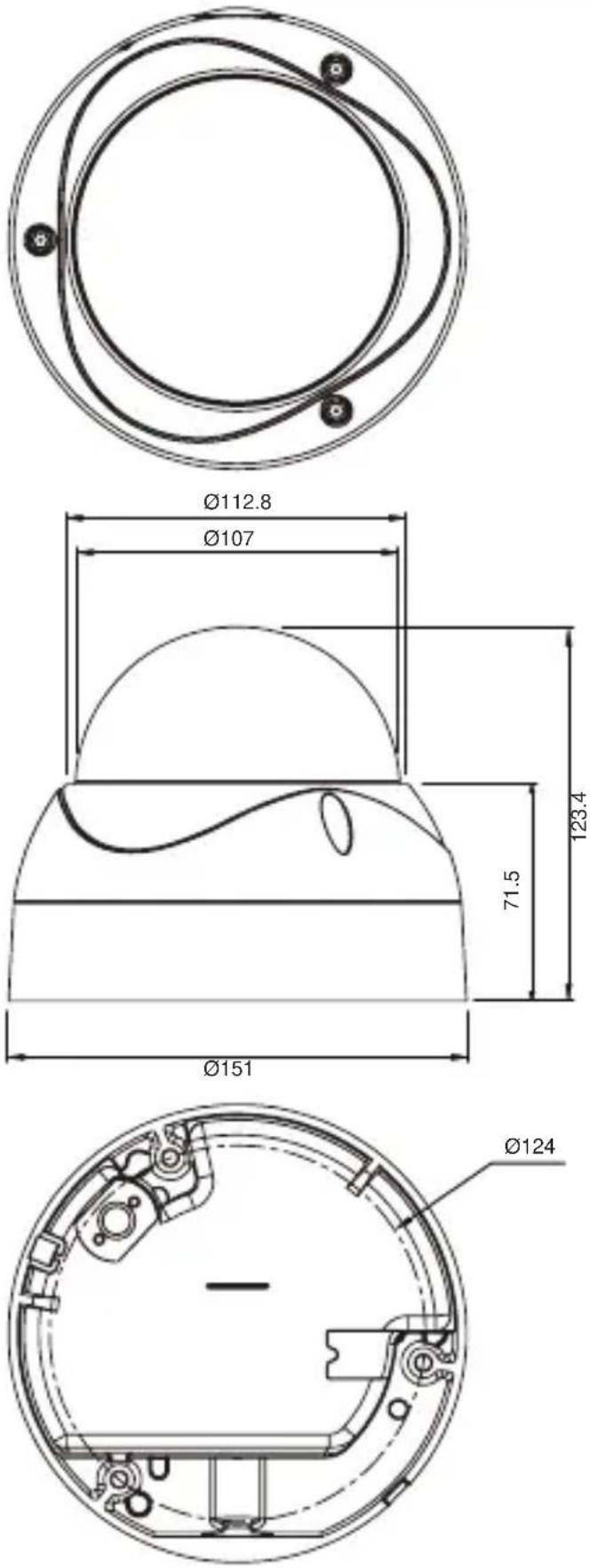

Unit(mm)

1. SPECIFICATION

Image Device 2.1 Mega Pixel, 1/3” Exmor CMOS
Effective Pixels 1984 (H) x 1105 (V) 30fps
Unit cell size 2.8um (H) x 2.8um (V)
Video output mode			HD-SDI: 1080p@30fps, 1080p@25fps,720p@60fps, 720p@50fpsTV Out: NTSC / PAL selectable
Minimum illumination 0.1 Lux
Video output HD-SDI / 1.0 Vp-p Composite (75Ω)
S/N Ratio More than 50dB
Shutter speed Auto / Manual			selectable
Manual shutter speed			1/30(25), 1/60(50), 1/120(100), 1/240, 1/500,1/1K, 1/2K, 1/4K, 1/8K, 1/16K, 1/30K, 1/60K
WDR / BLC OFF / WDR / BLC / D-WDR
True Day/Night IR Cut / Pass			Filter change
Controllable Max Gain 29 dB
White Balance AUTO / AUTOext / PUSH / MANUAL
Lens Control DC IRIS
OSD Menu Yes
PowerConsumption	W/OHeater	DC12V	DC 12V (±10%), Max.200mA
		DUAL	DC 12V (±10%), Max.260mA / AC 24V (±10%), Max.3.7W
	Heater(Option)	DC12V	DC 12V (±10%), Max.1.05A
		DUAL	DC 12V (±10%), Max.500mA / AC 24V (±10%), Max.14.5W
Dimension 151(∅) x 123.4(mm)
Weight 950g
Conformity			CE, FCC, KC
IP Rating			IP66 (Weatherproof)
Temperature / Humidity(no condensing)			Operation: -40~50 / 20~80%Storage: -20~70 / 20~95%

LED TYPE

Power Consumption	W/O Heater	DC12V	DC 12V (±10%), Max.450mA
		DUAL	DC 12V (±10%), Max.560mA / AC 24V (±10%), Max.6.9W
	Heater (Option)	DC12V	DC 12V (±10%), Max.1.26A
		DUAL	DC 12V (±10%), Max.810mA / AC 24V (±10%), Max.18W
Minimum illumination			0 Lux
IR LED			850nm, 30ea
IR Beam Range			Up to 20M (65 Feet)

Specifications and designs are subject to change for improving the functionality of this product without notice.

• Menu structure

SETUP

EXPOSUREWHITE BALANCEWDR / BLCDNRDAY & NIGHTIMAGESPECIALSYSTENReset Data AILEXT

Main Sub Menu
EXPOSURE	BRIGHTNESS 0	~20
	AE MODE NORMAL AE / INDOOR
	LENS(IRIS) MANUAL / AUTO
	SHUTTER	MANUAL / AUTO	LEVEL	1/30(25), 1/60(50), 1/120(100), 1/240, 1/500, 1/1K, 1/2K, 1/4K, 1/8K, 1/16K, 1/30K, 1/60K.
			RETURN BACK	/ EXIT
	DSS Off / X2 / X3	/ X4 / X5 / X6 / X7 / X8
	AGC 0 ~ 10
	BASE FREQ 60Hz / 50Hz
	RESET DATA BACK / DEF.
	RETURN BACK / EXIT.
WHITE BALANCE	WB MODE	AUTO/AUTOext/PUSH/MANUAL	COLORTEMP.	LOW / MIDDLE / HIGH
			R-GAIN 0 ~ 20
			B-GAIN 0 ~ 20
			RETURN BACK	/ EXIT
	SATURATION 0	~20
	RESET DATA BACK / DEF.
	RETURN BACK / EXIT.
WDR/BLC	MODE OFF / WDR / BLC / D-WDR
	WDR WGT 0 ~ 4
	BLC OSD OFF, ON
	BLC POS-X	0 ~ 20
	BLC POS-Y	0 ~ 20
	BLC SIZE-X	0 ~ 20
	BLC SIZE-Y	0 ~ 20
	RESET DATA BACK / DEF.
	RETURN BACK / EXIT.
DNR		OFF, LOW, MIDDLE, HIGH
DAY&NIGHT		COLOR / B&W / AUTO	D&N DETECT	SENSE
			DELAY	1sec, 3, 5, 10, 15, 20, 25, 30, 40, 50, 60sec
			D->N LEVEL	0 ~ 10
			N->D LEVEL	0 ~ 10
			RESET DATE	BACK / DEF.
			RETURN BACK	/ EXIT.

1. OSD MANUAL

Main Sub Menu
IMAGE	SHARPNESS 0 ~ 20
	GAMMA 0 ~ 4
	FLIP OFF, H FLIP, V	FLIP, HV FLIP
	LENS SHADING OFF, ON
	DZOOM 1x, 2x, 4x, 6x, 8x, 10x, 12x, 14x, 16x, 18x, 20x
	RESET DATA BACK / DEF.
	RETURN BACK / EXIT.
SPECIAL	PRIVACY OFF/ ON		ZONE NO. 0 ~ 23
			ZONE OP. OFF / ON
			X-POS 0 ~ 60
			Y-POS 0 ~ 40
			X-SIZ 0 ~ 40
			Y-SIZ 0 ~ 40
			COLOR	BLK, WHI, YEL, CYN, GRN,MAG, RED, BLU
			TRANS. 0 ~ 4
			RESET DATA BACK / DEF.
			RETURN BACK / EXIT.
	HLMASK OFF/ ON		LEVEL 0 ~ 20
			COLOR	BLK, WHI, YEL, CYN, GRN,MAG, RED, BLU
			RESET DATA BACK / DEF.
			RETURN BACK / EXIT.
	PATTERN	OFF / 0 / 1
	DISPLAY INFO.		CAMERA ID. NUM.	OFF/ ON
			RETURN BACK / EXIT.
	RESET DATA BACK / DEF.
	RETURN BACK / EXIT.
SYSTEM	COMM. ADJUST		CAMERA ID.	1 ~ 254
			BAUD RATE	2400 / 4800 / 9600 / 19200 / 38400 /57600 / 115200 bps
			APPLY & EXIT	OK / ON
			RETURN BACK / EXIT.
	SDI FORMAT 1080P	/ 720P
	SDI FPS	30(60) / 25(50)
	CVBS FORMAT	NTSC /PAL	CVBS OUT	AUTO / OFF / ON(WDR OFF)
			CVBS VIEW	CROP / FULL
			RETURN BACK / EXIT.
	FAN ACTION (Option)	OFF /ON /AUTO	FAN ON LEVEL	0 ~ 10
			FAN OFF LEVEL	0 ~ 10
			RETURN BACK / EXIT.
	APPLY OK / ON
	SYSTEM INFO.		S/W VERSION
			SET VERSION
			RETURN BACK / EXIT.
	REBOOT
	RETURN BACK / EXIT.

- Function Description

0. SETUP

• EXPOSURE : Go sub menu for camera exposure control.
• WHITE BALANCE : Go sub menu for camera white balance control.
• WDR/BLC : Go sub menu for camera WDR or BLC action.
• DNR : Control noise reduction setting.
• DAY & NIGHT : Go sub menu for camera day & night control.
• IMAGE : Go sub menu for adjust image functions.
• SPECIAL : Go sub menu for special feature control.
• SYSTEM : Go sub menu for system control & information.
• Reset Data All : Reset camera's all feature data to default value.

1. EXPOSURE

• BRIGHTNESS : Adjust image brightness value.
• AE MODE : Adjust AE control mode.
• LENS(IRIS) : Select lens iris control type.
• SHUTTER : Select shutter speed control type.
• LEVEL : Adjust shutter speed at manual shutter mode.
• DSS : Adjust digital slow shutter control level.
• AGC : Adjust max gain level for brightness control.
• BASE FREQ : Select basic control frequency for control camera feature.

2. WHITE BALANCE

- WB MODE : Select white balance control mode.

• AUTO : Full auto control mode in color temperature rage 2300K\~10000K.
• AUTOext : Extended auto mode for special illumination.
• PUSH : Enable fix the control setting for specific environment. Push & release, for fix WB control setting.
• MANUAL : Enable WB control setting by user's intention.
• COLOR TEMP. : Select color temperature range for WB control at manual mode
• R-GAIN : Adjust red color gain for WB control at maual mode.
• B-GAIN : Adjust blue color gain for WB control at manual mode.

- SATURATION : Adjust color saturation level.

3. WDR / BLC

- MODE : Select WDR for BLC mode.

• WDR : Act in wdie dynamic rage mode. Controlled video frame rate in 1/2.

• BLC : Act in Backlight compensation mode.
  • D-WDR : Digital wide dynamic range control.

• WDR WGT : WDR weight control level settig at WDR mode.

• BLC OSD : Display BLC control zone in screen.
• BLC POS-X : Select BLC control zone vertical position.
• BLC POS-Y : Select BLC control zone horizontal position.
• BLC SIZ-X : Select BLC control zone vertical size.
• BLC SIZ-Y : Select BLC control zone horizontal size.

4. DNR: Reduce image's noise

5. DAY & NIGHT

- MODE : Select TDN(True Day & Night control) mode.

• AUTO : Camera controlled automatically to decide day or night environment using input level data from CDS sense.
  • COLOR : Fix to mode at day environment setting. Make video image act in color.
• B&W : Fix to mode at night environment setting. Make video image act in B/W.

■ D/N DETECT : Select AGC or CDS control for TDN auto control.
■ DELAY : Delay time for change day or night mode at auto mode.
■ D->N LEVEL : Threshold level(AGC or CDS) for change Day to Night mode.
■ N->D LEVEL : Threshold level(AGC or CDS) for change Night to Day mode.

6. IMAGE

• SHARPNESS : Adjust image sharpness level.
• GAMMA : Gamma Curve Select.
• FLIP : Vertical & Horizontal flip setting.
• LENS SHADING : Enable lens shading compensation.
• DZOOM : Select digital zoom magnification.

7. SPECIAL

- PRIVACY : Setting for protect private area in image using mask setting.

• ZONE NO. : Select private mask zone number.
• ZONE OP. : Select zone mask display on/off.
• X-POS : Select zone horizontal position.
• Y-POS : Select zone vertical position.
  • X-SIZ : Select zone horizontal size.
• Y-SIZ : Select zone vertical size.
  • COLOR : Select mask color
• TRANS. : Select mask transparency level.

- HLMASK : Mask image high light area.

• LEVEL : Select high light level.
  • COLOR : Select mask color.

- PATTERN : Color bar display Select.

- DISPLAY INFO. : Camera information OSD on/off.

- CAMERA ID.

8. SYSTEM

- COMM. ADJUST : Setting for RS485 communication.

• CAMERA ID. : Camera ID
• BAUDRATE : Baud rate setting
- 485REG. : Enable or disable RS485 termination register.

- SDI FORMAT : 1080P / 720P

• SDI FPS : 30 or 25 fps in 1080p mode. 60 or 50 fps in 720p mode.
• CVBS FORMAT : NTSC / PAL

- CVBS OUT : Select mode for CVBS out action.

• ON, OFF : Enable or Disable CVBS out data.
• AUTO : Check automatically CVBS video cable connection.

If connected, CVBS out data is enable and WDR mode is set off automatically.

- CVBS VIEW : CVBS out video angle setting.

• CROP : Cut the scene outside area for keep image aspect ratio.
• FULL : Fill the full angle scene into image with

H-V size & ratio change.

- FAN ACTION : Select Fan action on/off.

(* Option)

• FAN ON LEV : Select temperature level for fan action start.
• FAN OFF MG : Select temperature level margin for fan action stop.

- APPLY : Apply all video setting changed at once

Use the Set button to apply.

- SYSTEM INFO.

• S/W VERSION : Camera's basic software version.
• SET VERSION : Camera's feature control setting version.
