USER MANUAL FS1050VIB-A AVF
Read through ALL instructions before commencing assembly. If you have any questions about this product or issues with assembly contact the customer services help line before returning this product to the store.
CUSTOMER SERVICES HELP LINE NUMBER:
+44 (0)1952 670009 (UK)
AVF Group Ltd.
Road 30. Hortonwood Ind Est, Telford, Shropshire, TF1 7YE, England www.avfgroup.com
IMPORTANT INFORMATION!
We advise that before starting the assembly of this product that you familiarise yourself with the instructions and the parts list in this leaflet.
Do not's
Do not over tighten any part of this assembly.
Do not place hot or cold objects on to or close to any glass surface unless the object is sufficiently insulated to prevent contact.
Do not strike the glass with hard or pointed items.
Do not sit or stand upon horizontal glass surfaces.
Do not use washing powders or other substances containing abrasives when cleaning the glass surfaces as these may scratch the glass.
Do's
Do use a damp cloth with diluted washing up liquid for cleaning the glass surfaces.
Maximum TV size and weight capacity
The maximum TV size for this stand is 55"/139cms.
TV weight must not exceed 99lbs/45kgs.
The maximum load for top and bottom shelf is 44lbs/20kgs.
WARNING Wherever possible distribute weight evenly.

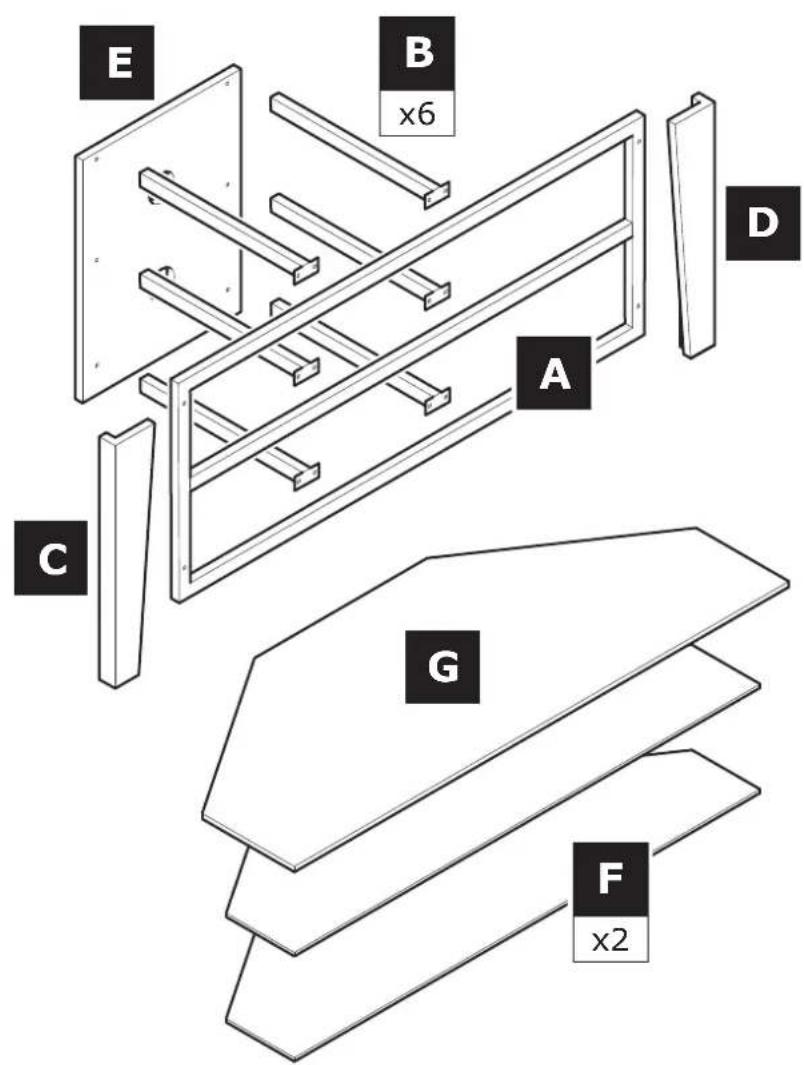

boxed parts
M6

M6





M6


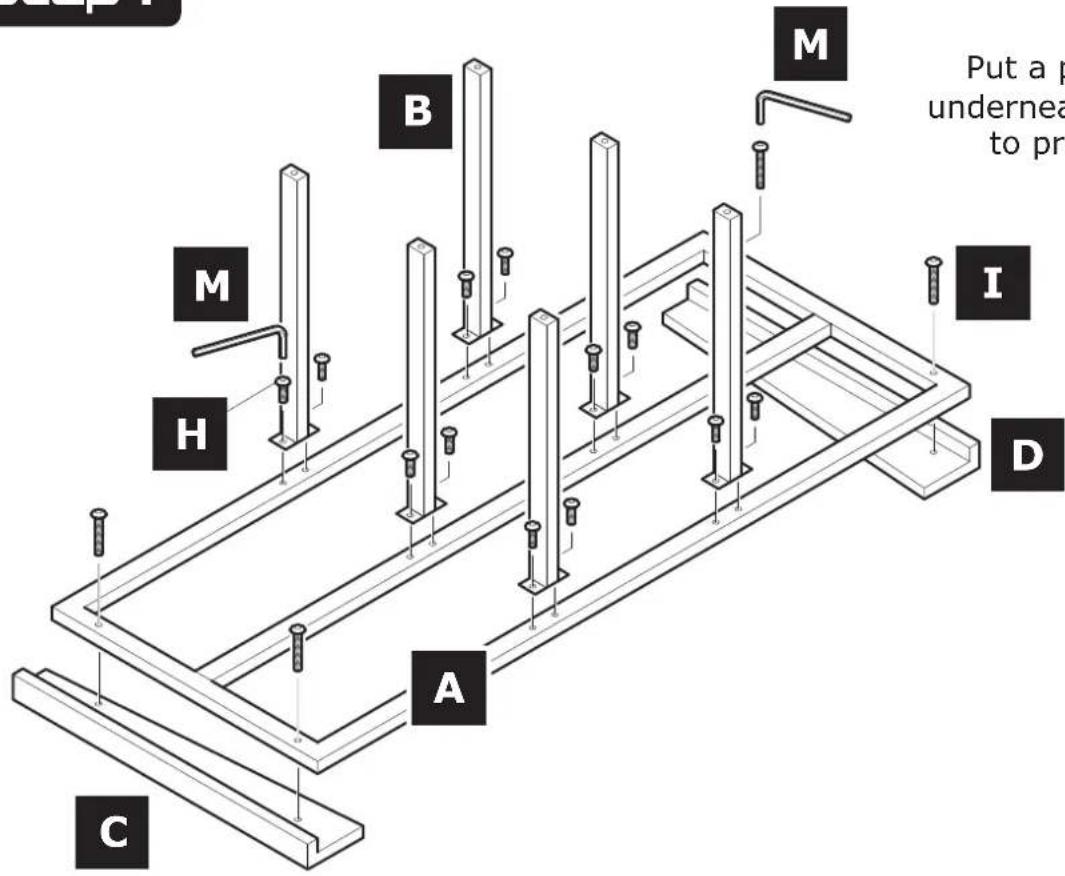

step 1

Put a piece of material underneath panels C and D to prevent damage.


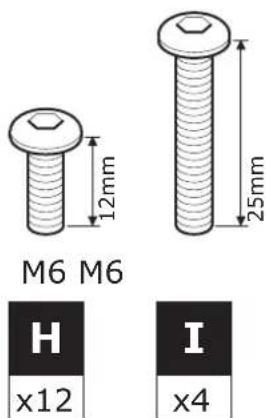

M6 M6 12mm 25mm H x12 I x4step2


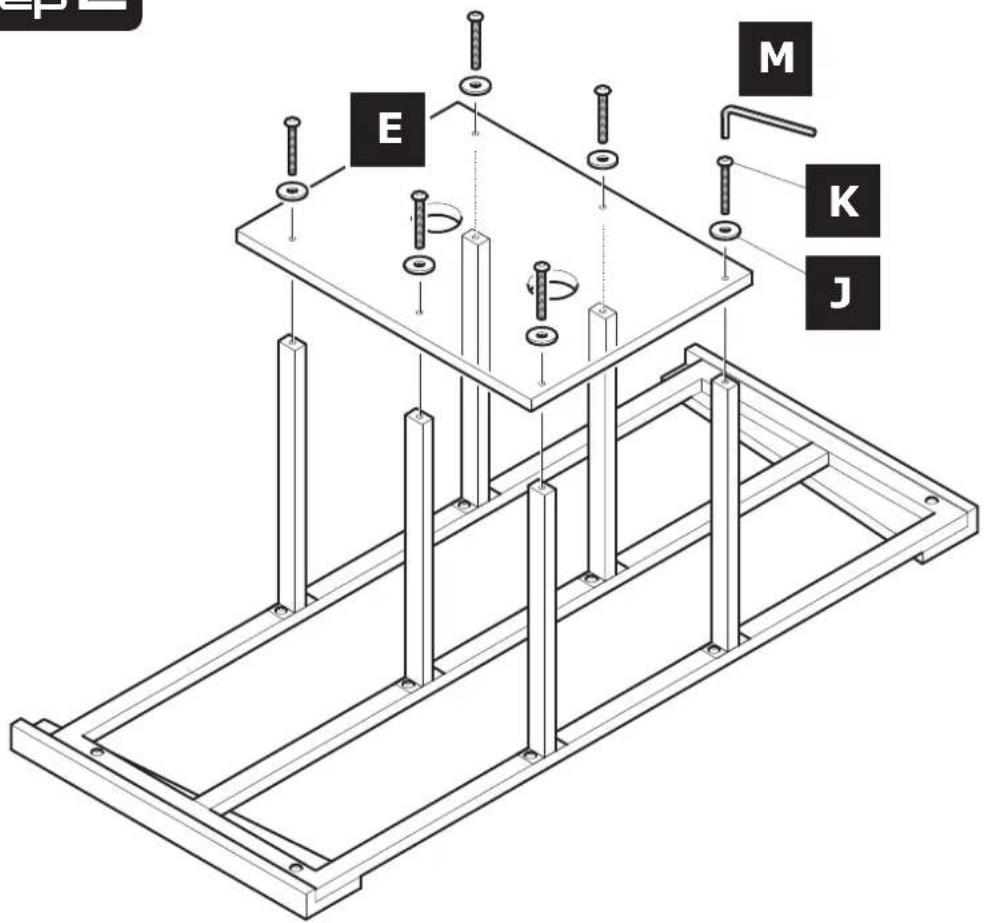

E M K J


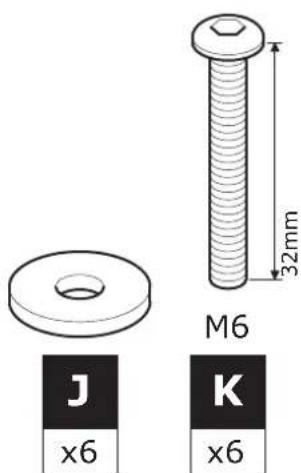

M6 32mm J x6 K x6

