EC285S-T - Support pour écran plat AVF - Free user manual and instructions

Product Type	Flat Panel Wall Mount
Model	EC285S-T
Brand	AVF
Compatible Screen Sizes	26" to 55" (estimated)
Maximum Weight Capacity	40 kg (88 lbs)
VESA Compatibility	100x100mm to 400x400mm
Tilt Range	+5° / -15°
Swivel Range	±90° (estimated)
Rotation	±3° (level adjustment)
Distance from Wall	50 mm to 80 mm (adjustable)
Material	Cold-rolled steel, powder coated
Color	Black
Mounting Type	Fixed to wall, single stud or dual stud
Wall Plate Dimensions	300 x 150 mm (estimated)
Net Weight	2.5 kg (5.5 lbs)
Power Supply	None (passive mount)
Included Accessories	Mounting hardware, bubble level, manual
Certifications	TÜV, UL (estimated)
Warranty	10 years (AVF standard)
Maintenance	Wipe with dry cloth; check screws periodically
Safety	Must be attached to solid wall (concrete/wood stud)
Spare Parts Availability	Contact AVF customer service

Frequently Asked Questions - EC285S-T AVF

What is the maximum screen size for the AVF EC285S-T mount?

The mount is compatible with flat panels from 26 to 55 inches. Always check the weight and VESA compatibility.

What is the weight capacity of this mount?

The AVF EC285S-T can support up to 40 kg (88 lbs). Ensure your TV does not exceed this limit.

Is this mount VESA compatible?

Yes, it supports VESA patterns from 100x100mm to 400x400mm. Check your TV's VESA pattern before purchase.

Does the mount tilt?

Yes, it offers a tilt range of +5° / -15° to reduce glare and improve viewing angles.

Can the mount swivel?

Yes, it has a swivel range of up to ±90° (estimated), allowing you to angle the TV left or right.

What tools do I need for installation?

You will need a drill, socket wrench or screwdriver, and a stud finder. All mounting hardware is included.

Can I install this on drywall alone?

No, the mount must be attached to solid wall such as concrete or wood studs. Drywall alone is unsafe.

How far from the wall will the TV be?

The distance from the wall is between 50 mm to 80 mm, adjustable with spacers.

Does this mount include a bubble level?

Yes, a bubble level is included to help ensure your TV is perfectly horizontal.

What is the warranty for this product?

AVF offers a 10-year warranty against manufacturing defects. Keep your receipt for proof of purchase.

USER MANUAL EC285S-T AVF

Technical line drawing of a mechanical assembly with mounting bracket and housing (no text or symbols)

③ AVF Group Ltd. Road 30, Hortonwood Industrial Estate, Telford, Shropshire, TF1 7YE, England. [phone] 0870 0609777 (UK) AVF Incorporated. 3187, Cornerstone Drive, Mira Loma, CA 91752, USA. 1-800 667 0808 (USA) Orbital Holdings Inc. 3187, Cornerstone Drive, Mira Loma, CA 91752, USA. 1-800 601 8450 (USA) No. 462477

No. 462477

1-800 601 8450 (USA)

1-800 667 0808 (USA)

AVF Incorporated.

0870 0609777 (UK)

Road 30, Hortonwood Industrial Estate, Telford, Shropshire, TF1 7YE, England.

AVF Group Ltd.

Technical diagram showing mechanical assembly steps with labeled components and checkmark indicators

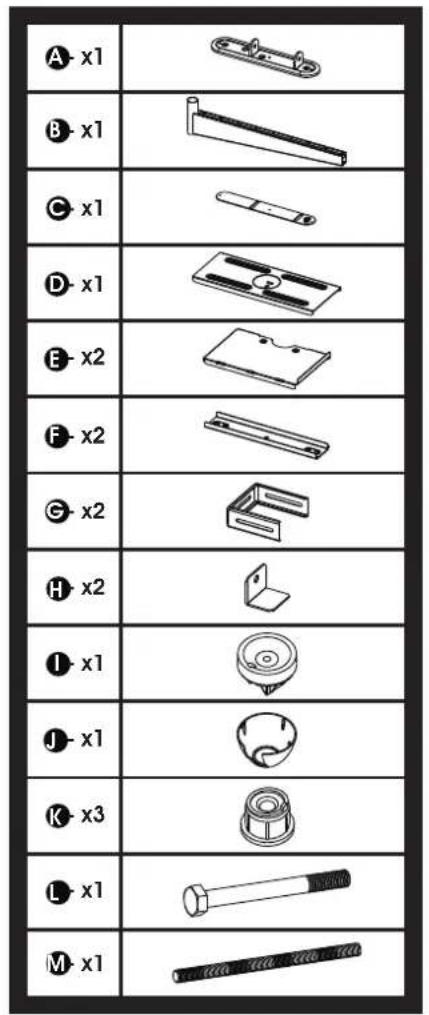

A x1 B x1 C x1 D x1 E x2 F x2 G x2 H x2 I x1 J x1 K x3 L x1 M x1

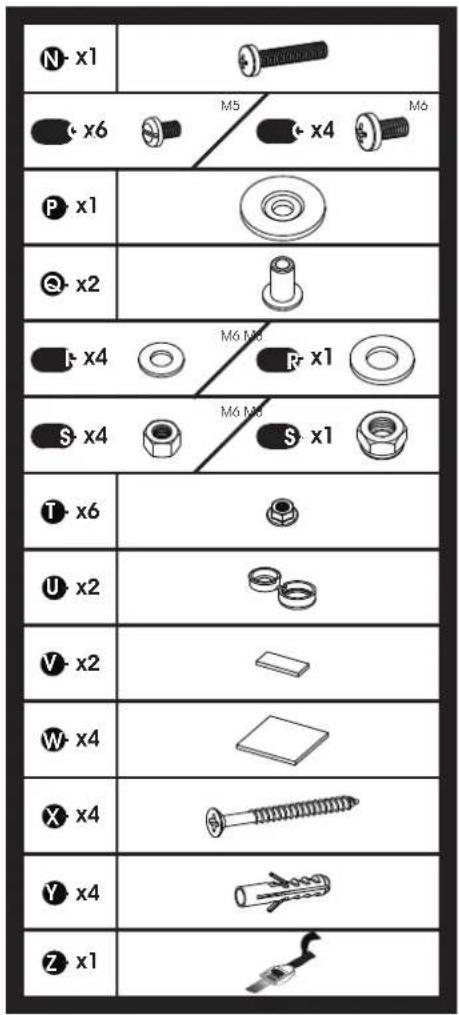

N x1 M5 x6 P x1 Q x2 S x4 T x6 U x2 V x2 W x4 X x4 Y x4 Z x1
