Product Type	Range Hood
Brand	Rangemaster
Model	OPLHD100
Width	90 cm
Depth	50 cm
Height (min-max)	60-120 cm
Weight	25 kg
Power Supply	220-240 V ~ 50 Hz
Motor Power	150 W
Max Extraction Rate	650 m³/h
Noise Level (max speed)	65 dB(A)
Number of Speeds	3
Filter Type	Aluminum grease filter
Carbon Filter	Optional (not included)
Lighting	2 x 3 W LED
Controls	Push buttons
Installation Type	Wall-mounted (ducting or recirculating)
Exhaust Outlet Diameter	150 mm
Energy Class	B
Annual Energy Consumption	80 kWh
Material	Stainless steel
Cleaning	Grease filter washable in dishwasher; exterior wipe with damp cloth

Frequently Asked Questions - OPLHD100 RANGEMASTER

How do I install the Rangemaster OPLHD100 range hood?

The hood should be installed at least 65 cm above a gas hob or 55 cm above an electric hob. Fix the wall bracket securely, connect the ducting to a 150 mm outlet (for extraction mode), or insert carbon filters for recirculation mode. Electrical connection must be done by a qualified electrician.

How often should I clean the grease filter?

Clean the aluminum grease filter every 2-4 weeks depending on usage. It can be washed in a dishwasher at low temperature or by hand with warm soapy water. Ensure it is fully dry before reinstalling.

Does the hood come with carbon filters for recirculation?

No, carbon filters are not included and must be purchased separately. They are required if you use the hood in recirculation mode (no external ducting). Replace every 3-6 months.

Why is my range hood noisy?

Noise may be due to a dirty filter, loose ducting, or high speed. Clean the filter and check duct connections. Normal noise level at maximum speed is 65 dB(A). If persistent, contact service.

Can I use the hood without ducting?

Yes, you can use the hood in recirculation mode by installing carbon filters (purchased separately). The air will be filtered and recirculated back into the kitchen.

How do I replace the LED lights?

The LED lights are integrated and should be replaced by a qualified technician. Do not attempt to replace them yourself as they require removal of the control panel.

What are the dimensions of the OPLHD100?

The hood is 90 cm wide, 50 cm deep, and adjustable in height from 60 to 120 cm. Weight is approximately 25 kg.

Is the hood suitable for use above a gas hob?

Yes, but minimum distance must be at least 65 cm. For electric hobs, minimum distance is 55 cm.

Can I control the hood remotely?

No, the OPLHD100 is controlled via push buttons on the front panel. There is no remote control feature.

What is the warranty period?

Rangemaster offers a 2-year warranty for domestic use. Proof of purchase is required. Warranty covers manufacturing defects but not misuse or commercial use.

USER MANUAL OPLHD100 RANGEMASTER

Line drawing of a double door with a stacker cabinet and open door (no text or symbols)

OPLHD60 - OPLHD90 - OPLHD100 - OPAL HOOD

Instructions Manual

www.rangemaster.co.uk

INDEX

EN

RECOMMENDATIONS AND SUGGESTIONS .... 3

CHARACTERISTICS 4

INSTALLATION 5

USE 8

MAINTENANCE 9

RECOMMENDATIONS AND SUGGESTIONS

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• "CAUTION: Accessible parts may become hot when used with cooking appliances."

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

Illustration of a greenhouse with a pot and smokestack, crossed by green lines (no text or symbols)

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product,

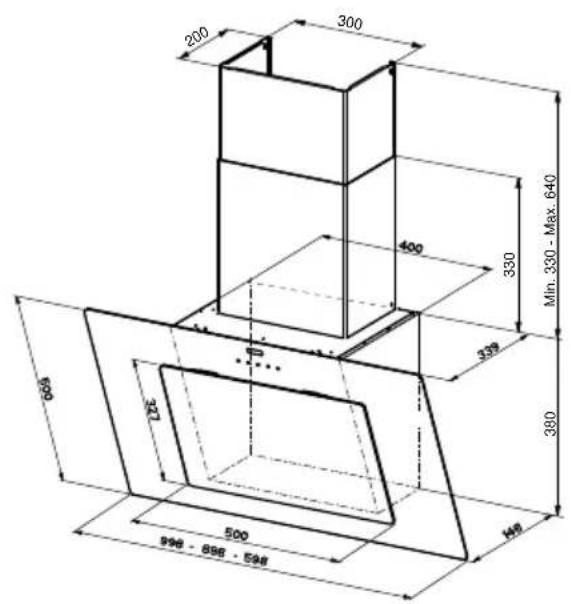

Dimensions

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2.1	1	Upper Section
2.2	1	Lower Section
8	1	Directional Air Outlet grille
9	1	Reducer Flange ø 150 – 120 mm
10	1	Adapting ring ø 120-125 mm
15	1	Angle iron
16	1	Filter cover
Ref.	Q.ty	Installation Components
7.2.1	2	Upper Chimney Section Fixing Brackets
11	6	Wall Plugs
11a		2 Wall Plugs SB 12/10
12a		6 Screws 4,2 x 44,4
12c		10 Screws 2,9 x 6,5
12d		6 Screws 2,9 x 9,5
Q.ty		Documentation
		1 Instruction Manual

Wall drilling and bracket fixing

As a first step, proceed with the following drawings:

• a vertical line up to the ceiling or up to the upper limit, at the centre of the area in which the hood is to be fitted;
• a horizontal line at a minimum 788 mm above the cooker top.
• Mark a point (1) on the horizontal line, 164 ~mm to the right of the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are levelled.
• Mark a reference point (2) as indicated at 140 mm from the vertical reference line and 540 mm above the cooker top.
• Repeat this operation on the other side, checking that the two marks are levelled.
• Drill at the marked points (1), using a 12 mm drill bit.
• Drill at the marked points (2) using a 8 mm drill bit.
• Insert the bracket plugs 11a into the holes (1) and tighten the screws.
• Insert plug 11 into holes (2).

To install a decorative chimney (optional)

• Place bracket 7.2.1 on the wall, about 1 - 2mm from the ceiling or from the upper limit, aligning the centre (notch) with the vertical reference line.
  • Mark the wall at the centres of the bracket holes.
• Place the bracket 7.2.1 on the wall at X mm below the first bracket (X = height of the upper chimney section), aligning the centre (notch) with the vertical line.
  • Mark the wall at the centres of the bracket holes.
• Drill 8 mm holes at all the marked centre points.
• Insert the wall plugs 11 in the holes.
  • Fix the brackets using the 12a screws (4,2 x 44,4) supplied with the hood.

Fitting the hood body

• Open the doors/the door (See section Open Panels).
• Remove the Metal grease filters using the handles provided.
• Adjust the two screws Vr, in the brackets 11a, so that they are at the start of their travel.
• Hook the hood body to the two brackets 11a.
• From the inside of the hood body, turn screws Vr to level the hood body itself.
• Fasten the safety screw 12a.
• Close the doors/the door again.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 125 mm, the choice of which is left to the installer.

• To install a 125 mm air exhaust connection, insert the reducer flange 9 on the hood body air outlet and the adapting ring 120-125 10 on the reducer flange.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

Recirculation Version Air Outlet

To install the Recirculation Version of the hood, the Activated charcoal filter must be fitted, see paragraph “Activated charcoal filter (Recirculation version)”.

• Screw the filter cover onto the air outlet, using four screws 12c (2.9 x 12.5).
• Fix the directional grille 8 on the recirculation air outlet using the 2 screws 12d (2,9 x 9,5) provided.

Two technical diagrams showing brick wall corner structures with arrows indicating force or movement, one marked with a black X (no text or symbols present)

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Diagram showing a mechanical component with a green arrow indicating direction, no text or symbols present

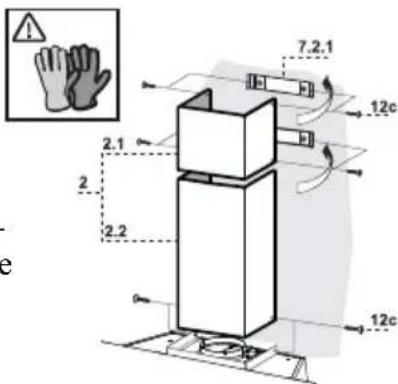

Flue assembly

The chimney can only be installed with exhausting hood

- Fasten the angle iron 15 to the hood canopy using the screws 12d (2,9 x 9,5) provided.

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x 6,5) supplied.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.
• Fix the lower part laterally to the hood body using the 2 screws 12c (2,9 x 6,5) supplied.

Technical line drawing of a mechanical assembly with mounting holes and a central component (no text or symbols)

Control panel

T1T2T3T4L

Button	Function
T1	Turns the Motor off. -
T2	Turns the motor on at speed one	Buttons T1+T2 are on.
T3	Turns the Motor on at speed two	Buttons T1+T3 are on.
	Press and hold for 2 seconds to enable shutdown with a 20 minute delay (Motor+Lights). It is possible to change the operating speed when this function is enabled.	The respective buttons T1+ (T2 or T3 or T4) will flash.
T4	Turns the Motor on at speed three	Buttons T1+T4 are on.
	Press and hold for 2 seconds to activate Intensive speed, which is timed to run for 10 minutes. At the end of this time it will automatically return to the speed set before. Suitable to deal with maximum levels of cooking fumes.	The button flashes.
L	Turns the Lighting System on and off at maximum intensity.	Button on

Opening Panel

• Open the Panel by pulling it.
• The panel can be locked in any position.
• Clean the outside with a damp cloth and neutral detergent.
• Clean the inside using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances.

Simple line drawing of two hands holding a flatboard with a paper lid and a green curved arrow indicating rotation (no text or symbols)

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Pull the comfort panels to open them.
• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The colour of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.
• Close the comfort panel.

Illustration of a hand pressing a device with a green arrow indicating left motion (no text or symbols)

Activated charcoal filter (Recirculation version)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

REPLACING THE ACTIVATED CHARCOAL FILTER

• Open the comfort panels pulling them downwards.
• Remove the metal grease filters
• Remove the saturated activated charcoal filter as shown (A).
  • Fit the new filters (B).
• Replace the metal grease filters.
• Close the comfort panels.

Diagram of two mechanical components labeled A and B with green directional arrows indicating motion or force (no text or symbols beyond labels)

Lighting unit

Warning: This appliance is fitted with a white LED lamp classed as 1M according to EN 60825-1: 1994 + A1:2002 + A2:2001 standards; maximum optical power emitted @439nm: 7μW. Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- For replacement contact technical support. ("To purchase contact technical support")

RANGEmaster

Clarence Street, Royal Leamington Spa,

Warwickshire, CV31 2AD, England.

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

www.rangemaster.co.uk

AGA RANGEMASTER GROUP PLC
