Brand	Rangemaster
Model	ELTHDC110SG
Product Type	Range Hood (Extractor Hood)
Installation Options	Ducted (external exhaust) or Recirculation (with activated charcoal filter)
Minimum Distance from Hob	650 mm
Air Outlet Diameter	120 mm (reducer from 150 mm supplied)
Motor Speeds	3 speeds: Low (V1), Medium (V2), High (V3)
Lighting	Halogen, 20 W
Grease Filter Type	Metal self-supporting, dishwasher safe
Grease Filter Cleaning Interval	Every 2 months (more frequently for heavy use)
Activated Charcoal Filter	Replaceable, not washable (for recirculation mode)
Charcoal Filter Replacement Interval	Every 4 months (more frequently for heavy use)
Power Supply	Mains voltage (refer to rating plate on the hood)
Electrical Class	Class I (requires earthing)
Control Type	Push buttons (Light switch L, Motor speeds V1/V2/V3)
Safety Features	Do not flambé; requires aeration when used with non-electric appliances; minimum distance 650 mm
Included Accessories	Telescopic chimney, upper/lower sections, wall brackets, reducer flange, adapting ring, air outlet grills, screws, wall plugs, instruction manual
Light Replacement	20 W halogen, accessible by removing two screws
Warranty	Refer to manufacturer documentation

Frequently Asked Questions - ELTHDC110SG RANGEMASTER

What is the minimum distance between the hob and the hood?

The minimum safety distance is 650 mm. For gas hobs, refer to the hob instructions as a greater distance may be required.

Can the hood be used in recirculation mode?

Yes. For recirculation, you must install activated charcoal filters (not included). The hood then filters and recirculates the air back into the kitchen.

How often should I clean the grease filters?

Clean the metal grease filters every 2 months of operation, or more frequently for heavy use. They are dishwasher safe.

How do I replace the activated charcoal filter?

Remove the grease filters, then release the fixing hooks on the saturated charcoal filter. Fit the new filter by hooking it into its seating and refit the grease filters. Replace every 4 months.

How do I replace the light bulb?

Remove the 2 screws fixing the lighting support, pull out the support, extract the old 20 W halogen lamp, and insert a new one ensuring the pins are properly aligned. Refit the support and screws.

What is the required air outlet diameter for ducted installation?

Use a pipe with a minimum diameter of 120 mm. A reducer flange from 150 mm to 120 mm is supplied.

Is the hood safe to use with a gas hob?

Yes, but you must ensure adequate ventilation in the room to prevent backflow of combustion fumes. The hood must not be connected to flues carrying combustion fumes.

Can I install the hood myself?

Installation should be performed by a qualified technician. The hood must be securely fixed to the wall at a height of at least 650 mm above the hob and connected to the mains with a two-pole switch.

What should I do if the hood is not working?

Check that the power supply is connected and the mains voltage matches the rating plate. Ensure the grease filters are clean and not blocked. If the motor does not start, contact technical service.

Does the hood have a warranty?

Warranty details are not specified in the manual. Contact Rangemaster or refer to the purchase documentation for warranty information.

USER MANUAL ELTHDC110SG RANGEMASTER

Line drawing of a simple rectangular box mounted on a flat base, with no text or symbols present.

ELTHDC110SG/

Instructions Manual

www.rangemaster.co.uk

INDEX

EN

RECOMMENDATIONS AND SUGGESTIONS 3

CHARACTERISTICS 4

INSTALLATION 5

USE 8

MAINTENANCE 9

RECOMMENDATIONS AND SUGGESTIONS

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• “CAUTION: Accessible parts may become hot when used with cooking appliances.”

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

Illustration of a greenhouse with a pot and a flame, crossed by a green diagonal line (no text or symbols)

The symbol 📋 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

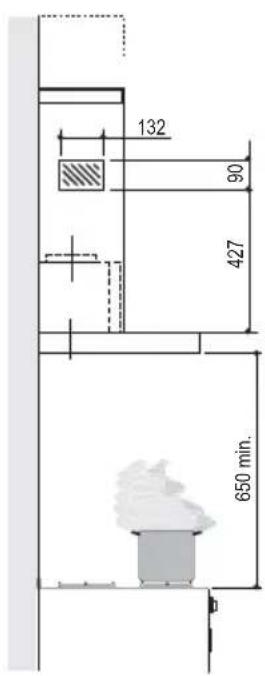

Dimensions

Components

Ref.	Q.ty	Product	Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic Chimney comprising:
2.1	1	Upper	Section
2.2	1	Lower	Section
8a	1	Right Air Outlet Grill
8b	1	Left Air Outlet Grill
9	1	Reducer Flange ø 150-120 mm
10	1	Adapting ring ø 120-125 mm
14	1	Hood Body Air Outlet Extension Piece consisting of two Half Shells
14.1	2	Air Outlet Connection Extension
15	1	Air Outlet Connection
Ref.	Q.ty	Installation	Components
7.2.1	2	Upper Chimney Section Fixing Brackets
11	6	Wall	Plugs
12a	6	Screws 4,2 x 44,4
12c	6	Screws 2,9 x 9,5
	Q.ty	Documentation
	1	Instruction Manual

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob. Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 328 mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
  • Fix the brackets using the 12a (4,2 x 44,4) screws supplied.
• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-6 mm between the wall and the head of the screw.

Mounting the hood body

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.
• Hook the hood body onto the screws 12a.
  • Fully tighten the support screws 12a.
• Adjust the screws Vr to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 125 mm, the choice of which is left to the installer.

• To install a 125 mm air exhaust connection, insert the reducer flange 9 on the hood body air outlet and the adapting ring 120-125 10 on the reducer flange.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

RECIRCULATION VERSION AIR OUTLET

- Assemble the two halves of the hood body extension piece 14.

- Push fit the assembled hood body extension piece 14 onto the air outlet.

- Push fit connection 15 onto the hood body extension piece 14.

- Insert the connection extension pieces laterally 14.1 in connection 15.

- Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets. If this is not the case, adjust the position by either reversing the connection extension pieces 14.1 or by cutting the hood body extension 14 along one of the thinner section channels denoting the pre-fixed lengths, then reassemble as described previously.

- The air outlet directional grills 8a - 8b must be fitted after the lower outlet duct has been installed.

- Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

- Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Diagram showing a mechanical component with an inset view of a green arrow indicating direction (no text or symbols present)

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x 9,5) supplied.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.
• Fix the lower part laterally to the hood body using the 2 screws 12c (2,9 x 9,5) supplied.
• On the recirculation version, fit the directional grids 8a – 8b in their housings making sure that the directional symbols are towards the top and front of the hood. Also make sure that they are correctly inserted in the connection extension pieces 14.1.

L Light Switches the lighting system on and off.

S	Led	Motor running led.
V1	Motor Switches the extractor motor on and off at low speed. Used to provide a continuous and silent air change in the presence of light cooking vapours.
V2	Speed	Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.
V3	Speed	Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Hand pressing a green arrow on a device component, enclosed in a circular frame (no text or symbols)

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters.
• Remove the saturated activated carbon filter by releasing the fixing hooks.
• Fit the new filter by hooking it into its seating.
• Refit the metal grease filters.

Illustration of a hand pressing a component on a green surface, with a green arrow indicating direction (no text or symbols)

Lighting

LIGHT REPLACEMENT

20 W halogen light.

• Remove the 2 screws fixing the Lighting support, and pull it out of from the Hood.
  • Extract the lamp from the Support.
• Replace with another of the same type, making sure that the two pins are properly inserted in the lamp holder socket holes.
• Refit the Support, fixing it in place with the two screws removed as above.

Line drawing of a hand holding a small object with a green sphere above it (no text or symbols)
