Product Type	HDMI Matrix Switch
Brand	Smart-AVI
Model	HDRULT-0816
Inputs	8 x HDMI (Type A, female)
Outputs	16 x HDMI (Type A, female)
Maximum Resolution	4K@60Hz (3840x2160)
HDCP Support	HDCP 2.2 compliant
Video Bandwidth	18 Gbps
EDID Management	Internal EDID emulation and learning
Audio Support	Pass-through, supports up to 7.1 digital audio
Control Methods	Front panel buttons, IR remote, RS-232, Ethernet (TCP/IP)
Power Supply	AC 100-240V, 50/60Hz (12V DC 5A adapter included)
Power Consumption	60W (max)
Dimensions (W x H x D)	17.3 x 1.7 x 8.3 inches (440 x 44 x 210 mm)
Weight	5.5 lbs (2.5 kg)
Rackmount	19-inch rackmount ears included
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	10% to 90% (non-condensing)
Included Accessories	IR remote control, RS-232 cable, power adapter, rackmount kit, user manual
Maintenance & Cleaning	Wipe with a soft, dry cloth. Do not use liquids or aerosols.
Safety	Use only supplied power adapter. Do not open the device. Keep away from moisture.
Spare Parts & Repairability	No user-serviceable parts inside. Contact Smart-AVI support for repairs.

Frequently Asked Questions - HDRULT-0816 Smart-AVI

What is the maximum resolution and refresh rate supported by the HDRULT-0816?

The HDRULT-0816 supports resolutions up to 4K@60Hz (3840x2160) with 4:4:4 chroma subsampling at 18 Gbps bandwidth.

Is the HDRULT-0816 HDCP 2.2 compliant?

Yes, it is fully HDCP 2.2 compliant for both inputs and outputs, ensuring compatibility with 4K content from streaming devices and Blu-ray players.

How can I control the matrix switch?

You can control it via front panel buttons, IR remote (included), RS-232 (serial) commands, or Ethernet (TCP/IP) for network control.

Does it support audio extraction or independent audio switching?

The HDRULT-0816 passes digital audio (up to 7.1 channels) through HDMI. It does not have separate audio outputs; audio follows the video signal.

What is the power consumption and voltage requirement?

The device consumes up to 60W and is powered by a 12V DC 5A adapter included in the box. The adapter accepts AC 100-240V, 50/60Hz.

Can I cascade multiple HDRULT-0816 units for larger matrices?

Cascading is not officially supported, but you can connect outputs to inputs of another unit. However, each connection is independent; for larger matrices, consider Smart-AVI's modular matrix solutions.

What is the warranty period?

Smart-AVI typically offers a 3-year limited warranty on the HDRULT-0816. Check with your dealer or Smart-AVI support for exact terms.

How do I update the firmware?

Firmware updates are performed via the RS-232 or Ethernet port using Smart-AVI's PC utility. Download the latest firmware from the official website.

What types of HDMI cables are recommended?

For 4K@60Hz, use High Speed HDMI cables (Category 2) with Ethernet. Cable length should not exceed 15 meters for 4K; for longer runs, use active cables or fiber optic HDMI.

Does the unit support EDID management?

Yes, the HDRULT-0816 features internal EDID emulation for each input and can learn EDID from connected displays to ensure proper resolution detection.

USER MANUAL HDRULT-0816 Smart-AVI

Smart-AVI SMART AUDIO VIDEO INNOVATION

HDR-ULTRA

HDMI 16x16 Matrix over Cat 5e/6

QUICK INSTALLATION GUIDE

www.smartavi.com

INTRODUCTION

The HDR-ULTRA is a High Definition video router that enables users to route HD signals up to 425 feet over CAT 5e/6 cables, providing the ultimate solution to create clean and efficient video and digital signage systems in configurations up to 16x16.

Pristine high definition video has become the standard for entertainment, video systems and digital signage, but HD video routing has been confined by the necessity of short, bulky and unsightly cables. The HDR-ULTRA, utilizing HDBaseT technology, breaks the distance limits that have tethered users as it facilitates the routing of crystal clear 1080p HD video, multi-channel audio, Ethernet, IR and power up to an incredible 425 feet through the use of inexpensive CAT 5e/6 cables. With unprecedented flexibility and convenience, the HDR-ULTRA is overhauling the old challenges of HD Matrix routers with an elegant and easy-to-install solution.

The HDR-ULTRA can direct as many as 16 HD inputs and 16 HD outputs effortlessly. Routing HD signals across long distances from the user-friendly HDR-ULTRA exponentially increases users' ability to create the ideal digital video and audio experience in any environment.

APPLICATION DIAGRAM


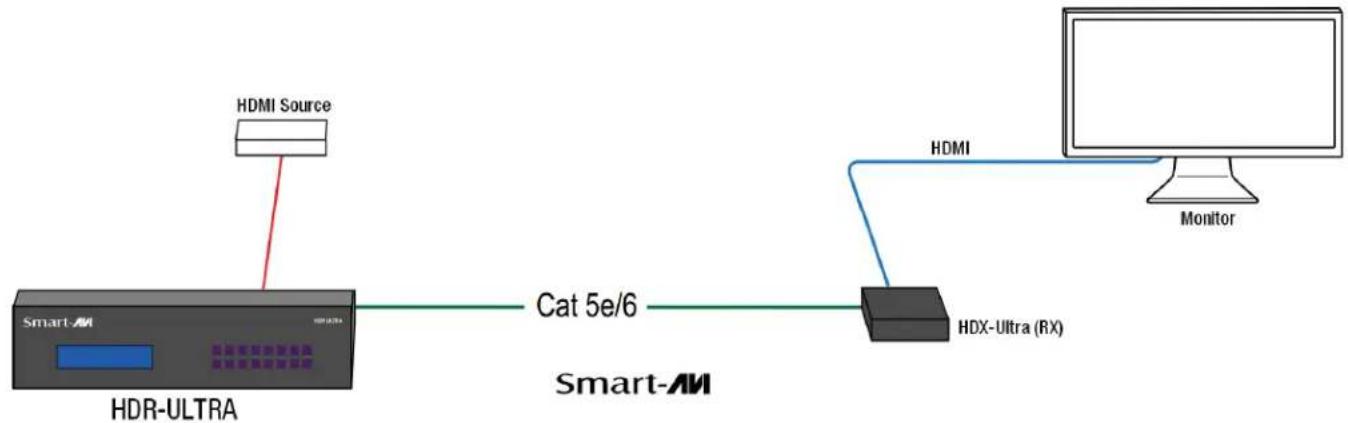

INSTALLATION

1. Turn off all input devices and displays.
2. Connect the HDMI cables from the input devices and tothe "IN" ports on the HDR-ULTRA matrix.
3. Connect the HDMI cables from the HDMI port of the HDX-Ultra Receivers to the HDMI displays.
4. Connect the RJ-45 port of each HDX-Ultra Receivers to the respective "OUT" ports on the HDR-ULTRA using CAT5e/6 cables.
5. Power on the HDX-Ultra Receivers by plugging in their power adapters (5VDC2A).
6. Connect the power cord and power-on the HDR-ULTRA.
7. Power on the input devices and the displays.

CONTROLLING THE HDR-ULTRA

There are multiple ways to control the HDR8X8/HDR16X16:

• Front panel
• SmartControl software
  • RS-232 commands
  • TCP-IP module (NET-IP-Pro)

Front Panel

The HDR ULTRA front panel enables one to switch directly from the Matrix without the use of any software. Its LCD (40x4) offers detailed information about the status of the switch at any given moment.

SmartControlPro Software

SmartControlPro is the Windows® GUI application that enables users to control SmartAVI matrixes using graphic user interface without having to write the codes and send serial commands to the devices. The software enables configuration of the size and type of the Matrix, including a preset defined at macro. The software also enables identification by name for each source and display.

RS-232 Commands

There are two primary modes of operation for the RS-232 control of the HDR-ULTRA: Command Mode and Debug Mode. When connecting to the HDR-ULTRA via RS-232, it will start in Command Mode, in which raw commands are allowed to be sent matrix to control its various functions without the use of a menu or prompt. This mode is intended for advanced Debug mode is a more user-friendly way of operating the HDR-ULTRA and it also includes instructional menus.

TCP/IP Control (NET-IP-Pro)

Net-IP-Pro gives the user full control of the matrixes from anywhere in the world through this advanced new web browser software. It enables multiple users to control and configure the Matrix, including names of sources, names of displays, IP address and low level features of the Matrix. The Net-IP-Pro enables the support of telnet for easy integration with other control systems.

LEARNING THE EDID OF THE MONITOR

1. Power on the HDR-ULTRA.
2. Connect CAT5e/6 cable from one of the HDX-Ultra Receivers to the OUT1 of the HDR-ULTRA.
3. Connect a straight-through male-to-female RS-232 cable from the computer to the RS-232 port of the HDR-ULTRA.
4. Run HyperTerminal on your PC (or use the terminal client of your choice).
5. Choose the correct COM port and use the following parameters:

1. Cycle the power of the HDMI (reset) and you should see the following on the screen:

SmartAVI HDMI 16X16 ver 12.06.11#1

1. To enter the Debug Mode Modled on" and hit ENTER. You will see the following prompt:

DBG>

1. Type in "edid" and hit ENTER to go to Manage EDID Manage EDID

EDID>

1. Type in "learn" and hit ENTER to learn the monitor plugged in port 1 port 1

EDID> learn

Successfully learned EDID!
