AT-HD50SS - AV Transmitter Atlona - Free user manual and instructions

Product Type	HDMI over Single CAT5e/6 Transmitter
Model	AT-HD50SS
Brand	Atlona
Input	1 x HDMI (DVI compatible with adapter)
Outputs	1 x HDMI (loop out), 1 x RJ45 (CAT5e/6), 1 x 3.5mm analog audio
Max Extension Distance	130 ft (40 m) at 1080p over single CAT5e/6/7
Supported Resolutions	Video: up to 1080p; VESA: up to 1600x1200
Bandwidth	6.75 Gbps
3D Support	Yes (pass-through)
Audio Support	Dolby TrueHD, DTS-HD Master Audio (pass-through); analog stereo via 3.5mm
HDCP Compliance	Yes
EDID Settings	DIP switch selectable: 1080p multi-channel, 1080p 2-channel, 720p/1080i 2-channel, or EDID Learn
Dimensions (H x W x D)	1.1 x 7 x 4.3 in (27 x 180 x 108 mm)
Weight	17.6 oz (515 g)
Power Supply	5V DC locking universal power supply (included)
Power Consumption	1 W
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Cable Termination Required	568B standard for CAT5e/6 cables
Signal LED Indicator	Green: HDMI signal; Off: DVI signal
Safety	Do not expose to rain/moisture; use only included power supply; unplug before cleaning
Warranty	3 years limited warranty

Frequently Asked Questions - AT-HD50SS Atlona

What is the maximum distance the AT-HD50SS can extend an HDMI signal?

The AT-HD50SS can extend an HDMI signal up to 130 ft (40 m) at 1080p over a single CAT5e/6/7 cable.

Can the AT-HD50SS support 3D video?

Yes, the AT-HD50SS supports 3D pass-through.

What audio formats are supported?

It supports Dolby TrueHD and DTS-HD Master Audio pass-through, as well as analog stereo via the 3.5mm audio output.

How do I set the EDID on the AT-HD50SS?

Use the DIP switch on the unit. Options include 1080p multi-channel, 1080p 2-channel, 720p/1080i 2-channel, and EDID Learn mode.

What type of cable is required for extension?

A CAT5e/6/7 cable terminated with the 568B standard is required.

Can the AT-HD50SS be used with DVI sources?

Yes, but a DVI-to-HDMI adapter is needed since the input is HDMI.

What is the power consumption of the AT-HD50SS?

The power consumption is 1 W, and it comes with a 5V DC locking universal power supply.

What does the Signal LED indicate?

A green LED indicates an HDMI signal is being received. The LED is off when receiving a DVI signal.

Can I cascade multiple units with the AT-HD50SS?

Yes, the AT-HD50SS can connect to the AT-HD50RSL, AT-HD14SS, or AT-HD19SS for cascading, allowing up to 10 displays with a total distance of 1300 ft (400 m).

What is the warranty period for the AT-HD50SS?

Atlona offers a 3-year limited warranty covering defects in materials and workmanship.

USER MANUAL AT-HD50SS Atlona

Atlona HDMI over Single CAT5e/6 Distribution Series

AT-HDRS

Two AT-HD15SRS connectors with visible port labels, no text or symbols on the devices themselves.

User Manual

Table of Contents

1. Introduction 3
2. Package Contents 3
3. Features ....
4. Specifications 4
5. CAT5e/6 Termination 4
6. Panel Descriptions

a. AT-HD50SS

b. AT-HD50RSL 6

C. AT-HDSR

d. AT-HD15SRS 7

1. Connection and Installation 8
2. Safety Information 9
3. Warranty
4. Atlona Product Registration 11

Introduction

The Atlona HDMI over Single CAT5e/6 Distribution Series creates the ability to extend any HDMI source up to 130ft (40M). Using the AT-HD50RSL of the series you can cascade from a source to up to 10 devices and up to a combined distanced of 1300ft (400M).

Package Contents

AT-HD50SS

• 1 x AT-HD50SS
• 1 x 5V DC locking universal power supply
• 1 x User Manual

AT-HD50RSL

• 1 x AT-HD50RSL
• 1 x 5V DC locking universal power supply
• 1 x User Manual

AT-HDRS

• 1 x AT-HDRS
• 1 x 5V DC locking universal power supply
• 1 x User Manual

AT-HD15SRS

• 1 x AT-HD15SRS
• 1 x User Manual

Features

• Multiple HDMI extender options. AT-HDRS, AT-HD50RSL with the transmitter AT-HD50SS extend up to 130ft at 1080p over a single CAT5e/6/7 cable.
• AT-HD50RSL's unique CAT5e/6 loop out feature allows an HDMI source to be split to up to 10 HDMI/DVI displays.
  • Supports 3D pass through
  • Digital and Analog audio supported
  • Dolby TrueHD and DTS-HD Master Audio supported on pass through.
• HDCP compliant

Specifications

Bandwidth Frequency	6.75 Gbps
Resolutions Video: up to 1080p
	Vesa: up to 1600x1200
Temperature Operational: 32°F to 104°F or 0°C to 40°C
	Storage: -4°F to 140°F or -20°C to 60°C
	AT-HD50SS AT-HD50RSL AT-HDRS AT-HD15SRS
Inputs 1 x HDMI 1 x RJ45 1 x RJ45 1 x RJ45
Outputs	1 x HDMI1 x RJ451 x 3.5mm audio	1 x HDMI1 x RJ451 x 3.5mm audio	1 x HDMI 1 x HDMI
Dimensions - Inch 1.1 x 7 x 4.3 1.1 x 7 x		4.3 1 x 3.3 x 3.5 0.8 x 1 x 1.8
(H x W x D) MM 27 x	180 x 108 27 x 180 x 108 25 x 85 x 90 20 x 25 x 45
Weight - Ounces	17.6	17.6	6.2 .8
Weight - Grams	515	515	175 22
Power Consumption	1W	1W	1W	0.5W

CAT5e/6 Cable

For the CAT5e/6 cables used in these products' set up, please be sure to use a 568B termination as pictured below.

1. White - Orange
2. Orange
3. White - Green
4. Blue
5. White - Blue
6. Green
7. White - Brown
8. Brown

Panel Description

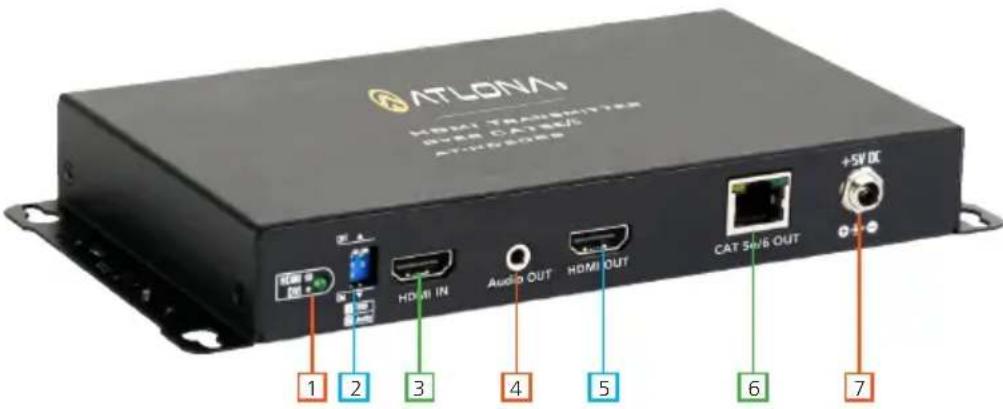

AT-HD50SS

1. Signal LED: Green LED will light up when receiving an HDMI signal. The light will be off when receiving a DVI signal.

2. DIP Switch: Determines resolution and audio. See table below.

3. HDMI IN: HDMI/DVI source connects here. (a DVI to HDMI adapter will be needed to use a DVI source)

4. Audio OUT: Connect a 3.5mm cable to an analog audio device (AVR/Amp).

5. HDMI OUT: Loop out for in zone HDTV.

6. CAT5e/6 OUT: Use to connect to either AT-HD50RSL, AT-HD14SS, AT-HD19SS, AT-HDRS, or AT-HD15SRS. If connected to the AT-HD50RSL, AT-HD14SS, or AT-HD19SS cascading is possible.

7. 5V DC: Connect to the included power supply.

Dip Switch Position		Video Audio Description
Pin 1 Pin	2
Off ↑	Off ↑	1080p Multi-channel		Preset 1: Sets EDID to 1080p with multi-channel audio (including Dolby TrueHD and DTS-HD Master Audio)
Off ↑	On ↓	1080p 2 Channel		Preset 2: Sets EDID to 1080p with 2Ch audio (will work with most HDTVs)
On ↓	Off ↑	720p/1080i	2 Channel	Preset 3: Sets EDID to 720p/1080i with 2Ch audio for older HDTVs or sources that do not have 1080p
On ↓	On ↓	Learn Learn		EDID Learn: Learns the EDID of the connected display, or in the case of an AVR it will learn the audio of the AVR and pass through resolution of the HDTV.

AT-HD50RSL

1. Signal LED: Green LED will light up when receiving an HDMI signal. The light will be off when receiving a DVI signal.

2. Signal optimizer: Change the level of the equalization for the received CAT5e/6/7 signal. Adjust until the video is optimized on the display.

0 to 7 (longest to shortest distance) adjusts picture and audio when receiving digital audio.

8 to F (longest to shortest distance) adjusts picture and audio when receiving stereo audio.

1. CAT5e/6 IN: Receive HDMI/DVI source signal from AT-HD50SS, AT-HD14SS, AT-HD19SS, or AT-HD50RSL.

2. Audio OUT: Connect the 3.5mm cable to any analog audio device (AVR/Amp).

3. HDMI OUT: Loop out HDMI for in zone HDTV.

4. CAT5e/6 OUT: Connect to an AT-HD14SS, AT-HD19SS, AT-HD50SS, or another AT-HD50RSL for cascading or an AT-HDRS or AT-HD15SRS for connection to an HDTV.

5. 5V DC: Connect to the included power supply.

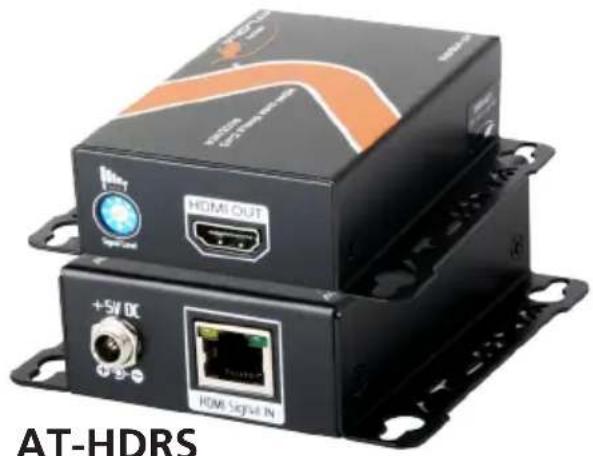

AT-HDRS

1. Signal adjuster: Change the level of the equalization for the received CAT5e/6 signal. Adjust until the video is correct on the display.

0 to 7 (longest to shortest distance) adjusts picture and audio when receiving digital audio.

8 to F (longest to shortest distance) adjusts picture and audio when receiving stereo audio.

1. 5V DC: Connect to the included power supply.

2. HDMI OUT: connect to in zone HDTV

3. CAT5e/6/7 IN: Receive HDMI/DVI source signal from AT-HD50SS, AT-HD14SS, AT-HD19SS, or AT-HD50RSL.

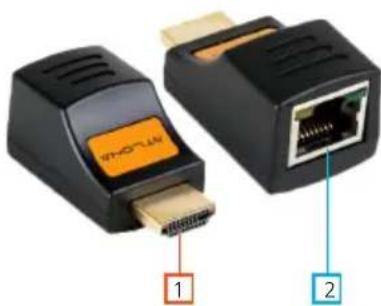

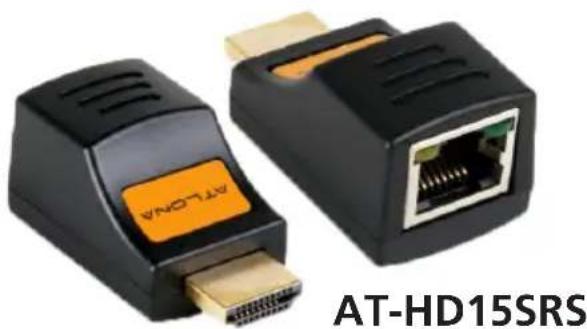

AT-HD15SRS

Two black USB connectors with labeled ports, one showing a port and the other a network interface (no text or symbols on the devices themselves)

1. HDMI OUT: Connect to in zone HDTV
2. CAT5e/6 IN: Receive HDMI/DVI source signal from AT-HD50SS, AT-HD14SS, AT-HD19SS, or AT-HD50RSL.

Connection

Safety Information

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket.

Do not modify the wall plug. Doing so will void the warranty and safety features.

This equipment should be installed near the socket outlet and the device should be easily accessible in the case it requires disconnection.

Precautions

FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.

In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.

Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols. Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.

Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-HD50SS, AT-HD50RSL, AT-HDRS, or AT-HD15SRS. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

Warranty

Limited Warranty

Atlona Technologies warrants that (a) its products (AT-HD50SS, AT-HD50RSL, AT-HDRS, or AT-HD15SRS) will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the product will be free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to customers that fall within those areas.

Customer Remedies

Atlona Technologies' and its suppliers' entire liability and Customer's exclusive remedy shall be, at Atlona Technologies' decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer's receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. In example but not limited to: power surges (electrical storms, local power outage), dropping the product (or items on the product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement product will be warranted for the remainder of the original warranty period.

No other warranties

To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers disclaim all other warranties, either expressed or implied, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose, with regard to the product and any related written materials. This Limited Warranty gives customer specific legal rights. Customers may have other rights depending on the jurisdiction.

No liability for damages

To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. Atlona Technologies' and its suppliers' entire liability under any provision of this agreement shall be limited to the amount actually paid by you for the product. Some Jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damage. The above limitations may not apply to you in such jurisdictional cases.

Atlona Product Registration

Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

To register go to: http://www.atlona.com/registration
