C-HDM-140 - Car accessories Havis - Free user manual and instructions

Product Type	Heavy Duty Passenger Side Mount
Brand	Havis
Model	C-HDM-140
Category	Automotive Accessories
Material	Steel and aluminum components
Mounting Type	Seat base mount with offset bracket
Compatibility	Designed for passenger side of vehicles; installation shown on 2010 Ford Focus
Adjustability	Height adjustable via shaft collar; offset bracket for lateral positioning; motion device with 90° or 180° rotation options
Tools Required	Large metric socket set (1/2" drive), small metric and US standard socket set (1/4" drive), 7/8", 1/2", 7/16" wrenches, US standard Allen wrench set, Phillips screwdriver
Included Hardware	Bolts, lock washers, flat washers, nuts, shaft collar, adaptor plate, plastic washers, handle
Optional Accessories	C-HMD-409 Offset Plate, two-piece support collar, L bracket, ChargeGuard Power Management System
Docking Station Compatibility	Accepts Havis docking stations; also compatible with Universal Laptop Mount (UT-X Series or C-3090 Series)
Power Management Option	ChargeGuard (fused, 12V battery)
Weight Capacity	Approximately 20 lbs (9 kg) - typical for heavy duty mount
Dimensions	Overall height adjustable from approximately 10" to 18" (estimate); base dimensions vary
Color	Black powder coat finish (assumed)
Warranty	Refer to Havis warranty policy
Installation Instructions	Included in manual (4 pages, English)
Support	Visit www.Havis.com

Frequently Asked Questions - C-HDM-140 Havis

What is the Havis C-HDM-140?

The Havis C-HDM-140 is a heavy duty passenger side mount for installing equipment such as laptops, docking stations, or monitors in vehicles.

What tools are required for installation?

You will need a large metric socket set (1/2" drive), small metric and US standard socket set (1/4" drive), 7/8", 1/2", and 7/16" wrenches, a US standard Allen wrench set, and a Phillips screwdriver.

Is the C-HDM-140 compatible with my vehicle?

The mount is designed for passenger side installation. It was demonstrated on a 2010 Ford Focus, but may fit many vehicles with a seat base mounting area. Check for obstructions before installing.

How do I install the base of the mount?

Remove plastic caps covering seat bolts, remove OEM seat bolts, and position the HDM base between seat brackets and floor. Align mounting holes and loosely attach using OEM seat bolts or supplied hardware. Tighten once properly positioned.

Can the height of the pole be adjusted?

Yes, the shaft collar can be positioned anywhere on the inner pole to adjust height. Loosen the collar, set desired height, and fully tighten.

What optional accessories are available?

Optional accessories include the C-HMD-409 Offset Plate for centering, a two-piece support collar with L bracket for dash support, and the ChargeGuard Power Management System.

How do I attach a docking station to the mount?

Remove the mounting bracket from the docking station and attach it to the motion device using provided hardware. For laptop mounts, mount directly to the motion device.

Does the mount support the ChargeGuard power system?

Yes, the optional ChargeGuard can be installed. Run power wires to the ChargeGuard and connect to a fused 12V battery. Additional instructions are inside the ChargeGuard box.

How do I dock a computer into the Havis docking station?

First open the docking connector door on the bottom of the computer. Load the front into the hooks, gently lower the back into the connector, then turn the docking latch to DOCK position and lock with the supplied key.

Where can I find more information or support?

Visit www.Havis.com for additional mounting and computing accessories, or refer to the user manual included with the product.

USER MANUAL C-HDM-140 Havis

Havis Heavy Duty Passenger Side Mounts

General Installation Instructions

Required tools to complete installation.

• Large Metric Socket Set (1/2" drive)
- Small Metric and US Standard Socket Set (1/4" drive)
- 7/8" Wrench
• 1/2" Wrench
- 7/16" Wrench
• US Standard Allen Wrench Set
• Phillips head Screwdriver

Interior view of a vehicle's seat and dashboard assembly (no visible text or symbols)

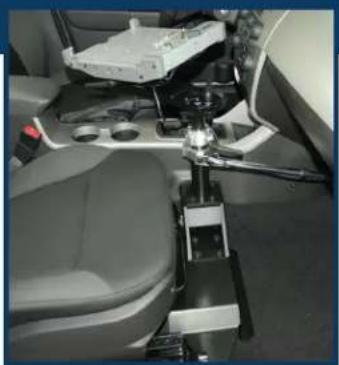

Complete assembly in vehicle (2010 Ford Focus)

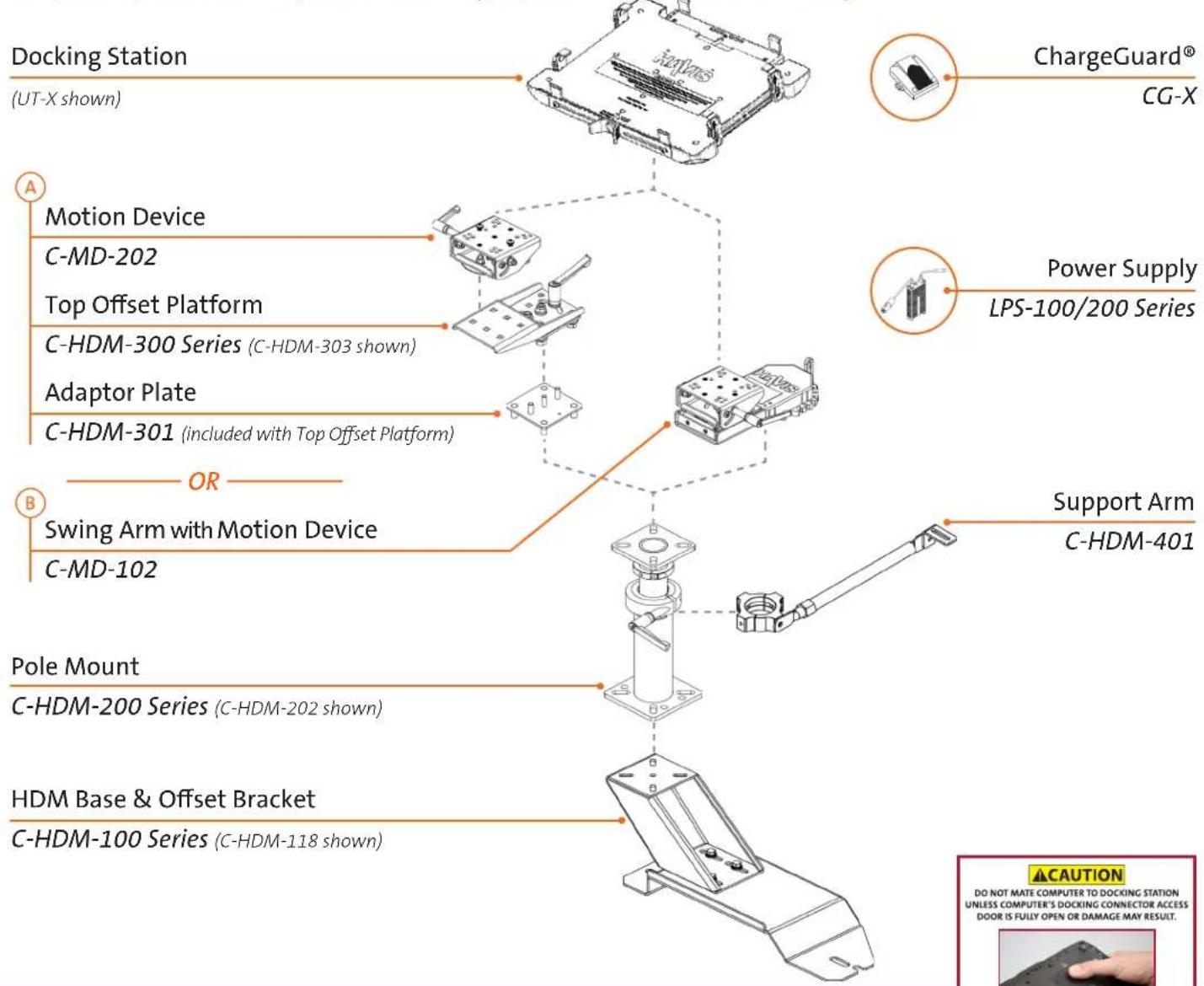

Required parts to complete assembly Optional parts for assembly

For installation of Havis products, ALWAYS...

• Read all instructions before installing any Havis, Inc. Products.
• Check for obstructions (wire, brake lines, fuel tank, etc.)
• Use hardware provided with install kit

Close-up of hands installing a black electronic component with a red arrow indicating the pin (no text or symbols visible)

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

1

Close-up of a hand using a tool to adjust or install a mechanical component, with inset showing close-up details (no visible text or symbols)

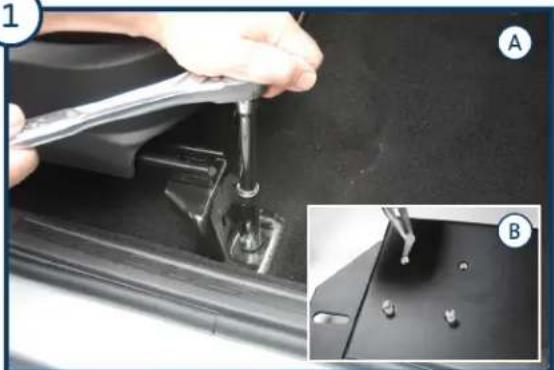

A) Remove the plastic caps that cover the seat bolts. Remove the OEM seat bolts, seat nuts and seat studs, making sure to keep the seat bolts for HDM Base installation (Step 3).
B) Remove all rubber thread protectors from the mounting holes on the HDM Base.

3

Close-up of hands using a wrench to adjust the internal components of a car intake manifold (no visible text or symbols)

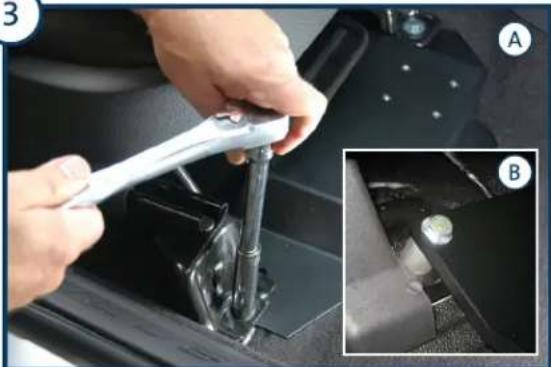

Align the HDM Base mounting holes to seat bolt locations and loosely attach the seat bolts. Use caution to avoid stripping the threads. Fully tighten the bolts once HDM Base is properly in place.

NOTE: Some HDM Bases mount under the vehicle seat bracket and reuse OEM seat bolts (A), while other HDM Bases mount over the top of vehicle seat bracket and use provided spacers and bolts (B).

5

Close-up of a hand using a wrench to adjust a mechanical component (no visible text or symbols)

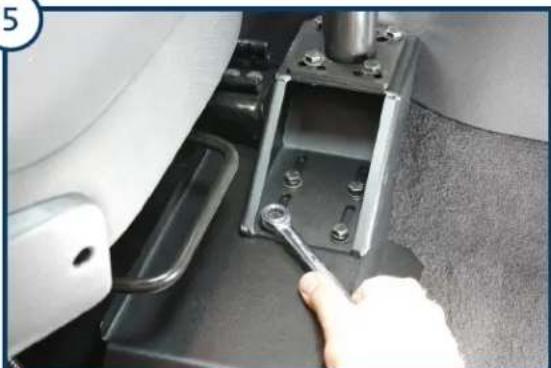

Attach the assembled Offset Bracket and Pole to the HDM Base inside the vehicle, using supplied 5/16" x 3/4" hex bolts, lock washers, and flat washers. Make sure to adjust Offset Bracket to desired position before all hardware is fully tightened.

NOTE: If your application needs to be closer to center of vehicle, see optional C-HMD-409 Offset Plate.

2

Close-up of a car seatbelt with a hand adjusting the compartment (no visible text or symbols)

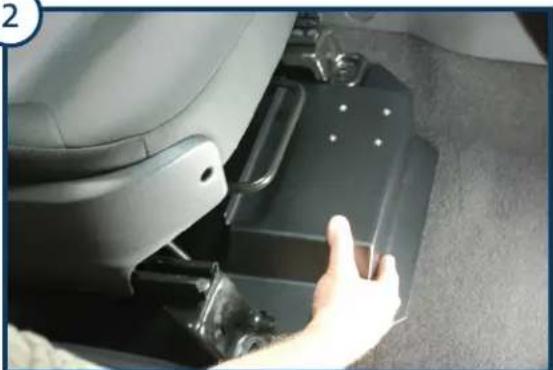

Lift the seat to place the HDM Base between the seat brackets and the floor.

NOTE: Loosening rear seat bolts may be required for ease of installation.

4

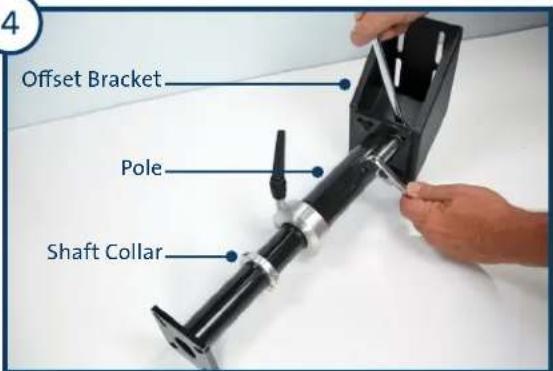

On the workbench, assemble the Offset Bracket and Pole using supplied 5/16" x 1" hex bolts, lock washers, and nuts (x4). Make sure all hardware is fully tightened. Attach the shaft collar anywhere on the inner pole, making sure to leave the shaft collar loose in order to adjust Pole height once installed in vehicle (Step 12).

6

Two-panel image showing a hand holding a tool next to a mechanical device, and a close-up of a mechanical assembly with no visible text or symbols.

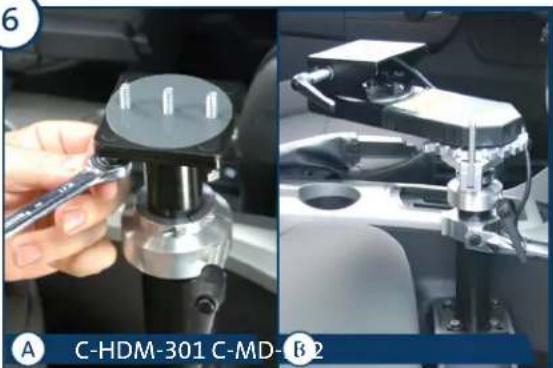

A) Align the Adaptor Plate mounting studs to the top of the inner pole, then attach using the supplied 5/16" lock washers, flat washers, and nuts. Place the large plastic washer on top of Adaptor Plate.

B) Align Swing Arm with Motion Device mounting holes to the top of the inner pole, then attach using 1/4" lock washers, flat washers, and bolts.

NOTE: Make sure all hardware is fully tightened.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

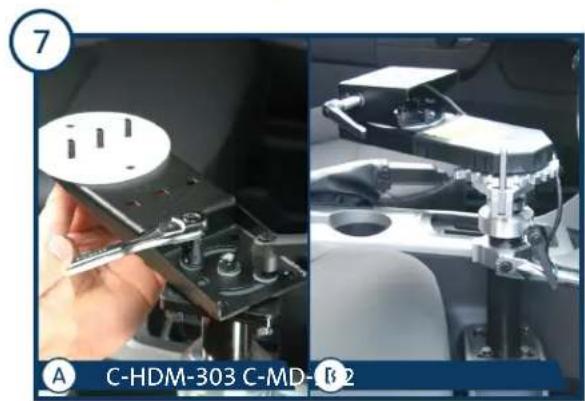

A) Install the Top Offset with the supplied hardware and handle. Tighten the hardware to allow minimal motion. Place the large plastic washer on the Top Offset. B) No adjustment required, please proceed to Step 8.

Two-panel image showing a hand operating a mechanical clamp device, with no visible text or symbols.

A) Connect the Motion Device assembly to the Top Offset. Tighten the hardware to allow minimal motion. NOTE: Motion Device has two (2) sets of holes. 3-bolt pattern allows for 90 rotation. 2-bolt pattern allows for 180 rotation. B) Motion Device is already connected, please proceed to step 10.

Close-up of a hand using a tool to adjust or install an electronic device component (no visible text or symbols)

Attach the Docking Station to the mounting bracket.

Close-up of a hand using a tool to adjust or install a metal bracket component (no visible text or symbols)

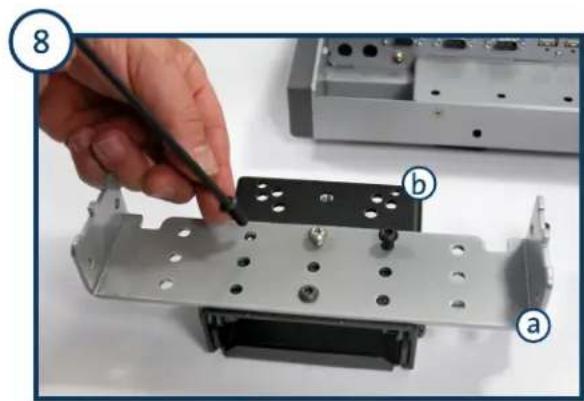

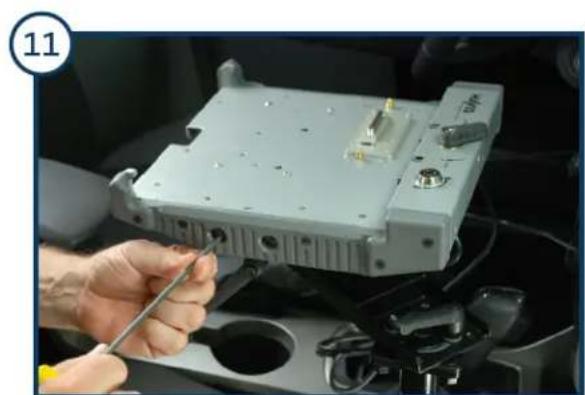

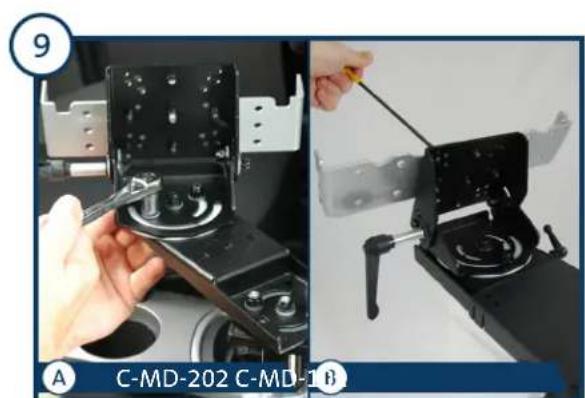

Remove mounting bracket (a) from the bottom of the Docking Station and attach to the Motion Device (b). NOTE: If attaching a Universal Laptop Mount (UT-X Series or C-3090 Series), mount directly to the Motion Device.

Interior view of an electronic device showing a drive bay with cables and connectors (no visible text or symbols)

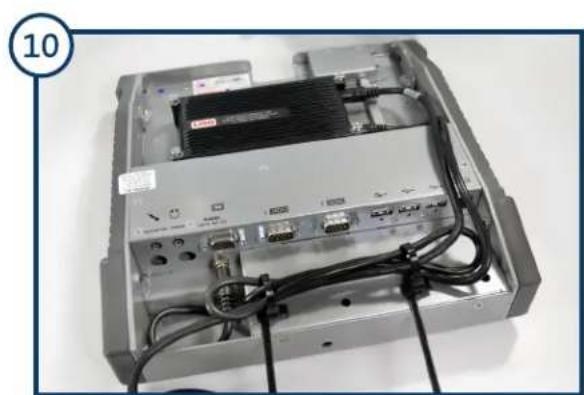

Attach the Power Supply to the designated mounting location on the Docking Station.

Close-up of a person adjusting a mechanical device inside a car (no visible text or symbols)

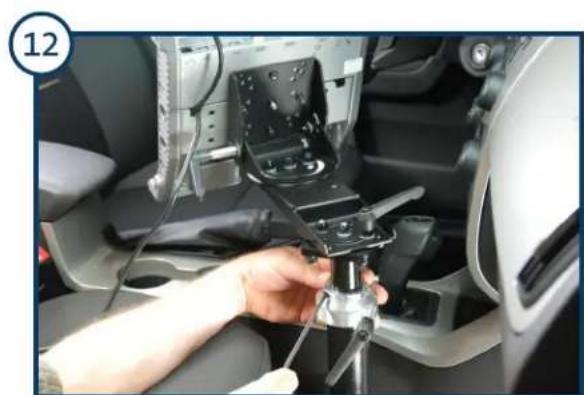

Adjust the shaft collar to desired height and fully tighten.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

Close-up of a mechanical assembly with metallic components and a numbered label (13) in the corner, no readable text or symbols on the main subject.

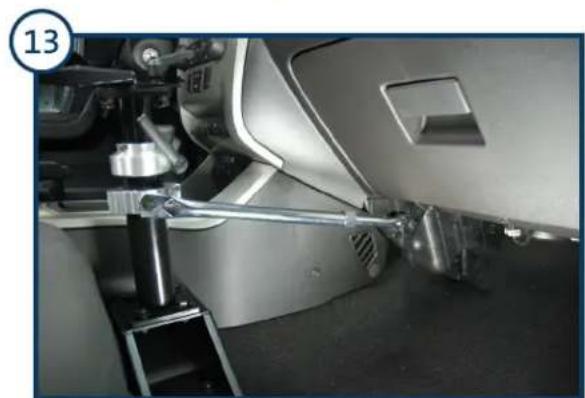

To attach the optional two-piece support collar to the Pole, attach the side support arm to the two-piece support collar. Attach the side support arm to the underside of the dash with the supplied L bracket. Make sure all hardware is fully tightened.

Close-up of a hand pressing a small electronic device on a black surface, with no visible text or symbols.

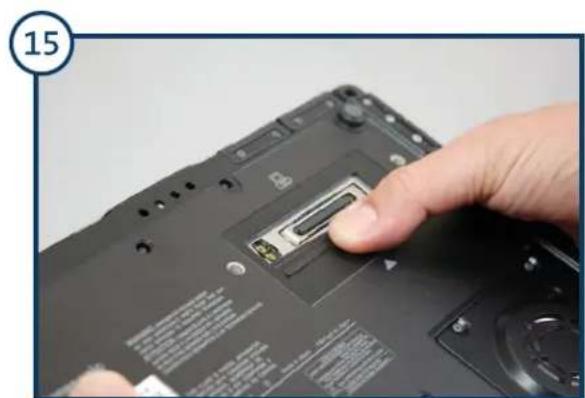

Congratulations, the installation is complete. To properly dock your computer into the Havis Docking Station, you must first open the docking connector door on the bottom of your computer or damages may occur.

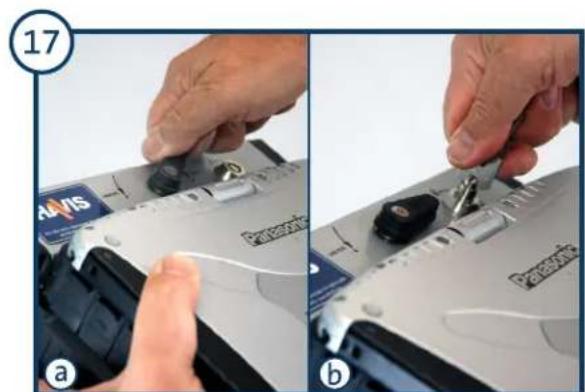

a) With the computer seated, turn the docking latch to the DOCK position. b) Secure by locking the barrel lock with the supplied key.

Close-up of a yellow automotive electrical contactor with black wiring and red connectors, mounted on a perforated metal surface (no visible text or symbols)

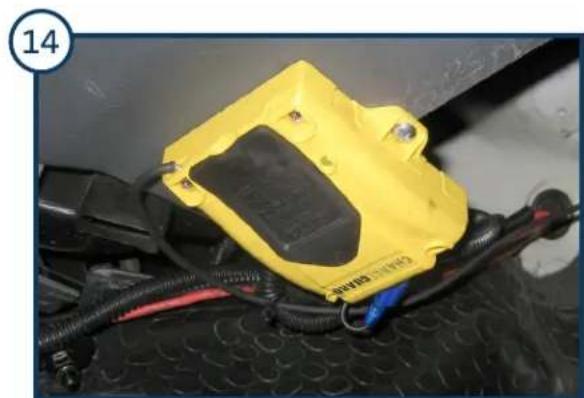

If you are installing the optional ChargeGuard® Power Management System, run power wires to the ChargeGuard and connect to the fused, 12 volt battery. (Additional instructions inside the ChargeGuard box.)

Two-step photo showing hands installing a device component from a battery pack, labeled (a) and (b), with no visible text or symbols.

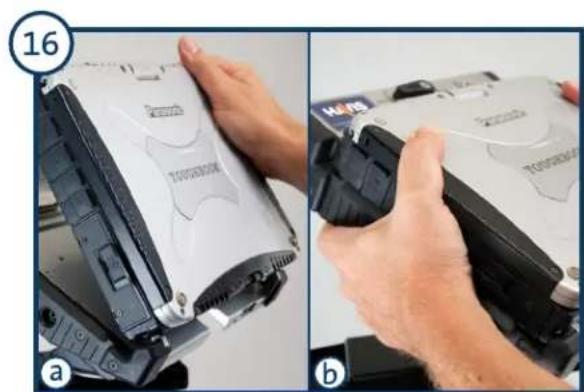

a) Load the front of the computer into the front hooks of the Docking Station. b) Gently lower the back of the laptop down into the docking connector.

Interior view of a car with hands using a laptop on the steering wheel (no visible text or symbols)

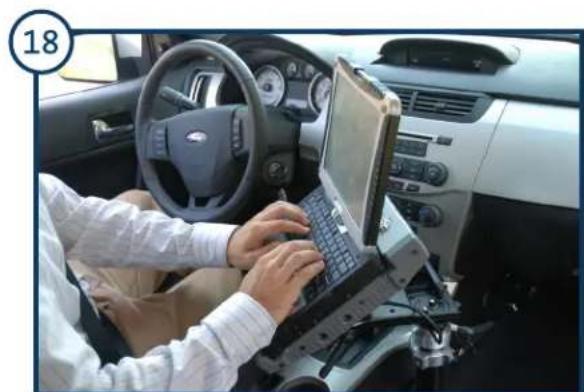

You have successfully and safely docked your computer. Please visit www.Havis.com for more mounting and computing accessories.
