Product Type	Heavy Duty Passenger Side Mount
Brand	Havis
Model	C-HDM-406
Compatible Vehicles	Designed for vehicles with passenger side seat (e.g., 2010 Ford Focus)
Main Components	HDM Base, Offset Bracket, Inner Pole, Adaptor Plate, Swing Arm, Motion Device, Top Offset, Docking Station
Tools Required	Large metric socket set (1/2" drive), small metric and US standard socket set (1/4" drive), 7/8" wrench, 1/2" wrench, 7/16" wrench, US standard Allen wrench set, Phillips head screwdriver
Mounting Location	Passenger side floor, between seat bracket and floor
Power Supply	Docking Station with optional ChargeGuard Power Management System (12V battery connection)
Optional Accessories	C-HMD-409 Offset Plate (closer to center), two-piece support collar and side support arm, Universal Laptop Mount (UT-X or C-3090 series), ChargeGuard system
Security	Barrel lock with key for docking station; push-to-lock/lock-to-dock barrel lock operation
Installation Type	Permanent mount using existing seat bolts (OEM or provided spacers and bolts)
Adjustability	Height adjustable via shaft collar; offset bracket for lateral positioning; motion device allows 90° (3-bolt) or 180° (2-bolt) rotation
Materials	Metal brackets and hardware, plastic washers provided
Documentation Included	Product manual (PDF, 4 pages, EN)
Docking Compatibility	Designed for laptop docking station; front hooks and rear docking connector
Maintenance	Periodic check of hardware tightness; clean with damp cloth

Frequently Asked Questions - C-HDM-406 Havis

What tools are required for installation of the Havis C-HDM-406?

You will need a large metric socket set (1/2" drive), a small metric and US standard socket set (1/4" drive), a 7/8" wrench, a 1/2" wrench, a 7/16" wrench, a US standard Allen wrench set, and a Phillips head screwdriver.

Which vehicles are compatible with the C-HDM-406?

The C-HDM-406 is designed for passenger side mounting in vehicles with a seat bracket configuration similar to the 2010 Ford Focus. It may fit many other vehicles; always check for obstructions before installation.

Can I adjust the height of the mount?

Yes, the height is adjustable using the shaft collar that can be placed anywhere on the inner pole. Tighten the collar once the desired height is achieved.

How do I attach the docking station to the mount?

First, remove the mounting bracket from the bottom of the docking station and attach it to the Motion Device using the supplied hardware. Then seat the docking station onto the bracket and secure it.

What optional accessories are available?

Optional accessories include the C-HMD-409 Offset Plate to move the mount closer to center, a two-piece support collar with side support arm for extra stability, and the ChargeGuard Power Management System for safe power management.

Is the mount secure against theft?

Yes, the docking station features a barrel lock with a key. Turn the docking latch to the DOCK position and lock the barrel lock to secure your device.

Do I need to remove the vehicle seat for installation?

You do not need to fully remove the seat, but you must lift it to place the HDM Base between the seat brackets and the floor. Loosening rear seat bolts may help.

How do I route power cables for the docking station?

Attach the Power Supply to the designated location on the Docking Station. If using the optional ChargeGuard, run power wires from the battery (fused 12V) to the ChargeGuard unit following the separate instructions.

Can I use a universal laptop mount instead of the docking station?

Yes, if you are using a Universal Laptop Mount from Havis (UT-X Series or C-3090 Series), mount it directly to the Motion Device instead of the docking station bracket.

What should I check before starting installation?

Always read all instructions beforehand. Check for any obstructions such as wires, brake lines, or fuel tanks. Use only the hardware provided with the install kit.

USER MANUAL C-HDM-406 Havis

Havis Heavy Duty Passenger Side Mounts

General Installation Instructions

Required tools to complete installation.

• Large Metric Socket Set (1/2" drive)
- Small Metric and US Standard Socket Set (1/4" drive)
- 7/8" Wrench
• 1/2" Wrench
- 7/16" Wrench
• US Standard Allen Wrench Set
• Phillips head Screwdriver

Interior view of a vehicle's seat and dashboard assembly (no visible text or symbols)

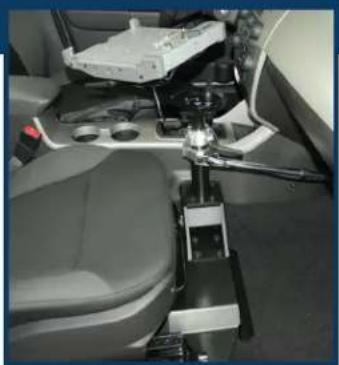

Complete assembly in vehicle (2010 Ford Focus)

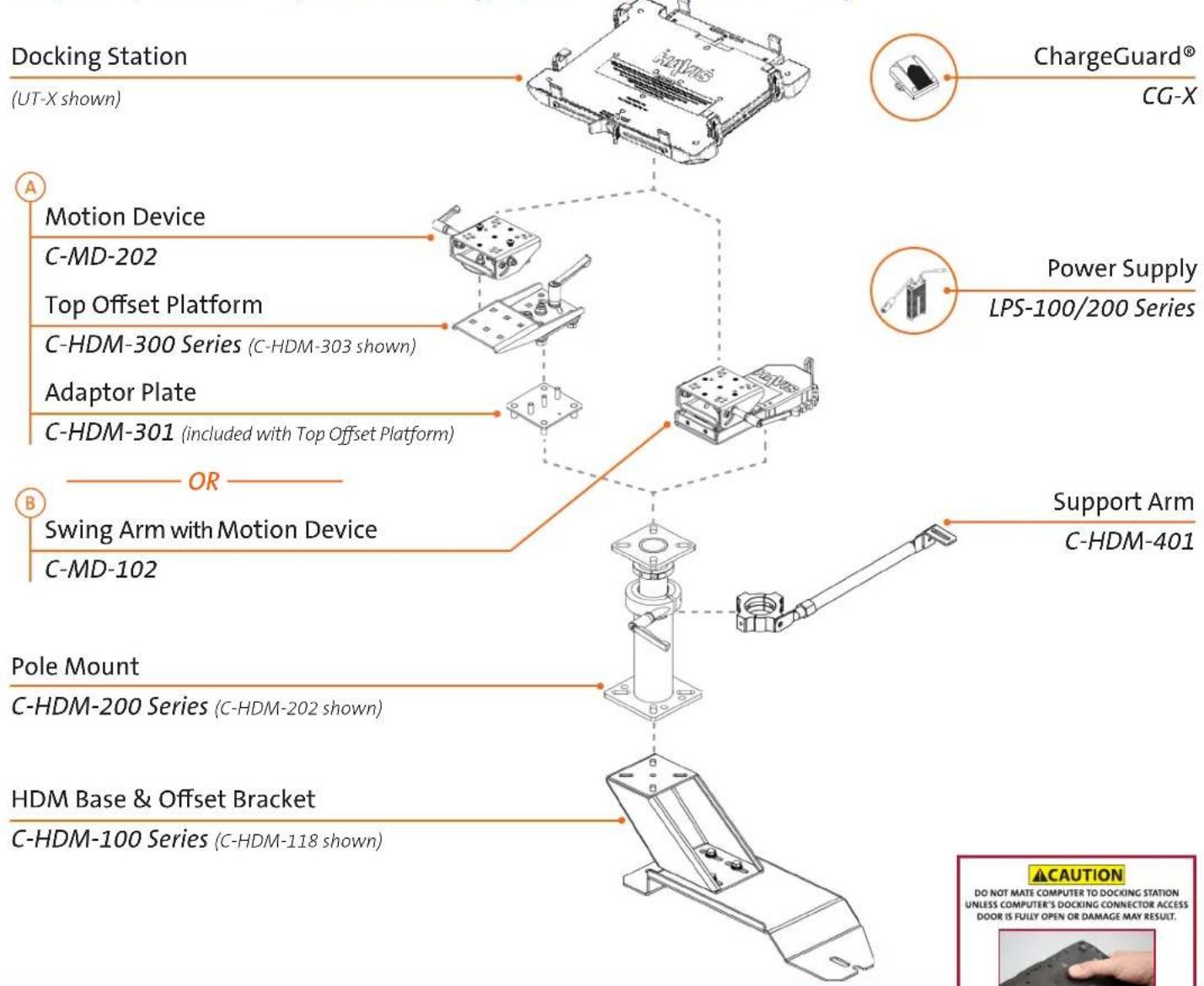

Required parts to complete assembly Optional parts for assembly

For installation of Havis products, ALWAYS...

• Read all instructions before installing any Havis, Inc. Products.
• Check for obstructions (wire, brake lines, fuel tank, etc.)
• Use hardware provided with install kit

Close-up of hands installing a black electronic component with a red arrow indicating the pin (no text or symbols visible)

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

1

Close-up of a hand using a tool to adjust or install a mechanical component, with inset showing close-up details (no visible text or symbols)

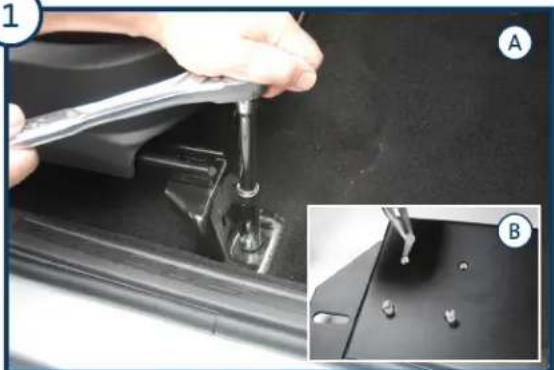

A) Remove the plastic caps that cover the seat bolts. Remove the OEM seat bolts, seat nuts and seat studs, making sure to keep the seat bolts for HDM Base installation (Step 3).
B) Remove all rubber thread protectors from the mounting holes on the HDM Base.

3

Close-up of hands using a wrench to adjust the internal components of a car intake manifold (no visible text or symbols)

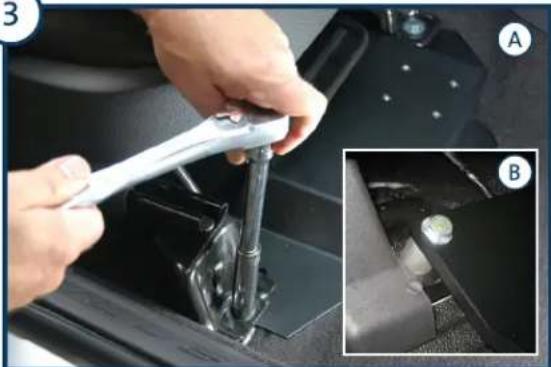

Align the HDM Base mounting holes to seat bolt locations and loosely attach the seat bolts. Use caution to avoid stripping the threads. Fully tighten the bolts once HDM Base is properly in place.

NOTE: Some HDM Bases mount under the vehicle seat bracket and reuse OEM seat bolts (A), while other HDM Bases mount over the top of vehicle seat bracket and use provided spacers and bolts (B).

5

Close-up of a hand using a wrench to adjust a mechanical component (no visible text or symbols)

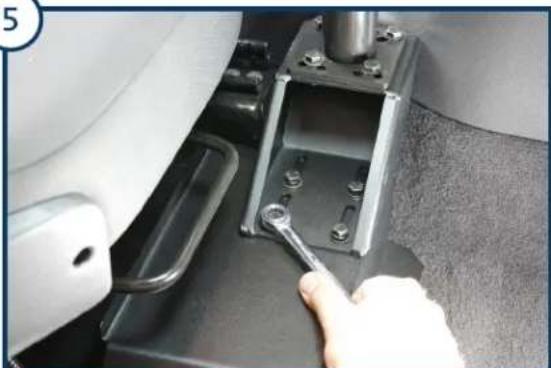

Attach the assembled Offset Bracket and Pole to the HDM Base inside the vehicle, using supplied 5/16" x 3/4" hex bolts, lock washers, and flat washers. Make sure to adjust Offset Bracket to desired position before all hardware is fully tightened.

NOTE: If your application needs to be closer to center of vehicle, see optional C-HMD-409 Offset Plate.

2

Close-up of a car seatbelt with a hand adjusting the compartment (no visible text or symbols)

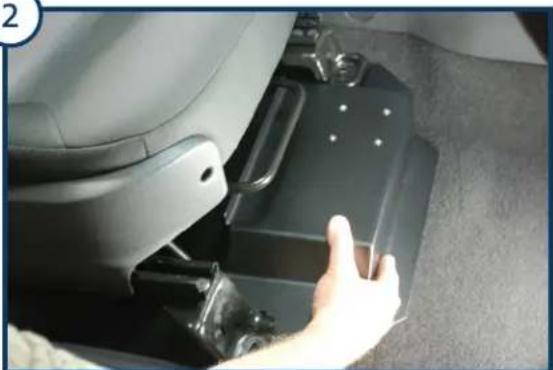

Lift the seat to place the HDM Base between the seat brackets and the floor.

NOTE: Loosening rear seat bolts may be required for ease of installation.

4

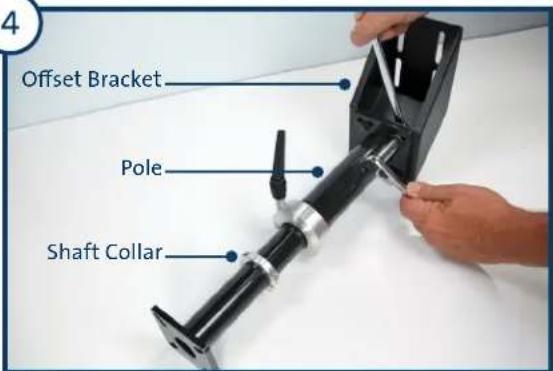

On the workbench, assemble the Offset Bracket and Pole using supplied 5/16" x 1" hex bolts, lock washers, and nuts (x4). Make sure all hardware is fully tightened. Attach the shaft collar anywhere on the inner pole, making sure to leave the shaft collar loose in order to adjust Pole height once installed in vehicle (Step 12).

6

Two-panel image showing a hand holding a tool next to a mechanical device, and a close-up of a mechanical assembly with no visible text or symbols.

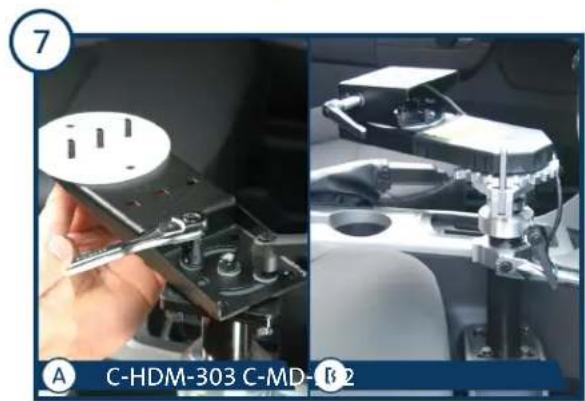

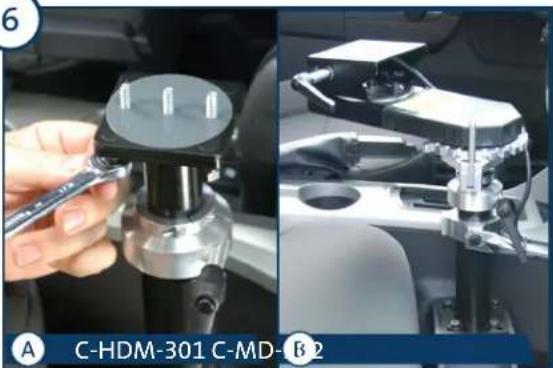

A) Align the Adaptor Plate mounting studs to the top of the inner pole, then attach using the supplied 5/16" lock washers, flat washers, and nuts. Place the large plastic washer on top of Adaptor Plate.

B) Align Swing Arm with Motion Device mounting holes to the top of the inner pole, then attach using 1/4" lock washers, flat washers, and bolts.

NOTE: Make sure all hardware is fully tightened.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

A) Install the Top Offset with the supplied hardware and handle. Tighten the hardware to allow minimal motion. Place the large plastic washer on the Top Offset. B) No adjustment required, please proceed to Step 8.

Two-panel image showing a hand operating a mechanical clamp device, with no visible text or symbols.

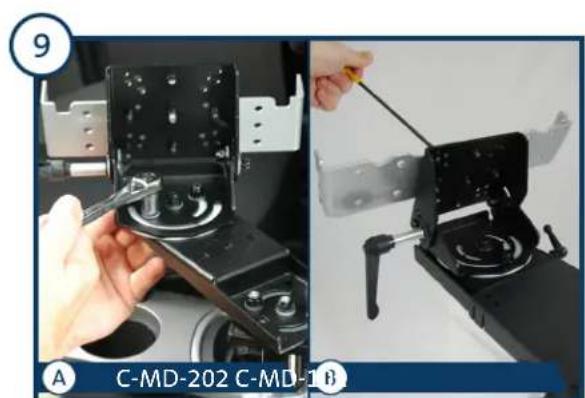

A) Connect the Motion Device assembly to the Top Offset. Tighten the hardware to allow minimal motion. NOTE: Motion Device has two (2) sets of holes. 3-bolt pattern allows for 90 rotation. 2-bolt pattern allows for 180 rotation. B) Motion Device is already connected, please proceed to step 10.

Close-up of a hand using a tool to adjust or install an electronic device component (no visible text or symbols)

Attach the Docking Station to the mounting bracket.

Close-up of a hand using a tool to adjust or install a metal bracket component, labeled with parts a and b (no text or symbols on the object itself)

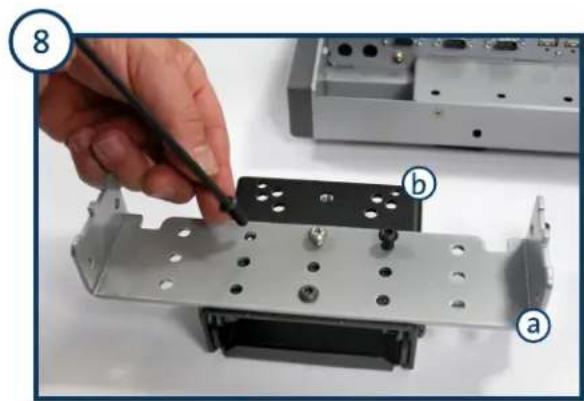

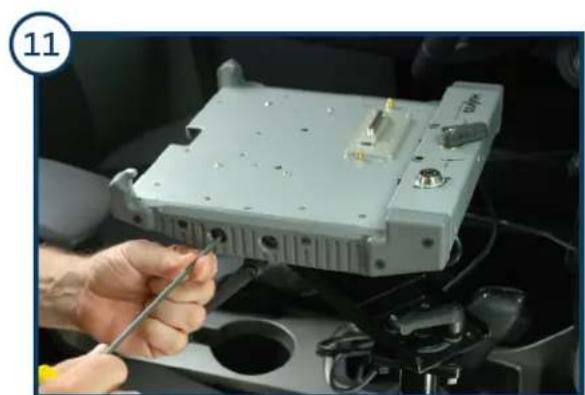

Remove mounting bracket (a) from the bottom of the Docking Station and attach to the Motion Device (b). NOTE: If attaching a Universal Laptop Mount (UT-X Series or C-3090 Series), mount directly to the Motion Device.

Interior view of an electronic device showing a drive bay with cables and connectors (no visible text or symbols)

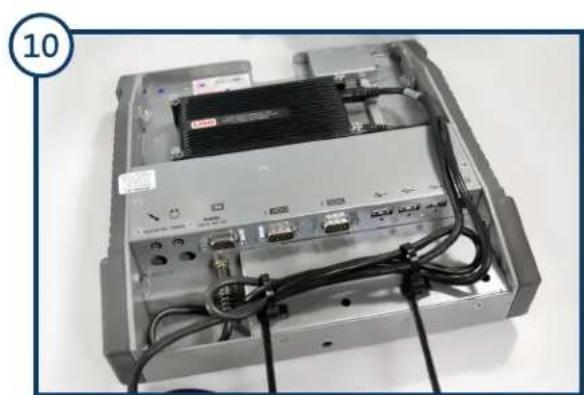

Attach the Power Supply to the designated mounting location on the Docking Station.

Close-up of a person adjusting a mechanical device inside a car (no visible text or symbols)

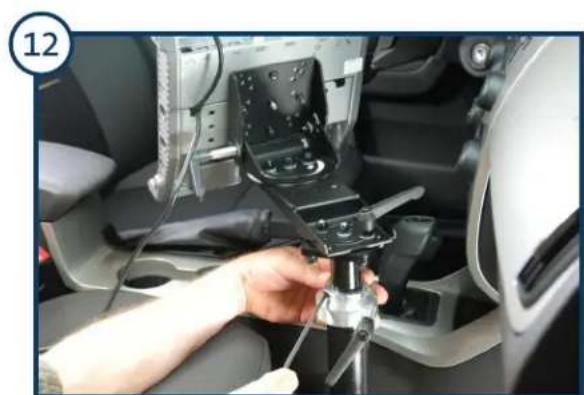

Adjust the shaft collar to desired height and fully tighten.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

Close-up of a mechanical assembly with metallic components and a numbered label (13) in the corner, no readable text or symbols on the main subject.

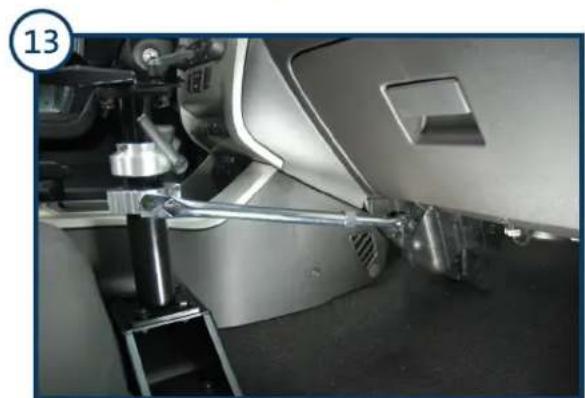

To attach the optional two-piece support collar to the Pole, attach the side support arm to the two-piece support collar. Attach the side support arm to the underside of the dash with the supplied L bracket. Make sure all hardware is fully tightened.

Close-up of a hand pressing a small electronic device on a black surface, with no visible text or symbols.

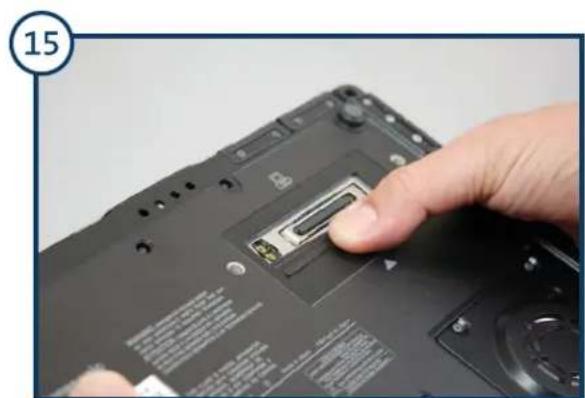

Congratulations, the installation is complete. To properly dock your computer into the Havis Docking Station, you must first open the docking connector door on the bottom of your computer or damages may occur.

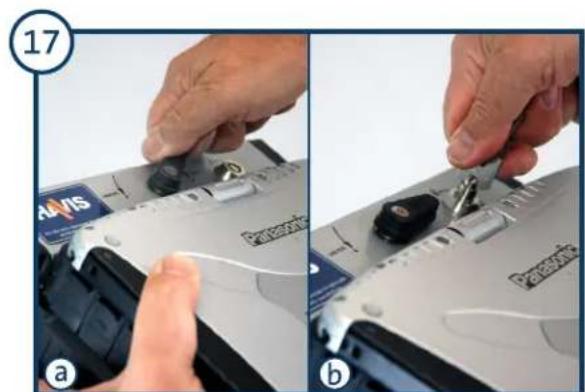

a) With the computer seated, turn the docking latch to the DOCK position. b) Secure by locking the barrel lock with the supplied key.

Close-up of a yellow automotive electrical contactor with black wiring and red connectors, mounted on a perforated metal surface (no visible text or symbols)

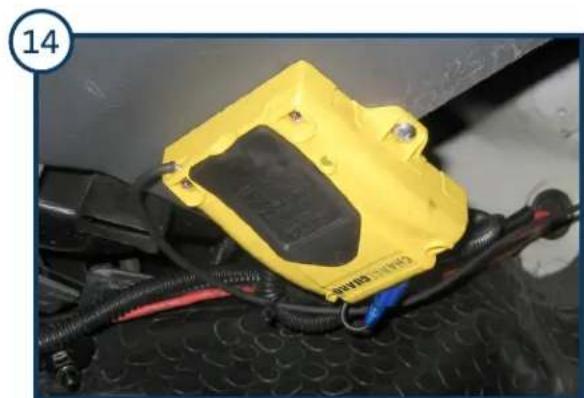

If you are installing the optional ChargeGuard® Power Management System, run power wires to the ChargeGuard and connect to the fused, 12 volt battery. (Additional instructions inside the ChargeGuard box.)

Two-step photo showing hands installing a device component from a battery pack (a) and a device with a label (b), both without visible text or symbols.

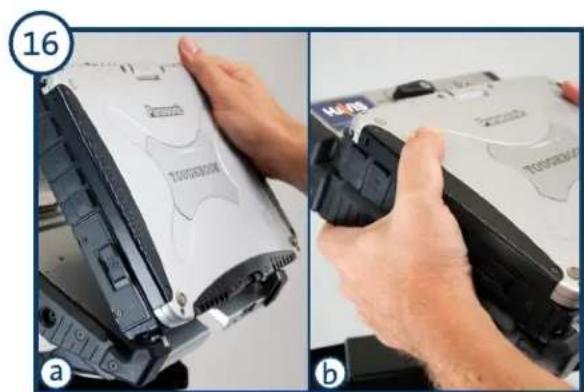

a) Load the front of the computer into the front hooks of the Docking Station. b) Gently lower the back of the laptop down into the docking connector.

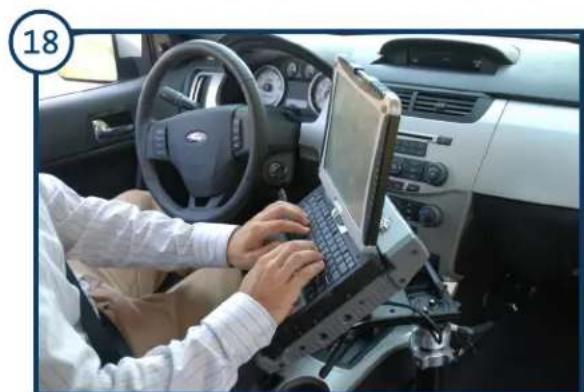

Interior view of a car with hands using a laptop on the steering wheel (no visible text or symbols)

You have successfully and safely docked your computer. Please visit www.Havis.com for more mounting and computing accessories.
