Product Type	Digital Audio Converter/Adapter
Brand	StarTech.com
Model	SPDIFCOAXTOS
Input Connector(s)	1x TOSLINK Optical (Female), 1x RCA Coaxial (Female)
Output Connector(s)	1x TOSLINK Optical (Female), 1x RCA Coaxial (Female)
Conversion Direction	Bi-directional (Optical to Coaxial or Coaxial to Optical)
Supported Audio Formats	PCM 2.0, Dolby Digital 5.1, DTS 5.1 (up to 24-bit/96 kHz)
Dimensions (W x D x H)	Approximately 2.0 x 1.5 x 0.6 in (50 x 38 x 15 mm)
Weight	Approximately 0.8 oz (23 g)
Power Supply	Not required (passive device)
Housing Material	Aluminum with plastic inserts
LED Indicators	No
Compliance	RoHS, CE, FCC
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Humidity	5% to 90% (non-condensing)
Package Contents	1x SPDIFCOAXTOS converter, 1x user manual
Warranty	2 years from StarTech.com

Frequently Asked Questions - SPDIFCOAXTOS StarTech.com

What is the StarTech.com SPDIFCOAXTOS used for?

The SPDIFCOAXTOS is a bi-directional digital audio converter that allows you to convert between optical (TOSLINK) and coaxial (RCA) digital audio signals. It is ideal for connecting devices with different digital audio interfaces, such as a TV with optical output to a soundbar with coaxial input.

Does the converter require external power?

No, the SPDIFCOAXTOS is a passive device that does not need any external power supply. It draws power from the connected devices via the digital audio signal itself.

What audio formats are supported?

The converter supports PCM 2.0, Dolby Digital 5.1, and DTS 5.1 formats with sample rates up to 96 kHz and bit depths up to 24-bit. It does not support analog audio or high-definition formats like Dolby TrueHD or DTS-HD Master Audio.

Is the conversion direction selectable?

Yes, the converter is bi-directional. Simply plug your source into the appropriate input (optical or coaxial) and connect the output to the desired output. No switch is required; the device automatically detects the signal path.

Can I use this converter with game consoles like PlayStation or Xbox?

Yes, as long as your console has a digital audio output (optical or coaxial) and your audio system has the corresponding input. For example, you can convert the optical output from a PS4 to coaxial input on an older receiver.

What cables do I need to use the SPDIFCOAXTOS?

You will need an optical (TOSLINK) cable for the optical connection and a coaxial digital audio cable (RCA) for the coaxial connection. The converter does not come with cables.

Will this converter work with ARC (Audio Return Channel) from a TV?

No, this converter is not compatible with ARC. It only handles standard digital audio signals (S/PDIF). For ARC, you need an HDMI ARC converter or an eARC adapter.

Does the converter introduce latency or audio delay?

The SPDIFCOAXTOS is a passive device with no processing chips, so it does not introduce any noticeable latency. However, some devices may have inherent delays due to their own processing.

What is the maximum cable length supported?

The converter itself does not limit cable length, but the S/PDIF standard typically supports optical cable lengths up to 10 meters (33 ft) and coaxial up to 6 meters (20 ft). Longer runs may degrade signal quality.

How do I clean and maintain the converter?

Keep the converter in a dry, dust-free environment. Clean the connectors with a soft, dry cloth occasionally. Do not use liquids or abrasive cleaners. Ensure the device is disconnected before cleaning.

USER MANUAL SPDIFCOAXTOS StarTech.com

Two Way Digital Coax to Toslink Audio Converter Repeater

SPDIFCOAXTOS

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction ....1

Features .... 1

Package Contents....1

Operating Controls and Functions ......2

Input Panel 2

Output Panel....2

Switcher Panel....3

Installation ....3

Specifications ....4

Technical Support ....5

Warranty Information ....5

Introduction

Thank you for purchasing a StarTech.com Two-Way Digital Audio Converter / Repeater. This innovative device allows you to convert and/or extend your Toslink or Digital Coaxial audio input, without sacrificing any signal quality, and offers simplified switching between the Toslink or Digital Coax signal inputs using a built-on mini-switch - ensuring a convenient and top quality audio experience.

Features

• Supports two way audio conversion: Toslink to digital coaxial or vice versa
• Supports amplification of S/PDIF audio signals and extends their transferring distance, through coaxial and/or Toslink cables.
- Input 2 to 5.1 channel audio. Output channels will always be the same as audio input channels
- Compact design saves space
- Easy installation

Package Contents

• 1 x User manual
• 1 x SPDIFCOAXTOS Audio Converter
- 1 x Power Adapter

Operating Controls and Functions

Input Panel

1. Coaxial Input

Connect to the output port of your S/PDIF audio source (e.g. DVD player, amplifier) using Coaxial cable.

2. Toslink Input

Connect to the output port of your S/PDIF audio source, (e.g. DVD player, amplifier) using Toslink cable

Output Panel

1. Toslink Output:

Connect to the input port of your S/PDIF audio equipment such as an amplifier, using Toslink (optical fiber) cable.

2. Coaxial Output:

Connect to the output port of your S/PDIF audio equipment such as an amplifier, using Coaxial cable.

Switcher Panel

1. Input Selection

Use this switch to select which input to use - Toslink or Coaxial.

2. Power

Connect the power supply to the SPDIFCOAXTOS unit and connect the adapter to an electrical outlet.

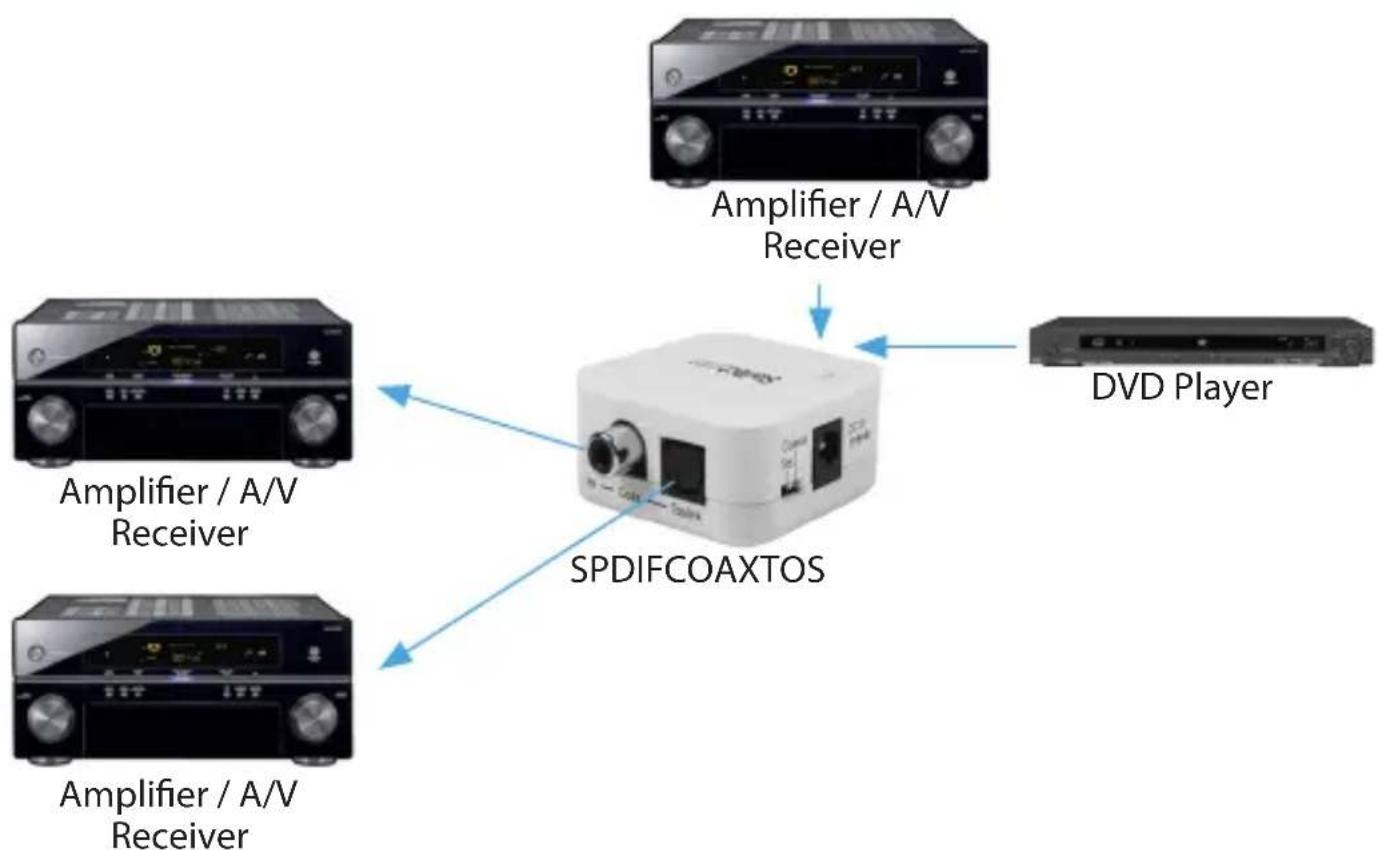

Installation

Specifications

Input 1x Coaxial RCA port, 1x Toslink (Optical Fiber) port

Output 1x Coaxial RCA port, 1x Toslink (Optical Fiber

Power DC 5V

Dimension 42(W) x 40.5(D) x 22(H)mm

Weight 25g (Adapter not included)

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Hard-to-find made easy. At StarTech.com, that isn't a slogan. It's a promise.

StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need to go. Just talk to one of our tech advisors or visit our website. You'll be connected to the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and to access exclusive resources and time-saving tools.
