Product Type	Canister Vacuum Cleaner
Model	H-VC1586
Brand	Hyundai
Dimensions (L x W x H)	380 x 260 x 320 mm
Weight	5.2 kg
Power Supply	220-240 V, 50/60 Hz
Rated Power	1400 W
Dust Capacity	2.5 L
Bagless	Yes (Cyclonic)
Filtration	HEPA washable filter
Noise Level	78 dB
Cord Length	6 m
Accessories Included	Crevice tool, dusting brush, floor nozzle
Material	ABS plastic
Color	Red/Black
Warranty	2 years
Motor Type	Brushless
Suction Control	Electronic slider
Maintenance	Empty dust bin after each use; clean filter monthly
Repairability Index	8.5/10

Frequently Asked Questions - H-VC1586 HYUNDAI

How do I assemble the Hyundai H-VC1586 vacuum cleaner?

Insert the metal tube into the main body until it clicks. Attach the floor nozzle to the tube. For crevice tools, push them directly onto the handle or tube.

How often should I clean the HEPA filter?

Clean the HEPA filter at least once a month. Tap it gently to remove dust. Do not use water unless specified; washable filters should be rinsed and dried completely before reinsertion.

What does the red indicator light mean?

A flashing red light indicates a full dust bin or a clog. Empty the bin and check for blockages in the hose or tube. If the light stays solid, the filter may need cleaning.

How do I replace the HEPA filter?

Open the filter cover, remove the old filter, and insert a new genuine Hyundai filter. Close the cover securely. Replacement filters are available online or at service centers.

Can I use the H-VC1586 on hardwood floors?

Yes, the floor nozzle has adjustable bristles or a soft brush setting suitable for hardwood. Always check the nozzle setting to avoid scratches.

Why is the suction power weak?

Check if the dust bin is full, the filter is clogged, or the hose is blocked. Also ensure the power slider is set to maximum. Clean or unclog as needed.

How do I wind the power cord?

Press the cord rewind button located on the back of the vacuum. Guide the cord lightly with your hand to prevent whipping. Do not force the cord.

Is the vacuum bagless?

Yes, the Hyundai H-VC1586 is a bagless cyclonic vacuum. It uses a transparent dust bin that you empty directly into the trash.

How do I unclog the hose?

Detach the hose from the vacuum. Use a long flexible rod or a coat hanger to push out the blockage. Run water through if necessary, but dry thoroughly before reattaching.

What should I do if the vacuum turns off during use?

The thermal protector may have activated due to overheating. Turn off the vacuum, unplug it, and let it cool for 30 minutes. Check for blockages and ensure the filter is clean before restarting.

USER MANUAL H-VC1586 HYUNDAI

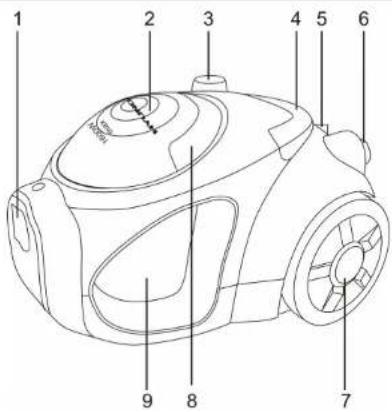

Line drawing of a vacuum cleaner device with no text or symbols

VACUUM CLEANER

Instruction manual

БЫТОВОЙ ПЫЛЕСОС

1. Air inlet
2. Dust bin container cover
3. On/Off button
4. Carrying handle/ Cord rewind button
5. Horizontal parking hook
6. Power cord
7. Wheel
8. Dust bin container handle
9. Dust bin container

Important safeguards

When using this appliance, basic precautions should always be followed:

• Read this instruction manual carefully.
• Use the appliance only for household. Do not use for industrial purposes.

• Before the first connecting of the appliance check that voltage indicated on the rating label corresponds the mains voltage in your home.

- Unplug the appliance from power supply, when not in use and before servicing.

- To reduce the risk of electric shock, do not use outdoors or on wet surfaces.

- To avoid damage of the flexible hose, do not fold or pull it strongly.

- Do not leave the vacuum cleaner, when plugged in.

- Do not allow children use it as a toy.

- Never switch off the appliance by pulling the cord.

• To avoid deforming of the plastic components of the appliance or fire accident, never put the appliance directly in sun shine or near any heater or the like.

- Do not handle plug with wet hands.

- Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, hair and anything that may reduce airflow.

- Use extra care, when cleaning on stairs.

• Do not make attempts to repair the appliance, adjust or replace parts in the vacuum cleaner. When malfunctions happen, contact the authorized service center for examination, repair, electrical or mechanical adjustment.
• Do not let the cord hang over edges or touch hot surfaces.
• Before you start using the vacuum cleaner, please remove large or sharp objects from the floor in order to prevent the damage of the filter or the dust bin.
  CAUTION: Never use the vacuum cleaner without the filters.

Vacuum cleaner assembling

Always remove the plug from the power supply before fitting or removing accessories.

Fitting flexible hose

- Insert the flexible hose into the air inlet (set the two pins into the special holes), press until it clicks into position.

Hose removing

- To remove flexible hose from the vacuum cleaner, push the button on it and pull to remove it from the attachment point.

Fitting telescopic tube and accessories

• Extend the telescopic tube to the desired length by pressing the extension pipe button.

• Insert a flexible hose into a telescopic tube.
  • Fit a nozzle to telescopic tube:

• Universal floor brush is intended for cleaning bare floor and floor coverings;

• Crevice nozzle is for cleaning corners and between cushions
• Furniture/ sofa brush is for cleaning sofa, curtain or dust on the decorating surfaces.

Instruction for use

• Before using the appliance, unwind a sufficient length of cord and insert the plug into the power supply. The yellow mark on the cord shows the ideal cord length. Do not expand the cord beyond the red mark.
• Press the On/Off button to switch the unit on. To stop it press the On/Off button again.
• You can adjust the vacuum cleaner power using the power control on handle.
• decrease power for cleaning curtains, books, furniture, etc.
• increase power for cleaning bare floor.
• To rewind the cord, press the carrying handle (the cord rewind button is under it) and guide the cord with hand to ensure that it does not whip causing damage.

Advantages of your vacuum cleaner

- Your vacuum cleaner is equipped with 5 step filtration system:

- HEPA-filter.

- the motor protection filter established between the dust bag compartment and the engine of a vacuum cleaner.

- the micronic filter, established on the air outlet.

• The 5-step filtration system reliably keeps a up dust inside a vacuum cleaner and provides maximum careful and hygienic tidying up.
• Convenience of operation - the removable plastic dust bin, due to system of the clearing based on vorticose entering air in vacuum cleaner, dust instantly settles in dust bin.

Care and cleaning

• Switch off the appliance and pull out the plug from the power supply.
• Clean the outside of the appliance with a soft cloth with mild detergent. Harsh or abrasive detergent will damage the outside surface.
• Never immerse the appliance or cord into water and other liquids.

Cleaning dust bin container

• Clean dust bin container regularly.
• Switch off the appliance before cleaning dust bin container.
• Remove the flexible hose.
  • Take out the dust bin container and pull out the HEPA-filter.
  • Empty dust bin container.
• For cleaning the filter use brush and water.
• Let the HEPA-filter and the cover dry up completely.
  • Fix the HEPA-filter into the dust bin container.
• Put the container back.

Cleaning the filters

• Please clean the filters at least once a year. If you frequently use the appliance wash the motor filter after 3-5 cleanings of the dust container.
• Switch off the appliance and pull out the plug from the power supply.
• For cleaning the micronic filter, established on the air outlet, take off the rear grill from the unit and pull out the micronic filter.
• Wash the filter with warm water and dry in the sun.
• Put the filters back.

Caution:

• Never use the appliance without filters.
• Do not use a washing machine to rinse filters. Do not use a hair drier to dry them.

Storage

• Holding the handle, rotate the hose around the telescopic tube.
• Insert the telescopic tube into the hole on the body.

Specifications

Power supply 230 V, 50 Hz
Power 1600 W max
Net / Gross weight 6 kg / 7 kg
Suction power 250-300 W
Gift box dimension (L x W x H) 445	mm x 285 mm x 285 mm
