H-VC1583 - Vacuum Cleaner HYUNDAI - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Model	H-VC1583
Brand	Hyundai
Dimensions (L x W x H)	400 x 250 x 300 mm
Weight	4.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1800 W
Dust Capacity	2 L (bagless)
Filtration System	HEPA washable filter
Suction Power	350 Air Watts
Noise Level	78 dB(A)
Cord Length	5 m
Operating Radius	8 m
Attachments	Crevice tool, upholstery brush, combination floor nozzle
Variable Speed	Yes, electronic suction control
Dust Container Emptying	One-press bottom release
Filter Maintenance	Washable HEPA filter; clean every 4-6 weeks
Overheat Protection	Yes, auto shut-off
Wheels	360° swivel casters
Warranty	2 years

Frequently Asked Questions - H-VC1583 HYUNDAI

How do I clean the HEPA filter?

Turn off and unplug the vacuum. Open the dust compartment, remove the HEPA filter, and tap it gently to remove dust. If heavily soiled, wash it under running water and let it dry completely for 24 hours before reinserting. Do not use the vacuum without a dry filter.

What should I do if the suction power drops?

Check if the dust container is full, the filter is clogged, or the hose is blocked. Empty the container, clean the filter, and inspect the hose for obstructions. Also ensure the floor nozzle is not blocked.

How do I empty the dust container?

Press the release button to detach the dust container from the vacuum. Hold it over a trash bin and press the bottom release button to open the lid. Empty thoroughly and close the lid until it clicks.

What accessories are included?

The H-VC1583 comes with a combination floor nozzle, crevice tool, and upholstery brush. These attachments cover most cleaning needs for floors, crevices, and furniture.

Can I use the vacuum without a bag?

Yes, this model is bagless. It uses a transparent dust container that you empty directly. The HEPA filter captures fine particles.

How often should I replace the HEPA filter?

The washable HEPA filter should be replaced approximately every 6 months, or sooner if it appears damaged or you notice reduced suction. Regular washing prolongs its life.

Why does the vacuum suddenly shut off?

The vacuum has overheat protection. If it overheats, it will automatically shut off. Unplug it, let it cool for 30 minutes, and check for blockages before restarting.

Is the vacuum suitable for pet hair?

Yes, the combination floor nozzle and powerful suction can pick up pet hair from carpets and upholstery. Regular filter cleaning is recommended when vacuuming pets.

How do I change the vacuum's power setting?

Use the electronic suction control slider on the handle. Slide it to the desired level: lower for curtains/delicates, higher for carpets.

Where can I get replacement parts?

Replacement filters and accessories can be purchased through Hyundai's official website or authorized dealers. Check your user manual for part numbers.

USER MANUAL H-VC1583 HYUNDAI

Exterior view of a Hyundai 1800 W/NR4X vacuum cleaner (no text or symbols visible on body)

VACUUM CLEANER

Instruction manual

БЫТОВОЙ ПЫЛЕСОС

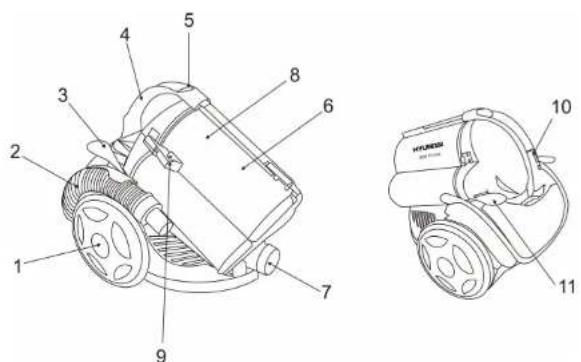

1. Wheel
2. Flexible hose
3. Cord rewind button
4. Carrying handle
5. Container release button
6. Dust bin container
7. Air inlet
8. HEPA filter
9. Container clip
10. Vertical parking hook
11. On/Off button

Important safeguards

When using this appliance, basic precautions should always be followed:
..Read this instruction manual carefully.
..Use the appliance only for household. Do not use for industrial purposes.
• Before the first connecting of the appliance check that voltage indicated on the rating label corresponds the mains voltage in your home.
..Unplug the appliance from power supply, when not in use and before servicing.
..To reduce the risk of electric shock, do not use outdoors or on wet surfaces.
..To avoid damage of the flexible hose, do not fold or pull it strongly.
..Do not leave the vacuum cleaner, when plugged in.
..Do not allow children use it as a toy.
..Never switch off the appliance by pulling the cord.
• To avoid deforming of the plastic components of the appliance or fire accident, never put the appliance directly in sun shine or near any heater or the like.
..Do not handle plug with wet hands.
Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, hair and anything that may reduce airflow.
..Use extra care, when cleaning on stairs.
- Do not make attempts to repair the appliance, adjust or replace parts in the vacuum cleaner. When malfunctions happen, contact the authorized service center for examination, repair, electrical or mechanical adjustment.

..Do not let the cord hang over edges or touch hot surfaces.

• Before you start using the vacuum cleaner, please remove large or sharp objects from the floor in order to prevent the damage of the filter or the dust bin.

CAUTION: Never use the vacuum cleaner without the filters.

Vacuum cleaner assembling

Always remove the plug from the power supply before fitting or removing accessories.

Fitting flexible hose

- Insert the flexible hose into the air inlet and turn it until it clicks into proper position.

Hose removing

To remove flexible hose from the vacuum cleaner, push the buttons, turn the flexible hose then pull to remove it from the attachment point.

Fitting telescopic tube and accessories

- Insert the flexible hose into the plastic adapter and turn it until it clicks into proper position. To remove flexible hose from the plastic adapter, push the buttons, turn the flexible hose then pull to remove it from the attachment point.

..Fit the metal telescopic tube to the plastic adapter.

- Extend the telescopic tube to the desired length by pressing the extension pipe button.

..Fit a nozzle to telescopic tube:

- Turbine brush is intended for cleaning bare floor and floor coverings;

• Furniture nozzle;
• Sofa brush is for cleaning sofa, curtain;
• Crevice nozzle: is intended for cleaning corners and between cushions.

Instruction for use

• Before using the appliance, unwind a sufficient length of cord and insert the plug into the power supply. The yellow mark on the cord shows the ideal cord length. Do not expand the cord beyond the red mark.
• Press the On/Off button to switch the unit on. To stop it press the On/Off button again.
  ..You can adjust the air flow using the air flow regulator on the flexible hose.
  • To rewind the cord, press the rewind button and guide the cord with hand to ensure that it does not whip causing damage.

Advantages of your vacuum cleaner

-Your vacuum cleaner is equipped with 5 step filtration system:

- HEPA-filter

- the filter from the special material, established between the dust bag compartment and the engine of a vacuum cleaner;

- the micronic filter, established on the air outlet.

The 5-step filtration system reliably keeps the dust inside a vacuum cleaner and provides maximum careful and hygienic tidying up.
- Convenience of operation - the removable plastic dust bin, due to system of the clearing based on vorticose entering air in vacuum cleaner, dust instantly settles in dust bin.

Care and cleaning

..Switch off the appliance and pull out the plug from the power supply.

Clean the outside of the appliance with a soft cloth with mild detergent. Harsh or abrasive detergent will damage the outside surface.

..Never immerse the appliance or cord into water and other liquids.

Cleaning dust bin container

..Clean dust bin container regularly.
..Switch off the appliance before cleaning dust bin container.
..Remove the flexible hose.
..Take out the dust bin container and pull out the HEPA-filter.
..Empty dust bin container.
• To remove the lamellae central filter from the dust container just take the filter up according to the picture.
..For cleaning the filter use brush and water.
..Let the HEPA-filter and the cover dry up completely.
..Fix the HEPA-filter into the dust bin container.
..Put the container back.

Cleaning filters

• Please clean the filters at least once a year. If you frequently use the appliance wash the motor filters after 3-5 cleanings of the dust bag.
  ..Switch off the appliance and pull out the plug from the power supply.
• For cleaning the filter from the special material, established between the dust bag compartment and the engine of a vacuum cleaner, take off the dust bean container from the unit and pull out the filter.
  ..Wash the filter with warm water and dry in the sun.
  ..Put the filter back.

Close-up of a cylindrical container with handles, placed on a textured base (no visible text or symbols)

Caution:

..Never use the appliance without filters.

Do not use a washing machine to rinse filters. Do not use a hair drier to dry them.

Storage

..Set the vacuum cleaner in horizontal position.

-Fix a flexible hose around vacuum cleaner body by means of the special holders.

Specifications

Power supply 230 V, 50 Hz
Power 1800 W max
Net / Gross weight 7.5 kg / 10 kg
Suction power 350-400 W
Gift box dimension (L x W x H) 490	mm x 345 mm x 396 mm
