Product Type	Coaxial Cable
Brand	Brocade
Model	ML-1499-10JK-01R
Connector Type	F-Type Male to F-Type Male
Impedance	75 Ohms
Length	1 Meter
Shielding	Double Shield (Aluminum Foil + Braid)
Jacket Material	PVC (Polyvinyl Chloride)
Frequency Range	Up to 3 GHz
Attenuation	< 20 dB per 100m at 1 GHz
Minimum Bend Radius	10 cm
Operating Temperature	-20°C to +70°C
Weight	Approx. 50 g
Center Conductor	Copper-Clad Steel (CCS)
Dielectric	Foam Polyethylene
Cleaning Method	Wipe with dry cloth; avoid liquids
Repairability	Not user-serviceable; replace if damaged

Frequently Asked Questions - ML-1499-10JK-01R Brocade

What is the typical use for this coaxial cable?

This cable is ideal for connecting satellite TV, cable TV, or antenna systems to receivers or splitters.

What type of connectors does it have?

It features F-Type male connectors on both ends, which are standard for video and audio signals.

Can I cut this cable to a custom length?

Yes, you can cut the cable with a coaxial cable cutter and attach new F-Type connectors, but it is easier to use a pre-terminated cable.

Is it suitable for high-speed internet?

It supports frequencies up to 3 GHz, making it suitable for DOCSIS 3.0/3.1 cable modems and satellite internet.

How do I clean the cable?

Simply wipe the outer jacket with a dry cloth. Avoid using water or cleaning solvents, which can damage the connectors.

What is the minimum bend radius?

The cable should not be bent tighter than 10 cm to avoid damaging the internal structure and causing signal loss.

Can I use this cable outdoors?

It is designed for indoor use. For outdoor installations, use a cable with UV-resistant jacket or protective conduit.

What tools do I need to install connectors?

You will need a coaxial stripper, cutter, and compression tool for F-Type connectors.

Does the length affect signal quality?

Longer cables cause more signal attenuation. For runs over 20m, consider a signal amplifier or higher-quality cable.

Is this cable compatible with 50 Ohm devices?

No, it is 75 Ohm impedance. Using it with 50 Ohm devices (e.g., some radio equipment) will cause signal reflection and loss.

USER MANUAL ML-1499-10JK-01R Brocade

Enterprise Wireless LAN Antenna

Specification Guide, Version 1.5

BROCADE

Copyright © 2006-2009 Brocade Communications Systems, Inc. All Rights Reserved.

Brocade, the B-wing symbol, BigIron, DCX, Fabric OS, FastIron, IronPoint, IronShield, IronView, IronWare, JetCore, NetIron, SecureIron, ServerIron, StorageX, and Turbolron are registered trademarks, and DCFM, Extraordinary Networks, and SAN Health are trademarks of Brocade Communications Systems, Inc., in the United States and/or in other countries. All other brands, products, or service names are or may be trademarks or service marks of, and are used to identify, products or services of their respective owners.

Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning any equipment, equipment feature, or service offered or to be offered by Brocade. Brocade reserves the right to make changes to this document at any time, without notice, and assumes no responsibility for its use. This informational document describes features that may not be currently available. Contact a Brocade sales office for information on feature and product availability. Export of technical data contained in this document may require an export license from the United States government.

The authors and Brocade Communications Systems, Inc. shall have no liability or responsibility to any person or entity with respect to any loss, cost, liability, or damages arising from the information contained in this book or the computer programs that accompany it.

The product described by this document may contain "open source" software covered by the GNU General Public License or other open source license agreements. To find out which open source software is included in Brocade products, view the licensing terms applicable to the open source software, and obtain a copy of the programming source code, please visit http://www.brocade.com/support/oscd.

Brocade Communications Systems, Incorporated

Corporate and Latin American Headquarters

Brocade Communications Systems, Inc.

1745 Technology Drive

San Jose, CA 95110

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

Asia-Pacific Headquarters

Brocade Communications Systems China HK, Ltd.

No. 1 Guanghua Road

Chao Yang District

Units 2718 and 2818

Beijing 100020, China

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

European Headquarters

Brocade Communications Switzerland Sàrl

Centre Swissair

Tour B - 4ème étage

Asia-Pacific Headquarters

Brocade Communications Systems Co., Ltd. (Shenzhen WFOE)

Citic Plaza

No. 233 Tian He Road North

Unit 1308 - 13th Floor

Guangzhou, China

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

Document History

Title Publication number Summary of changes	Date
Enterprise Wireless LAN Antenna Specification Guide	53-1001881-01 New document March 2010

About This Document

In this chapter ix

How this document is organized....ix

Document conventions.... x

Text formatting....x

Notes, cautions, and warnings....xi

Web support sites....xi

Chapter 1 Antenna Selection and Description

Antenna selection....1

Connector types and definitions .... 1

Indoor and outdoor antennas 4

Spectrum and part number designations .... 5

Extended AP to antenna cable lengths 5

Antenna selection criteria 5

Antenna pattern 5

Antenna type 6

Antenna performance characteristics 6

Antenna accessories for Brocade enterprise WLANs ..... 7

Choosing the right antenna and accessories for your WLAN ... 8

Chapter 2 Product Compatibility

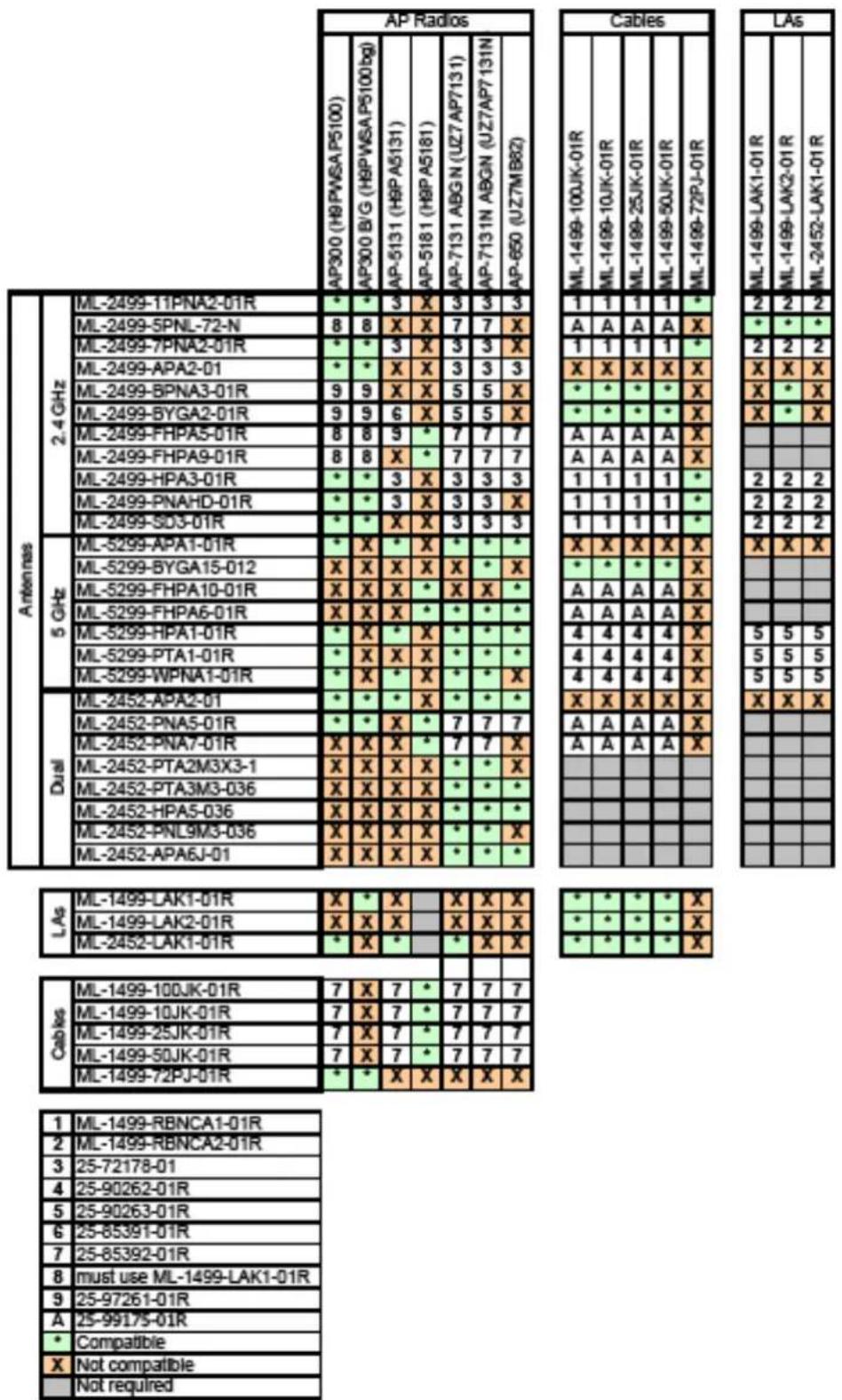

FCC/USA compatibility 9

Antenna suite summary....11

Chapter 3 2.4 GHz Single Band Antenna Suite

Supported 802.11b/g/n antenna suite ....13
ML-2499-5PNL-72-N Outdoor 135° Panel Antenna: male connector 14

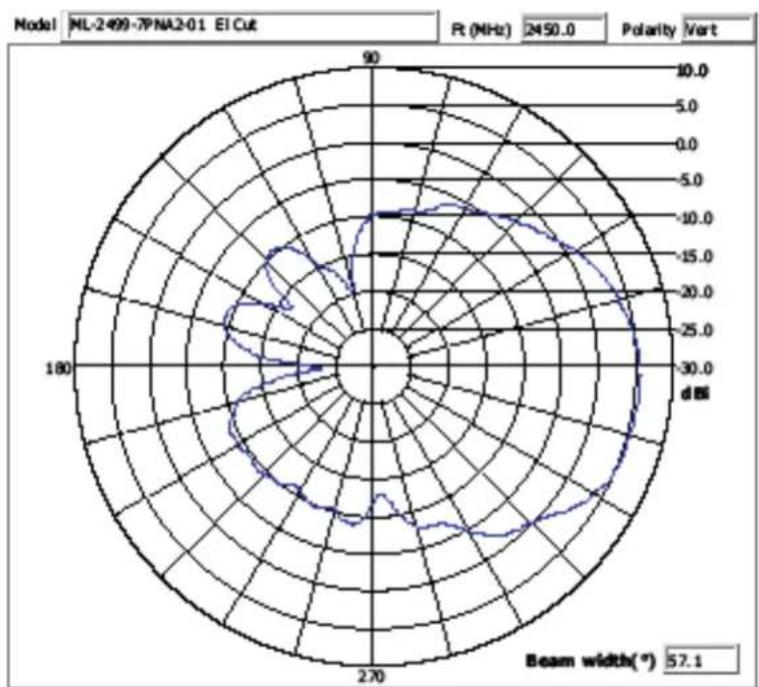

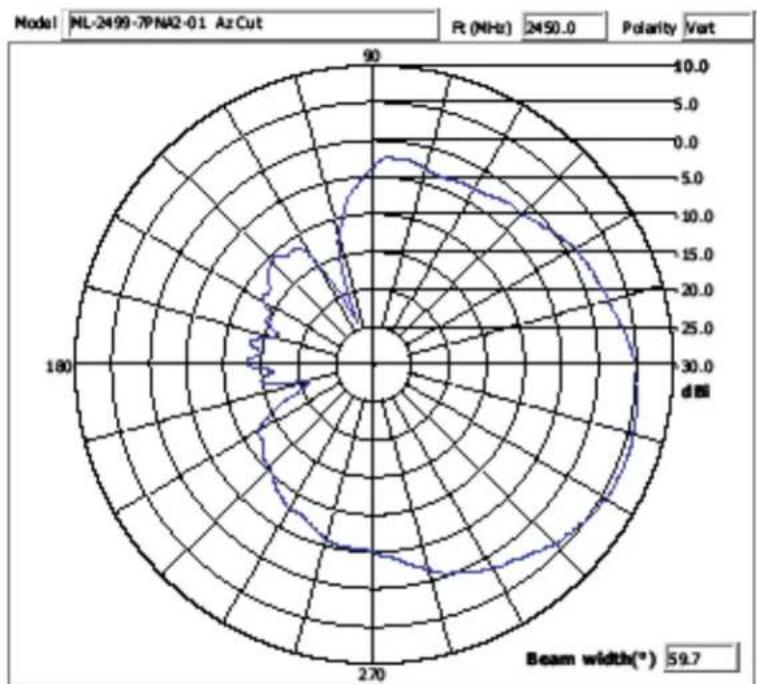

ML-2499-7PNA2-01R Indoor 60° Diversity Panel: RP-BNC male16

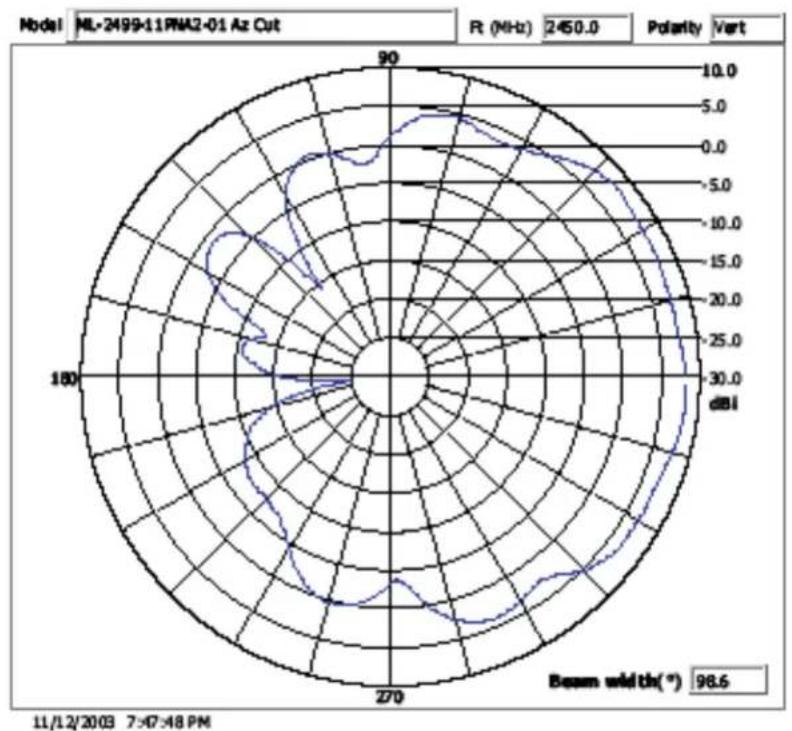

ML-2499-11PNA2-01R Outdoor 97°Sector Panel: RP-BNC male18

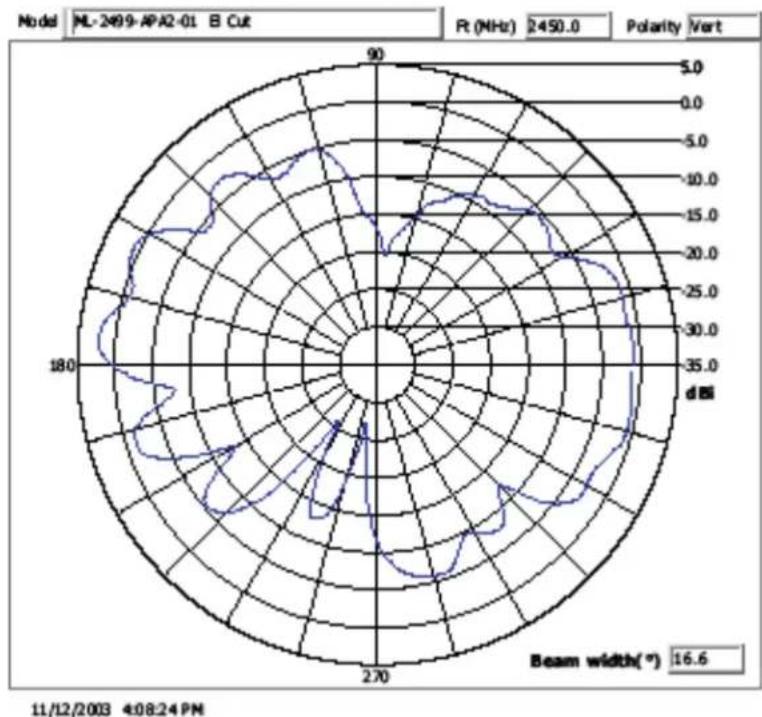

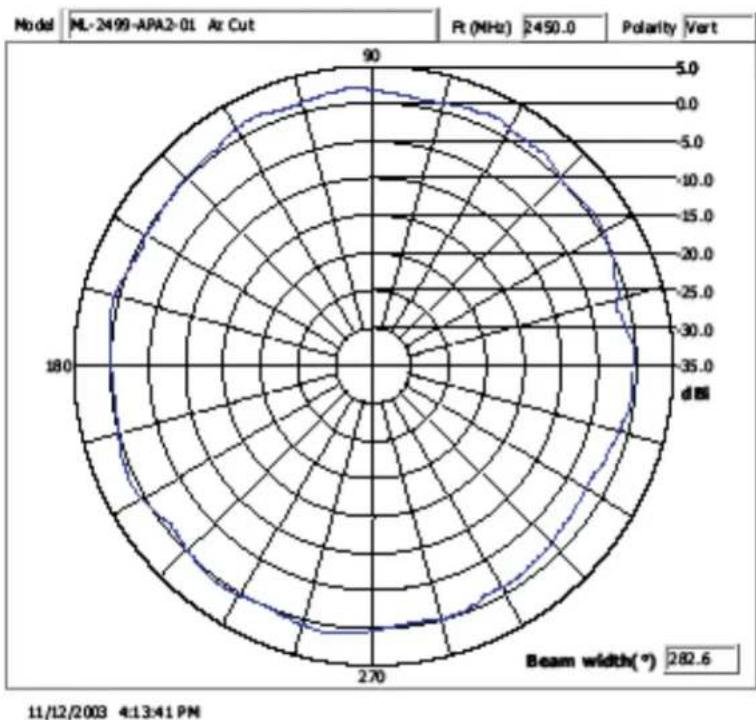

ML-2499-APA2-01R Indoor Rubber Flex, Elbow Joint Dipole: RP-BNC male .20
ML-2499-BPDA1-01R Outdoor 10° High-Gain Dish: 20.5 N female22
ML-2499-BPNA3-01R Outdoor 35° High-Gain Directional Panel: type N - female .....24

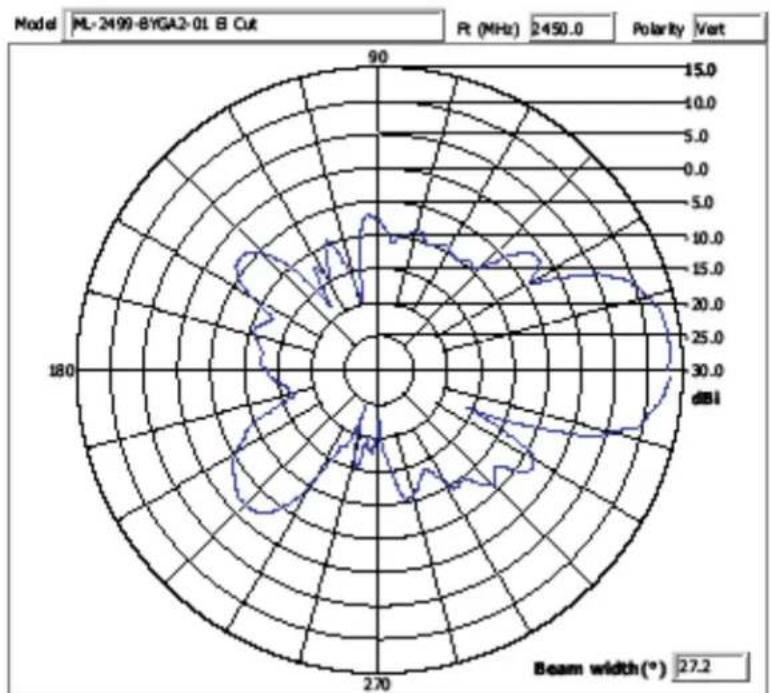

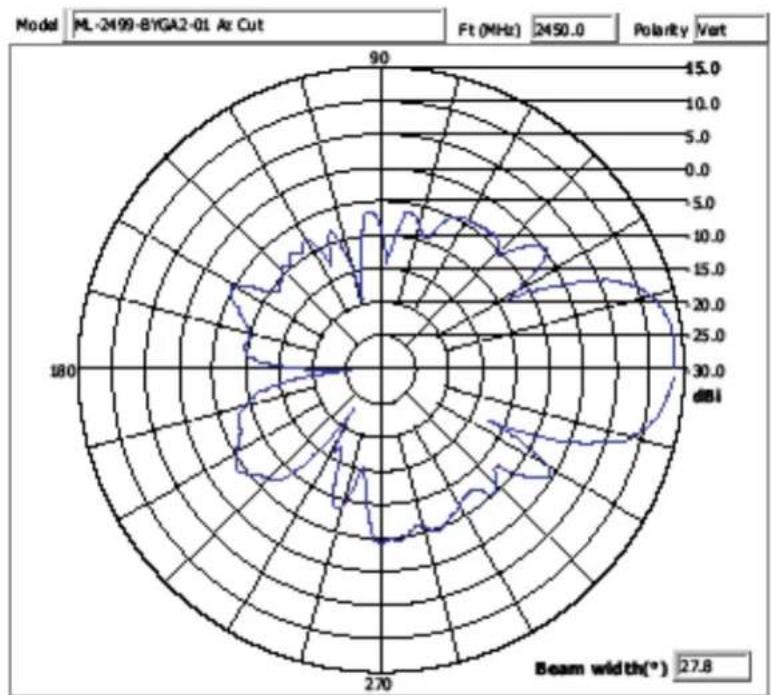

ML-2499-BYGA2-01R Outdoor 35° High-Gain Directional Yagi: N female....26

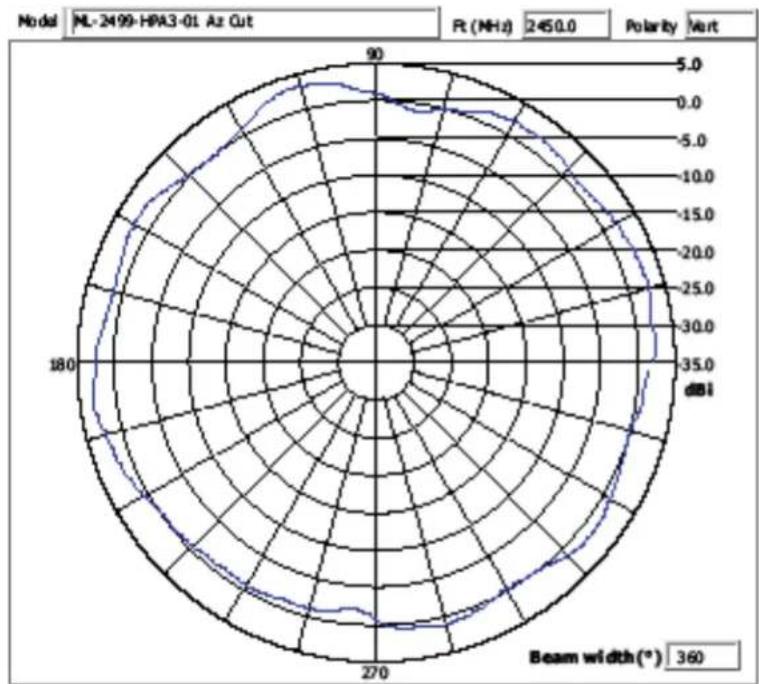

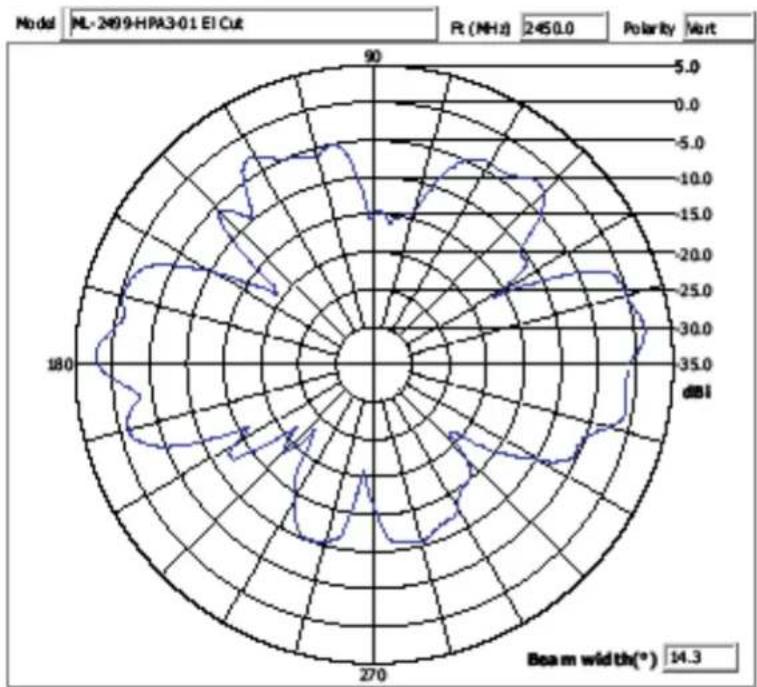

ML-2499-HPA3-01R High Performance Omni-Directional "Pipe"
Antenna: RP-BNC male 28

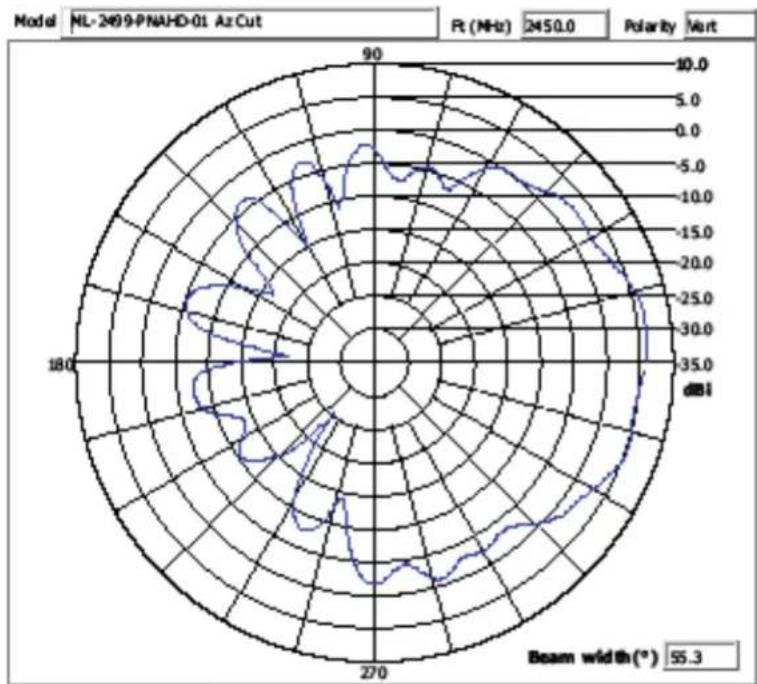

ML-2499-PNAHD-01R Indoor 55° Directional Panel: RP-BNC male30

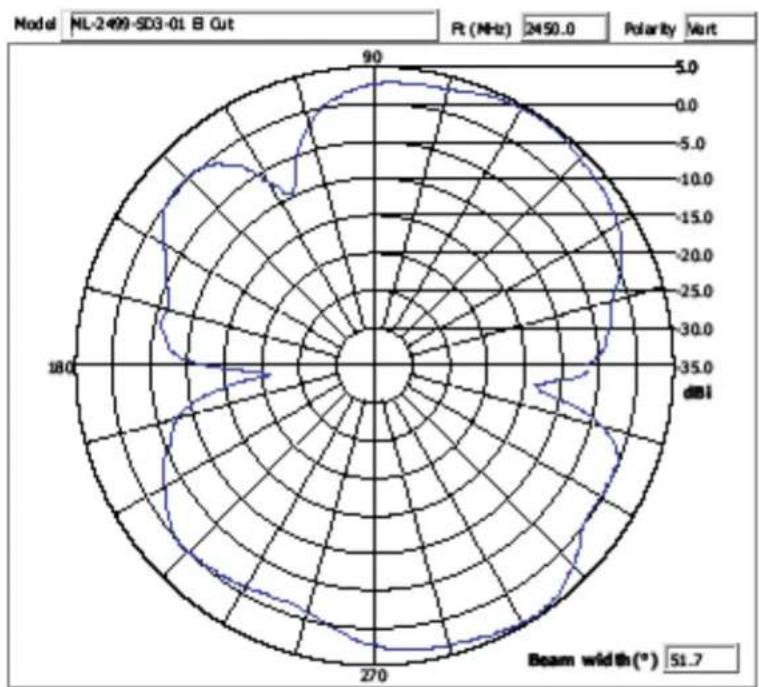

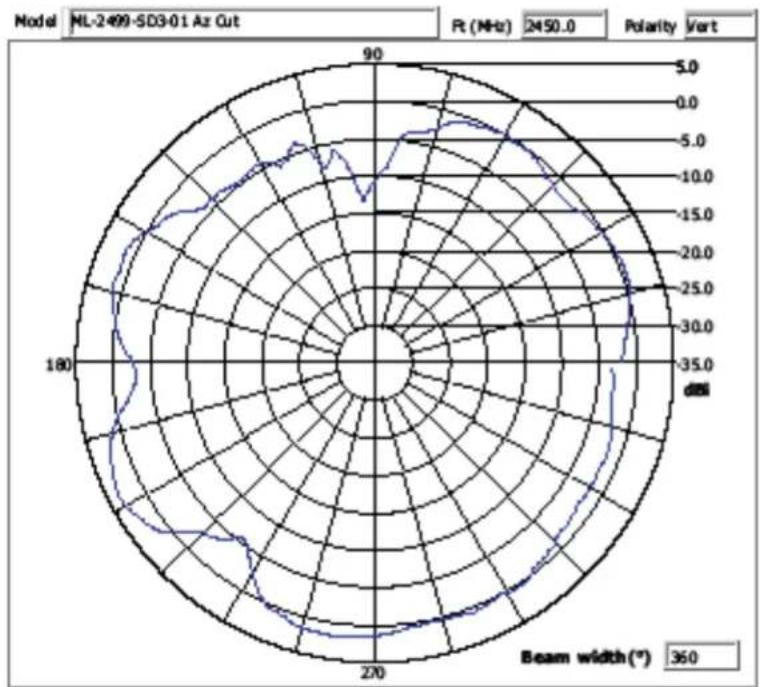

ML-2499-SD3-01R Low Profile Ceiling/Surface Mount Omni-Directional Patch: RP-BNC male ....32

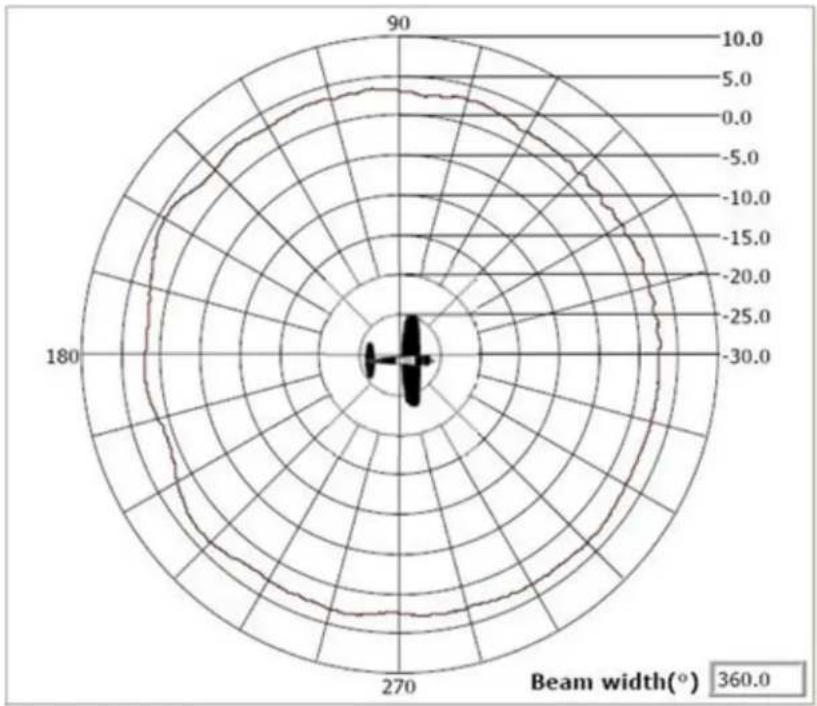

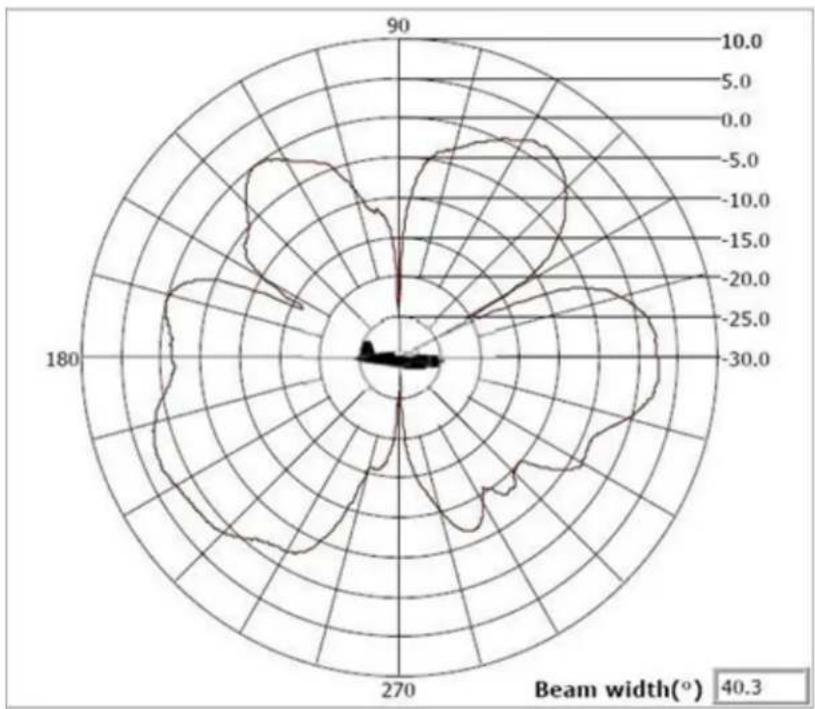

ML-2499-FHPA5-01R Omni-Directional "Pipe" Antenna: N male connector....34

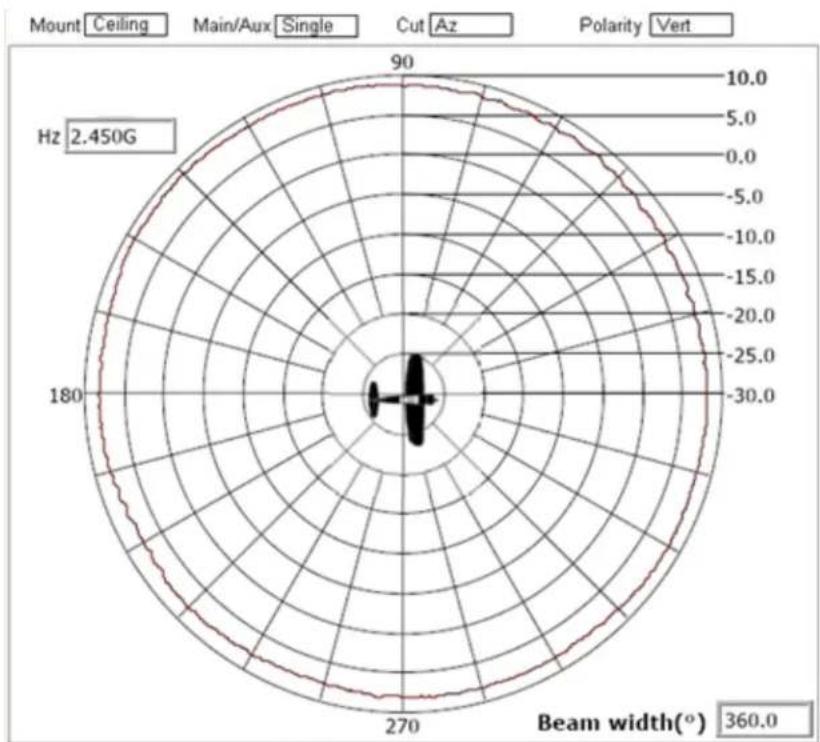

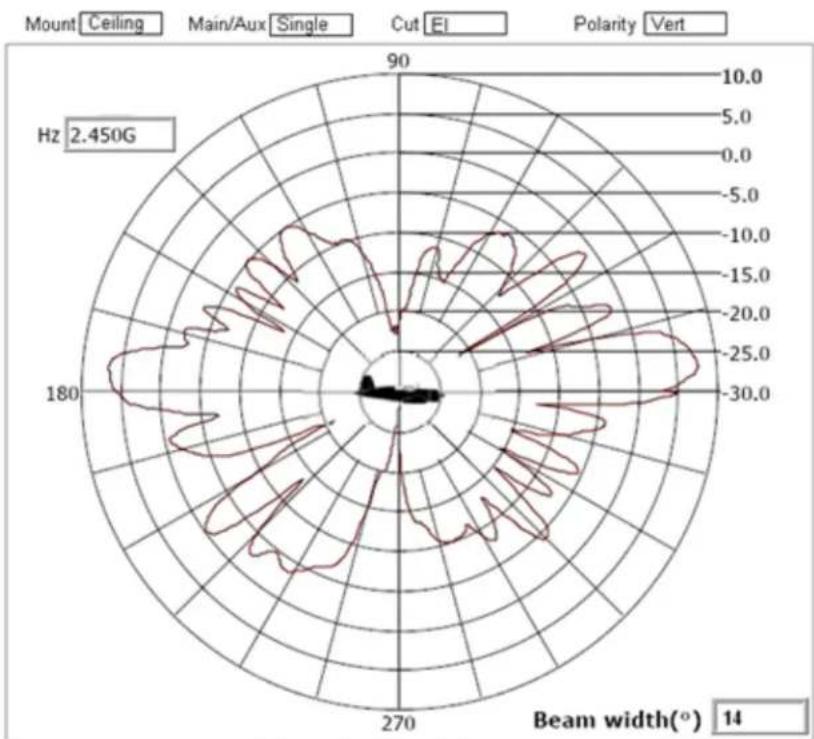

ML-2499-FHPA9-01R High Performance Fixed Point Dipole: male connector 36

Chapter 4 5.2 Ghz Single Band Antenna Suite

Supported 802.11a/n antenna suite ....39

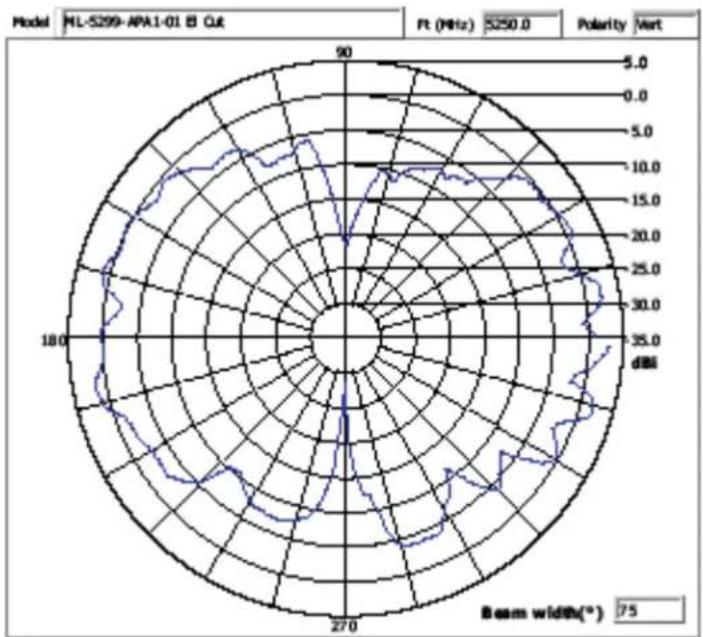

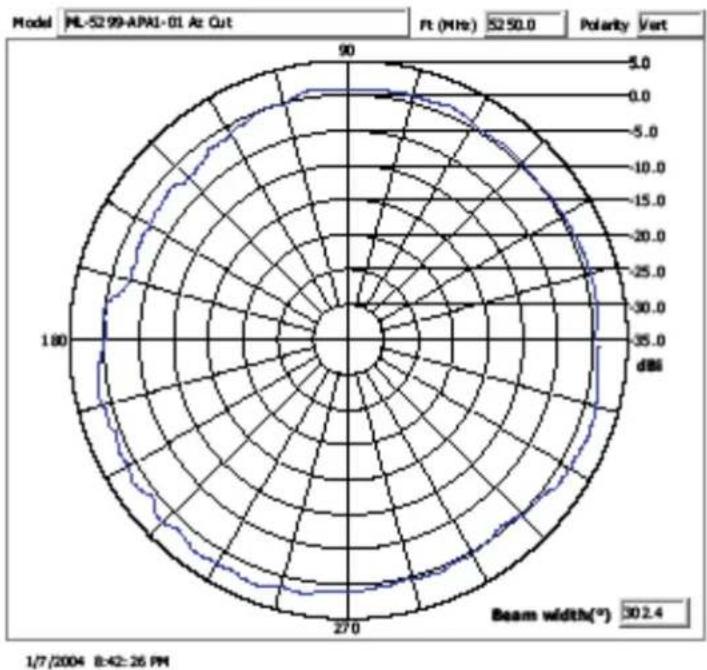

ML-5299-APA1-01R Indoor Rubber Flex Jointed Dipole: RP-SMA male connector 40

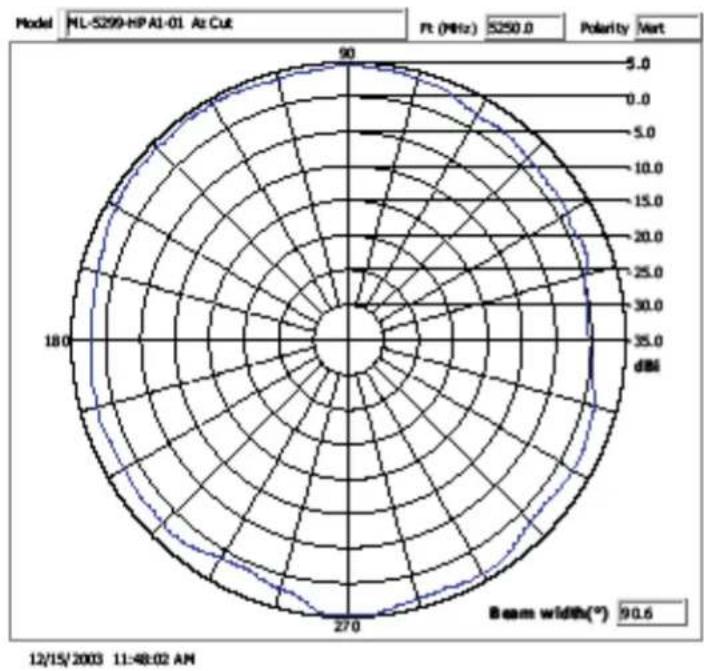

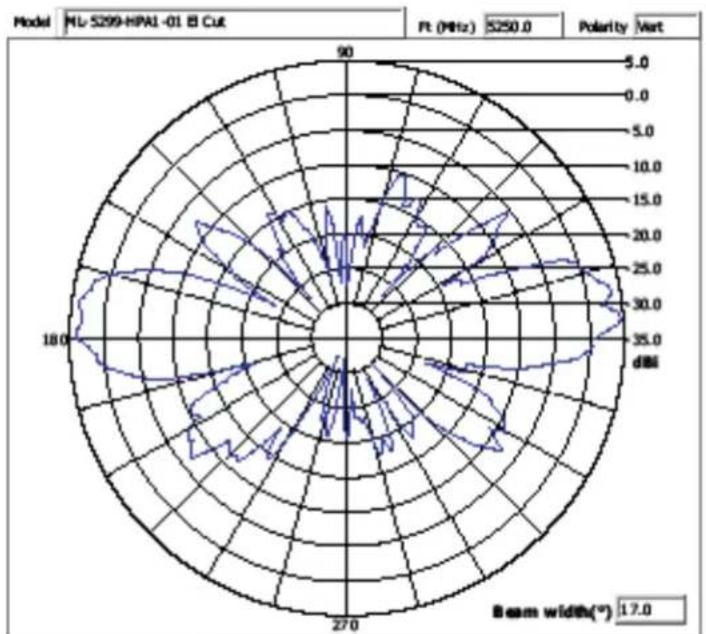

ML-5299-HPA1-01R High Performance Omni-Directional Dipole Antenna: RP-SMA male connector 42
ML-5299-PTA1-01R Low Profile Ceiling-Tile Mount Patch: RP-SMA male connector 44
ML-5299-WPNA1-01R Wall Mount Panel Antenna w/Articulating Mount: RP-SMA male. 46

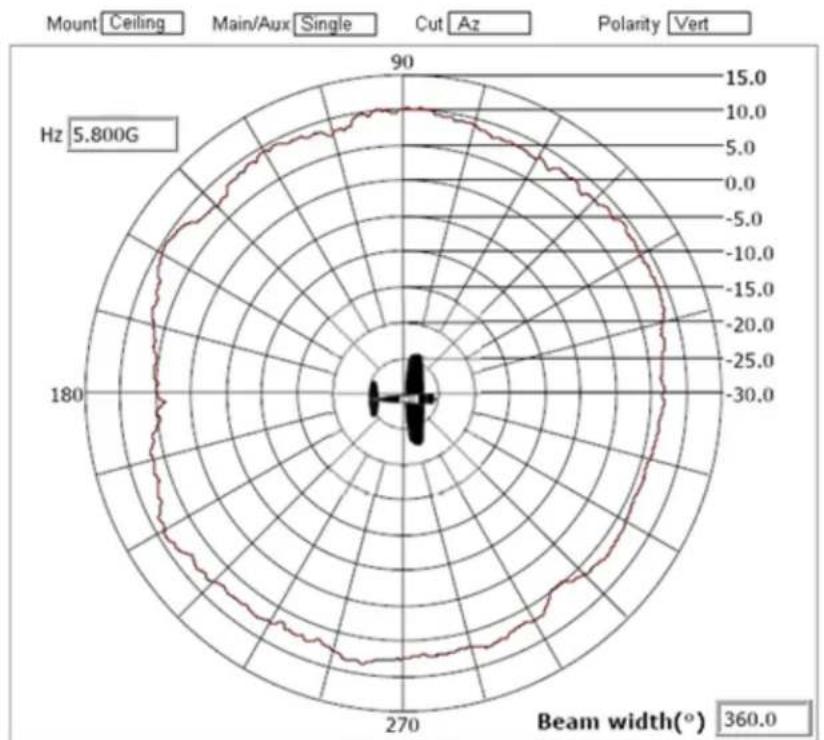

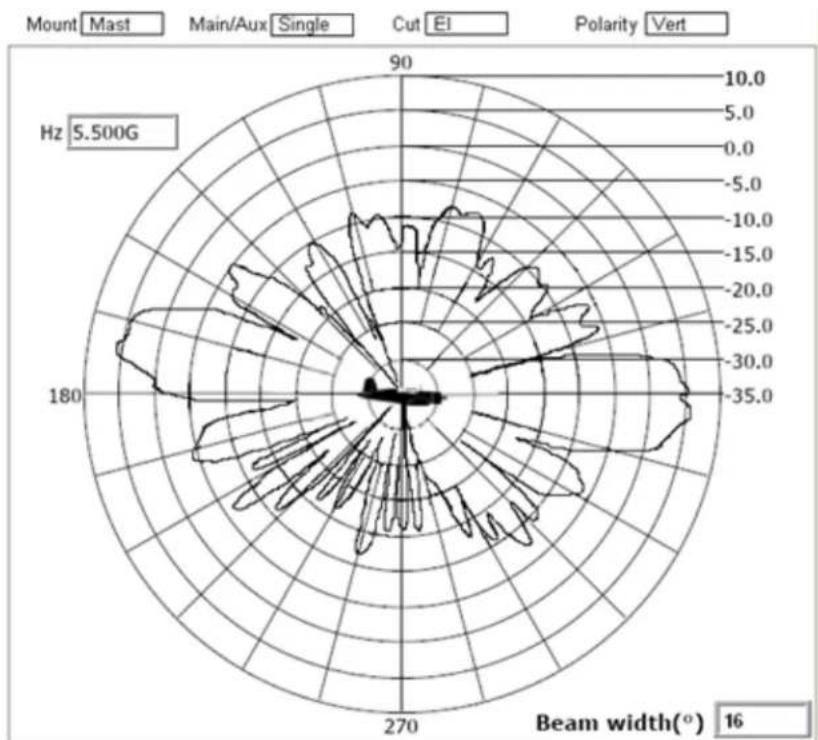

ML-5299-FHPA10-01R Omni-Directional "Pipe" Antenna: N male connector....48
ML-5299-FHPA6-01R Omni-Directional "Pipe" Antenna: N male connector....50

Chapter 5 2.4GHz - 5.2GHz Dual Band Antenna Suite

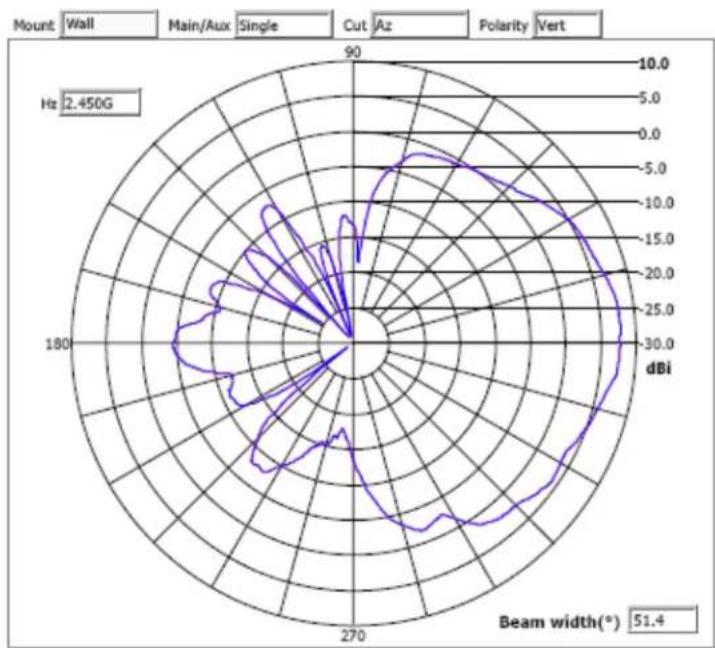

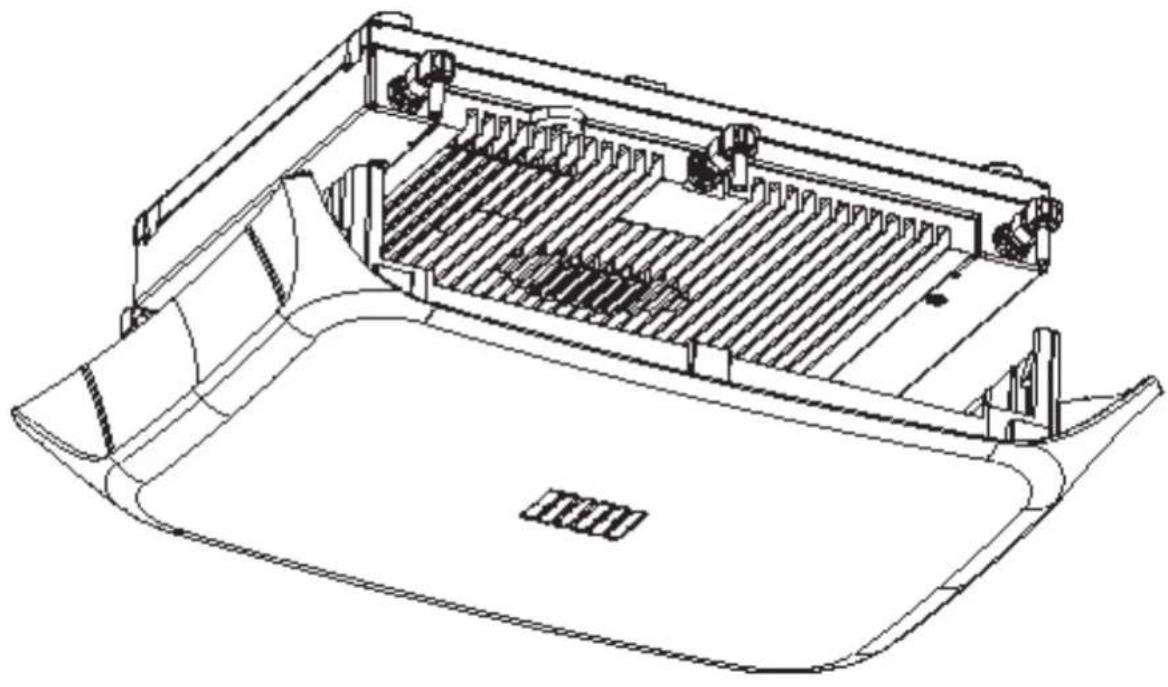

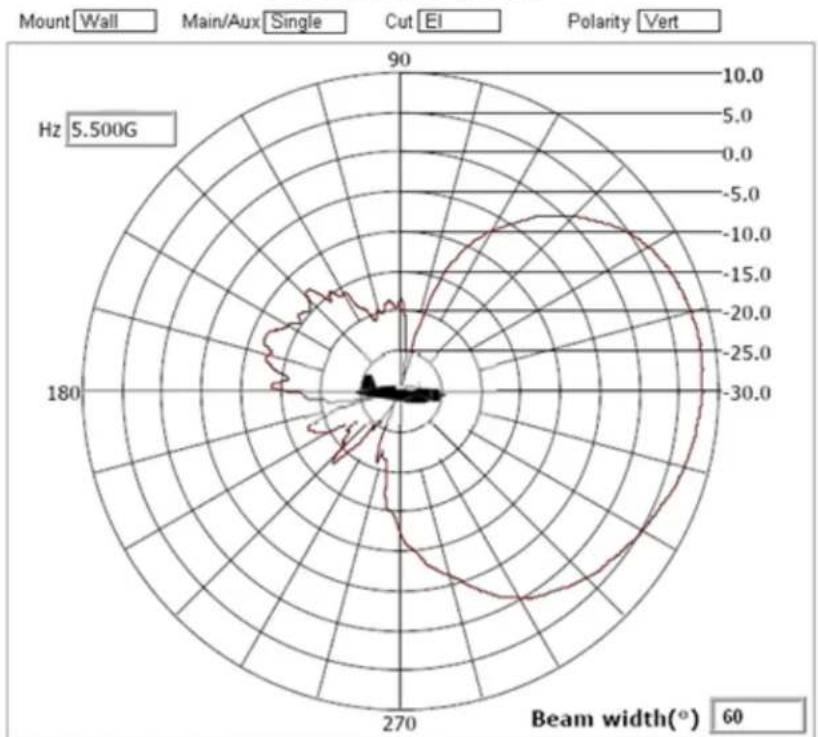

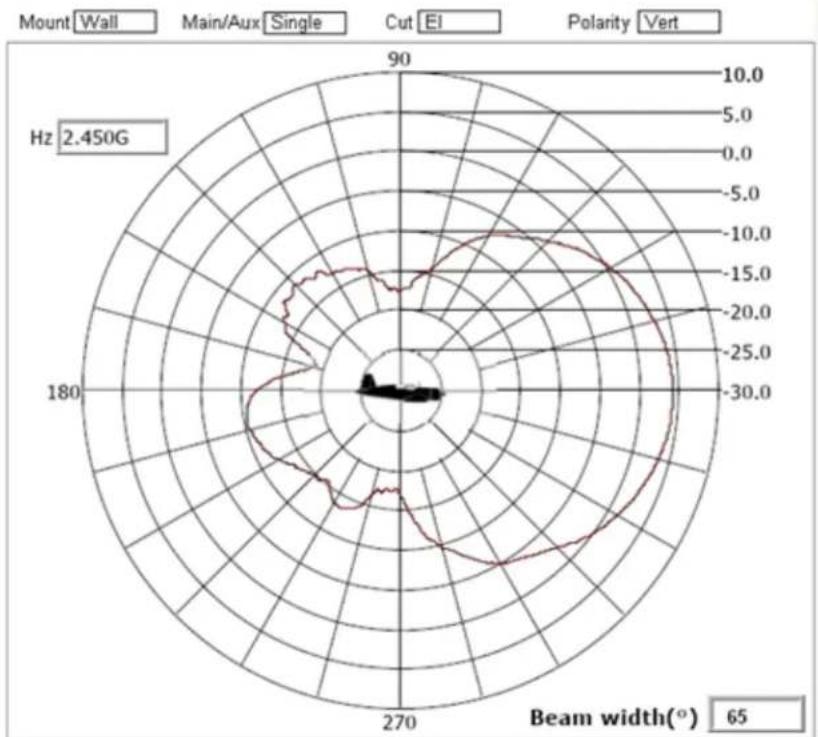

Supported 802.11a/b/g/n Dual Band Antennas .....53

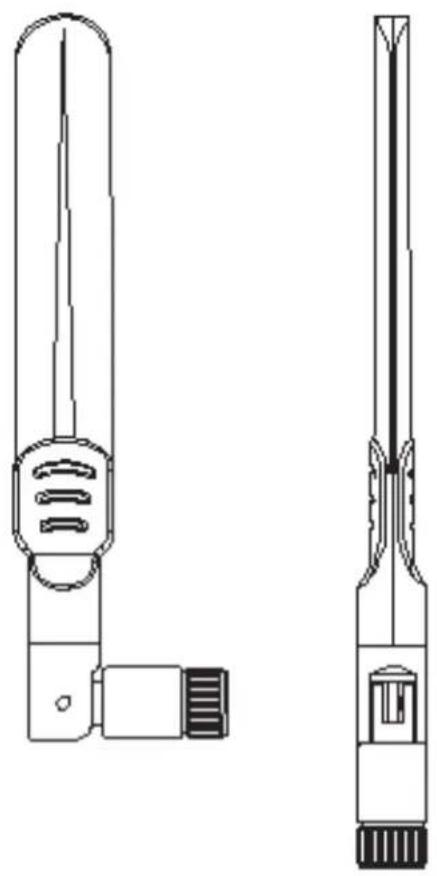

ML-2452-APA2-01 Indoor Dual Band Elbow Jointed Dipole: RP-SMA male 54

ML-2452-PNA5-01R Dual Band Panel: Connector Type N male56

ML-2452-PNA7-01R Dual Band Panel: Connector Type N-Male59

ML-2452-PTA2M3X3-1 AP-7131 MIMO Facade: 1 IN, RPSMA 62

ML-2452-PTA3M3-036 Ceiling Mount, Dual Band, MIMO Patch: RPSMA 65

Chapter 6 Antenna Cables

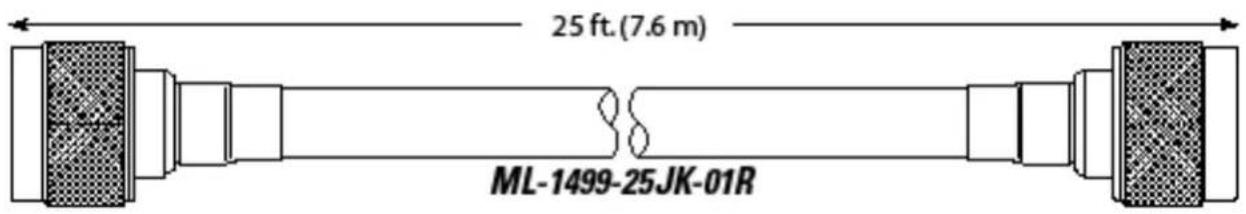

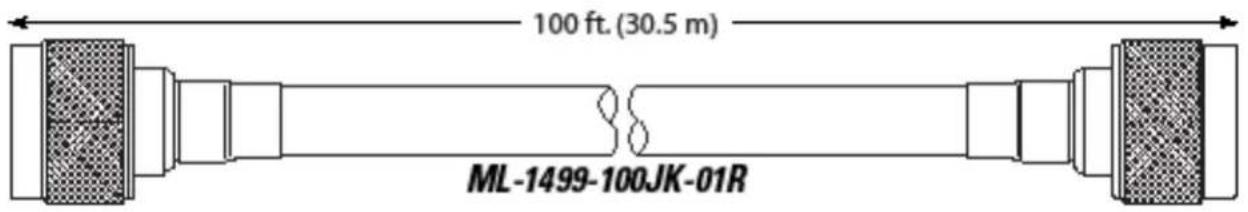

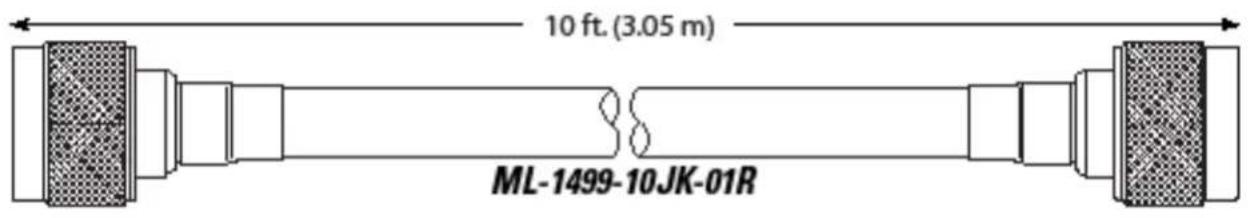

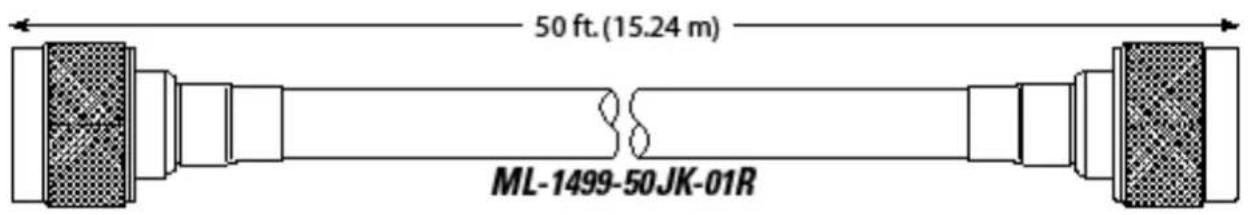

Supported Antenna Cables. ....69 ML-1499-100JK-01R 100 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits. ....69 ML-1499-10JK-01R 10 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male. ....70 ML-1499-25JK-01R 25 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits. ....70 ML-1499-50JK-01R 50 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits. ....70 ML-1499-72PJ-01R 6 ft. RP BNC Female to RP BNC Male Plenum Coaxial Jumper. ....71

Chapter 7 Supported Antenna Adapters

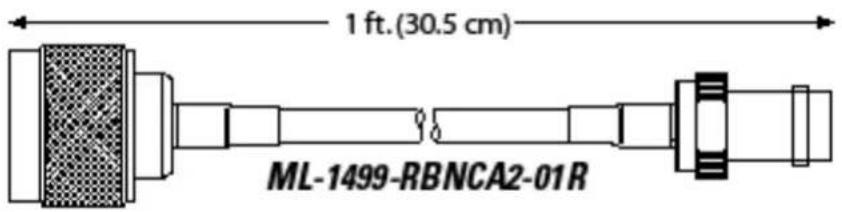

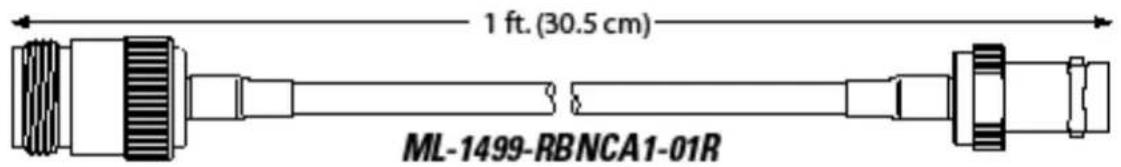

Supported Adapters ....73 ML-1499-RBNCA1-01R 1 ft. N Female to RP BNC Female Cable Adapter with Connector Seal Kit ....73 ML-1499-RBNCA2-01R 1 ft. N Male to RP BNC Female Cable Adapter with Connector Seal Kit ....73 25-85391-01R 3.5 in. Jumper Cable, RP-SMA (Male) to Type N (Male) Adaptor ....74 25-85392-01R 3.5 in. Jumper Cable, RP-SMA (Male) to Type N (Female) Adaptor ....74

Chapter 8 Supported Lightning Arrestors

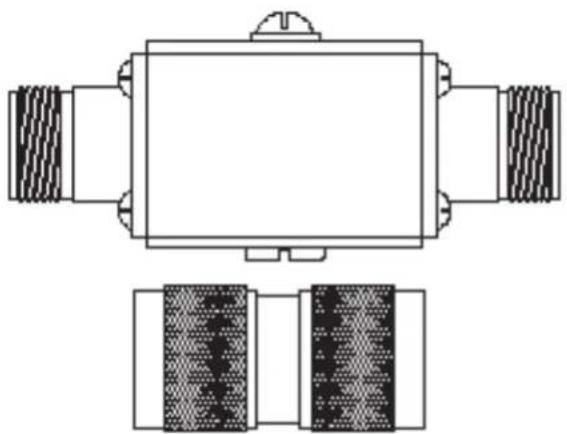

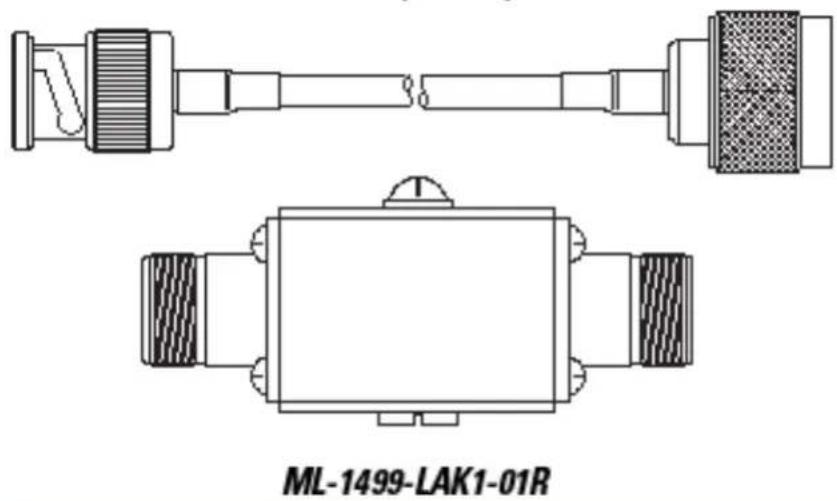

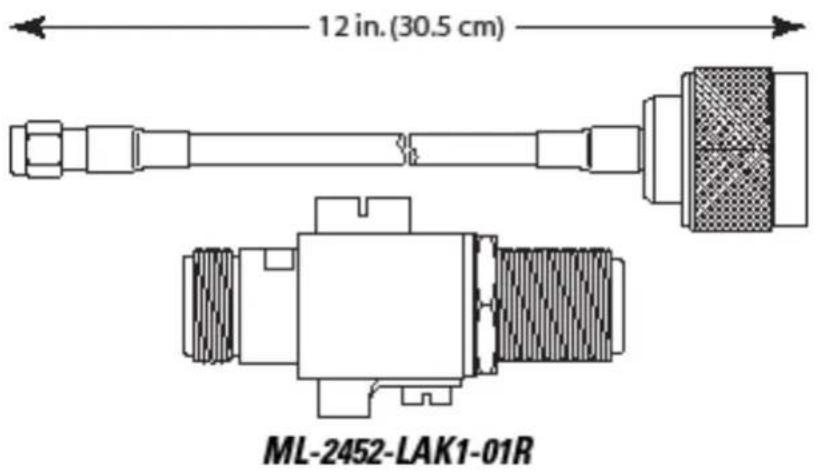

Lightning Arrestors ....75 ML-1499-LAK1-01R 1 ft. N Male to RP BNC Male Lightning Arrestor with Connector Seal Kit ....75 ML-1499-LAK2-01R Lightning Arrestor Kit with N Male to N Male Barrel Adapter ....76 ML-2452-LAK1-01R Lightning Arrestor (N Female to N Female) with N Male to RP-SMA Male Adapter ....77

Chapter 9 Mounting Kits

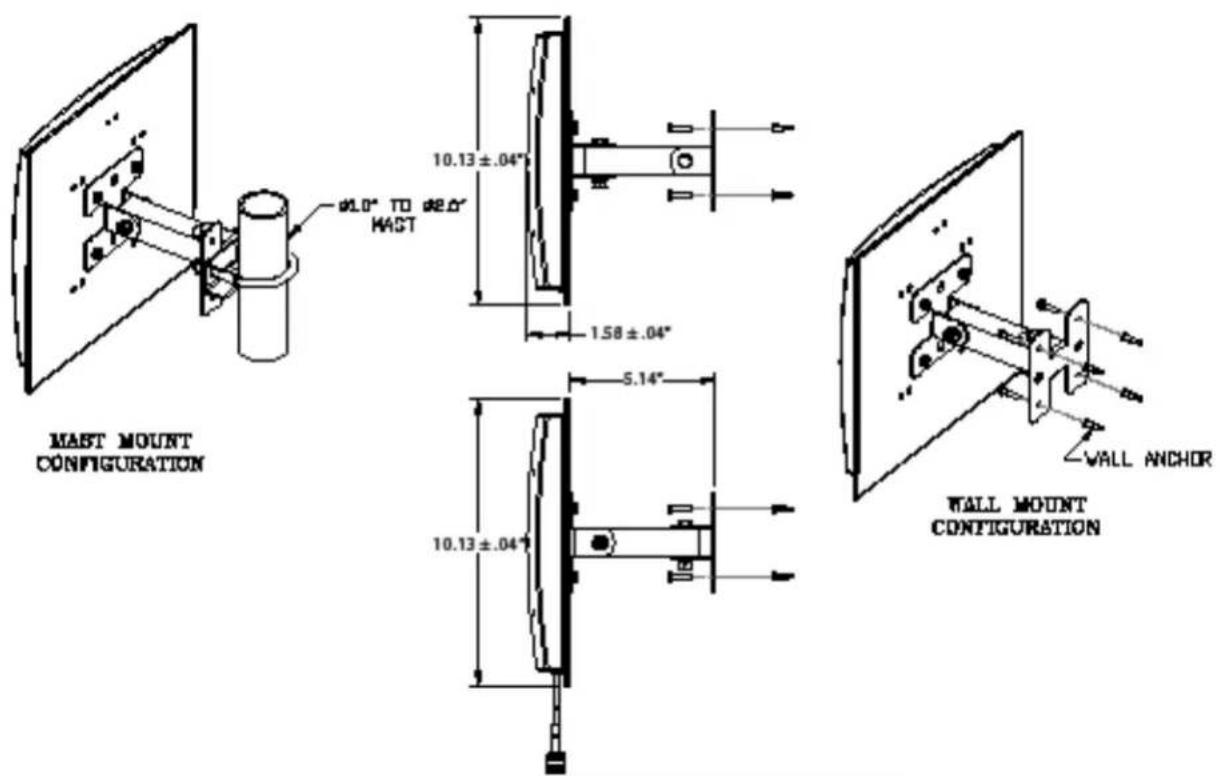

Mounting Kit Support....79 ML-1499-APAMK-01R Magnetic Base for ML-2452-APA2-01 with 6 Ft. Cable RP-SMA (Male)....79 ML-1499-SD3MK-01R Articulating I-Beam Mount Kit for ML-2499- SD3-01 Omni Antenna....80

Chapter 10 AP 7131 Transmit Power

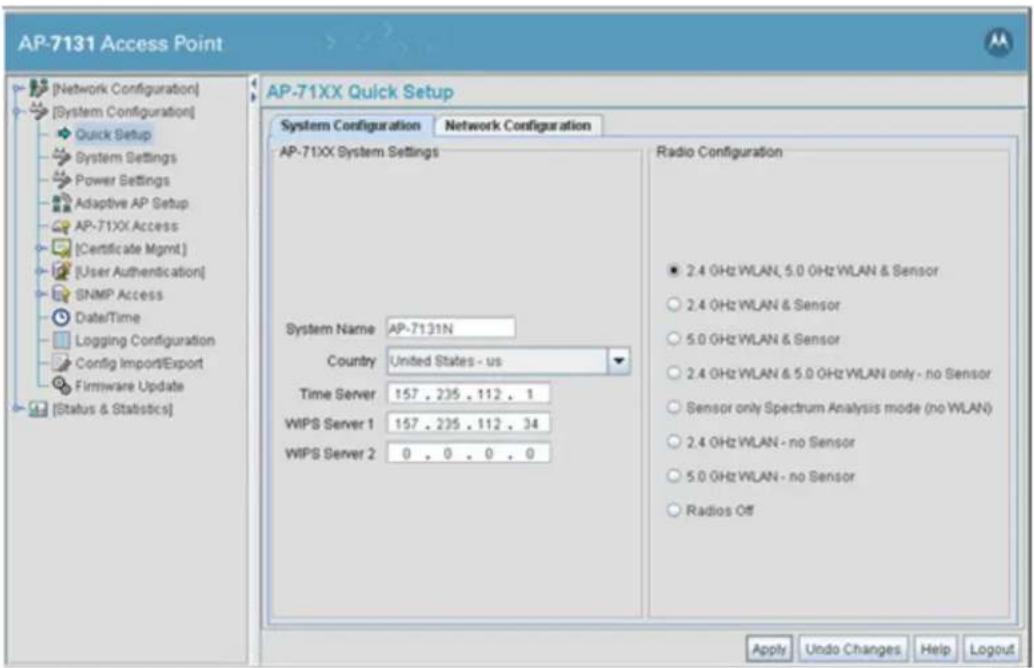

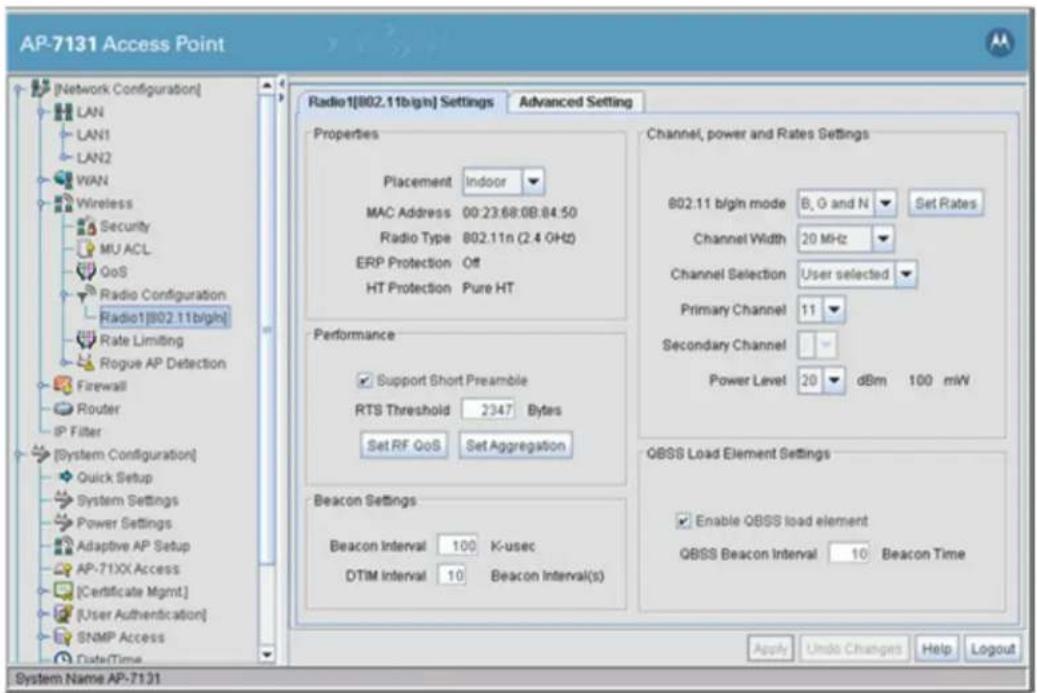

Configuring the AP 7131 Series Transmit Power ....81 Supported Antennas by Band, Model, Rate and Transmit Power86

US Regulatory Domain 2.4 GHz Band ....87 2.4 GHz Mode Versus Data Rate ....87 Yagi Antenna Models ....87 Panel Antenna Models....88 Embedded Antenna Models....89 Dipole Antenna Models....90 Patch Antenna Models....90

US Regulatory Domain 5.2 GHz Band ....91 5.2 GHz Mode Versus Data Rate ....91 Yagi Antenna Models ....91 Panel Antenna Models....93 Embedded Antenna Models....94 Dipole Antenna Models....95 Patch Antenna Models....97

Japanese TELEC Regulatory Domain 2.4 GHz Band....98 Panel Antenna Model ....98 Embedded Antenna Model ....99 Dipole Antenna Model ....100 Patch Antenna Model ....101

Japan TELEC Regulatory Domain 5.2 GHz Band....101 Panel Antenna Models....101 Embedded Antenna Model....103 Dipole Antenna Models....104 Patch Antenna Model....106

Chapter 11 AP650 Regulatory Domains

US regulatory domain 2.4 GHz band .... 109 Dipole antenna model .... 109 Internal AP650 dual band antenna models.... 109 Indoor patch antenna model.... 110 Outdoor omni antenna model .... 111 Panel antenna models.... 112 Omni antenna model .... 112

US regulatory domain 5 GHz band.... 113 Dual band dipole antenna model.... 113 Internal dual band antenna models.... 114 Indoor patch model.... 116 Outdoor omni antenna model.... 117 Panel antenna model.... 118 Omni antenna model.... 120

Japan TELEC regulatory domain 2.4 GHz band ..... 121

Dipole antenna model 121

Internal AP650 dual band antenna models.... 122

Indoor patch antenna model.... 123

Outdoor omni antenna model 123

Panel antenna models.... 124

Omni antenna model 125

Japan TELEC regulatory domain 5 GHz band ..... 126

Dual band dipole antenna model 126

Internal dual band antenna models 127

Indoor patch model 128

Outdoor omni antenna model 130

Panel antenna model 131

Omni antenna model 132

EU regulatory domain 2.4 GHz band 134

Dipole antenna model 134

Internal AP650 dual band antenna models. 135

Indoor patch antenna model.... 135

Outdoor omni antenna model 136

Panel antenna models.... 137

Omni antenna model 138

EU regulatory domain 5 GHz band.... 138

Dual band dipole antenna model 138

Internal dual band antenna models 140

Indoor patch model 141

Outdoor omni antenna model 143

Panel antenna model 144

Omni antenna model 145

In this chapter

• How this document is organized ix
- Document conventions .... x
- Web support sites.... xi

How this document is organized

This document provides an RF engineer a catalog of antenna parts and accessories to complete a customized RF environment. This guide specifically addresses the antennas used for 2.4 GHz, 5.2 GHz and dual band antenna implementations for Wireless Local Area Networks (WLANs).

It is important to understand that antenna and accessory selection should be qualified by on-site testing with the actual components used. Signal attenuation is cumulative with each connection and component added between the antenna and the radio, so careful study should verify the given arrangement delivers the expected results.

NOTE

Illustrations displayed in this guide are samples and can differ from the actual antenna.

This document is organized to help you find the information that you want as quickly and easily as possible.

The document contains the following components:

• Chapter 1, “Antenna Selection and Description” provides details about antenna types and performance characteristics, descriptions and photographs of connector types, and choosing an antenna and accessories.
• Chapter 2, "Product Compatibility" provides information about FCC compatibility and a list of antenna part numbers and specifications.
• Chapter 3, "2.4 GHz Single Band Antenna Suite" provides information about supported single-band 2.4 GHz 802.11b/g/n antennas.
• Chapter 4, "5.2 Ghz Single Band Antenna Suite" provides information about supported single-band 5.2 GHz 802.11b/g/n antennas.
• Chapter 5, "2.4GHz - 5.2GHz Dual Band Antenna Suite" provides information about supported dual-band 2.4GHz - 5.2GHz 802.11b/g/n antennas.
• Chapter 6, "Antenna Cables" provides information about supported antenna cables.

• Chapter 7, “Supported Antenna Adapters” provides information about supported antenna adapters.

• Chapter 8, “Supported Lightning Arrestors” provides information about supported lightning arrestors.
  • Chapter 9, “Mounting Kits” provides information about supported mounting kits.

• Chapter 10, "AP 7131 Transmit Power" provides information about how to adjust an AP 7131 series access point's radio transmit power so that it does not violate FCC regulations pertaining to output transmit power.
• Chapter 11, "AP650 Regulatory Domains" provides transmit power settings for the antennas described in this guide.

Document conventions

This section describes text formatting conventions and important notice formats used in this document.

TEXT FORMATTING

The narrative-text formatting conventions that are used are as follows:

bold text Identifies command names Identifies the names of user-manipulated GUI elements Identifies keywords and operands Identifies text to enter at the GUI or CLI

italic text Provides emphasis Identifies variables Identifies paths and Internet addresses Identifies document titles

code text Identifies CLI output Identifies command syntax examples

For readability, command names in the narrative portions of this guide are presented in mixed lettercase: for example, switchShow. In actual examples, command lettercase is all lowercase.

NOTES, CAUTIONS, AND WARNINGS

The following notices and statements are used in this manual. They are listed below in order of increasing severity of potential hazards.

NOTE

A note provides a tip, guidance, or advice, emphasizes important information, or provides a reference to related information.

ATTENTION

An Attention statement indicates potential damage to hardware or data.

CAUTION

A Caution statement alerts you to situations that can be potentially hazardous to you or cause damage to hardware, firmware, software, or data.

DANGER

A Danger statement indicates conditions or situations that can be potentially lethal or extremely hazardous to you. Safety labels are also attached directly to products to warn of these conditions or situations.

Web support sites

For product downloads, manuals, and additional information, visit:

http://www.brocade.com

Antenna selection

While several antennas may work in a given environment, some will provide better coverage than others. Using the right antenna in the right location will maximize both the performance and coverage of your network. Understanding the key characteristics that describe how an antenna sends and receives radio frequency signals is critical to finding the ideal antenna for your deployment. This guide supports the antennas used for an AP-5131, AP-5181 or AP-7131 series access point and the AP650 and AP300 (non-integrated antenna) model access ports.

Brocade Enterprise Wireless LAN products operate in the 2.4 GHz and 5 GHz ISM bands allocated for unlicensed use. Access point and access port products available today support either the 802.11b/g/n or the 802.11a/n standard, or both. Wireless devices conforming to the 802.11b/g standard operate in the 2.4 GHz ISM band, while 802.11a devices operate in the 5 GHz band. The antennas in this guide are grouped according to the frequency band they support. Some antennas are designed to operate within either band. These antennas (described as "Dual-band") may be connected to radios operating in either the 2.4 or 5 GHz bands, although a single antenna may not be connected to two radios at the same time.

Connector types and definitions

There are combinations of antenna types and cables required to provide a satisfactory connection to the AP. One confusing factor is “reverse polarity”. Reverse polarity is the FCC's requirement for each WLAN manufacturer to have unique access point connectors. Brocade had previously standardized our offerings for access points/ports:

• 2.4 GHz is Reverse polarity BNC female (RP-BNC-F)
- 5 GHz is reverse polarity SMA female (RP-SMA-F)
- Dual Band is reverse polarity SMA female (for AP-5131), and N-Female (for AP-5181).

NOTE

Reverse polarity presents confusion because of a lack of a standardized definition from connector manufactures. Reverse polarity provides a center element, which should not be confused with a male connector. A male connector is defined by the outer jacket of the connector rather than the center element.

The following are the connectors used within this guide:

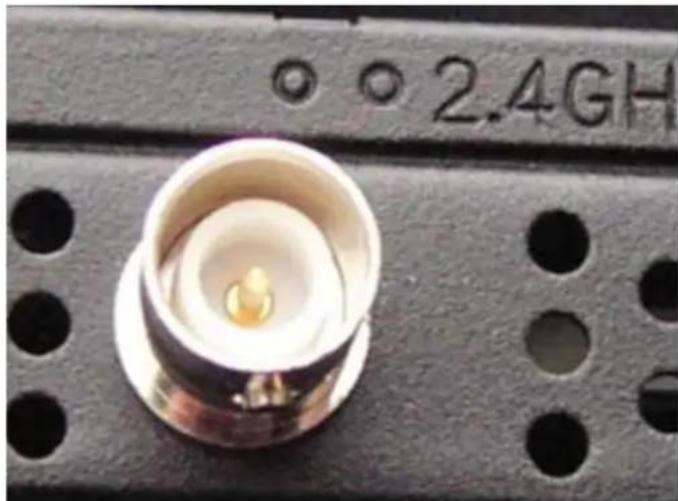

Close-up of a metallic connector with a gold-colored central pin, mounted on a black perforated base (no text or symbols visible)

FIGURE 1 RP-BNC-F

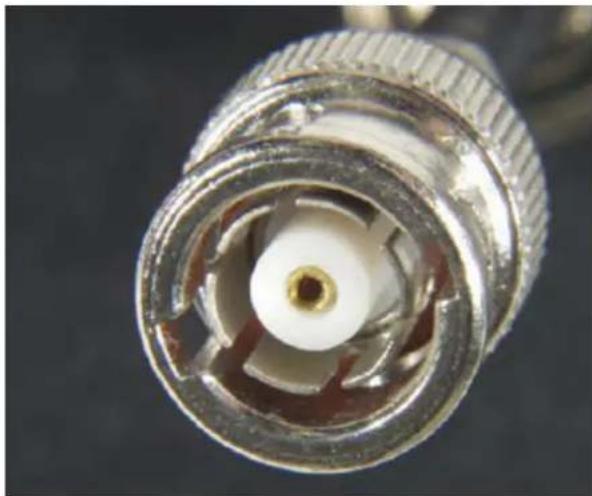

Close-up of a metallic coaxial connector with a white central pin and multiple side slots (no text or symbols visible)

FIGURE 2 RP-BNC-M

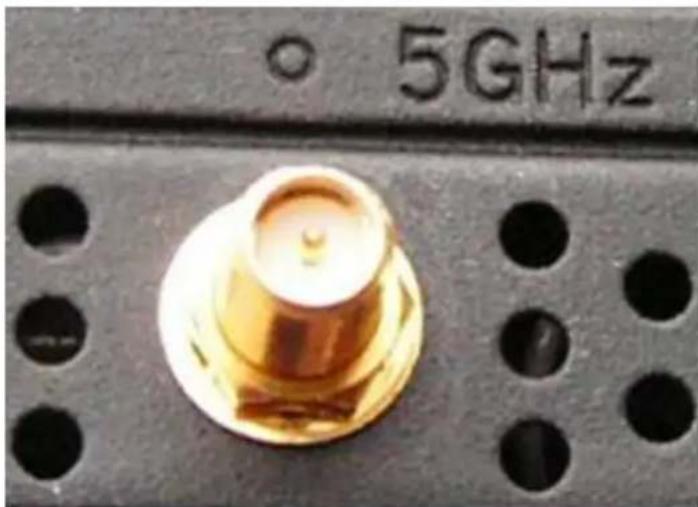

Close-up of a gold-colored electronic component with circular holes, placed on a black surface (no visible text or symbols)

FIGURE 3 RP-SMA-F

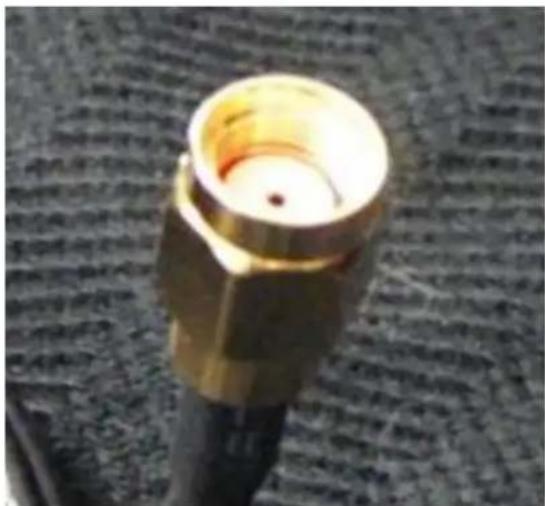

Close-up of a metallic connector with hexagonal top and black base, placed on textured fabric (no text or symbols visible)

FIGURE 4 RP-SMA-M

Additionally, antennas deployed outdoors and industry standard accessories (like lightening arrestors) use Type-N connectors (as displayed below). Therefore, with the combinations devices required (access points/ports, antennas, cable extensions, and lightening arrestors), various adapter cables are required to connect an antenna to an access point/port.

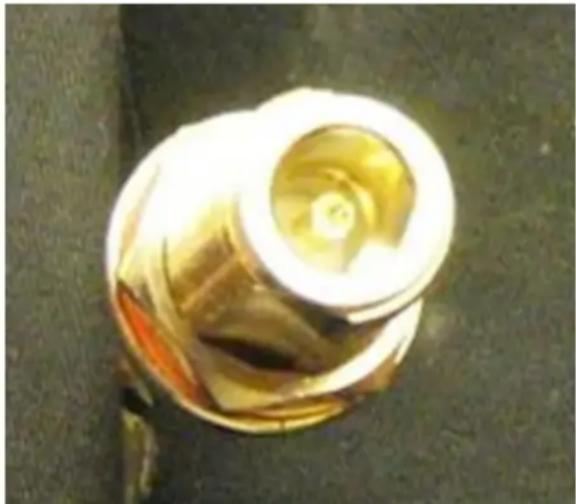

Close-up of a metallic cylindrical object with a spiral top and central hole, placed on a dark surface (no text or symbols visible)

FIGURE 5 Type N-F

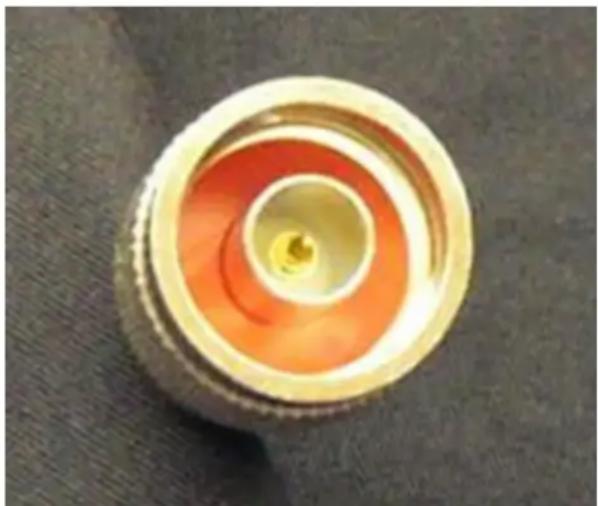

Circular orange-yellow object with a small yellow spot at the center, resting on a dark textured surface (no text or symbols visible)

FIGURE 6 Type N-M

Indoor and outdoor antennas

One important aspect of an antenna is whether it is weather sealed to protect it from the environment. Because of this extra protection, outdoor antennas are typically more expensive than those rated for indoor use. Outdoor antennas can be used for indoor applications, such as freezers and cooler where moisture is common. Outdoor antennas can be used for indoor applications, but indoor applications should not be used in outdoor applications.

One common distinction of outdoor antennas is the connector. Since lightning protection is always advised for outdoor antennas, these antennas typically have Type N Male to directly attach the lightning arrestor. This is true of the 2.4 GHz, 5 GHz, and the dual-band outdoor antennas.

Spectrum and part number designations

The antennas listed in this document are ultimately referenced by part number. A numerical sequence is used within each antenna's part number to identify the spectrum supported by the antennas.

• The antenna part numbers with a 2499 indicates a 2.4 GHz antenna. For more information on the 2.4 GHz antenna suite, see “2.4 GHz Single Band Antenna Suite” on page 13.
• The antenna part numbers with a 5299 indicates a 5 GHz antenna. For more information on the 2.4 GHz antenna suite, see “5.2 Ghz Single Band Antenna Suite” on page 39.
• The antenna part numbers with a 2452 indicates a dual band antenna (2.4GHz and 5 GHz). For more information on the 2.4 GHz antenna suite, see “2.4GHz - 5.2GHz Dual Band Antenna Suite” on page 53.

Extended AP to antenna cable lengths

Most indoor antennas are intended to be mounted directly to the AP's connectors. Some mounting arrangements call for positioning the AP a significant distance away from the antenna due to serviceability or other reason. In these situations, various adapters and cable extensions are required.

In these situations be mindful of:

• The connector on the AP
• The connector on the antenna
• The spectrum being implemented
- Signal loss due to multiple connectors and long cable lengths

Combinations of these attributes present different parts required to complete the connection. The Product Compatibility matrix addresses the parts required to make a proper connection. For more information, see “FCC/USA compatibility” on page 9.

Antenna selection criteria

In addition to antenna frequency, there is other criteria to consider when selecting an antenna.

Antenna pattern

Omni-directional

Signal radiates from the antenna in all directions on the horizontal plane.

Directional

Signal radiates in a specific direction, typically described as a beam of given width, expressed in degrees in the horizontal and vertical plane. For more information, see “Azimuth 3dB Beamwidth” on page 7 and “Elevation 3dB Beamwidth” on page 7.

Antenna type

Panel

A panel antenna is a flat antenna mounted to a wall or other vertical surface and radiates RF energy (radio waves) directionally away from the wall. They usually have gain greater than 5 dBi and are not suitable for omni-directional situations. Ideally suited for long hallways.

Patch

A patch antenna is a flat antenna mounted on the ceiling but whose pattern is omni-directional. Most of the energy goes out horizontally to the sides of the antenna and equal in all directions.

Dipole

A dipole antenna is a tubular antenna that can be either a pipe shape, a straight flexible rod or a paddle. This antenna has an omni-directional pattern when placed in a vertical position. It usually has 2 dBi of gain.

Dipole array

Essentially a dipole, a dipole array is two or more dipoles that are placed one on top of the other, requiring a longer tube to hold them. The advantage of a dipole array is that it has higher gain.

Parobolic grid

A paraobolic grid antenna is a very directional, dish-like antenna. Its parabolic reflector focuses the RF energy like a flashlight. Most of the time the radiating element is a dipole, but when combined with the dish, it becomes very directional with gain up to 24 dBi. Usually used in long point-to-point systems.

Yagi

A yagi antenna is a antenna that has an internal structure resembling that of typical antennas used for TV reception (a series of rods perpendicular to a main rod, making a triangular shape). This is a directional antenna with less gain than the PGA, typically around 13 dBi. It may be used in either point-to-point situations, or to cover a very long, narrow area in point-to-multi-point situations.

Antenna performance characteristics

Frequency

The frequency band within which the antenna performs at the stated specifications

Gain (dBi)

The relative amplification of the antenna with respect to an equivalent isotropic antenna, expressed on the decibel logarithmic scale.

Cable loss (dB)

The signal strength loss introduced by the cable connected to the antenna expressed on the decibel logarithmic scale.

Net gain (dBi)

The resulting amplification of the antenna paired with its cable.

Polarization

The orientation of the electrical field which the antenna is optimized to receive. If the transmitting and receiving antennas are both linear polarized, then turning one 90^ so that they are cross polarized will reduce the range significantly.

VSWR

Voltage Standing Wave Ratio (VSWR) is the ratio of maximum voltage to minimum voltage along the line. Expresses the degree of match between the transmission line and the terminating element (antenna). When VSWR is 1:1 the match is perfect, a VSWR of 1.5:1 corresponds to 96% power efficiency.

Azimuth 3dB Beamwidth

Width of the antenna beam on the horizontal plane expressed in degrees.

Elevation 3dB Beamwidth

Height of the antenna beam on the vertical plane expressed in degrees.

Antenna accessories for Brocade enterprise WLANs

Brocade offers a complete selection of antennas and accessories to ensure optimal coverage and performance for wireless LANs. Regardless of the size or layout of your environment, from a small office or storefront to campus-wide, multiple-site, indoor and outdoor deployments, Brocade offers the antennas, cables and accessories designed to fit your needs.

By combining this portfolio with a broad line of wireless switches, access ports, access points, client connectivity cards, ruggedized mobile voice/data devices and network management software, as well as wireless mobility planning and deployment services, Brocade offers comprehensive end-to-end wireless enterprise LAN solutions, giving you secure, reliable access to your critical business data and applications at the point of activity. For more information on Brocade's wireless products, visit www.brocade.com.

Choosing the right antenna and accessories for your WLAN

It is important to consider a number of factors when choosing an antenna and accessories for your Brocade enterprise WLAN. To choose the right components, you'll need to know:

• Where is the antenna to be installed, and what type of coverage is required. Knowing the intended radio band is central. Determine if the intended radio coverage area supports dual 2.4/5.2 band traffic. Has the attenuation of the coverage been discerned in respect to known barriers.
• The band (802.11b/g/n or 802.11a/n) your network supports
• Which Brocade AP to use
• Whether you will be deploying the network indoors or outdoors
• The distance between AP and antenna, to determine extender cable length, if any
• The serviceability requirement for each AP and antenna deployment

Review the chart to determine which antennas suit your needs. Using the part numbers provided, determine which of the antennas will work with your hardware in your environment.

To find the right antenna and accessories for your AP-5131, AP-5181, AP-7131, AP650 or AP300 (non-integrated antenna) deployment:

• Find your Brocade access point or access port model at the top of the chart (refer to the chart on the following page). Follow that column down to find the antennas, cables and lightning arrestors compatible with that model access port or access point. Write those part numbers down.
• Follow the row antenna across the table to the columns for the lightning arrestors and cables you wrote down to confirm that they compatible with the antenna you've chosen and determine if an adaptor is required to connect the two selected parts.

NOTE

The product compatibility chart on the next displays a global compatibility matrix, and does not apply to FCC USA specific compatibility. For information specific to FCC USA compatibility, see “Antenna suite summary” on page 11.

FCC/USA compatibility

The following displays Brocade's FCC approved AP radio, antenna, cable and accessory combinations for use in the United States:

Antenna suite summary

The following aligns Brocade's antenna suite with their respective part numbers, description, band, gain, mounting orientation, radiation patterns, outdoor versus indoor deployment and plenum rating. Reference information in this manual only as it applies to specific Brocade Mobility access point models you are using.

Following are top-level guidelines for ordering antennas from Brocade.

Mobility Access Point models:

• In Brocade Mobility AP partner number descriptions, “integrated antennas” and “antenna module” means that antennas are included for these access points and do not need to be ordered separately.
• In Brocade Mobility AP part number descriptions, “external antenna connectors” means that antennas are not included.
• The low-cost, dependent mode models of 7131 access points do not ship with antennas. Include one ML-2452-PTA2M3X3-2 antenna with each order.
• The outdoor 5181 access points do not ship with antennas. We recommend two of each of the following for each access point: ML-2499-FHPA5-01R and ML-5299-FHPA6-01R.

Part Number	Description	Cable	Peak Gain(dBi) (Note1)	Mount	Az BW	Outdoor rated	Plenum (Cable only)
ML-5299-APA1-01R	ANT:5.5 GHz, DP AJ,CBL 0,SMARP-F	none	2	S	360	No	No
ML-5299-PTA1-01R	ANT:5.5 GHz, PTCH,CBL 36",SMARP-F	36 In	4.6	H	360	No	Yes
ML-5299-HPA1-01R	ANT:5.5 GHz, DPA,CBL 36",RPSMA-F	36 In	5	V	360	Yes	Yes
ML-5299-FHPA6-01R	ANT:4.9-5.9 GHz, FIXED DP, TYPE N-M	none	6	V	360	Yes	No
ML-5299-FHPA10-01R	ANT:5.8 GHz, FIXED DP, TYPE N-M	none	8	V	360	Yes	No
ML-5299-WPNA1-01R	ANT:5.5 GHz, PNL,CBL 36",RPSMA-F	36 In	12.5	V	31	Yes	TBD
ML-5299-BYGA15-012	ANT: YaqI 4.9-5.5GHz	36 In	13.9	V	31	Yes	No
ML-2499-APA2-01	ANT:OMNI,2400-2500MHz	none	2	S	60	No	No
ML-2499-HPA3-01R	ANT:S24,DP,CBL 48",BNCRP-F	48 In	3.3	V	360	Yes	TBD
ML-2499-SDX-01R	ANT:S24,PTCH,CBL 48",BNCRP-F	48 In	3.5	H	360	No	Yes
ML-2499-PNAHD-01R	ANT:S24,PNL,CBL 48",BNCRP-F	48 In	6.3	V	55	No	TBD
ML-2499-7PNA2-01R	ANT:2.4GHz,INDOOR,65 DEGREE PNL	48 In	6.3	V	60	No	Yes
ML-2499-5PNL-72-N	ANT:2.4GHz,PNL,LP,CBL 72",TYPE N	72 In	5.5	V	135	Yes	Yes
ML-2499-11PNA2-01R	ANT:S24,SECTR PNL,CBL 96",BNCRP-F	96 In	8.5	V	97	No	Yes
ML-2499-FHPA5-01R	ANT:2.4GHz,FIXED DP,TYPE N-M	none	5	V	360	Yes	No
ML-2499-FHPA9-01R	ANT:2.4GHz,FIXED DP,TYPE N-M	none	6	V	360	Yes	No
ML-2499-BPNA3-01R	ANT:S24,PNL,CBL 12",TYP N-F	12 In	13.9	V	31	Yes	TBD
ML-2499-BYGA2-01R	ANT:S24,YAGI,CBL 12",TYP N-F	12 In	14.1	V	34	Yes	TBD
ML-2499-BPDA1-01R	ANT:S24,DISH,TYP N-F	none	23.5	V	10	Yes	TBD
ML-2452-PTA2M3X3-1	ANT:11ABG,AP7131 MIMO3X3,1IN RPSMA	n/a	3/5	S	360	No	No
ML-2452-APA2-01	ANT:2.4-5.2GHz DUALBAND,DP,SMARP-F	none	6/7	S	360	No	No
ML-2452-PTA3M3-036	ANT:11ABG,MIMO3 PTCH,36N RPSMA	36 In	3/7	H	360	No	Yes
ML-2452-PNA5-36R	ANT:DUAL BAND PANEL,RP-SMA(M)	36 In	4/6	V	60	TBD	Yes
ML-2452-PNA5-01R	ANT:2.4/5 GHz,SECTOR 120,TYPE N-M	12 In	4.5/5	V	120	Yes	Yes
ML-2452-PNA7-01R	ANT:2.4/5 GHz,SECTOR 60,TYPE N-M	12 In	7/9	V	60	Yes	Yes
ML-2452-HPA5-036	ANT:11ABG,DP,CBL 36",RPSMA-M	36 In	2.9/4.9	V	360	Yes	No
ML-2452-PNL9M3-036	ANT:MIMO DUAL BAND SECTOR	36 In	11/14	V	75	Yes	Yes
ML-2452-APA6J-01	ANT:DUAL BAND, DP AJ, RP-SMA	none	-6/-8	S	360	No	No

Plenum

Outdoor

Omnidirectionals

Directionals

Pallon

H - ceiling mount (Patches)

V - Wall or mast mount (Panels, Yagi, Dishes)

S - Switchable (elbow jointed)

Note 1: Peak Gain does not Include cable loss.

Supported 802.11b/g/n antenna suite

Brocade supports numerous single-band 2.4 GHz 802.11b/g/n antennas to suit the requirements of your unique access point or access port deployment. Check the Brocade Web site periodically, as newly supported 802.11b/g/n antennas will be added to this document as they are released. For more information, see http://support.symbol.com/support/product/manuals.do.

For detailed information on supported 802.11b/g/n antenna models, refer to:

• “ML-2499-5PNL-72-N Outdoor 135° Panel Antenna: male connector”
• "ML-2499-7PNA2-01R Indoor 60° Diversity Panel: RP-BNC male"
• “ML-2499-11PNA2-01R Outdoor 97° Sector Panel: RP-BNC male”
• “ML-2499-APA2-01R Indoor Rubber Flex, Elbow Joint Dipole: RP-BNC male”
• “ML-2499-BPDA1-01R Outdoor 10° High-Gain Dish: 20.5 N female”
• “ML-2499-BPNA3-01R Outdoor 35° High-Gain Directional Panel: type N - female”
• “ML-2499-BYGA2-01R Outdoor 35° High-Gain Directional Yagi: N female”
• “ML-2499-HPA3-01R High Performance Omni-Directional “Pipe” Antenna: RP-BNC male”
• “ML-2499-PNAHD-01R Indoor 55° Directional Panel: RP-BNC male”
• “ML-2499-SD3-01R Low Profile Ceiling/Surface Mount Omni-Directional Patch: RP-BNC male”
• “ML-2499-FHPA5-01R Omni-Directional “Pipe” Antenna: N male connector”
• “ML-2499-FHPA9-01R High Performance Fixed Point Dipole: male connector”

NOTE

For examples on how various antenna and connectors are deployed in a 2.4 GHz AP-5131 installation, see “2.4 GHz AP-5131 Antenna Connections” on page 102.

ML-2499-5PNL-72-N Outdoor 135° Panel Antenna: male connector

Type Panel

Frequency 2400-2500 MHz

Gain (dBi) 5.5

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 135°

Elevation 3dB Beamwidth: 56°

Cable Length (in.) 72

Cable Type RG-58 Ultralink

Connector Type Type N Male

Weight 0.5 lb

Plenum Antenna No

Plenum Cable Yes

Outdoor Rated Yes

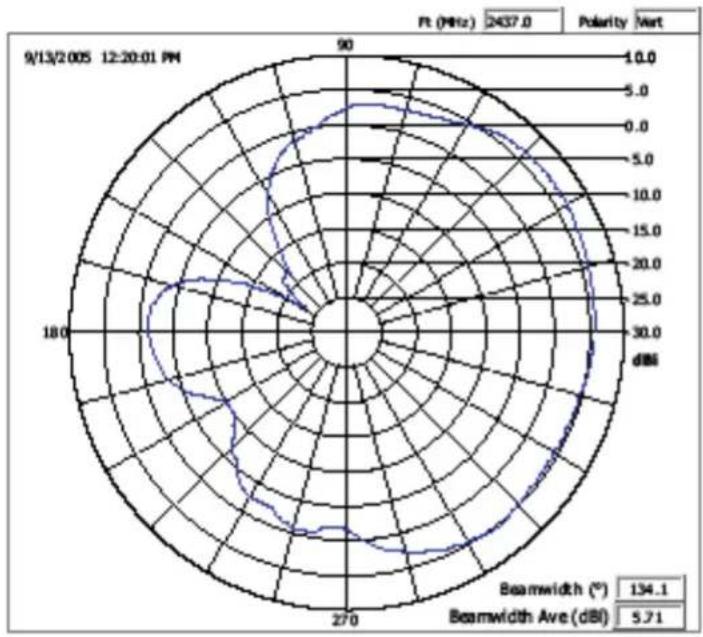

Azimuth Pattern

Elevation Pattern

ML-2499-7PNA2-01R Indoor 60° Diversity Panel: RP-BNC male

Type Panel x 2 (Diversity)

Frequency 2400-2500 MHz

Gain (dBi) 6.3

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 60°

Elevation 3dB Beamwidth: 60°

Cable Length (in.) 48

Cable Type RG-58 Ultralink

Connector Type RP-BNC Male x 2

Weight 0.6 lbs

Plenum Antenna No

Plenum Cable Yes

Outdoor Rated No

11/12/2003 2:50:29 PM

Azimuth Cut

11/12/2003 2:53:26 PM
Elevation Cut

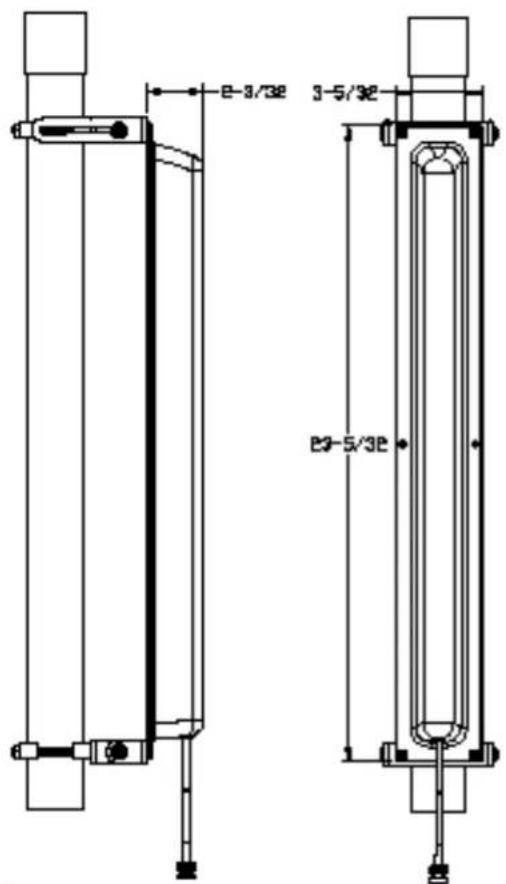

ML-2499-11PNA2-01R Outdoor 97°Sector Panel: RP-BNC male

Type Panel

Frequency 2400-1500 MHz

Gain (dBi) 8.5

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 97°

Elevation 3dB Beamwidth: 14°

Cable Length (in.) 96

Cable Type RG-58 Ultralink

Connector Type RP-BNC Male

Weight 1.5 lb

Plenum Antenna No

Plenum Cable Yes

Outdoor Rated Yes

Azimuth Pattern

11/12/2003 7:55:04 PM

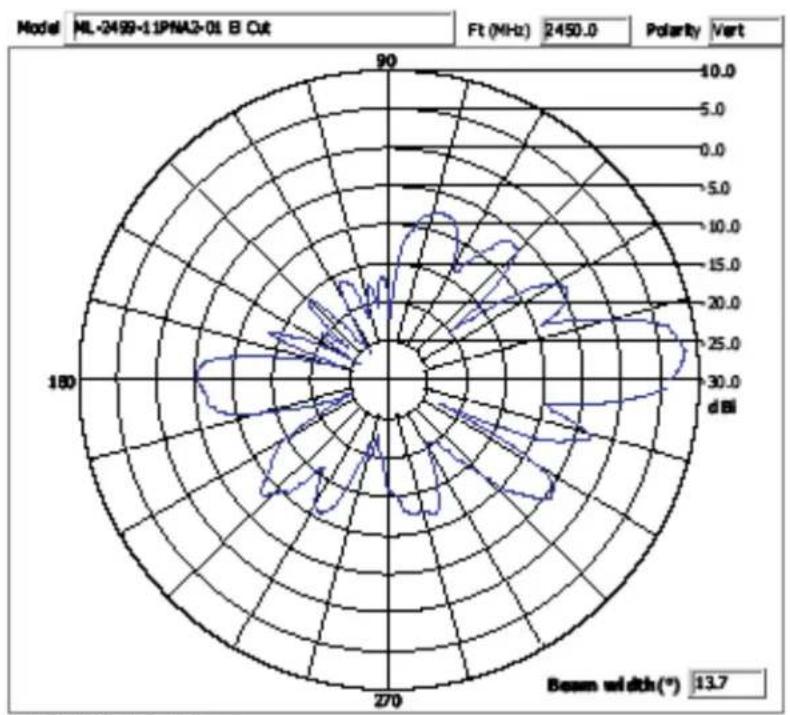

Elevation Pattern

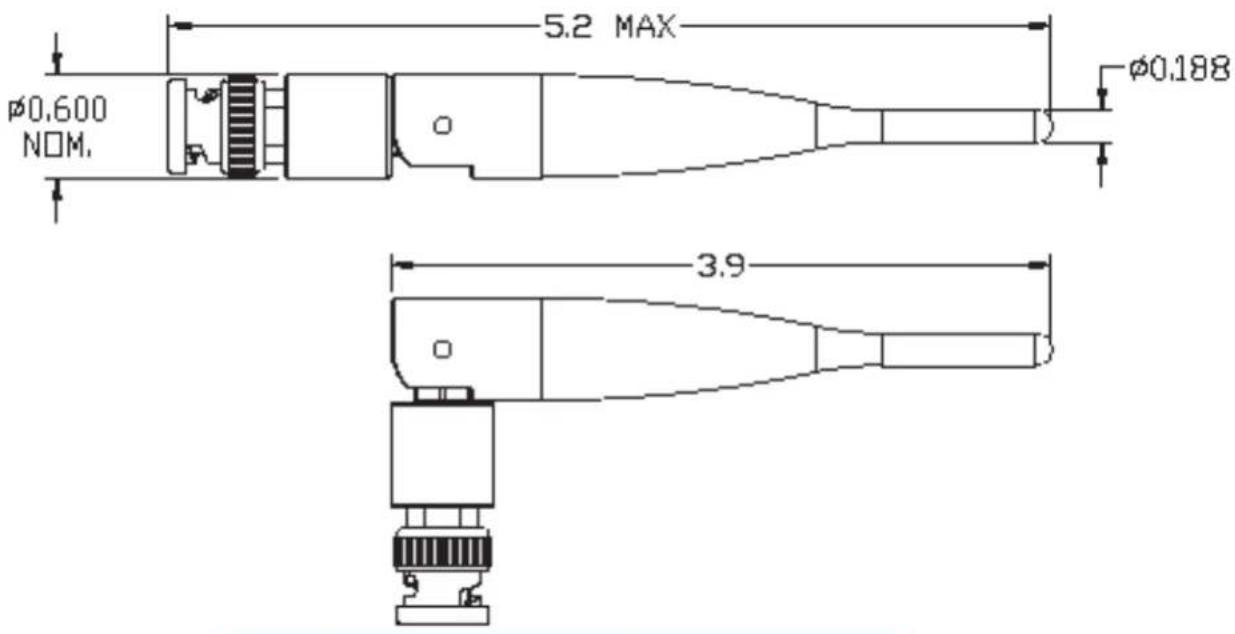

ML-2499-APA2-01R Indoor Rubber Flex, Elbow Joint Dipole: RP-BNC male

Type Dipole

Frequency 2400-2500 MHz

Gain (dBi) 2

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 360°

Elevation 3dB Beamwidth: 60°

Cable Length (in.) 0

Cable Type N/A

Connector Type RP-BNC Male

Weight 0.075 lbs

Plenum Antenna No

Plenum Cable N/A

Outdoor Rated No

Azimuth Pattern

Elevation Pattern

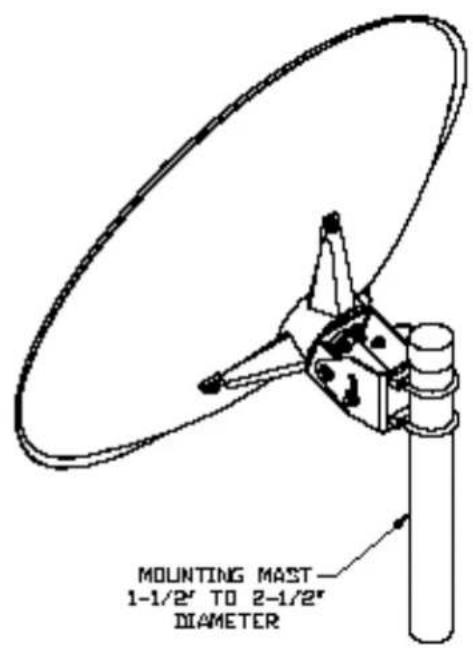

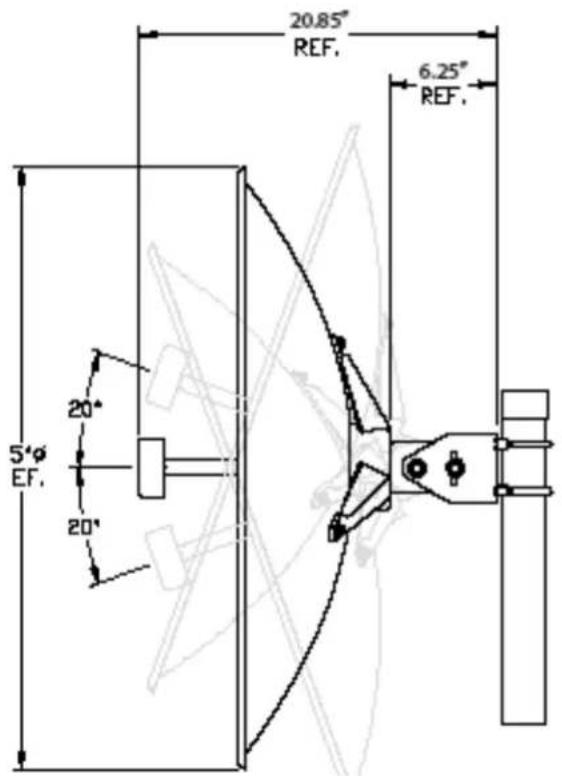

ML-2499-BPDA1-01R Outdoor 10°High-Gain Dish: 20.5 N female

Type Parabolic Dish

Frequency 2400-2500 MHz

Gain (dBi) 23.5

Net Gain (dBi) 20.5 (minimum cable configuration)

Cable Loss (dB) 3 (minimum cable configuration)

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 10°

Elevation 3dB Beamwidth: 11^

Cable Length (in.) Use minimum configuration (or more)

Cable Type Varies per cable configuration

Connector Type Type N Female

Weight 13 lb

Plenum Antenna N/A

Plenum Cable N/A

Outdoor Rated Yes

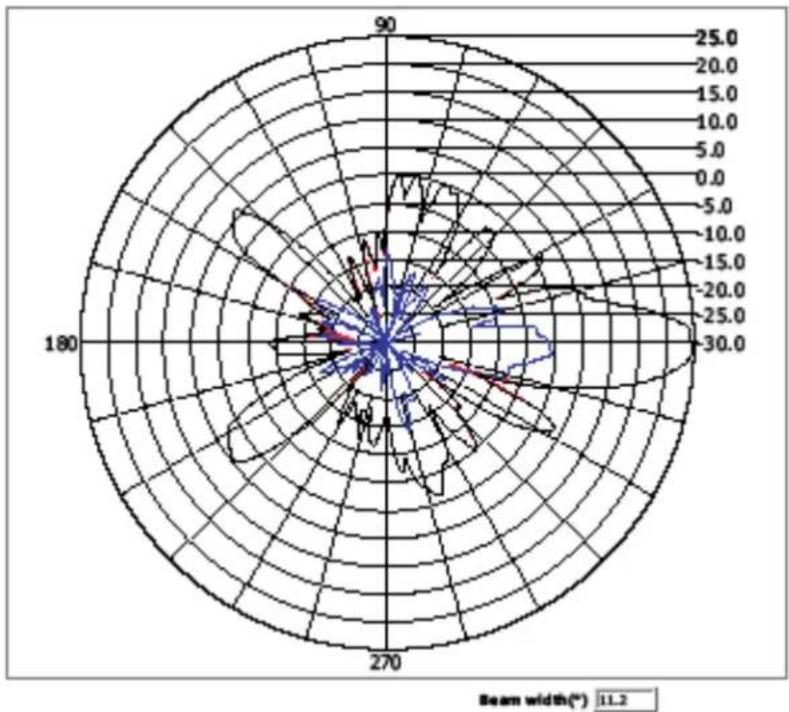

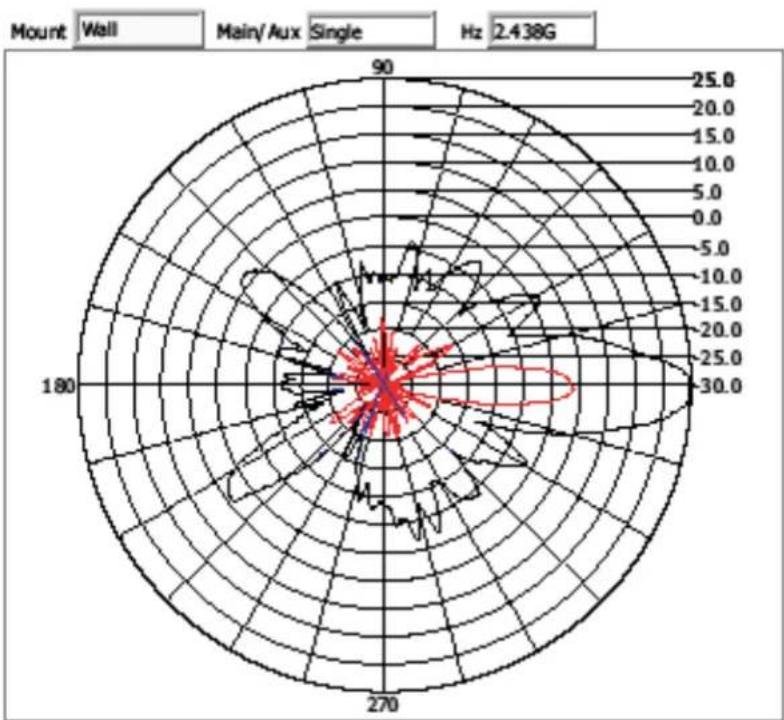

Azimuth Pattern

Elevation Pattern

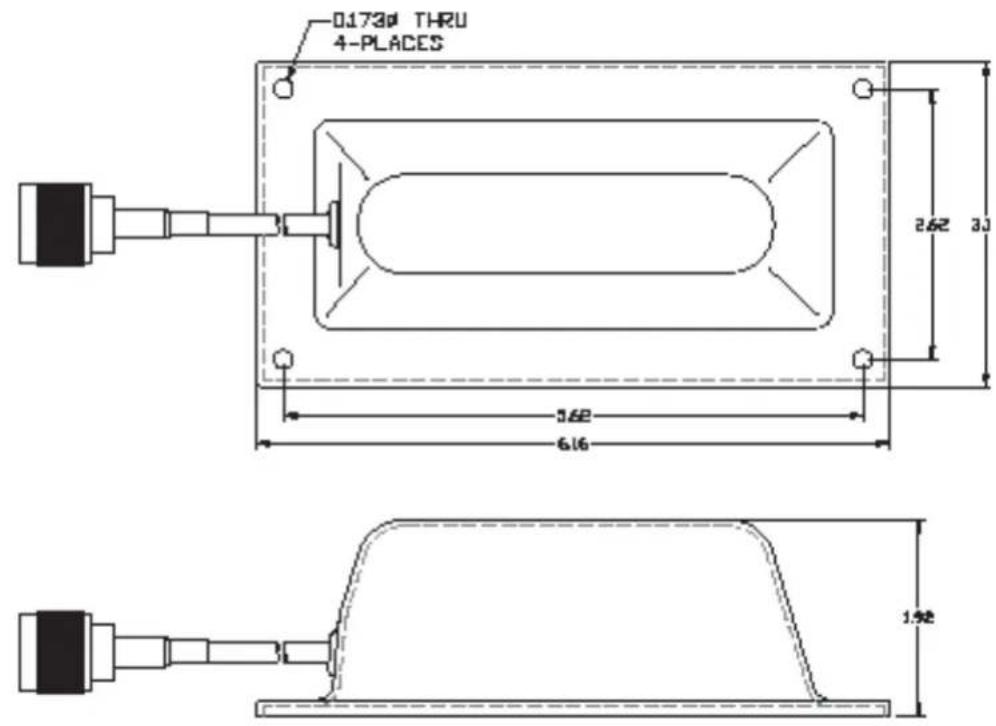

ML-2499-BPNA3-01R Outdoor 35° High-Gain Directional Panel: type N - female

Type Panel (Outdoor)

Frequency 2400-2500 MHz

Gain (dBi) 13.9

Net Gain (dBi) 10.9 (minimum cable configuration)

Cable Loss (dB) 3 (minimum cable configuration)

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 35°

Elevation 3dB Beamwidth: 28°

Cable Length (in.) Use minimum configuration (or more)

Cable Type Varies per cable configuration

Connector Type Type N Female

Weight 1.5 lb

Plenum Antenna N/A

Plenum Cable N/A

Outdoor Rated Yes

11/12/2003 4:49:00 PM

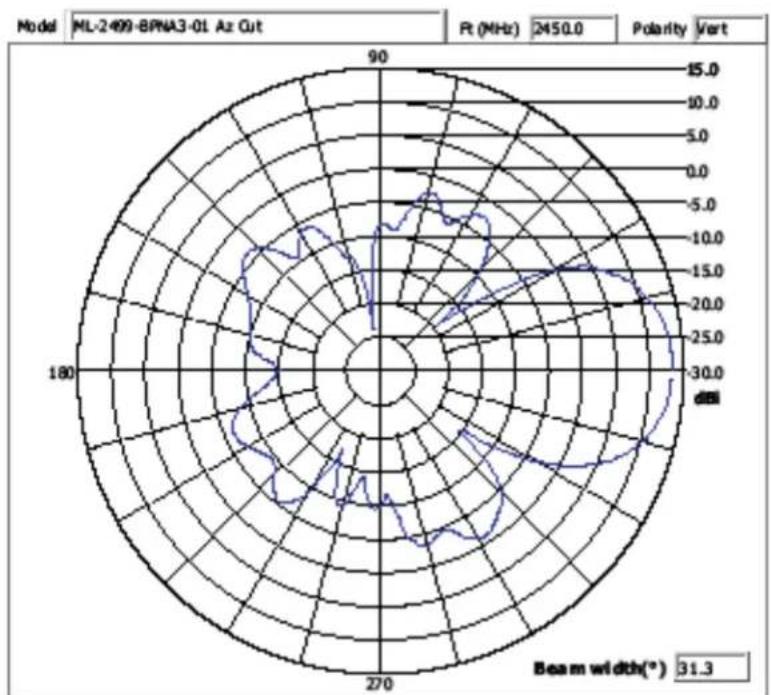

Azimuth Pattern

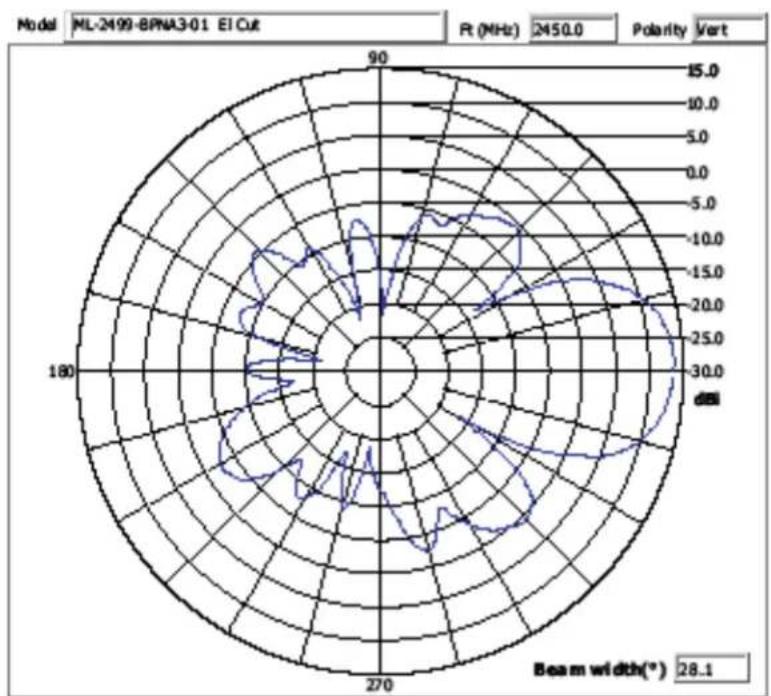

11/12/2003 4:44:40 PM
Elevation Pattern

ML-2499-BYGA2-01R Outdoor 35° High-Gain Directional Yagi: N female

Type Yagi (Outdoor)

Frequency 2400-2500 MHz

Gain (dBi) 14.1

Net Gain (dBi) 11.1 (minimum cable configuration)

Cable Loss (dB) 3 (minimum cable configuration)

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 35°

Elevation 3dB Beamwidth: 30°

Cable Length (in.) 12

Cable Type Varies per the cable configuration used

Connector Type Type N - Female

Power 50 W

Weight 1.25 lb.

11/12/2003 5:58:10 PM

Azimuth Pattern

11/12/2003 6:00:02 PM
Elevation Pattern

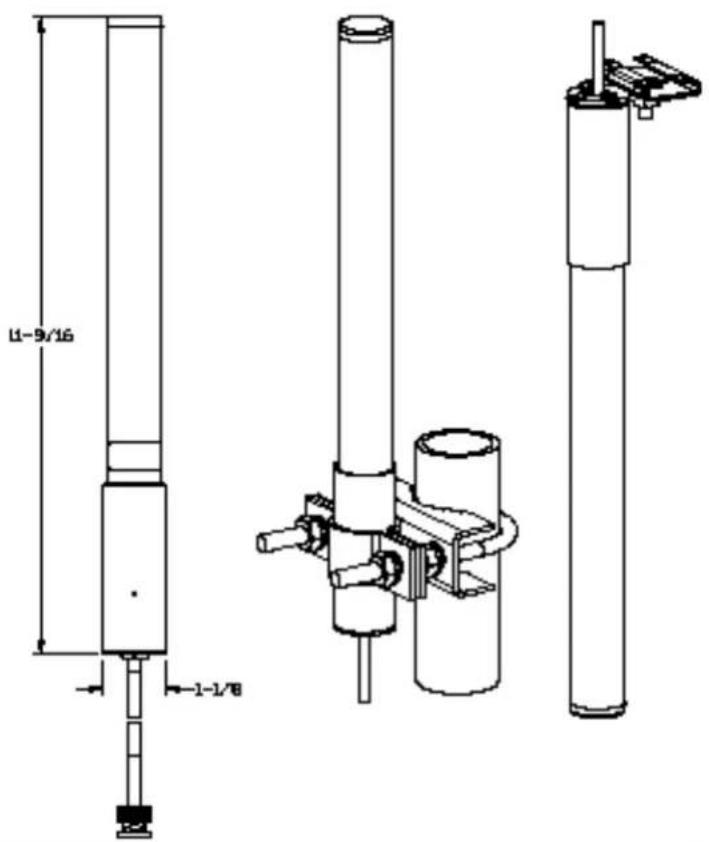

ML-2499-HPA3-01R High Performance Omni-Directional "Pipe" Antenna: RP-BNC male

Type Dipole Array

Frequency 2400-2500 MHz

Gain (dBi) 3.3

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 360°

Elevation 3dB Beamwidth: 31^

Cable Length (in.) 48

Cable Type RG-58 Ultralink

Connector Type RP-BNC Male

Weight 0.3 lb.

Plenum Antenna No

Plenum Cable Yes

Outdoor Rated Yes (in a cable down orientation)

11/12/2003 6:22:13 PM

Azimuth Pattern

11/12/2003 6:19:10 PM
Elevation Pattern

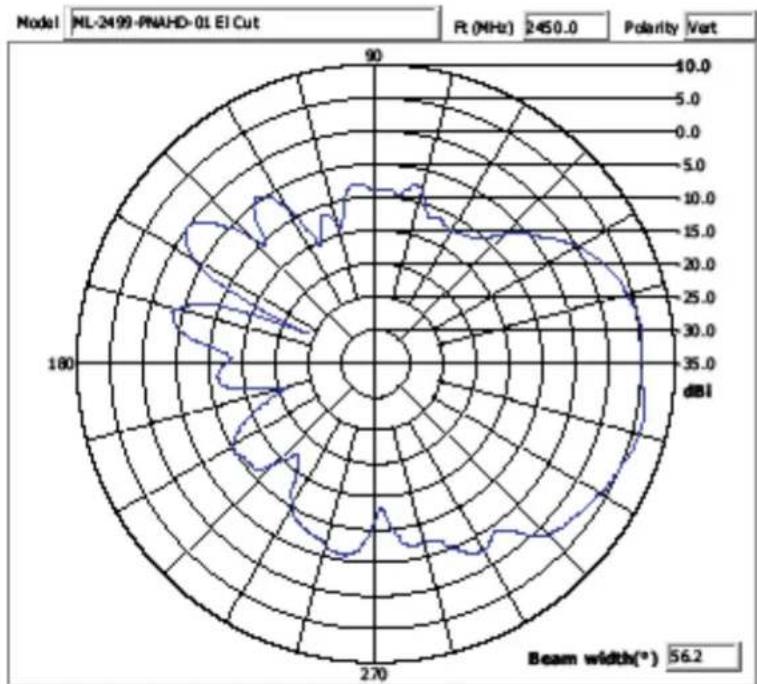

ML-2499-PNAHD-01R Indoor 55°Directional Panel: RP-BNC male

Type Panel

Frequency 2400-2500 Mhz

Gain (dBi) 6.3

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 55°

Elevation 3dB Beamwidth: 56°

Cable Length (in.) 48

Cable Type RG-58 Ultralink

Connector Type RP-BNC Male

Weight 0.5 lb.

Plenum Antenna No

Plenum Cable Yes

Outdoor Rated No

11/12/2003 6:41:17 PM
Azimuth Pattern

11/12/2003 6:44:37 PM
Elevation Pattern

ML-2499-SD3-01R Low Profile Ceiling/Surface Mount Omni-Directional Patch: RP-BNC male

Type Patch (ceiling mount)

Frequency 2400-2500 MHz

Gain (dBi) 3.5

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 360°

Elevation 3dB Beamwidth: 52°

Cable Length (in.) 48

Cable Type RG-58 Ultralink

Connector Type RP-BNC Male

Weight 0.21 lb.

Plenum Antenna No

Plenum Cable Yes

Outdoor Rated No

11/24/2003 4:14:27 PM

Azimuth Pattern

11/12/2003 6:54:30 PM
Elevation Pattern

ML-2499-FHPA5-01R Omni-Directional "Pipe" Antenna: N male connector

Simple line drawing of a cylindrical object with no text or symbols

ML-2499-FHPA5-01R

Type Dipole Array

Frequency 2400-2500 MHz

Gain (dBi) 5

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 360°

Elevation 3dB Beamwidth: 25°

Cable Length (in.) N/A

Cable Type N/A

Connector Type Type N Male

Weight 0.7 lb.

Plenum Antenna No

Plenum Cable N/A

Outdoor Rated Yes

Azimuth Pattern 2450 MHz

Elevation Pattern 2450 MHz

ML-2499-FHPA9-01R High Performance Fixed Point Dipole: male connector

ML-2499-FHPA9-01R

Type Dipole Array

Frequency 2400-2500 MHz

Gain (dBi) 9

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 360°

Elevation 3dB Beamwidth: 14°

Cable Length (in.) N/A

Cable Type N/A

Connector Type Type N Male

Weight 1.1 lb.

Plenum Antenna No

Plenum Cable N/A

Outdoor Rated Yes

Azimuth Pattern

Elevation Pattern

Supported 802.11a/n antenna suite

Brocade supports numerous 802.11a/n antennas to suit the requirements of your unique access point or access port deployment. Check the Brocade Web site periodically, as newly supported 802.11a/n antennas will be added to this document as they are released. For more information, see http://support.symbol.com/support/product/manuals.do.

For detailed information on supported 802.11a/n antenna models, refer to:

• “ML-5299-APA1-01R Indoor Rubber Flex Jointed Dipole: RP-SMA male connector”
• "ML-5299-HPA1-01R High Performance Omni-Directional Dipole Antenna: RP-SMA male connector"
• “ML-5299-PTA1-01R Low Profile Ceiling-Tile Mount Patch: RP-SMA male connector”
• “ML-5299-WPNA1-01R Wall Mount Panel Antenna w/Articulating Mount: RP-SMA male”
• “ML-5299-FHPA10-01R Omni-Directional “Pipe” Antenna: N male connector”
• “ML-5299-FHPA6-01R Omni-Directional “Pipe” Antenna: N male connector”

NOTE

For examples on how various antenna and connectors are deployed in a 5 GHz AP-5131 installation, see “5 GHz AP-5131 Antenna Connections” on page 109.

ML-5299-APA1-01R Indoor Rubber Flex Jointed Dipole: RP-SMA male connector

Type Dipole

Frequency 4900-5875 MHz

Gain (dBi) 2

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 360°

Elevation 3dB Beamwidth: 75°

Cable Length (in.) N/A

Cable Type N/A

Connector Type RP-SMA Male

Weight 0.063 lb.

Plenum Antenna No

Plenum Cable N/A

Outdoor Rated No

Azimuth Pattern

1/7/2004 8:47:57 PM

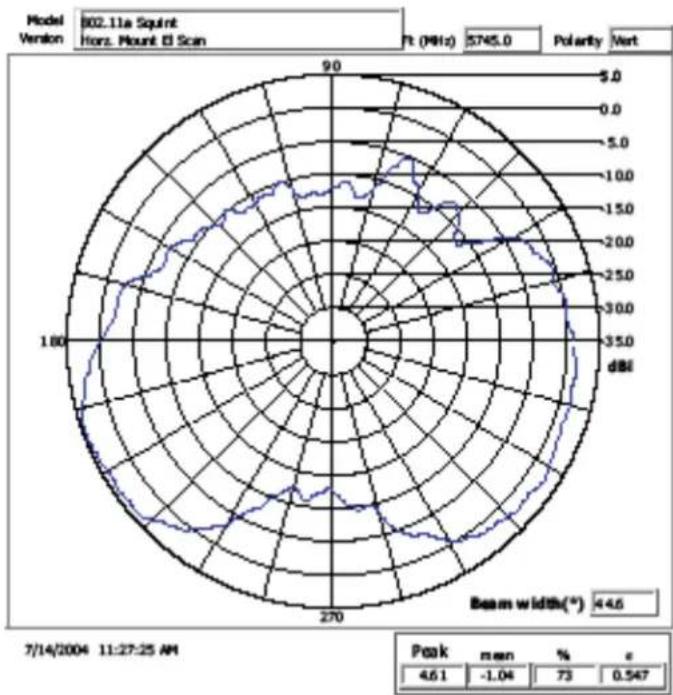

Elevation Pattern

ML-5299-HPA1-01R High Performance Omni-Directional Dipole Antenna: RP-SMA male connector

Type Dipole Array

Frequency 4900-5875 MHz

Gain (dBi) 5

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 360°

Elevation 3dB Beamwidth: 17°

Cable Length (in.) 36

Cable Type LMR195

Connector Type RP-SMA Male

Weight 0.3 lb.

Plenum Antenna No

Plenum Cable Yes

Outdoor Rated Yes (cable down orientation only)

Azimuth Pattern

12/15/2003 11:40:30 AM

Elevation Pattern

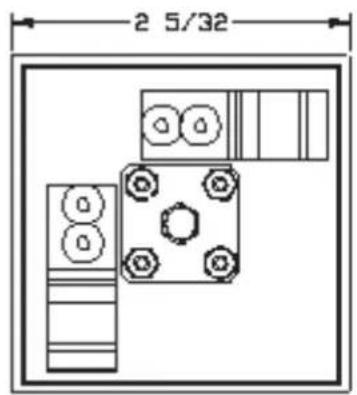

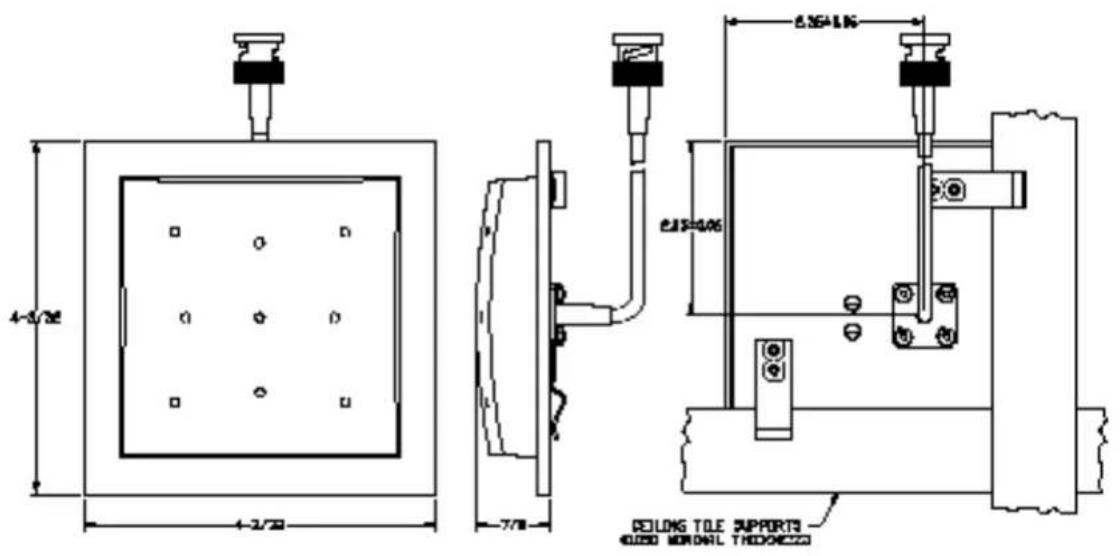

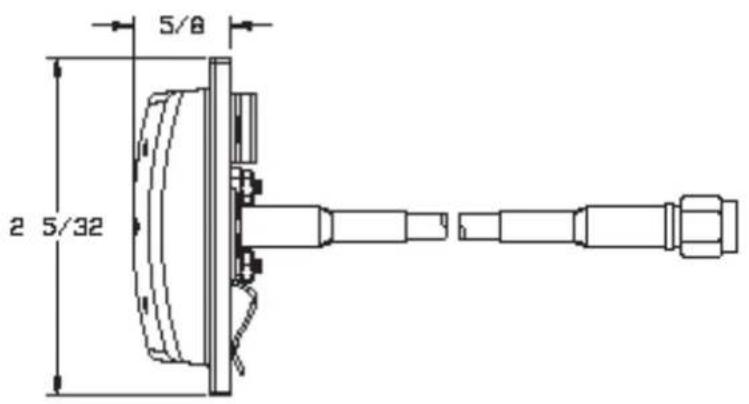

ML-5299-PTA1-01R Low Profile Ceiling-Tile Mount Patch: RP-SMA male connector

Type Patch

Frequency 5150-5875 MHz

Gain (dBi) 4.6

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 360°

Elevation 3dB Beamwidth: 45°

Cable Length (in.) 36

Cable Type RG-58

Connector Type RP-SMA Male

Weight 0.15 lb.

Plenum Antenna No

Plenum Cable Yes

Outdoor Rated No

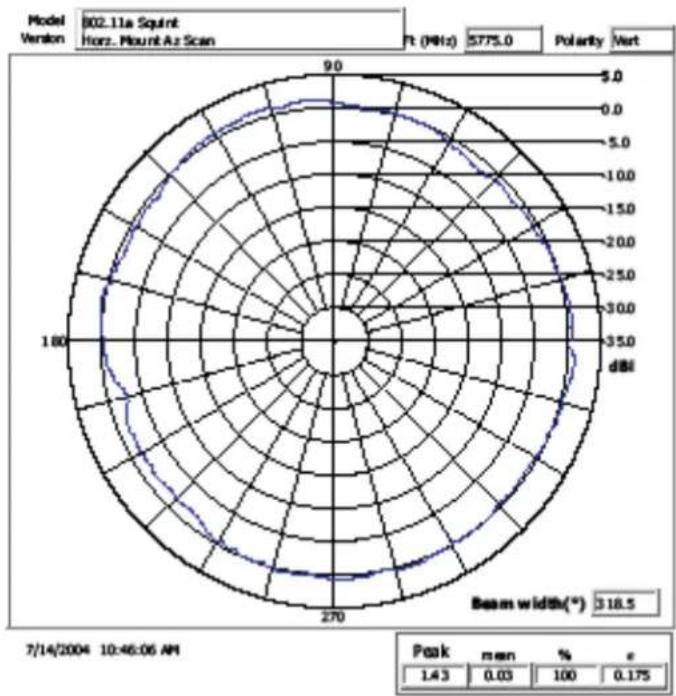

Azimuth Pattern

Elevation Pattern

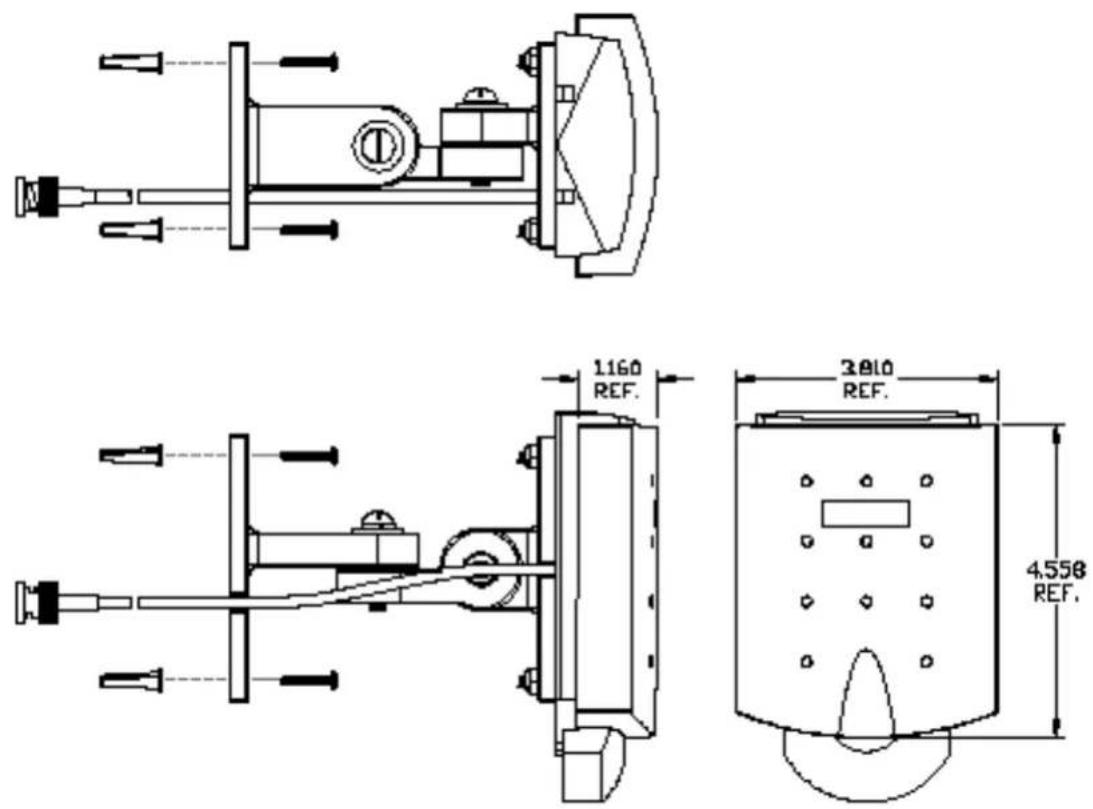

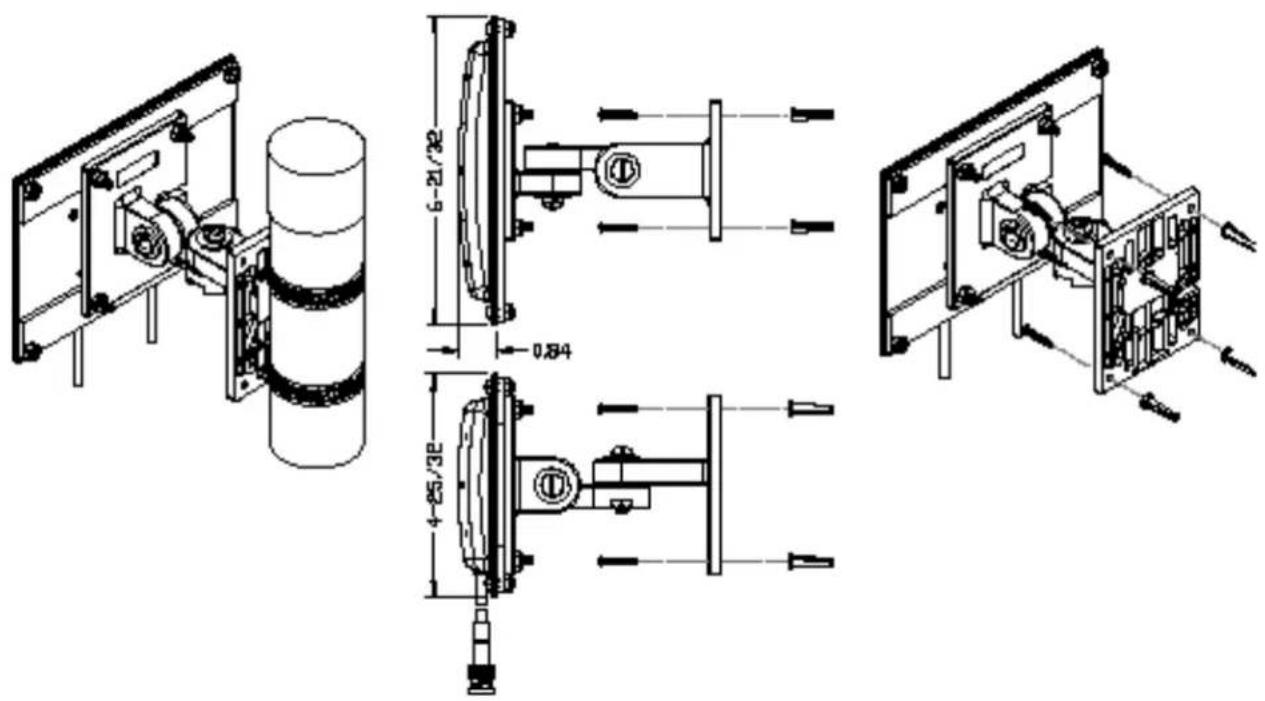

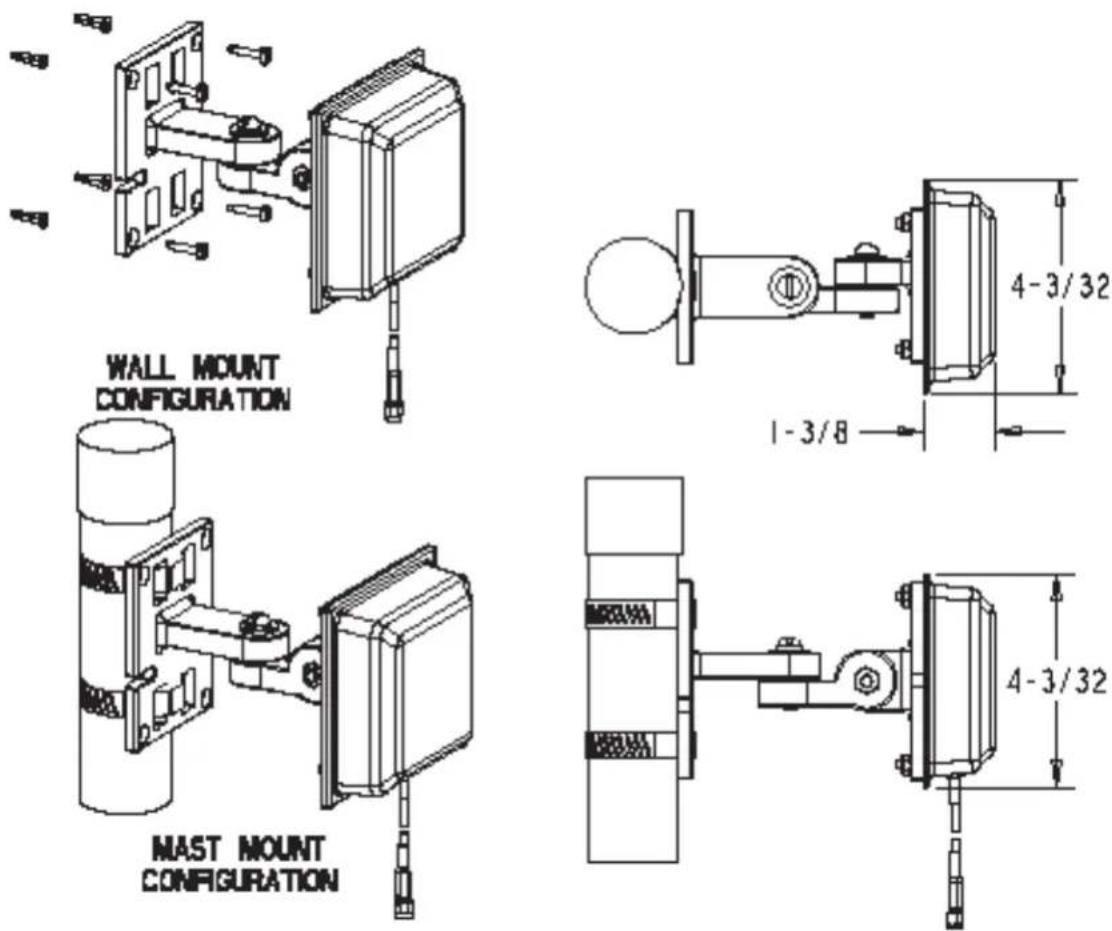

ML-5299-WPNA1-01R Wall Mount Panel Antenna w/Articulating Mount: RP-SMA male

Type Panel

Frequency 5150-5875 MHz

Gain (dBi) 12.5

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 31°

Elevation 3dB Beamwidth: 27°

Cable Length (in.) 36

Cable Type RG-303

Connector Type RP-SMA Male

Weight 0.7 lb.

Plenum Antenna No

Plenum Cable Yes

Outdoor Rated Yes

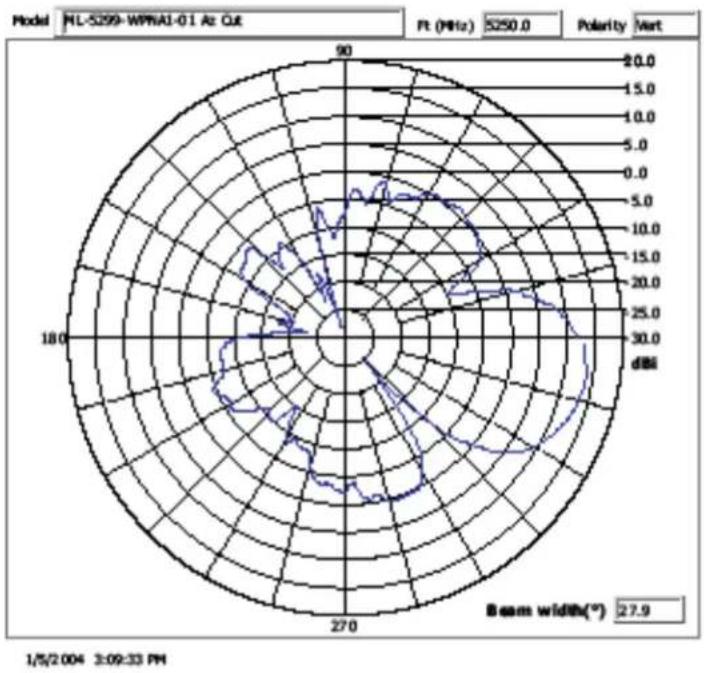

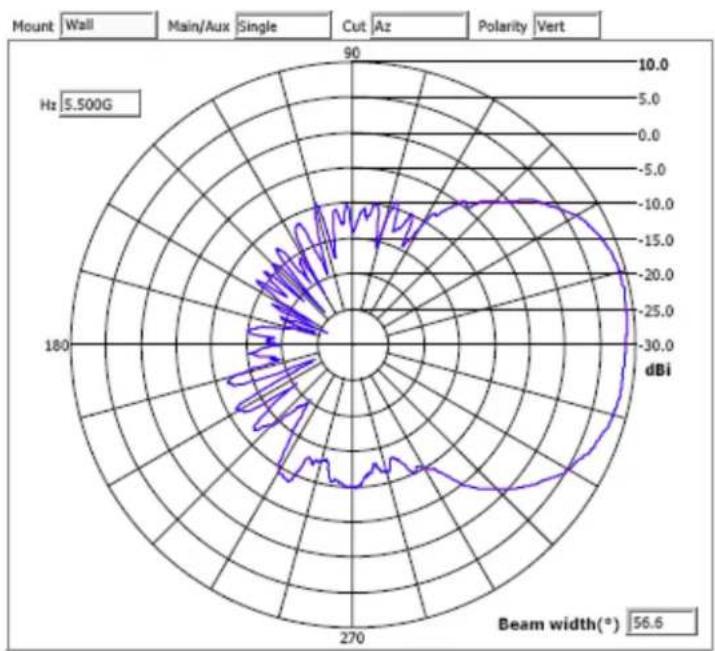

Azimuth Pattern

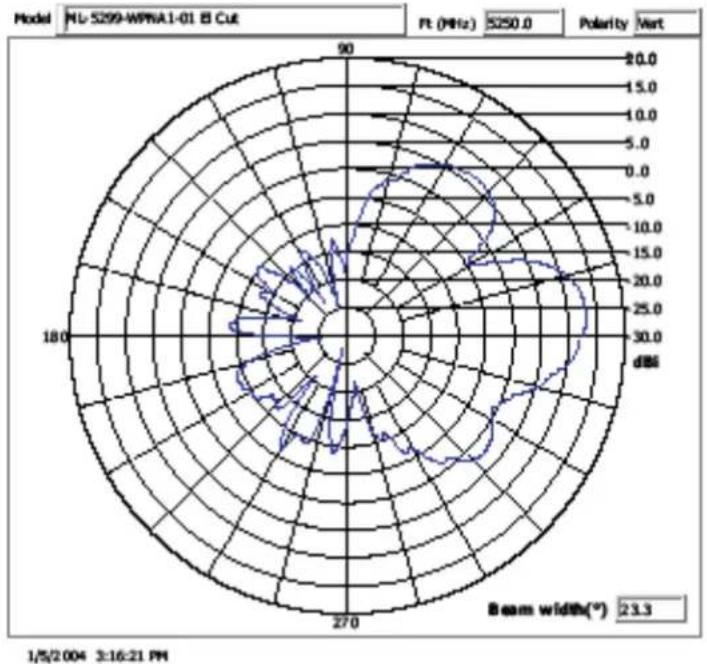

Elevation Pattern

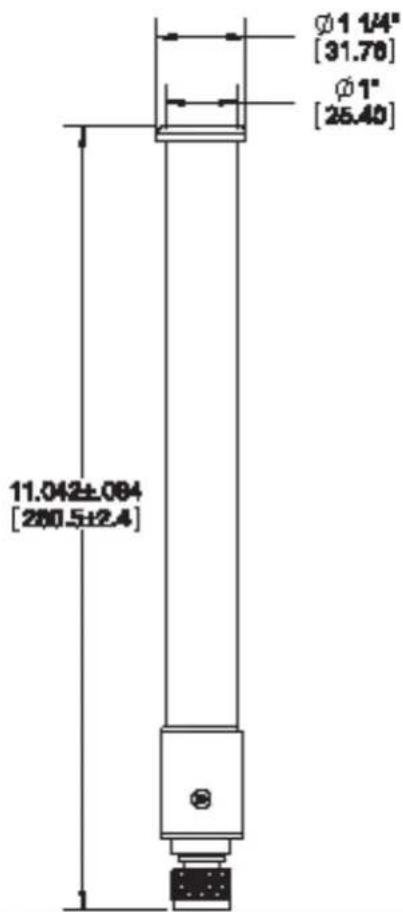

ML-5299-FHPA10-01R Omni-Directional "Pipe" Antenna: N male connector

Pure diagram of a vertical cylindrical component with no text or symbols, labeled ML-5299-FHPA10-01R at the bottom (no other text or symbols)

Type Dipole Array

Frequency 4900-5850 MHz

Gain (dBi) 10

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 360°

Elevation 3dB Beamwidth: 13

Cable Length (in.) N/A

Cable Type N/A

Connector Type Type N Male

Weight 0.37 lb.

Plenum Antenna No

Plenum Cable N/A

Outdoor Rated Yes

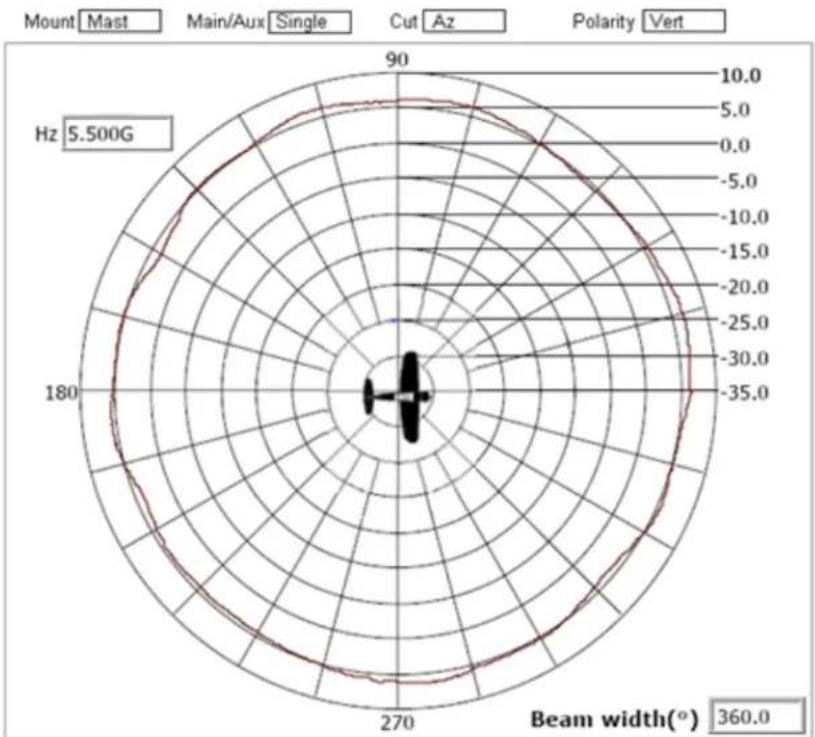

Azimuth Pattern

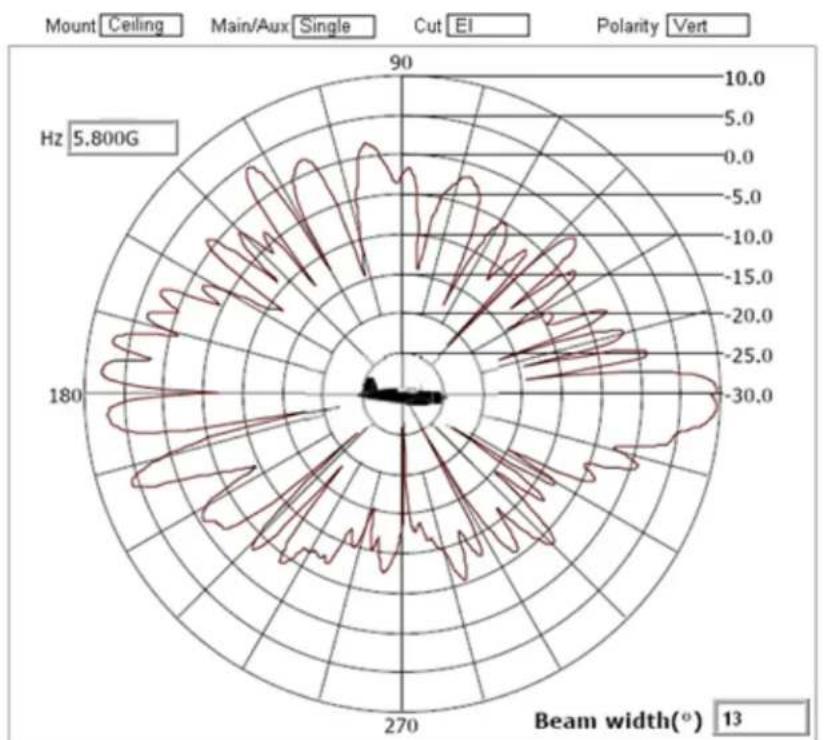

Elevation Pattern

ML-5299-FHPA6-01R Omni-Directional "Pipe" Antenna: N male connector

Type Dipole Array

Frequency 5150-5850

Gain (dBi) 6

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 360°

Elevation 3dB Beamwidth: 16°

Cable Length (in.) N/A

Cable Type N/A

Connector Type Type N Male

Weight 0.37 lb.

Plenum Antenna No

Plenum Cable N/A

Outdoor Rated Yes

Azimuth Pattern

Elevation Pattern

Supported 802.11a/b/g/n Dual Band Antennas

Brocade supports several 2.4GHz - 5.2GHz Dual Band antennas to suit the requirements of your unique access point or access port deployment. Check the Brocade Web site periodically, as newly supported 2.4GHz - 5.2GHz Dual Band antennas will be added to this document as they are released. For more information, see http://support.symbol.com/support/product/manuals.do.

For detailed information on supported 2.4GHz - 5.2GHz Dual Band antenna models, refer to:

• “ML-2452-APA2-01 Indoor Dual Band Elbow Jointed Dipole: RP-SMA male”
• "ML-2452-PNA5-01R Dual Band Panel: Connector Type N male"
• “ML-2452-PNA7-01R Dual Band Panel: Connector Type N-Male”
• “ML-2452-PTA2M3X3-1 AP-7131 MIMO Facade: 1 IN, RPSMA”
• “ML-2452-PTA3M3-036 Ceiling Mount, Dual Band, MIMO Patch: RPSMA”

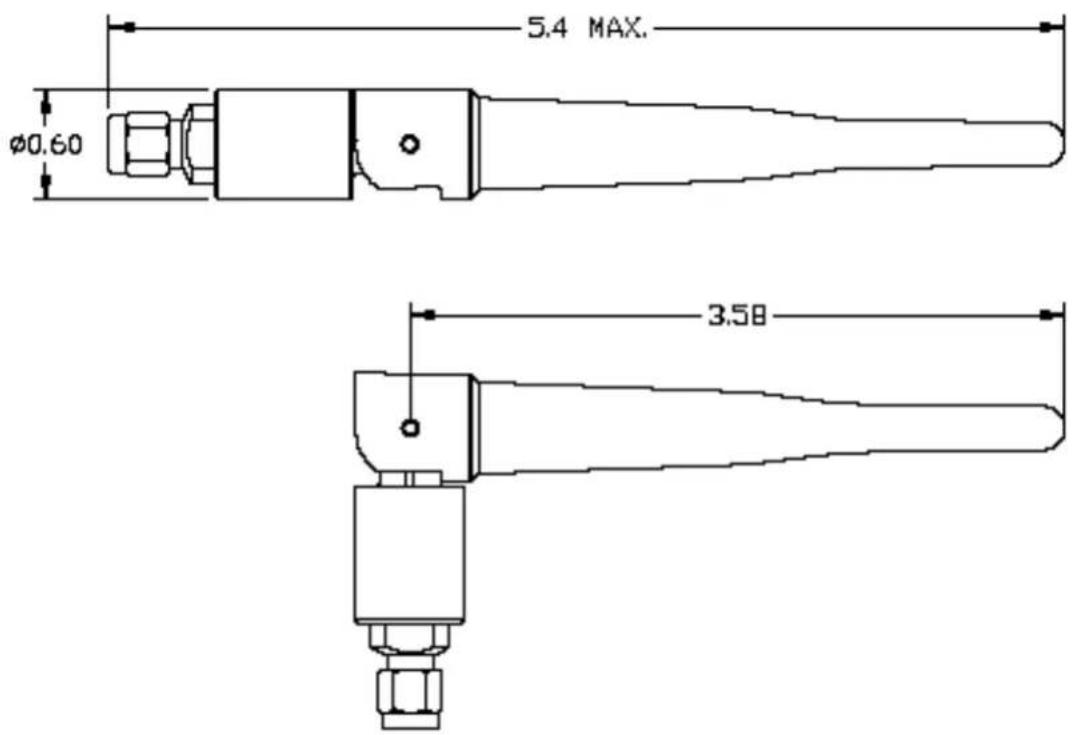

ML-2452-APA2-01 Indoor Dual Band Elbow Jointed Dipole: RP-SMA male

Technical line drawing of two mechanical components with no visible text or symbols

Type Dipole

Frequency 2400-2500/5150-5850 MHz

Gain (dBi) 6 / 7

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 360°

Elevation 3dB Beamwidth: 35°

Cable Length (in.) N/A

Cable Type N/A

Connector Type RP-SMA Male

Weight 0.7 oz

Plenum Antenna No

Plenum Cable N/A

Outdoor Rated No

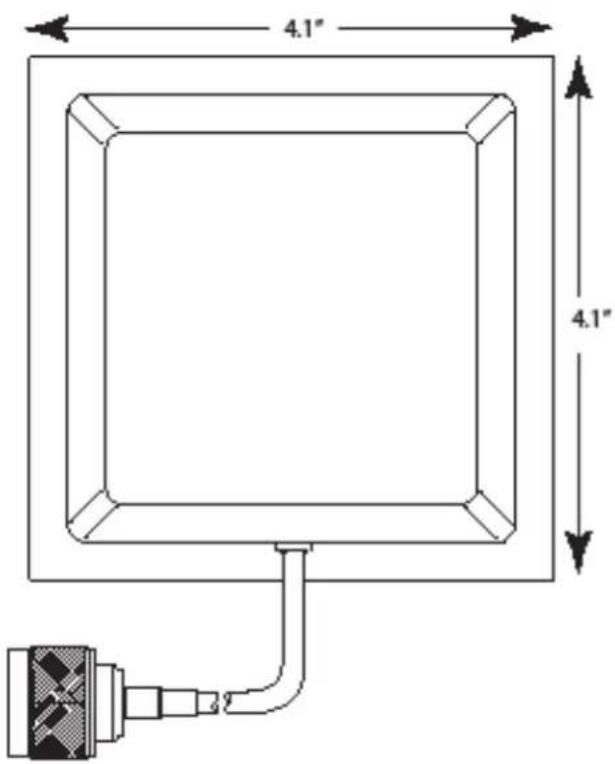

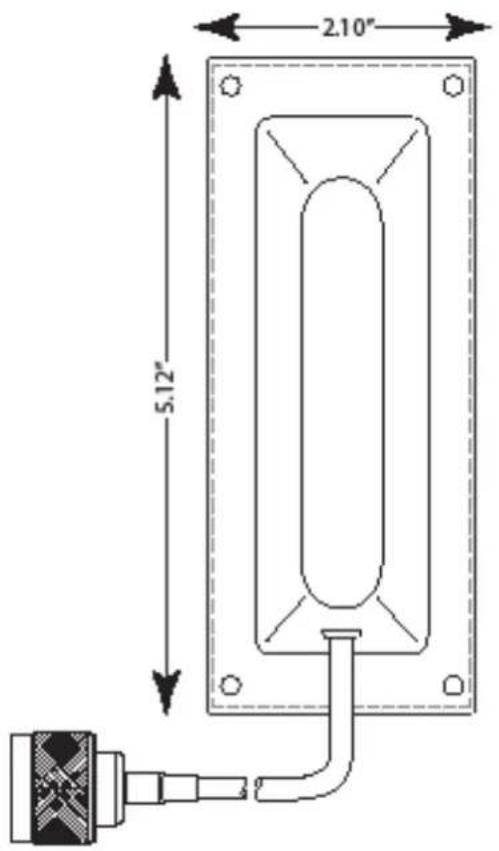

ML-2452-PNA5-01R Dual Band Panel: Connector Type N male

Type Panel

Frequency 2400-2500/4900-5900 MHz

Gain (dBi) 4.5 (2400-2500); 5.0 (4900-5250); 4.0

(5250-5900)

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 120^

Elevation 3dB Beamwidth: 65°

Cable Length (in.) 12

Cable Type RG-58 Ultralink

Connector Type Type N Male

Weight 0.2 lb

Plenum Antenna No

Plenum Cable Yes

Outdoor Rated Yes

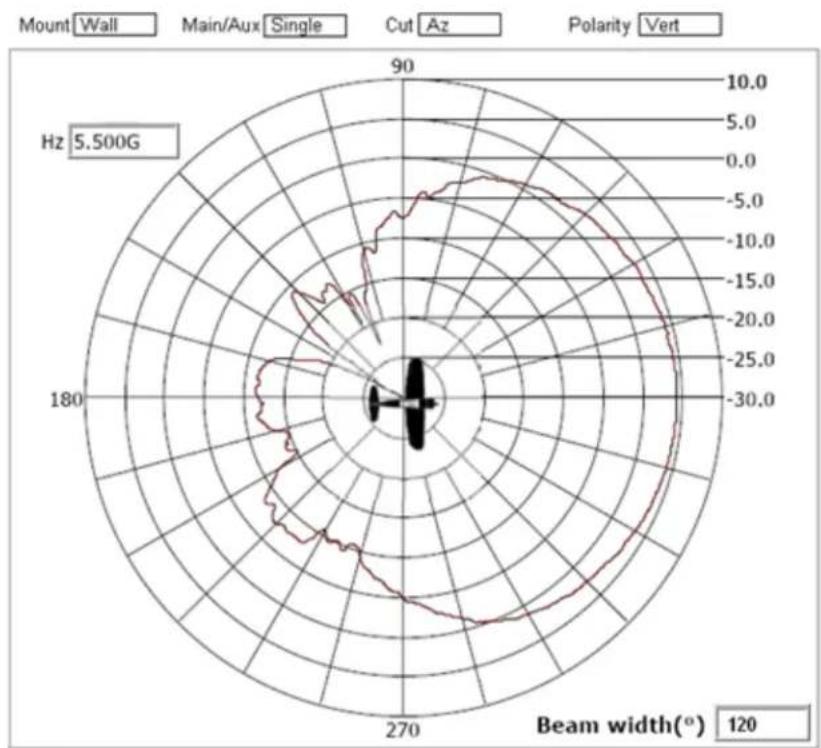

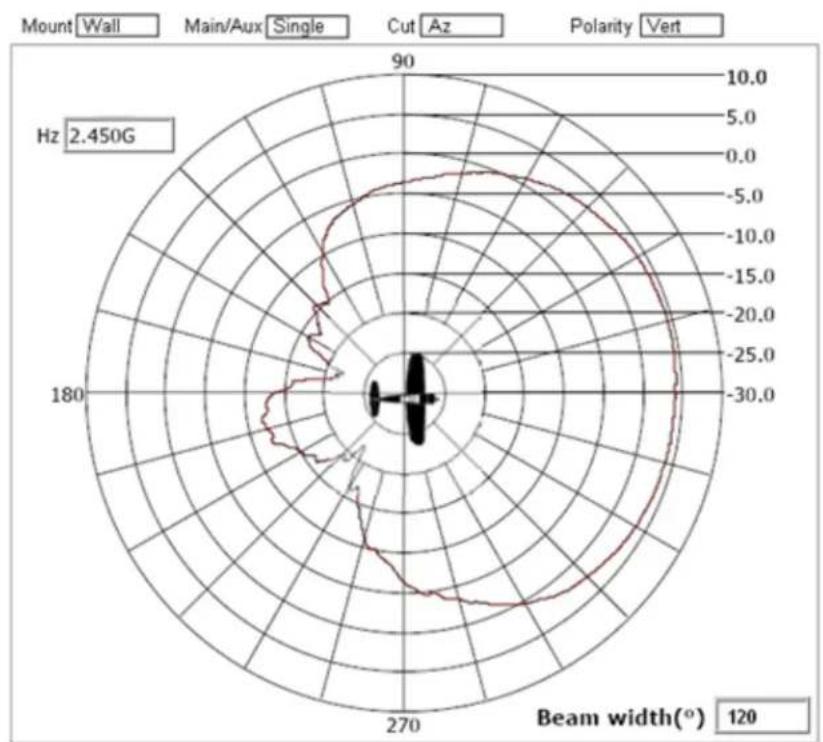

Azimuth Pattern

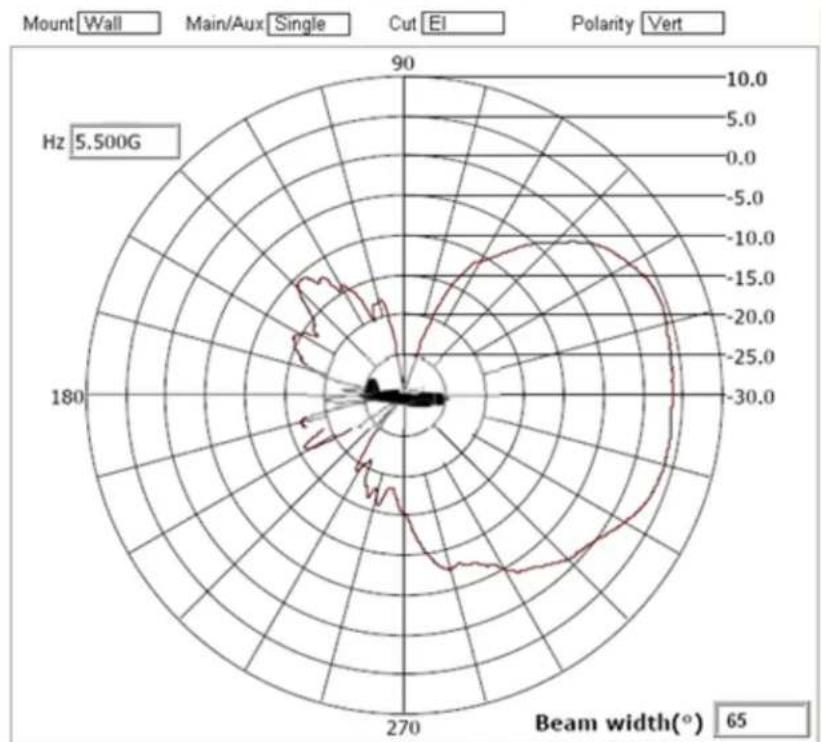

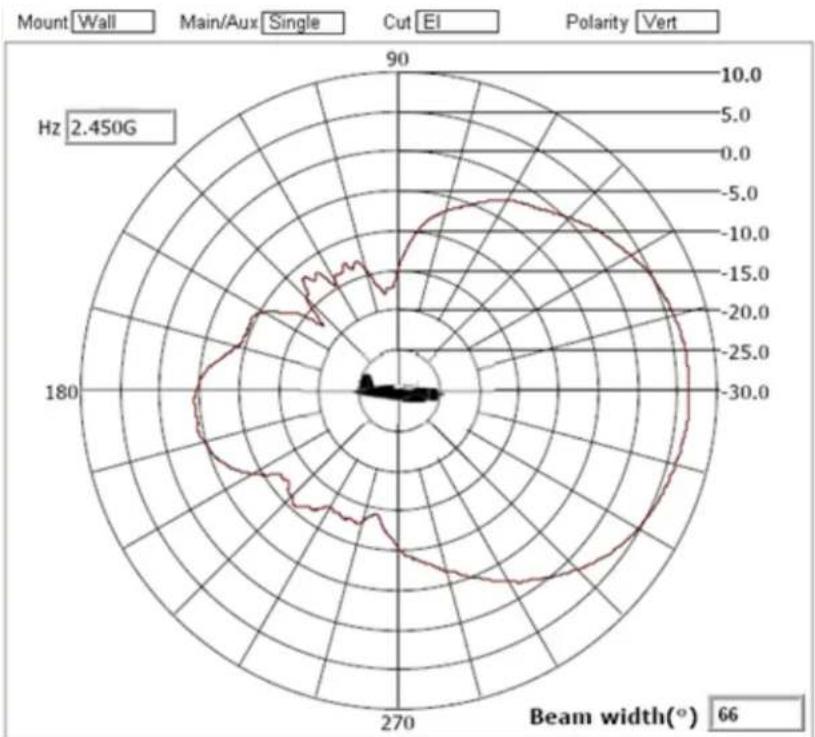

Elevation Pattern

Azimuth Pattern

Elevation Pattern

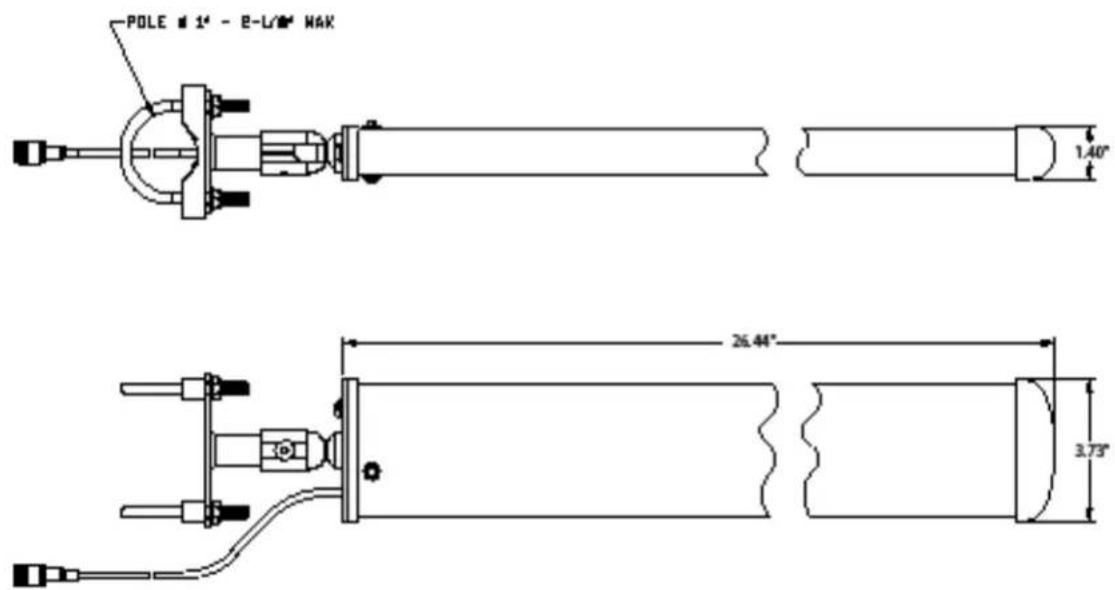

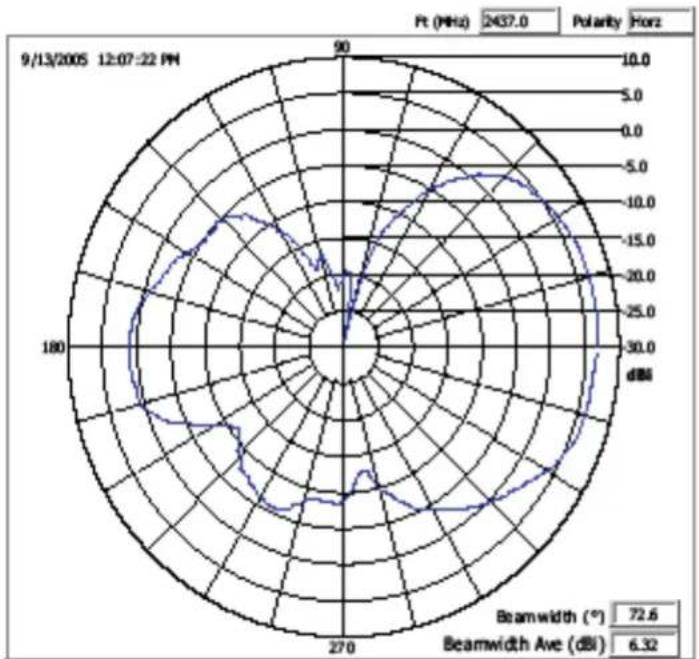

ML-2452-PNA7-01R Dual Band Panel: Connector Type N-Male

Type Panel

Frequency 2400-2500/4900-5900 MHz

Gain (dBi) 7 (2400-2500); 6.3 (4900-5250); 9(5250-5900)

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 68^ / 52^

Elevation 3dB Beamwidth: 66^ / 60^

Cable Length (in.) 12

Cable Type RG-58 Ultralink

Connector Type Type N Male

Weight 0.5 lb

Plenum Antenna No

Plenum Cable Yes

Outdoor Rated Yes

Elevation Pattern

Elevation Pattern

ML-2452-PTA2M3X3-1 AP-7131 MIMO Facade: 1 IN, RPSMA

Technical line drawing of a mechanical component with internal ribs and mounting brackets (no text or symbols)

NOTE

ML-2452-PTA2M3x3-1 was formally released as Brocade Part Number ML-2452-APA2-FAC.

Type Patch x 6 in snap-on facade

Frequency 2400-2500/4900-5990 MHz

Gain (dBi) 3 dBi 5 dBi

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 360°

Elevation 3dB Beamwidth: 90° (southern hemisphere pattern)

Cable Length (in.) Integrated into snap-on facade

Cable Type 1.20 mm coax

Connector Type RP-SMA Male

Antenna Plenum Rated No

Cable Plenum Rated No

Outdoor Rated No

Weight 0.79 lb

Azimuth Pattern

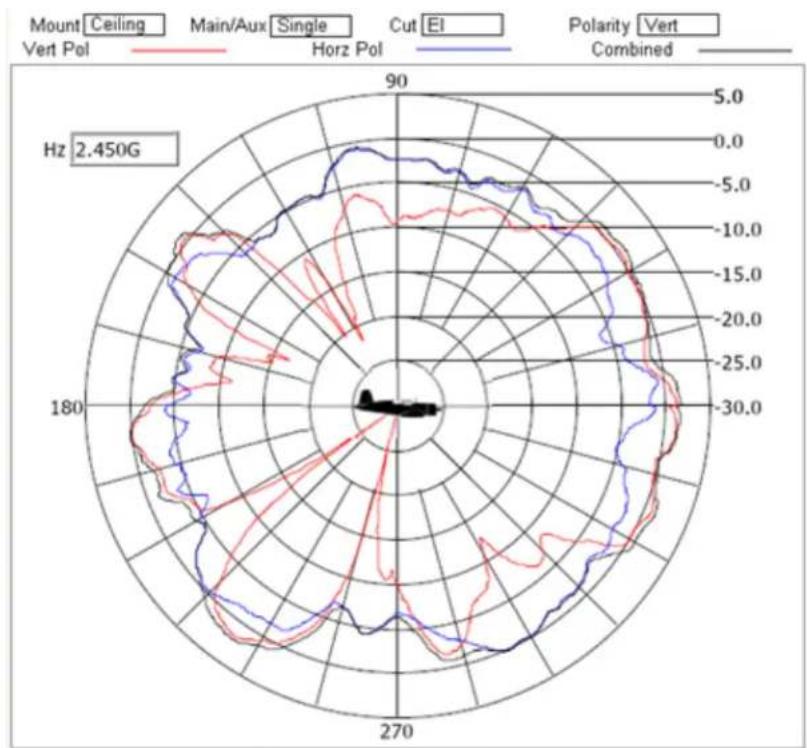

Elevation Pattern

Azimuth Pattern

Elevation Pattern

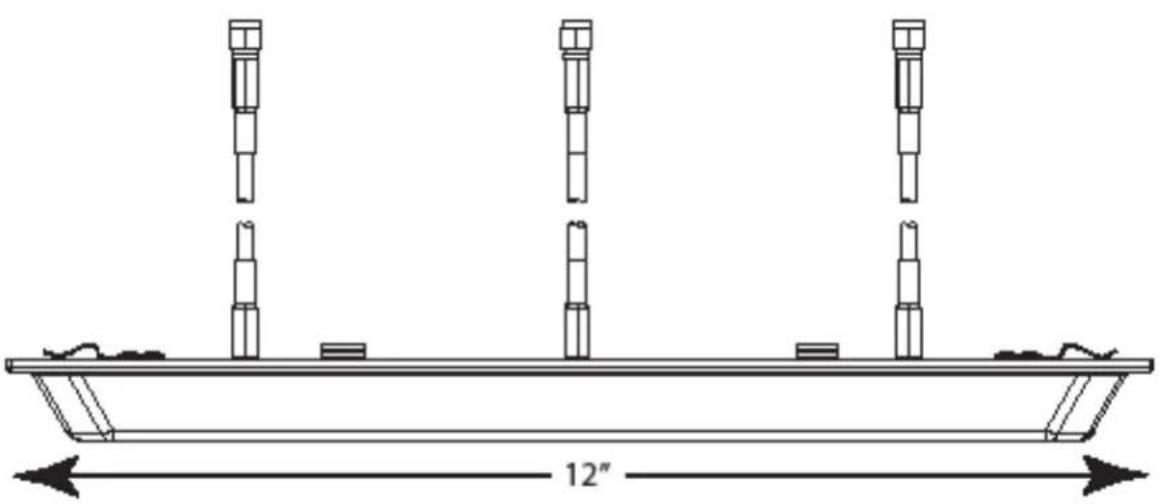

ML-2452-PTA3M3-036 Ceiling Mount, Dual Band, MIMO Patch: RPSMA

Technical line drawing of a mechanical assembly with three vertical cylindrical components and a 12-inch horizontal dimension (no text or symbols)

Type Patch x 3

Frequency 2400-2500/4900-5990 MHz

Gain (dBi) 3 dBi 7 dBi

Polarization Linear, Vertical

Azimuth 3dB Beamwidth: 360°

Elevation 3dB Beamwidth: 90° (southern hemisphere pattern)

Cable Length (in.) 36

Cable Type RG-58 50 Ohm coax

Connector Type RP-SMA Male

Antenna Plenum Rated No

Cable Plenum Rated Yes

Outdoor Rated No

Weight 0.7 lb

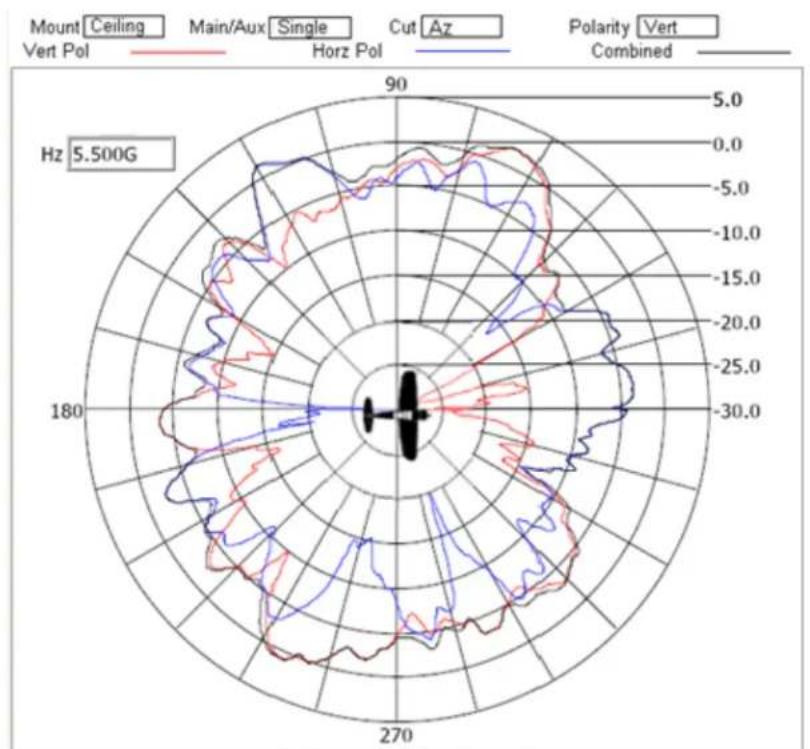

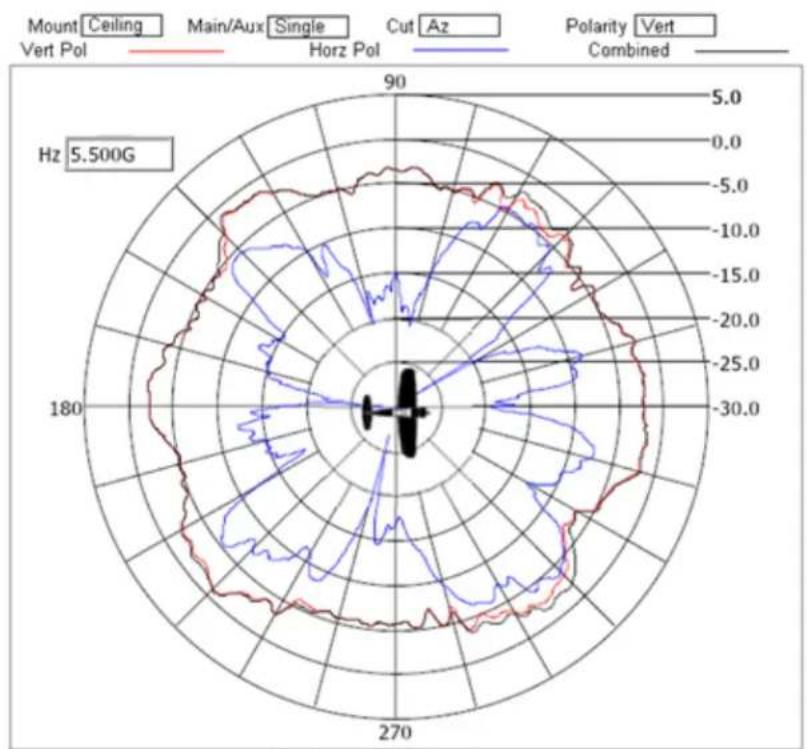

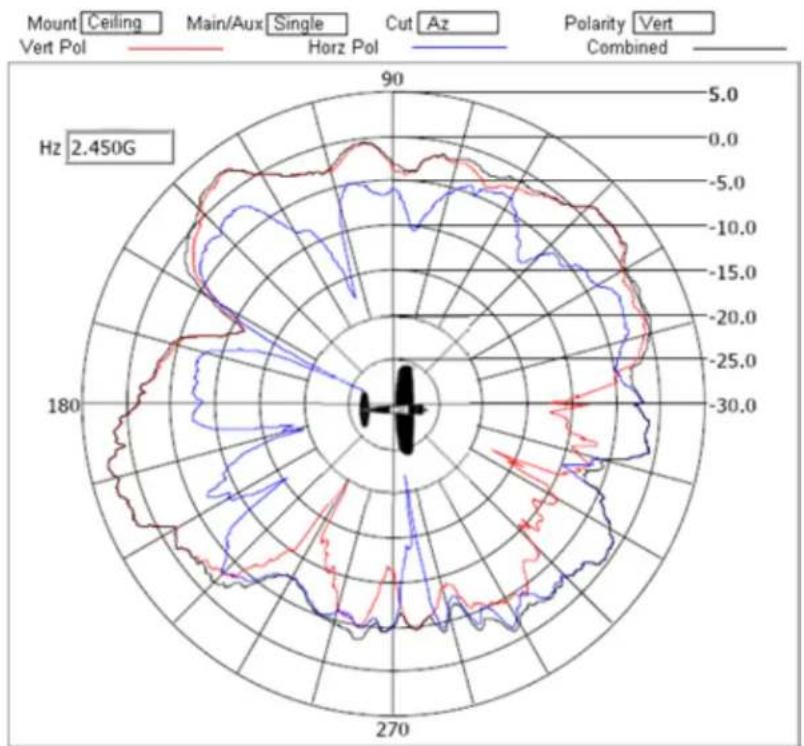

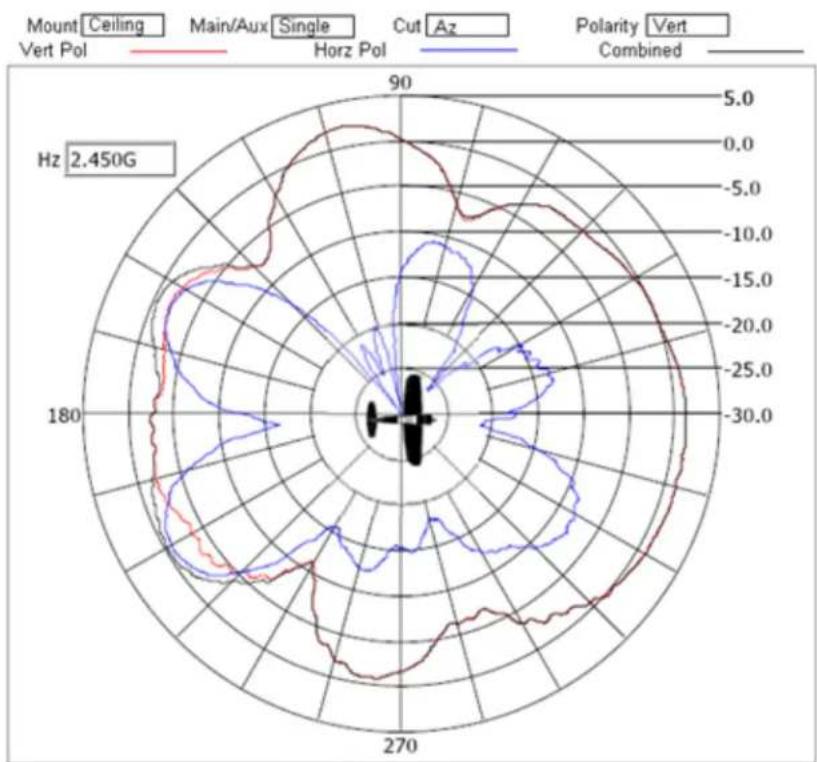

Azimuth Pattern

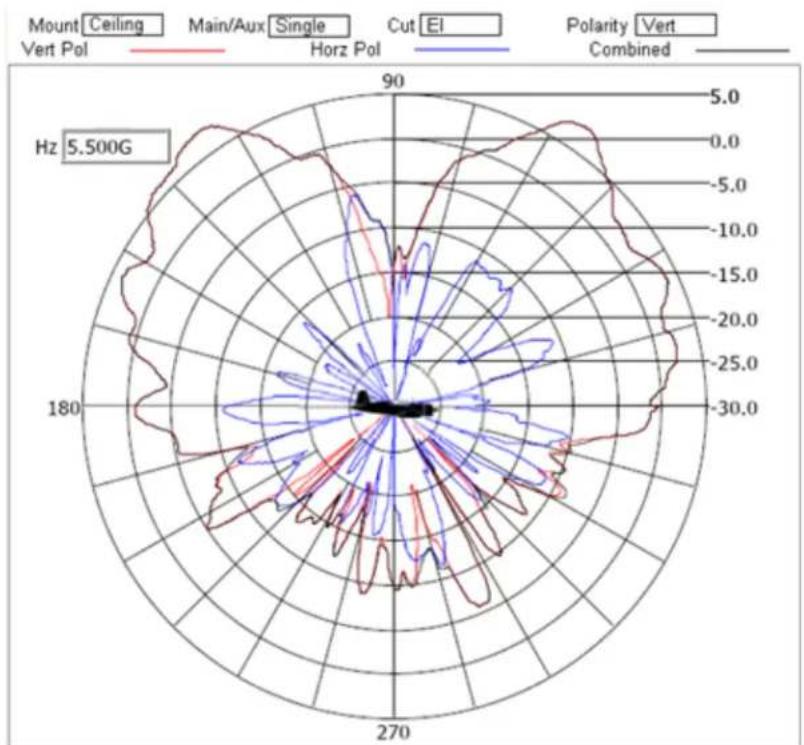

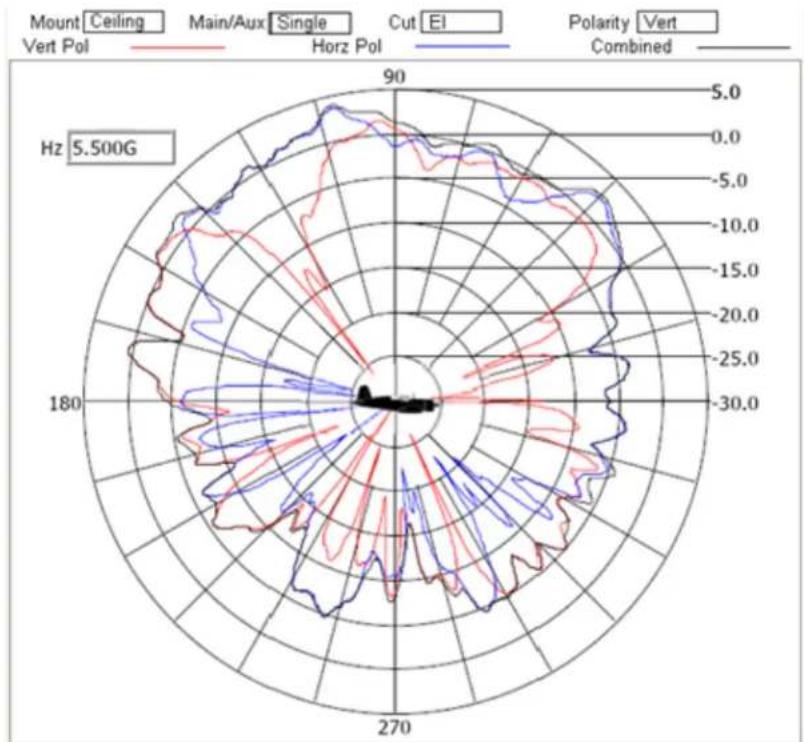

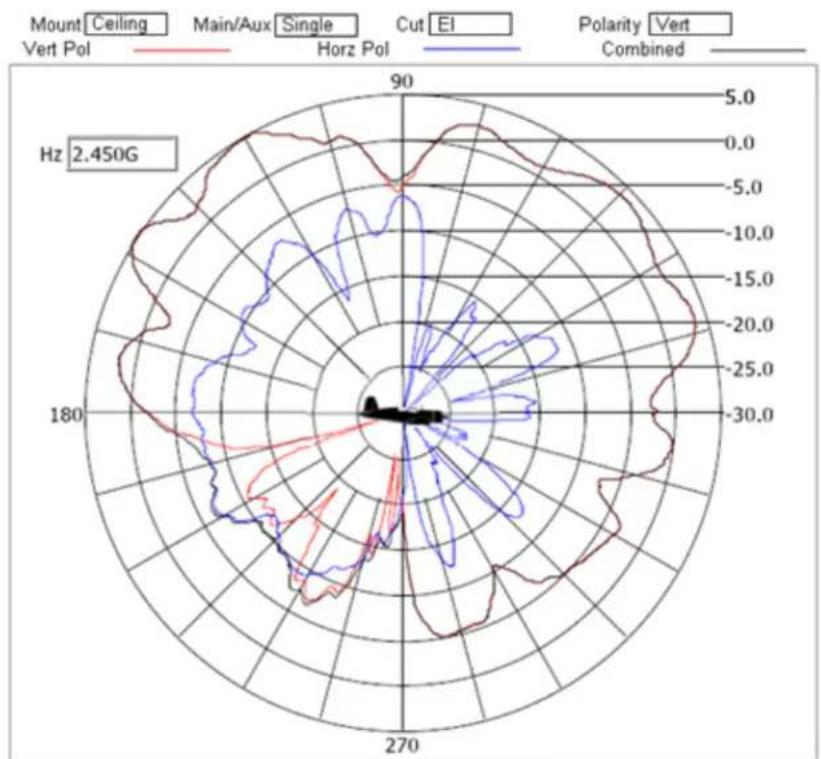

Elevation Pattern

Azimuth Pattern

Elevation Pattern

Supported Antenna Cables

Brocade supports numerous cables to suit your unique access point or access port deployment. Check the Brocade Web site periodically, as new cables will be added to this document as they are released. For more information, see http://support.symbol.com/support/product/manuals.do.

For detailed information on supported cables, refer to:

• "ML-1499-100JK-01R 100 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits"
• "ML-1499-10JK-01R 10 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male"
• "ML-1499-25JK-01R 25 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits"
• "ML-1499-50JK-01R 50 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits"
• "ML-1499-72PJ-01R 6 ft. RP BNC Female to RP BNC Male Plenum Coaxial Jumper"

ML-1499-100JK-01R 100 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits

Type Ultralink TL 93605

RF Connectors N (m) to N (m)

Cable Attenuation (dB) 10.6 @ 2.4 GHz; 15.5 @ 5.8 GHz

Frequency 2 - 6 GHz

ML-1499-10JK-01R 10 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male

Type Ultralink TL 93605

RF Connectors N (m) to N (m)

Cable Attenuation (dB) 2.0 @ 2.4 GHz; 2.9 @ 5.8 GHz

Frequency 2 - 6 GHz

ML-1499-25JK-01R 25 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits

Type Ultralink TL 93605

RF Connectors N (m) to N (m)

Cable Attenuation (dB) 2.5 @ 2.4 GHz; 4.0 @ 5.8 GHz

Frequency 2 - 6 GHz

ML-1499-50JK-01R 50 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits

Type Ultralink TL 93605

RF Connectors N (m) to N (m)

Cable Attenuation (dB) 4.5 @ 2.4 GHz; 7.0 @ 5.8 GHz

Frequency 2 - 6 GHz

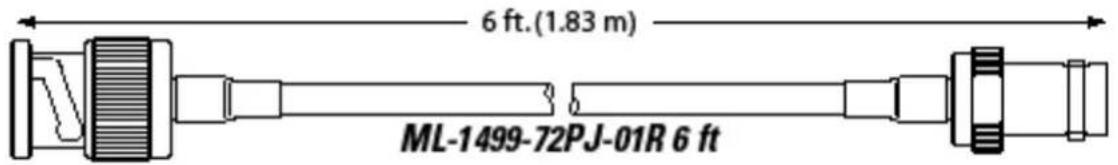

ML-1499-72PJ-01R 6 ft. RP BNC Female to RP BNC Male Plenum Coaxial Jumper

Type CMP Plenum, RG-58

RF Connectors RP BNC (f) to RP. BNC (m)

Cable Attenuation (dB) 2.3 dB

Frequency 2400-2500 Mhz

Supported Adapters

Brocade supports many adapters to suit your unique access point or access port deployment. Check the Brocade Web site periodically, as new adapters will be added to this document as they are released. For more information, see http://support.symbol.com/support/product/manuals.do.

For detailed information on supported antenna adapters, refer to:

• "ML-1499-RBNCA1-01R 1 ft. N Female to RP BNC Female Cable Adapter with Connector Seal Kit"
• "ML-1499-RBNCA2-01R 1 ft. N Male to RP BNC Female Cable Adapter with Connector Seal Kit"
• “25-85391-01R 3.5 in. Jumper Cable, RP-SMA (Male) to Type N (Male) Adaptor”
• "25-85392-01R 3.5 in. Jumper Cable, RP-SMA (Male) to Type N (Female) Adaptor"

ML-1499-RBNCA1-01R 1 ft. N Female to RP BNC Female Cable Adapter with Connector Seal Kit

Type Black, Ultralink, RG-58

RF Connectors N (f) to RP. BNC (f)

Frequency 2400-2500 MHz

Attenuation 0.2 dB

ML-1499-RBNCA2-01R 1 ft. N Male to RP BNC Female Cable Adapter with Connector Seal Kit

Type RG-58

Frequency 2400-2500 MHz

Cable Loss (dB) 0.85 dB

Cable Length (in.) 12

Connector 1 N - Male

Connector 2 RP-BNC-F

Color Black

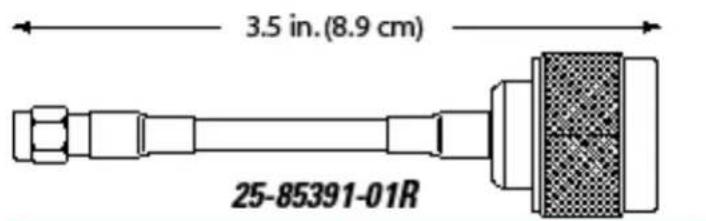

25-85391-01R 3.5 in. Jumper Cable, RP-SMA (Male) to Type N (Male) Adaptor

Type Clear Jacket, RG-316

Connector 1 RP-SMA, Male

Connector 2 Type N, Male

Insertion Loss 2.4 GHz: 0.2 dB MIN

Insertion Loss 5.2 GHz: 0.3 dB MIN

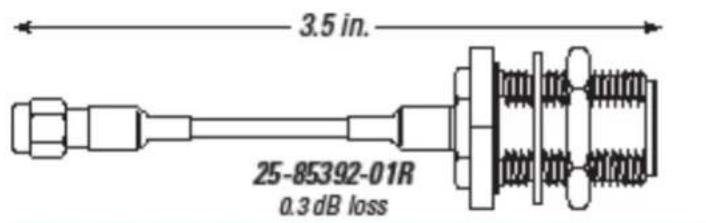

25-85392-01R 3.5 in. Jumper Cable, RP-SMA (Male) to Type N (Female) Adaptor

Type Clear Jacket, RG-316

Connector 1 RP-SMA, Male

Connector 2 Type N, Female, Bulkhead

Insertion Loss 2.4 GHz: 0.2 dB MIN

Insertion Loss 5.2 GHz: 0.3 dB MIN

Lightning Arrestors

Brocade supports several lightning arrestors to support your unique access point or access port deployment safety requirements. Check the Brocade Web site periodically, as new lightning arrestors will be added to this document as they are released. For more information, see http://support.symbol.com/support/product/manuals.do.

For detailed information on supported lightning arrestors refer to:

• "ML-1499-LAK1-01R 1 ft. N Male to RP BNC Male Lightning Arrestor with Connector Seal Kit"
• “ML-1499-LAK2-01R Lightning Arrestor Kit with N Male to N Male Barrel Adapter”
• "ML-2452-LAK1-01R Lightning Arrestor (N Female to N Female) with N Male to RP-SMA Male Adapter"

CAUTION

The grounding lug on a lightning arrestor must be grounded in compliance with local electrical codes.

ML-1499-LAK1-01R 1 ft. N Male to RP BNC Male Lightning Arrestor with Connector Seal Kit

Cable Black, Ultralink, RG-58
RF Connectors N (m) to RP. BNC (m)

Arrestor RF Connectors N (f) to N (f)

Frequency 2400-2500 MHz

Insertion Loss - Lightning Arrestor 0.25 dB @ 2.4 GHz

Insertion Loss - Cable 0.6 dB @ 2.4 GHz

NOTE

Not for use above 2500 MHz.

ML-1499-LAK2-01R Lightning Arrestor Kit with N Male to N Male Barrel Adapter

Technical diagram of a mechanical or electrical component with four threaded ports and two shaded rectangular sections (no text or symbols)

ML-1499-LAK2-01R

RF Connectors N (m) to N (m)

Arrestor RF Connectors N (f) to N (f)

Frequency 2400-2500 MHz

Maximum RF Power 100 W

Insertion Loss - Lightning Arrestor 0.25 dB @ 2.4 GHz / 14 dB @ 5.5GHz

NOTE

Not for use above 2500 MHz.

ML-2452-LAK1-01R Lightning Arrestor (N Female to N Female) with N Male to RP-SMA Male Adapter

Cable Black, Ultralink, RG-58

Connectors - Cable N (m) to RP. SMA (m)

Frequency 100-6000 MHz

Insertion Loss - Cable 0.6 @ 2.4 GHz, 1.4 @ 5.5 GHz

Insulation Resistance 50 M-ohms

Connectors - Lightning Arrestor Type N (f) to N (f)

Weight 4.5 oz.

Operating Temperature - 40° to 85°C

Insertion Loss - Lightning Arrestor 0.14 @ 2.4 GHz, 0.35 @ 5.5 GHz

Mounting Kit Support

Brocade supports mounting kits to support your unique access point or access port deployment. Check the Brocade Web site periodically, as new kits will be added to this document as they are released. For more information, see http://support.symbol.com/support/product/manuals.do.

For detailed information on supported mounting kits refer to:

- "ML-1499-APAMK-01R Magnetic Base for ML-2452-APA2-01 with 6 Ft. Cable RP-SMA (Male)"

- "ML-1499-SD3MK-01R Articulating I-Beam Mount Kit for ML-2499-SD3-01 Omni Antenna"

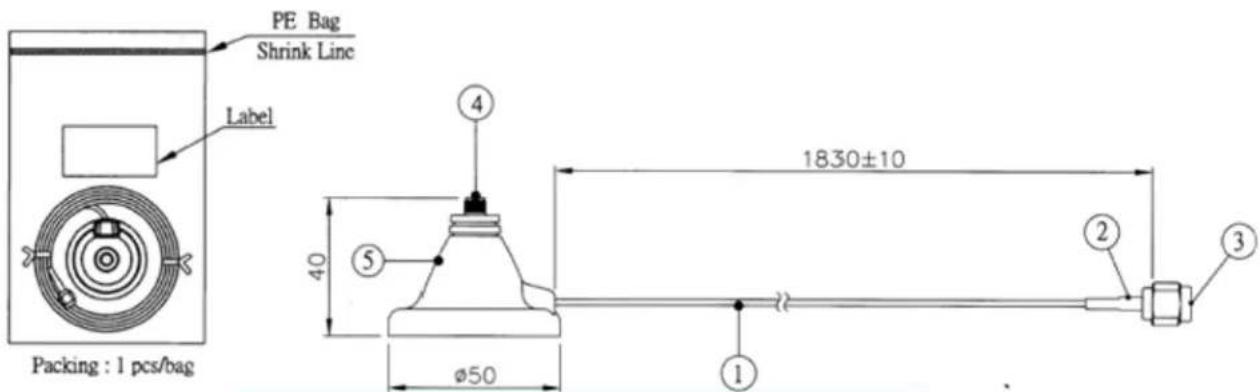

ML-1499-APAMK-01R Magnetic Base for ML-2452-APA2-01 with 6 Ft. Cable RP-SMA (Male)

NOTE

The dimensions displayed for the ML-1499-APAMK-01R mounting kit in the illustration below are in millimeters (mm).

Cable RG-178

Connector 3 RP-SMA, Male

Connector 4 RP-SMA, Female

Attenuation (dB) 2.6 @ 2.4 GHz; 4.6 @ 5.5 GHz

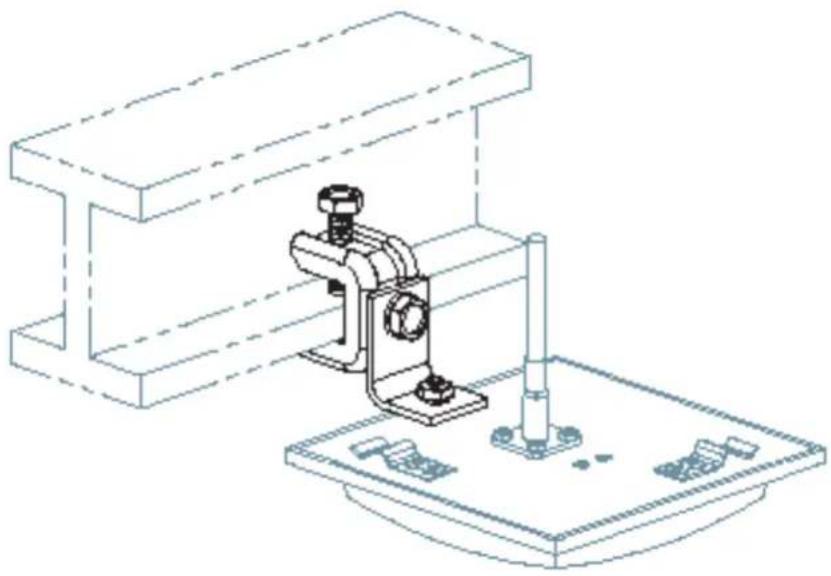

ML-1499-SD3MK-01R Articulating I-Beam Mount Kit for ML-2499-SD3-01 Omni Antenna

Technical line drawing of a mechanical assembly with mounting base and support components (no text or symbols)

Functionality Mounts Part No. ML-2499-SD3-01 to an I-beam.

Configuring the AP 7131 Series Transmit Power

Professional installers must configure an AP 7131 series access point so it does not violate FCC regulations pertaining to output transmit power.

This chapter describes how to adjust an AP 7131 series access point's radio transmit power.

NOTE

Brocade assumes the AP 7131 series access point radio and power configuration activities described in this chapter are conducted at the location that access point is actually installed and deployed.

To define an AP 7131 series access point's radio transmit power:

1. Complete the physical installation of the AP 7131 series access point following one of the supported mounting options within either the AP 7131 Series Installation Guide or Product Reference Guide. Both guides are available at http://support.symbol.com/support/product/manuals.do.
   An AP 7131 series access point can attach to a wall, mount under a suspended T Bar or above a ceiling (plenum or attic) following the same installation instructions. Choose a mounting option based on the physical environment of the coverage area. Do not mount the access point in a location that has not been approved in a site survey.
2. Start a browser and enter the access point's default static IP address for the WAN port (10.1.1.1).
3. Initially log in using admin as the default Username and motorola as the default Password. Use your new password if it has been updated from default.
   If the default login is successful, the Change Admin Password window displays. Change the password immediately to ensure secure access.
4. Select System Configuration > Quick Setup from the menu tree.

1. Select the System Configuration tab to define the access point's country code and radio configuration.

2. Select the Country for the access point's country of operation.

The access point prompts for the correct country code on the first login. A warning message also displays stating an incorrect country setting may result in illegal radio operation. Selecting the correct country is central to legally operating the access point. Each country has its own regulatory restrictions concerning electromagnetic emissions and the maximum RF signal strength that can be transmitted. To ensure compliance with national and local laws, set the country accurately.

NOTE

If the access point is a US supported model, the country code is automatically set to US.

1. Refer to the Radio Configuration field to define how WLAN and WIPS are supported by the access point's radio(s). Remember, the options available depend on the single, dual or three radio model deployed. Apply your settings when finished with the updates.

TABLE 1 Radio Configuration

Radio Button Single Radio SKU Dual Radio SKU Three Radio SKU
2.4 GHz WLAN,5.0 GHz WLAN& Sensor	Not Available Not Available Radio 1 WLAN,Radio 2 WLAN,Radio 3 WIPS
2.4 GHz WLAN,& Sensor	Not Available Radio1 WLAN,Radio 2 WIPS	Radio 1 WLAN,Radio 2 WIPS,Radio 3 WIPS

TABLE 1 Radio Configuration

Radio Button Single Radio SKU Dual Radio SKU Three Radio SKU
5.0 GHz WLAN & Sensor	Not Available Radio 1 WIPS, Radio 2 WLAN	Radio 1 WIPS, Radio 2 WLAN, Radio 3 WIPS
2.4 GHz WLAN & 5.0 GHz WLAN only no Sensor	Not Available Radio 1 WLAN, Radio 2 WLAN	Radio 1 WLAN, Radio 2 WLAN, Radio 3 Disabled
Sensor only Spectrum Analysis mode (no WLAN)	Radio 1 WIPS Radio 1 WIPS, Radio 2 WIPS	Radio 1 WIPS, Radio 2 WIPS, Radio 3 Disabled
2.4 GHz WLAN no Sensor	Radio 1 WLAN (B/G/N) Radio1 WLAN, Radio 2 Disabled	Radio 1 WLAN, Radio 2 Disabled, Radio 3 Disabled
5.0 GHz WLAN no Sensor	Radio 1 WLAN (A/N) Radio1 Disabled, Radio 2 WLAN	Radio 1 Disabled, Radio 2 WLAN, Radio 3 Disabled
Radios Off Radio 1 Disabled Radios 1 and 2 Disabled		Radios 1, 2 and 3 Disabled

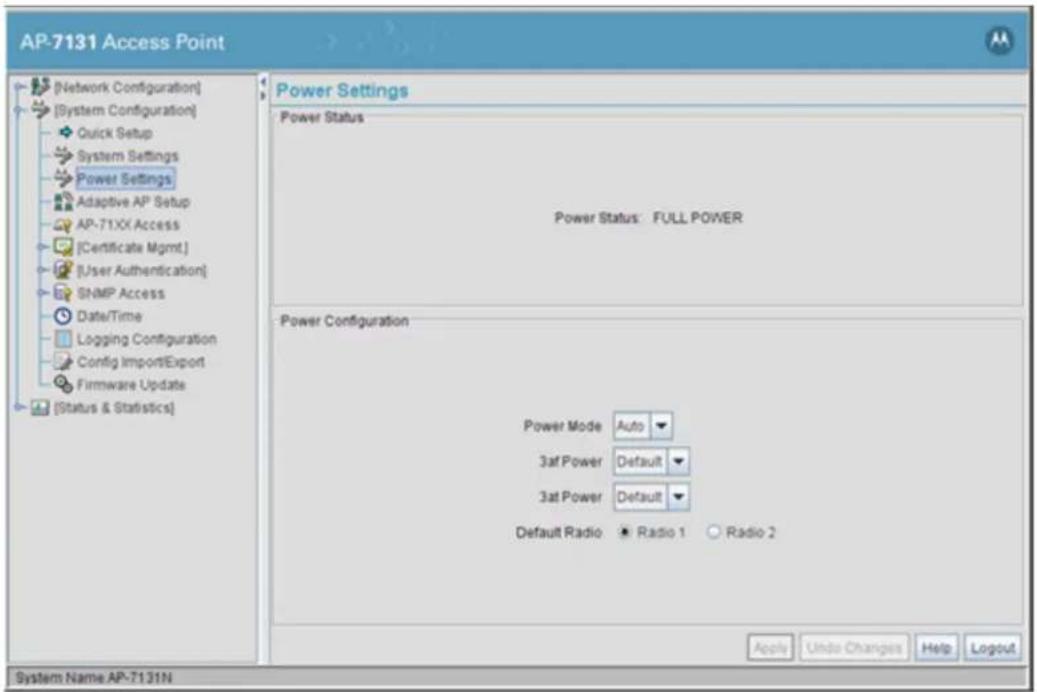

1. Select System Configuration > Power Settings from the menu tree.

Within the Power Configuration field, an installation professional selects a power mode based on the different power resources available to that access point's SKU. For 3af and 3at, choose between Default and Option as best suited to that hardware SKU. For example, if Option is selected for 3af Power, and the access point is a dual radio model, the following configuration is set:

• LAN port ON (1000 BASE T)
- WAN port OFF
- Radio 1 (2.4) on, 2x3 mode with maximum transmit power 18dBm
- Radio 2 (5.0) on, 2x3 mode with maximum transmit power 18dBm

1. For this example, set the Power Mode to Auto (if not already defined as Auto by default). Leave the 3af and 3at Power settings as Default.

When the access point is powered on for the first time, the system determines the power budget available to the access point. Using the Auto setting (default setting), the access point automatically determines the best power configuration based on the available power budget. Therefore, the Auto power mode option affords the professional installer a smaller margin of error for legally setting the access point's transmit output power. If changes are made, reboot the access point.

NOTE

Ensure the access point is connected to its expected power supply (3af, 3at or Full Power). Check available access point power by reviewing the Power Status field within the Power Settings screen (this value is cable length dependent). Compare available power to the Maximum Transmit Power vs POE table below. If available supply power does not allow the desired transmit power, then increase the supply power.

TABLE 2 Maximum Possible Transmit Power

Power Status 2.4 GHz 5.2 GHz

3af +20 +19

3at +23 +20

Full Power +23 +20

1. Select Network Configuration > Wireless > Radio Configuration > Radio1 or Radio 2 from the access point menu tree.

1. Refer to the Channel, power and Rate Settings field.

2. Set an 802.11 a/n or 802.11 b/g/n radio mode as appropriate.

For radio1, specify B, G and N, B and G, G Only, B Only or N Only to define whether the 802.11b/g/n radio transmits in the 2.4 GHz band exclusively for 802.11b (legacy) clients or transmits in the 2.4 GHz band for 802.11g/n clients. Selecting B and G enables the access point to transmit to both B and G clients if legacy clients (802.11b) partially comprise the network. Select accordingly based on the MU requirements of the network.

NOTE

Select the access point radio's 802.11 a/n or 802.11b/g/n mode carefully in respect to the radio's intended data rate and client support requirements, as the rates available differ depending on the selected mode. For more information on selected mode versus data rate, see "2.4 GHz Mode Versus Data Rate" on page 135 or "5.2 GHz Mode Versus Data Rate" on page 140.

The rates for the access point's 2.4 GHz radio are:

• B, G and N Allows only basic rates (default setting)
• B and G Allows 11b basic rates. Does not allow MCS rates
• G and N Requires basic rates (either 6, 12, 24 or 1, 2, 5.5, 11, 6, 12, 24)
• G Only Requires one 11g basic rate. Does not allow MCS rates
• B Only Allows for 11b rates only. Does not allow G or N rates
• N Only Requires basic MCS rates

If the mode is B and G, the Channel Width option is not available, and a Secondary Channel cannot be defined.

For the 5.2 GHz radio, specify A and N, A Only or N Only to define whether the 802.11a/n radio transmits in the 5.2 GHz band exclusively for 802.11a clients, 802.11n clients or transmits in the 5.2 GHz band for both 802.11a/n clients.

The rates for the access point's 5.2 GHz radio are:

• A Only Allows 11a rates
• N Only Requires basic MCS rates
- A and N Allows only 11a basic rates (default setting)

1. For this example, leave the Channel Width at 20/40 and set the Channel to User selected for both the 802.11 b/g/n and 802.11 a/n radios.

20/40 MHz operation (the default setting for the 5 GHz radio) allows the access point to receive packets from clients using 20 MHz of bandwidth while transmitting a packet using 40 MHz bandwidth. This mode is supported for 11n users on both the 2.4 and 5 GHz radios. If an 11n user selects two channels (a Primary and Secondary channel), the system is configured for dynamic 20/40 operation. When 20/40 is selected, clients can take advantage of “wider channels.” 802.11n clients experience improved throughput using 40 MHz while legacy clients (either 802.11a or 802.11b/g depending on the radio selected) can still be serviced without interruption using 20 MHz.

User selected is the default Channel Selection setting. If 20/40 MHz is selected as the Channel Width (supporting 11n), the Secondary Channel drop down menu becomes enabled. The user must define the primary channel first. Then, depending on the primary channel defined, the secondary channel list is filled with channels making the combination of primary and secondary channels valid. The actual channels available depend on regulatory domain requirements.

1. Set the Power Level in respect to the antennas deployed and the defined channel.

NOTE

If you set the transmit power too high (in relation to FCC transmit requirements), the access point will display an Input Error message stating the maximum power level for the selected channel has been exceeded.

1. Select Status and Statistics > Radio Stats > Radio1(802.11b/g/n) Statistics or Radio2(802.11a/n) Statistics from the access point menu tree.

Refer to the Current Channel parameter from within the Information field. This value displays (in red) the two channels utilized as a result of selecting 20/40 as the Channel Width. The first value represents the channel utilized for the 20 MHz bandwidth and the second value (displayed in parenthesis) is the channel supporting 40 MHz.

Supported Antennas by Band, Model, Rate and Transmit Power

Refer to the following Brocade AP 7131 supported antennas for their US Regulatory Domain transmit power (in both the 2.4 and 5.2 GHz bands), rates and supported channels.

"US Regulatory Domain 2.4 GHz Band"

• "Yagi Antenna Models"
• "Yagi Antenna Maximum Conducted Transmit Power Settings"
• "Panel Antenna Models"

• "Panel Antenna Maximum Conducted Transmit Power Settings"

• "Embedded Antenna Models"

• "Embedded Antenna Maximum Conducted Transmit Power Settings"
• "Dipole Antenna Models"
• "Dipole Antenna Maximum Conducted Transmit Power Settings"
• "Patch Antenna Models"
• "Patch Antenna Maximum Conducted Transmit Power Settings"

"US Regulatory Domain 5.2 GHz Band"

- "Yagi Antenna Models"

- "Yagi Antenna Maximum Conducted Transmit Power Settings"

- "Panel Antenna Models"

- "Panel Antenna Maximum Conducted Transmit Power Settings"

- "Embedded Antenna Models"

- "Embedded Antenna Maximum Conducted Transmit Power Settings"

- "Dipole Antenna Models"

- "Dipole Antenna Maximum Conducted Transmit Power Settings"

- "Patch Antenna Models"

- "Patch Antenna Maximum Conducted Transmit Power Settings"

US Regulatory Domain 2.4 GHz Band

2.4 GHz Mode Versus Data Rate

When setting 2.4 GHz data rates using the access point's GUI applet, use the following chart to cross reference data rates to the radio's selected operational mode.

	B, G and N	G and N	N Only B and G	G Only B Only
LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS) X X X
LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)	X	X	X	X
802.11n HT20 RATES (MCS 0 MCS 15) X X X
802.11n HT40 RATES (MCS 0 MCS15) X X X

Yagi Antenna Models

The following is the Yagi antenna model for 2.4 GHz:

Brocade Part Number

ML-2499-BYGA2-01R

Yagi Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (US domain) per Yagi antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)		LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)		802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
1		1	3		7		7
2		1	3		7		7
3 (1, 5)	13 7 7 2
4 (2, 6)	13 7 7 2
5 (3, 7)	13 7 7 2
6 (4, 8)	13 8 8 5
7 (5, 9)	12 7 6 2
8 (6, 10)	12 7 6 2
9 (7, 11)	12 7 6 2
10		12		7	6
11		12		7	6

With the most recent AP 7131 series software release (4.0.0.0) the Web browser of the command line interface do not allow setting the transmit power to any value less than 4dBm.

NOTE

When a Yagi antenna is used, a 2dB external RF antennuator must be added. Lower power settings will be provided in subsequent software releases.

Panel Antenna Models

The following is the panel antenna model for 2.4 GHz:

Brocade Part Number

ML-2452-PTA3M3-036

Panel Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (US domain) per panel antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
1		16	11	10
2	16 11 10
3 (1, 5)	16 11 10 7

4 (2, 6) 16 11 10 7

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
5 (3, 7)	16 11 10 7
6 (4, 8)	16 11 11 8
7 (5, 9)	16 11 9 5
8 (6, 10)	16 11 9 5
9 (7, 11)	16 11 9 5
10		16	11	9
11	16 11 9

Embedded Antenna Models

The following is the embedded antenna model for 2.4 GHz:

Brocade Part Number

ML-2452-PTA2M3X3-1

Embedded Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (US domain) per embedded antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
1		20	16	16
2	20 16 16
3 (1, 5)	20 16 16 11
4 (2, 6)	20 16 16 11
5 (3, 7)	20 16 16 11
6 (4, 8)	18 14 14 12
7 (5, 9)	16 15 15 12
8 (6, 10)	16 15 15 12
9 (7, 11)	16 15 15 12
10		16	15	15
11	16 15 15

Dipole Antenna Models

The following are the dipole antenna models for 2.4 GHz:

Brocade Part Number 2.4 GHz Antenna Net Gain

ML-2452-APA2-01 3

ML-2499-HPA3-01R 3.3

ML-2452-APA6J-01 (microcell) 6

Dipole Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (US domain) per dipole antenna in the 2.4 GHz band:

NOTE
The access point GUI only allows whole numbers be entered for transmit power. The decimal values are displayed within these tables to help installers accommodate for cable and accessory losses.

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS0 MCS15)
1		18.5	15.0	15.0
2	18.5 15.0 15.0
3 (1, 5)	18.5 16.0 16.5 10.0
4 (2, 6)	18.5 16.0 16.5 11.0
5 (3, 7)	18.5 16.0 16.0 12.0
6 (4, 8)	23.0 16.0 16.5 13.0
7 (5, 9)	19.0 16.0 16.5 12.0
8 (6, 10)	19.0 16.0 16.5 11.0
9 (7, 11)	19.0 15.0 16.5 9.0
10		19.0	14.0	16.0
11		19.0 13.5 13.0

Patch Antenna Models

The following is the patch antenna model for 2.4 GHz:

Brocade Part Number 2.4 GHz Antenna Net Gain

ML-2452-PTA3M3-036

3

Patch Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (US domain) per patch antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS0 MCS15)
1		16	15	12
2	16 15 12
3 (1, 5)	16 15 12 9
4 (2, 6)	16 15 12 9
5 (3, 7)	16 15 12 9
6 (4, 8)	20 15 15 12
7 (5, 9)	18 13 12 10
8 (6, 10)	18 13 12 10
9 (7, 11)	18 13 12 10
10		18	13	12
11	18 13 12

US Regulatory Domain 5.2 GHz Band

5.2 GHz Mode Versus Data Rate

When setting 5.2 GHz data rates using the access point's GUI applet, use the following chart to cross reference data rates to the radio's selected operational mode.

	A and N	N Only	A Only
LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)	X		X
802.11n HT20 RATES(MCS 0 MCS 15)	X	X
802.11n HT40 RATES(MCS 0 MCS 15)	X	X

Yagi Antenna Models

The following is the Yagi antenna model for 5.2 GHz:

Brocade Part Number

ML-5299-BYGA15-012

Yagi Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (US domain) per Yagi antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48, 54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		2	2.5
38 (36, 40)	4
40		2	2.5
42		2.5	2.5
44		2.5	2.5
46 (44, 48)	4
48		2.5	4
52		9	9
54 (52, 56)	11
56		9	9
60		8.5	9
62 (60, 64)	10
64		8.5	9
100		8	8.5
102 (100, 104)	5
104		8	8.5
108		8	8.5
112		8	8.5
110 (108, 112)	11
116		8	8.5
118 (116, 120)	10
120		8	8.5
124		7.5	7.5
126 (124, 128)	10
128		7.5	7.5
132		7.5	7.5
134 (132, 136)	10
136		7.5	7.5
140		7.5	7.5
149		7.0	7.5
151 (149, 153)	4.5
153		7.0	7.5
157		7.5	8.0
159 (157, 161)	5.0
161		8.0	9.0
165		8.0	9.0

Panel Antenna Models

The following are the panel antenna models for 5.2 GHz:

Brocade Part Number

ML-5299-WPNA1-01R

ML-2452-PNL9M3-036

Panel Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (US domain) per panel antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48, 54 MBPS)		802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		4	4
38 (36, 40)	6
40		4	4
42		4	4
44		4	4
46 (44, 48)	6
48		4	4
52		10	10
54 (52, 56)	13
56		10	10
60		10	10
62 (60, 64)	11
64		10	10
100		10	10
102 (100, 104)	5
104		10	10
108		10	10
112		10	10
110 (108, 112)	13
116		10	10

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48, 54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
118 (116, 120)	13
120		10	10
124		10	10
126 (124, 128)	12
128		10	10
132		10	10
134 (132, 136)	12
136		10	10
140		8	8
149		8.0	9.0
151 (149, 153)	6.0
153		8.0	9.0
157		9.0	10.0
159 (157, 161)	7.0
161		10	10
165		10	10

Embedded Antenna Models

The following is the embedded antenna model for 5.2 GHz:

Brocade Part Number

ML-2452-PTA2M3X3-1

Embedded Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (US domain) per embedded antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48, 54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		11	11
38 (36, 40)	12
40		11	11
42		11	11
44		11	11
46 (44, 48)	13
48		11	11
52		18	18
54 (52, 56)	20
56		18	18
60		18	18
62 (60, 64)	14
64		18	18
100		15	16
102 (100, 104)	8
104		14	16
108		14	16
112		14	16
110 (108, 112)	19
116		14	16
118 (116, 120)	19
120		18	18
124		18	13
126 (124, 128)	19
128		14	13
132		14	13
134 (132, 136)	14
136		13	13
140		13	13
149		18.0	18.0
151 (149, 153)	15.0
153		18.0	18.0
157		18.0	18.0
159 (157, 161)	16.0
161		19.0	19.0
165		19.0	19.0

Dipole Antenna Models

The following are the dipole antenna models for 5.2 GHz:

Brocade Part Number

ML-5299HPA1-01R

ML-2452-APA6J-01

ML-2452-APA2-01

Dipole Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (US domain) per dipole antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48, 54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		11	11
38 (36, 40)	12
40		11	11
42		11	11
44		11	11
46 (44, 48)	13
48		11	11
52		18	18
54 (52, 56)	20
56		18	18
60		18	18
62 (60, 64)	14
64		18	18
100		15	14
102 (100, 104)	7
104		15	14
108		15	14
112		15	14
110 (108, 112)	19
116		15	14
118 (116, 120)	19
120		18	18
124		15	18
126 (124, 128)	19
128		15	18
132		15	18
134 (132, 136)	14
136		13	16
140		13	16
149		18.0	18.0
151 (149, 153)	15.0
153		18.0	19.0
157		18.0	19.0
159 (157, 161)	16.0
161		19.0	19.0
165		19.0	19.0

Patch Antenna Models

The following is the patch antenna model for 5.2 GHz

Brocade Part Number

ML-2452-PTA3M3-036

Patch Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (US domain) per patch antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48, 54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		11	11
38 (36, 40)	12
40		11	11
42		11	11
44		11	11
46 (44, 48)	13
48		11	11
52		18	18
54 (52, 56)	20
56		18	18
60		18	18
62 (60, 64)	14
64		18	18
100		15	16

102 (100, 104) 8

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48, 54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
104		18	16
108		18	16
112		18	18
110 (108, 112)	13
116		18	18
118 (116, 120)	19
120		18	18
124		18	18
126 (124, 128)	19
128		18	18
132		18	18
134 (132, 136)	14
136		13	13
140		13	13
149		18.0	18.0
151 (149, 153)	15.0
153		18.0	19.0
157		18.0	19.0
159 (157, 161)	16.0
161		19.0	19.0
165		19.0	19.0

Japanese TELEC Regulatory Domain 2.4 GHz Band

Panel Antenna Model

The following is the panel antenna model for 2.4 GHz:

Brocade Part Number

ML-2499-11PNA2-01R

Panel Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (Japanese domain) per panel antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
1		19.0	19.0	19.0
2	19.0 19.0 19.0
3 (1, 5)	19.0 19.0 19.0 16.0
4 (2, 6)	19.0 19.0 19.0 16.0
5 (3, 7)	19.0 19.0 19.0 16.0
6 (4, 8)	19.0 19.0 19.0 16.0
7 (5, 9)	19.0 19.0 19.0 16.0
8 (6, 10)	19.0 19.0 19.0 16.0
9 (7, 11)	19.0 19.0 19.0 16.0
10		19.0	19.0	19.0
11		19.0	19.0	19.0
12	19.0 19.0 19.0
13	19.0 19.0 19.0
14	19.0

Embedded Antenna Model

The following is the embedded antenna model for 2.4 GHz:

Brocade Part Number

ML-2452-PTA2M3X3-1

Panel Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (Japanese domain) per embedded antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
1		11.0	11.0	11.0
2	11.0 11.0 11.0
3 (1, 5)	11.0 11.0 11.0 8.0
4 (2, 6)	11.0 11.0 11.0 8.0
5 (3, 7)	11.0 11.0 11.0 8.0
6 (4, 8)	11.0	11.0	11.0
7 (5, 9)	11.0	11.0	11.0
8 (6, 10)	11.0	11.0	11.0
9 (7, 11)	11.0	11.0	11.0
10		11.0	11.0	11.0
11		11.0	11.0	11.0
12	11.0	11.0	11.0
13	11.0	11.0	11.0
14	11.0

Dipole Antenna Model

The following is the patch antenna model for 2.4 GHz:

Brocade Part Number

ML-2452-APA2-01

ML-2499-HPA3-01R

ML-2452-APA6J-01 (microcell)

Dipole Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (Japanese domain) per dipole antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
1		14.0	14.0	14.0
2	14.0 14.0 14.0
3 (1, 5)	14.0 14.0 14.0 11
4 (2, 6)	14.0 14.0 14.0 11
5 (3, 7)	14.0 14.0 14.0 11
6 (4, 8)	14.0 14.0 14.0 11
7 (5, 9)	14.0 14.0 14.0 11
8 (6, 10)	14.0 14.0 14.0 11
9 (7, 11)	14.0 14.0 14.0 11
10		14.0	14.0	14.0

11 14.0 14.0 14.0

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
12 14.0	14.0 14.0
13 14.0	14.0 14.0
14 14.0

Patch Antenna Model

The following is the patch antenna model for 2.4 GHz:

Brocade Part Number 2.4 GHz Antenna Net Gain

ML-2452-PTA3M3-036 3

Patch Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (Japanese domain) per patch antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS0 MCS15)
1		16.0	16.0	16.0
2	16.0 16.0 16.0
3 (1, 5)	16.0 16.0 16.0 10.0
4 (2, 6)	16.0 16.0 16.0 10.0
5 (3, 7)	16.0 16.0 16.0 10.0
6 (4, 8)	16.0 16.0 16.0 100
7 (5, 9)	16.0 16.0 16.0 10.0
8 (6, 10)	16.0 16.0 16.0 10.0
9 (7, 11)	16.0 16.0 16.0 10.0
10		16.0	16.0	16.0
11		16.0	16.0	16.0

Japan TELEC Regulatory Domain 5.2 GHz Band

Panel Antenna Models

The following are the panel antenna models for 5.2 GHz:

Brocade Part Number

ML-5299-WPNA1-01R

ML-2452-PNL9M3-036

Panel Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (Japanese domain) per panel antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48, 54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		12.0	12.0
38 (36, 40) 18.0
40		12.0	12.0
42		12.0	12.0
44		12.0	12.0
46 (44, 48) 18.0
48		12.0	12.0
52		12.0	12.0
54 (52, 56) 18.0
56		12.0	12.0
60		12.0	12.0
62 (60, 64) 18.0
64		12.0	12.0
100		19.0	19.0
102 (100, 104)
104		19.0	19.0
108		19.0	19.0
112		19.0	19.0
110 (108, 112)
116		19.0	19.0
118 (116, 120)
120		19.0	19.0
124		19.0	19.0
126 (124, 128)
128		19.0	19.0
132		19.0	19.0
134 (132, 136)
136		19.0	19.0
140		19.0	19.0
149
151 (149, 153)
153
157
159 (157, 161)
161
165

Embedded Antenna Model

The following is the embedded antenna model for 5.2 GHz:

Brocade Part Number

ML-5299-WPNA1-01R

Embedded Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (Japanese domain) per embedded antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48, 54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		10.0	10.0
38 (36, 40) 7.0
40		10.0	10.0
42		10.0	10.0
44		10.0	10.0
46 (44, 48) 7.0
48		10.0	10.0
52		10.0	10.0
54 (52, 56) 7.0
56		10.0	10.0
60		10.0	10.0
62 (60, 64) 7.0
64		10.0	10.0
100		17.0	17.0
102 (100, 104) 7.0
104		17.0	17.0
108		17.0	17.0
112		17.0	17.0
110 (108, 112) 7.0
116		17.0	17.0
118 (116, 120) 7.0
120		17.0	17.0
124		17.0	17.0
126 (124, 128) 7.0
128		17.0	17.0
132		17.0	17.0
134 (132, 136) 7.0
136		17.0	17.0
140		17.0	17.0
149
151 (149, 153)
153
157
159 (157, 161)
161
165

Dipole Antenna Models

The following are the dipole antenna models for 5.2 GHz:

Brocade Part Number

ML-5299-HPA1-01R

ML-2452-APA6J-01

ML-2452-APA2-01

Dipole Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (Japanese domain) per dipole antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48, 54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		12.0	12.0
38 (36, 40) 9.0
40		12.0	12.0
42		12.0	12.0
44		12.0	12.0
46 (44, 48) 9.0
48		12.0	12.0
52		12.0	12.0
54 (52, 56) 9.0
56		12.0	12.0
60		12.0	12.0
62 (60, 64) 9.0
64		12.0	12.0
100		19.0	19.0
102 (100, 104) 9.0
104		19.0	19.0
108		19.0	19.0
112		19.0	19.0
110 (108, 112) 9.0
116		19.0	19.0
118 (116, 120) 9.0
120		19.0	19.0
124		19.0	19.0
126 (124, 128) 9.0
128		19.0	19.0
132		19.0	19.0
134 (132, 136) 9.0
136		19.0	19.0
140		19.0	19.0
149
151 (149, 153)
153
157
159 (157, 161)
161
165

Patch Antenna Model

The following is the patch antenna model for 5.2 GHz:

Brocade Part Number

ML-2452-PTA3M3-036

Patch Antenna Maximum Conducted Transmit Power Settings

The following is a transmit power table (Japanese domain) per patch antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48, 54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		21.0	21.0
38 (36, 40) 10.0
40		21.0	21.0
42		21.0	21.0
44		21.0	21.0
46 (44, 48) 10.0
48		21.0	21.0
52		21.0	21.0
54 (52, 56) 10.0
56		21.0	21.0
60		21.0	21.0
62 (60, 64) 10.0
64		21.0	21.0
100		20.0	20.0
102 (100, 104) 17.0
104		20.0	20.0
108		20.0	20.0
112		20.0	20.0
110 (108, 112) 17.0
116		20.0	20.0
118 (116, 120) 17.0
120		20.0	20.0
124		20.0	20.0
126 (124, 128) 17.0
128		20.0	20.0
132		20.0	20.0
134 (132, 136) 17.0
136		20.0	20.0
140		20.0	20.0
149
151 (149, 153)
153
157
159 (157, 161)
161
165

US regulatory domain 2.4 GHz band

Dipole antenna model

The following is the dipole antenna model for 2.4 GHz:

Brocade Part Number

ML-2452-APA2-01

Dipole antenna maximum conducted transmit power settings

The following is a transmit power table (US domain) per dipole antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
1		2412	19.5	17.0	16.0
2	2417 19.5 19.0 18.0
3 (1, 5)	2422 21.0 21.0 20.0
4 (2, 6)	2427 21.0 21.0 20.0
5 (3, 7)	2432 21.0 21.0 20.0
6 (4, 8)	2437 21.0 21.0 20.0
7 (5, 9)	2442 21.0 21.0 20.0
8 (6, 10)	2447 21.0 21.0 20.0
9 (7, 11)	2452 21.0 21.0 20.0
10		2457	18.5	18.0	18.0
11		2462	18.5	16.5	16.5

Internal AP650 dual band antenna models

The following is the internal dual band antenna model for 2.4 GHz:

Brocade Part Number

57RPAA13.G66

57RPAA13.G67

57RPAA13.G68

Brocade Part Number

57RPAA13.G69

57RPAA13.G6A

57RPAA13.G6B

AP650 internal dual band antenna maximum conducted transmit power settings

The following is a transmit power table (US domain) per internal dual band antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
1		2412	19.0	16.0	15.0
2	2417 19.0 19.0 18.0
3 (1, 5)	2422 21.0 21.0 20.0
4 (2, 6)	2427 21.0 21.0 20.0
5 (3, 7)	2432 21.0 21.0 20.0
6 (4, 8)	2437 21.0 21.0 20.0
7 (5, 9)	2442 20.0 21.0 20.0
8 (6, 10)	2447 20.0 21.0 20.0
9 (7, 11)	2452 20.0 21.0 20.0
10		2457	20.0	18.0	18.0
11		2462	20.0	16.0	15.0

Indoor patch antenna model

The following is the indoor patch antenna model for 2.4 GHz:

Brocade Part Number

ML-2499- SD3-01R

Indoor patch antenna maximum conducted transmit power settings

The following is a transmit power table (US domain) per Indoor Patch antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES(1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)	802.11n HT20RATES(MCS 0 MCS 15)	802.11n HT40RATES(MCS 0 MCS15)
1		19.0	15.5	14.5
2	19.0 18.0 18.0
3 (1, 5)	19.5 19.5 19.5 12.0

4 (2, 6) 19.5 19.5 19.5 12.0

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
5 (3, 7)	19.5 19.5 19.5 12.0
6 (4, 8)	19.5 19.5 19.5 14.5
7 (5, 9)	19.5 19.5 19.5 11.0
8 (6, 10)	19.5 19.5 19.5 11.0
9 (7, 11)	19.5 19.5 19.5 11.0
10		18.5	17.0	17.0
11	18.5 15.0 14.5

Outdoor omni antenna model

The following is the outdoor omni antenna model for 2.4 GHz:

Brocade Part Number

ML-2499-HPA3-01R

Outdoor omni antenna maximum conducted transmit power settings

The following is a transmit power table (US domain) per outdoor omni antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS0 MCS15)
1		18.5	19.0	13.5	14.0
2	18.5 19.0 16.0 16.0
3 (1, 5)	18.5 21.0 19.0 19.0
4 (2, 6)	18.5 21.0 19.0 19.0
5 (3, 7)	18.5 21.0 19.0 19.0
6 (4, 8)	23.0 21.0 19.0 19.0
7 (5, 9)	19.0 21.0 19.0 19.0
8 (6, 10)	19.0 21.0 19.0 19.0
9 (7, 11)	19.0 21.0 19.0 19.0
10		19.0	19.5	16.0	16.0
11		19.0	19.5	14.0	13.0

Panel antenna models

The following is the panel antenna model for 2.4 GHz:

Brocade Part Number

ML-2452-PNA5-01R

Panel antenna maximum conducted transmit power settings

The following is a transmit power table (US domain) per panel antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS0 MCS15)
1		16.5	13.0	12.5
2	18.0 15.0 15.0
3 (1, 5)	20.0 17.0 18.0 10.0
4 (2, 6)	20.0 17.0 18.0 10.0
5 (3, 7)	20.0 17.0 18.0 10.0
6 (4, 8)	20.0 17.0 18.0 13.0
7 (5, 9)	20.0 17.0 18.0 9.0
8 (6, 10)	20.0 17.0 18.0 9.0
9 (7, 11)	20.0 17.0 18.0 9.0
10		18.0	15.0	15.0
11	17.0 13.0 12.0

Omni antenna model

The following is the omni antenna model for 2.4 GHz:

Brocade Part Number

ML-2452-PTA3M3-036

Omni antenna maximum conducted transmit power settings

The following is a transmit power table (US domain) per omni antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS0 MCS15)
1		17.5	17.5	15.0	13.0
2	17.5 18.0 17.0 16.0
3 (1, 5)	17.5 20.5 19.0 19.0
4 (2, 6)	17.5 20.5 19.0 19.0
5 (3, 7)	17.5 20.5	19.0 19.0
6 (4, 8)	20.5	20.5 19.0 19.0
7 (5, 9)	19.0	20.5 19.0 19.0
8 (6, 10)	19.0	20.5 19.0 19.0
9 (7, 11)	19.0	20.5 19.0 19.0
10		19.0	20.0	16.0	16.5
11		19.0	19.0	13.5	13.5

US regulatory domain 5 GHz band

Dual band dipole antenna model

The following is the dual band dipole antenna model for 5 GHz:

Brocade Part Number

ML-2452-APA2-01

Dual band dipole antenna maximum conducted transmit power settings

The following is a transmit power table (US domain) per dual band dipole antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)		802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		15.5	15.0
38 (36, 40)	17.0 16.5 12.0
40		18.5	18.0
42		18.5	18.0
44		18.5	18.0
46 (44, 48)	18.0 17.0 16.5
48		17.0	16.0
52		17.0	16.0
54 (52, 56)	17.0 17.0 16.5
56		17.0	17.0
60		17.0	16.0
62 (60, 64)	17.0 15.0 11.0
64		14.5	14.0
100		11.5	12.0
102 (100, 104)	15.0	15.0	10.0
104		19.0	18.0
108		19.0	18.0
112		19.0	18.0
110 (108, 112)	19.0	18.0	18.0
116		19.0	18.0
118 (116, 120)	19.0	18.0	18.0
120		19.0	18.0
124		19.0	18.0
126 (124, 128)	19.0	18.0	18.0
128		19.0	18.0
132		19.0	18.0
134 (132, 136)	19.0	18.0	14.0
136		19.0	18.0
140		19.0	18.0
149		19.0	18.0
151 (149, 153)	19.0	18.0	18.0
153		19.0	18.0
157		19.0	18.0
159 (157, 161)	19.0	18.0	18.0
161		19.0	18.0
165		19.0	18.0

Internal dual band antenna models

The following are the internal dual band antenna models for 5.2 GHz:

Brocade Part Number

57RPAA13.G66

57RPAA13.G67

57RPAA13.G68

57RPAA13.G69

57RPAA13.G6A

57RPAA13.G6B

Internal dual band antenna maximum conducted transmit power settings

The following is a transmit power table (US domain) per internal dual band antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)		802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
36		17.0	16.5
38 (36,40)	18.0 17.0 12
40 19.0 18.0
42 19.0 18.0
44 19.0 18.0
46 (44,48)	19.0 18.0 13
48 19.0 18.0
52 19.0 18.0
54 (52,56)	19.0 18.0 20
56 17.0 18.0
60 15.0 18.0
62 (60,64)	15.0 17.0 14
64 14.5 16.0
100 17.0 18.0
102 (100,104)	18.0 18.0 8
104 19.0 18.0
108 19.0 18.0
112 19.0 18.0
110 (108,112)	19.0 18.0 19
116 19.0 18.0
118 (116,120)	19.0 18.0 19
120 19.0 18.0
124 19.0 18.0
126 (124,128)	19.0 18.0 19
128 19.0 18.0
132 19.0 18.0
134 (132,136)	19.0 18.0 14
136 17.0 17.0
140 15.5 16.0
149 19.0 18.0
151 (149,153)	19.0 18.0 15.0
153 19.0 18.0
157		19.0	18.0

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
159 (157,161)	19.0 18.0	16.0
161 19.0 18.0
165 19.0 19.0

Indoor patch model

The following is the indoor patch antenna model for 5.2 GHz:

Brocade Part Number

ML-5299-PTA1-01R

Indoor patch antenna maximum conducted transmit power settings

The following is a transmit power table (US domain) per indoor patch antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
36 15.5 16.0
38 (36, 40)	17.5 17.0 12.5
40 19.0 18.0
42 19.0 18.0
44 19.0 18.0
46 (44, 48)	19.0 18.0 18.0
48 19.0 18.0
52 19.0 18.0
54 (52, 56)	19.0 18.0 18.0
56 19.0 18.0
60 18.0 18.0
62 (60, 64)	13.5
64 16.0 16.0
100 15.0 15.0
102 (100, 104)	17.0 16.5	11.5
104 19.0 18.0
108 19.0 18.0
112 19.0 18.0
110 (108, 112)	19.0 18.0	18.0
116 19.0 18.0
118 (116, 120)	19.0 18.0	18.0
120 19.0 18.0
124 19.0 18.0
126 (124, 128) 19.0 18.0	18.0
128	19.0	18.0
132 19.0 18.0
134 (132, 136) 19.0 18.0	15.0
136 16.0 16.0
140 13.5 13.5
149 19.0 18.0
151 (149, 153) 19.0 18.0	18.0
153 19.0 18.0
157 19.0 18.0
159 (157, 161) 19.0 18.0	18.0
161 19.0 18.0
165 19.0 18.0

Outdoor omni antenna model

The following is the outdoor omni antenna models for 5.2 GHz:

Brocade Part Number

ML-5299-HPA1-01R

Outdoor omni antenna transmit power settings

The following is a transmit power table (US domain) per outdoor omni antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
36 14.5 14.5
38 (36, 40)	17.0 16.5 11.5
40 19.0 18.0
42 19.0 18.0
44 19.0 18.0
46 (44, 48)	19.0 18.0 16.5
48 19.0 18.0
52 18.5 18.0
54 (52, 56)	18.5 18.0 17
56 18.5 18.0
60 18.0 18.0
62 (60, 64)	16.5	11.5
64	15.0	16.0
100	14.0	14.0
102	(100, 104)	16.5	16.0	11.5
104	19.0	18.0
108	19.0	18.0
112	19.0	18.0
110	(108, 112)	19.0	18.0	18.0
116	19.0	18.0
118	(116, 120)	19.0	18.0	18.0
120	19.0	18.0
124	19.0	18.0
126	(124, 128)	19.0	18.0	18.0
128	19.0	18.0
132	19.0	18.0
134	(132, 136)	19.0	18.0	15.0
136	16.5	15.0
140	14.0	12.0
149	19.0	18.0
151	(149, 153)	19.0	18.0	18.0
153	19.0	18.0
157	19.0	18.0
159	(157, 161)	19.0	18.0	18.0
161	19.0	18.0
165	19.0	18.0

Panel antenna model

The following is the panel antenna model for 5.2 GHz:

Brocade Part Number

ML-2452-PNA5-01R

Panel antenna maximum conducted transmit power settings
The following is a transmit power table (US domain) per panel antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
36 14.5 14.0
38 (36, 40) 16.5 16.0 11.5
40 19.0 18.0
42 19.0 18.0
44 19.0 18.0
46 (44, 48) 19.0 18.0 17.0
48 19.0 18.0
52 19.0 18.0
54 (52, 56) 19.0 18.0 18.0
56 19.0 18.0
60 19.0 18.0
62 (60, 64) 16.0 16.0 12.0
64 15.0 14.5
100 12.5 13.5
102 (100, 104) 15.0 18.0 10.0
104 19.0 18.0
108 19.0 18.0
112 19.0 18.0
110 (108, 112) 19.0 18.0 16.5
116 19.0 18.0
118 (116, 120) 19.0 18.0 16.5
120 19.0 18.0
124 19.0 18.0
126 (124, 128) 19.0 18.0 16.5
128 19.0 18.0
132 19.0 18.0
134 (132, 136) 19.0 18.0 13.5
136 14.0 14.0
140 10.0 11.0
149 19.0 18.0
151 (149, 153) 19.0 18.0 18.0
153 19.0 18.0
157 19.0 18.0
159 (157, 161)	19.0 18.0	18.0
161 19.0	18.0
165 19.0	18.0

Omni antenna model

The following is the omni antenna model for 5.2 GHz:

Brocade Part Number

ML-2452-PTA3M3-036

Omni antenna maximum conducted transmit power settings

The following is a transmit power table (US domain) per omni antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
36 15.0 14.0
38 (36, 40)	17.0 16.0 10.0
40 19.0 18.0
42 19.0 18.0
44 19.0 18.0
46 (44, 48)	18.0 18.0 16.5
48 18.0 18.0
52 18.0 17.0
54 (52, 56)	19.0 18.0 17.0
56 19.0 18.0
60 19.0 18.0
62 (60, 64)	16.0 10.5
64 14.0 14.0
100 12.5 13.5
102 (100, 104)	16.0 15.0 8.0
104 19.0 18.0
108 19.0 18.0
112 19.0 18.0
110 (108, 112)	19.0 18.0 16.0
116 19.0 18.0
118 (116, 120)	19.0 18.0 16.0
120 19.0 18.0
124 19.0 18.0
126 (124, 128)	19.0 18.0	16.0
128 19.0 18.0
132 19.0 18.0
134 (132, 136)	19.0 18.0	13.0
136 14.5 14.5
140 10.0 12.0
149 19.0 18.0
151 (149, 153)	19.0 18.0	18.0
153 19.0 18.0
157 19.0 18.0
159 (157, 161)	19.0 18.0	18.0
161 19.0 18.0
165 19.0 18.0

Japan TELEC regulatory domain 2.4 GHz band

Dipole antenna model

The following is the dipole antenna model for 2.4 GHz:

Brocade Part Number

ML-2452-APA2-01

Dipole antenna maximum conducted transmit power settings

The following is a transmit power table (Japanese domain) per dipole antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
1 2412	13.5	16.0
2 2417	13.5	15.5
3 (1, 5)	2422	13.5	15.5	18.5
4 (2, 6)	2427	13.5	15.5	18.5
5 (3, 7)	2432	13.5	15.5	18.5
6 (4, 8)	2437	13.5	15.5	18.5
7 (5, 9)	2442	13.5	15.5	18.5
8 (6, 10)	2447 13.5	15.5 18.5
9 (7, 11)	2452 13.5	15.5 18.5
10 2457	13.5	15.5
11 2462	13.5	15.5
12 2467	13.5	15.5
13 2472	13.5	15.5
14		2484

Internal AP650 dual band antenna models

The following is the internal dual band antenna model for 2.4 GHz:

Brocade Part Number

57RPAA13.G66

57RPAA13.G67

57RPAA13.G68

57RPAA13.G69

57RPAA13.G6A

57RPAA13.G6B

AP650 internal dual band antenna maximum conducted transmit power settings

The following is a transmit power table (Japanese domain) per internal dual band antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
1 14.0 16.5 14.0
2 14.0 16.0 14.0
3 (1, 5) 14.0 16.0 18.5 14.0
4 (2, 6) 14.0 16.0 18.5 14.0
5 (3, 7) 14.0 16.0 18.5 14.0
6 (4, 8) 14.0 16.0 18.5 14.0
7 (5, 9) 14.0 16.0 18.5 14.0
8 (6, 10) 14.0 16.0 18.5 14.0
9 (7, 11) 14.0 16.0 18.5 14.0
10 14.0 16.0 14.0
11 14.0 16.0 14.0
12	14.0 16.0 14.0
13	14.5 16.0 14.5
14

Indoor patch antenna model

The following is the indoor patch antenna model for 2.4 GHz:

Brocade Part Number

ML-2499-SD3-01R

Indoor patch antenna maximum conducted transmit power settings

The following is a transmit power table (Japanese domain) per Indoor Patch antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
1 10.5	13.0	15.5
2 10.5	13.0	15.0
3 (1, 5)	10.5	13.0	15.0	18.5
4 (2, 6)	10.5	13.0	15.0	18.5
5 (3, 7)	10.5	13.0	15.0	18.5
6 (4, 8)	10.5	13.0	15.0	18.5
7 (5, 9)	10.5	13.0	15.0	18.5
8 (6, 10)	10.5	13.0	15.0	18.5
9 (7, 11)	10.5	13.0	15.0	18.5
10 10.5	13.0	15.0
11 10.5	13.0	15.0
12 10.5	13.0	15.0
13 10.5	13.0	15.0
14		11.5

Outdoor omni antenna model

The following is the outdoor omni antenna model for 2.4 GHz:

Brocade Part Number

ML-2499-HPA3-01R

Outdoor omni antenna maximum conducted transmit power settings

The following is a transmit power table (Japanese domain) per outdoor omni antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS0 MCS15)
1		10.5	13.0	15.5
2	10.5 13.0 15.0
3 (1, 5)	10.5 13.0 15.0 18.5
4 (2, 6)	10.5 13.0 15.0 18.5
5 (3, 7)	10.5 13.0 15.0 18.5
6 (4, 8)	10.5 13.0 15.0 18.5
7 (5, 9)	10.5 13.0 15.0 18.5
8 (6, 10)	10.5 13.0 15.0 18.5
9 (7, 11)	10.5 13.0 15.0 18.5
10		10.5	13.0	15.0
11		10.5	13.0	15.0
12	10.5 13.0 15.0
13	10.5 13.0 15.0
14		11.5

Panel antenna models

The following is the panel antenna model for 2.4 GHz:

Brocade Part Number

ML-2452-PNA5-01R

Panel antenna maximum conducted transmit power settings

The following is a transmit power table (Japanese domain) per panel antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS0 MCS15)
1 9.5	12.0	14.5
2 9.5	12.0	14.0
3 (1, 5)	9.5	12.0	14.0	18.5
4 (2, 6)	9.5	12.0	14.0	18.5
5 (3, 7)	9.5	12.0	14.0	18.5
6 (4, 8)	9.5	12.0	14.0	18.5
7 (5, 9)	9.5	12.0	14.0	18.5
8 (6, 10)	9.5	12.0	14.0	18.5
9 (7, 11)	9.5	12.0	14.0	18.5
10	9.5	12.0	14.0
11	9.5	12.0	14.0
12	9.5	12.0	14.0
13	9.5	13.0	14.0
14	10.5

Omni antenna model

The following is the omni antenna model for 2.4 GHz:

Brocade Part Number

ML-2452-PTA3M3-036

Omni antenna maximum conducted transmit power settings

The following is a transmit power table (Japanese domain) per omni antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS0 MCS15)
1		11.5	14.0	16.0
2	11.5 14.0 16.0
3 (1, 5)	11.5 14.0 16.0 18.5
4 (2, 6)	11.5 14.0 16.0 18.5
5 (3, 7)	11.5 14.0 16.0 18.5
6 (4, 8)	11.5 14.0 16.0 18.5
7 (5, 9)	11.5 14.0 16.0 18.5
8 (6, 10)	11.5 14.0 16.0 18.5
9 (7, 11)	11.5 14.0 16.0 18.5
10		11.5	14.0	16.0
11		11.5	14.0	16.0
12	11.5 14.0 16.0
13	11.5 14.0 16.0
14		10.0

Japan TELEC regulatory domain 5 GHz band

Dual band dipole antenna model

The following is the dual band dipole antenna model for 5 GHz:

Brocade Part Number

ML-2452-APA2-01

Dual band dipole antenna maximum conducted transmit power settings

The following is a transmit power table (Japanese domain) per dual band dipole antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
36 12.0 14.0
38 (36, 40)	12.0 14.0 15.5
40 12.0 14.0
42 12.0 14.0
44 12.0 14.0
46 (44, 48)	12.0 14.0 16.0
48 12.0 14.0
52 12.0 14.0
54 (52, 56)	12.0 14.0 14.0
56 12.0 14.0
60 12.0 14.0
62 (60, 64)	12.0 14.0 15.5
64 12.0 14.0
100 15.0 14.0
102 (100, 104)	12.0 14.0 18.0
104 12.0 14.0
108 12.0 14.0
112 12.0 14.0
110 (108, 112)	12.0 14.0 18.0
116 12.0 14.0
118 (116, 120)	12.0 14.0 18.0
120 15.0 14.0
124 12.0 14.0
126 (124, 128)	12.0 14.0 18.0
128	12.0	14.0
132	12.0	14.0
134	(132, 136)	12.0	14.0	18.0
136	12.0	14.0
140	15.0	14.0
149
151	(149, 153)
153
157
159	(157, 161)
161
165

Internal dual band antenna models

The following are the internal dual band antenna models for 5.2 GHz:

Brocade Part Number

57RPAA13.G66

57RPAA13.G67

57RPAA13.G68

57RPAA13.G69

57RPAA13.G6A

57RPAA13.G6B

Internal dual band antenna maximum conducted transmit power settings

The following is a transmit power table (Japanese domain) per internal dual band antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
36 12.0 14.0
38 (36,40)	12.0 14.0 15.0
40 12.0 14.0
42 12.0 14.0
44 12.0 14.0
46 (44,48)	12.0 14.0 15.5
48 12.0 14.0
52 12.0 14.0
54 (52,56)	12.0 14.0 15.5
56 12.0 14.0
60 12.0 14.0
62 (60,64)	12.0 14.0 15.5
64 12.0 14.0
100 15.0 16.5
102 (100,104)	15.0 16.5 18.0
104 15.0 16.5
108 15.0 16.5
112 15.0 16.5
110 (108,112)	15.0 16.5 18.0
116 15.0 16.5
118 (116,120)	15.0 16.5 18.0
120 15.0 16.5
124 15.0 16.5
126 (124,128)	15.0 16.5
128 15.0 16.5
132 15.0 16.5
134 (132,136)	15.0 16.5 18.0
136 15.0 16.5
140 15.0 17.0
149
151 (149,153)
153
157
159 (157,161)
161
165

Indoor patch model

The following is the indoor patch antenna model for 5.2 GHz

Brocade Part Number

ML-5299-PTA1-01R

Indoor patch antenna maximum conducted transmit power settings

The following is a transmit power table (Japanese domain) per indoor patch antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)		802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		12.0	14.0
38 (36, 40)	12.0 14.0 15.0
40		12.0	14.0
42		12.0	14.0
44		12.0	14.0
46 (44, 48)	12.0 14.0 15.5
48		12.0	14.0
52		12.0	14.0
54 (52, 56)	12.0 14.0 15.5
56		12.0	14.0
60		12.0	14.0
62 (60, 64)	12.0 14.0 15.5
64		12.0	14.0
100		15.0	16.5
102 (100, 104)	15.0 16.5 18.0
104		15.0	16.5
108		15.0	16.5
112		15.0	16.5
110 (108, 112)	15.0 16.5 18.0
116		15.0	16.5
118 (116, 120)	15.0 16.5 18.0
120		15.0	16.5
124		15.0	16.5
126 (124, 128)	15.0 16.5 18.0
128		15.0	16.5
132		15.0	16.5
134 (132, 136)	15.0 16.5 18.0
136		15.0	16.5
140		15.0	17.0
149
151 (149, 153)
153
157

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
159 (157, 161)
161
165

Outdoor omni antenna model

The following is the outdoor omni antenna models for 5.2 GHz:

Brocade Part Number

ML-5299-HPA1-01R

Outdoor omni antenna transmit power settings

The following is a transmit power table (Japanese domain) per outdoor omni antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)		802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		11.0	13.0
38 (36, 40)	12.0 13.0 14.5
40		12.0	13.0
42		12.0	14.0
44		12.0	14.0
46 (44, 48)	12.0 14.0 15.0
48		12.0	13.0
52		12.0	13.0
54 (52, 56)	12.0 14.0 15.0
56		12.0	14.0
60		12.0	13.0
62 (60, 64)	12.0 14.0 14.5
64		12.0	13.0
100		15.0	16.5
102 (100, 104)	15.0 16.5 18.0
104		15.0	16.5
108		15.0	16.5
112		15.0	16.5
110 (108, 112)	15.0 16.5 18.0
116		15.0	16.5

118 (116, 120) 15.0 16.5 18.0

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)		802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
120		15.0	16.5
124		15.0	16.5
126 (124, 128) 15.0 16.5
128		15.0	16.5
132		15.0	16.5
134 (132, 136) 15.0 16.5 18.0
136		15.0	16.5
140		15.0	16.5
149
151 (149, 153)
153
157
159 (157, 161)
161
165

Panel antenna model

The following is the panel antenna model for 5.2 GHz:

Brocade Part Number

ML-2452-PNA5-01R

Panel antenna maximum conducted transmit power settings

The following is a transmit power table (Japanese domain) per panel antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)		802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
36		9.0	11.0
38 (36, 40)	9.0 11.0 13.0
40		9.0	11.0
42		9.0	11.0
44		9.0	11.0
46 (44, 48)	9.0 11.0 13.5
48		9.0	11.0
52		9.0	11.0
54 (52, 56)	9.0 11.0 13.5
56		9.0	11.0
60		9.0	11.0
62 (60, 64)	9.0 11.0 13.5
64		9.0	11.0
100		15.0	16.5
102 (100, 104)	15.0 16.5 18.0
104		15.0	16.5
108		15.0	16.5
112		15.0	16.5
110 (108, 112)	15.0 16.5 18.0
116		15.0	16.5
118 (116, 120)	15.0 16.5 18.0
120		15.0	16.5
124		15.0	16.5
126 (124, 128)	15.0 16.5
128		15.0	16.5
132		15.0	16.5
134 (132, 136)	15.0 16.5 18.0
136		15.0	16.5
140		15.0	17.0
149
151 (149, 153)
153
157
159 (157, 161)
161
165

Omni antenna model

The following is the omni antenna model for 5.2 GHz:

Brocade Part Number

ML-2452-PTA3M3-036

Omni antenna maximum conducted transmit power settings
The following is a transmit power table (Japanese domain) per omni antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)		802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		11.0	13.0
38 (36, 40)	11.0 14.0 10.0
40		11.0	13.0
42		11.0	13.0
44		11.0	13.0
46 (44, 48)	11.0 13.0 16.5
48		11.0	13.0
52		11.0	13.0
54 (52, 56)	11.0 13.0 17.0
56		11.0	13.0
60		11.0	13.0
62 (60, 64)	11.0 13.0 10.5
64		11.0	13.0
100		15.0	16.5
102 (100, 104)	15.0 16.5 8.0
104		15.0	16.5
108		15.0	16.5
112		15.0	16.5
110 (108, 112)	15.0 16.5 16.0
116		15.0	16.5
118 (116, 120)	15.0 16.5 16.0
120		15.0	16.5
124		15.0	16.5
126 (124, 128)	15.0 16.5 16.0
128		15.0	16.5
132		15.0	16.5
134 (132, 136)	15.0 16.5 13.0
136		15.0	16.5
140		15.0	17.0
149
151 (149, 153)	18.0
153

157

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
159 (157, 161)	18.0
161
165

EU regulatory domain 2.4 GHz band

Dipole antenna model

The following is the dipole antenna model for 2.4 GHz:

Brocade Part Number

ML-2452-APA2-01

Dipole antenna maximum conducted transmit power settings

The following is a transmit power table (EU domain) per dipole antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
1	13.5	13.5	14.0
2	13.5	13.5	13.5
3	(1, 5)	13.5	13.5	13.5
4	(2, 6)	13.5	13.5	13.5
5	(3, 7)	13.5	13.5	13.5
6	(4, 8)	13.5	13.5	13.5
7	(5, 9)	13.5	13.5	13.5
8	(6, 10)	13.5	13.5	13.5
9	(7, 11)	13.5	13.5	13.5
10	13.5	13.5	13.5
11	13.5	13.5	13.5
12	13.5	13.5	13.5
13	13.5	13.5	13.5
14

Internal AP650 dual band antenna models

The following is the internal dual band antenna model for 2.4 GHz:

Brocade Part Number

57RPAA13.G66

57RPAA13.G67

57RPAA13.G68

57RPAA13.G69

57RPAA13.G6A

57RPAA13.G6B

AP650 internal dual band antenna maximum conducted transmit power settings

The following is a transmit power table (EU domain) per internal dual band antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
1 11.5	11.5 11.5
2 11.5	11.5 11.5
3 (1, 5)	11.5 11.5 11.5 11.5
4 (2, 6)	11.5 11.5 11.5 11.5
5 (3, 7)	11.5 11.5 11.5 11.5
6 (4, 8)	11.5 11.5 11.5 11.5
7 (5, 9)	11.5 11.5 11.5 11.5
8 (6, 10)	11.5 11.5 11.5 11.5
9 (7, 11)	11.5 11.5 11.5 11.5
10 11.5	11.5 11.5
11 11.5	11.5 11.5
12 11.5	11.5 11.5
13 11.5	11.5 11.5
14

Indoor patch antenna model

The following is the indoor patch antenna model for 2.4 GHz:

Brocade Part Number

ML-2499-SD3-01R

Indoor patch antenna maximum conducted transmit power settings

The following is a transmit power table (EU domain) per Indoor Patch antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48, 54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS15)
1	12.5	13.0	12.0
2	12.5	13.0	12.0
3	(1, 5)	12.5	13.0	12.0
4	(2, 6)	12.5	13.0	12.0
5	(3, 7)	12.5	13.0	12.0
6	(4, 8)	12.5	13.0	12.0
7	(5, 9)	12.5	13.0	11.5
8	(6, 10)	12.5	13.0	11.5
9	(7, 11)	12.5	13.0	11.5
10	12.5	13.0	11.5
11	12.5	13.0	11.5
12	12.5	13.0	11.5
13	12.5	13.0	11.5
14

Outdoor omni antenna model

The following is the outdoor omni antenna model for 2.4 GHz:

Brocade Part Number

ML-2499-HPA3-01R

Outdoor omni antenna maximum conducted transmit power settings

The following is a transmit power table (EU domain) per outdoor omni antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48, 54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS0 MCS15)
1		12.5	12.5	12.0
2	12.5 12.5 12.0
3 (1, 5)	12.5 12.5 12.0 12.5
4 (2, 6)	12.5 12.5 12.0 12.5
5 (3, 7)	12.5 12.5 12.0 12.5
6 (4, 8)	12.5 13.0 13.0 12.5
7 (5, 9)	12.5 12.5 11.5 12.5
8 (6, 10)	12.5	12.5 11.5	12.5
9 (7, 11)	12.5	12.5 11.5	12.5
10		12.5	12.5	11.5
11		12.5	12.5	11.5
12	12.5	12.5	11.5
13	12.5	12.5	11.5
14

Panel antenna models

The following is the panel antenna model for 2.4 GHz:

Brocade Part Number

ML-2452-PNA5-01R

Panel antenna maximum conducted transmit power settings

The following is a transmit power table (EU domain) per panel antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY DSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48, 54 MBPS)	802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS0 MCS15)
1 11.0 11.5 12.0
2 11.0 11.5 12.0
3 (1, 5) 11.0 11.5 12.0 11.5
4 (2, 6) 11.0 11.5 12.0 11.5
5 (3, 7) 11.0 11.5 12.0 11.5
6 (4, 8) 11.5 11.5 12.0 11.5
7 (5, 9) 11.5 11.5 12.0 11.5
8 (6, 10) 11.5 11.5 12.0 11.5
9 (7, 11) 11.5 11.5 12.0 11.5
10 11.5 11.5 12.0
11 11.5 11.5 12.0
12 11.5 11.5 12.0
13 11.5 11.5
14

Omni antenna model

The following is the omni antenna model for 2.4 GHz:

Brocade Part Number

ML-2452-PTA3M3-036

Omni antenna maximum conducted transmit power settings

The following is a transmit power table (EU domain) per omni antenna in the 2.4 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACYDSSS RATES (1, 2, 5.5, 11 MBPS)	LEGACY OFDM RATES (6,9,12,18,24,36,48,5 4 MBPS)		802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS0 MCS15)
1		11.0	11.0	11.0
2	11.0 11.0 11.0
3 (1, 5)	11.0 11.0 11.0 11.0
4 (2, 6)	11.0 11.0 11.0 11.0
5 (3, 7)	11.0 11.0 11.0 11.0
6 (4, 8)	11.0 11.0 11.0 11.0
7 (5, 9)	11.0 11.0 11.0 11.0
8 (6, 10)	11.0 11.0 11.0 11.0
9 (7, 11)	11.0 11.0 11.0 11.0
10		11.0	11.0	11.0
11		11.0	11.0	11.0
12	11.0 11.0 11.0
13	11.0 11.0 11.0
14

EU regulatory domain 5 GHz band

Dual band dipole antenna model

The following is the dual band dipole antenna model for 5 GHz:

Brocade Part Number

ML-2452-APA2-01

Dual band dipole antenna maximum conducted transmit power settings

The following is a transmit power table (EU domain) per dual band dipole antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
36 15.5 15.5
38 (36, 40)	15.5 15.5 15.5
40 15.5 15.5
42 15.5 15.5
44 15.5 15.5
46 (44, 48)	15.5 15.5 15.5
48 15.5 15.5
52 15.5 15.5
54 (52, 56)	15.5 15.5 15.5
56 15.5 15.5
60 15.5 15.5
62 (60, 64)	15.5 15.5 15.5
64 15.5 15.5
100 19.0 18.0
102 (100, 104)	19.0 19.0 17.5
104 19.0 19.0
108 19.0 19.0
112 19.0 19.0
110 (108, 112)	19.0 19.0 17.5
116 19.0 19.0
118 (116, 120)	19.0 19.0 17.5
120 19.0 19.0
124 19.0 19.0
126 (124, 128)	19.0 19.0 17.5
128 19.0 19.0
132 19.0 19.0
134 (132, 136)	19.0 19.0 18.0
136 19.0 19.0
140 19.0 18.0
149
151 (149, 153)
153
157
159 (157, 161)
161
165

Internal dual band antenna models

The following are the internal dual band antenna models for 5.2 GHz:

Brocade Part Number

57RPAA13.G66

57RPAA13.G67

57RPAA13.G68

57RPAA13.G69

57RPAA13.G6A

57RPAA13.G6B

Internal dual band antenna maximum conducted transmit power settings

The following is a transmit power table (EU domain) per internal dual band antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)	802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
36 14.0 14.0
38 (36,40)	14.0 14.0 14.5
40 14.0 14.0
42 14.0 14.0
44 14.0 14.0
46 (44,48)	14.0 14.0 14.5
48 14.0 14.0
52 14.0 14.0
54 (52,56)	14.0 14.0 14.5
56 14.0 14.0
60 14.0 14.0
62 (60,64)	14.0 14.0 14.5
64 14.5 14.5
100 19.0 19.0
102 (100,104)	19.0 19.0 17.5
104 19.0 19.0
108 19.0 19.0
112 19.0 19.0
110 (108,112) 19.0 19.0 17.5
116 19.0 19.0
118 (116,120) 19.0 19.0 17.5
120 19.0 19.0
124 19.0 19.0
126 (124,128) 19.0 19.0 17.5
128 19.0 19.0
132 19.0 19.0
134 (132,136) 19.0 19.0 18.0
136 19.0 19.0
140 19.0 19.0
149
151 (149,153)
153
157
159 (157,161)
161
165

Indoor patch model

The following is the indoor patch antenna model for 5.2 GHz:

Brocade Part Number

ML-5299-PTA1-01R

Indoor patch antenna maximum conducted transmit power settings

The following is a transmit power table (EU domain) per indoor patch antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)		802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		13.5	13.5
38 (36, 40)	13.5 13.5 14.0
40		13.5	13.5
42		13.5	13.5
44		13.5	13.5
46 (44, 48)	13.5	13.5	13.5
48		13.5	13.5
52		13.5	13.5
54 (52, 56)	13.5	13.5	13.5
56		13.5	13.5
60		13.5	13.5
62 (60, 64)	13.5	13.5	13.5
64		13.5	13.5
100		19.0	18.0
102 (100, 104)	19.0	18.0	17.5
104		19.0	18.0
108		19.0	18.0
112		19.0	18.0
110 (108, 112)	19.0	18.0	18.0
116		19.0	18.0
118 (116, 120)	19.0	18.0	18.0
120		19.0	18.0
124		19.0	18.0
126 (124, 128)	19.0	18.0	18.0
128		19.0	18.0
132		19.0	18.0
134 (132, 136)	19.0	18.0	18.0
136		19.0	18.0
140		19.0	18.0
149
151 (149, 153)
153
157
159 (157, 161)
161
165

Outdoor omni antenna model

The following is the outdoor omni antenna models for 5.2 GHz

Brocade Part Number

ML-5299-HPA1-01R

Outdoor omni antenna transmit power settings

The following is a transmit power table (EU domain) per outdoor omni antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)		802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		13.0	13.0
38 (36, 40)	13.0 13.0 14.0
40		13.0	13.0
42		13.0	13.0
44		13.0	13.0
46 (44, 48)	13.0 13.0 13.5
48		13.0	13.0
52		13.0	13.0
54 (52, 56)	13.0 13.0 13.5
56		13.0	13.0
60		13.0	13.0
62 (60, 64)	13.0 13.0 13.5
64		13.0	13.0
100		19.0	19.0
102 (100, 104)	19.0 19.0 17.5
104		19.0	19.0
108		19.0	19.0
112		19.0	19.0
110 (108, 112)	19.0 19.0 17.5
116		19.0	19.0
118 (116, 120)	19.0 19.0 17.5
120		19.0	19.0
124		19.0	19.0
126 (124, 128)	19.0 19.0 17.5
128		19.0	19.0
132		19.0	19.0
134 (132, 136)	19.0 19.0 18.0
136		19.0	19.0
140		19.0	19.0
149
151 (149, 153)
153
157
159 (157, 161)
161
165

Panel antenna model

The following is the panel antenna model for 5.2 GHz:

Brocade Part Number

ML-2452-PNA5-01R

Panel antenna maximum conducted transmit power settings

The following is a transmit power table (Japanese domain) per panel antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)		802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
36		11.0	11.0
38 (36, 40)	11.0 11.0 11.0
40		11.0	11.0
42		11.0	11.0
44		11.0	11.0
46 (44, 48)	11.0 11.0 11.0
48		11.0	11.0
52		11.0	11.0
54 (52, 56)	11.0 11.0 11.0
56		11.0	11.0
60		11.0	11.0
62 (60, 64)	11.0 11.0 11.0
64		11.0	11.0
100		18.0	18.0
102 (100, 104)	18.0 18.0 17.5
104		18.0	18.0
108		18.0	18.0
112		18.0	18.0
110 (108, 112)	18.0	18.0
116		18.0	18.0
118 (116, 120)	18.0	18.0
120		18.0	18.0
124		18.0	18.0
126 (124, 128)	18.0	18.0
128		18.0	18.0
132		18.0	18.0
134 (132, 136)	18.0	18.0
136		18.0	18.0
140		18.0	18.0
149
151 (149, 153)
153
157
159 (157, 161)
161
165

Omni antenna model

The following is the omni antenna model for 5.2 GHz:

Brocade Part Number

ML-2452-PTA3M3-036

Omni antenna maximum conducted transmit power settings

The following is a transmit power table (EU domain) per omni antenna in the 5 GHz band:

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES(6,9,12,18,24,36,48,54 MBPS)		802.11n HT20 RATES(MCS 0 MCS 15)	802.11n HT40 RATES(MCS 0 MCS 15)
36		13.0	13.0
38 (36, 40)	13.0 13.0 14.0
40		13.0	13.0
42		13.0	13.0
44		13.0	13.0

46 (44, 48) 13.0 13.0 13.5

20 MHZ CHANNEL	40 MHZ CHANNEL	LEGACY OFDM RATES (6,9,12,18,24,36,48,54 MBPS)		802.11n HT20 RATES (MCS 0 MCS 15)	802.11n HT40 RATES (MCS 0 MCS 15)
48		13.0	13.0
52		13.0	13.0
54 (52, 56)	13.0 13.0 13.5
56		13.0	13.0
60		13.0	13.0
62 (60, 64)	13.0 13.0 13.5
64		13.0	13.0
100		19.0	19.0
102 (100, 104)	19.0 19.0 17.5
104		19.0	19.0
108		19.0	19.0
112		19.0	19.0
110 (108, 112)	19.0 19.0 17.5
116		19.0	19.0
118 (116, 120)	19.0 19.0 17.5
120		19.0	19.0
124		19.0	19.0
126 (124, 128)	19.0 19.0 17.5
128		19.0	19.0
132		19.0	19.0
134 (132, 136)	19.0 19.0 18.0
136		19.0	19.0
140		19.0	19.0
149
151 (149, 153)
153
157
159 (157, 161)
161
165
