Product Type	Electrical Enclosure
Model	P2DO128
Brand	Hoffman
Height	128 mm
Width	120 mm
Depth	80 mm
Weight	0.5 kg
Material	Polycarbonate
IP Rating	IP65
Operating Temperature	-40°C to 80°C
Color	Gray (RAL 7035)
Locking Mechanism	Quarter-turn latch with key
Mounting Type	Wall-mount with brackets
Cover	Screw-on cover with gasket
Number of Knockouts	4
Knockout Size	20 mm and 25 mm
Certifications	UL, CSA, CE
Maintenance	Clean with mild detergent and water; inspect gasket periodically
Safety	Do not exceed rated voltage; ground properly
Spare Parts Available	Gaskets, latches, mounting brackets

Frequently Asked Questions - P2DO128 Hoffman

What material is the Hoffman P2DO128 enclosure made of?

The enclosure is made of polycarbonate, providing high impact resistance and UV stability.

What is the IP rating of the P2DO128?

It has an IP65 rating, meaning it is dust-tight and protected against water jets.

Can the P2DO128 be used outdoors?

Yes, the IP65 rating and polycarbonate material make it suitable for outdoor use, but avoid direct exposure to extreme chemicals.

How do I mount the P2DO128 enclosure?

Use the included wall-mounting brackets and screws. Ensure the mounting surface is flat and secure.

What tools are needed for installation?

You will need a screwdriver for the latch, a drill for mounting holes, and appropriate conduit fittings for knockouts.

Is the cover removable?

Yes, the cover is secured with a quarter-turn latch and can be fully removed for access.

What size knockouts are available?

The enclosure has 20 mm and 25 mm knockouts for conduit entry.

How should I clean the enclosure?

Clean with a mild detergent and water using a soft cloth. Avoid abrasive cleaners that may damage the surface.

What spare parts are available for the P2DO128?

Available spare parts include gaskets, latches, and mounting brackets. Contact Hoffman support for ordering.

What certifications does the P2DO128 have?

The enclosure is UL, CSA, and CE certified, meeting international safety standards.

USER MANUAL P2DO128 Hoffman

Two white industrial cabinets with black handles, one open and one closed, shown from different angles (no text or symbols visible)

APPLICATION

ProLine G2 Solid Doors (Single or Overlapping Double) feature a solid swing and a high load capacity. The Smooth Glide latching system is made from quality components and incorporates an innovative timed latch action, ensuring a solid door seal with a low closure force. Sold individually.

FEATURES

• Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetime
• Low-profile Swing Handle with key lock; other options available
• Seamless polyurethane gasket (UL Component Recognized) provides a watertight, dust-tight seal against moisture and contaminants

SPECIFICATIONS

• Single doors available for frames up to 1000 mm wide
• Overlapping double doors available for frames 800 mm wide and greater
• Door bar system on all doors
- Timed latch engagement to ensure top and bottom of door catch reliably
- Durable, double-flanged latch rod and three Delrin ^® rollers to prevent metal-on-metal grinding

• 3-point latch system for doors 1000 mm or greater in height
• Key lock handle standard; other options available
- Single doors can be hinged on left or right (default left); overlapping double doors can have the primary door as the left or right door (default right)
• 14 gauge (1.75 mm) mild steel
• 140-degree hinging standard (180-degree hinge option available)
- Door can be reversed without removing the side covers
- Can be used on front or rear of enclosure; can be used on the sides of enclosure with side door adapter (not included)
- Two grounding studs
• All mounting hardware included
- Soldindividually

Overlapping Double Doors – Additional Specifications

• Primary door with Smooth Glide latching system
- Secondary door has two latch points with a center lever to ensure secure door closure

EMC Doors - Additional Specifications:

• Plated to provide corrosion resistance while maintaining a metal-to-metal contact with the metal fiber gasket
• Metalized non-woven fabric EMI/RFI material covering UL94HP rated urethane foam gasket
• Plating exposed in interior and paint over plated exterior
• Longer lead times required for EMC items

FINISH

• Polyester powder paint; RAL 7035 textured light gray standard

- Custom colors available

LOAD RATING

- 250/113kg, safety factor 1.5; frame size: 2000x600x800 mm (load ratings vary by frame size)

ACCESSORIES

• ProLine Grounding Kit
- Door Stop Kit
• 180-Degree Hinge Kit
- Side Door Adapter
- Flush Swing Handles
- LHandle
- Flush Bezels
• Small Flush Swing Handle
• Steel Data Pocket
• Thermoplastic Data Pocket
• Door Bar Grid Straps
- Door Support Roller Kit

BULLETIN: P40

Standard Product Single Door

Catalog Number	H (mm)	H (in.)	W (mm)	W (in.) Fits Frame HxW (mm)			Description
P2D64 58323.039815.7600x400			Painted
P2D66 58323.059823.5600x600			Painted
P2D68 58323.079831.4600x800			Painted
P2D86 78330.859823.5800x600			Painted
P2D88 78330.879831.4800x800			Painted
P2D105	983		38.7	498	19.6	1000x500	Painted
P2D106	983		38.7	598	23.5	1000x600	Painted
P2D108	983		38.7	798	31.4	1000x800	Painted
P2D125	1183		46.6	498	19.6	1200x500	Painted
P2D126	1183		46.6	598	23.5	1200x600	Painted
P2D128	1183		46.6	798	31.4	1200x800	Painted
P2D145	1383		54.4	498	19.6	1400x500	Painted
P2D146	1383		54.4	598	23.5	1400x600	Painted
P2D146HF	1383		54.4	598	23.5	1400x600	EMC
P2D164	1583		62.3	398	15.7	1600x400	Painted
P2D165	1583		62.3	498	19.6	1600x500	Painted
P2D166	1583		62.3	598	23.5	1600x600	Painted
P2D168	1583		62.3	798	31.4	1600x800	Painted
P2D184	1783		70.2	398	15.7	1800x400	Painted
P2D185	1783		70.2	498	19.6	1800x500	Painted
P2D186	1783		70.2	598	23.5	1800x600	Painted
P2D186HF	1783		70.2	598	23.5	1800x600	EMC
P2D187	1783		70.2	698	27.5	1800x700	Painted

Catalog Number	H (mm) H (in.) W (mm) W (in.) Fits Frame HxW (mm)	Description
P2D188	178370.279831.41800x800Painted
P2D189	178370.289835.41800x900Painted
P2D1810	178370.299839.31800x1000Painted
P2D205	198378.149819.62000x500Painted
P2D206	198378.159823.52000x600Painted
P2D206HF	198378.159823.52000x600EMC
P2D207	198378.169827.52000x700Painted
P2D208	198378.179831.42000x800Painted
P2D208HF	198378.179831.42000x800EMC
P2D2010	198378.199839.32000x1000Painted
P2D225	218385.949819.62200x500Painted
P2D226	218385.959823.52200x600Painted
P2D226HF	218385.959823.52200x600EMC
P2D227	218385.969827.52200x700Painted
P2D228	218385.979831.42200x800Painted
P2D228HF	218385.979831.42200x800EMC
P2D2210	218385.999839.32200x1000Painted

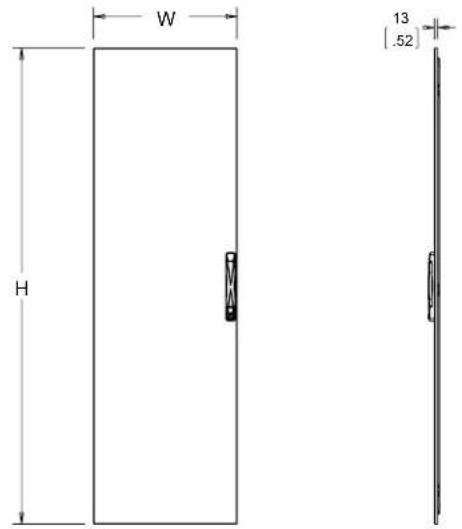

W H 13 [.52]

89129475

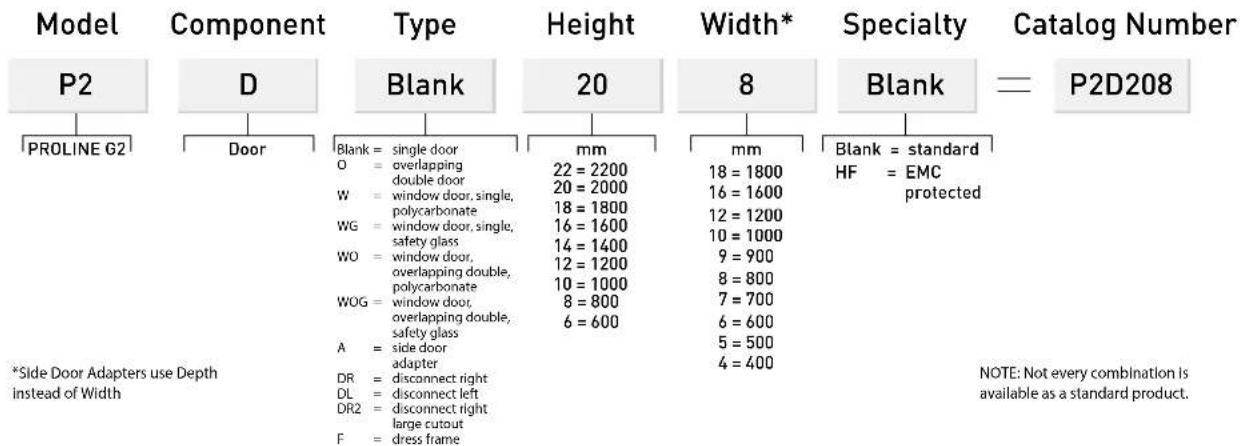

Model P2 PROLINE G2 Component D Door Type Blank Height 20 Width* 8 Specialty Blank = P2D208 *Side Door Adapters use Depth instead of Width *mm mm Blank = standard HF = EMC protected NOTE: Not every combination is available as a standard product. Type Blank = single door O = overlapping double door W = window door, single, polycarbonate WG = window door, single, safety glass WO = window door, overlapping double, polycarbonate WOG = window door, overlapping double, safety glass A = side door adapter DR = disconnect right DL = disconnect left DR2 = disconnect right large cutout F = dress frame 22 = 2200 20 = 2000 18 = 1800 16 = 1600 14 = 1400 12 = 1200 10 = 1000 8 = 800 6 = 600 9 = 900 8 = 800 7 = 700 6 = 600 5 = 500 4 = 400

Standard Product Overlapping Doors

Catalog Number	H (mm)	H (in.)	W (mm)	W (in.)	Fits Frame HxW mm	Description
P2DO68 58323.079831.4600x800Painted
P2DO88 78330.879831.4800x800Painted
P2DO108 98338.779831.41000x800Painted
P2DO1012 98338.7119847.21000x1200Painted
P2DO128 1183	46.679831.41200x800Painted
P2DO1212 1183	46.6119847.21200x1200Painted
P2DO148 1383	54.479831.41400x800Painted
P2DO1412 1383	54.4119847.21400x1200Painted
P2DO168 1583	62.379831.41600x800Painted
P2DO1612 1583	62.3119847.21600x1200Painted
P2DO1616 1583	62.3159862.91600x1600Painted
P2DO188 1783	70.279831.41800x800Painted
P2DO1810 1783	70.299839.31800x1000Painted
P2DO1810HF	1783	70.2	998	39.3	1800x1000	EMC
P2DO1816 1783	70.2159862.91800x1600Painted
P2DO1818 1783	70.2179870.81800x1800Painted
P2DO208 1983	78.179831.42000x800Painted
P2DO208HF 1983	78.179831.42000x800EMC
P2DO2012 1983	78.1119847.22000x1200Painted
P2DO2016 1983	78.1159862.92000x1600Painted
P2DO2018 1983	78.1179870.82000x1800Painted
P2DO228 2183	85.979831.42200x800Painted
P2DO228HF 2183	85.979831.42200x800EMC
P2DO2212 2183	85.9119847.22200x1200Painted
P2DO2216 2183	85.9159862.92200x1600Painted
P2DO2218 2183	85.9179870.82200x1800Painted

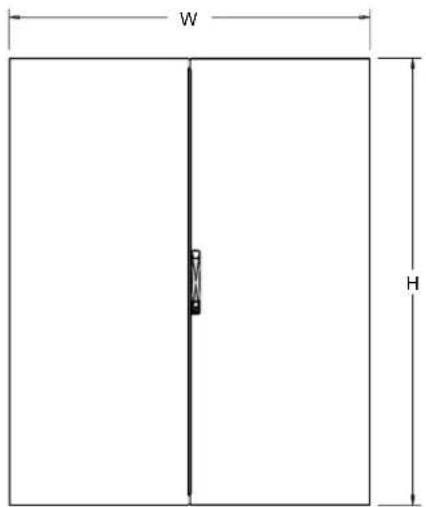

W H

13 [ .52 ]

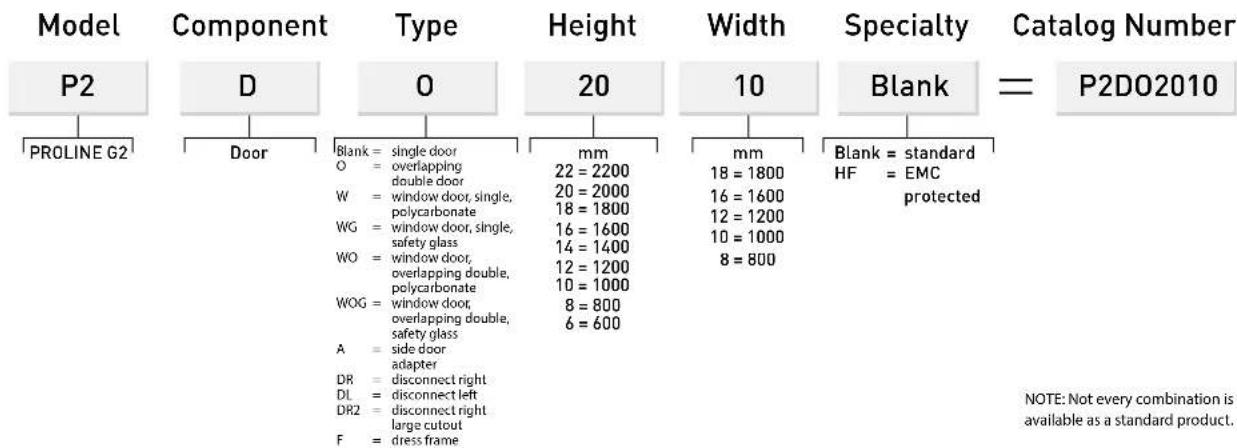

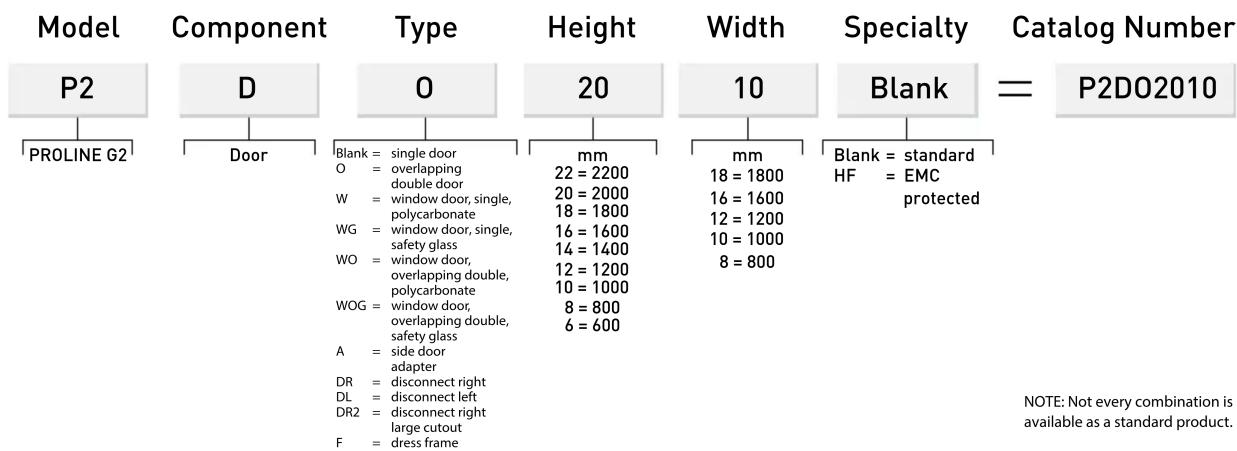

Model P2 PROLINE G2 Component D Door Type O Blank = single door O = overlapping double door W = window door, single, polycarbonate WG = window door, single, safety glass WO = window door, overlapping double, polycarbonate WOG = window door, overlapping double, safety glass A = side door adapter DR = disconnect right DL = disconnect left DR2 = disconnect right large cutout F = dress frame Height 20 mm 22 = 2200 20 = 2000 18 = 1800 16 = 1600 14 = 1400 12 = 1200 10 = 1000 8 = 800 Width 10 mm 18 = 1800 16 = 1600 12 = 1200 10 = 1000 8 = 800 Specialty Blank = standard HF = EMC protected Catalog Number = P2D02010 NOTE: Not every combination is available as a standard product.
