P2CS205 - Electrical cabinet Hoffman - Free user manual and instructions

Product Type	Industrial Control Enclosure
Brand	Hoffman
Model	P2CS205
Material	Carbon Steel with Gray Polyester Powder Coating
Dimensions (H x W x D)	200 mm x 150 mm x 75 mm (7.87 in x 5.91 in x 2.95 in)
Weight	1.2 kg (2.65 lbs)
Power Supply	120 V AC, 60 Hz, 15 A
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Ingress Protection Rating	IP65 (Dust-tight and protected against water jets)
Main Functions	Provides secure housing for electrical, electronic, and pneumatic components; protects against dust, water, and mechanical impact
Mounting Type	Wall-mountable with included brackets
Door Type	Hinged door with quarter-turn latch and padlock hasp
Finish	Gray (RAL 7035) polyester powder coating, interior and exterior
Standards Compliance	UL 508A, CSA C22.2 No. 14, NEMA 4, 12
Maintenance	Wipe with a damp cloth and mild detergent; inspect gaskets periodically and replace if worn
Safety Features	Includes ground stud and padlock hasp for secure locking; designed to prevent accidental contact with live components
Spare Parts	Replacement gaskets, hinges, latches, and mounting brackets available from Hoffman
Reparability	Modular design allows easy replacement of door and hardware; no special tools required
General Information	Suitable for use as a junction box, control panel enclosure, or terminal wiring box in industrial environments

Frequently Asked Questions - P2CS205 Hoffman

How do I mount the Hoffman P2CS205 enclosure?

Use the included wall-mounting brackets. Secure the enclosure to a flat, vertical surface using appropriate screws (not included). Ensure the surface can support the weight of the enclosure and its contents.

What is the IP rating of this enclosure?

The P2CS205 has an IP65 rating, meaning it is dust-tight and protected against low-pressure water jets from any direction.

Can I use this enclosure outdoors?

Yes, the IP65 rating and UV-resistant powder coating make it suitable for outdoor use, provided it is not submerged.

What is the maximum operating temperature?

The enclosure can operate in temperatures ranging from -20°C to 60°C (-4°F to 140°F).

Does the enclosure come with a lock?

It includes a quarter-turn latch with a padlock hasp for securing with a padlock (not included).

What materials are used in construction?

The enclosure is made of carbon steel with a gray polyester powder coating that resists corrosion and impact.

How do I clean the enclosure?

Wipe with a soft, damp cloth and mild detergent. Avoid abrasive cleaners that may damage the coating.

Can I replace the door gasket?

Yes, replacement gaskets are available as spare parts. The gasket is designed to be easily removed and replaced.

What are the internal dimensions for mounting components?

Usable internal space is approximately 185 mm x 135 mm x 60 mm (H x W x D). A mounting panel may be ordered separately.

Is the enclosure UL listed?

Yes, it complies with UL 508A and CSA C22.2 No. 14 standards for industrial control panels.

USER MANUAL P2CS205 Hoffman

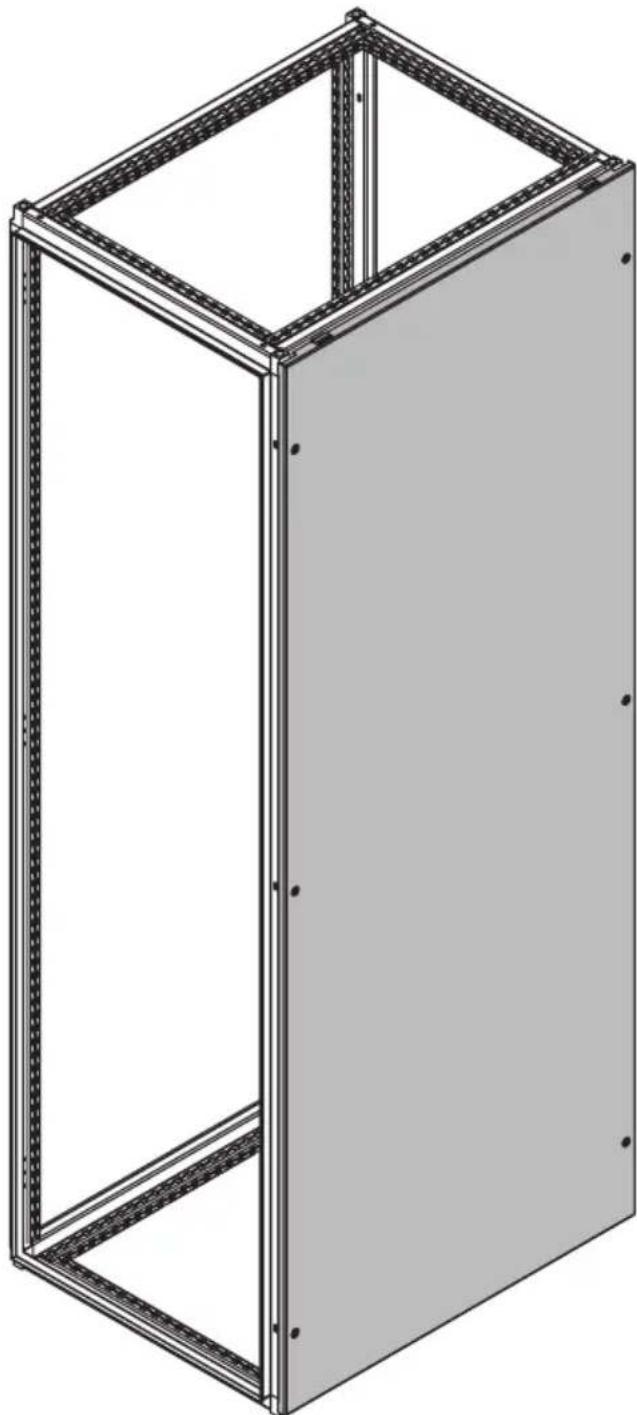

Technical illustration of two 3D structural components: a flat panel on the left and a hollow frame on the right, both without any text or symbols.

1a

1b

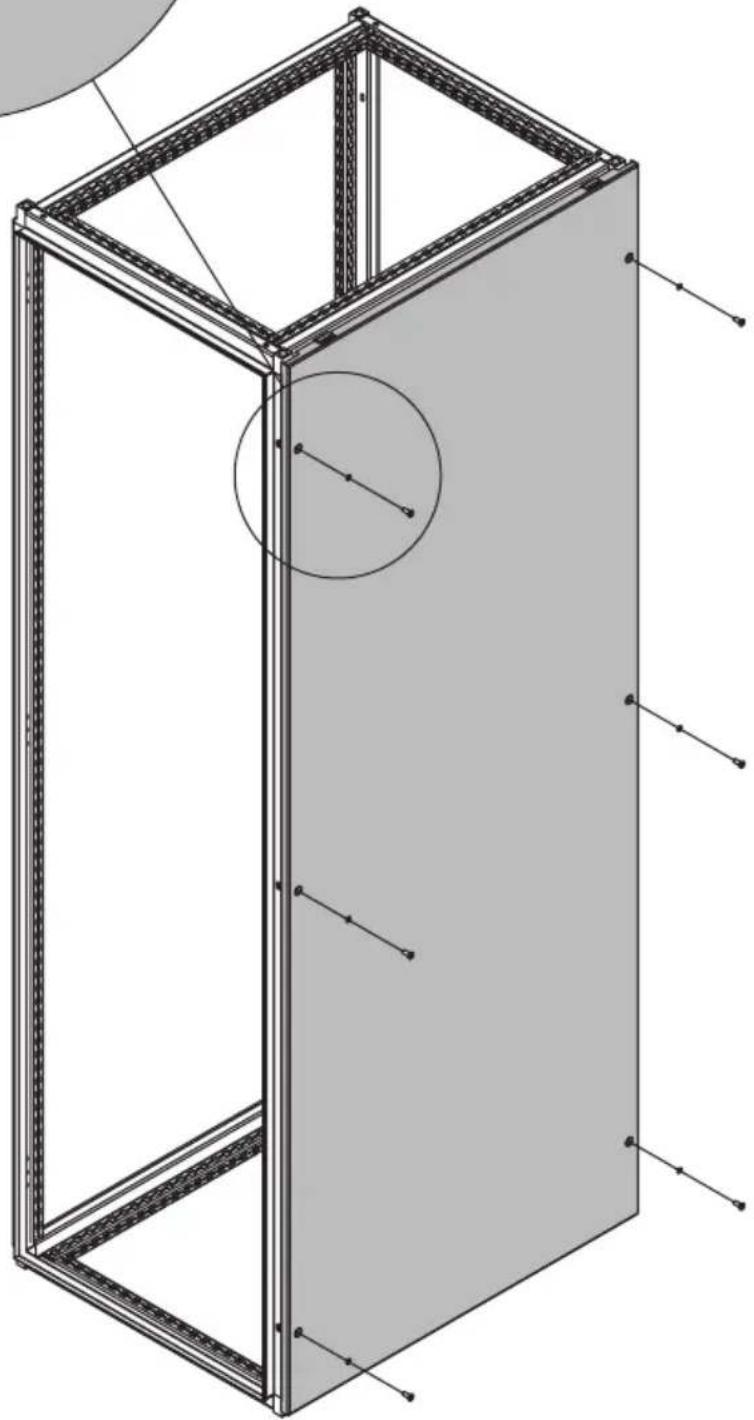

Technical line drawing of a structural frame with a diagonal panel and internal supports (no text or symbols)
