HLCRIO125 - Kit de montage voiture iOttie - Free user manual and instructions

Product Type	Car Mount Kit
Brand	iOttie
Model	HLCRIO125
Color	Black
Material	ABS Plastic, Silicone
Dimensions (Approx.)	5.2 x 3.4 x 2.1 inches
Weight (Approx.)	3.5 oz (100 g)
Mounting Type	Dashboard / Windshield Suction Cup
Compatible Devices	Smartphones up to 6.7 inches
Installation	Tool-free, adjustable arm
Features	One-Touch mechanism, 360° rotation, telescopic arm
Power Source	None (passive mount)
Maintenance	Wipe with dry cloth; avoid liquids
Safety	Ensure suction cup is clean for secure grip
Spare Parts	Not available separately
Repairability	Not user-serviceable
Country of Origin	China
Warranty	1 Year Limited

Frequently Asked Questions - HLCRIO125 iOttie

How do I install the iOttie HLCRIO125 car mount?

Clean the mounting surface, attach the suction cup, and press the pump lever to lock. Adjust the arm and cradle to fit your device.

Will this mount work with a phone case?

Yes, the mount accommodates most phone cases, including slim and rugged cases up to 0.5 inches thick.

Can I mount it on the dashboard or windshield?

Yes, the suction cup is designed for both smooth dashboards and windshields. Avoid textured surfaces.

How does the one-touch mechanism work?

Press the side buttons to open the arms, place your phone, and press the buttons again to lock it in place automatically.

Is the mount adjustable for portrait or landscape orientation?

Yes, the cradle rotates 360 degrees, allowing you to switch between portrait and landscape easily.

What is the maximum phone size supported?

The mount fits smartphones with screen sizes up to 6.7 inches, such as iPhone 13 Pro Max or Samsung Galaxy S22 Ultra.

How do I remove the mount from the windshield?

Lift the suction cup tab to release the vacuum, then gently pull the mount away from the surface.

Does the mount obstruct the air vent?

No, this mount uses a dashboard or windshield attachment, not a vent clip. It does not block air flow.

Can I use this mount with a tablet?

No, this mount is designed for smartphones only. Tablets may be too heavy or large.

How do I clean and maintain the suction cup?

Wipe the suction cup with a damp cloth to remove dust. Avoid oil-based cleaners. Reapply if grip weakens.

USER MANUAL HLCRIO125 iOttie

EASY ONE TOUCH™ 4

Dashboard & Windshield Mount

EXPLORING

SUCTION CUP

Close-up of hands holding a transparent container with liquid, no visible text or symbols

• Clear rubber piece attached to bottom of Mount, activated by Lever
• Reusable Sticky Gel can be rinsed in warm water and air dried to restore
• Ideal for smooth dashboards, windshields, and desks

DASHBOARD PAD

• Optional Pad for Dashboard use only
• Features a strong one-time use adhesive tape
- Recommended for use under the Suction Cup to protect dashboards

KEY FEATURES

Easy One Touch mounting system locks and releases the device with just a push of a finger

Hand holding a black fitness tracker device (no visible text or symbols)

Press Release Bars

Mount Device

Suction Cup adheres to either windshield or dashboard

• Works with most curved & textured dashboards
- Rinse with warm water and let air dry to restore tacky suction

Sticky Gel on suction cup leaves

NO GAP FOR AIR, mounting more securely.

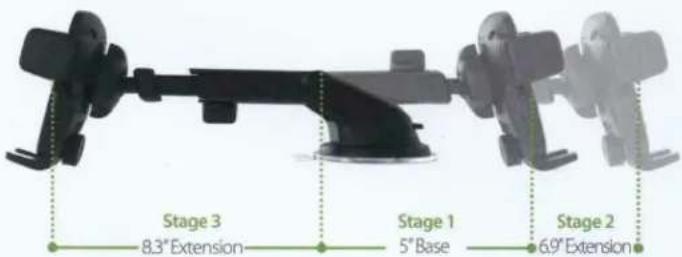

Telescopic Arm extends from 5" to 8.3"

Foot gives smartphone additional support. Loosen Knob behind mount to move Foot up, down, and side to side

- Foot can be easily removed to allow for larger smartphone compatibility

Close-up of a black mechanical device with green circular indicators and directional arrows, no readable text or symbols.

INSTALLATION

iottie

iOttie recommends to use included Dashboard Pad for dashboard mounting only. This will help mounting on curved and textured surfaces as well as prevent any potential dashboard damage.

The adhesive tape on underside of Dashboard Pad is not reusable. Please test the position of your mount before you remove protective cover and stick to your dash. iOttie is not liable for any damages related to product misuse.

Prior to mounting product, we recommend the surface and product to be above 40^ F.

1A - Remove Cradle Knob, and place over ball joint.
1B - Connect Mounting Cradle to Ball Joint, and tighten Cradle Knob.

MOUNTING YOUR DEVICE

Illustration of a portable electronic device with green directional arrows indicating movement or force (no text or symbols)

4 - Press Release Bars to open Locking Side Arms.

Simple line drawing of a circular object with concentric rings and a finger pointing to it (no text or symbols)

2 - Peel protective film off Dashboard Pad, place sticky side down. Press and rub around. Dashboard Pad to ensure firm adhesive grip.

We recommend letting the Dashboard Pod sit for 30 minutes before applying
3 Prior to mounting, we recommend the surface and product to be above 40°F

Illustration of a robotic arm holding a green tool, with no visible text or symbols

5 - Put smartphone against the Easy One Touch Trigger, arms will automatically close against the device.

3A - Remove plastic cover from Suction Cup and place on Dashboard Pad.
3B - Pull down the lever to secure the mount.

6 - Adjust Foot to locate proper position. Lock position by twisting Cradle Knob behind mount.

ADJUSTING MOUNT

Illustration of a smartphone with a green circular refresh button on its screen, placed on a stand (no text or symbols)

7 - Cradle Knob Located behind mount, loosen to rotate Cradle into Landscape mode. Tighten to lock in position.

Technical line drawing of a mechanical device with green lever and adjustment bracket (no text or symbols)

8 - Telescopic Knob Located on top of Telescopic Arm, loosen to extend the arm, and tighten to secure distance.

Illustration of a mechanical clamp device with a green circular component, no text or symbols present

9 - Pivot Knob On the side of the Mount Base. Turning allows you to pivot telescopic arm. Tighten to secure.

iOttie DriveSmarter

Android App

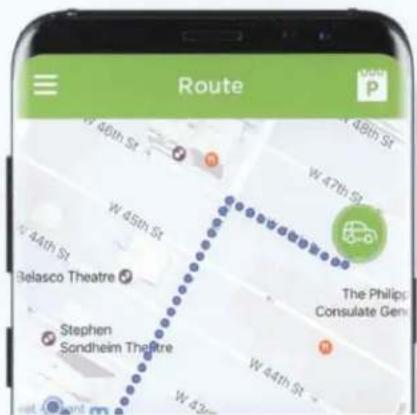

Locate where you last parked by navigating in the companion app.

Additional app features & updates coming soon.
