WIL1070 - Washing machine Freggia - Free user manual and instructions
Find the device manual for free WIL1070 Freggia in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Freestanding Washing Machine |
| Loading Type | Front-load |
| Dimensions (H x W x D) | 85 x 60 x 60 cm (approx.) |
| Weight (net) | 65 kg (approx.) |
| Capacity (Rated) | 7 kg |
| Power Supply | 220-240 V ~ 50 Hz |
| Power Consumption (Rated) | 2000 W |
| Spin Speed (Max) | 1000 rpm |
| Energy Efficiency Class | A+ (approx.) |

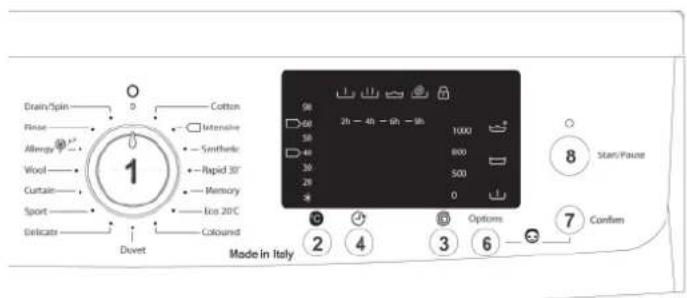

| Wash Programs | Cotton, Synthetics, Delicates, Quick, Rinse, Spin, Drum Clean |
| Additional Functions | Delay Start, Child Lock, Anti-Flood |
| Door | Reversible, with Child Lock |
| Display | LED, Program Progress |
| Water Connection | Cold water fill only |
| Water Pressure | 0.5 - 8 bar (approx.) |
| Noise Level (Wash/Spin) | 58 / 76 dB (approx.) |
| Drum Material | Stainless Steel |
| Heater | 2000 W, Adjustable Temperature |
| Filter | Lint filter, clean regularly |
| Spare Parts Available | Drum, pump, belt, door seal, control board |
| Repair Index (if applicable) | 7.5 / 10 (approx.) |
| Includes | User manual, inlet hose, drain hose, transit bolts |
Frequently Asked Questions - WIL1070 Freggia

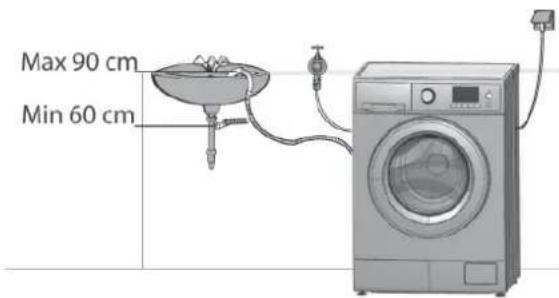

How do I install the WIL1070 washing machine?
Remove all packing materials and transit bolts. Connect the inlet hose to a cold water tap (max 8 bar) and place the drain hose into a standpipe or sink. Level the machine by adjusting the feet and tighten lock nuts. Finally, plug into a grounded outlet (220-240V).
What should I do if the machine doesn't start?
Check that the door is properly closed (click sound), the water supply is on, and the power cord is connected. Also ensure the program selector is not at the 'Off' position and the child lock is deactivated.
How to clean the lint filter?
Open the filter cover at the bottom right front of the machine. Turn the filter counterclockwise and pull it out. Remove lint and debris under running water. Reinsert and turn clockwise until tight. Clean every 10 cycles.
Why is the machine noisy during spin?
Common causes include unbalanced load (redistribute laundry), loose transit bolts (remove all), or foreign objects in the drum (check pockets). If noise persists, contact support.
How to use the Delay Start function?
Select your wash program, then press the Delay button repeatedly to set the desired delay (e.g., 3h to 24h). The machine will start automatically so that the cycle finishes at the desired time.
What does the error code E1 mean?
E1 indicates a water drainage problem. Check if the drain hose is kinked or blocked, and clean the lint filter. If the issue persists, the drain pump may be faulty.
How to descale the washing machine?
Run the Drum Clean program with a descaling agent or a cup of vinegar (max 250ml). For heavy scale, use a commercial descaler. Repeat every 2-3 months.
Can I open the door during a cycle?
After the machine has locked, the door remains closed for safety. Press the Start/Pause button to pause the cycle. Wait a few minutes for the door to unlock (if water temperature is safe). Pull the door handle.
What is the maximum load for the Quick program?
For Quick 15 or Quick 30, do not exceed 2 kg of lightly soiled laundry. Overloading may reduce cleaning effectiveness.
How to activate Child Lock?
Press and hold the Child Lock button (usually marked with a lock icon) for 3-5 seconds until a lock symbol appears on the display. Repeat to deactivate.
