Sonic - Toothbrush Oromed - Free user manual and instructions

Product Type	Sonic Toothbrush
Brand	Oromed
Model	Sonic
Dimensions	Approx. 2.5 x 1.0 x 7.5 inches (handle)
Weight	Approx. 4.2 oz (handle with battery)
Power Source	Rechargeable lithium-ion battery
Charging Time	Approx. 16 hours for full charge
Battery Life	Up to 3 weeks of regular use
Vibration Frequency	31,000 brush strokes per minute
Operating Modes	Clean, White, Polish, Gum Care, Sensitive
Timer	2-minute professional timer with 30-second interval pacer
Water Resistance	IPX7 (waterproof up to 1 meter for 30 minutes)
Brush Head Type	Soft bristles, replaceable every 3 months
Compatible Brush Heads	Oromed Sonic replacement heads (standard)
Accessories Included	1 handle, 1 brush head, 1 charging base, 1 instruction manual
Cleaning and Maintenance	Rinse handle and brush head under water; handle can be cleaned with damp cloth
Safety Features	Overcharge protection, auto shut-off after 2 minutes
Spare Parts Availability	Brush heads and charging base available from Oromed or authorized retailers
Repair Service	Contact Oromed customer service for repairs; do not disassemble yourself
Warranty	Limited 1-year warranty against manufacturing defects

Frequently Asked Questions - Sonic Oromed

How do I charge my Oromed Sonic toothbrush?

Place the toothbrush handle on the charging base. Plug the base into a standard outlet. A full charge takes approximately 16 hours. The indicator light will stay on during charging and turn off when fully charged.

How often should I replace the brush head?

Replace the brush head every 3 months, or sooner if the bristles become frayed. Using a worn brush head reduces cleaning effectiveness and may damage gums.

Can I use my Oromed Sonic toothbrush in the shower?

Yes, the toothbrush is IPX7 rated, meaning it is waterproof up to 1 meter for 30 minutes. You can safely use it in the shower or rinse it under running water.

How do I clean the toothbrush handle?

Wipe the handle with a damp cloth and mild soap if needed. Do not immerse the handle in water while charging. Rinse the brush head thoroughly after each use.

What do the different cleaning modes do?

The toothbrush offers five modes: Clean for daily cleaning, White for stain removal, Polish for surface shine, Gum Care for gentle massage, and Sensitive for tender teeth and gums. Press the mode button to cycle.

Why does my toothbrush stop after 2 minutes?

The built-in timer automatically shuts off the toothbrush after 2 minutes to encourage proper brushing time. You can restart by pressing the power button again.

How do I know when the battery is low?

The power button indicator will flash or turn red when the battery is low. You should recharge the toothbrush soon. During charging, the light stays on; when fully charged, it turns off.

Can I travel with my Oromed Sonic toothbrush?

Yes, the toothbrush is travel-friendly. The charging base works with 100-240V AC, so you only need a plug adapter for different countries. Make sure the battery is fully charged before long trips.

What if I lose my charging base?

You can purchase a replacement charging base from Oromed or authorized dealers. The toothbrush uses a standard induction charger, but it is recommended to use Oromed-specific chargers.

Is my Oromed Sonic toothbrush repairable?

Do not attempt to open the toothbrush handle yourself; it contains a non-replaceable battery. Contact Oromed customer service for issues like charging failure or abnormal operation. Repairs are covered under the one-year warranty.

USER MANUAL Sonic Oromed

INSTRUKCJA OBSŁUGI

SONICZNEJ SZCZOTECZKI

DO ZĘBÓW

MODEL: ORO-SONICV2 WHITE/BLACK

Spis treści

ORO-SONIC v2 electric toothbursh important safeguards ....8

List of components 10

Connecting and charging 11

Using the ORO-SONIC v2 11

Brushing technique....11

Brushing modes 12

Two minutes auto-timer....12

How to switch between brushing modes ....12

Cleaning recommendations....13

Disposal....13

Toothbrushes can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance shall not be made by children without supervision.

Children shall not play with the appliance.

The supply cord cannot be replaced. If the cord is damaged, the appliance should be scrapped.

The appliance is only to be used with the power supply unit provided with the appliance.

ORO-SONIC V2 ELECTRIC TOOTHBURSH IMPORTANT SAFEGUARDS

The ORO-SONIC v2 has been carefully designed to offer you and your family a new and unique brushing experience, which is both safe and effective. However, when using the electrical products, especially when children are present, basic safety precautions should always be followed, including the following:

Read all instructions before using the appliance

Reduce the risk of electrocution:

1. Always unplug this product immediately after using.
2. Do not use while bathing
3. Do not place or store the product where it can fall or pulled onto a tub or sink
4. Do not place in or drop into water or other liquid
5. Do not reach for the product that has fallen into water unplugged immediately

WARNING

• To reduce the risk of fire, electric shock, or injury:
- Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing

• Do not allow to be used as a toy. Close attention is necessary when used by or near children
• Use only as described in this manual. Use only manufacturer's recommended attachments
• Do not use with damaged cord or plug. If appliance is not working as it has been dropped, damaged, left outdoors, or dropped into water, returning it to a service center
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners
• Do not run appliance over cord. Keep cord away from heated surfaces
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord
• Do not handle plug or appliance with wet hands
  • Turn off all controls before unplugging
• Never block the air openings of the product or place it on a soft surface, such as a bed or couch, where air openings may be blocked. Keep the air openings free of lint, hair, and the like.
• Never use while sleeping or drowsy
• Never drop or insert any object into any opening or hose
• Do not use outdoors or operate where aerosol products are being used or where oxygen is being administered
• Connect this product to a properly grounded outlet only. See grounding instructions
• Unplug this product before filling. Do not overfill.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY PLEASE READ BEFORE USE:

This product has no user serviceable parts

• Store the charging unit onto a dry and safe place when it is not in use
• Untwisted the power cord before use

• In case of the product failing to function, you should not dismantle, exchange or manipulate ant part of it, otherwise there is risk of an electric shock. You should take it to the seller.

• If the supply cord is damaged, it must be replaced by the manufacturer in order to avoid a hazard. You should contact the seller

• If the product is dropped, the brush head should be replaced before the next use even if no damaged is visible

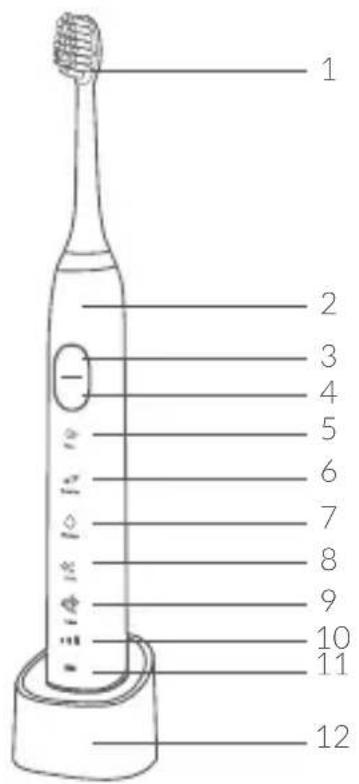

LIST OF COMPONENTS

1. Brush head
2. Toothbrush Handle
3. Power On/Off
4. Brushing Strength, Button&Brushing mode button
5. Clean
6. Sensitive
7. Massage
8. White
9. Polish
10. Brushing strength indicator
11. Charging indicator
12. Charging Stander

CONNECTING AND CHARGING

• ORO-SONIC v2 has a waterproof handle. It is electrically safe and is designed for use in the bathroom. But it's not meant to be used while underneath the water.
• Plug the adaptor into an electrical outlet and put the brush handle onto the charging base, the charging indicator should be lit.
• The first full charge needs 16 hours and later full charge needs 12 hours. That enables 30 days brushing. Power indicator light turns red and flashing means battery low power. indicator light keeps flashing red when charging, and fully charged when indicator turns green.
• Pull plug out of outlet for saving energy, or leave it and keep the brush on charging base, there is no risk of overcharging of battery.
• If not use for a long time and when you charge it, the power indicator will not be lit immediately which is normal. After pre-charging 30 minutes, the power indicator will be lit.

USING THE ORO-SONIC V2

Attached a brush head to the handle. You can use any kind of toothpaste. To avoid splashing, guide the brush head to your teeth before switching the appliance on.

BRUSHING TECHNIQUE

• Guide the brush head slowly from tooth to tooth
• Hold the brush head in place for a few seconds before moving on to the next tooth.
• Brush the gums as well as the teeth. Start with outside of the teeth, then the insides ending with the chewing surfaces.
• Do not scrub or press hard, simply let the brush do all work.

BRUSHING MODES

The ORO-SONIC v2 offers 15 different brushing modes for varying oral care needs:

• Clean with 3 different brushing strengths - brush head swing in high frequency, remove tartar and bacteria on teeth.
• Sensitive with 3 different brushing strengths - for sensitive teeth and gums, brushing your teeth in gentle frequency.
• Massage with 3 different brushing strengths -brush teeth in extremely gentle frequency.
• White with 3 different brushing strengths - clean and polish mode switching continuously and whitening teeth.
• Polish with 3 different brushing strengths - high strength and high frequency, polishing and brightening teeth.

TWO MINUTES AUTO-TIMER

- The ORO-SONIC v2 is designed to reach the proven and best brushing timing. After two minutes of brushing, the device stops automatically.

HOW TO SWITCH BETWEEN BRUSHING MODES

• Power on/off and brushing mode button. Keep pressing this button within 5s, the operating sequence is power on, in clean mode, sensitive mode, massage mode, white mode, polish mode, end power off. Keep pressing the button 5s over, it will power off.
• The ORO-SONIC v2 automatically starts in the clean mode when pressing the brushing mode button once
• To shift from one mode to another mode, press the brushing mode button a second time
• When you press the brushing mode button, the brushing mode indicator will be lit, indicating the selected working mode

CLEANING RECOMMENDATIONS

• After brushing, rinse your brush head thoroughly under running water.
• Remove the brush head from the handle and clean both parts separately under running water. Then wipe them dry before you put the handle onto the charging unit
• Before cleaning your charging unit, make sure you unplug the adaptor. Only use a dry or damp-dry cloth to wipe the surface of the charging unit
• Place the charging unit onto a dry and safe place
• Do not plug in the charging unit until it is completely dry

DISPOSAL

• Important: do not clean the charging unit under running water or immerse it into water. Place the charge station on dry and safe place
• This product contains rechargeable battery. In the interest of protection the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposable can take place at appropriate collection points provided in your country
