Product Type	Built-in Ceiling Extractor Hood
Brand	Beko
Model	BHCI31322BBH
Supply Voltage	220-240 V ~ 50 Hz
Motor Power	115 W
Lighting Power	2 x 3 W (LED)
Max Air Flow (Speed 3)	300 m³/h
Speed Levels	3 + Off
Motor Insulation Class	Class F
Insulation Class	Class II
Controls	Electronic push buttons (Light, 1, 2, 3, 0)
Lamp Type	GU10, 3 W, 230 V, 3000 K, 255 lm
Filter Type	Aluminum grease filter (washable) + optional carbon filter
Grease Filter Cleaning	Monthly in dishwasher or by hand with liquid detergent
Carbon Filter Replacement	Every 3 months (if used)
Installation Type	Ceiling mounted, with flue or recirculation mode
Minimum Distance to Hob	65 cm (from grate/glass surface)
Flue Diameter	120 mm (or 125 mm with adapter)
Energy Efficiency Class (Light)	A
Safety Features	Thermal protection, child safety (supervision recommended)
Warranty	Refer to manufacturer's warranty card

Frequently Asked Questions - BHCI31322BBH BEKO

How do I clean the grease filter?

Remove the grease filter by releasing the locks (arrows). Wash it with liquid detergent and water, or in the dishwasher. Let it dry completely before reinstalling. Clean at least once a month.

How often should I replace the carbon filter?

The carbon filter should be replaced every 3 months if your hood is used in recirculation mode. It cannot be washed.

What should I do if the hood does not work?

Check the fuse and electrical connection. Ensure the mains voltage is 220-240 V. If other appliances work, the hood may be faulty; contact service.

How do I replace the light bulbs?

Disconnect the power supply. Wait for bulbs to cool. Use GU10 3W LED bulbs (230V). Do not touch the new bulb directly; use a cloth. Available from authorized service.

Can I install the hood myself?

Installation should be done by an authorized service to avoid electrical shock and ensure proper mounting. The manufacturer is not liable for improper installation.

What is the minimum distance between the hood and the hob?

The minimum distance is 65 cm from the hob surface (grate for gas, glass for electric). Follow the installation instructions carefully.

Why is the air intake poor?

Check the aluminum filter; clean it if dirty. Ensure the air vent flue is open. If using a carbon filter, replace it if it is clogged (every 3 months).

Can I use the hood without a flue?

Yes, in recirculation mode. You need to install a carbon filter. Remove the flaps inside the flue adapter and fit the charcoal filter. The air is recirculated back into the room.

What should I do if the lamp does not work?

Check the electrical connection and ensure the lamp switch is on. If still not working, replace the bulb. If the problem persists, contact service.

Is it safe to leave the hood on while frying?

Yes, but never leave high naked flames under the hood. Monitor deep fat fryers continuously as overheated oil can catch fire. Adjust flame to only heat the pan bottom.

USER MANUAL BHCI31322BBH BEKO

EN - PL - CS - SK

CONTENTS

ENGLISH 03-25

POLSKI 26-51

ČESKY 52-74

SLOVENSKÝ 75-97

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

WARNING: Danger of fire.

WARNING: Danger of electric shock.

Protection class against electric shock.

1 Important safety and environmental instructions

1.1 General Safety

Important Safety Instructions. Read carefully and keep for future reference. This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

Beko products comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

This appliance is intended to be used in household

and similar applications such as:

Staff kitchen areas in shops, offices and other working environments; Farm houses; By clients in hotels, and other residential type environments; Bed and Breakfast type environments.

Operate the appliance for its intended purpose only as described in this manual.

The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or in-

1 Important safety and environmental instructions

struction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not be allowed to play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of your product must be at least 65 cm.

If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.

Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.

Never use the appliance if the power cable or the appliance itself is damaged.

Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.

Use the appliance with a grounded outlet only.

WARNING: Do not connect the appliance to the mains until the installation is fully complete.

Place the appliance in a way so that the plug is always accessible.

Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot.

Follow the regulations set out by competent authorities on discharge of the exhaust air (this warning is not applicable for use without flue).

Operate your appliance after putting a pot, pan

1 Important safety and environmental instructions

etc. on the hob. Otherwise, high heat may cause deformation in some parts of your product.

Turn off the hob before taking the pot, pan etc. from it.

- Do not leave hot pans on the hob. Pans with hot oil may cause self-combustion.

- Pay attention to your curtains and covers since they may catch fire while cooking food such as fries.

- Grease filter must be cleaned at least monthly. Carbon filter must be replaced at least every 3 months.

- Product shall be cleaned in accordance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk.

- Do not use non-fire-resistant filtering materials instead of the current filter.

- Only use the original parts

or parts recommended by the manufacturer.

- Do not operate the product without the filter and do not remove the filters while the product is running.

• In the event of any flame being started, de-energize your product and cooking appliances.

• In the event of any flame being started, cover the flame and never use water to extinguish.

- Unplug the appliance before each cleaning and when the appliance is not in use.

• The negative pressure in the environment should not exceed 4 Pa (4x10^-5 bar) while the hood for electric hob and appliances running on another type of energy but electricity operate simultaneously.

• In the environment where the appliance is being

1 Important safety and environmental instructions

used, the exhaust of devices running on fuel or gas, such as room heater must be absolutely isolated or device must be hermetical type.

• When connecting the flue, use pipes with a diameter of 120 or 150 mm. Pipe connection must be as short as possible and have as few elbows as possible.
• Danger of choking! Keep all the packaging materials away from children.

CAUTION: Accessible parts may become hot when used with cooking appliances.

The product outlet must not be connected to air channels that include other smoke.

The ventilation in the room may be insufficient when the hood for electric hob is used simultaneously with the devices operating on gas or other fuels (this may not apply to appliances that only discharge

the air back into the room).

• Objects placed on the product may fall. Do not place any objects on the product.
• Do not flambe under the your product.

WARNING: Before installing the Hood, remove the protective films.

• Never leave high naked flames under the hood when it is in operation
• Deep fat fryers must be continuously monitored during use: overheated can burst into flames.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your

1 Important safety and environmental instructions

local authorities or retailer where the product was purchased. Each household plays an important role in recovering and recycling old appliances. Appropriate disposal of used appliances helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National

Environment Regulations. Do not dispose of the packaging materials together with domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 General appearance

2.1 Overview

1. Body
2. Control panel
3. Grease filter
4. Lighting

2.2 Technical data

Model BHCI 31322 BBH
Supply voltage & frequency	220-240V ~ 50 Hz
Lamp power 2 x 3 W
Motor power 115 W
Air flow - 3. Level 300 m3/h
Motor Insulation Class Class F
Insulation class Class II

3 Using the appliance

3.1 Controls panel

A : Light on/off	Pressing the “a” button turns on the light. Pressing the button again switches off the lighting.
B : 1. Speed button	Pressing the “1” button activates the hood turbine at minimum speed
C : 2. Speed button	Pressing the “2” button activates the hood turbine at medium speed
D : 3. Speed button	Pressing the “3” button activates the hood turbine at maximum speed
E : 0. Hood shut off	Pressing the “0” button deactivates the hood turbine

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated can burst into flames.

3.2 Efficient use in terms of energy saving

• When using your appliance, adjust the speed settings according to vapour and odour intensity, in order to save energy.
• Use low speeds (1-2) under normal conditions, and high speed (3) and boost mode for intense odour and vapour.
• The hood is equipped with lamps in order to illuminate the cooking area.
• Using them for environmental lighting shall cause unnecessary energy expenditure and insufficient lighting.
• For your device to consume less energy, run it at a low speed level.
• Your device will reduce energy consumption as it will run more efficiently when you provide sufficient air intake to it.
• Set your device to the intense suction power level before the formation of steam, in cases where you know that the dense steam will occur. So, you reduce energy consumption by using your device for a shorter time as it will have a sufficient air intake.
• Keep the lids of the cookware closed to reduce the steam evolving.

3 Using the appliance

3.3 Operating the hood

• The hood is equipped with a motor that has various speed settings.
• For better performance, we advise you to use low speeds in normal conditions, and high speeds when smells and vapors are intensified.
• You can start the hood by pressing the desired speed level key (B, C, D).
• You can illuminate the cooking area by pressing the light key (A).

3.4 Lamp replacement

Lamp
Bulb power	3 W
Holder/Socket	GU10
Bulb voltage	230 V
Size	53x50 mm
ILCOS Code	DR/F-3-230-GU10-50
Luminous flux 255	lm
Correlated colour temperature	3000 K

This product contains a light source of energy efficiency class "A".

• Before replacing the light bulbs, disconnect the power supply of the hood.
• Do not touch the light bulbs when they are hot.
• Be careful not to touch the replaced light bulb directly with your hands.

You may procure lamps from Authorised Service Agents.

3.5 Operation with flue connection

The air is extracted through the flue duct, which is fastened to the connection head on the hood.

The diameter of the flue duct must be the same as the connection ring. In horizontal settings, the pipe has to have a slight upward slope (around 10 degrees) so that the air can exit the room easily.

3.6 Operation without flue connection

The air is drawn through the carbon filter and recirculated in the room. The carbon filter is used when it is impossible to use a flue in the house.

• In flueless use, remove the flaps inside the flue adapter.
• Remove the oil filter. To install the carbon filter, fit the filter to the tabs by centering it on the plastic piece on both sides of the fan body. Tighten it by turning right or left. Replace the aluminium oil filter.

4 Cleaning and maintenance

The device should be cleaned and maintained regularly. Failure to keep the device clean will adversely affect the service life of the device. For cleaning and maintenance, follow the instructions stated in the manual.

Before cleaning and maintenance, unplug the product or turn off the switch.

Non-compliance with the provisions associated with the cleaning of the device and replacement of the filters may result in a risk of fire. Therefore, it is recommended to follow the guidelines stated here. The manufacturer is not responsible for engine damages or fires originating from improper use.

Clean using only a cloth dampened with a neutral liquid detergent. Do not use abrasive products or alcohol.

4.1 Cleaning of grease filter

This filter captures particles in the air. First remove the grease filters for this process. Wash the filters with liquid detergent and rinse them with water and install them back after they get dry. Grease filters may become discolored as they are washed; this is normal and you don't need to change your filter.

The filter is removed by moving the locks in the direction indicated by the arrows.

Tilt the metal grease filter forward and take it out. Wash and rinse the oil filters in liquid detergent water and reinsert the oil filter into its socket by reversing the above steps.

You can wash the grease filter in the dishwasher.

CAUTION: In case of normal use, clean your filter once a month.

4.2 Changing of carbon filter

The hood can be fitted with an active carbon filter. The carbon filter is applied only in case the hood is not connected to the vent duct.

WARNING:

•The carbon filter is never washed.

-Replace carbon filters once every 3 months.

•Carbon filter is available from Authorized Services.

5 Installation of appliance

WARNING: Before starting the installation, read the safety information on user manual.

WARNING: Failure to install with screws and stabilizers in accordance with these instructions may result in electric shock.

For the installation of the hood, please contact the nearest Authorized Service. It is the customer's responsibility to prepare the location and electrical installation of the hood.

5.1 Position of the appliance

• Distance between the cooker and the cooker hood must be considered prior to assembly. This distance should be 65 cm.
• Distance must be measured from the surface of grate for gas cookers, from surface of glass for electric cookers.

5.2 Installation accessories

1. Product
2. User manual
3. ∅120mm flue flap
4. 4x ∅8X70 steel screw dowel

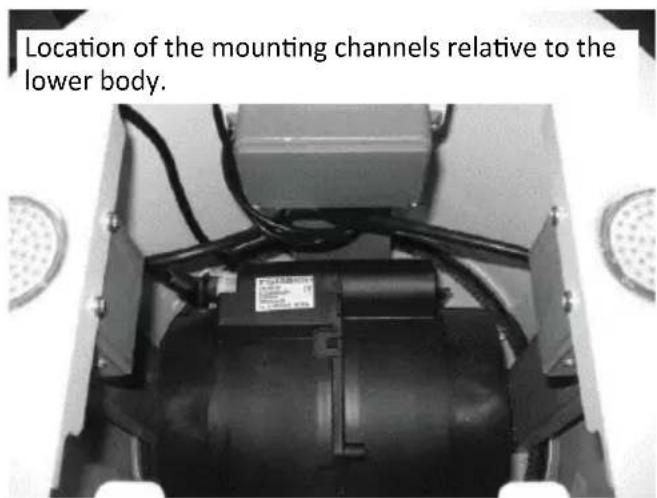

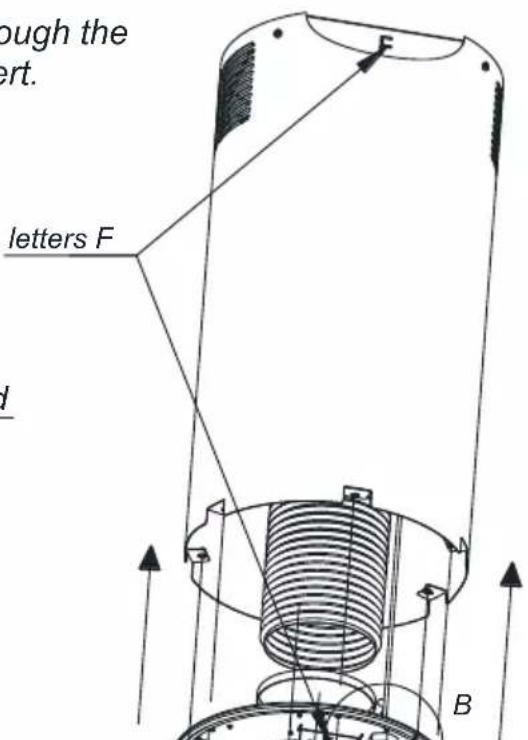

5.3 Hood installation

Before installing the hood, make sure that the component to which the hood is to be attached can carry sufficient load. The hood should be mounted directly to the ceiling or to a load-bearing construction which is sufficiently strong. It is forbidden to mount the hood to flimsy elements such as plasterboards. The hood is equipped with fixing pins for concrete. During installation, the generally applicable regulations for the discharge of air from rooms must be observed.

Before proceeding with the installation:

• Check that the dimensions of the purchased product are appropriate for the chosen destination.
• Disconnect and remove (if possible) furniture located in the hood installation area to gain easy access to the ceiling or wall on which the hood is to be mounted. If this is not possible, components in the vicinity of the work to be

5 Installation of appliance

carried out must be secured.

• Check that there are outgoing cables for the hood connection near the hood installation area.
• Check that there are no installation cables (electrical, hydraulic, etc.) in the areas to be drilled.
• Equip yourself with the following tools: tape measure, pencil, drill, ∅10 drill bit, screwdriver.

5.4 Installation steps

1. Remove the aluminium filter and disconnect the turbine plug.

Photo 1

Photo 2

1. Unscrew the six M4x12 bolts that connect the base body to the mounting channels and remove the body from the rest of the hood.

1. Unscrew the mounting channels, which are fastened with M4x12 bolts, remove and set aside.

5 Installation of appliance

1. Unscrew the six M4x12 bolts and carefully separate the turbine insert with the turbine from the upper body.
2. Mount the hood according to the drawings.

1. Loosen the M4x12 bolts and remove the ceiling bracket from the upper body.

5 Installation of appliance

Mounting the hood to the ceiling. Mounting the ceiling bracket.

5 Installation of appliance

Mounting the hood to the ceiling. Mounting the discharge.

Mounting of discharge pipe (for extractor type hood)

Install a smooth or spiro pipe ∅120/125 mm (internal dimensions) of length 580 mm

∅120/∅125

Air deflector mounting (for absorber type hoods)

Place the air deflector on the bracket by matching the holes with the dowels, then install the component using the 6 nuts.

Install a smooth or spiro pipe (with a tie) 120/125 of length 500 mm.

5 Installation of appliance

Mounting the hood to the ceiling. Mounting the lower body.

Fit the pipe to the bracket by aligning it with the mounting holes. The ventilation grilles must be located on the sides. After adjusting the holes, screw the pipe in place using M4x12 bolts

5 Installation of appliance

Mounting the hood to the ceiling. Mounting the turbine to an outlet pipe.

The turbine outlet axis coincides with the discharge pipe axis (assuming that the steps in Fig. 10 have been performed correctly). When assembling the turbine insert, care must be taken to match the turbine outlet with the discharge pipe. Then screw in the insert with the turbine using 6x M4x12 bolts, positioning it with the LETTERS F marked in the two components of the hood.

5 Installation of appliance

Mounting the hood to the ceiling. Mounting the turbine to a flexible pipe

Important note! Pass the cable through the glands before screwing on the insert.

For hoods with an air deflector, charcoal filters should be fitted.

When installing the turbine insert, first lengthen the spiro tube and connect it to the turbine outlet via a tie. Then screw in the insert with the turbine using 6x M4x12 bolts, positioning it with the letters F marked in the two components of the hood.

5 Installation of appliance

Mounting the hood to the ceiling. Mounting the brackets.

Use 6 pcs. of M4x12 bolts to fix the mounting channels and at the same time set the required height of hood H. The brackets can be adjusted in 40 mm intervals.

5 Installation of appliance

Mounting the hood to the ceiling. Mounting the lower body.

Slide the lower body onto the mounting channels as shown in Photo 2.

Mount the lower body to the channels with 6x M4x12 bolts.

Slide the lower body gently over the upper body. Pay special attention to the wires (so as not to damage the insulation during installation).

5 Installation of appliance

Mounting the hood to the ceiling. Connection of turbine, power supply, mounting of aluminium filter.

5 Installation of appliance

5.5 Turbine flaps

5.6 Storage

• If you do not intend to use the appliance for a long time, please store it carefully.
• Please make sure that the appliance is unplugged, cooled down and totally dry.

- Store the appliance in a cool and dry place.

- Keep the appliance out of the reach of children.

5.7 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

6 Troubleshooting

Troubleshooting Reason	Help
The product does not work.	Check your fuse. Your fuse	might be closed, make it work.
The product does not work.	Check the electrical connection.	The mains voltage should be between 220-240 V.
The product does not work.	Check the electrical connection.	Check if the other products in your kitchen are working or not.
The lighting lamp does not work.	Check the electrical connection.	The mains voltage should be between 220-240 V.
The lighting lamp does not work.	Check the lamp switch. The lamp switch should be in the "on" position.
The lighting lamp does not work.	Check the lamps. The lamps of the product should not be faulty.
The air intake of the product is poor.	Check the aluminum filter. The aluminum filter should be cleaned at least once a month under normal conditions.
The air intake of the product is poor.	Check the air vent flue. The air vent flue should be in the "on" position.
The air intake of the product is poor.	Check the carbon filter. For products with carbon filters, the filter should normally be changed every 3 months.

Mounting the hood to the ceiling. Mounting the turbine to a flexible pipe.

Mounting the hood to the ceiling. Mounting the discharge.

Mounting the hood to the ceiling. Mounting the discharge.

5 Installation of the appliance
