FXP 649 NX - Built-in oven CANDY - Free user manual and instructions

Product type	Built-in oven
Brand	CANDY
Model	FXP 649 NX
Dimensions (H x W x D)	Approx. 595 x 595 x 548 mm
Weight	Approx. 35 kg
Supply voltage	220-240 V ~
Oven capacity	Approx. 70 L
Cooking functions	Natural convection, forced heat, grill, turbo grill, rotisserie, defrost, steam, pizza, pyrolysis
Lighting	LED Vision (14 or 10 LEDs depending on version), long-life LED lighting
Cleaning	Pyrolysis (ECO cycles 65 min and SUP 90 min)
Maintenance	Manual cleaning with sponge and detergent; do not use abrasive cleaners
Child safety	Child safety with full or partial lock of controls
Door lock	Automatic lock during pyrolysis
Bulb type	230 V ~, 25 W, E14 base, resistant to 300°C
Supplied accessories	Grid, drip tray, pizza stone (depending on model), rotisserie
Compliance	Directives CEE 89/109, 2006/95/EC, 2004/108/EC

Frequently Asked Questions - FXP 649 NX CANDY

How to set the oven clock?

To set the time, press the center button once, then use the + or - buttons to adjust. Confirm by pressing the center button again. The oven only works if the clock is set.

How to use the timer/Optomatic programmer?

Turn the programming knob to the Timer position. Set the minutes and hours with the center button, confirm and return the knob to •. A beep sounds at the end of the time.

How to perform a pyrolysis cycle?

Remove all accessories, select the Pyrolysis function with the selector, then choose the ECO (65 min) or SUP (90 min) cycle by turning the center knob. The door locks automatically. After cooling, clean the residues with a damp sponge.

How to activate child safety?

Set the programmer to Child safety. For partial lock, no further action. For full lock, press and hold the center button for 3 seconds. To deactivate, repeat the same procedure.

How to change the oven bulb?

Unplug the oven. Unscrew the glass cover, replace the bulb with one of the same type: 230 V ~, 25 W, E14 base, resistant to 300°C. Screw the cover back on.

What cooking modes are available?

Modes include: Natural convection, forced heat, grill, turbo grill, rotisserie, defrost, steam, pizza, and pyrolysis. Each mode has a pre-set temperature that can be modified.

How to use the rotisserie?

Insert the spit into the meat, secure with the forks and tighten the screws. Place the spit in the motor, remove the handle. Cooking is done with the door closed without preheating. Turn the meat halfway through if necessary.

How to clean the door glass?

Use a sponge with a mild detergent. Never use abrasive cleaners or metal scrapers that could scratch the glass and cause explosion risks.

What to do on first use?

Clean the interior and accessories with a sponge and detergent, rinse and dry. Heat the empty oven at maximum temperature for one hour to eliminate odors. Ventilate the room.

How to adjust the display contrast?

Set the programming selector to Lighting and the cooking modes selector to O. Press the center button for 3 seconds, then adjust the contrast level (1 to 9) with the center button and confirm.

USER MANUAL FXP 649 NX CANDY

Safety Instructions 04

1. General warnings 05
   1.1 Declaration of compliance 05
   1.2 Safety hints 05
   1.3 Recommendations 05
   1.4 Installation 05
   1.5 Electrical connection 05
2. Accessories 06
   2.1 Oven equipment 06
   2.2 Rotisserie 06
   2.3 LED VISION 06
3. Cleaning the oven 06
4. Service centre 07
   5.Description of the display 08
   5.1 Before using the oven for the first time 09
   5.2 How to use the oven 09
   5.3 The programmedization 10
   5.4 Using the end of cooking timer 10
   5.5 Cooking tips 10
   5.6 Adjusting the display contrast 10
   5.7 Use Of Touch Control Clock Programmer 11
   5.8 Setting The Correct Time 11
5. Pyrolytic cycle 12
   7.Child safety 12

INDICE

IT

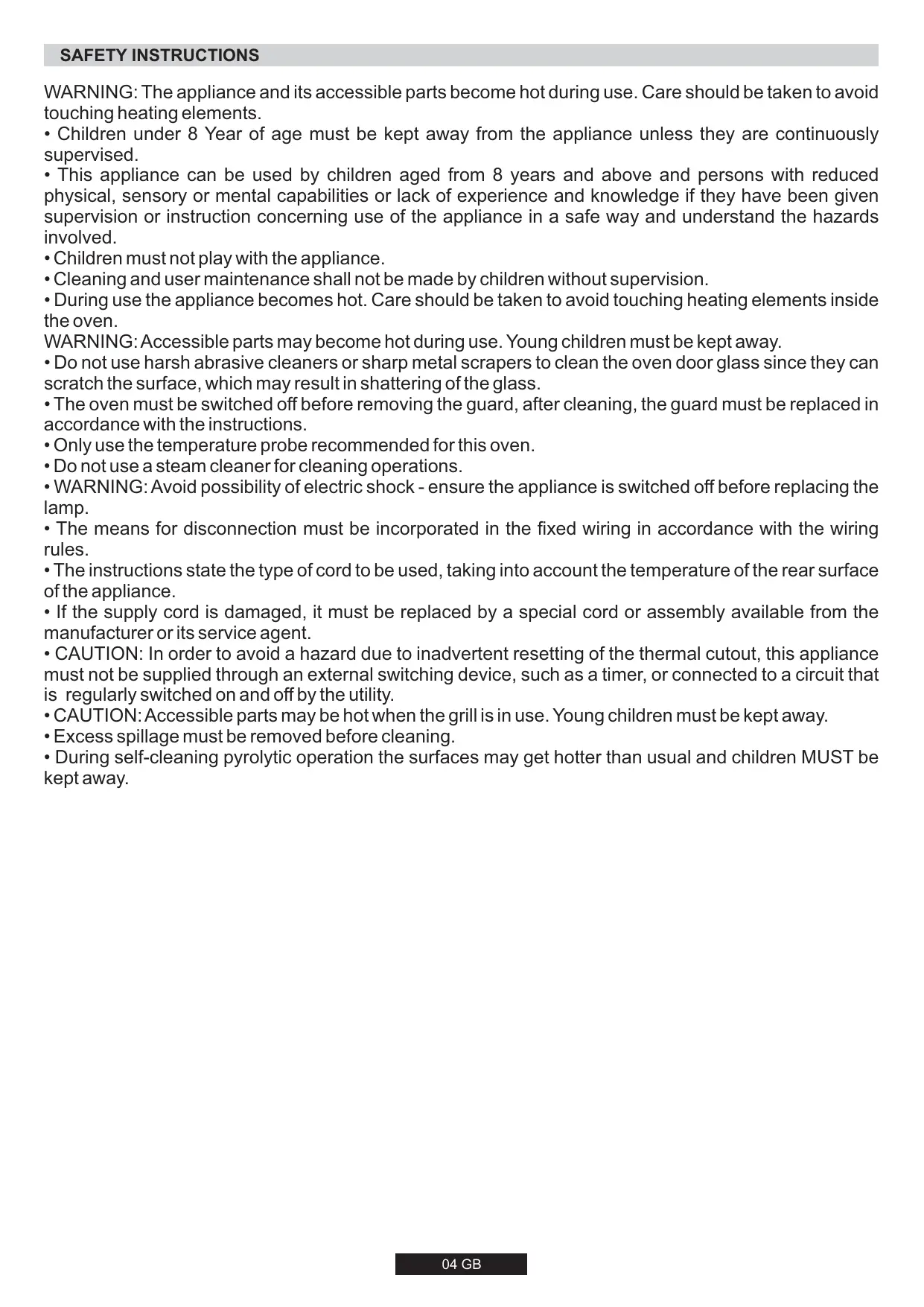

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• Children under 8 Year of age must be kept away from the appliance unless they are continuously supervised.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING: Accessible parts may become hot during use. Young children must be kept away.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
• The oven must be switched off before removing the guard, after cleaning, the guard must be replaced in accordance with the instructions.
• Only use the temperature probe recommended for this oven.
• Do not use a steam cleaner for cleaning operations.
• WARNING: Avoid possibility of electric shock - ensure the appliance is switched off before replacing the lamp.
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• The instructions state the type of cord to be used, taking into account the temperature of the rear surface of the appliance.
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• CAUTION: Accessible parts may be hot when the grill is in use. Young children must be kept away.
• Excess spillage must be removed before cleaning.
• During self-cleaning pyrolytic operation the surfaces may get hotter than usual and children MUST be kept away.

1. GENERAL WARNINGS

Read the instructions carefully to make the most of your oven. We recommend you keep the instructions for installation and use for later reference, and before installing the oven, note its serial number in case you need to get help from the after-sales service.

When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not to use it. Contact a professionally qualified person. Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because they are dangerous to children.

The company shall not be liable if the instructions provided in this document are not complied with.

I NOTE: Functions, properties and accessories of ovens which are mentioned in this manual, can be change depending on oven models.

1.1 DECLARATION OF COMPLIANCE

The parts of this appliance that may come into contact with foodstuffs comply with the provisions of EEC Directive 89/109.Appliance

CE complies with European Directives 2006/95/EC and 2004/108/EC, and subsequent amendments. When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualified person.

Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because they are dangerous to children.

1.2 SAFETY HINTS

• The oven must be used only for the purpose for which it was designed. It must only be used for cooking food. Any other use, e.g. as a form of heating, is an improper use of the oven and is therefore dangerous.
• The manufacturers cannot be held responsible for any damage caused by improper, incorrect or unreasonable use.
  When using any electrical appliance you must follow a few basic rules.
• Do not pull on the power cable to remove the plug from the socket.
• Do not touch the oven with wet or damp hands or feet.
• Do not use the oven unless you are wearing something on your feet.
• It is not generally a good idea to use adapters, multiple sockets for several plugs or cable extensions.
• If the oven breaks down or develops a fault switch it off at the mains and do not touch it.
• If the cable is damaged it must be replaced promptly.
  When replacing the cable, follow these instructions.
  Remove the power cable and replace it with one of the H05VV-F type. The cable must be able to bear the electrical current required by the oven.Cable replacement must be carried out by properly qualified technicians.
  The earthing cable (yellow-green) must be 10 ~mm longer than the power cable.
  Use only an approved service centre for repairs and ensure that only original parts are used. If the above instructions are not adhered to the manufacturers cannot guarantee the safety of the oven.
• The oven you have just acquired has the described technical characteristics and you must not make any modifications to it.
• Do not store flammable products in the oven; they can catch fire if the oven comes on accidentally.
• Do not press on and do not let children sit on the oven door.
• Use kitchen oven gloves, when putting into or removing a dish from the oven.

1.3 RECOMMENDATIONS

• After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.
• Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides.
• In order to prevent excessive dirtying of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little.

Identification plate

In addition to the

accessories supplied with the oven, we advise you only use dishes and baking moulds resistant

to very high Temperatures.

1.4 INSTALLATION

The manufacturers have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed. Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.

The kitchen unit in which the oven is to be fitted must be made of material resistant to temperatures of at least 70^ .

The oven can be located high in a column or under a worktop. Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on last page according to the type of fitting.

1.5 ELECTRICAL CONNECTION

THE ELECTRICAL CONNECTION SHOULD BE CARRIED OUT BY AN APPROVED CONTRACTOR OR TECHNICIAN WITH SIMILAR QUALIFICATIONS.

The installation receiving the appliance must comply with the standard in force in the installation country.

The manufacturer does not accept any responsibility if this provision is not complied with.

Connection to the network must be by earthed socket outlet, or by means of a multipole circuit-breaker, in compliance with the installation country.

The installation must be protected by suitable fuses, and have wires with a large enough cross-section to supply the oven normally.

CONNECTION:

The oven is fitted with a power lead for connecting exclusively to a voltage of 220-240 V AC across the phases or across phase and neutral.

Connection must be carried out having first checked:

-the supply voltage indicated on the meter,

The lead protection wire (green/yellow) connected to the earth terminal of the oven must be connected to the earth terminal of the installation.

Caution:

• Have the earth continuity of the installation checked by an electrician before making the connection.
• The manufacturer will not be liable for any incident, or the possible consequences that may arise from the use of the oven not earthed, or connected to an earth with defective continuity.

NB: Do not forget that the oven may require after-sales service.

Also, locate the socket outlet so that the oven can be connected once it is removed from its space.

Power supply cable: If the power supply cable has to be changed, please have this done by the after-sales service or by someone with similar qualifications.

2.1 OVEN EQUIPMENT

It is necessary to do an initial cleaning of the equipment before the first use of each of them. Wash them with a sponge. Rinse and dry off.

The shelf can take moulds and dishes.

The drip tray catches the juices from grilled foods.

Never use he drip tray as a roasting tray as fat deposits can be quickly spread throughout the oven, which produces excess smoke.

Never place the drip tray directly on the oven bottom.

The pizza stone for a crisper pizza equipped according to the model with its stand and the pizza roller.

The pastry tray must be placed on the shelf. It is for cooking small pastries like choux, biscuits, meringues, etc...

Never place the pastry tray directly on the oven bottom.

2.2 ROTISSERIE

No pre-heating is required for rotisserie cooking.

Cooking with the door closed.

The energy consumption is 90 - 95% less than traditional system.

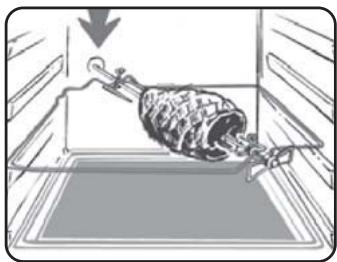

HOW TO USE TURNSPIT

1. Unscrew the hooks
2. Put the spit into the meat
3. Fix the meat with the hooks
4. Tighten the screws
5. Insert the spit into the motor hole
6. The handle

When the oven is in use, any unused accessories should be removed from the oven.

2.3 LED VISION

Is an illumination system which replaces the traditional « light bulb ». 14 LED (for non-pyrolitic versions) or 10 High Power LED (for pyrolitic versions) lights are integrated within the door. These produce white high quality illumination which enables to view the inside of the oven with clarity without any shadows on all the shelves.

Advantages :

This system, besides providing excellent illumination inside the oven, lasts longer than the traditional light bulb its easier and to maintain and most of all saves energy.

-Optimum view
-Long life illumination
- Very low energy consumption, -95% in comparison with the traditional illumination High.

3. CLEANING THE OVEN

• Wait for the oven to cool down before doing any cleaning by hand.
• Never clean your oven with abrasive cleaners, wire wool or sharp objects, or the enamel may be damaged beyond repair.
• Only use soapy water or bleach (ammonia) cleaners.
• Never line the oven sides with aluminium foil.

GLASS PARTS

We recommend you wipe clean the glass door with absorbent kitchen paper every time you use the oven. If the spattering is heavy, then you can clean with a well squeezed sponge and detergent, and rinse.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

OVENDOOR SEAL

If this gets dirty, clean the oven seal with a slightly damp sponge.

ACCESSORIES

Clean them with a sponge soaked in soapy water. Rinse with clean water and dry off. Avoid abrasive cleaners.

DRIP TRAY

After grilling, remove the drip tray from the oven. Take care to pour the warm grease into a container. Wash and rinse the drip tray in hot water with a sponge soaked in washing up liquid.

If residues remain attached, soak them off in water and detergent.

It can also go in a dishwasher or be cleaned with a commercial oven cleaner.

Never place a soiled drip tray in the oven.

OVENLIGHTING

Disconnect the power supply from the oven before cleaning or replacing the lamp.

The bulb and its cover are made of material resistant to high temperatures.

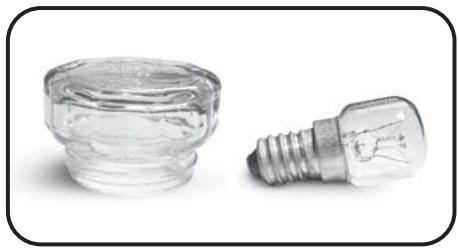

Bulb characteristics:

230 V AC - 25W- E 14 base Temperature 300^ to change a defective bulb, just:

• Unscrew the glass cover,
  -Unscrew the bulb.
• Replace it with the same type: see characteristics above,
• After replacing the defective bulb, screw back the protective glass cover.

4. SERVICE CENTRE

Before calling the Service Centre.

If the oven is not working, we recommend that:

• Check that, if the oven is properly plugged into the power supply.

If the cause of the fault cannot be detected:

• Disconnect the oven from the mains, do not touch the oven and call the after sales service.

Before calling the Service Centre remember to make a note of the serial number on the serial number specifications plate.

The oven is supplied with a guarantee certificate that ensures that it will be repaired free of charge by the Service Centre whilst under guarantee.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

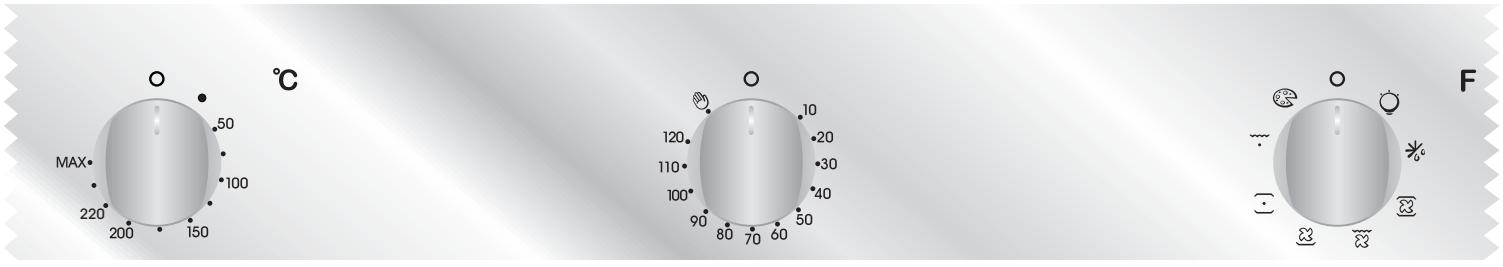

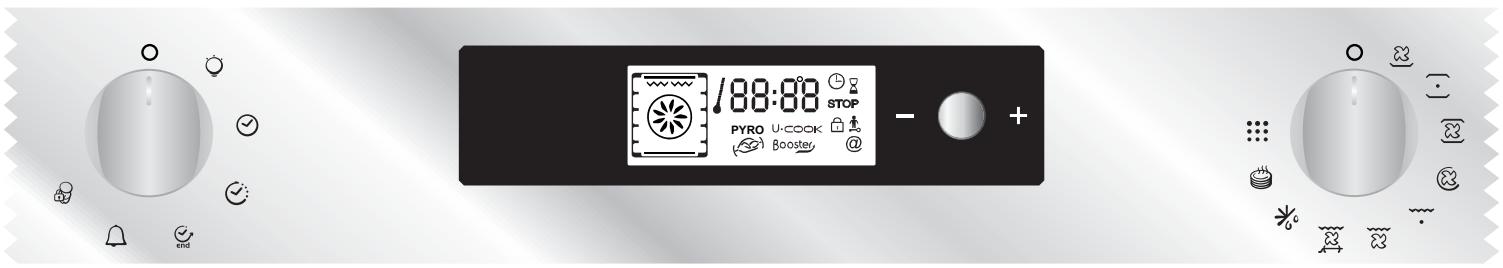

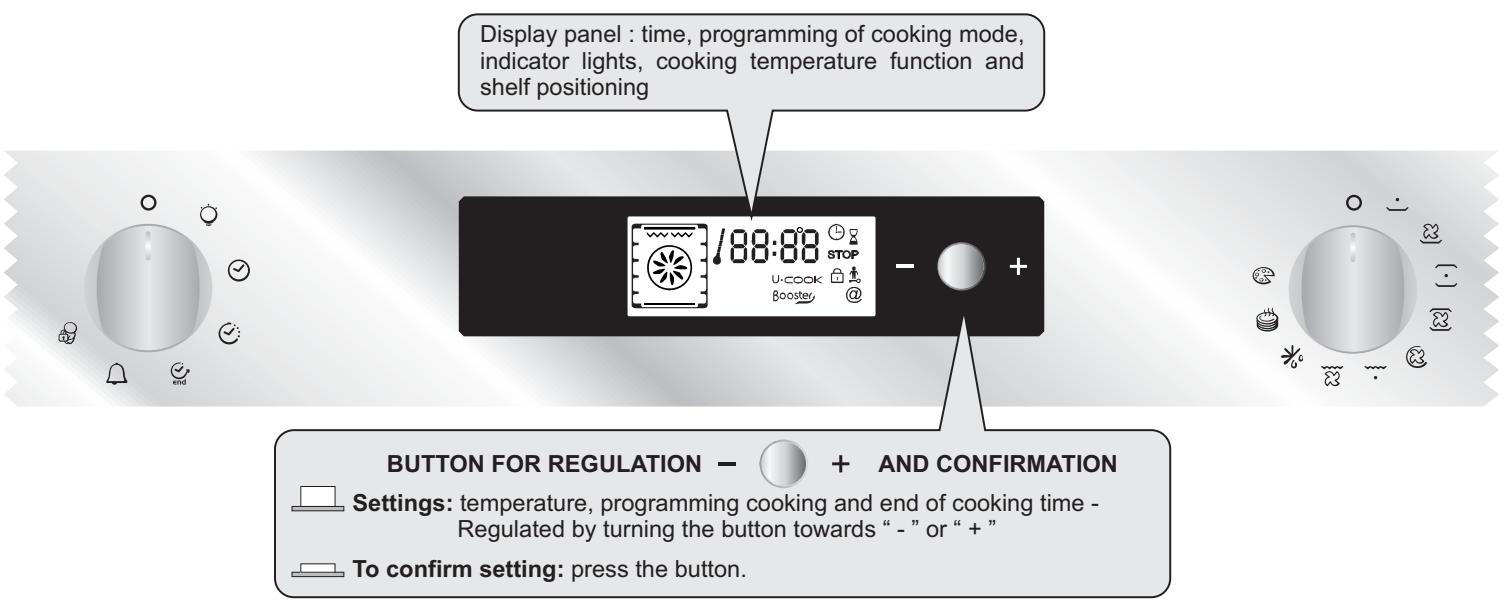

5. DESCRIPTION OF THE DISPLAY

5.1 BEFORE USING THE OVEN FOR THE FIRST TIME

PRELIMINARY CLEANING

-Clean the oven before using for the first time:

-Wipe over external surfaces with a damp soft cloth.

-Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid.

-Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness. Ensure that the room is well ventilated while this is being done.

- THINGS TO REMEMBER

Confirmation of operation on timer

Modification must be confirmed by pressing the button.

Stopping the oven:

This may be necessary if you have input an incorrect instruction.

To stop the oven .... turn back the function selector knob to the Stop Position.

Child safety device:

To lock the oven controls, select the child safety device. Refer to the section entitled "Programming - The child safety device".

The cooling fan:

This protects the control panel and electronics from heat damage.

It begins and then stops automatically even when the oven is switched off.

Oven lighting:

By turning to the light symbol, you can switch on the oven light when it is not in use.

When the oven is in use, the light stays on during all of the oven functions and when the door is opened.

CLOCK SETTING

When the oven is connected to the electricity supply or after a long power cut, the clock must be re-set.

To set the clock:

1 - Turn the control knob to the "Clock" symbol :
2 - Set the clock with the central button by turning to the “-” or “+”,
3 - Turn back the control knob to the STOP position.

5.2 HOW TO USE THE OVEN

- THE MANUAL MODE

The cooking methods suggested in manual mode are set out in the table below. A temperature is also suggested for each cooking method. This can be modified within a pre-determined range.

Function Mode according to the oven model	Pre-set Temperature °C	Pre-determined Temperature °C	Function Booster*
Bottom + Fan	210	50-220	Booster
Bottom	160	50-220	Booster
Bottom + Top	220	50-240
Bottom + Top + Fan	210	50-230
Circular Heating Element + Fan	180	50-230
Grill	L2	L1-L3
Grill + Fan	190	50-200	Booster
Grill + Turnspit + Fan	240	180-240	Booster
Defrost	40	No
Keep Warm	60	No
Pizza **	230	230
Pyro **	Pyro	ECO: 425 / 65min SUP: 425 / 1h 30min
*Booster: rapid temperature raised
**Oven must have this function

1- Turn the oven selector knob to the function required to the cooking.

The heating elements in operation for the selected cooking method are displayed.

2- The appropriate temperature according to the cooking method selected is displayed. It can be modified within a pre-determined range - see the table above.

To modify the temperature setting, turn the central button and on the timer confirm the setting by pressing the same button.

... the temperature display is fixed but can be modified during the cooking cycle.

The oven will start cooking and will start to heat up.

The indicator light flashes until the selected temperature has been reached. An audible signal sounds at the end of this operation and the indicator light becomes fixed.

3- A cooking time and an end of cooking time can be programmed by turning the programme selector knob to "cooking time" or "end of cooking time".

The "cooking time" or "end of cooking time" display starts flashing. Using the central button, modify the settings as required and on the timer confirm.

When you have done this, do not forget to turn the programme selector knob back to "stop position" to confirm the new setting.

For more details about programming, refer to the chapter 5.3 entitled PROGRAMMES.

4- At the end of the cooking cycle, turn the function selector knob back to "stop position".

The indicator flashes again, it will remain also turned on after having extinguished the oven and it will extinguish when the inside temperature of the oven is sufficiently low.

COOKING MODE

All cooking should be carried out with the door closed.

3

BOTTOM + FAN - The combination of the bottom heating element and fan is ideal for fruit flans, tarts, quiches and pastries. It prevents food from becoming too dry and encourages bread dough to rise. Place the shelf in the bottom position in the oven.

#

BOTTOM - Using the lower element. Ideal for cooking all pastry based dishes. Use this for flans, quiches, tarts, pâté and any cooking that needs more heat from below.

#

BOTTOM + TOP - Both top and bottom heating elements are in use. This method is ideal for all traditional roasting and baking. When cooking red meat, roast beef, leg of lamb, game, bread or foil wrapped foods.

3

Bottom + TOP + FAN - Both top and bottom heating elements are used in conjunction with the fan, which circulates hot air throughout the oven. We recommend this method for poultry, pastries, fish and vegetables. By using this method better heat penetration is achieved and cooking and preheating times are also reduced. The fan cooking option allows you to cook different foods together at different positions in the oven all at the same time, providing even heat distribution but without the risk of mingling tastes and smells. When cooking different foods at the same time allow a further 10 minutes.

#

CIRCULAR HEATING ELEMENT + FAN - Air that has been heated is blown by the fan onto the different levels. It is ideal for cooking different types of food at the same time (e.g. Meet and fish) without mixing tastes and smell. It cooks very gently and is ideal for sponge cakes, pastries, etc.

#

• GRILL - Using the top heating element. Success is guaranteed for mixed grills, kebabs and gratin dishes. The grill should be pre-heated to a high temperature for 5 minutes. White meats should always be placed at some distance from the grill element, the cooking time is slightly longer but the meat will be more succulent. Red meat and fish fillets can be placed directly onto the shelf with the drip tray placed beneath on lower shelf position.

#

GRILL + FAN - The top heating element is used in conjunction with the fan which circulates the hot air around the oven. Pre heating is recommended for red meats but is not necessary for white meats. Grilling is ideal for cooking thicker food items such as pork or poultry. Food to be grilled should be placed directly at the centre of the middle shelf.

By sliding the drip tray underneath the shelf it will ensure that any juices are collected. For best results always make sure that the food is not too close to the grill element and turn the food over half way through the cooking time.

X

GRILL + TURNSPIT + FAN - The advantage of using the top oven element at the same time as the fan and rotisserie is that the food is evenly cooked, preventing it from becoming dry and tasteless. The rotisserie is programmed to continue rotating for approximately five minutes after cooking, making full use of the residual oven heat. No preheating is required for rotisserie cooking.

%

DEFROST - When the dial is set to this position. The fan circulates hot air around the frozen food so that it defrosts in a few minutes without the protein content of the food being changed or altered. The temperature is preset in 40^ constant, no regulation is possible.

#

KEEP WARM - This is recommended to reheat precooked foodstuff, positioning the shelf on the second level from top, or to defrost bread pizza or pastry by positioning the shelf on the lower level.

The temperature is preset in 60^ constant, no regulation is possible.

#

PIZZA - With this function hot air circulated in the oven to ensure perfect result for dishes such as pizza or cake.

#

-Two choices are possible ECO, SUPER

5.3 PROGRAMMES

Cooking time programming

End of cooking time programming

Timer in operation

Child safety device operational

Locking oven door

THE TIMER:

The timer works independently of the oven and has no effect on the heating elements. It is simply a reminder.

• Turn the knob to the Timer position. The Timer symbol will appear. The digits 00:00 will appear on the display.
• The minutes will then flash, turn the central button to the required number of minutes and confirm by pressing the same button.
• The hours will flash, turn the central button to the required number of hours and confirm by pressing the same button.
• Turn the knob back to the Stop position.

When the time is up, the cooking time will disappear. An audible signal will sound for 15 seconds and the Timer display will flash (to stop it before the 15 seconds are up, just press the central button).

PROGRAMMING THE COOKING TIME:

Various recipes are pre-programmed with a cooking time. In Manual mode, Defrosting or Keep warm Mode can be pre-set, if required.

• Turn the knob to the Cooking time position. The Cooking time symbol will appear. A pre-programmed cooking time for the various recipes will appear, or 00:00 for other functions of the oven.
• With the minutes flashing, turn the central button to the required number of minutes confirm by pressing the same button.
• With the hours flashing, turn the central button to the required number of hours and confirm by pressing the same button.
• Turn the programme selector knob back to the Stop position to confirm the new cooking time.

When the time is up, the cooking time will disappear from the display. An audible signal will sound for 15 seconds and the Cooking time and STOP symbols will flash.

• Turn the programme function knob back to Stop. If you do not do this, the Cooking time and STOP symbols will continue flashing.

PROGRAMMING THE END OF COOKING TIME:

Various recipes are pre-programmed with a cooking time and therefore with an end of cooking time. In Manual Mode, Defrosting or Keep warm mode can be pre-set, if required.

• Turn the knob to the End of cooking position. The STOP symbol will appear. A pre-programmed end of cooking time for the various recipes will appear, or 00:00 for other oven functions or the time of day will be shown.
• Turn the programme selector knob to confirm the end time.
• The minutes will flash. Turn the central button to indicate the required number of minutes, and confirm your choice by pressing the same button.
• The hours will then flash. Turn the central button to indicate the required number of hours, and confirm your choice by pressing the same button.

NB: With a delayed start, the end of programme time will appear on the display with the "Cooking time" and "STOP" symbols, and only the function Recipe mode of the oven remains.

The oven automatically calculates the start time (end time minus cooking time).

At the end of the cycle the oven switches itself off automatically. For 15 seconds, an audible signal lets you know that the cycle has ended and the "Cooking time" and STOP symbols will flash.

• Turn the function selector knob to Stop. Unless you do this, the symbols will continue flashing.
• This function is typically used with "cooking duration" function.

For example if the dish has to be cooked for 45 minutes and needs to be ready by 12:30;

• select the required function

• set the cooking duration time to 45 minutes

• set the end of cooking time to 12:30.
  Cooking will start automatically at 11:45 (12:30 minus 45 mins) and will continue until the pre-set end-of
  cooking-time, when the oven will switch itself off automatically.

WARNING.

If the END of cooking is selected without setting the length of cooking time, the oven will start cooking immediately and it will stop at the END of cooking time set.

5.4 USING THE END OF COOKING TIMER

This control enables to set the desired cooking time (max. 120 min.) the oven will automatically switch off at the end of the set time.
The timer will count down from the set time return to the O position and switch off automatically.
For normal use of oven set the timer to the position.
To set the oven ensure the timer is not on the O position.

5.5 COOKING TIPS

It is better not to salt meats until after cooking as salt encourages the meat to spatter fat. This will dirty the oven and make a lot of smoke.

Joints of white meat, pork, veal, lamb and fish can be put into the oven cold. The cooking time is longer than in a preheated oven, but it cooks through to the centre better as the heat has more time to penetrate the joint.

Correct preheating is the basis of successful red meat cookery.

GRILLS

- Before loading the grill:

Remove the meat from the refrigerator a few hours before grilling. Lay it on several layers of kitchen paper. This improves seizing, making it tastier and avoids it staying cold at the centre.

Add pepper and spices to the meat before grilling, but add any salt after cooking. This way it will seize better and stay juicy. Baste all the food to be cooked with a little oil. This is best done with a wide flat blasting brush. Then sprinkle with more pepper and herbs (thyme, etc.).

- During cooking:

Never pierce the food during cooking even when you turn it. This lets the juice out and it becomes dry.

BAKING

Avoid using shiny tins, they reflect the heat and can spoil your cakes. If your cakes brown too quickly, cover them with greaseproof paper or aluminium foil.

Caution: The correct way to use foil is with the shiny side in towards the cake. If not the heat is reflected by the shiny surface and does not penetrate the food.

Avoid opening the door during the first 20 to 25 minutes of cooking:

Soufflés, brioches, sponge cakes, etc. will tend to fall. You can check if cakes are done by pricking the centre with a knife blade or metal knitting needle. If the blade comes out nice and dry, your cake is ready and you can stop cooking. If the blade comes out moist or with bits of cake attached, continue baking but slightly lower the thermostat so that it is finished off without burning.

5.6 ADJUSTING THE DISPLAY CONTRAST

The display contrast can be adjusted at any time.

The default setting is "C5". To adjust the setting, carry out the following:

• Turn the programme selector to "Light" and the function selector to "0". Press in the central key for 3 seconds and "CX" will appear on the display (where X = the contrast level).
  Turn the central key to adjust the contrast setting. The settings go from 1 to 9. Confirm the new setting by pressing the central key for 3 seconds.

5.7 USE OF TOUCH CONTROL CLOCK PROGRAMMER

FUNCTION	HOW TO ACTIVATE IT	HOWTO SWITCH ITOFF	WHAT IT DOES	WHAT IT IS FOR
MINUTE MINDER	•Push the central button 1 times •Press the buttons "-" "+" to set the required time •Release all the buttons	•When the set time as elapsed an audible alarm is activated (this alarm will stop on its own, however it can be stopped immediately by pressing the button) SELECT.	•Sounds an alarm at the end of the set time. •During the process, the display shows the remaining time.	•Allows to use the oven as alarm clock (could be activated either with operating the oven or with out operating the oven)
COOKING TIME	•Push the central button 2 times •Press the buttons "-" or "+" to set the lenght of cooking required •Release all buttons •Set the cooking function with the oven function selector	•When the time is elapsed the oven will switch off automatically. Should you wish to stop cooking earlier either turn the function selector to 0, or set time to 0:00 (SELECT and "-" "+" buttons)	•It allows to preset the cooking time required for the recipe chosen •To check how long is left to run press the SELECT button 2 Times. •To alter/change the preset time press SELECT and "-" "+" buttons	•Push any button to stop the signal. Push the central button to return to the clock function
END OF COOKING	•Push the central button 3 times •Press the buttons "-" "+" to set the time at which you wish the oven to switch off •Release the buttons •Set the cooking function with the oven function selector	•At the time set, the oven will switch off. To switch off manually, turn the oven function selector to position O.	•Enables you to set the end of cooking time •To check the preset time push the central button 3 times •To modify the preset time press buttons SELECT + "-" "+"	•This function is typically used with "cooking time" function. For example if the dish has to be cooked for 45 minutes and needs to be ready by 12:30, simply select the required function, set the cooking time to 45 minutes and the end of cooking time to 12:30. •At the end of the cooking set time, the oven will switch off automatically and an audible alarm will ring. •Cooking will start automatically at 11:45 (12:30 minus 45 mins) and will continue until the pre-set end-of-cooking-time, when the oven will switch itself off automatically. WARNING. If the END of cooking is selected without setting the length of cooking time, the oven will start cooking immediately and it will stop at the END of cooking time set.
KEY LOCK	•Child Lock function is activated by touching Set (+) for a minimum of 5 seconds. From this moment on all other function are locked and the display will flash STOP and preset time intermittently.	•Child Lock function is deactivated by touching touchpad Set (+) again for a minimum of 5 seconds. From this moment on all functions are selectable again.

5.8 SETTING THE CORRECT TIME

WARNING : the first operation to carry out after the oven has been installed or following the interruption of power supply (this is recognizable the display pulsating and showing 12:00) is setting the correct time. This is achieved as follows

-Push the central button 4 times
-Set time with"-"+" buttons.
- Release all buttons.

ATTENTION: The oven will only operate providing the clock is set.

6. PYROLYTIC CYCLE

**Oven must have this function

The oven is equipped with a pyrolyser cleaning system, which destroys food residues at high temperature. The operation is carried out automatically by means of the programmer. The resulting fumes are rendered "clean" by passing over a Pyrolyser which starts as soon as cooking begins. As very high temperatures are required by the Pyrolyser, the oven door is fitted with a safety lock.

The pyrolyser can be stopped at any time. The door cannot be opened until the safety lock is displayed.

NOTE : If a hob has been fitted above the oven, never use the gas burners or the electric hot-plates while the Pyrolyser is working, this will prevent the hob from overheating.

TWO PYROLYTIC CYCLE are pre-set.

. ECO PYROCLEAN : Cleans a moderately stained oven.Operates for a period of 65 minutes.

. SUPER PYROCLEAN : Cleans a heavily stained oven.Operates for a period of 90 minutes.

Never use commercially available cleaning products on a Pyrolytic oven!

Tip : Carrying out Pyrolytic cleaning immediately after cooking allows you to take advantage of residual heat, thus saving energy.

Before carrying out a Pyrolytic cycle :

• Remove all accessories from the oven : They cannot withstand the high temperatures and would be damaged by pyrolytic temperatures.
• Remove any large spillages or stains as it would take too long to destroy them. Also excessively large amounts of grease could ignite when subject to the very high temperatures of the Pyrolyticcycle.
• Close the oven door
  excess spillage must be removed before cleaning

Using the pyrolytic cycle :

1- Turn the function selector knob to "Pyrolytic Mode". "PYRO" will appear on screen. ECO mode flashes.

Remember : ECO - cycle of 65 minutes - moderately stained oven

SUP - cycle of 90 minutes - heavily stained oven

2- By using the central button select the required Pyrolytic mode, according the degree of staining : ECO or SUP.

• Your choice is confirmed after 3 seconds...

The oven starts the pyrolytic cycle. The pyrolytic mode selected flashes and the "time" and "stop" indicator lights will appear.

During the pyrolytic cycle, the locking oven door appears, it indicates that the door is locked. The cooling fan will operate.

The indicator light flashes until the temperature required is not reached and then it becomes fixed.

• The start of the pyrolytic cycle can be delayed by selecting an end of time. Turn the programmation control knob to the end of time and set the end of time required.
• During Sel-cleaning pyrolytic operation the surfaces may get hotter than usual and children should be kept away.

At the end of the pyrolytic cycle the oven will automatically switch off.

For 15 seconds, an audible signal lets you know that the cycle has ended and the "time" and "Stop" indicator lights will flash.

• Turn the function knob to stop. Unless you do this, the symbols will continue flashing. The symbol "Pyro" disappears on the Timer, the pyrolytic mode. The oven door will remain locked until the temperature is high. So, as the locking oven door is light, the oven can not be opened.

The cooling fan does not switch itself off until the temperature of the oven components is reasonable.

At the end of the cycle, the indicator flashes again, it will remain also turned on after having extinguished the oven and it will extinguish when the inside temperature of the oven is sufficiently low.

Pyrolysis leaves a white residue on the oven walls. Wait for the oven to cool completely then clean the inside of the oven with a damp sponge to wipe off the residue.

7. CHILD SAFETY

This function is essential, especially when children are around. It prevents children from switching the oven on or altering the preset programmes.

This safety system locks the oven control panel while it is operating.

There are two levels of safety :

LEVEL 1: Locking selector control knob and the central button.

To activate: Turn the programmation control knob to child safety.
- Action : The control knobs are inactive*.
- To deactivate : Turn the programmation control knob to 0 .

LEVEL 2: Locking function selector knobs

• To activate : Turn the function selector knob to child safety and keep the central button pressed in for 3 seconds.
  Action : All the controls are inactive*.
• To dactivate : the same procedure as for activating. Turn the function selector knob to child safety and keep the central button Pressed in for 3 seconds.

*Note : In all cases, for reasons of safety, even when the controls are locked, the oven can be switched off by turning the selector knob to 0.

PYRO - The oven takes care of the entire inside oven cleaning

• Two choices are possible ECO, SUPER

5.3 PROGRAMMAZIONE

2. PRO/EXP'R TECHNOLOGIE

2.1 VYBAVENI TROUBY

1.2 MEPbI INPEAOCTOPOXHOCTN

-ДуховkadoJIXHa NcNoIb3ObaTbC TOnbKO nO ee npramomy Ha3NaueHnIO,ToEcT,ToJIbKO dNpIrpOTOBJeHnI NIIu. JIObIe DpyrIe pIpmHeHnI dyXOBKn, HApPImep, NcNoJIb3ObaHnE ee dIy obOrpeBa NOMEeHnI, 3aPpeAHTcR, TaK KaK OHI YBJIaOTcR ONaCHbIMN.
-ПюиЗБоДиTeь He HeceT OTBetCTBeHHOCt 3a KaKue-ЛИбОпВорждЕня, Bbl3BaHьIe He npaBnJIbHbIM IcPOnJIb3OBaHInEM dYxOBKNIIH He6pexKhbIM ObaUeHnEM C HeN.
Pn nCnOJb3OBaHm 3NeKTpOnpN6OpOB CneDyET co6nIoDaTb CneDyUoJIe OCHOBHbIe npaBnla TexHnK6be3ONaCHOCTn:
PnH3BLeueHm BnKn Ka6eNa nTaHnI N3 3NeKtpuecko p03eTkn cnLydyet depKaTbCra 3a BnKy, a He 3a cam Ka6eJb.
He npikacaiTeCb K dyXOBKe MOKpbIMn IIN BnaJXHbIMn pykamn nIHOramn.
He noIb3yIteCb dyXOBKo,ecnHa BaInx Horax HET o6yBn.
He noIb3yItec b nepexoHnKamu, TpoHnKaMn n/nn ydInHnteBhIMn shypamn.
B cnyuae noBPexkdeHn yxOBKn B pe3yIbTaTe ee naDeHn nn nDpyrO npuHne, BblKJIouHnTe dyXOBky, OTcoEINHnTe Ka6JIb NITaHnOT 3JNEKTPOcETn Hn He DToParnBaNtEcB Do DYXOBKn.
Bcnyae nobpekdehenka6eI nHTaHn erO Heo6xOIMo 3aMeHITb DOJKNbIM o6pa3OM.
OTcoeDHHnTe Ka6eBn 3aMeHnTe ero HObIM Ka6eJIem Tnna H05RRF, H05VVF, nnn H05V2V2-F. Ka6eBn DOJxKeH ImeTb DoCTaTOHyu Harpy3OCHyIO CnOCo6HoCtB, UTo6bl npOnyckatb TOK, NotpeBnEmbl dYXOBKoI.
3aMeHa Ka6eIa D0JIxHa BbIIOHJrTbcra KBaJIINΦuIcIpOBAHHbIM CneuaJIInCTOM.
ПобODЗa3eMЛeHЯ（JeJITo-3eJIeHbI）ДОЛжEN 6ыТьHa10MMДИNHHeE OCTaJIbHbIX ПобODOB Ka6eЯ.
Дя Bыноленя ремonta NOьзупесь услгамТОльку.TВержденистор Сервс Horо ZeHTpa,И послдпerte 3a TeM,yTOбИнСПЛБЗВАЛСВТOLьКФирмehье 3anachьeЧаTN.Пппспюдени ппвedeENbIX Bblse Tpe6OBaHn Пpo3BOJNTeB HeМожет rapaHTINPOBaT b6ezONaCHOCt bdyXOBKn.
-He n3mehnTe XapaKTepeNtukn DuyxOBKn PyTeM BBeDeHnB eekohCTpykCIO KaKx-JIbO MoINΦnKaU.
-He xpaHnTE B dYxOBKe rOpUHne MaTePnaIbI, TaK KaK npi CJIyauHOM BKJIOUeHnD dYxOBKn OHN MOrYT BOCNJMaHnTbcR.
-He pa3pewaIte IeTAM caNTbCra Ha DBepuy DuxOBKn IJIIN NOBnCaTb He Hei.
-При загузke В духовky пиши И n3Bнeчени n3 Hee пиши Пльзупесь 3aциNTьIMn nepuATkam.

1.3 PEKOMEHDAUIN

-После кадого Incрпьзовая духовки влллгийт ecчску. - He покрьави te bHytpeHHne NOBepxHOCTH n duyOBKN aHOMHnHeBOI ФОьго I npуIMN Ondopa3OBbIMN ynaKobOchbIMN MaTePnaJIaMn, КOTOPbIe npOdaHTcB XO3ЯCTBeHHbIX Mara3INHax. AHIOMHnEBAJ ФОьTRA ИИnpуRGу NpYakOBoCHbIM MaTePnaI npri KOtHaTKe C rOpraeY ЗмалрOBaHHо NOBepxHOCTbH OdyOBKN MoKet paCnlaBHTCBcI ПОВpeДNTB BHyTpEHHIOЗмалрOBaHHyIO NOBepxHOCTb DuyOBKn.
-Bo n36eKaHne Upe3MepHOrO 3aRpa3HeHnIaYXOBKn N BbIeJIeHnIcNlBHOrO DbIMa N 3aPaxOB He peKOMeHNyETcN cN0Nb3OBA Tb dYxOBky C OueHb BlicOKoI Tempeatypoi. LyuIe HemHoro yMeHbSHTb TEMpeatypu IyBeLNHtB Bpema npriTOBLeHnI pIuIi.

Pacnoptnay Tabniuka

B DOnonHeHne K NOCTaBJIeMbIM B KOMnJIeKTe

PnHnAdIeXHoCTaMn peKOMeHdyETcN cNoJIb3OBaTb TOnJIbKO TepMOCTOkyIOncyU NTepMOCTOKNeΦoPMoCHN dIaBIneKn.

1.4 YCTAHOBKA

OTBETCTBeHHOCb 3a yCTaHOBky DuyXOBKn HeceT NOIb3ObaTeNb. POni3BOdntEnb He o6ra3AH BblONHryb UcTaHOBky 3neKtpoPnboOpa. Ecnn Notpe6yTeT NOMOuB POni3BODntEna DInr YcTpaneHn HcNpabHOCTe, Bbl3BaHbHx HenpaBnHbOH yCTaHOBKO, To 3a 3Ty pa60ty 6ydet BblCTaBnEH Cuet, TAK KAK 3ta pa60ta He BXoDT B cpepy DeiCTBna TaPAHTM.

CneuJIInCT, BbIIOJHryUOJy uCTaHOBky dYXOBKn, DOJIKeH coBIOJaT bHcTpyKUIN NO yCTAHOBKe. HEnpabINbHaay UCTaHOBka MOKeT hAHeCTN BPeI 3IOPOBbIO JIODeI IN XIMBOTHbIX, a TAKKe PnIBeCTN K nOpHe IMyIeCTBa. IpnI3BOJNTelb He HecET OTBETCTBEHHOCHT 3a TAKHe NOTepn.

MaTePnAbl, KOTOpbIMN OTDeNaHO NOMEseHne, B KOTOpOM yCTaHaBnIbAeTcR dYxOBKa, DOnJXhbl BbIepeKINBaTb TempePaTy HnKe 70^

DyxoKa moKem ycmaHaBnueambc8 eepxHe yacmu cmouku unu npd pa6oeu noeepxHocmbio.

Ipeid Tem KAK 3akpenTb DxyOBky npOBepbTe, YTO B OTceKe, IDe yctaHbNtBaETcra DxyOBKa, ObecneuHbAeTcH HOpMaIbHaar CnPKyIaIzma BO3dyxa; 3TO Heo6xOdmo dna OXJaXdEHHa DxyOBKn 3aUHTbI ee DeTanei OT neperpBa. CdenaIte OTBepCTn, NokaahHbIe Ha nocJeDHe CTpaHnue daHnHO pyKOBOdCTBa, B COOTBETCTBm C TNIOM yCTaHOBKn.

1.5 ПОДКЛЮЧЕНЕ КЗЛЕKTPOCETИ

IIOKJIIOUHNE K 3NEKTPOCETN IOJXHO BbIIOJHRTbcr COTPyDHNKOM YTBEPXDEHHO TCEPBNCHO TCEHTPA IIN CPEUNAJNCTOM, IMEIOUM COOTBETCTBYIOUYKBAINIΦIKALNIU.

IqdkJIOUeHne K3JIeKTPOCETn DOJXHO BbIIOJHrTbCBA COOTBETCTBm CDeIcTByUOUMN 3JIeKTPoTEXHNeCKMn IpaBUNaMn HOpMaMn.

ПОНЗВОДNTЕЛСHE HECET OTBETCTBEHHOCTN 3a NOВPEЖDEHЯ, BO3NHKUINe I3-3a TORO, YTO yCTaHOBKa 3JIeKTPoPnPbOpa He 6bla BbIIOJHeHa B COOTBETCTBnC nPaBnAmN 3JIeKTPo6e3OnaCHOCTN.

DyXOBKa DOnJIKHa NODIKHOaTbC K P03eTKe, ChA6KeHHo KOHTaKTOM 3a3EmJIeHnI, INI NDoJXHa NODIKHOaTbC Yepe3 MHorOONIOHcBHy aBTOMaTHueCKN BblKJIuOaTeIb, B COOTBetCTBnC 3JIeKTPoTeXHueeCKMn IpaBUNaMn HOpMaMn, DeiCTByUOImn B CtPaHe, Tge BblOJHraETcR yCTaHOBKa 3JIeKTPoPnPb6opa.

Pn npKluHm DuxOBKn K 3eKTPocETn DOxHbI NcNoB3OBAtbcr PNOxOJaIe npedoxpaHnteIN n pOBoDa doCTaTOHNO 60JbWoOr OceHn.

IoiKIOUeyHNE:

2. TEXHOJIOΓNRA PRO/EXP'R

EcnBbI He MoXeTe cAmOCToTEnbHO OnpeJeNtB npuHny HncnpaBHOCTn:

• OToeDInHnTe DuxOBky OT 3neKTPocEtN, He npKacaiTecb K Hei, n o6paTntEcB 3a NOMOsbIO B cepBnCbI YeHTp.

Ipeed Tem KAK N03BOHnTB B cepBnCHbI ueHTp 3aunHte cepnHbI Homep n3deJIny, yKa3aHHbI B erO naCnpTHoT a6nUKe.

EcnH He nCTeK cpoK deiCTBna rapaHTn, yka3aHHbI B rapaHTnHOM TaIOHe, pemOH T3dJIIn B cepBnCHom ceHTpe 6yTe BBINONHe 6ecnNtHo.

Данны举动 БаоТВETCTBиСТpeБОвИЯМи，ИЗЛожЕНБIMиВ ДиректИBE 2002/96/EC OTHOCHTeJIbHO yTUNIIN3aUN БалектчecKOrO И ДелКТpoHHorO obopуДOBAHЯ (WEEE).

YTo6bIyCTaHOBnTb Yacbl:

1-YctahOBInTe pykny nporpamMnpoBaHna Ha cmbON"CaCbI》
2 - YctaHOBInTe YacbI C NOMOuBIO NOBOPoTa CEHTpaIbHOI KHOIN B HnPaBLeHIn "-" INI " -, IOITBePdInTe YCTaHOBky C NOMOuBIO HaxKaTna 3ToI pyKn.
3-YctahOBInTe pyUkI npOrpaMMIOBaHnB I NOLOXeHne CTOpI.

5.2 KAK NOJb3OBATbcra DUXOBKoI

-PyHOHPEKIM

MeTodbl npnroTOBneHn nIu B pyuHOM pexHmpeyHcNHeB V npedCTabNeHHo HnKe Ta6nue. JnKaJdOro MeToDa npnroTOBneHn nIu TAKKe yKa3aHa peKOMeHdyEma Temnepatya.Temnpatypa MoKeT MeHrTbcR B yKa3aHHom dInana3OHe Temnepatyp.

IcnoJIb3yETcNoCToHnHaTeMnepaTpya 60 ^ C , TempepaTpya He perynpyetc.

TINLLA-B3tOMpeKmEbDyXOBKePONCxOaNTuPKyIaIaI

B03dyxa, yTO o6ecneuBaET npeBOcXoHbIe pe3yNbTaTbI npnnpriNTOBLeHNNTaKnx6JIoukKaKnUcaunlkeKC.

UmeetcIBAPEXIMA NIPOJIINTNUECKOYUCTKN.

2. TEHNOLOGIJA PRO/EXP'R

2.1 OPREMA PEČICE (odvisno od modela)

2. PRO/EXP'R TEHNOLOGIJA (ZAVISNO O MODELU)

2.1 OPREMA PECNICE (ZAVISNO O MODELU)

1.1 DECLARATION DE CONFORMITE:

2.1 EQUIPMENT DU FOUR

Applying torque more than needed to fix the screws can close the ventilation channels on both sides. Please be sure that, these ventilation channels are 2mm open after installation to furniture.

ATTENZIONE!

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

IT
