USER MANUAL JB2 Speco Technologies

Technical line drawing of a mechanical component with concentric circular features and mounting holes (no text or symbols)

Junction Box

Quick Star t Guide

Thank you for purchasing our products. All examples and pictures used in this manual are only for reference purpose. Please take the real object as the standard.

Before installation, make sure that the wall is strong enough to withstand 3 times the weight of the junction box and the camera. We only introduce the installation of some cameras with junction box in this manual.

- Mount the Junction Box and Bullet Camera

1. Drill the screw holes on the wall according to the drill template.

Pure electrical circuit lines without any symbols

1. Push the expansion screws into the screw holes (if the wall is wooden, please skip this step) and then fix the mounting base of the junction box to the wall with screws.

1. Reinstall the upper cover to the junction box.

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

1. Open the mounting base and the upper cover of the junction box.

1. Fix the mounting base of the camera to the upper cover of the junction box. Then route the cables through the cable hole (take side conduit cabling for example) and connect the cables.

Technical line drawing of a mechanical assembly or lifting device (no text or symbols present)

1. Adjust the view angle of the camera.

Technical diagram of a mechanical assembly with a rotating component (no text or symbols)

- Mount the Junction Box and Dome Camera (1)

1. Drill the screw holes on the wall according to the drill template.

Pure technical diagram showing a circular component with internal cross symbol, no text or labels present

1. Secure the mounting base of the junction box to the wall.

1. Route the cables through the cable hole (take side conduit cabling for example) and connect the cables. Then reinstall the upper cover to the junction box.

Technical line drawing of a mechanical assembly with internal components and alignment lines (no text or symbols)

1. Open the mounting base and the upper cover of the junction box.

1. Fix the camera to the upper cover of the junction box.

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

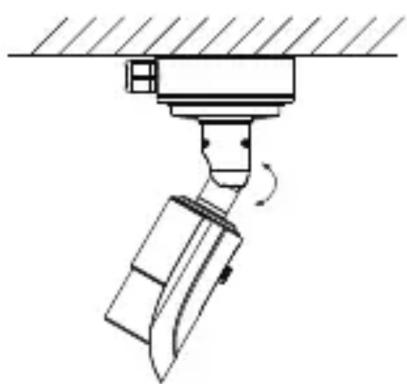

1. Adjust the view angle of the camera.

Technical line drawing of a mechanical component with no visible text or symbols

- Mount the Junction Box and Dome Camera (2)

The step 1 and step 2 are the same as the above-mentioned step 1 and step 2.

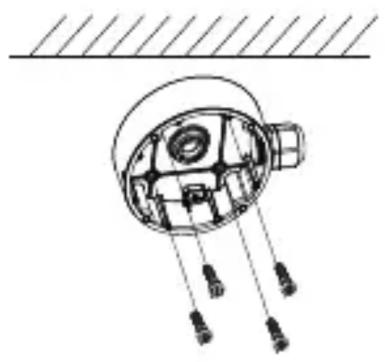

1. Secure the mounting base of the junction box to the wall.

Technical diagram of a mechanical component with wires and housing (no text or symbols)

1. Unscrew the lock screw and then remove the mounting base of the camera.

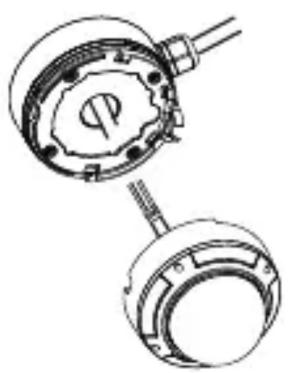

1. Connect the cables and then fix the lower dome to the mounting base by tightening the lock screw.

Technical line drawing of a mechanical component with two views (top and side), no visible text or symbols

1. Route the cables through the cable hole (take side conduit cabling for example). Then reinstall the upper cover to the junction box.

Technical line drawing of a mechanical component with cross-sectional view (no text or symbols)

1. Mount the mounting base of the camera to the junction box.

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

1. Remove the lower dome to adjust the view angle. After that, reinstall the lower dome to complete the installation.
