Product Type	Samsung Heat Pump (Air Conditioner)
Model	AR12BXFZCWKXEE
Indoor Unit Dimensions (W x H x D)	Approx. 880 x 310 x 225 mm (estimated from similar models)
Outdoor Unit Dimensions (W x H x D)	Approx. 790 x 548 x 285 mm (estimated)
Indoor Unit Weight	Approx. 10.5 kg (estimated)
Outdoor Unit Weight	Approx. 25.5 kg (estimated)
Power Supply	220-240 V, 50 Hz, 1 Phase
Refrigerant Type	R-32
GWP of Refrigerant	675
Operation Modes	AI Auto, Auto, Cool, Dry, Fan, Heat
Cooling Temperature Range	16 °C to 30 °C
Heating Temperature Range	8 °C to 30 °C
Fan Speeds	Auto, Low, Med, High, Turbo (in Cool/Fan/Heat)
Energy Saving Features	Eco function, good'sleep, Auto clean, Electricity consumption check
Smart Features	Wi-Fi (SmartThings app), AI Auto mode, Remote control
Air Flow Control	Vertical and horizontal swing (remote control)
Timer Functions	Timed on, Timed off, good'sleep (up to 12 hours)
Filter Cleaning Reminder	Yes, indicator on display
Auto Defrost	Yes, for heating operation in low outdoor temperature
Safety Features	Overcurrent protection, auto restart, child lock (via SmartThings)
Noise Level (Indoor)	Approx. 20-39 dB(A) (estimated)
Recommended Cleaning	Filter every 2 weeks, exterior as needed, heat exchanger annually by professional
Spare Parts & Repairability	Contact Samsung service or authorized technician for parts and repair
Warranty	Refer to Samsung terms; standard 2 years (varies by region)

Frequently Asked Questions - AR12BXFZCWKXEE SAMSUNG

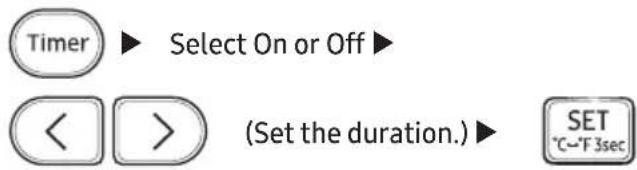

How do I set the timer to turn on the air conditioner automatically?

Press the Timer button on the remote control. Use the + and - buttons to set the desired hours (1-12) and minutes (0-59). Press SET (press and hold for 3 seconds) to confirm. The Timer indicator will appear on the indoor unit display.

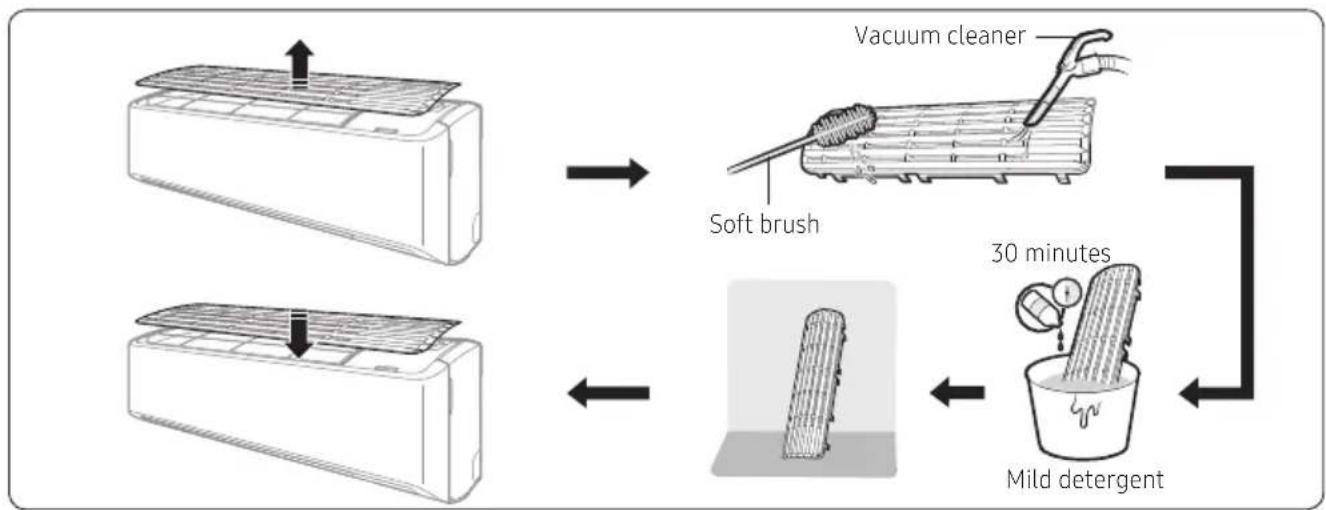

How often should I clean the air filter and how do I do it?

Clean the air filter every two weeks or when the Filter Cleaning Reminder indicator appears. Remove the filter, clean with a soft brush or vacuum, soak in mild detergent solution for 30 minutes, rinse, and air dry in shade before reinstalling. Do not use harsh chemicals.

What should I do if the air conditioner doesn't turn on?

Check the power supply: ensure the unit is plugged in and the circuit breaker is on. If the breaker tripped, reset it and restart. If the problem persists, contact Samsung service. Also check if the Timed off function is active; press Power to turn on manually.

How do I use the AI Auto mode?

First, connect the air conditioner to Wi-Fi using the SmartThings app. Then press the Mode button on the remote to select AI Auto. The unit will automatically learn your preferences and adjust cooling/heating accordingly. The AI Auto indicator will show on the display.

Can I control the air conditioner with my smartphone?

Yes, download the SmartThings app from the app store. Ensure your phone and AC are on the same 2.4 GHz Wi-Fi network. Follow the instructions in the manual to pair: press the Timer button on the remote for 4 seconds, then add the device in the app. You can then control power, mode, temperature, and more.

What is the Eco function and how do I activate it?

The Eco function reduces energy consumption by limiting the set temperature range: cooling between 24-30°C, heating between 8-30°C. Press the Fast/Eco button on the remote in Cool or Heat mode. The pattern appears on the remote display, and vertical air swing starts automatically.

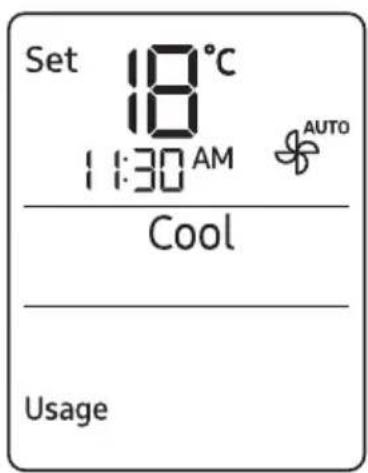

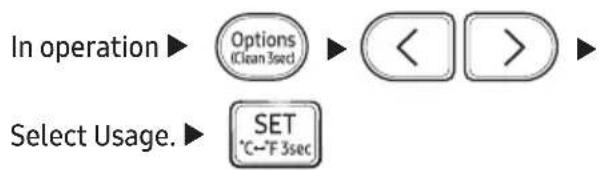

How do I check the electricity consumption?

Press the Options button for 3 seconds. Use the left/right buttons to navigate to Usage, then press SET (3 seconds). The indoor unit display will show the electricity consumption in kWh (0.1 to 99). It resets when the unit is turned off.

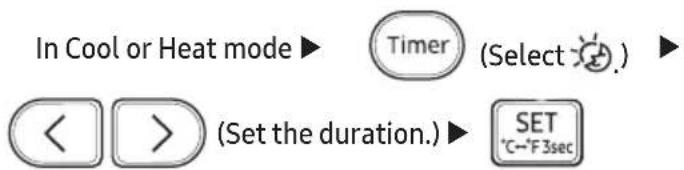

What is the good'sleep function?

The good'sleep function saves energy during sleep. In Cool or Heat mode, press the Timer button and set a duration (30 min to 12 hours). The unit adjusts temperature gradually for comfort. Recommended set temperatures: Cool 25-27°C, Heat 21-23°C. You can cancel it by setting duration to 0.0.

How do I reset the filter cleaning reminder?

After cleaning the filter, press the Options button for 3 seconds while the unit is operating. Select Clean using the directional buttons, then press SET (3 seconds) to reset. The filter reset indicator (OF) will turn off.

What does the Defrost indicator mean?

The Defrost indicator appears during heating operation when frost builds up on the outdoor heat exchanger. The unit automatically defrosts for 5-12 minutes. During this time, the indoor fan stops to prevent cold air draft. This is normal and improves heating efficiency.

USER MANUAL AR12BXFZCWKXEE SAMSUNG

AR**TXFY*** / AR**TXFZ***

• Thank you for purchasing this Samsung air conditioner.
- Before operating this unit, please read this user manual carefully and retain it for future reference.

Safety Information 4

Safety Information 4

At a Glance 15

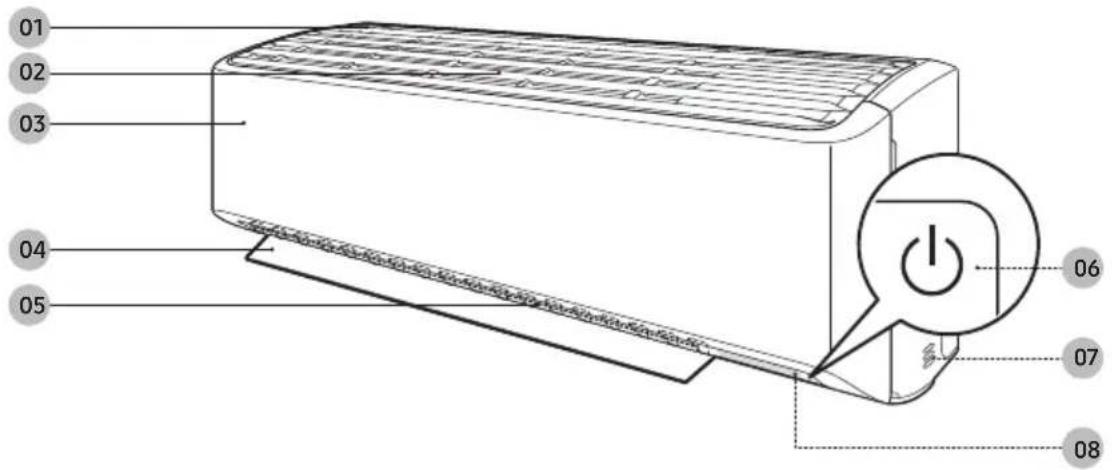

Indoor Unit Overview 15

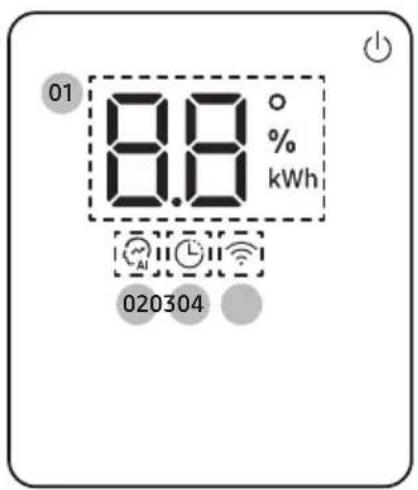

Display 16

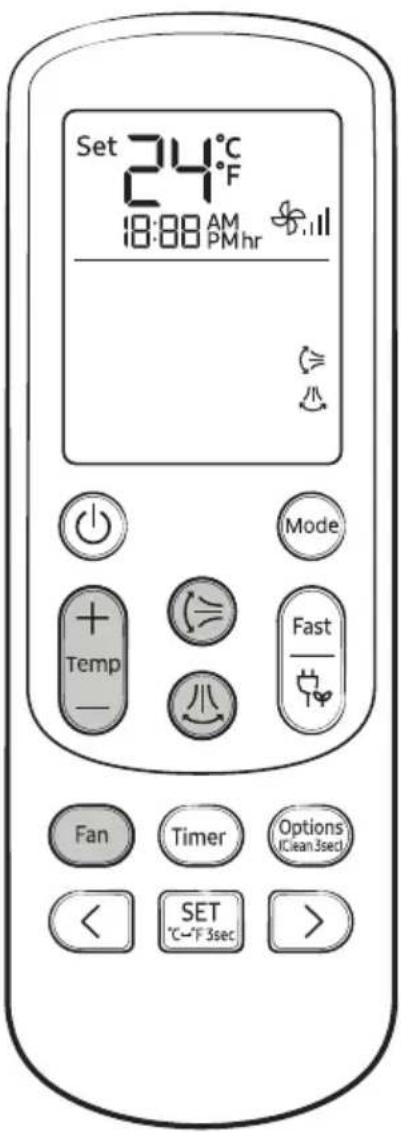

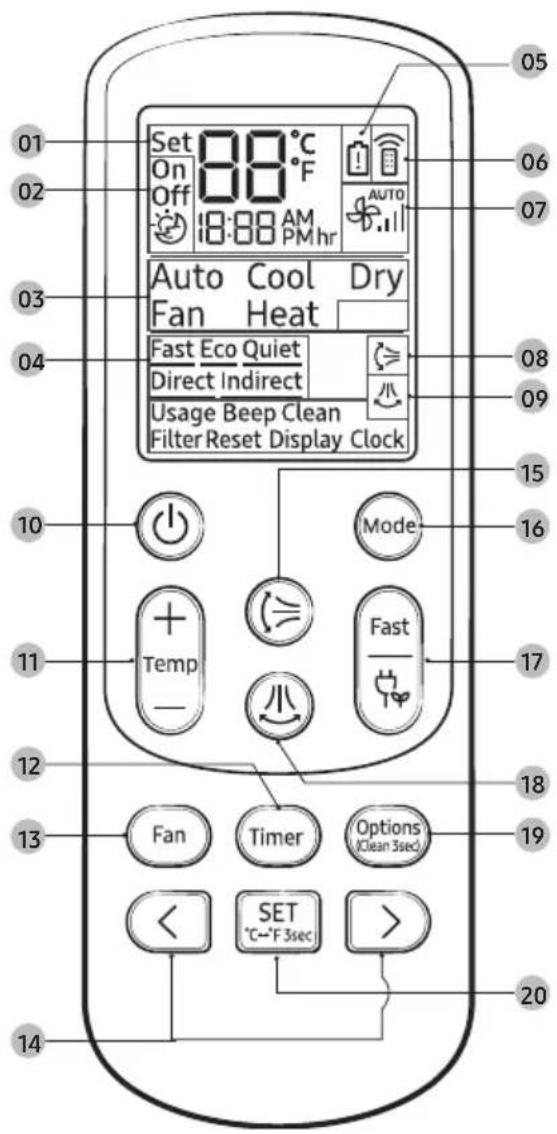

Remote Control Overview 17

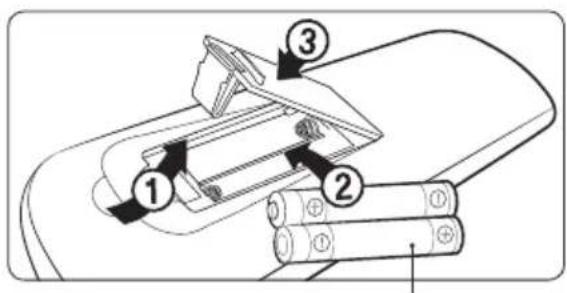

Replacing the remote control batteries 17

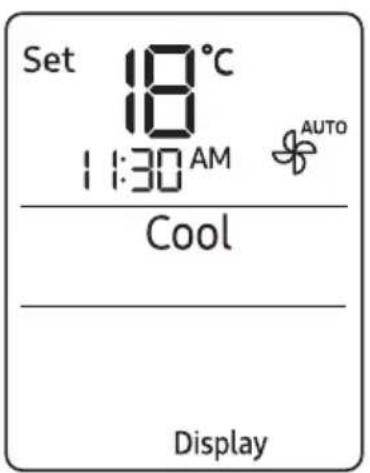

Remote Control Operation 18

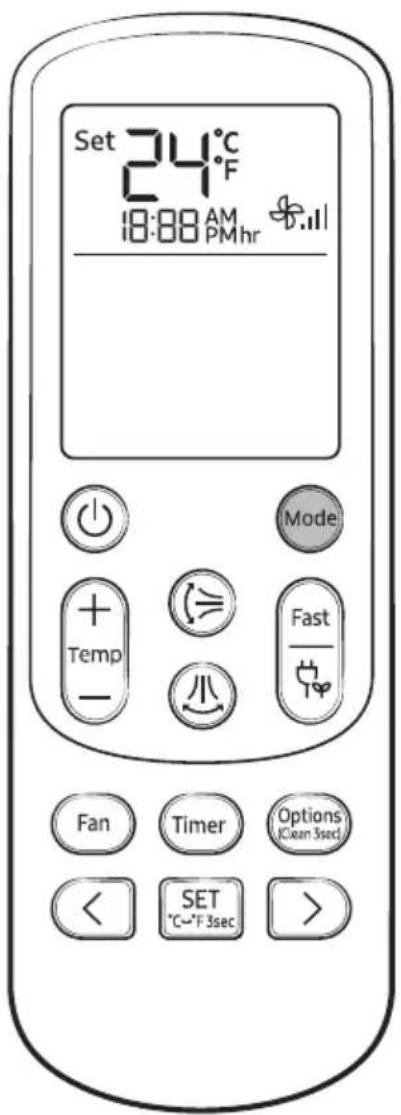

Selecting an operation mode 18

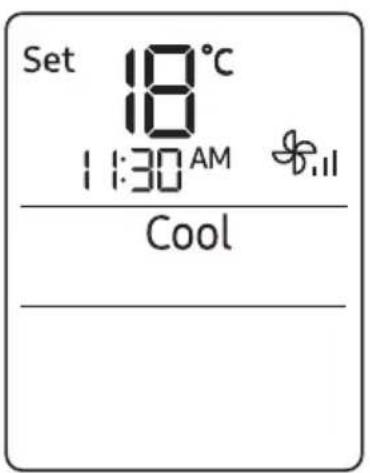

To set the temperature • To adjust the fan speed • To adjust the airflow direction 19

Setting the Current time 20

Smart Features 21

Power Smart Features 21

AI Auto mode 21

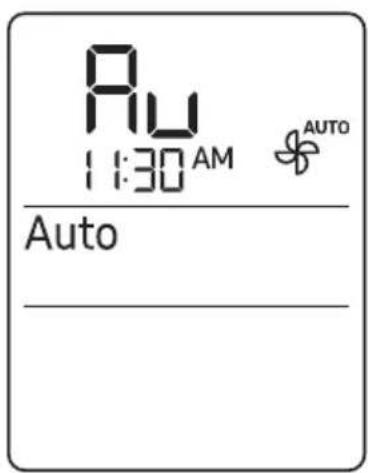

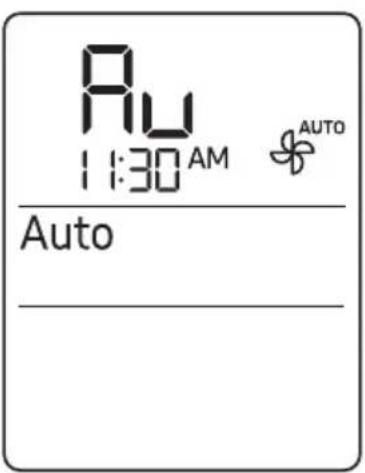

Auto mode • Cool mode 22

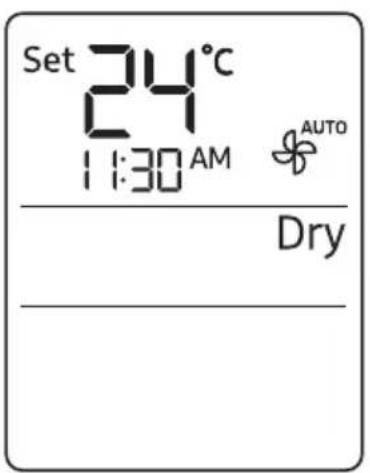

Dry mode • Fan mode 23

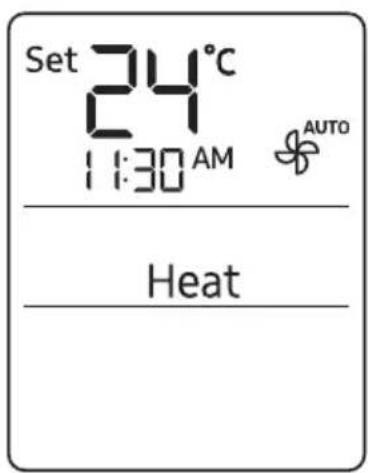

Heat mode • Automatic defrost 24

Variety Smart Features 25

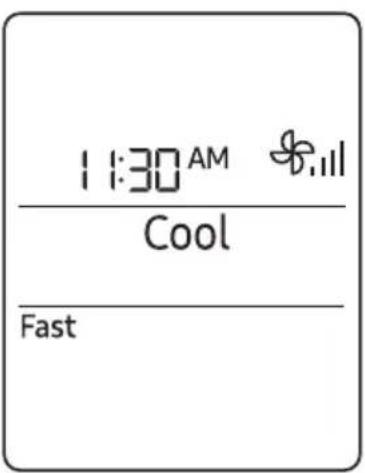

Fast function 25

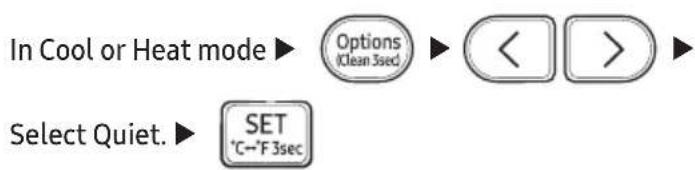

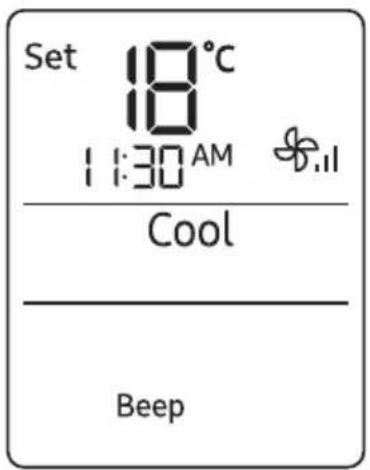

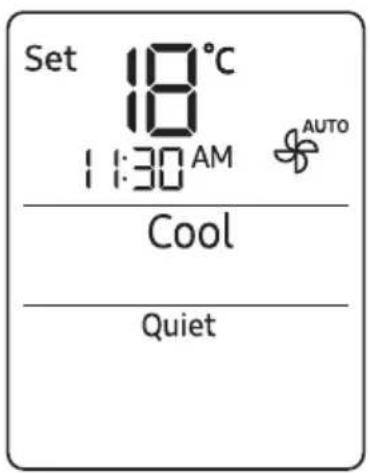

Quiet function • Beep function 26

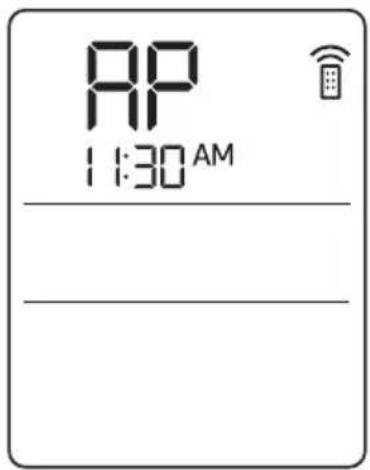

Display lighting function • Wi-Fi function (SmartThings app) 27

Energy-Saving Features 28

Electricity consumption check 28

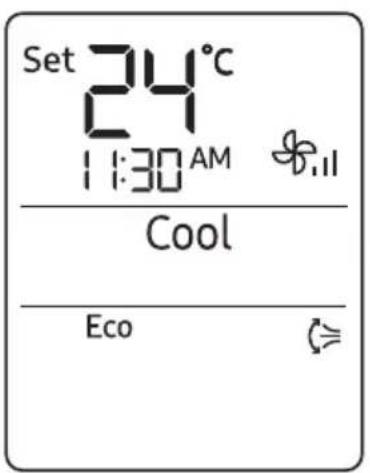

Eco function 29

Timed on/ Timed off function 30

good'sleep function 31

Cleaning and Maintenance 32

Schedule 32

Cleaning 33

Appendix 37

Troubleshooting 37

Information about Refrigerant 39

SmartThings app 40

Reference 43

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

For information on Samsung's environmental commitments and product-specific regulatory obligations, e.g. REACH, WEEE, Batteries, visit : samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

WARNING: Read This Manual

Read and follow all safety information and instructions before installation, use, or maintenance of this appliance. Incorrect installation, use, or maintenance of this appliance can result in death, serious injury, or property damage. Keep these instructions with this appliance. This manual is subject to change. For the latest version, visit www.samsung.com.

Because the instructions in this manual cover various models, the characteristics of your air conditioner may differ slightly from those described. If you have any questions, please contact your service provider or visit www.samsung.com.

Notices and notes

To make you aware of safety messages and highlighted information, we use the following notices and notes throughout this manual:

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

IMPORTANT

Information of special interest

NOTE

Supplementary information that may be useful

WARNING: Low burning velocity material (This appliance is filled with R-32.)

The user and installer guides should be read carefully.

The user and installer guides should be read carefully.

The service guide should be read carefully.

FOR GENERAL

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

For use in Europe : This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

IMPORTANT

To perform its antimicrobial function this product has been treated with the biocide substance Silver zinc zeolite.

FOR INSTALLATION

WARNING

Use a power cord with this product's power specifications or higher and use the power cord for this appliance only. In addition, do not use an extension cord.

• Extending the power cord may result in electric shock or fire.
• Do not use an electric transformer. This may result in electric shock or fire.
• If the voltage/frequency/rated current condition is different, it may cause fire.

The installation of this appliance must be performed by a qualified technician or service company.

- Failing to do so may result in electric shock, fire, explosion, problems with the product, or injury and may also void warranty on the installed product.

Install an Isolation Switch next to the Air Conditioner (but not on the panels of the Air Conditioner) and circuit breaker dedicated to the air conditioner.

- Failing to do so may result in electric shock or fire.

Fix the outdoor unit firmly so that the electric part of the outdoor unit is not exposed.

- Failing to do so may result in electric shock, fire, explosion, or problems with the product.

Do not install this appliance near a heater, or inflammable material. Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (or rain). Do not install this appliance in a location where gas may leak.

• This may result in electric shock or fire.

Never install the outdoor unit in a location such as on a high external wall where it could fall.

- If the outdoor unit falls, it may result in injury, death or property damage.

This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic, water pipe, or telephone line.

• Failing to do so may result in electric shock, fire, and explosion.
• Make sure to use a socket-outlet with ground.

CAUTION

Please cover the air conditioner with PE BAG after installation, and remove it when you start to run air conditioner.

Install your appliance on a level and hard floor that can support its weight.

- Failing to do so may result in abnormal vibrations, noise, or problems with the product.

Install the drain hose properly so that water drains correctly.

- Failing to do so may result in water overflowing and property damage. Avoid adding drain to waste pipes as odours may arise in the future.

The product shall be stored in a room with no ignition sources (e.g. open flames, gas appliance, electric heater, etc.).

- Note that the refrigerant has no odour.

When installing the outdoor unit, make sure to connect the drain hose so that draining is performed correctly.

- The water generated during heating by the outdoor unit may overflow and result in property damage. In particular, in winter, if a block of ice falls, it may result in injury, death or property damage.

Do not install the product in a place where thermo-hygrostat is needed (such as server room, machinery room, computer room, etc.)

- Those places do not provide guaranteed operation condition of the product therefore performance can be poor in these places.

FOR POWER SUPPLY

WARNING

When the circuit breaker is damaged, contact your nearest service centre.

Do not pull or excessively bend the power line. Do not twist or tie the power line. Do not hook the power line over a metal object, place a heavy object on the power line, insert the power line between objects, or push the power line into the space behind the appliance.

- This may result in electric shock or fire.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CAUTION

When not using the air conditioner for a long period of time or during a thunder/lightning storm, cut the power at the circuit breaker.

- Failing to do so may result in electric shock or fire.

WARNING

If the appliance is flooded, please contact your nearest service centre.

- Failing to do so may result in electric shock or fire.

If the appliance generates a strange noise, a burning smell or smoke, cut off the power supply immediately and contact the nearest service centre.

- Failing to do so may result in electric shock or fire.

In case of a malfunction, immediately stop operation of the air conditioner and disconnect the entire power system. Then consult the authorized service personnel.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power line. Do not touch the appliance or power line.

• Do not use a ventilating fan.
  • A spark may result in an explosion or fire.

To reinstall the air conditioner, please contact your nearest service centre.

• Failing to do so may result in problems with the product, water leakage, electric shock, or fire.
• Delivery service for the product is not provided. If you reinstall the product in another location, additional construction expenses and an installation fee will be charged.
• Especially, when you wish to install the product in an unusual location such as in an industrial area or near the seaside where it is exposed to salt in the air, please contact your nearest service centre.

Do not touch the circuit breaker with wet hands.

• This may result in electric shock.

Do not turn the air conditioner off with the circuit breaker while it is operating.

- Turning the air conditioner off and then on again with the circuit breaker may cause a spark and result in electric shock or fire.

After unpacking the air conditioner, keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

- If a child places a bag over its head, it may result in suffocation.

Do not touch the airflow blade with your hands or fingers during heating.

- This may result in electric shock or burns.

Do not insert your fingers or foreign substances into the air inlet/outlet of the air conditioner.

• Take special care that children do not injure themselves by inserting their fingers into the product.

Do not strike or pull the air conditioner with excessive force.

- This may result in fire, injury, or problems with the product.

Do not place an object near the outdoor unit that allows children to climb onto the machine.

- This may result in children seriously injuring themselves.

Do not use this air conditioner for long periods of time in badly ventilated locations or near infirm people.

- Since this may be dangerous due to a lack of oxygen, open a window at least once an hour.

Do not use means to accelerate the defrost operation or to clean, other than those recommended by Samsung.

Do not pierce or burn.

Be aware that refrigerants may not contain an odour.

If any foreign substance such as water has entered the appliance, cut off the power supply and contact the nearest service centre.

- Failing to do so may result in electric shock or fire.

Do not attempt to repair, disassemble, or modify the appliance yourself.

• Do not use any fuse (such as copper, steel wire, etc.) other than the standard fuse.
• Failing to do so may result in electric shock, fire, problems with the product, or injury.

CAUTION

Do not place objects or devices under the indoor unit.

- Water dripping from the indoor unit may result in fire or property damage.

Check that the installation frame of the outdoor unit is not broken at least once a year.

- Failing to do so may result in injury, death or property damage.

To prevent personal injury, make sure that you change the directions of the horizontal airflow blades after stopping the movements of the vertical airflow blade. (In case of adjusting the horizontal airflow manually)

When the air conditioner does not operate properly for cooling or heating, there is a possibility of refrigerant leakage. If any leakage, stop operation, ventilate the room, and consult your dealer immediately for recharging refrigerant.

The refrigerant is not harmful. However, if it comes in contact with fire, it may generate harmful gases and there is risk of fire.

During transportation of the indoor unit, the pipe lines shall be covered with brackets for protection. Do not move the product with holding the pipe lines.

- It may cause gas leakage.

Do not install the product in a ship or a vehicle (such as a campervan).

- Salt, vibration or other environmental factor may cause the product malfunction, electric shock or fire.

Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

- This may result in electric shock, fire, problems with the product, or injury.

Do not operate the appliance with wet hands.

• This may result in electric shock.

Do not spray volatile material such as insecticide onto the surface of the appliance.

- As well as being harmful to humans, it may also result in electric shock, fire or problems with the product.

Do not drink the water from the air conditioner.

- The water may be harmful to humans.

Do not hit, shake, drop, or attempt to disassemble the remote control.

When replacing the remote control batteries, keep them out of the reach of infants.

- If an infant eats batteries, contact a doctor immediately.

When replacing the remote control batteries, be careful not to get the battery fluid on your skin.

- Battery fluid is harmful to humans.

Do not touch the pipes connected with the product.

• This may result in burns or injury.

Do not cut or burn the refrigerant container or pipings.

Do not point the air direction to the fireplace or heater.

Do not use this air conditioner to preserve precision equipment, food, animals, plants or cosmetics, or for any other unusual purposes.

• This may result in property damage.

Avoid directly exposing humans, animals or plants to the airflow from the air conditioner for long periods of time.

- This may result in harm to humans, animals or plants.

FOR CLEANING

WARNING

Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner or alcohol to clean the appliance.

- This may result in discolouration, deformation, damage, electric shock or fire.

Before cleaning or performing maintenance, cut off the power supply and wait until the fan stops.

- Failing to do so may result in electric shock or fire.

CAUTION

Take care when cleaning the surface of the heat exchanger of the outdoor unit since it has sharp edges.

- This should be done by a qualified technician. Please contact your installer or service centre.

Do not clean the inside of the air conditioner by yourself.

- For cleaning inside the appliance, contact your nearest service centre.

- When cleaning the filter, refer to the descriptions in the 'Cleaning' section.

- Failing to do so may result in damage, electric shock or fire.

- Make sure to prevent any injury from sharp edges of the surface when handling the heat exchanger.

Indoor Unit Overview

The appearance of the actual product may differ slightly from the image below.

01 Air intake
02 Air filter
03 Front panel
04 Airflow blade (up and down)

05 Airflow blade (left and right)
06 Power button/Remote control receiver
07 Room temperature sensor
08 Display

Display

01 Temperature indicator (numeric) Filter reset indicator OF Electricity consumption indicator (numeric / For the multi system, usage time indicator) Auto clean indicator O : Defrost indicator OF

02 AI Auto indicator 03 Timer indicator good'sleep indicator 04 Wi-Fi indicator

NOTE

• If the Wi-Fi indicator blinks for 10 seconds when operation starts, it means that the air conditioner is not connected to Wi-Fi. See "SmartThings app" on page 40 and connect the air conditioner to Wi-Fi.
• When connected to Wi-Fi, the air conditioner can gather and learn your user patterns so that it can run in AI Auto mode.

Remote Control Overview

Most operating instructions in this manual require using the remote control.

Replacing the remote control batteries

Two 1.5V AAA batteires

01 Set temperature indicator
02 Timer option indicator
03 Operation mode indicator
04 Options indicator
05 Low battery indicator
06 Transmit indicator
07 Fan speed indicator
08 Vertical air swing indicator
09 Horizontal air swing indicator
10 Power button
11 Temperature button
12 Timer button
13 Fan speed button
14 Direction button/Selection button
15 Vertical air swing button
16 Mode button
17 Fast/Eco button
18 Horizontal air swing button
19 Options/Clean button
20 SET button/Temperature type button(°C↔°F)

NOTE

- Although Purify, Direct and Indirect appear on the remote control display, they are not available on this model.

Remote Control Operation

You can use the air conditioner easily by selecting a mode and then by controlling the temperature, fan speed, and air direction.

Selecting an operation mode

To change the current mode between Auto, Cool, Dry, Fan, and Heat, press the Mode) button.

You can use AI Auto mode after Wi-Fi is connected.

NOTE

You can use the Cool, Dry, and Heat modes in the following operation range.

Mode Cool	Dry Heat
Indoor temperature	16 °C to 32 °C	18 °C to 32 °C	27 °C or less
Outdoor temperature	-15°C to 46 °C	-15 °C to 46 °C	-30 °C to 24 °C ^1)
Indoor humidity	Relative humidity of 80 % or less ^2)	-	-

^1) If the outdoor temperature drops to -30 ^ , the heating capacity may decrease by as much as 60-70 %.
2) If the air conditioner operates in Cool mode in a high-humidity environment for an extended period of time, condensation may occur.

You can switch between Celsius and Fahrenheit indications on the remote control.

▶ Press and hold for 3 or more seconds.

NOTE

• The temperature indications on the indoor unit are not switched.
• This function is canceled when the remote control batteries are replaced. In this case, run this function again.

To set the temperature

To control the temperature in each mode, press the (+)(Temperature) button:

Mode Temperature control
Al Auto/Auto/Cool	Adjust by 1 °C from 16 °C to 30 °C.
Heat Adjust	by 1 °C from 8 °C to 30 °C.
Dry Adjust	by 1 °C from 18 °C to 30 °C.
Fan No temperature control.

Select from the following fan speeds in each mode:

Mode Available fan speeds
Al Auto/Auto/Dry	(Auto)
Cool/Fan/Heat	(Auto), (Low), (Med), (High), (Turbo)

To adjust the airflow direction

Keep the airflow in a constant direction by stopping the movements of the vertical and horizontal airflow blades.

In operation ▶

or

NOTE

• If you adjust the vertical airflow blade manually, it may not close completely when you turn off the air conditioner.
• Always use the remote control to adjust the airflow blades. Do not move the blades by hand. They may not operate normally.
• You cannot control the vertical airflow direction in Cool mode when the good'sleep function is on.

Setting the Current time

Before using the functions of the air-conditioner, set the current time.

NOTE

• You can set the time in hourly units from 1 hour to 12 hours according to AM, PM and in minute units from 0 \~ 59 minutes.
• Current time setting will be cancelled if you don't press the SET button within 10 seconds after setting the time. Therefore, check for the current time on the remote controller display.

AI Auto mode

Use AI Auto mode to automatically operate any of Cool, Dry, and Heat modes depending on the learned user patterns gathered from an external server via Wi-Fi module. The favourite temperature and operation mode are also set based on the current temperatures (indoor/outdoor) and the gathered user patterns.

Select Auto.

NOTE

• You can use this mode after Wi-Fi is connected. Otherwise, Auto mode is activated.
• In AI Auto mode, the AI (AI Auto) and Wi-Fi indicators appears on the display of the indoor unit.
• If the gathered user patterns are not sufficient, the set temperature is set to 24 °C.
• The set temperature is controlled within the range of 22 °C to 26 °C in Al Auto mode. You can also change it manually.
• When you press Mode (Mode) in AI Auto mode, the mode is cancelled.
• If you change the set temperature in AI Auto mode, it automatically changes back to the AI comfort temperature after 1 hour.

Auto mode

Use Auto mode to perform the powerful cooling or heating function to automatically reach the desired temperature. When the difference between the room temperature and the set temperature decreases, the air conditioner controls the fan speed and airflow direction.

NOTE

• If Wi-Fi cannot be connected or the Wi-Fi function is not supported, this Auto mode is automatically activated instead of AI Auto mode.
• When the room temperature is higher than the set temperature, the air conditioner automatically produces cool air.
• When the room temperature is lower than the set temperature, the air conditioner automatically produces warm air.

Cool mode

Use Cool mode to stay cool in hot weather.

NOTE

• For comfort, keep the temperature difference between the indoor and outdoor air within 5 °C.
  • After selecting Cool mode, select the desired function, temperature, and fan speed.

• To cool more quickly, select a lower temperature and a faster fan speed.

• To save energy, select a higher temperature and a slower fan speed.
• As the room temperature nears the set temperature, the compressor motor will slow down to save energy.

Dry mode

Use Dry mode in rainy or humid weather.

NOTE

• The proper set temperature range for dehumidifying operation is 24 to 26 °C. If you feel that the current humidity seems high, use a lower set temperature.
• You cannot use Dry mode for heating. Dry mode is designed to produce a cooling side-effect.

Fan mode

Use Fan mode to run the air conditioner like a floor fan, providing a breeze without heating or cooling.

NOTE

• If the air conditioner will not be used for an extended period of time, run it in Fan mode for 3 to 4 hours to dry the internal components.
• The outdoor unit does not operate in Fan mode. This is normal and not a fault with the air conditioner.

Heat mode

Use Heat mode to stay warm.

Select Heat.

NOTE

• While the air conditioner warms up, the fan may not operate for about 3 to 5 minutes at the beginning to prevent cold blasts.
• If the air conditioner heats insufficiently, use an additional heating appliance in combination with the air conditioner.

Automatic defrost

When the outdoor temperature is low and the humidity is high, frost may develop on the outdoor heat exchanger, which may decrease heating efficiency. When these conditions are met while Heat mode is on, the air conditioner runs the Defrost function for 5 to 12 minutes to remove frost from the outdoor heat exchanger.

NOTE

• When the Defrost function is on, the d5Defrost) indicator appears on the indoor unit display, steam is produced on the outdoor unit, the air conditioner moves the airflow blades to the lowest position to prevent cold air from coming out from the indoor unit.
• You cannot select other functions with the remote control until the Defrost function is finished.

Fast function

Use the Fast function to quickly cool or heat your room. This function is the most powerful cooling and heating function provided by the air conditioner. You can select this function in Cool or Heat mode.

In Cool or Heat mode ▶

NOTE

• You can change the airflow direction, but you cannot change the set temperature and the fan speed.
• When you select the Fast function in Heat mode, you may not be able to increase the fan speed for 3 to 5 minutes while the unit heats up.
• Selecting the Fast function cancels the Eco, good'sleep, and Quiet functions.
• You can also start the Fast function from the Options menu:

In Cool or Heat mode ▶

Select Fast.

Quiet function

Use the Quiet function to reduce the unit's operating noise. You can select this function in Cool or Heat mode.

NOTE

• You can change the set temperature and the airflow direction, but you cannot change the fan speed.
• Selecting the Quiet function cancels the Eco, good'sleep, and Fast functions.

Beep function

Use the Beep function to turn on or off the beep that sounds when you press a button on the remote control.

Display lighting function

Use the Display lighting function to turn on or off the lighting of the indoor unit display.

NOTE

• If you change the current mode or function when the Display lighting function is on, the display lighting turns on for 5 seconds and then turns off again.
• To turn off the Display lighting function, run the method above again or turn the product off and on.

Wi-Fi function (SmartThings app)

Turn on the Wi-Fi function to pair your smartphone with the air conditioner.

In operation ▶ Timer ▶ Press and hold for 4 or more seconds.

NOTE

• When you turn on the Wi-Fi function, your smartphone pairs with the air conditioner, the (Transmit) indicator blinks, and AP appears on the remote control display for a few seconds.
• Once your smartphone is connected with the air conditioner, you can control it via the wireless Internet using the SmartThings app installed on your smartphone.
• For more information about how to prepare your smartphone for connection and how to control the air conditioner using the SmartThings app, see "SmartThings app" on page 40.

Electricity consumption check

Use the Usage function to check the amount of electricity consumed by using the air conditioner. The amount consumed is displayed on the indoor unit display for a few seconds, and the set temperature appears.

The value range displayed is between 0.1 kWh and 99 kWh. Electricity consumption is calculated from the moment the air conditioner turns on. The value is reset when the air conditioner turns off.

NOTE

• The usage shown on the indoor unit display may slightly differ from the amount of electricity actually consumed.
• You can view electricity consumption only when the air conditioner is operating.

Eco function

Use the Eco function to reduce electricity consumption while staying cool or warm. You can select this function in Cool or Heat mode.

In Cool or Heat mode ▶

NOTE

• When the Eco function starts, the pattern appears on the remote control for a few seconds and vertical air swing begins.
• You can change the set temperature, airflow direction, and fan speed.
• The allowed set temperatures while the Eco function is on are:

Mode	Minumum set temperature	Maximum set temperature
Cool 24 °C	30 °C
Heat 8 °C	30 °C

• If you change the set temperature to be outside the allowed range for the current mode, the set temperature is automatically reset to be within the range.
• When you turn off the Eco function, the air swing continues. Use the ⏱ (Vertical air swing) button to turn it off.
• Selecting the Eco function cancels the good'sleep, Fast, and Quiet functions.

NOTE

- You can also start the Eco function from the Options menu:

In Cool or Heat mode ▶

Select Eco.

Timed on/ Timed off function

Use the Timed on/off function to turn the air conditioner on or off after a duration. Scheduling durations before the air conditioner turns on or off helps use the air conditioner economically.

• Check the current time on the remote controller before using this function.
• The default time is 1 AM on the remote controller. The current time is reset to default time after changing the batteries.

NOTE

• You can set the time in hourly units from 1 hour to 12 hours according to AM, PM and in minute units from 0 to 59 minutes. Set the time interval to - : -- to cancel the Timed on/off function.
• When you start the Timed on/off function, the ⏻ (Timer) indicator appears on the indoor unit display.
• After starting the Timed on function, you can change the mode and the set temperature. You cannot change the set temperature while the Fan mode is running.
• You cannot set the same duration for both Timed on and Timed off functions.

Combining Timed on and Timed off
When the air conditioner is off	Example: Timed on 3 hours, Timed off 5 hoursThe air conditioner turns on 3 hours after the last time you press theSET(=T-3sec) (SET) button to start the Timed on/off function, remains on for 2 hours, then turns off again.
When the air conditioner is on	Example: Timed on 3 hours, Timed off 1 hourThe air conditioner turns off 1 hour after the last time you press theSET(=T-3sec) (SET) button to start the Timed on/off function, remains off for 2 hours, then turns on again.

good'sleep function

Use the good'sleep function to save energy while you are sleeping. You can select this function in Cool or Heat mode.

NOTE

• To cancel the good'sleep function, set the duration to 0.0.
• When you start the good'sleep function, the Ⓛ (Timer) indicator appears on the indoor unit display.
• You can set the time in half hour unit from 30 minutes to 3 hours and hour unit from 3 to 12 hours. Set the operation time to - : -- to cancel the good'sleep function.
• The recommended set temperatures while the good'sleep function is on are:

Mode	Recommended set temperature	Optimal set temperature
Cool 25 °C to 27 °C 26 °C
Heat 21 °C to 23 °C 22 °C

• The default operation time for the good'sleep function is 8 hours. If the operation time is set to over 5 hours, the Wake up function begins 1 hour before the set time. The air conditioner stops automatically when the operation time expires in the Cool mode, the air conditioner will run the function that you have started most recently in the Heat mode.
• When the Timed on, Timed off, and good'sleep functions are overlapped, the air conditioner operates its timer with only the function that you have started most recently.
• Selecting the good'sleep function cancels Eco, Fast, and Quiet functions.

Task How often	By whom Instruction
Run the Auto clean function.	As needed Owner		"Auto clean function" on page 33.
Clean the filter. Once	every two weeks Owner		"Cleaning the filter" on page 36.
Clean the exterior of the indoor unit.	As needed Owner		"Cleaning the outside of the indoor unit" on page 35.
Clean the exterior of the outdoor unit.	At least once a year Owner		"Cleaning the heat exchanger on the outdoor unit" on page 35.
Replace the remote control batteries	As needed Owner		"Replacing the remote control batteries" on page 17.
Apply corrosion inhibitor on outdoor unit. (Only if installed near salt water such as an ocean)	At least once a year Qualified technician		Contact your service provider.
Clean inside the indoor or outdoor unit.	Once a year Qualified technician		Contact your service provider.
Inspect the units, electrical connections, refrigerant tubes, and protections.	Once a year Qualified technician		Contact your service provider.

Auto clean function

Use the Auto clean function if the indoor unit produces odors.

Activating Auto clean

To activate Auto clean, press the (Options) button for at least 3 seconds.

The indoor unit display shows:

If the air conditioner is off, Auto clean starts immediately. If the air conditioner is running, Auto clean starts as soon as the air conditioner turns off.

NOTE

- You can also activate Auto clean from the Options menu:

• Once Auto clean is selected, it is always activated whenever the air conditioner turns off.
• Auto clean runs for 10 to up to 30 minutes depending on internal dry conditions. The indoor unit display shows the cleaning progress from 1% to 99% .
• If you start another function while Auto clean is progressing, Auto clean pauses and will resume when the other function stops.
• When Auto clean completes, the air conditioner turns off.

Canceling Auto clean

To cancel Auto clean while it is running, follow the procedure below:

NOTE

- Canceling Auto clean does not deactivate it.

Deactivating Auto clean

To deactivate Auto clean, follow the procedure below while the air conditioner is in operation or turned off:

Cleaning the outside of the indoor unit

1 Turn off the air conditioner and wait until the fan stops.
2 Disconnect the power supply.
3 Use a soft brush or tepid damp cloth to clean the exterior.

WARNING

- Do not clean the appliance by spraying water directly onto it. Water entering the unit may result in electric shock or fire that could cause death, serious injury, or property damage:

CAUTION

• Do not use an alkaline detergent to clean the indoor unit display.
• Do not use sulphuric acid, hydrochloric acid, or organic solvents such as paint thinner, kerosene, acetone, benzene, or alcohol to clean the unit surfaces.

Cleaning the heat exchanger on the outdoor unit

1 Turn off the air conditioner and wait until the fan stops.
2 Disconnect the power supply.
3 Spray water on the heat exchanger to remove dust and other debris.

CAUTION

• Do not use sulphuric acid, hydrochloric acid, or organic solvents such as paint thinner, kerosene, acetone, benzene, or alcohol to clean the unit surfaces.
• If you need to inspect or clean the inside of the heat exchanger on the outdoor unit, contact a local service centre for help.

Illustration of a microwave oven with steam rising, pouring liquid into a cup (no text or symbols)

Cleaning the filter

Clean the air filter every two weeks or when the filter-cleaning reminder) appears on the indoor unit display. The time between cleanings may vary, depending on the usage and environmental conditions.

1 Slide the filter off of the unit.
2 Use a soft brush or vacuum cleaner to remove any dust or debris on the filter.
3 Soak the filter in a solution of water and mild detergent for 30 minutes.
4 Rinse the filter and let it air dry in a well-ventilated area that is out of direct sunlight.
5 Reinstall the filter.
6 Reset the filter-cleaning reminder:

In operation ▶

CAUTION

• Take care not to damage the filter during cleaning.
- Do not scrub the air filter with a hard-bristle brush or another cleaning utensil.
- Do not expose the air filter to direct sunlight when drying it

Troubleshooting

If the air conditioner is not operating normally, refer to the troubleshooting guide below.

Problem Solution
The air conditioner stops working.	Make sure the unit is receiving power.Check the circuit breaker. If it is flipped off, flip it on again and restart the unit. If the problem persists, contact your service provider.The Timed off function may have turned off the unit. Turn on the unit again.
Cannot change the temperature.	Check if the unit is in Fan or Fast mode. If so, you cannot change the set temperature; the unit automatically controls the set temperature.
Improper airflow temperature.	Check the set temperature. In Cool mode, cooling occurs only when the set temperature is lower than the current temperature. In Heat mode, heating occurs only when the set temperature is higher than the current temperature.Use the (Temperature) button on the remote control to change the set temperature.Check if the air filter is blocked with dirt or debris. If the air filter is blocked, the cooling and heating performance may decrease. Clean the air filter regularly (page 36).Check if the outdoor unit is covered or is installed near obstacles. Remove the coverings and obstacles.Check if the Defrost function is on (page 24). During defrost, the fan stops and warm air does not come out.Check if doors or windows are open. This may cause poor circulation or performance. Close all doors and windows.Check if the pipe length between the units exceeds the maximum pipe length (see “Typical installation” in the Installation manual). If so, the cooling and heating performance may decrease.
Cannot change the airflow direction.	Check if the good'sleep function is on in Cool mode. If so, you cannot control the airflow direction.
Cannot change the fan speed.	Check if the unit is in Auto, Dry, or Fast mode or the good'sleep function is on in Cool mode. In these conditions, you cannot control the fan speed; the unit automatically controls the fan speed.
The remote control does not work.	Replace the batteries in the remote control.Make sure the remote control can send an unobstructed signal to the unit.Keep bright lights away from the unit. Light from fluorescent bulbs or neon signs may interrupt the signal from the remote control.
The Timed on/off function does not work.	Make sure to press the (SET) button on the remote control when setting the timer.
The indicator on the remote control blinks continuously.	Press the (Power) button to turn off the unit, or disconnect the power plug.If the indicator light on the remote control continues blinking, contact your service provider.
Odors are coming from the unit during regular operation.	If the unit is operating in a smoky area, ventilate the room or operate the unit in Fan mode for 3 to 4 hours. There are no components in the unit that produce a strong odor.Check if the drain lines are clean. Clean them regularly.
The remote control display shows an error message.	If the indoor unit indicator blinks, write down the error code. Contact your service provider and provide them with the error code.
The unit is generating noise.	It is normal for the unit to generate some noise while operating. If the pipe length between the units is less than 3 m and no coil was used (see “Typical installation” in the Installation manual), additional noise may be transmitted from the outdoor unit to the indoor unit via the piping.
Smoke is coming from the outdoor unit.	In winter, most likely this is steam coming from the outdoor heat exchanger while the Defrost function is on.
Water drips from the pipe connections on the outdoor unit.	Condensation may develop when the ambient temperature or humidity changes significantly. This is normal.

Information about Refrigerant

Important information: regulation regarding the refrigerant used.

This product contains fluorinated greenhouse gases. Do not vent gases into the atmosphere.

CAUTION

If the system contains 5 tCO _2 e or more of fluorinated greenhouse gases, it must be checked for leakage at least once every 12 months, according to regulation No. 517/2014. This activity must be covered by qualified personnel only. In the case of the situation above, the installer (or authorized person with responsibility for final check) must provide a maintenance book, with all the information recorded, according to REGULATION (EU) No. 517/2014 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 16 April 2014 on fluorinated greenhouse gases.

Refrigerant type GWP value
R-32 675

• GWP: Global Warming Potential
• Calculating tCO _2 e: kg x GWP/1000

The SmartThings app may change without prior notice to improve product usability and performance. Use the SmartThings app on your smartphone to control the air conditioner via the wireless Internet. To remotely control the air conditioner, you need to connect your smartphone to the air conditioner. If already connected, skip to "Step 6. Controlling the air conditioner with your smartphone" on page 41.

Step 1. Checking the requirements for connection

Before connecting your smartphone with the air conditioner, make sure that the following requirements are met:

• Wi-Fi access point: 2.4 GHz Wi-Fi access point only
• The air conditioner and you smartphone must be within the coverage of the same Wi-Fi access point and connected to it. After the connection, you can control the air conditioner from any place via various wireless networks such as Wi-Fi, 3G, LTE and 5G.
• Recommended Android phones: Android 6.0 or later, at least 2 GB RAM
• Supported Apple phones: iOS 10.0 or later, iPhone 6 or later
• Android tablets and iPads are not supported.

Step 2. Connecting your smartphone to the Wi-Fi network

1 Turn on the Wi-Fi access point.
2 Tap Settings → Wi-Fi on your smartphone.
3 Tap the Wi-Fi switch to activate it, and then select the 2.4 GHz Wi-Fi access point to connect to.
4 If needed, enter the password for the access point.
5 Tap Advanced.
6 Top the Switch to mobile data switch to deactivate it.

Step3. Installing the SmartThings app

If the SmartThings app is not installed on your smartphone, follow the procedure below. If installed, skip to "Step 4. Configuring the SmartThings app" on page 40.

1 Launch Play Store or App Store.
2 Tap the search field, and then search for "SmartThings".
3 Tap INSTALL for the found SmartThings app item.
4 Select Agree.

Step 4. Configuring the SmartThings app

After the SmartThings app is installed, follow the procedure below to configure it. If already configured, skip to "Step 5. Connecting your smartphone to the air conditioner" on page 41.

1 Launch the SmartThings app.
2 When you see pop-up windows asking for location, Wi-Fi, Bluetooth permissions, tap Start.
3 Tap Log In.
4 If you have no Samsung account, tap Add account to create your Samsung account.
5 Log in to your Samsung account.
6 Consent to TERMS AND CONDITIONS.
7 When you see a pop-up window asking for access permission to location information, tap ALLOW.

Step 5. Connecting your smartphone to the air conditioner

1 Plug in the power cord of the air conditioner, and then turn on the power.
2 Launch the SmartThings app.
3 Tap Add device on the home screen of the SmartThings app.
4 Tap ADD DEVICE MANUALLY.
5 Tap Air conditioner > Room air conditioner.
6 Press the (Timer) button on the remote control for at least 4 seconds.

To notify that registration of the selected air conditioner to your Samsung account is in progress, the (Transmit) indicator blinks for several seconds and appears on the remote control display. When the connection is finished, the (Transmit) indicator turns off and disappears. A new device card for the selected air conditioner is added to the home screen of the SmartThings app.

Step 6. Controlling the air conditioner with your smartphone

1 Launch the SmartThings app.
2 On the home screen of the SmartThings app, tap the device card for the air conditioner, which was added when you proceeded with "Step 5. Connecting your smartphone to the air conditioner" on page 41.
3 Refer to the table on the next page and remotely control the air conditioner with your smartphone.

WARNING

• RF exposure warning statement – for keeping 20cm distance when installing this module.

• Warning that this module should not be installed and operating simultaneously with other radio without additional evaluation or FCC filing.

• Instruction for host system labeling, the host system should have proper label showing that it "Contains FCC ID : A3LSWL-B70F"

• Your device uses non-harmonised frequency and is intended for use in all European countries. The WLAN can be operated in the EU without restriction indoors, but cannot be operated outdoors in France.

Specifications

Wi-Fi

Frequency Range Transmitter Power(Max)

2412 - 2472 MHz 20 dBm

Open Source Announcement

The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:[e-mail].

It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.

The following URL http://opensource.samsung.com/opensource/SMART_AT_051/seq/0 leads to the download page of the source code made available and open source license information as related to this product. This offer is valid to anyone in receipt of this information.

Category Function Description
Monitoring	Set temperature Displays the set temperature.
	Current temperature Displays the current temperature.
Control	Power Turns the air conditioner on or off.
	Mode Selects the desired operation.
	Temperature Adjusts the indoor set temperature.
	Fan Speed Sets the fan speed of operation mode.
	Wind direction Sets the fan directions of operation mode.
	Schedule	Sets the Timed on/off function.The maximum number of schedules you can set using the Timed on/off function is 10.The set times for the Timed on and Timed off functions must be different.Once the Timed on/off function is set, the setting remains even if you unplug the air conditioner and plug in it again.
	Options	Selects an option function of operation mode.The available options might be different depending on the air conditioner model.The fan speed and airflow direction are set automatically according to the selected options.For detailed information on the options of the product, see page~27.
	Settings	Sets additional functions.Press the Settings button on the control screen to check or set detailed information of air conditioner.The functions of Clean, Filter, and Beep can be set.-When the Beep function is off, the beep sound from the device will be mute.
English	Hereby, Samsung Electronics, declares that the radio equipment type appliance is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: The official Declaration of conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.
Czech	Společnost Samsung Electronics tímto prohlašuje, že uvedené rádiové zařízení vyhovuje požadavkům směrnice 2014/53/EU. Úplné znění EU Prohlášení o shodě je k dispozici na následující internetové adrese: Oficiální prohlášení o shodě naleznete na webu http://www.samsung.com, kde klepněte na odkaz Podpora a do pole Hledat Podporu zadejte název modelu.
Danish	Samsung Electronics erklærer hermed, at denne type radioudstyrsapparat opfylder kravene og bestemmelserne i direktiv 2014/53/EU. Hele teksten i EU-overensstemmelseserklæringen findes på denne webadresse:Den officielle overensstemmelseserklæring kan findes på http://www.samsung.com. Gå til support > Søg efter produktsupport, og angiv modelnavnet.
German	Samsung Electronics erklärt hiermit, dass diese Vorrichtung vom Gerätetyp Funkgerät der Richtlinie 2014/53/EU entspricht. Der gesamte Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: Die offizielle Konformitätserklärung ist unter http://www.samsung.com zu finden. Gehen Sie zu Support > Produktsupport durchsuchen und geben Sie den Modellnamen ein.
Estonian	Käesolevaga kinnitab Samsung Electronics, et raadioseadme tüüpi seade vastab direktiivile 2014/53/EL. EL-i vastavusdeklaratsiooni terve tekst on saadaval internetis järgmisel aadressil. Ametliku vastavusdeklaratsiooni leiate aadressilt http://www.samsung.com, avage menüü Tugi > Otsi toote tuge ja sisestage seejärel mudeli nimi.
Spanish	Por la presente, Samsung Electronics declara que este aparato de equipamiento de radio cumple con la Directiva 2014/53/UE. El texto completo de la declaración de conformidad con la UE está disponible en la siguiente dirección de Internet: La Declaración de conformidad oficial se puede encontrar en http://www.samsung.com, vaya a soporte > Búsqueda de soporte de productos e introduzca el nombre del modelo.
Greek	Με την παρούσα, η Samsung Electronics, δηλώνει ότι η συσκευή ραδιοεξοπλισμού συμμορφώνεται με την Οδηγία 2014/53/EE. Το πλήρες κείμενο της δήλωσης συμμόρφωσης με την ευρωπαϊκή οδηγία είναι διαθέσιμο στη διεύθυνση: Μπορείτε να βρείτε την επίσημη δήλωση συμμόρφωσης στην τοποθεσία http://www.samsung.com. Επιλέξτε Υποστήριξη > Αναζήτηση υποστήριξης προϊόντος και εισαγάγετε το όνομα μοντέλου.
French	Par la présente, Samsung Electronics déclare que cet appareil de type équipement radio est en conformité avec la Directive 2014/53/UE. Le texte intégral de la déclaration de conformité de l'UE est disponible à l'adresse Internet suivante :La Déclaration officielle de conformité se trouve sur http://www.samsung.com, rendez-vous sur la page d'assistance > Rechercher dans l'Assistance et saisissez un nom de modèle.
Italian	Samsung Electronics dichiara che l'apparecchiatura radio aderisce alla direttiva 2014/53/EU. Il testo integrale della dichiarazione di conformità EU è disponibile al seguente indirizzo: La dichiarazione ufficiale di conformità è disponibile su http://www.samsung.com, selezionare supporto> Cerca Supporto Prodotto e inserire il nome del modello.
Latvian	Samsung Electronics ar šo paziņo, ka šī radioiekārtas tipa ierīce atbilst Direktīvas 2014/53/ES prasībām. Pilns ES atbilstības deklarācijas teksts ir pieejams šajā interneta adresē: Oficiālo atbilstības deklarāciju var atrast vietnē http://www.samsung.com, atverot Atbalsts > Meklēt produkta atbalstu un ievadot modela nosaukumu.
Lithuanian	Šiuo dokumentu Samsung Electronics patvirtina, kad radijo įrangos tipo prietaisas atitinka direktyvos 2014/53/ES reikalavimus. Visą ES atitikties deklaracijos tekstą rasite apsilankę internetinėje svetainėje adresu: Oficiali atitikties deklaracija pateikiama svetainėje http://www.samsung.com, eikite j skirtuką Palaikymas > leškoti gaminio palaikymo ir įveskite modelio numerį.
Dutch	Samsung Electronics verklaart hierbij dat het type radiotoestel voldoet aan Richtlijn 2014/53/EU. De volledige tekst van de EG-Conformiteitsverklaring vindt u op deze website: De officiële Conformiteitsverklaring vindt u op http://www.samsung.com, ga naar Ondersteuning > Productondersteuning zoeken en voer de modelnaam in.
Hungarian	A Samsung Electronics ezennel kijelenti, hogy a rádiós berendezés típusú készülék megfelel a 2014/53/EK irányelv előírásainak. Az EU megfelelőségi nyilatkozat teljes szövege az alábbi weboldalon olvasható: A hivatalos Megfelelőségi nyilatkozat a http://www.samsung.com honlapon olvasható, lépjen a Támogatás > Terméktámogatás keresése menūpontra, és adja meg a modell nevét.
Polish	Firma Samsung Electronics niniejszym oświadcza, że sprzęt radiowy jest zgodny z wymogami Dyrektywy 2014/53/UE. Petny tekst europejskiej deklaracji zgodności jest dostępny na stronie internetowej: Treść oficjalnej deklaracji zgodności jest dostępna pod adresem http://www.samsung.com w menu Wsparcie > Szukaj, gdzie należy podać nazwę modelu.
Portuguese	Pelo presente, a Samsung Electronics declara que o aparelho tipo equipamento de rádio está em conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade europeia está disponível no seguinte endereço da internet: A Declaração de conformidade oficial pode ser encontrada em http://www.samsung.com, vá a Suporte > Pesquisar Suporte do produto e insira o nome do modelo.
Slovenian	S tem družba Samsung Electronics izjavlja, da je radijska oprema skladna z Direktivo 2014/53/EU. Celotno besedilo izjave ES o skladnosti je na voljo na spodnjem internetnem naslovu: Uradno izjavo o skladnosti lahko najdete na naslovu http://www.samsung.com. Pojdite na podporo > Iskanje podpore za izdelek, nato vnesite ime izdelka.
Slovak	Spoločnost Samsung Electronics týmto vyhlasuje, že zariadenie rádiového typu je v súlade so smernicou 2014/53/EÚ. Celé znenie Vyhlásenia o zhode EÚ je k dispozícii na nasledujúcej internetovej adrese: Oficiálne Vyhlásenie o zhode sa nachádza na lokalite http://www.samsung.com, prejdite na položky Podpora > Vyhladávanie podpory produktov a zadajte názov modelu.
Finnish	Samsung Electronics vakuuttaa, että radiolaite on direktiivin 2014/53/EU vaatimusten mukainen. EU-vaatimustenmukaisuusvakuutuksen täydellinen teksti on saatavilla seuraavassa Internet-osoitteessa: Virallinen vaatimustenmukaisuusvakuutus on osoitteessa http://www.samsung.com. Valitse Tuki > Etsi tuotetukea ja kirjoita mallinimi.
Swedish	Härmed deklarerar Samsung Electronics att denna anordning av radioutrustningstyp uppfyller direktivet 2014/53/EU. Den fullständiga texten i EU-deklarationen om överensstämmelse finns tillgänglig på följande internetadress:Den officiella deklarationen om överensstämmelse finns på http://www.samsung.com. Gå till stöd > Sök produktsupport och ange modellnamnet.
Bulgarian	С настоящия gokумент Samsung Electronics gekларира, че уредът om mun радиооборудване е в съответствие с Директива 2014/53/ЕС. Целият мекст на ЕС Декларацията за съответствие е наличен на следния интернет агрес:Официалната Декларация за съответствие можете да намерите на http://www.samsung.com, отигете на отигете на поддръжка > Търсене на поддръжка за прогукм и въвегеме името на могела.
Romanian	Prin prezenta, Samsung Electronics declară faptul că aparatul de tip echipament radio respectă Directiva 2014/53/UE. Textul complet al declarației de conformitate UE este disponibil la una dintre următoarele adrese de internet: Declarația de conformitate oficială poate fi găsită la http://www.samsung.com, accesați asistența > Căutați asistența produsului și introduceți numele modelului.
Norwegian	Samsung Electronics erklærer herved at dette radioutstyret er i samsvar med direktiv 2014/53/EU. Den fullstendige teksten til EU-samsvarserklæringen er tilgjengelig på følgende nettadresse: Den offisielle samsvarserklæringen finnes på http://www.samsung.com. Gå til Support > Søk gjennom produktsupport og angi modellnavn.
Turkish	İşbu belge ile, Samsung Electronics bu radyo ekipmanı türü cihazın 2014/53/EU Direktifine uygun olduğunu beyan etmektedir. AB uygunluk beyanının tam metnine aşağıdaki internet adresinden ulaşabilirsiniz: Resmî Uygunluk beyanını http://www.samsung.com adresinde bulabilirsiniz. Destek > Ürün Desteği Ara'ya gidin ve model adını girin.
Russian	Настоящим компания Samsung Electronics заявляет, что устройство типа радиооборудование соответствует Директиве 2014/53/ЕС. Полный текст декларации о соответствии ЕС доступен по следующему веб-адресу:Официальная Декларация о соответствии доступна по адресу http://www.samsung.com, пройдите в раздел Поддержка > Поиск продукта и введите имя модели.
Ukrainian	Цим компанія Samsung Electronics заявляє, що прилад, який належить до радіообладнання, відповідає вимогам Директиви 2014/53/EU. Повний текст декларації про відповідність нормам країн ЄС доступний за такою адресою в інтернеті:Офіційний текст Декларації про відповідність можна знайти на сайті http://www.samsung.com; перейдіть до розділу підтримки, потім — до поля пошуку підтримки для певного виробу та введіть назву моделі.
Serbian	Ovim putem kompanija Samsung Electronics izjavljuje da je ovaj uređaj u tipu radio opreme u skladu sa direktivom 2014/53/EU. Kompletan sadržaj EU deklaracije o usaglašenosti dostupan je na sledećoj internet adresi: Zvaničnu deklaraciju o usaglašenosti možete naći na adresi http://www.samsung.com, idite na Podrška > Pretraga podrške za proizvode i unesite naziv modela.
Croatian	Tvrtka Samsung Electronics ovim izjavljuje da je uređaj tipa radijske opreme usklađen s Direktivom 2014/53/EU. Potpuni tekst EU deklaracije o sukladnosti dostupan je na sljedećim web-adresama: Službenu Izjavu o sukladnosti možete pronaći na adresi http://www.samsung.com, ako odaberete Podrška > Traži podršku za proizvod i unesete naziv modela.

QUESTIONS OR COMMENTS?

COUNTRY CALL	OR VISIT US ONLINE AT
UK 0330 SAMSUNG (7267864) www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100 www.samsung.com/ie/support
GERMANY 06196 77 555 77 www.samsung.com/de/support
FRANCE 01 48 63 00 00 www.samsung.com/fr/support
ITALIA 800-SAMSUNG (800.7267864) www.samsung.com/it/support
SPAIN 91 175 00 15 www.samsung.com/es/support
PORTUGAL 808 207 267 www.samsung.com/pt/support
LUXEMBURG 261 03 710 www.samsung.com/be_fr/support
NETHERLANDS	088 90 90 100	www.samsung.com/nl/support
BELGIUM	02-201-24-18	www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
NORWAY	21629099	www.samsung.com/no/support
DENMARK	707 019 70	www.samsung.com/dk/support
FINLAND	030-6227 515	www.samsung.com/fi/support
SWEDEN	0771 726 786	www.samsung.com/se/support
POLAND	801-172-678* lub [phone]*Specjalistyczna infolinia do obsługi zapytańdotyczących telefonów komórkowych: 801-672-678** (optata według taryfy operatora)	http://www.samsung.com/pl/support/
HUNGARY	0680SAMSUNG (0680-726-7864)	www.samsung.com/hu/support
AUSTRIA	0800 72 67 864 (0800-SAMSUNG)	www.samsung.com/at/support
SWITZERLAND	0800 726 786 (0800-SAMSUNG)	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
CROATIA	072 726 786 www.samsung.com/hr/support
BOSNIA	055 233 999	www.samsung.com/support
North Macedonia	023 207 777	www.samsung.com/mk/support
MONTENEGRO	020 405 888	www.samsung.com/support
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si/support
SERBIA	011 321 6899	www.samsung.com/rs/support
ALBANIA	045 620 202 www.samsung.com/al/support
BULGARIA	*3000 Цена на един градски разговор0800 111 31 Безплатен за Всички операмори	www.samsung.com/bg/support
ROMANIA	*8000 (apel in retea)08008-726-78-64 (08008-SAMSUNG) Apel GRATUITAtenție: Dacă efectuați apelul din rețeaua Digi (RCS/RDS), vă rugăm să ne contactați formând numărulTelverde fără ultimele două cifre, astfel: 0800872678.	www.samsung.com/ro/support
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line([phone] from mobile and land line
LITHUANIA	8-800-77777	www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/lv/support
ESTONIA	800-7267	www.samsung.com/ee/support
