USER MANUAL 934-592 Marquant

Black selfie stick with attached USB cable and orange clip (no text or symbols visible)

EN - Operating instructions in original

Date of production: 2015-02-11

© Jula AB

SVENSKA....4

SÄKERHETSANVISNINGAR....4

TEKNISKA DATA 4

BESKRIVNING 5

SAFETY INSTRUCTIONS....19

TECHNICAL DATA....19

DESCRIPTION 20

Package contents 20

USE....21

Charging....21

Photographing....21

Status lights 22

SÄKERHETSANVISNINGAR

Diagram showing a device with an arrow pointing to a component, and a magnified inset of the device (no text or symbols present)

Diagram showing a device with an open lid and a small device with a rotation arrow, no text or symbols present.

Simple line drawing of a selfie stick with a smartphone mounted on a pole, no text or symbols present

Simple line drawing of a tool with a handle and curved tip, no text or symbols present

INDIKERINGSLAmpoR

Symbol of a trash bin with diagonal lines crossing it, no text or labels present

Värna om miljön!

Diagram showing a device with an inset close-up of its internal components (no text or symbols)

Diagram showing a device with an open lid and a base device with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a selfie stick with a smartphone mounted on a pole, no text or symbols present

Simple line drawing of a pen-like object with a handle and a curved line above it, no text or symbols present.

INDIKAToRLAmpER

• Blå lampe slukket: avslått
• Blå lampe blinker én gang: fotografering
• Blå lampe blinker raskt: Bluetooth-tilkobling lyktes/aktiveres
• Blå lampe blinker middels raskt: Bluetooth-tilkobling aktivert
• Blå lampe blinker sakte: utladet batteri
• Rød lampe lyser: lading
  • Rød lampe slukt: fulladet

Diagram showing a device with an inset close-up of its internal components (no text or symbols)

Diagram showing a device with an open lid and a switch, no text or symbols present

Simple line drawing of a selfie stick with a smartphone mounted on a pole, no text or symbols present

Simple line drawing of a tool with a handle and a curved handle, no text or symbols present

LAmpKI KoNTRoLNE

Pure electrical circuit lines without any symbols

DBAJ O ŚRODOWISKO!

Read the User Instructions carefully before use.

Save them for future reference.

• Never attempt to dismantle the product.
• Never use alcohol, solvents or the equivalent to clean the product.
• Do not expose the product to extreme temperatures.
• Do not use the product in the rain, or in damp areas.
• Keep the product away from naked flames and other sources of heat.

TECHNICAL DATA

Max load capacity 500 g

Net weight 169 g

Telescopic sections 7

Smartphone width 63–85 mm

Length 235–1005 mm

Tripod screw 1/4 inch

Charging voltage 5 v

Battery capacity 45 mAh

Charging time 1 hour

Standby time ≥ 100 hours

Autodyne frequency ≥ 500 Hz

Operative system ≥ Android 3.0, iOS 4.0

Support: Bluetooth compatible iOS (4.0 and above) most Android (2.2 and above) devices (excluding HTC/SONY) using the Camera 360 application.

DEScRIpTIoN

1. Width adjustment phone holder
2. Phone holder grip
3. Height adjustment phone holder
4. Phone holder
5. Knob
6. Side screw holder fastener
7. Telescopic stick
8. Rubber grip
9. Trigger button for camera
10. Status light
11. Power switch
12. Micro USB port
13. Holder fastener
14. 1/4 inch tripod screw

pAcKAGE coCONTENTS

• Bluetooth selfie stick
• Micro USB cable
• Phone holder
• Phone holder grip

USE

CHARGING

1. Connect the micro USB charging cable to the micro USB port at the bottom of the Bluetooth selfie stick. Connect the other end to a USB port on a computer or to a USB charger.
2. The status light turns red during charging.
3. The status light goes off when battery is fully charged.

pHoToGRApHING

NoTE:

• The Bluetooth selfie stick goes into standby mode after 2 hours of inactivity. Press the camera button to activate it.

• The product can cause conflict with some smartphone keyboards. Disconnect or switch off the product in the event of problems.

• Put the power switch in the ON position to start the product.

• Check that your smartphone is switched on and that Bluetooth is enabled.
• Open Bluetooth settings on the phone and connect to Julia Selfie Stick.

- Check that the selfie stick is in Bluetooth mode and that the status light is flashing blue.

- If the status light is not flashing blue, reset the selfie stick by switching it off and restarting it with the power switch.

1. Open the camera program on the phone. Download and use the free app "Camera360" from the App store / Google Play if the camera in the phone is not working properly.

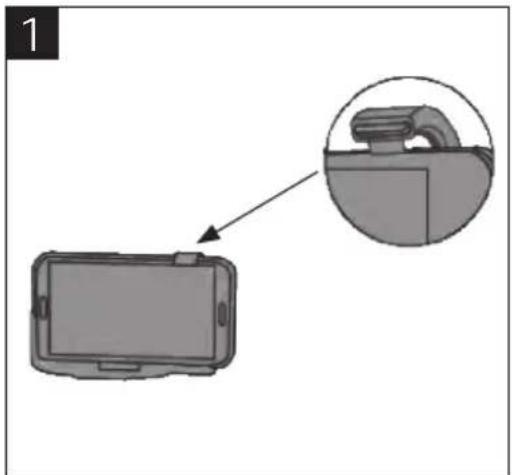

2. Place the phone in the holder and lock firmly in place (diagram 1). Adjust the width setting.

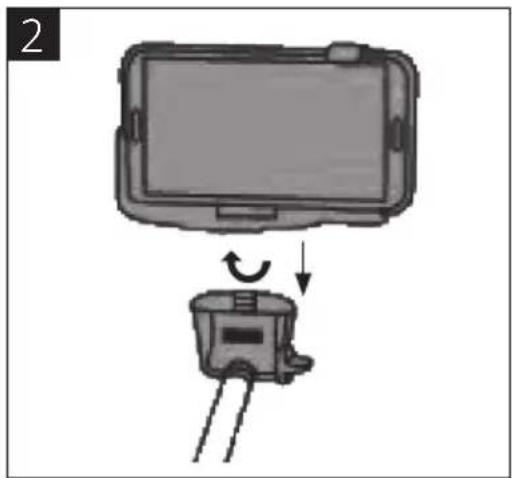

3. Screw the phone holder onto the 1/4 inch tripod screw on the Bluetooth selfie stick and tighten with the knob (diagram 2).
4. Set the required angle on the holder fastener and tighten the side screw.

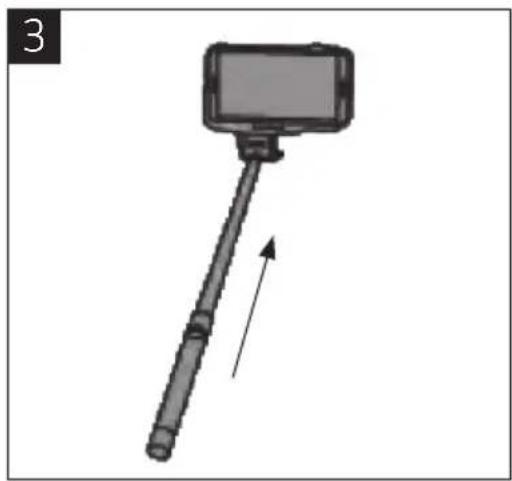

5. Pull out the telescopic stick to the required length (diagram 3).

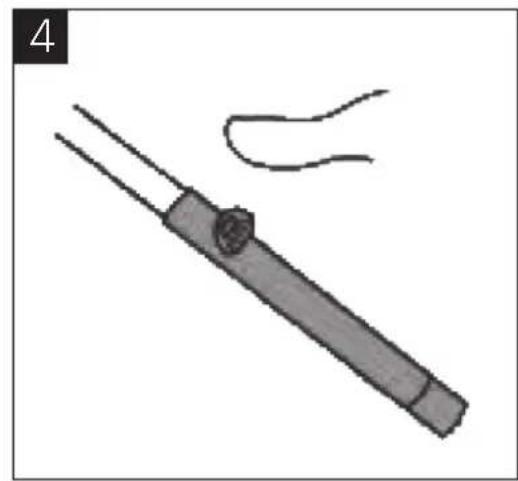

6. Press the trigger button to take a photo (diagram 4).
7. Switch off the product by moving the power switch to the OFF position.

Diagram showing a device with an inset close-up of its internal components (no text or symbols)

Diagram showing a device with an open lid and a small device with a rotation arrow, no text or symbols present.

Simple line drawing of a selfie stick with a smartphone mounted on a pole, no text or symbols present

Simple line drawing of a pen-like object with a handle and a curved line above it, no text or symbols present.

STATUS LIGHTS

• Blue light off: switched off
  • Blue light flashes once: photographing
• Blue light flashing rapidly: Bluetooth connection successful/enabled
• Blue light flashing moderately: Bluetooth connection enabled
  • Blue light flashing slowly: discharged battery
• Red light on: charging
  • Red light off: fully charged

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Care for the environment!

Must not be discarded with household waste!

This product contains electrical or electronic components that should be recycled.

Leave the product for recycling at the designated station e.g. the clocal authority's recycling station.
