Product Type	Go-Kart Attachment for Electric Scooters
Brand	Denver
Model	KAR-1500
Dimensions (approximate)	80 x 60 x 40 cm
Weight	Approx. 8 kg
Maximum User Weight	100 kg
Recommended Age	12 years and above
Assembly Required	Yes (include mounting bracket, seat, and straps)
Compatibility	Electric scooters with rear wheel mount (strap-on)
Steering Method	Push handles down to move forward, push one side to turn
Braking	Push both handles up or release throttle on scooter
Safety Features	Requires helmet, knee pads; not for slopes over 30°; only for closed areas
Daily Maintenance	Wipe with soft cloth; store indoors away from sunlight and open flame
Battery Requirement	None (passive attachment; scooter battery powers movement)
Included in Box	Seat, footrest, handles, mounting bracket, straps, hardware
Warranty	Manufacturer warranty (details in manual)
Intended Use	Recreational karting on flat, paved surfaces

Frequently Asked Questions - KAR-1500 DENVER

How do I attach the KAR-1500 to my scooter?

Use the provided straps to secure the kart around the scooter's rear wheel and frame. Ensure the mounting bracket aligns with the scooter's axle. Refer to Assembly Steps 1-3 in the manual.

What scooters are compatible with the Denver KAR-1500?

The kart fits most electric scooters with a rear wheel and a sturdy frame. It uses adjustable straps, so it works with various wheel sizes. Check the manual for exact compatibility.

Can children use the KAR-1500?

It is not recommended for children under 12 years old. Always wear safety gear and supervise kids. The user must be able to reach the footrest and handles comfortably.

How do I steer the kart?

Lean and push the handles. To turn left, push the right handle down. To turn right, push the left handle down. Push both down to go forward. Release or push both up to brake/decelerate.

Is it safe to use on slopes?

No, avoid inclines or declines over 30 degrees. The kart is designed for flat, closed areas only. Sudden slopes can cause loss of control.

How do I clean and maintain the kart?

Wipe the shell with a soft, damp cloth. Do not use harsh chemicals. Store indoors in a dry place, away from direct sunlight and open flame. Check straps for wear regularly.

What is the weight limit?

The maximum recommended user weight is 100 kg (220 lbs). Exceeding this may damage the kart or compromise safety.

Can I use the kart on rough terrain?

No, it is intended for smooth, paved surfaces like parking lots or driveways. Uneven ground, gravel, or grass can cause instability.

Does the kart come fully assembled?

Partial assembly is required. You need to attach the seat, footrest, and handles using the included hardware (bolts, washers, nuts). The mounting system wraps around the scooter.

How do I dismount safely?

Turn off the scooter before getting off the seat. The handles may move if the scooter is still on, causing unexpected movement. Lift the kart slightly if needed to access the power button.

USER MANUAL KAR-1500 DENVER

Black and white photo of a black metal detector with attached sensor and wheels (no text or symbols visible)

www.facebook.com/denverelectronics

Before operating this vehicle, read all the instructions for safe assembly and operations. User's manual can guide you through the functions and usage of Balance scooter. Before using this scooter, familiarize yourself with how to operate, so that you can keep the scooter in the best condition possible.

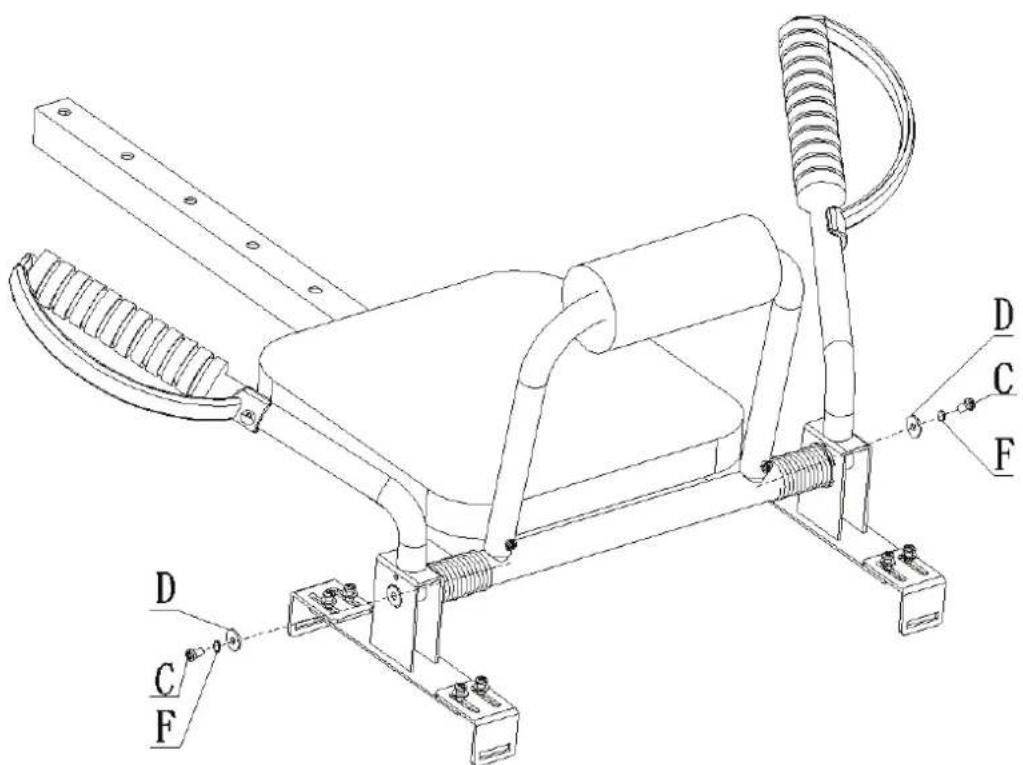

1 × 1×		2×

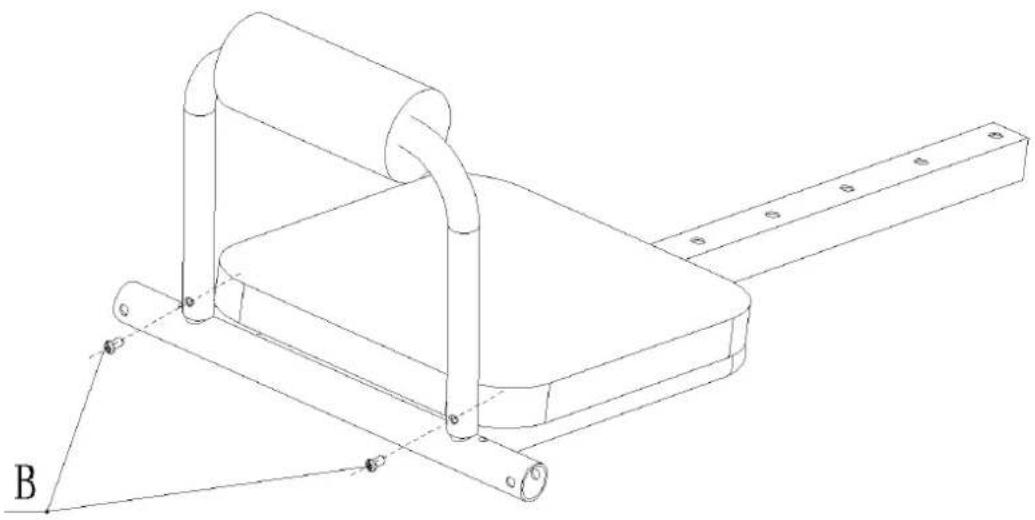

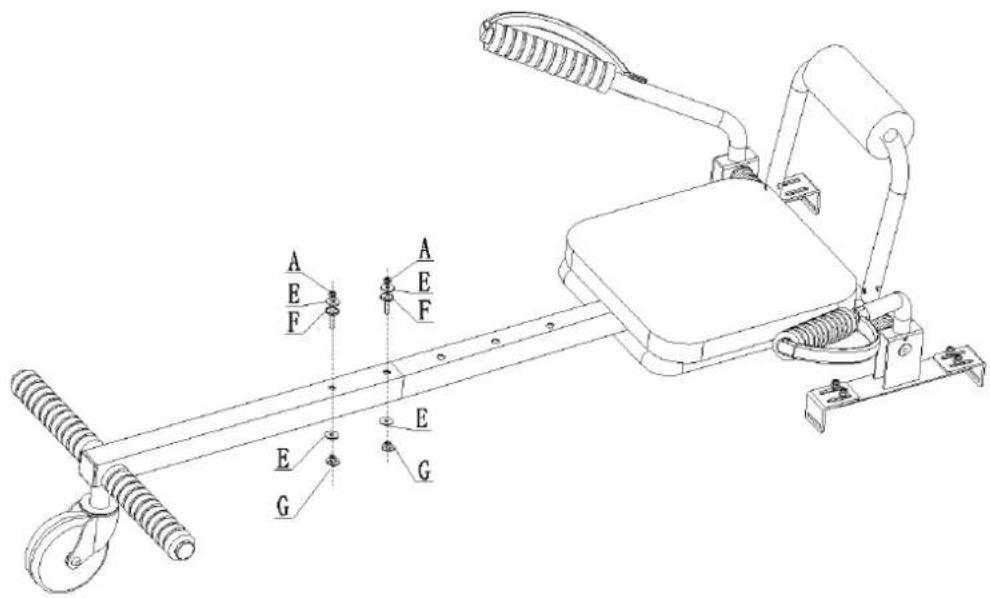

A 2×(M6*45MM) B 2×(M6*13 MM)		C 2×(M6*15MM)
D 2× E 4×

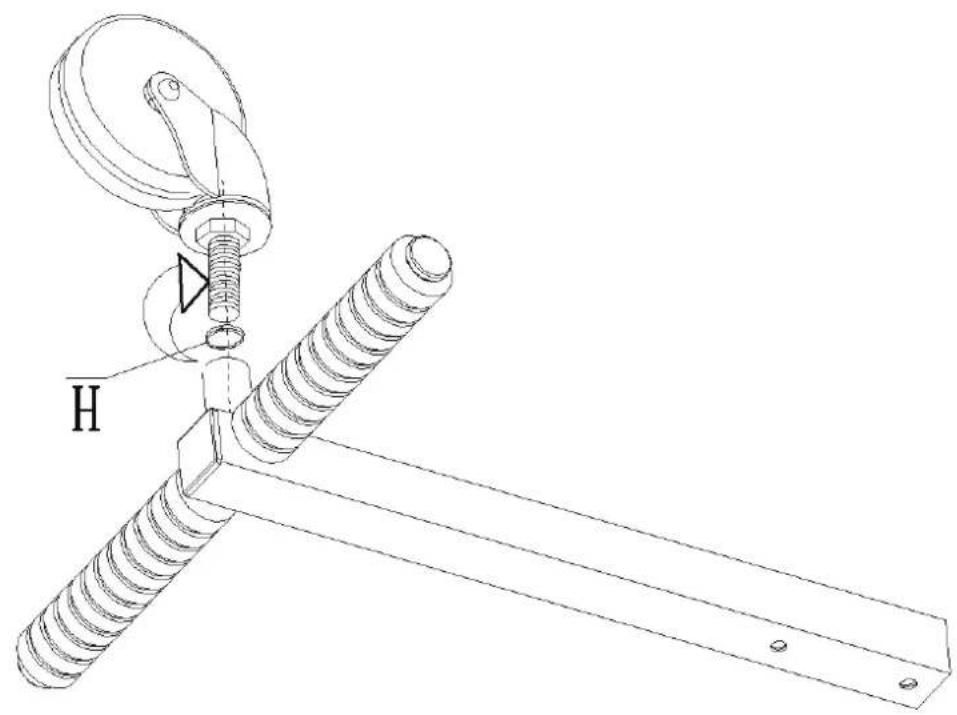

G 2× H 1×		——

1

Technical line drawing of a mechanical assembly with cylindrical components and a base plate (no text or symbols)

2

3

4

Safety Instructions

As with all means of transport, there is a safety risk. Therefore, you have to understand the safety precautions about the product very well and be careful when driving:

1. Do not accelerate and/or brake very quickly; or go from one to the other constantly.

2. If there is a risk of falling, please react to personal safety first.

Caution

① Please wear safety helmet, gloves, knee pads, and other necessities to protect yourself when driving.

② Please go to a quiet open area to practice.

③ Should not be driven on uneven surfaces, such as soil road, rock road.

④ Should not be on inclines/declines over 30 degrees

⑤ Not recommend for children under 12 years.

⑥ Only for use on closed/private areas.

Daily maintenance

● Wipe the shell of kart with soft cloth.
● Store the kart indoors. Put it in a place with a dry and suitable environment.
- Do not store the product in sunlight or near open fire.

To operate:

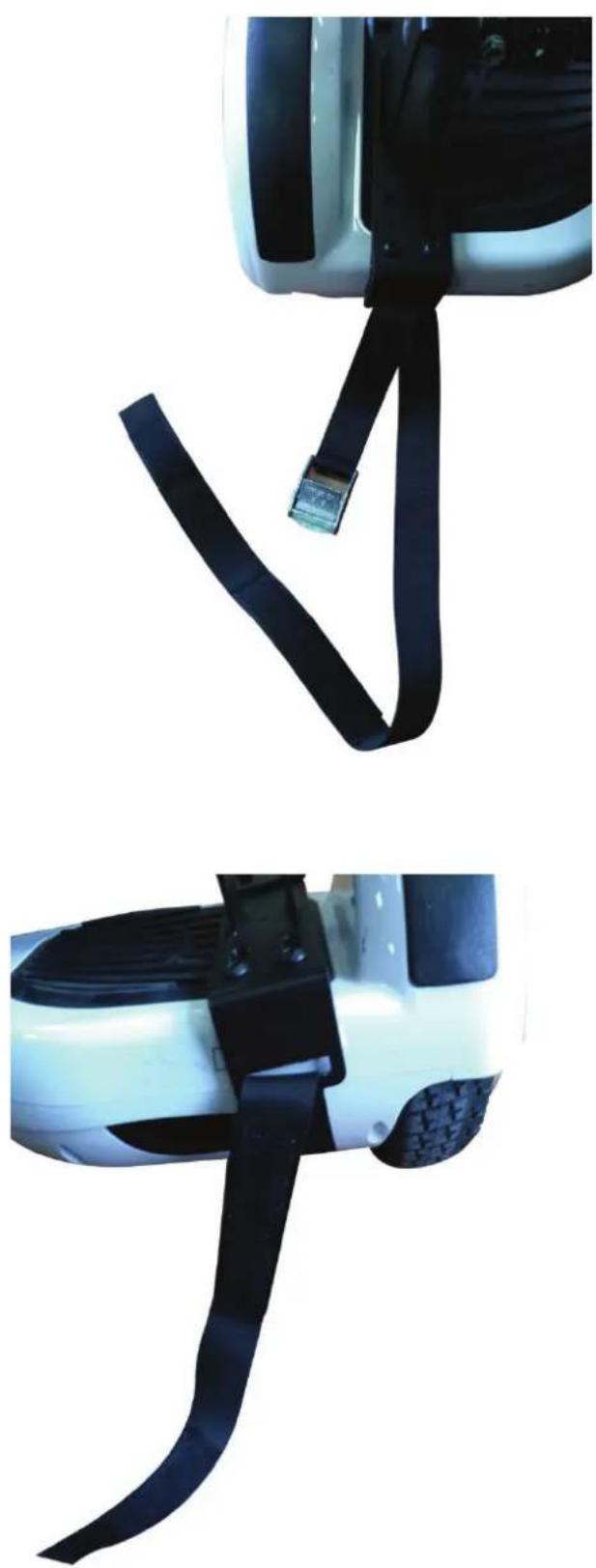

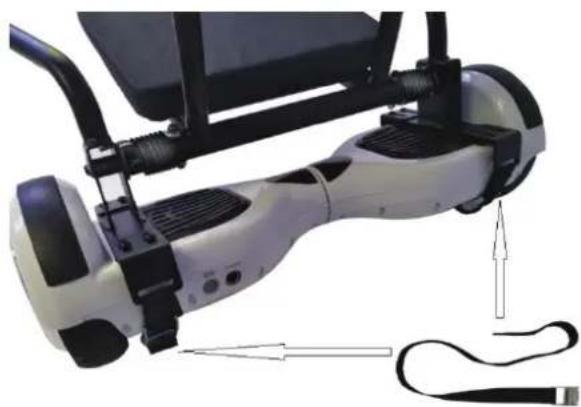

Use a strap to attach the cart to the scooter

1

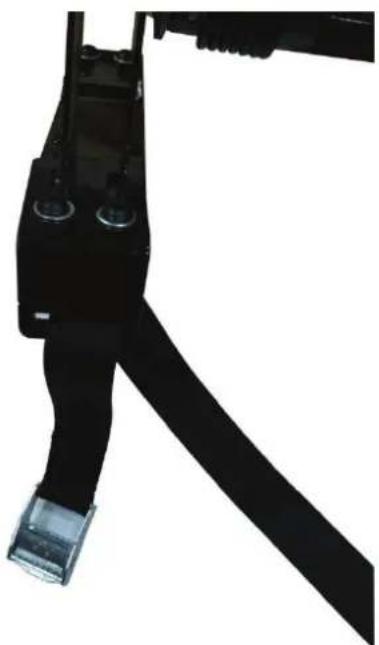

Close-up of a black mechanical component with attached fasteners (no visible text or symbols)

2

3

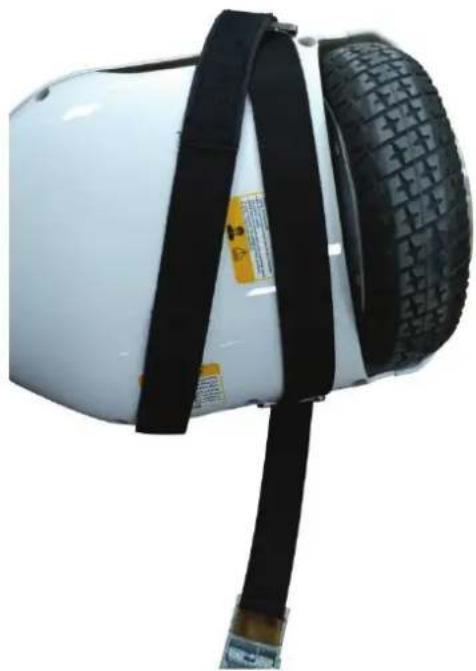

Close-up of a white and black automotive seatbelt device with attached black straps (no visible text or symbols)

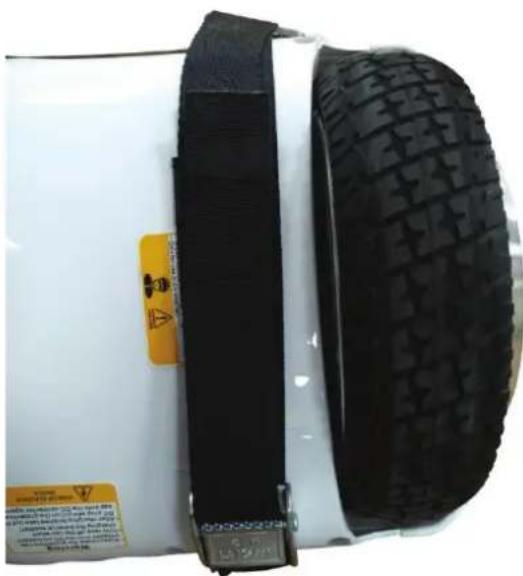

Close-up of a white vehicle with black and black straps attached to a tire, no visible text or symbols.

Close-up of a white car tire with black rubber band and yellow warning label (no readable text or symbols)

6

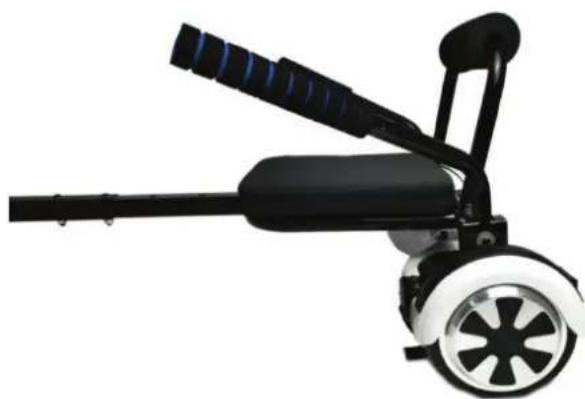

Exterior view of a white electric scooter with attached cable and sensor components (no text or symbols visible)

Sit on seat, feet on foot rest. Turn on the power switch.

*Do not push the handles up or down whilst your feet are on the ground.

Black and white photo of a small electric scooter with extended blade and wheels (no text or symbols visible)

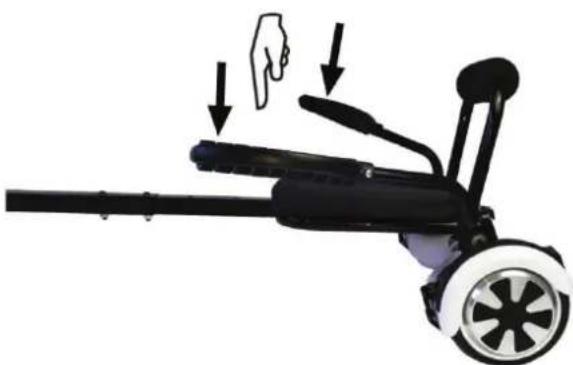

Move forward: Push the handles down on both sides at the same time.

Illustration of a hand pressing down on a wheeled bicycle (no text or symbols)

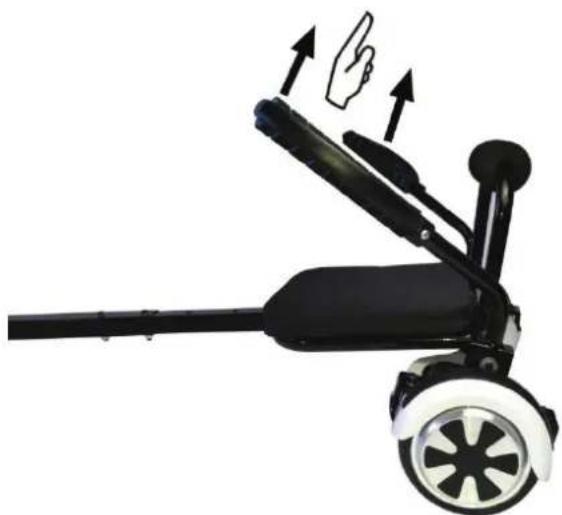

Move back or brake

Side view of a black electric scooter with hand gesture indicator (no text or symbols)

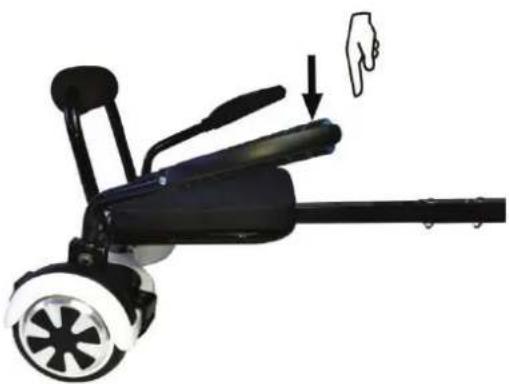

Turn left: Push the right handle down.

Mechanical device with hand gesture indicator showing a finger pressing a button (no text or symbols)

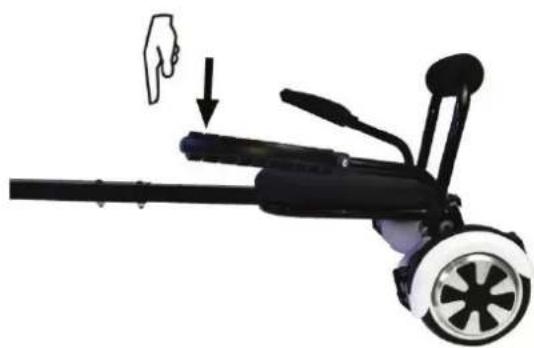

Turn right: Push left handle down.

Illustration of a hand pressing down on a black bicycle steering wheel (no text or symbols)

*Turn the board off before getting off the seat.

Scooters have differing settings. You may need to get off the kart and loosen the straps and lift the kart slightly off the board before you are able to turn it off.

Be very careful when getting of the kart when the board is still on. Moving the handles will make the kart move.

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

DENVER®

www.denver-electronics.com

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.
