Product Type	Portable DVD Player
Brand	Denver
Model	MT-769
Screen Size	7 inches (17.8 cm) TFT LCD
Screen Resolution	800 x 480 pixels
Disc Compatibility	DVD, DVD±R/RW, CD, CD-R/RW, MP3, JPEG, DivX
Region Code	Multi-region (plays all regions)
Inputs	USB 2.0, SD/MMC card slot
Outputs	AV out (composite), 3.5 mm headphone jack
Power Supply	DC 5V/2A via included AC adapter or car adapter
Battery	Rechargeable lithium-ion, 2000 mAh (approx. 2-3 hours playback)
Dimensions (W x D x H)	240 x 170 x 40 mm
Weight	0.9 kg
Languages	Multi-language OSD (English, French, Spanish, etc.)
Remote Control	Included (infrared)
Accessories	AC adapter, car adapter, AV cable, remote control, user manual
Cleaning Instructions	Wipe screen and casing with soft dry cloth; do not use liquids
Safety Warnings	Keep away from water, direct sunlight, and heat sources; use only supplied power adapters
Spare Parts Availability	Battery, remote, and power adapter can be ordered from Denver support

Frequently Asked Questions - MT-769 DENVER

How do I clean the lens of my Denver MT-769?

Use a lens cleaning disc designed for DVD players. Alternatively, gently wipe the lens with a soft, lint-free cloth moistened with lens cleaning solution. Do not apply pressure.

Can I connect the MT-769 to a TV?

Yes, use the included AV cable (composite) to connect the player's AV out to your TV's AV input. Switch the TV to the corresponding input channel.

How do I change the region code?

The Denver MT-769 is multi-region out of the box and can play DVDs from all regions without any modification.

What is the battery life?

The built-in battery provides approximately 2 to 3 hours of continuous playback, depending on volume and screen brightness settings.

Can I play MP3 files from a USB drive?

Yes, insert a USB drive with MP3 files into the USB port. Navigate using the remote or on-screen menu to play them.

Does it support DivX?

Yes, the MT-769 supports DivX video playback from discs and USB/SD sources.

How do I reset the player if it freezes?

Use a paper clip or pin to press the reset button (usually located on the bottom or side of the player). This will restart the device.

Can I use the player in the car?

Yes, the package includes a car power adapter that plugs into your vehicle's 12V cigarette lighter socket.

What types of CDs can I play?

It plays standard CDs, CD-R/RW with audio, MP3, and JPEG files. Also compatible with DVD±R/RW discs.

How do I switch the on-screen language?

Press Setup on the remote, go to Language or OSD Menu, and select your preferred language from the list (English, French, Spanish, etc.).

USER MANUAL MT-769 DENVER

Line drawing of a device front panel with control buttons and a central circular component (no text or symbols)

At the end of the service life of the appliance, in particular if it is malfunctioning, make the appliance unusable by pulling the mains plug out of the socket and se parating the power cable. Dispose of the appliance according to the environmental regulations applicable in your country. Electrical waste may not be disposed of together with household waste. For any advice regarding recycling, contact your local municipal authorities or your dealer.

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S, www.denver-electronics.com

Please read this manual carefully before operation

CONTENT

SAFETY PRECAUTIONS

Introduction

■ Safety Precautions 2
■ Important Safety Instructions 3
Caution 5
Features 6
Front Panel and Rear Panel Instructions....7
■ About battery pack 8
■ Remote Control....9

Connections

System connection....10

■ Card and USB connection....11

Advanced Features

■ The Setup Menu system....12
■ Remote Control Operation 22
JPEG/WMA/MP4 playback 23
Kodak picture CD Playback 24

Others

Troubleshooting 25

■ Remote Control Preparation 26

■ Specifications 27

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGE" WITHIN THE UNIT'S CABINET THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE MANUAL ACCOMPANYING THE UNIT.

WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE. NEVER ATTEMPT TO OPEN THE CABINET, DANGEROUS HIGH VOLTAGES ARE PRESENTED IN THE UNIT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE-BLADE PLUG WITH WIDE SLOT AND FULLY INSERT. THE APPARATUS SHALL NOT BE EXPOSED TO WATER AND NO OBJECTS FILLED WITH LIQUID SUCH AS VASES SHALL BE PLACED ON THE APPARATUS.

CAUTION:

THE UNIT EMPLOYS A LASER SYSTEM. TO EN- SURE THE PROPER USE OF THE UNIT, READ THIS MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.

IF THE UNIT REQUIRES SERVICING, CONTACT THE SELLER OR SEE "TROUBLESHOOTING".

TO PREVENT DIRECT EXPOSURE TO THE LASER RADIATION, DO NOT OPEN THE CABINET. VISIBLE LASER MAY RADIATE WHEN THE CABINET IS OPENED OR THE INTERLOCKS ARE DEFEATED. DO NOT STARE INTO THE LASER BEAMS.

CAUTION:

THE DVD VIDEO PLAYER IS A CLASS 1 LASER PRODUCT. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. AS THE LASER BEAM USED IN THIS DVD VIDEO PLAYER IS HARMFUL TO THE EYES, DO NOT ATTEMPT TO DISASSEMBLE THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

WARNING:

FCC REGULATIONS STATE THAT ANY CHANGE OR MODIFICATION TO THE EQUIPMENT, NOT EXPRESSLY APPROVED BY MAKER OR ITS AUTHORIZED PARTIES, COULD VOID USER'S AUTHORITY TO OPERATE THIS EQUIPMENT.

IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating instructions should be followed.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

9. Portable Cart Warning

A product and cart combination should be moved with care. Quick stop, excessive force, and uneven surface may cause the product and cart combination to overturn.

(Symbol provided by RETAC)

10. Ventilation

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power lines surges.

15. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles, as this can result in a risk of fire or electric shock.

16. Obiect and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A) When the power-supply cord or plug is damaged, B) If liquid has been spilled, or objects have fallen into the product.

C) If the product has been exposed to rain or water, D) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. E) If the product has been dropped or damaged in any way.

F) When the product exhibits a distinct change in performance this indicates a need for service.

19. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

1. The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

2. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

FEATURES

- Please use the original box and packing materials for safe transportation of this product.

- It is normal for the cover and rear panel to become warm after the player has been operating for an extended period of time.

• 7 TFT Portable DVD player
  • Build-in musical speakers
  ● Supported SD/MMC/MS card
• Supported USB2.0
• Stereo audio output
• Composite video output
  • PAL/NTSC playback
• Multi-Language OSD
• Multi format disk supporting: CD/WMA/CD-R/CD-RW/MPEG4/DVD/VCD/HDCD/Kodak Picture CD (JPEG)

Disc formats supported by this player:

Dolby Digital

Multi-angle

KODAK picture CD

Subtitle choices

DVD video

Audio choices

Parental Lock

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

The product complies with the KODAK Picture CD format and will display KODAK Picture CDs. The "KODAK Picture CD Compatible" logo is a trademark of Eastman Kodak Company and is used with permission.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. © 1992-1997 Dolby Laboratories, Inc. All rights reserved.

Accessories:

AV cable

AC adapter

Earphone

Remote control

Car cord

FRONT PANEL AND REAR PANEL INTRODUCTION

ABOUT BATTERY PACK

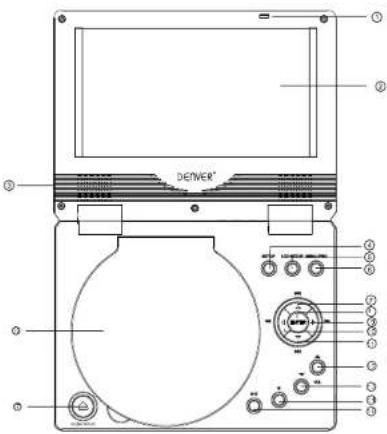

Front panel

DEIVER®

① COVER RELEASE SWITCH
② TFT LCD
③ SPEAKERS
④ SETUP
⑧ LCD SETUP
⑥ MENU/PBC
⑦ PREV/UP
⑧ ENTER
⑨ FW D/ RIGHT
⑰ REV / LEFT
⑪ NEXT / DOWN
⑫ VOLI
⑬1VOL
○ STOP
⑮ PLAY / PAUSE
⑯ CD DOOR
① OPEN

Rear panel

① REMOTE SENSOR
② Power and charger LED
③ POWER SWITCH
④ DC 12V
⑤ USA

Technical diagram of a vehicle chassis with labeled components and cross-sectional views

⑥ SD/MMC/MS/CARD
⑦ EARPHONE
AUDIO OUT
@VIDEO OUT
⑩ COAXIAL

AC CONNECTION

Insert the small end of the AC adapter into the DC IN jack on the side of the unit. Insert the other end into a conveniently located AC outlet having 100-240V\~, 50 or 60Hz.

NOTES:

• Use the enclosed AC adapter for this product only.
• Remove both DC plug and AC-IN plug to disconnect the AC adapter when not using a long period of time.
• Insert the AC adaptor into the wall outlet in vertical and horizontal direction only.

BATTERY PACK

The rechargeable battery pack already installed inside the unit.

BATTERY INDICATOR

During using the rechargeable battery pack, the will appear on the screen and is blinking when the power of the battery pack is low, and needs recharging. After a short time of blinking, the unit will turn off.

CHARGING THE BATTERY PACK

Insert the small end of the AC adapter into the DC IN jack on the side of the unit and turn the unit off for best results.

Insert the other end (with the 2 blades) into a conveniently located AC outlet having 100-240V\~50/60Hz. During charging, the Red Indicator on the unit will lit. When finished, the Red Indicator will turn off automatically. Disconnected the AC adaptor from the unit and AC outlet.

NOTES:

\~After a period of storage, or not use for a long period of time. The power of built-in battery pack may consumed. Recharge the unit as previous procedure before used.
\~ The duration of fully charge approximately 2 hours.
- Disconnect the AC adaptor for the AC outlet and the unit when finished charge or will not use the unit a long period of time.
\~It is highly recommended to turn the unit off when recharging

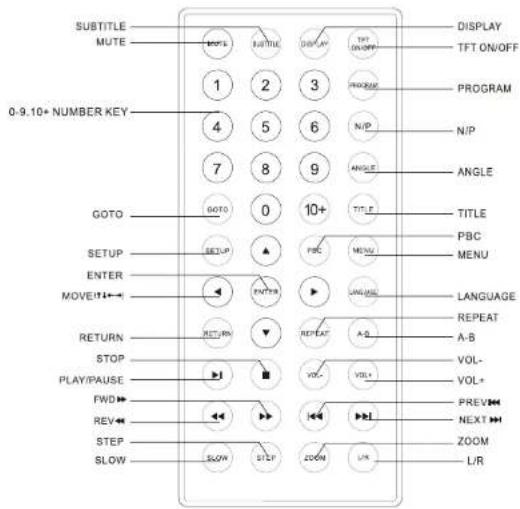

REMOTE CONTROL SYSTEM CONNECTION

SUBTITLE MUTE 0-9.10+ NUMBER KEY 1 2 3 4 5 6 7 8 9 GOTO 0 10+ SETUP SETUP PBC MENU ENTER MOVE#←→ FANTOR ANGUL RETURN RETURN REPEAT A-L STOP → ▶ VOL+ VOL- PLAY/PAUSE → ▶ VOL+ FWD → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → ← → Left DISPLAY TFT ON/OFF PROGRAM N/P ANGLE TITLE TITLE PBC MENU LANGUAGE REPEAT A-B VOL- VOL+ PREV→←→ NEXT→←→ ZOOM L/R

Note:
1. In this manual, "◇" "◇" "◇" will be used to represent different NAVIGATION ARROWS on the remote respectively.
2. In order to operate any of the remote functions, you must first push the Power switch on the portable DVD player.

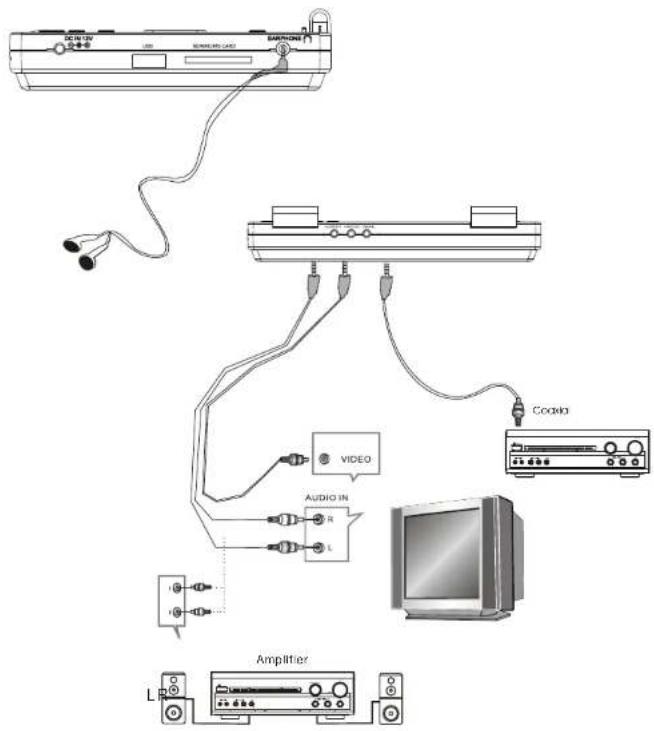

Audio and video out connect

CD-ROM R300 SAMSUNG KAO BASIKONE VIDEO AUDIO IN R L Audio Cockio L Amplifier

Notes:
When audio line out connect to amplifier or TV SET, it can control volume with the unit.

CARD AND USB CONNECTION

THE SETUP MENU SYSTEM

DC IN 12V USB CARD CERKONE USB CARD

SD/MMC/MS CARD AND USB CONNECT

1. In no disc state, power on the unit, and insert a card (SD/MMC/MS) to read audio or video files. Ensure print side upturned of the card.
2. In no disc state, unsheathe the card.and insert a USB to read audio or video files.
3. If the player has a disc in it, it reads disc only, and not reads a usb or card. If you'd like to play a USB or card, please take out the disc first.

DVD SETUP MENU SYSTEM

Scanned screenshot of a Windows desktop with blue navigation tabs and file icons

1. Press the SETUP button on the pressed key board or remote control, the main setup menu appears.
2. Press the left and right arrow buttons to highlight the icon of the desired page, press the down or right arrow button t activite that page.
3. Press the down arrow button to highlight the desired option. Press enter to select, the choice of that option appear on the right.

Note: The default password is 8888.

1. Indicators:
   GREEN: Turns on when power on, turns off when power off. RED: Turns on when charging, turns off when finished charging.

2. Slide the Cover release switch to right to expand the cover.

3. Power ON/OFF switch Slide the Power ON/OFF switch to ON position to power ON the player. When finished watching/listening, slide it to OFF position to power OFF the Player.

4. SETUP button Press this button enter to the main setup menu.

5. LCD SETUP button Press this button enter to video setup menu.

6. MENU/PBC button \~ When DVD playing, press this button enter to root menu. \~ When VCD playing, press this button to turn the PBC ON or OFF.

7. VOL ▲, VOL ▼ button \~Press VOL ▲ button to increase volume. \~Press VOL ▼ button to reduce volume.

8. PLAY/PAUSE ▶I button While disc playing, press this button to pause, press again to resume normal playback.

THE SETUP MENU SYSTEM

\~While DVD playing, press this button once to pre-stop (In this mode, when press the PLAY/PAUSE ▶I button again. The player will start to play the point you were stopped.).
\~Or, press the STOP ■ twice to stop playback completely (In this mode, when press the PLAY/PAUSE ▶I button again. The player will start to play the current disc from beginning).
\~When CD playing, press this button once to stop playback.

10.SKIP ◀◀/▶▶; Navigation ▲ / ▼ buttons

\~During playback, press the button repeatedly to skip tracks/chapters as desire.
\~In setting menu, press the button repeatedly to move the cursor on the screen to Up or Down.

1. Search ◀◀/▶; Navigation ◀◀/▶ buttons

\~During playback, press the button repeatedly to select the search speed and searching the specific section of the current track.
During searching, press the PLAY/PAUSE▶I button resume to normal playback.
\~In setting menu, press the button repeatedly to move the cursor on the screen to Left or Right.

1. ENTER button

In the setting menu, press this button to confirm the selection.

▲ button

1. Pressing this button to open the Disc door.

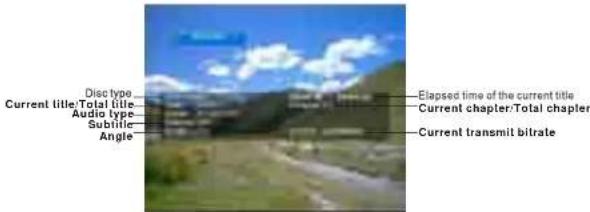

During playback, press DISPLAY to show the current time counter position and Angle and audio and so on...

Disc type Current title/Total title Audio type Subtitle Angle Elapsed time of the current title Current chapter/Total chapter Current transmit bitrate

Press DISPLAY button again to shut off the display menu.

During playback, press GOTO to display the TIME SEARCH menu.

Enter number to choose the title Enter number to choose the chapter Enter number to choose the time

Use the number keys to input the desired Time, Title or Chapter, then press ENTER to confirm.

● During DVD playback, press ZOOM to magnify the image as follows:

0-10+ keys

● These keys are used to input the time, as well as title, chapter and track numbers.
- When a numeric item is displayed on the screen, press the 0-10+ keys to select the desired entry, and press SELECT to confirm.

● During playback, press A-B to select point A.
- Press it again to select point B. The player will repeat the section from A.
to B automatically
- Proce A, B third time to conceal A, B repeat and clear points A and B

Note: 1. During CD playback, points A and B must be within the same track. During DVD playback, points A and B can be selected from different chapters.

1. This function is subject to the disc.

● Press PLAY/PAUSE from stop mode to start playback.

● Press PLAY/PAUSE during playback to pause playback.
● Press PLAY/PAUSE to resume normal playback.

● During DVD or CD playback, press and hold ▶▶ to scan forward. The player will review the disc at 2, 4, 8 and 16 times normal speed as follows:

● Press PLAY to resume normal playback.

● During DVD or CD playback, press ◀◀ to scan in reverse. The player will review the disc at 2, 4, 8 and 16 times normal speed as follows:

● Press PLAY to resume normal playback.

● Press PREV to skip to previous chapter or track.

● Press NEXT to skip to the next chapter or track.

STOP

● Press STOP once during playback to stop and hold playback.
● Press PLAY to resume playback from the point you pressed STOP
● Press STOP twice to stop playback completely.

● Press VOL + button to increase volume. ● Press VOL - button to reduce volume. ● During DVD playback, press ANGLE button repeatedly to select the available angle of recording as desire. Note: Function depends on the recording format of the disc, not all discs will have this function ● During DVD playback, press Language button repeatedly to select the available language on the DVD as desire. Note: Function depends on the recording format of the disc, not all discs will have this function ● During DVD playback, press Subtitle button repeatedly to select the available subtitles on the DVD as desire. Note: Function depends on the recording format of the disc, not all discs will have this function

Press [PROGRAM] to display the Program submenu:

Select the title number and the chapter number in the desired order. Then select [Play] and press ENTER to play the chapter in the order you have set. Select [Clear] and press ENTER to clear one of the number you have select. Select [Clear All] and press ENTER to clear all the numbers you have select.

Program operation:

When play CD or others disc, the Program button of remote control is not function. Program operation must be according to follow way step by step.

-Edit Mode

● Press right and down arrow button to select Edit Mode, and select tracks witch you want to program.

② Use right and down arrow button to select Add to Program and press ENTER button.

- Use up arrow button to select Browser View and press ENTER button to view the program tracks.

① Use up arrow button to select Edit Mode, and press ENTER button to change the Edit Mode to unselect.

- Use left arrow and ENTER button to play program tracks.

Clear Program operation:

- Press STOP button twice to enter stop play mode.

- In stop mode, use right arrow and enter button to select Edit Mode, and select you want to clear program tracks.

- Use up and down arrow button to select Clear Program, and press ENTER to clear program tracks.

- Clear Program

● During VCD playing, press repeatedly to select the audio mode to Left, Right, Stereo or Mix as desire.

● During playback, press to turn off the sound temporary, press again to resume.

● During DVD playback, press TITLE button repeatedly to return to title menu as desire.

Note:

Function depends on the recording format of the disc, not all discs will have this function

● During CD playback, press repeatedly to select the repeat mode to Repeat Single, Repeat All or Off as desire.

● During WMA playback, press repeatedly to select the repeat mode to Repeat Single, Repeat Folder or Off as desire.

● During DVD playback, press repeatedly to select the repeat mode to Repeat Chapter, Repeat Title or Off as desire.

● During DVD playback, press the button one by one to play the movie frame by frame.

● To resume normal playback, press the PLAY/PAUSE ▶11 button.

Note:

Function depends on the recording format of the disc, not all discs will have this function

● During DVD playback, press repeatedly to select the playback speed and playback the movie in slow motion as below:

Note:

Function depends on the recording format of the disc, not all discs will have this function

● During DVD stop playback mode, press N/P button on your remote to turn the color system to NTSC/PAL match the color system of external TV if connected.

● During DVD playback, press to return to menu.
PBC
During VCD(version 2.0) playback, press PBC button to turn on/off the function.
- When PBC mode is on, no number button can be inserted to choose
Bavourable tracks
\~ when PBC mode is off, number buttons can be in - sorted to choose favourable tracks.
● In PCB ON mode, press to return to menu.

● During playback, press this button enter to GOTO mode, the follows menu will appear on the screen: Search

Using the Navigator ▲, ▼.◀, ▶, Enter, Numeric 0-9 buttons to select and set the specific chapter, title, tracks or time to play.

JPEG/WMA/MP4 PLAYBACK

KODAK PICTURE CD PLAYBACK

Supported formats

● Disc format: ISO 9660, Joliet
● Total number of music files and albums: around 350 per disc.
Sampling rate: (CBR)32kHz/44. 1kHz/48kHz/64kHz;

Files name-

- Current JPEG/WMA/MP4 files name, and press ENTER twice to play current file.

—Select one of the Audio or Photo or Video
- If you want to select AUDIO files only, use the right arrow and ENTER button to select AUDIO files.

Play WMA files.

④ Play JPEG files.

Press 🔔 to select the file when the cursor appears in the file window.

Press Select to play the current file selected by the cursor.

Press ◇ to switch between the directory window and the file window.

The introduction of KODAK Picture CD

A Kodak Picture CD has the size and shape of a regular CD. You can order a KODAK Picture CD simply by checking the box on the photo finishing envelope when you drop off a roll of film (35 mm or Advanced Photo System (APS) color print film) at the time of processing in Kodak Express store displaying "Kodak Picture CD" sign. When your order is returned, you receive your prints, negatives, and your full roll of pictures safely stored on your KODAK Picture CD. Each KODAK Picture CD brings you the tools to enhance, share and manage your pictures on your computer. You also can record the JPEG picture into CD-R or CD-RW with the CD-Rewriter yourself.

Note: 1. The Max. Size of JPEG Picture can be supported: 3840X3840 pels

1. JPEG stands for Joint Picture Experts Group. It is the first International Standard on Still Picture Compressing: ISO 10918-1, constituted by the Committee on Still Picture Compressing Standard of ISO. The pictures on KODAK Picture CD are stored in this format (JPEG). This player can decode the JPEG pictures in KODAK Picture CD and playback the pictures in different modes.

Now, you can playback Kodak Picture CDs on this player and view your wonderful pictures on your TV in the comfort of your living room. When a Kodak Picture CD is inserted on a player an automatic slide show is launched. Each picture in the Kodak Picture CD will be displayed consecutively in a slide-show fashion and will be scaled to fit in the whole TV screen.

General function:

● You can set slide show transition modes for any pictures.
- Press PAUSE to stop playing.
- Press or to see the previous or next picture
- Press PLAY to continue slideshow transitions.
- Press STOP to return to root menu.

Zoom Function:

This player provides both Zoom in/out and Zoom pan function. Press the ZOOM consecutively, the picture will zoom in/out in turn as followings:

Note: During the ZOOM function, slideshow transitions and image rotation are disabled. Q off: close zoom, press PLAY again to resume slideshow transition mode.

Circumgyrate picture

While playing picture disc, press □ □ □ button to circumgyrate the picture for up, down, left, right.

TROUBLESHOOTING

REMOTE CONTROL PREPARATION

If you have any questions, please consult the troubleshooting guide below.

NO PICTURE OR SOUND

• Ensure the power button is on.
• Ensure the power outlet is operational.
• Ensure the power cord is not damaged.
• Ensure the power plug is connected firmly to the outlet.

DO NOT READ DISC

● Ensure the disc is not warped, damaged or deformed.
● Ensure the disc is not badly stained or damaged.
- Ensure the disc format is compatible with the player.
- Please check whether you have tried to play a software CD. If so, please restart the player.

PICTURE BUT NO SOUND

• Ensure the audio jacks are securely connected.
• Ensure the audio connector is not damaged.
• Ensure the volume is turned on.
• Ensure you have set the player's AUDIO settings correctly.
• Ensure you have entered the correct AV input for your TV.
  ● Ensure the audio is not set to mute.

REMOTE NOT WORKING

● Make sure the Main unit's POWER button is on
● Ensure the remote batteries are working.
- Point the remote control directly at the player's IR sensor.
- Remove any obstacles between the remote and the IR sensor.

SOUND BUT NO PICTURE

• Ensure the video jacks are securely connected.
• Ensure you have entered the correct AV input for your TV.
• Ensure the video connector is not damaged.
• Ensure you haven't press [TFT ON/OFF] key on the remote control.

UNIT NOT WORKING

● Turn off the power, and then turn it on again.

1.

[Non-Text]

POOR PICTURE OR SOUND

• Ensure you have set the player's AUDIO settings correctly
• Ensure the disc is not scratched or stained.
• Ensure the AV connector or the output terminal is not damaged.

"NO DISC" DISPLAYED

● Ensure you have put the disc on the tray.
● Ensure the disc is not upside down.
● Ensure the disc is not distorted, stained or scratched.

Insert batteries

-Pull out and discard the insulation film in the remote control as Fig 1 below before use.
\~When the power of the battery is consumed, replace by a new one as below:
1. Slide out the battery tray as Fig 2 below. 2. Replace a new battery(CR2025) to the battery tray as the polarity on the tray of remote control.
3. Close the tray.

Using the remote control

Point the remote control at the remote sensor.

(The pictures below are for reference only.)

Diagram of a device front view with labeled components and a control panel below showing text in Chinese.

Notes:

Improper use of batteries may cause battery leakage and corrosion. To operate the remote control correctly follow the instructions below
control correctly, follow the instructions below. Do not insert the batteries in the wrong direction.
- Do not charge, heat, open, or short-circuit the batteries.
● Do not throw batteries into a fire.
● Do not leave dead batteries in the Remote Control.
- Do not use different types of batteries together, or mix old and new batteries.
- If you do not use the remote control for a long period of time, remove the batteries to avoid possible damage from battery corrosion.
- If the remote control does not function correctly or the operating range becomes reduced, replace battery with new ones.

Remarks: Do not expose the remote sensor of the DVD Player to a strong light source, such as direct sunlight.

Notes:

• Point the remote control directly at the player's remote sensor.
• Do not leave the remote control in an extremely hot or humid place.
• Do not spill water or put anything wet on the remote control.
  ● Battery life is \~1 year under normal conditions.

SPECIFICATIONS

NAME		Portable DVD player
MODEL		MT-769
DVD SPECIFICATIONS
Laser Wave Lenth		650nm/780nm
Video System		PAL/NTSC
Audio Respons		20Hz~20KHz
Audio S/N		≥85dB
Distortion		<0.07%
Channel Separation		≥75dB
OUTPUT	Audio output (Analog Audio)	1.2V~2V Load Impedence:10KΩ
	Video output	1Vp-p Impedence:75Ω
	Speakers	1WΩ 1KHz 0dB
	Earphone	20~60mW 1KHz 0dB
CARD & USB	CARD	SD/MMC/MS
	USB	USB2.0
POWER	AC ADAPTER	100-240V~ 50/60Hz
	DC INPUT	DC 12V=1.5A
	Batteries	7.4 V / 1350mAh
Accepted working temperature		5~35°C
Power consumption		<10W
Dimension		191 442 37 mm
Weight		0.64Kg
