Product Type	Webcam
Brand	Manhattan
Model	460477
Color	Black
Interface	USB 2.0
Video Resolution	1280 x 720 pixels
Frame Rate	30 fps
Microphone	Built-in
Focus Type	Fixed focus
Field of View	70 degrees
Dimensions (HxWxD)	75 x 40 x 40 mm
Weight	100 g
Power Supply	USB powered (5V)
Cable Length	1.5 m
Compatibility	Windows, macOS, Linux
Mounting	Clip or stand
Special Features	Plug-and-play, noise reduction
Cleaning	Wipe with a soft dry cloth
Safety	Handle with care to avoid damage

Frequently Asked Questions - 460477 MANHATTAN

How do I install the webcam?

Plug the webcam into a USB port. It is plug-and-play, so no driver installation is required on most systems. The camera will be recognized automatically.

Why is there no image from the webcam?

Ensure the webcam is properly connected and not blocked by tape or covers. Check if the USB port works with another device. Also, verify the webcam is selected in your video application's settings.

The microphone is not working. What can I do?

Make sure the webcam is set as the default recording device in your system's sound settings. Check the mute button or volume level. If the issue persists, try a different USB port.

How can I improve the image quality?

Ensure proper lighting – avoid backlight. Clean the lens with a soft cloth. Adjust settings in your video app, such as brightness and contrast.

Is this webcam compatible with video conferencing software?

Yes, it works with most applications like Zoom, Skype, and Teams. The webcam is recognized as a standard USB camera.

How do I clean the webcam?

Use a soft, dry cloth to wipe the lens and body. Avoid liquids or abrasive materials. Do not use household cleaners.

The LED light is not on. Is it normal?

The LED may only light up when the camera is active. Check if the camera is being used by an application. If still off, try reconnecting the USB.

Can I mount this webcam on a tripod?

The webcam has a standard tripod screw hole at the bottom, so it can be mounted on most tripods.

What is the warranty period?

Warranty details vary by retailer. Typically, Manhattan offers a limited one-year warranty. Check your purchase documentation.

Why is the video blurry?

Blurry video can be due to low light, dirty lens, or incorrect focus. Ensure good lighting and clean the lens. This webcam has a fixed focus, so adjust distance to subject (about 30 cm to 2 m for best results).

USER MANUAL 460477 MANHATTAN

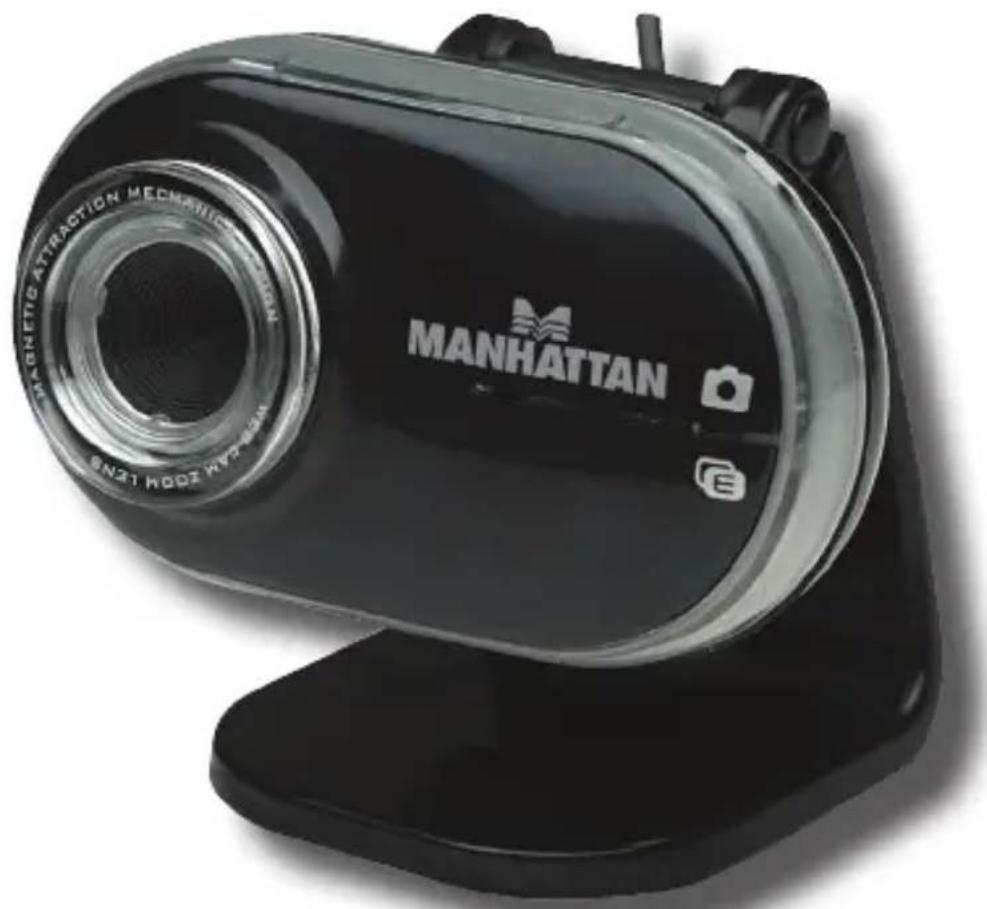

MEGA CAM USER MANUAL

MODEL 460477

MANGHETIC ATTRACTION MECHANICAL SN21 K002 H7360N MANHATTAN

MANHATTAN

MAN-460477-UM-0808-01

INTRODUCTION

Thank you for purchasing the MANHATTAN® Mega Cam, Model 460477.

Enhance online communications, instant messaging, blogs and more by easily capturing and sharing photos and video with this remarkable little camera! Plug and Play and Windows compatible, it's ready to go and easy to use, with included software that simplifies settings and operation.

The easy-to-follow instructions in this manual help make the Mega Cam setup quick and simple, so you'll also soon be enjoying the benefits of these additional features:

• Automatic tracking that keeps subjects sharp and in frame without adjusting camera position
- Self-adjusting color, exposure and brightness levels that maximize clarity in varying light conditions
- Special video and frame effects that make it fun to personalize images and online conversations
- High-performance megapixel sensor with powerful 4x digital zoom function
- Lifetime Warranty

NOTE: Some screen images have been modified to fit the manual format.

System Requirements

• Windows 2000, XP or Vista
• PC with USB interface
- Pentium 200 or higher CPU
- CD-ROM drive
• 200 MB free disk space
- 32 MB RAM

Package Contents

• Mega Cam, 1.3 M pixels
• Software CD
• User manual

INSTALLATION

Driver

Prior to installing the driver:

• Close any open software applications on your computer;
• Un-install any previously installed camera software or drivers;
• Disable any anti-virus software and any established firewall; and
• Ensure that the camera is not connected to the computer's USB port at this time.

With your computer turned on, insert the included CD in the CD-ROM drive. The installation interface will automatically display.

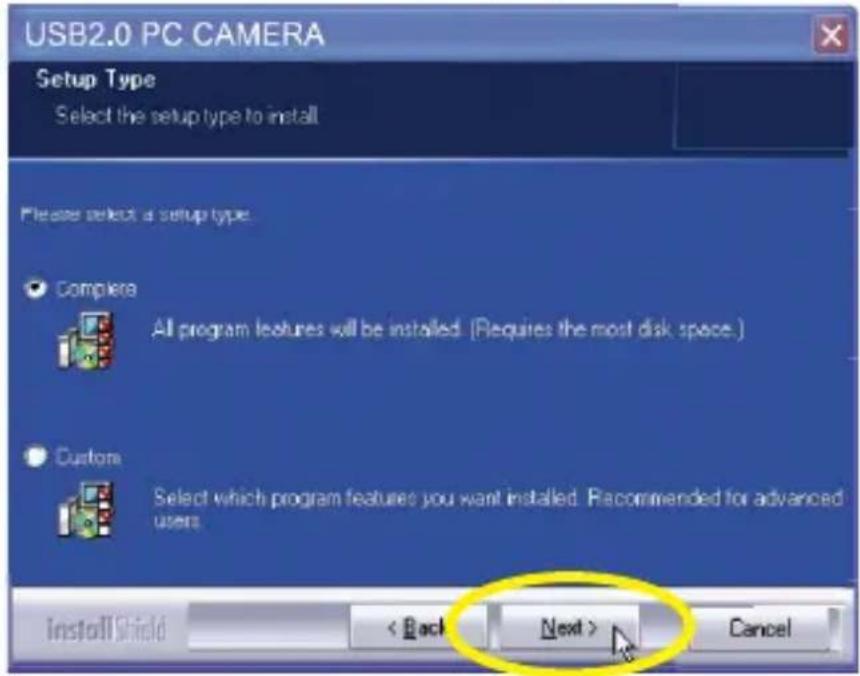

1. When presented with the first InstallShield Wizard screen prompt, click "Driver."

2. On the subsequent screens, click "Next" or "Continue Anyway" to proceed with the driver installation.

3. When the InstallShield Wizard prompts you with a screen saying the installation is complete, click "Finish

USB2.0 PC CAMERA Setup Type Select the setup type to install Please select a setup type. Complere All program features will be installed. (Requires the most disk space.) Customs Select which program features you want installed. Recommended for advanced users. InstallShield < Back Next > Cancel

Hardware

1. Connect the Mega Cam to your computer's USB port.
2. After a few seconds, the computer's operating system will find and recognize the connected Mega Cam, initially displaying a Welcome to the Found New Hardware Wizard screen. Click "Next."
3. On subsequent screens, click "Next" or "Continue Anyway" to proceed with the installation.
4. When the Found New Hardware Wizard prompts you with a screen that says the software installation is complete, click "Finish."

Installation Verification

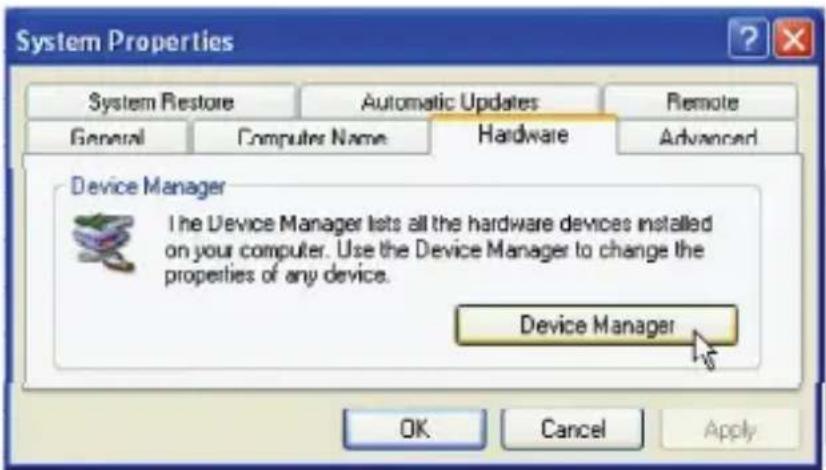

1. From the desktop, go to My Computer, then Properties.

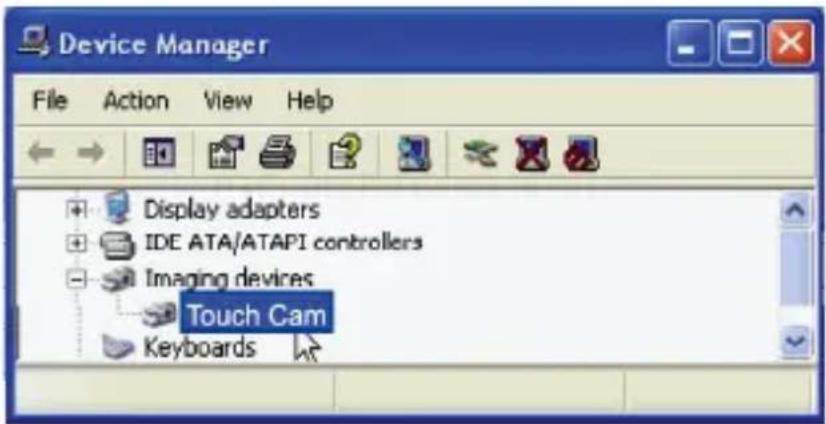

2. Select/click on the Hardware tab, then click "Device Manager" to display your list of application folders.

3. Confirm that the Mega Cam (or "Touch Cam") file appears in the Imaging Devices folder. NOTE: Make sure the folder doesn't have an exclamation point (!) next to it (which indicates an improper installation).

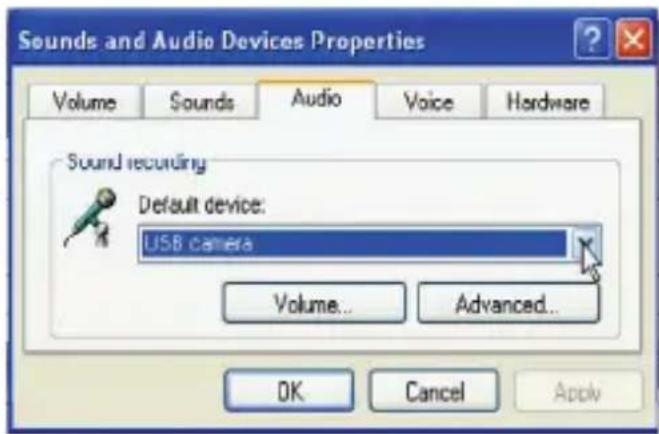

4. From the desktop, go to Control Panel, then click on Sounds and Audio Devices.

5. Select/click on the Audio tab.

6. In the Sound Recording panel, select "USB Camera" from the Default Device drop-down menu in order to activate the Mega Cam's built-in microphone.

System Properties System Restore Automatic Updates Remote General Computes Name Hardware Advanced Device Manager The Device Manager lists all the hardware devices installed on your computer. Use the Device Manager to change the properties of any device. Device Manager OK Cancel Apply

Device Manager File Action View Help Display adapters IDE ATA/ATAPI controllers Imaging devices Touch Cam Keyboards

Control Panel File Edit View Favorites Tools Help Back Search Folders Address Control Panel Go Scheduled Tasks Security Center Sounds and Audio Devices Speech System Taskbar and User Accounts Windows Wireless

Sounds and Audio Devices Properties Volume Sounds Audio Voice Hardware Sound recording Default device: USB camera Volume... Advanced... OK Cancel Apply

OPERATION

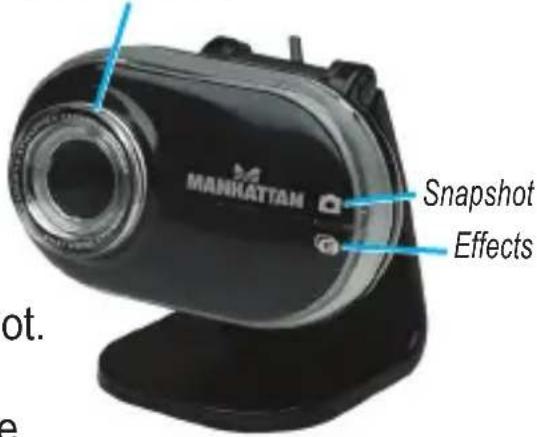

Quick-Access Controls

In addition to a convenient exterior focus ring, this Mega Cam features a pair of icons that let you quickly perform a couple of popular functions without the need to access a software menu.

• Press the camera icon to take a snapshot.
• Press the "E" ("effects") icon to move through a 26-option menu of useful frame

styles and special effects (ranging from “Postcard” to “Merry Christmas” and from “Aged Photo” to “Mosaic,” as displayed below in Advanced Settings on the Effects screen).

Adjustable focus ring

MANHATTAN Snapshot Effects ot.

Advanced Settings

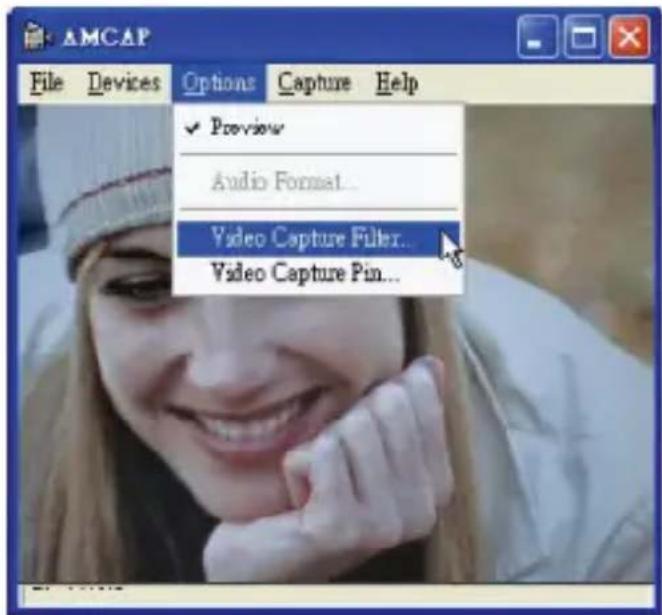

To make any changes to the Mega Cam settings (image controls and modes and such) or to take advantage of the variety of effects (special effects and frame options), open the AMCap application (which may be found in your Control Panel settings or on your desktop, depending on your operating system). For example:

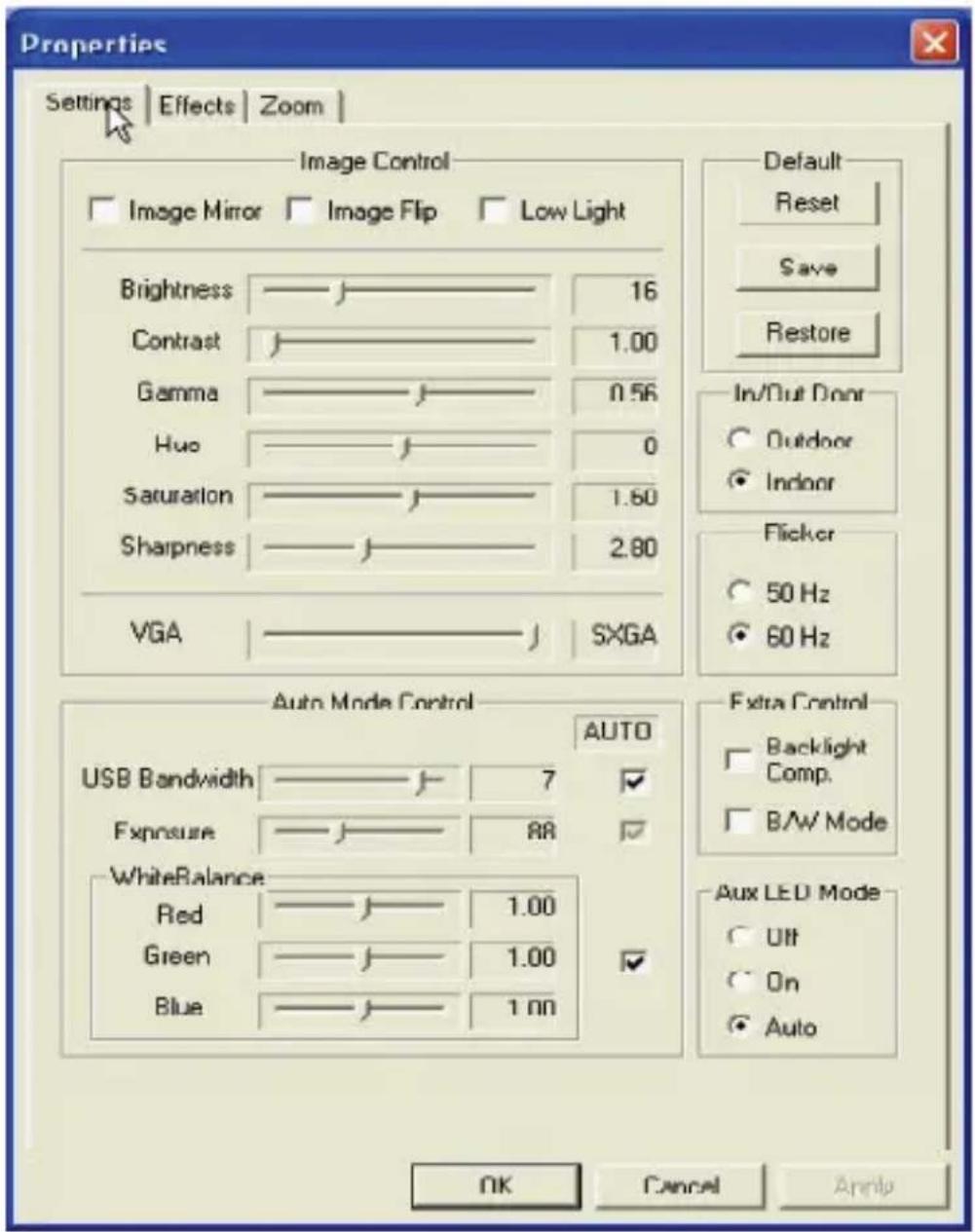

• To stabilize the video (if needed), go to Options, then to Video Capture Filter, and select the Settings tab to change between "50 Hz" and "60 Hz" to improve your results (see the screen image on the next page).
  • To establish a new location for storing AVI images, go to File, then Set Capture.

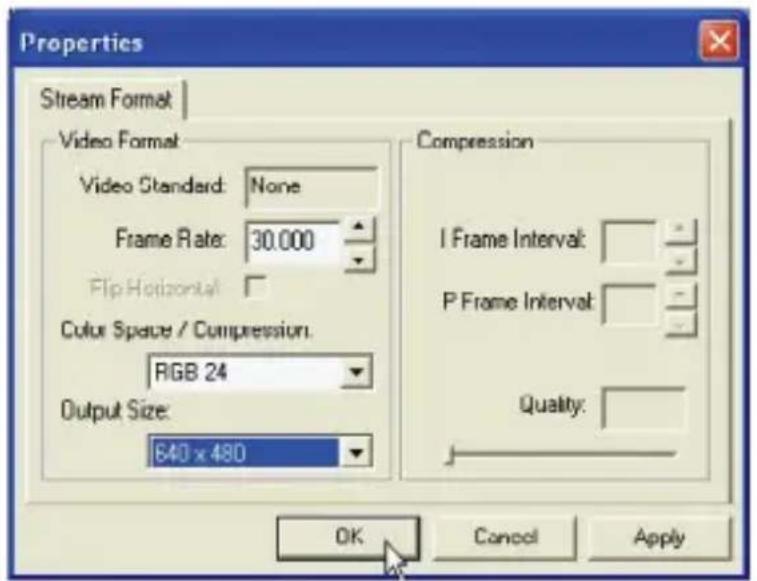

  • To select a video output size, go to Options, then to Video

Capture Pin (which then displays the Stream Format screen and the Output Size drop-down menu, among several other Video Format and Compression options).

AMCAP File Devices Options Capture Help ✓ Preview Audio Format... Video Capture Filler... Video Capture Pin...

Properties Stream Format Video Format Video Standard: None Frame Rate: 30.000 Flip Horizontal: Color Space / Compression: RGB 24 Output Size: 840 x 480 Compression I Frame Interval: P Frame Interval: Quality: OK Cancel Apply

Properties Settings | Effects | Zoom | Image Control Image Mirror Image Flip Low Light Brightness 16 Contrast 1.00 Gamma 0.56 Huo 0 Saturation 1.50 Sharpness 2.80 VGA SXGA Default Reset Save Restore In/Out Door Outdoor Indoor Flicker 50 Hz 60 Hz Auto Mode Control AUTO USB Bandwidth 7 ✓ Exposure 88 ✓ WhiteBalance Red 1.00 Green 1.00 ✓ Blue 1.00 Extra Control Backlight Comp. BAW Mode Aux LED Mode Off On Auto OK Cancel Apply

Properties Settings Effects Zoom Effect ○ Agod Photo ○ Canvas ○ Emboss ○ Neon Light ○ Invert ○ Motion ○ Spread ○ Shear ○ Monitor ○ Ellipse ○ Alien Map ○ Glass Title ○ Wind ○ Magic Mirror ○ Mosaic ○ TV Effect Frame ○ Post Card ○ Flower ○ Jungle ○ Television ○ Magazine ○ FBI Wanted ○ Aim ○ Paper ○ Merry Xms ○ Magnifier Customized Frame ○ Frame File: ... Load File ○ Auto Change ● No effect & frame OK Cancel Apply

FREQUENTLY ASKED QUESTIONS

Q What can be done to rectify a dropped frame or video lag?

A The Mega Cam automatically activates White Balance and Exposure (both displayed on the Auto Mode Control panel of the Settings screen) when lighting is determined to be insufficient. If continuity or delay problems occur, deselect the "Auto" option for Exposure.

Q When using MSN, why isn't my voice heard?

A The built-in microphone probably isn't activated. Check the “Sounds and Audio Devices Properties” folder in the Device Manager or Control Panel and make sure that “USB Camera” is elected as the Default Device drop-down menu option in the Sound Recording panel. You can also make sure that your Instant Messenger software is defaulted to recognize the Mega Cam. Also, confirm that the other IM user has the same software version and not one that’s incompatible.

Q How do I take 1.3-megapixel snapshots?

A In the AMCAP application, go to Options, then Video Capture Pin to display the Stream Format screen. In the Output Size field, select "640 x 480" (VGA). Then return to Options and go to Video Capture Filter. In the Image Control panel, set the VGA/SXGA slide bar to "SXGA" (all the way to the right, which equates to 1280 x 960 pixels).

SPECIFICATIONS

Standards and Certifications

- USB 2.0

General

• CMOS Sonix 201 DSP color sensor; 1.3 M pixels
- Lens: plastic, 6 mm (0.25 in.); 64° angle; manual focus with ring
• Color depth: 24-bit true color
• Image focus: 30 mm to infinity; format, MPEG
• Built-in compression ratio (JPG)
• Automatic tracking, color equalizing, exposure and brightness balance adjustments
• Maximum resolution up to 3200 x 2400 (software enhanced)
• Supports video rates up to 30 fps (640 x 480 resolution, VGA), 10 fps (1280 x 1024, VGA)
• Built-in microphone with front-mount snapshot and effects buttons
• Power consumption: 60 mA

Physical

• LED indicator and decorative lighting
• USB cable, 1.5 m (5 ft.)
• Dimensions: 82 x 50 x 46 mm (3.2 x 2 x 1.8 in.)
• Weight: 86 g (3 oz.)

System Requirements

• Windows 2000, XP or Vista
• PC with USB interface
- Pentium 200 or higher CPU
- CD-ROM drive
• 200 MB free disk space
- 32 MB RAM

Package Contents

• Mega Cam, 1.3 M pixels
• Software CD
• User manual
