CT32G4SFD8266 - Computer accessory Crucial - Free user manual and instructions

Brand	Crucial
Model	CT32G4SFD8266
Product Type	Computer Memory (RAM) Module
Memory Capacity	32 GB
Memory Type	DDR4
Speed	2666 MT/s
Form Factor	SODIMM (Small Outline Dual In-line Memory Module)
Pin Count	260-pin
Voltage	1.2 V
CAS Latency	CL19 (typical for 2666 MHz)
Warranty	Limited Lifetime Warranty
Compatible Systems	Laptops and other systems using DDR4 SODIMM
Installation Tools	Non-magnetic-tip screwdriver (for cover removal)
Installation Precautions	Work in static-safe environment; discharge static electricity by touching unpainted metal
Cleaning Instructions	Use compressed air to remove dust; avoid liquid cleaners
Safety Notes	Shut down system, unplug power, remove battery for laptops; hold power button to discharge residual electricity
Weight	Approximately 10 g
Dimensions (approx.)	30 mm x 67 mm x 3 mm
Spare Parts / Repairability	RAM modules are not user-serviceable; replace if faulty
Support Resources	crucial.com/support/memory

Frequently Asked Questions - CT32G4SFD8266 Crucial

How do I install the Crucial CT32G4SFD8266 memory module?

Refer to the installation guide: shut down, unplug power, remove battery (if laptop), discharge static, open computer case, locate memory slot, align notch, press firmly until clips snap. For SODIMM, insert at 45-degree angle then push down.

Is this memory compatible with my laptop?

The CT32G4SFD8266 is a DDR4 SO-DIMM module. Check your laptop's specifications to ensure it supports DDR4 memory and has a 260-pin SO-DIMM slot. Also verify that it supports 32GB capacity per slot.

What voltage does this module require?

It operates at standard DDR4 voltage of 1.2V.

My system does not boot after installation. What should I do?

Re-seat the module firmly until the clips snap. Check all internal connections. If you hear beeps, the system may not recognize the memory. Contact Crucial Technical Support if the issue persists.

Can I mix this module with existing memory?

Mixing different speeds or capacities may work but can limit performance. For best results, use identical modules. If mixing, the system will run at the speed of the slowest module.

What does 'SODIMM' stand for?

SODIMM stands for Small Outline Dual In-line Memory Module, a smaller form factor commonly used in laptops and compact devices.

How much pressure is needed to install the module?

It can take 20 to 30 pounds of pressure to fully seat the module until the retaining clips snap into place.

Do I need special tools for installation?

Only a non-magnetic-tip screwdriver may be needed to remove your computer's cover. Do not use any tools on the memory module itself.

What should I do if I see a 'Memory Mismatch' message?

Enter the BIOS/UEFI Setup menu and select 'Save and Exit'. This updates the system configuration and is not an error.

How can I clean the memory module?

Use compressed air to remove dust from the module and slot. Avoid using liquids or abrasive materials. Handle the module by its edges to avoid static damage.

USER MANUAL CT32G4SFD8266 Crucial

Install Guide

Memory Module Installation

Equipment needed

• Memory module(s)
• Non-magnetic-tip screwdriver (for removing the cover on your computer)
• Your system’s owner’s manual

Installation process

1. Make sure that you are working in a static-safe environment. Remove any plastic bags or papers from your work space.
2. Shut down your system and make sure the power is completely off before unplugging the power cable from your computer. For laptops, then remove the battery.
3. Hold the power button for 3–5 seconds to discharge residual electricity.

4. Remove your computer's cover. Refer to your owner's manual for how to do this.

5. To protect your new memory modules and your system's components from static damage during the installation process, touch any of the unpainted metal surfaces on your computer's frame before handling and installing memory.

6. Using your system's owner's manual, locate your computer's memory expansion slots. Do not use any tools in the removal or installation of memory modules.
7. Insert your new memory module(s) in accordance with the illustrations in this guide. Align the notch(es) on the module with the notch(es) in the slot, and then press the module down until the clips on the slot snap into place. (It can take 20 to 30 pounds of pressure to install a module.) Fill the memory slots on your computer starting with the highest density (i.e. put the highest density module in bank 0).
8. Once the module(s) have been installed, replace the cover on your computer and reconnect the power cord or battery. Installation is now complete.

DIMM installation

Using firm, even pressure, push DIMM into slot until clips snap into place. Do not assist clips.

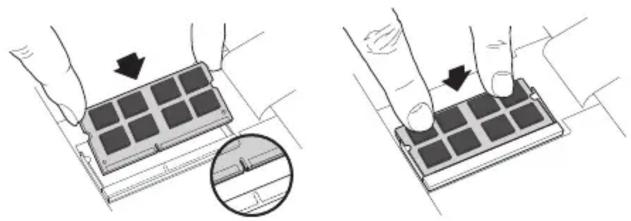

SODIMM installation

Firmly push the SODIMM in at a 45-degree angle, and then push down until clips snap into place. When it is fully seated in the slot, one-sixteenth of an inch or less of the gold pins will be visible.

Helpful hints & troubleshooting tips

If your system does not boot, check the following:

1. If you receive an error message or hear a series of beeps, your system may not be recognizing the new memory. Remove and reinstall the modules to ensure they are securely seated in the slots.
2. If your system won't boot, check all of the connections inside your computer. It is easy to bump a cable and pull it out of its connector, disabling devices such as your hard drive or CD-ROM. If your system still won't reboot, contact Crucial Technical Support.
3. When restarting your system, you may get a message prompting you to update the configuration settings. Refer to your owner's manual for information. If you are still unsure, please call Crucial Technical Support for assistance.
4. If you get a memory mismatch message, follow the prompts to enter the Setup menu, and then select Save and Exit. (This is not an error—some systems must do this to update the system settings.)

If you have any issues with installation, contact Crucial support with any questions or concerns.

Helpful Memory Support Resources

North and South America

http://www.crucial.com/usa/en/support-memory

Europe

United Kingdom:

http://uk.crucial.com/gbr/en/support-memory

European Union:

http://eu.crucial.com/eur/en/support-memory

France:

http://www.crucial.com/usa/en/support-memory

China:

http://www.crucial.cn/安装指南

Japan:

http://www.crucial.jp/jpn/ja/support-memory

www.crucial.com/support/memory
