Product Type	Freestanding Washing Machine
Brand	Panasonic
Model	NA-147VB5WGB
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	Approximately 75 kg
Capacity	7 kg
Maximum Spin Speed	1400 rpm
Energy Class	A+++
Water Consumption per Cycle	52 L
Annual Energy Consumption	175 kWh
Noise Level (Wash/Spin)	53 / 72 dB(A)
Number of Programs	15
Main Functions	Delayed Start, Quick Wash, Eco Wash, Stain Removal, Rinse Hold
Display Type	LED Digital
Drum Material	Stainless Steel
Motor Type	Inverter
Safety Features	Child Lock, Overflow Protection, Unbalance Detection
Maintenance & Cleaning	Clean detergent drawer and door seal regularly; run drum clean cycle monthly
Spare Parts & Repairability	Available at authorized service centers; repair index 8.2/10
Power Supply	220-240 V ~ 50 Hz
Power Consumption	2000 W

Frequently Asked Questions - NA-147VB5WGB PANASONIC

How do I clean the drum of my Panasonic NA-147VB5WGB washing machine?

Run the Drum Clean program monthly. You can also use a washing machine cleaner. Leave the door open after each wash to prevent mold.

What should I do if the machine doesn't start?

Check that the door is properly closed, the water supply is on, and the machine is plugged in. Ensure the child lock is not activated.

How can I activate the child lock?

Press and hold the Child Lock button for 3 seconds. A lock icon will appear on the display. Repeat to deactivate.

What is the maximum spin speed of the NA-147VB5WGB?

The maximum spin speed is 1400 rpm. You can adjust it for different programs.

Can I use liquid detergent?

Yes, but do not exceed the MAX line in the drawer. For liquid detergent, use the compartment marked with a liquid icon.

How do I resolve an 'E' error code?

Refer to your user manual for specific codes. Common causes: water drainage problem (E01), door lock failure (E02), or water supply issue (E04).

What is the capacity of this washing machine?

It has a 7 kg capacity, suitable for medium-sized households.

How to clean the detergent drawer?

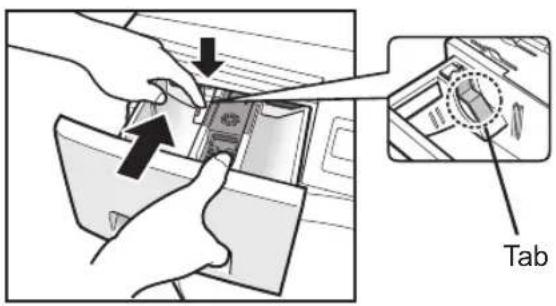

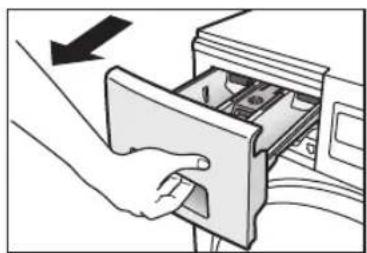

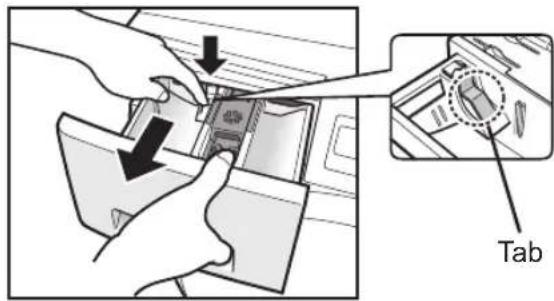

Remove the drawer by pulling it out and pressing the release clip. Rinse under warm water and wipe the recess with a cloth.

Is it safe to leave the machine unattended?

It is generally safe, but always check that water supply hoses are properly connected and there are no leaks. Do not leave if using high-temperature programs.

Where can I find replacement parts?

Contact an authorized Panasonic service center. You can also order online using your model number NA-147VB5WGB.

USER MANUAL NA-147VB5WGB PANASONIC

Operating Instructions & Installation Instructions

Washing Machine

(Domestic use)

Model No.

NA - 148VB5

NA - 128VB5

NA - 147VB5

NA - 127VB5

NA - 147VC5

NA - 127VC5

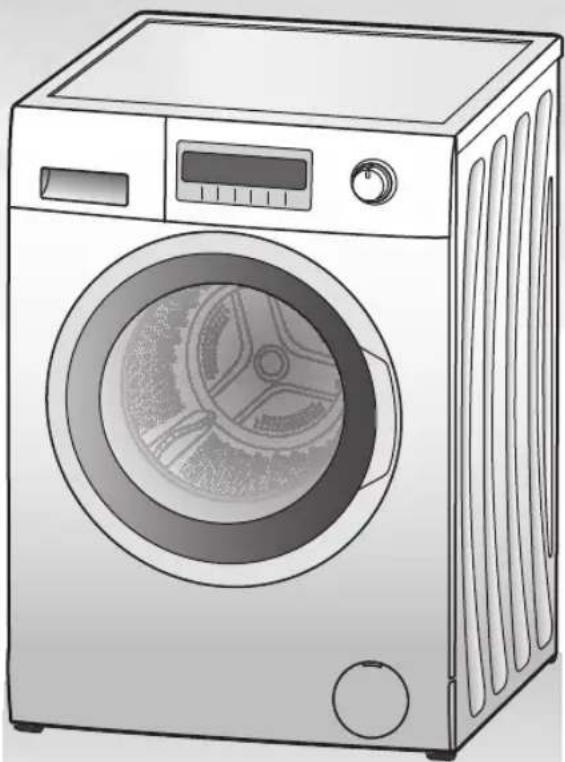

Line drawing of a modern washing machine with front panel, control panel, and circular vent (no text or symbols)

Read Before Using 02

SAFETY PRECAUTIONS 05

Washing Instructions 20

Optional Functions 30

Maintenance 31

Troubleshooting 35

Installation Instructions 39

Thank you for purchasing this appliance.

• For optimum performance and safety, please read these instructions carefully.
• Before connecting, operating or adjusting this appliance, please read the instructions completely. Please keep this manual for future reference.

Es

Electrical Connection (UK and Republic of Ireland only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 13-ampere fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 ampere and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark 📋 or the BSI mark ♥ on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.

Warning

If the fitted moulded plug is unsuitable for the mains socket in your home then the fuse should be removed and the plug cut off and disposed of safely.

There is a danger of severe electrical shock if the cut off plug is inserted into any 13-ampere socket.

How to replace the fuse

The location of the fuse differs according to the type of AC mains plug (figures A and B).

Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

Open the fuse cover with a screwdriver and replace the fuse and close or attach the fuse cover.

Figure A -

Diagram of a screwdriver using a clamp or switch, with no visible text or symbols

Figure B -

Diagram of a screwdriver inserted into a terminal block, showing the tool's tip and base (no text or symbols present)

2 - Read Before Using

Consider the Environment

Disposing of packaging

The packaging used to protect the washing machine from damage during transportation is all recyclable. For information on recycling, contact your local authority.

Disposing of Waste Electrical & Electronic Equipment

Information on disposal for users of waste electrical & electronic equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated disposable point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Information on disposal in other countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Eco-friendly Laundry

Keep to the load limit of each - programme.

The washing machine automatically - adjusts the operating time of each programme depending on the load.

You only need to use a preliminary wash - if your laundry is heavily soiled.

Using the 60 °C Cotton programme - instead of the 90 °C Cotton one will save energy, and will remove ordinary stains.

For lightly soiled laundry, using the 20°C - Wash programme instead of the 40 °C Quick programme will save more energy.

Detergent amount

Use the correct amount of detergent - based on the detergent pack instructions and local water hardness.

Adjust the amount of detergent - depending on how soiled your laundry is.

When using a tumble dryer

To save energy, please select the correct spin speed according to the instruction of your tumble dryer.

This product complies with the directives 2006/95/EC and 2004/108/EC.

Read Before Using - 3

Contents

Read Before Using

Electrical Connection (UK and

Republic of Ireland only) ..... 2

Consider the Environment.....3

SAFETY PRECAUTIONS ..... 9

Checking Your Washing Machine . 12

Your washing machine ..... 1 2

Accessories....12

Before You Start Washing ..... 13

Before use, check 13

Before initial use .....13

Preparing the laundry 13

Adding Detergent and Other

Chemicals 15

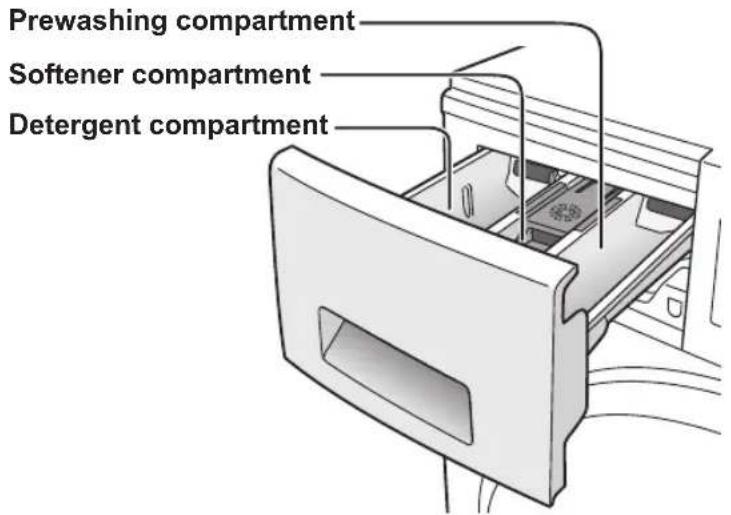

Detergent compartment ..... 1 5

Softener compartment....17

Prewashing compartment ..... 1 7

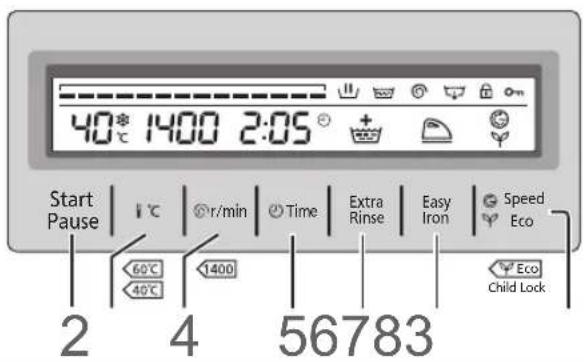

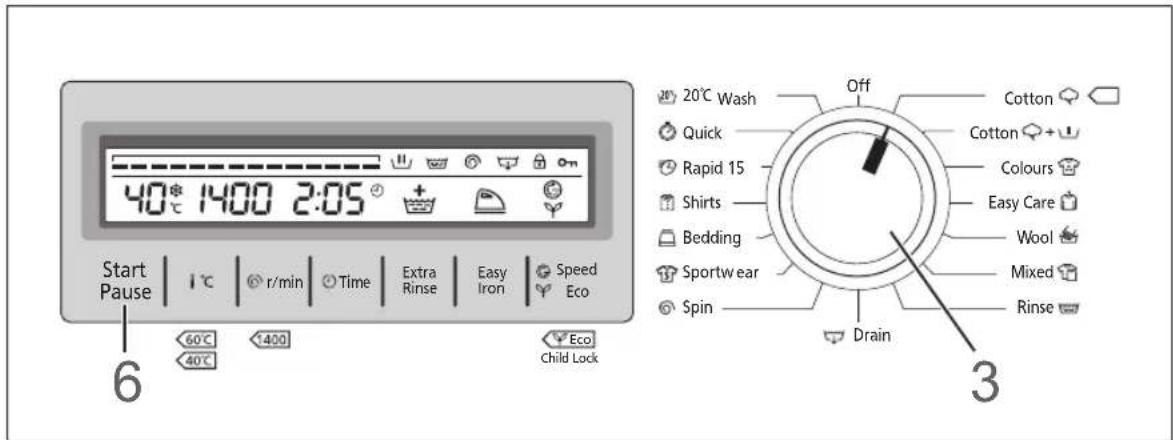

Using the Buttons and Dials ..... 1 8

Buttons and dial 18

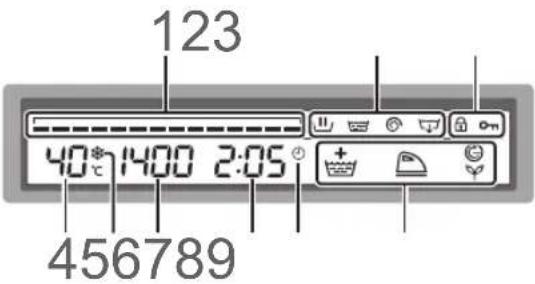

Display 19

Unlocking the door 19

Washing Instructions

Washing....20

Setting washing....20

Required time 21

Setting the buzzer 21

Changing settings 21

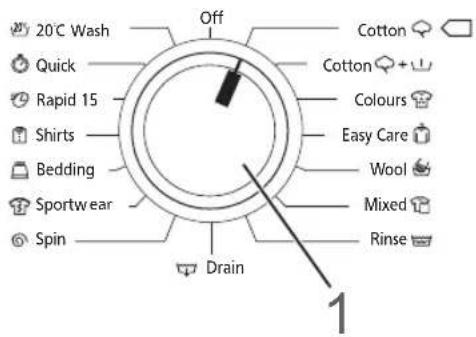

Selecting the Programme ..... 2 2

Power and Water Consumption. . . 23

Details of Programmes ..... 2 6

Washing Delicates....28

Wool programme....28

Wool laundry loads 28

Tips for washing delicates....28

Washing Blankets and

Bedspreads 29

Bedding programme .....29

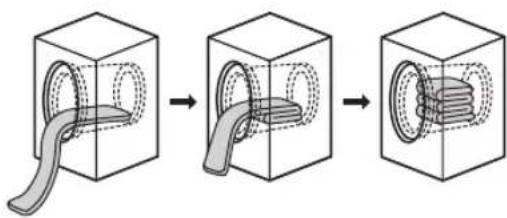

Putting bedding into the drum ..... 2 9

Optional Functions....30

Extra Rinse ....30

Speed/Eco. 30

Child lock....30

Preset timer....30

Easy Iron....30

4 - Read Before Using

Maintenance

Maintenance 31

Cleaning the outside of the appliance. 31

Cleaning the door seal and window . .3 1

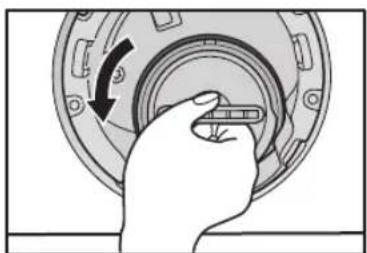

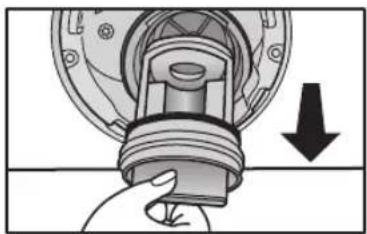

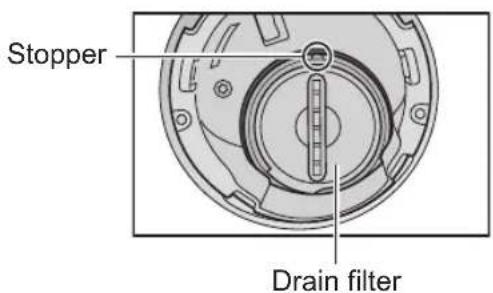

Cleaning the drain filter 31

Cleaning the drum. 32

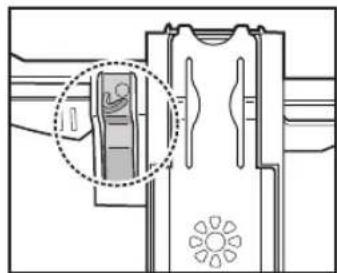

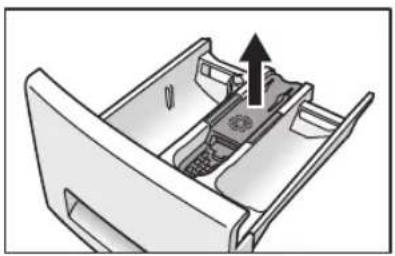

Cleaning the detergent drawer ..... 3 2

Cleaning the water-supply filter.....3 3

Preventing a frozen water-supply hose 34

Troubleshooting

Fault Checklist. 35

Error Display 38

Installation Instructions

Choosing the Right Location ..... 39

Carrying the appliance 39

The right place for the appliance.....3 9

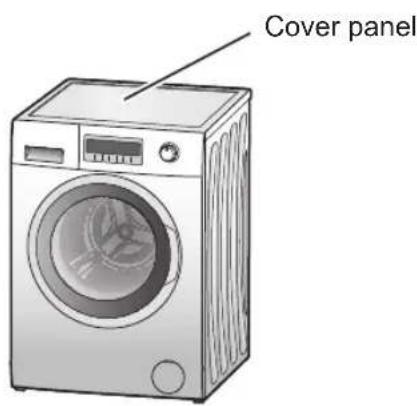

Installing a built-in washing machine. . 3 9

Moving and Installing. 40

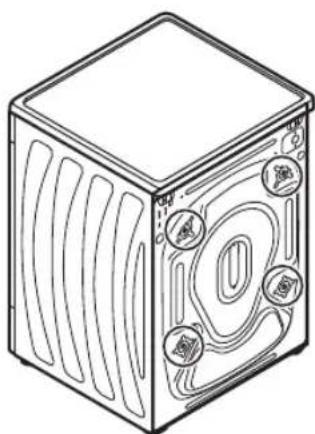

Removing the anchor bolts ..... 4 0

Moving the appliance 40

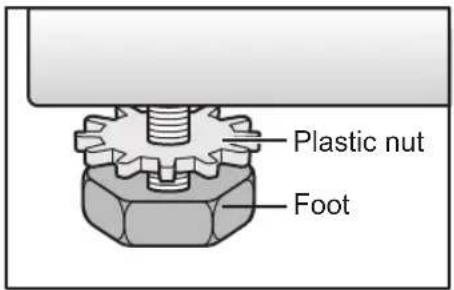

Levelling the appliance .....41

Connecting Hoses and Power

Supply 42

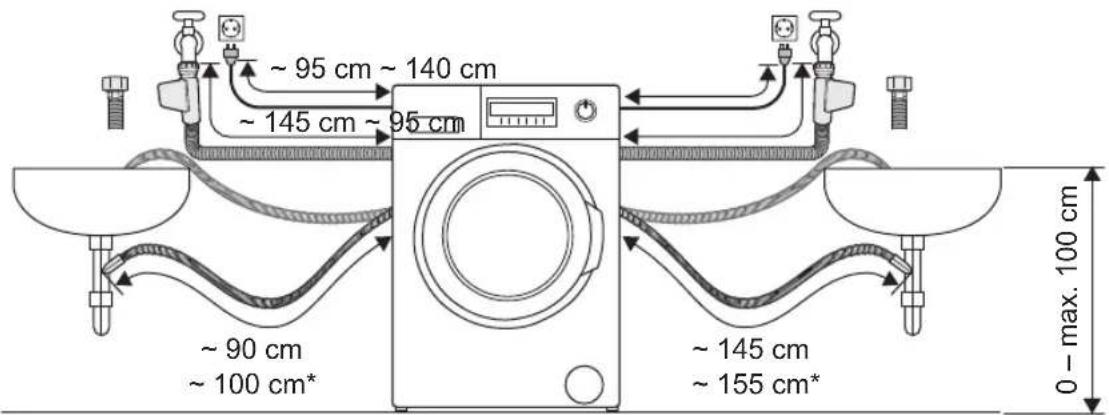

Hoses and cable lengths. 42

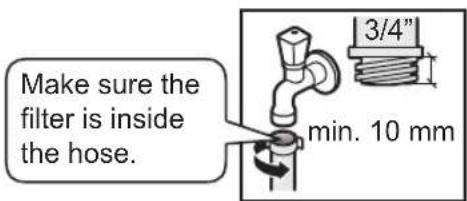

Water-supply hose 42

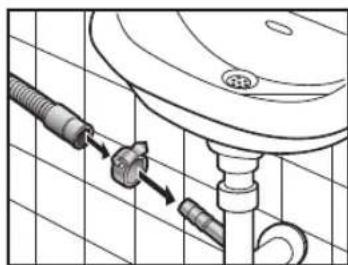

Water-drain hose. 43

Connecting to the power supply ..... 4 4

Checking After Installation.....45

Installation checklist 45

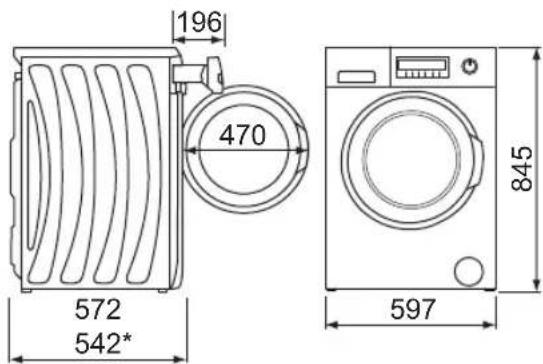

Specifications 46

Washing machine - Product fiche. . 47

Please read and follow these safety precautions.

WARNING

This describes issues which could cause death or serious injury.

General Use

This appliance can be used by children - aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Do NOT place a stand or a chair close to - the appliance.

Children may be able to reach the control panel or climb onto or into the appliance.

SAFETY PRECAUTIONS

Turn off the water supply to the appliance if it - is not going to be used for a prolonged period, such as during a holiday. This is especially important if there is no drainage around the appliance.

If the water supply is left on, the water pressure may unnecessarily increase and result in a leak.

Do NOT install the appliance in a damp location - or in a location exposed to the weather.

This may result in malfunction, deterioration, electric shock, or fire.

Do NOT pour or spill water directly onto any - part of the appliance.

This may result in malfunction, electric shock, or fire.

Keep sources of ignition, such as candles or - cigarettes, away from the appliance.

They may cause a fire or damage to the appliance.

Keep flammable materials away from the - appliance, for example, gasoline, thinner, alcohol, or clothing soaked with these materials.

They may cause an explosion or a fire.

WARNING

Power source and cable

Unplug the mains lead when cleaning the - appliance.

Check the mains lead and mains plug for - any damage.

If the mains lead is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons to avoid a hazard.

Do NOT use a mains plug adaptor or - extension cable. There is a possibility of overheating which may cause a fire. Use an unused household mains socket, fully rated at AC 220 V to 240 V. If you are not sure, contact a qualified electrician.

ENSURE the mains plug is fully inserted - into the household mains socket. If the mains plug is not fully pushed in, a loose connection may overheat and cause an electric shock or fire.

Do NOT touch the mains lead or mains plug - with wet hands.

Possibility of an electric shock.

SAFETY PRECAUTIONS

Do NOT pull the mains lead but hold the - mains plug to unplug the appliance.

Otherwise, there is possibility of damage to the mains lead, which may lead to an electric shock or fire.

To Prevent Injury

The installation of the appliance should - be done by the manufacturer's dealer or service agent.

If the installation, test run and inspection of the appliance are not carried out following the installation method outlined in these instructions, the manufacturer will not be liable for any accident or damage caused.

Do NOT dismantle, repair or modify the - appliance.

There is a possibility the appliance may malfunction which may result in a fire or an injury. If repairs are needed, contact your local Customer Communications Centre.

Do NOT touch the laundry inside the drum - until it has completely stopped, as there is a possibility of injury. Keep children away from the rotating laundry.

CAUTION

This describes issues which could cause injury or damage your belongings.

General Use

Prior to use, turn on the tap and check the - hose and connections for any leaks. Improper connection could cause leaks.

The new hose-sets supplied with the - appliance are to be used and that old hose-sets should not be reused.

This appliance is only suitable for textiles - labelled washing machine washable.

Do NOT connect to the hot water supply. - This appliance works ONLY with cold water.

Do NOT apply pesticide, hair spray or -deodorant to the appliance.

SAFETY PRECAUTIONS

Do NOT put any electrical equipment, for - example, TVs, radios or battery chargers, on or near the appliance.

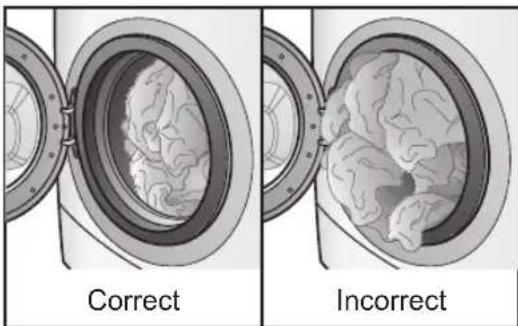

Do NOT put too much laundry or detergent - into the appliance.

This may cause damage to the appliance.

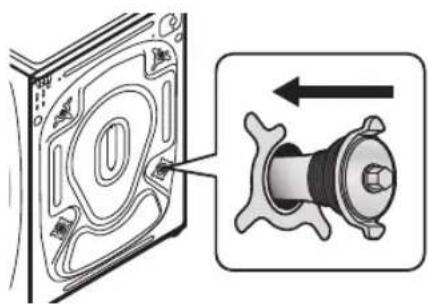

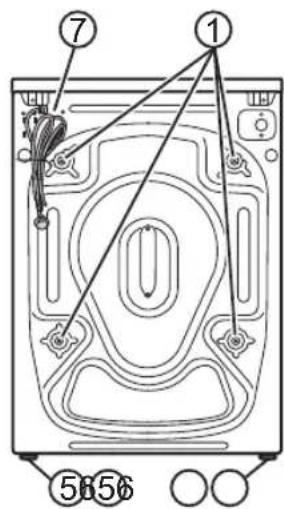

REMOVE the anchor bolts before installing - the appliance using a spanner or similar tool. The anchor bolts are used to transport the appliance.

If the anchor bolts are not removed, the appliance will strongly vibrate during use.

To Prevent Injury

Do NOT climb onto the appliance. - This may cause injury or damage to the appliance.

Keep fingers away from the door hinge - when opening and closing the door.

Do NOT slide your hand (or unprotected - foot) underneath the appliance when in use.

CAUTION

Check all washing and remove all objects - such as nails, pins, coins, clips, metal wires, etc.

They may cause damage to other laundry or the appliance.

Do NOT use the appliance to wash - waterproof sheets or clothing. There is a possibility of excessive vibration or failure during the spin cycle that may result in an injury, damage to the appliance or a water leak.

BE CAREFUL when draining hot water or - any detergent out of the drum.

BE CAREFUL not to get laundry caught in - the door seal when it is closed. This may result in a water leak or damage to the laundry during the wash cycle.

Checking Your Washing Machine

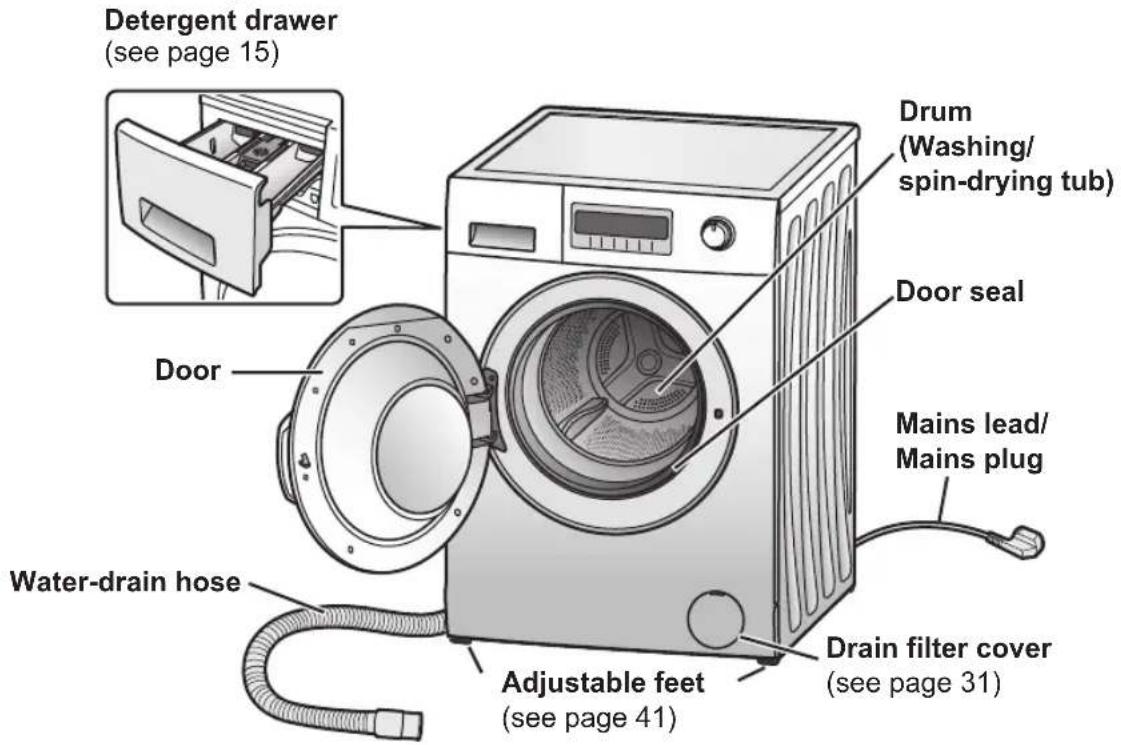

Your washing machine

Caution

Do NOT bend the mains lead when the appliance is running.

Accessories

Make sure that all the accessories are supplied with the appliance.

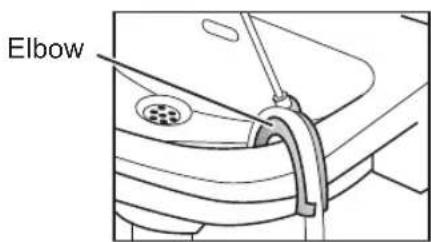

Elbow (see page 43)

For fixing the water-drain hose

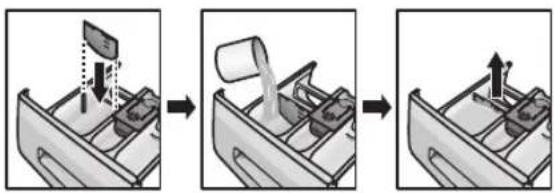

Liquid detergent level plate (see page 16)

Cover cap (x4) (see pages 40-41)

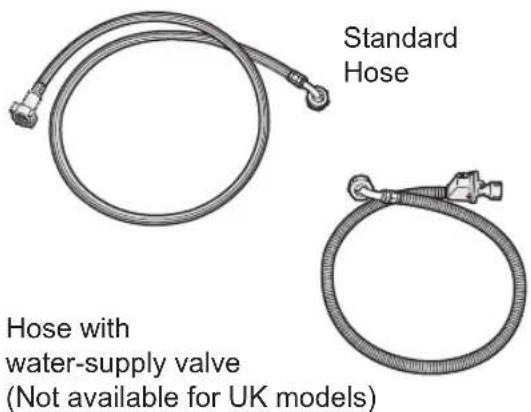

Water-supply hose (see page 42)

Either one of these hoses is supplied with the appliance.

12 - Read Before Using

Before You Start Washing

Before use, check

For the appliance's initial operation or after a prolonged period of non-operation, perform the following procedures:

Secure the water-supply hose.1.

Open the tap.2.

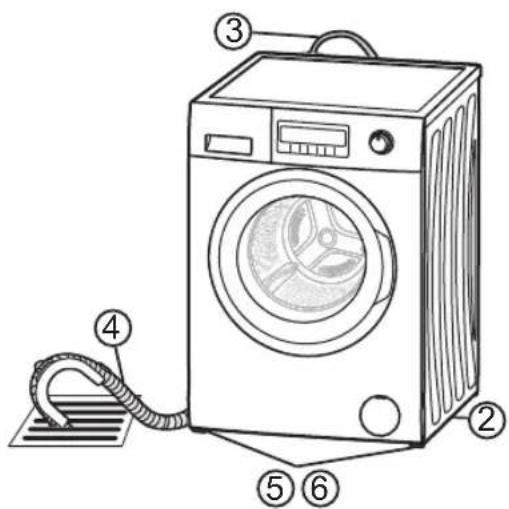

Connect the power.3.

Make sure that the water-drain hose 4. is positioned towards a drain.

For more details, see page 43.

Before initial use

For the appliance's initial operation, select the 40 °C Cotton programme to operate it WITHOUT any detergent or clothing to rinse out residue or moisture.

Note

There may be drops of water or condensation in the appliance due to the factory inspection prior to shipment. This is not a malfunction.

You should put bras with metal wires, - tights, lace clothing and small items of clothing into a laundry net to prevent them or the appliance from getting damaged.

Caution

Do NOT wash water-repellent clothing.

There is a possibility of excessive vibration or failure during the spin-drying cycle that may result in an injury, damage to the appliance or a water leak.

Preparing the laundry

Sorting clothing

Read clothing washing labels to help - you sort them into different loads.

Sort the laundry by colour, by type of -fabric, and by how soiled it is. Doing so will help you choose the correct programme and temperature for each wash.

Clothes that are not colour fast should - be washed separately. Wash denim separately.

Read Before Using - 13

Before You Start Washing

Treating stains

Apply stain remover to stained portions. For dirt and solid stains, wash lightly by hand first.

Checking clothing

Check that pockets on clothing do not - contain any objects that may damage the clothes or the appliance.

To avoid clothes being damaged, check - and tie up loose strings, close zips, turn clothing with raised fabrics and zips inside out.

Illustration of two jacket covers with labels A and C, no text or symbols present

Remove any hair, animal fur, sand, - and other materials with a brush before washing.

Note

Do not wash clothes that are heavily stained with large quantities of vegetable oil or cosmetic oil (aroma oil, etc.). Failure to observe this may result in the door seal swelling, causing the water to overflow and leading to malfunctions.

14 - Read Before Using

Adding Detergent and Other Chemicals

Pull out the detergent drawer and add detergent or softener to the correct compartment. Check the packages for the appropriate recommended amounts.

Caution

Do NOT use the appliance when the detergent drawer is removed.

This may result in a water leak.

Detergent compartment

The following detergents and additives may be added to this compartment:

Detergent -

Water softening agent -

Stain remover -

Tub cleaning detergent or bleach -

If you use multiple chemicals in this compartment for washing, add them in the following order:

1. Detergent

2. Water softening agent

3. Stain remover

Detergent

Use only detergents that are recommended for fully-automated washing machines. Please use low suds detergents.

Caution

If the instructions on the package indicate that detergent should be placed in the drum, do NOT put it into the detergent drawer.

These detergents may not flow well and remain in the detergent drawer. Do not overfill with detergent. Failure to observe this may result in the detergent blocking the water supply, causing the water to overflow from the front of the detergent drawer and leading to malfunctions.

Liquid detergent1.

Note

Do NOT use liquid detergent with the Prewash function. It may flow away during the prewash.

Add liquid detergent before you start washing.

Read Before Using - 15

Adding Detergent and Other Chemicals

Fit the liquid detergent level plate (included with the accessories) into the detergent compartment and use it as a mark to set the amount of liquid detergent. Make sure to detach the plate before running the programme.

Note

Leaving the liquid detergent level plate in the detergent drawer while the programme is running may result in water leakage, or diminished washing and spinning performance.

For the Wool programme, use mild liquid detergent.

Powdered detergent2.

Detergent reaches the drum only when water flushes through the detergent drawer. Thus, if you forget to add detergent, run the Drain programme.

Then, add detergent and start washing again.

To prevent powdered detergent from remaining in the drawer, perform the following:

Dry the inside of the drawer with a cloth. -

Make sure that the detergent is not - lumpy when you add it as this may cause a blockage over time.

Amount of Detergent

The amount of detergent you should use depends on the following factors:

How soiled the laundry is - The amount of the laundry - Water hardness -

The amount of foam varies according to the amount and type of detergent, how soiled the laundry is, and the hardness and temperature of the water.

Water softening agent

If you live in a hard water area, we recommend the usage of a water softening agent. For more details on water hardness, contact your local water authority.

Use of a water softening agent can help reduce the amount of detergent that is required for each wash and help prevent the formation of limescale deposits, which may damage the appliance.

16 - Read Before Using

Adding Detergent and Other Chemicals

Softener compartment

The following additives may be added to this compartment:

Fabric softener -

Laundry starch -

Fabric Softener

To prevent static, add softener before you start washing. It will be automatically added in the final rinse cycle.

Dilute concentrated softeners before you add them. Add up to only 125 ml to the compartment to avoid overflowing.

Undiluted softener

Rinse out the remaining softener with a splash of water or a damp cloth after washing. If it sticks to the compartment, pull out the drawer and clean it out. (See page 32-33.)

Note

Follow the directions on the softener packages for the appropriate amounts. If too much softener is added, it may remain in the detergent drawer.

Laundry starch

Simply add laundry starch to the softener compartment. It will be automatically added to the clothing as part of the final rinsing process. Make sure that you do not fill the compartment over the MAX level.

If it is hard to pour, you can dilute the starch slightly with water before adding it.

Note

After using starch, clean the detergent drawer, especially the softener cover (see page 32-33). Then, run the Rapid 15 programme WITHOUT detergent to remove any excess starch in the drum.

Prewashing compartment

Detergent for prewashing

Whenever you use the Cotton (Prewash) programme (♀+⊥) always put detergent for the prewash in this compartment.

Read Before Using - 17

Using the Buttons and Dials

Model NA-148VB5

Buttons and dial

Programme selection dial1.

Use this dial to choose the best programme for the laundry. (See pages 22.)

Start/Pause button2.

Press this button to start or pause the wash programme.

Temperature button1.

For choosing water temperatures ranging from cold to 90 °C. (90 °C is available only with the Cotton and the Cotton (Prewash) programmes.) You can choose hotter temperatures for whites, cottons, or soiled laundry.

Spin speed button4

For choosing the spin speed for the programme you have selected. The maximum spin speed of models are as follows.

148VB5, 147VB5 and 147VC5: - 1400 r/min 128VB5, 127VB5 and 127VC5: - 1200 r/min

1. Time button ⏻

For presetting the time for when the wash is to start. (See page 30.)

1. Extra Rinse

Press this button to select the Extra Rinse function. (See page 30.)

1. Easy Iron button

Press this button to select the Easy Iron function. (See page 30.)

Speed/Eco and Child Lock button8.

-Press this button to select the Speed/Eco function. (See page 30.) -Press and hold this button for 5 seconds to set the child lock. The controls will be locked. Perform the same operation to release the child lock. (See page 30.)

18 - Read Before Using

Using the Buttons and Dials

Display

Model NA-148VB5

Time bar indicator1.

The number of displayed bars increases with time.

Process2.

This indicator shows the current process - of the programme. The process consists of wash ☐, rinse ☐ and spin .

- is displayed only when the Drain programme.

The indicator goes off when the wash is - finished.

Lock3.

is displayed if the door is locked.

- On is displayed if the child lock is activated. (See page 30.)

4. Temperature

5. Cold setting

This indicator is displayed when you turn on the Cold setting.

6. Spin speed

7. Remaining time

This indicator shows the approximate time until the washing finishes. For example, '2:05' means 2 hours and 5 minutes.

Time8.

This indicator is displayed if the time for when the wash is to start has been preset.

9. Option functions

These indicators are displayed when their respective functions have been programmed. The option functions that display here are the Extra Rinse 🌐, Easy Iron 📄, Eco 🍼 and Speed functions.

Unlocking the door

The door automatically locks while in use, and the 🔒 symbol is shown while the door is locked. A click will be heard when the door locks or unlocks.

Note

While the door is locked, if the appliance is switched off, or if there is a power interruption, the door will unlock after 1 or 2 minutes.

Press the Start/Pause button to unlock the door during operation.

In the following cases, the door can't be unlocked even if operations are paused.

-During spin-drying

When the water level is beyond a certain level

Note

-If you want to unlock the door, set the programme selection dial to Off, and then select a programme (ex. Cotton).

Caution

If you have to unlock the door mid-programme, make sure that water from the drum does not overflow onto the floor.

Water and soap suds might come out of the door and the door opening. You may need a towel to soak them up.

Read Before Using - 19

Washing

Setting washing
Model NA-148VB5

Open the door and put the laundry 1. into the drum.

For details about preparing and sorting the laundry, see pages 14 and 22.

Caution

Make sure to place the laundry - within the drum so that it does not get caught in the door.

Failure to observe this may - result in damage to the door seal, leading to malfunctions.

Do NOT overload the drum. -

This may cause excessive vibration or damage to the appliance.

Note

When loading a big amount of laundry, make sure to evenly distribute the laundry throughout the drum.

Close the door.2.

Turn the programme selection dial 3. either way to switch on the appliance and select the programme.

A wash time will be displayed.

For more details about each programme, see pages 26-27.

20°C Wash programme

This programme achieves the same cleaning strength with 20^ C low-temperature washing as 40^ C programme (except for greasy stains).

Spin programme

With the Spin programme, the operation starts from the drain process whether there is water in the drum or not. After the water drains out to a preset level, the spin process starts.

Select optional functions.4.

For more details about available functions and settings for each programme, see pages 26-27.

Add detergent to the detergent 5. drawer.

(See pages 15-17.)

20 - Washing Instructions

Press the Start button.6.

The appliance starts supplying water after draining.

Note

Whenever you start washing, the - process display flashes to show which function is in progress.

Before any programme is started, the appliance first drains out any water.

The buzzer will sound and “END” will flash on the display when the programme has finished, and the door will unlock immediately.

Caution

After a high temperature wash, be careful to not burn yourself when handling the laundry or touching the inside of the drum.

Note

If the detergent is not completely - removed from the laundry by using the basic programme, use the Extra Rinse function.

If the load is big, the laundry may - stick to the inside of the drum. This is normal.

Leave the appliance door open - to allow the drum to dry out after removing the laundry.

Remove the laundry and rearrange - where necessary. Do not leave it in the drum too long after the programme ends, because colours may run.

Required time

Times depend on the programmes and temperature settings that have been selected.

Actual times may differ slightly from - those shown.

The displayed times include the time - needed for the water to fill up and to drain out, thus they vary depending on water pressure, drainage and amount of laundry.

If the laundry in the drum needs to be - balanced, times will be extended.

Setting the buzzer

To turn on or turn off the buzzer which sounds when the programme has finished, follow these instructions.

Simultaneously press and hold the Temperature and Time buttons for at least 3 seconds.

The buzzer setting will be turned off after a beep is heard.

The buzzer setting will be turned on after two beeps are heard.

Changing settings

After washing has started, the programme, temperature, spin speed, preset time, Extra Rinse, Easy Iron and Speed/Eco function cannot be changed.

To change the programme, temperature, spin speed, preset time, Extra Rinse, Easy Iron and Speed/Eco function settings, turn the appliance off and then on again.

Selecting the Programme

Programme Description		148VB5128VB5Max load	147VB5127VB5147VC5127VC5Max load
Cotton		Daily wash for cotton, linen and cotton blends.	8 kg7 kg
+ L Cotton (Prewash)		Cotton programme with prewash process for heavily soiled laundry	8 kg7 kg
Colours		Colour-fast wash for cotton and cotton blend items.	4 kg3.5 kg
Easy Care		Gentle wash for cotton, linen and synthetic fibres.	4 kg3.5 kg
Wool		Gentle wash for hand and machine washable wool and wool blend clothes preventing clothes shrinkage.	2 kg2 kg
Mixed		Mixed load for washing various fabrics such as cotton, linen and synthetic fibres	3.5 kg3.5 kg
Rinse		Rinses washed laundry.	8 kg 7 kg
Drain Drains		water from the drum.	— —
Spin		Spin-dries washed laundry.	8 kg 7 kg
Sportswear		For washing synthetic sportswear.	3 kg 3 kg
Bedding		For washing large items such as bed sheets.	3 kg3 kg
Shirts		Washing for collar and cuff grime of shirts and blouses, prevents creasing.	2 kg2 kg
Rapid 15		15 min. full rapid wash for a small amount of lightly soiled items.	2 kg2 kg
Quick		Quick wash for lightly soiled cotton and linen blends.	4 kg3.5 kg
20°C Wash		Low energy, low temp. wash for lightly soiled cotton and linen blends.	4 kg3.5 kg

22 - Washing Instructions

Power and Water Consumption

Programme Temperature Load (kg)			Power consumption (kWh) ^2)	Water consumption (L) ^2)	Time ^2)
			148VB5128VB5	148VB5128VB5	148VB5128VB5
Cotton	40 °C 8 0.92 60 2:05
Cotton + Eco fuction	40 °C ^1)	4 0.71	41 2:50
	60 °C ^1)	8 0.95	51 3:20
		4 0.77	41 2:55
+ Cotton (Prewash)	40 °C 8 0.98 70 2:23
Colours	40 °C 4 0.91 52 1:45
Easy Care	40 °C 4 0.60 55 1:25
Wool	30 °C 2 0.10 50 0:40
Mixed	30 °C 3.5 0.46 55 1:25
Sportswear	40 °C 3 0.63 42 1:45
Bedding	30 °C 3 0.28 57 1:10
Shirts	40 °C 2 0.60 45 1:25
Rapid 15	30 °C 2 0.10 30 0:15
Quick	40 °C 4 0.48 38 1:08
20°C Wash	20 °C 4 0.31 42 1:40

1) Results calculated regarding the maximum spin speed comply with EN 60456.
2) The power, water consumption, and times indicated in the table may vary depending on variations in pressures, water hardness and temperatures, room temperatures, types and amounts of laundry, voltage fluctuations, and which optional functions are used.
3) For the product fiche in accordance to EU Regulation 1061/2010, please check on http://www.panasonic.co.uk

Washing Instructions - 23

Power and Water Consumption

Programme Temperature	Temperature Load (kg)	Power consumption (kWh) ^2)	Water consumption (L) ^2)	Time ^2)
		147VB5127VB5	147VB5127VB5	147VB5127VB5
Cotton	40 °C 7 0.93 60 2:05
Cotton + Eco fuction	40 °C ^1)	3.5 0.64	39 2:40
	60 °C ^1)	7 0.83	47 3:20
		3.5 0.68	39 2:50
+ Cotton (Prewash)	40 °C 7 0.98 69 2:23
Colours	40 °C 3.5	1.00 52 1:45
Easy Care	40 °C 3.5	0.61 47 1:25
Wool	30 °C 2 0.11 45 0:40
Mixed	30 °C 3.5	0.32 60 1:25
Sportswear	40 °C 3 0.62 42 1:45
Bedding	30 °C 3 0.25 50 1:10
Shirts	40 °C 2 0.60 44 1:25
Rapid 15	30 °C 2 0.10 30 0:15
Quick	40 °C 3.5	0.48 38 1:08
20°C Wash	20 °C 3.5	0.27 42 1:40

1) Results calculated regarding the maximum spin speed comply with EN 60456.

2) The power, water consumption, and times indicated in the table may vary depending on variations in pressures, water hardness and temperatures, room temperatures, types and amounts of laundry, voltage fluctuations, and which optional functions are used.

3) For the product fiche in accordance to EU Regulation 1061/2010, please check on http://www.panasonic.co.uk

24 - Washing Instructions

Power and Water Consumption

Programme Temperature Load (kg)			Power consumption (kWh) ^2)	Water consumption (L) ^2)	Time ^2)
			147VC5127VC5	147VC5127VC5	147VC5127VC5
Cotton	40 °C 7 0.82 62 2:05
Cotton + Eco fuction	40 °C ^1)	3.5 0.65	41 2:40
	60 °C ^1)	7 1.05	54 3:25
		3.5 0.72	41 2:45
+ Cotton (Prewash)	40 °C 7 0.97 72 2:23
Colours	40 °C 3.5	0.96 56 1:45
Easy Care	40 °C 3.5	0.62 48 1:25
Wool	30 °C 2 0.13 50 0:40
Mixed	30 °C 3.5	0.30 62 1:25
Sportswear	40 °C 3 0.62 40 1:45
Bedding	30 °C 3 0.34 54 1:10
Shirts	40 °C 2 0.64 44 1:25
Rapid 15	30 °C 2 0.10 32 0:15
Quick	40 °C 3.5	0.42 36 1:08
20°C Wash	20 °C 3.5	0.26 45 1:40

1) Results calculated regarding the maximum spin speed comply with EN 60456.
2) The power, water consumption, and times indicated in the table may vary depending on variations in pressures, water hardness and temperatures, room temperatures, types and amounts of laundry, voltage fluctuations, and which optional functions are used.
3) For the product fiche in accordance to EU Regulation 1061/2010, please check on http://www.panasonic.co.uk

Washing Instructions - 25

Details of Programmes

Programme		Auto setting
		Temperature	Number of rinses	Spin-dry revolutions (r/min)		Approximate
				128VB5 127VB5 127VC5	148VB5 147VB5 147VC5	148VB5 128VB5
	Cotton	40 °C	2	1200	1400	2:05
+	Cotton (Prewash)	40 °C	2	1200	1400	2:23
	Colours	40 °C	2	1200	1400	1:45
	Easy Care	40 °C	2	800	800	1:25
	Wool	30 °C	3	600	600	0:40
	Mixed	30 °C	2	800	800	1:25
	Rinse	Cold	3	1200	1400	0:36
	Drain	—	—	—	—	0:03
	Spin	—	—	1200	1400	0:15
	Sportswear	40 °C	2	1200	1400	1:45
	Bedding	30 °C	3	800	800	1:10
	Shirts	40 °C	2	600	600	1:25
	Rapid 15	30 °C	1	800	800	0:15
	Quick	40 °C	2	1200	1400	1:08
	20°C Wash	20 °C	2	1200	1400	1:40

26 - Washing Instructions

Details of Programmes

Setting Option functions
ie			Temperature	Spin-dry revolutions		Extra Rinse 1)	Easy Iron	Speed/Eco 1)
	147VB5127VB5	147VC5127VC5		128VB5127VB5127VC5	148VB5147VB5147VC5
	2:05	2:05	Cold - 90 °C	0 - 1200	0 - 1400	√	√	√
	2:23	2:23	Cold - 90 °C	0 - 1200	0 - 1400	√	√	√
	1:45	1:45	Cold - 40 °C	0 - 1200	0 - 1400	√	√	√
	1:25	1:25	Cold - 60 °C	0 - 800	0 - 800	√	√	√
	0:40	0:40	Cold - 40 °C	0 - 600	0 - 600	√	—	—
	1:25	1:25	Cold - 30 °C	0 - 800	0 - 800	√	√	—
	0:36	0:36	Cold	0 - 1200	0 - 1400	—	√	—
	0:03	0:03	—	—	—	—	—	—
	0:15	0:15	—	400 - 1200	400 - 1400	—	√	—
	1:45	1:45	Cold - 40 °C	0 - 1200	0 - 1400	√	√	√
	1:10	1:10	Cold - 40 °C	0 - 800	0 - 800	√	√	√
	1:25	1:25	Cold - 60 °C	0 - 600	0 - 600	√	√	√
	0:15	0:15	Cold - 30 °C	0 - 800	0 - 800	—	√	—
	1:08	1:08	Cold - 60 °C	0 - 1200	0 - 1400	√	√	—
	1:40	1:40	Cold - 20 °C	0 - 1200	0 - 1400	√	√	—

1) You cannot simultaneously select the Extra Rinse and Speed/Eco functions.

Washing Instructions - 27

Washing Delicates

Wool programme

The drum spins gently in the Wool programme.

For details about washing instructions, see pages 20-21.

Wool laundry loads

Wool programme: 2 kg or less

Approximate weights

Wool sweater: 400 g

Tips for washing delicates

Putting laundry in the drum

Pile them one on top of each other.

Detergents

For wool items, use a mild liquid - detergent. Other detergents may damage the clothes.

With Wool programme, you may need to - use the Extra Rinse function to remove excess detergent from the laundry. (See page 30.)

Hanging the laundry

Hang out white or light-coloured wool - and nylon items away from direct heat or sunlight.

After washing, lay out wool and nylon - clothes, and return them to their normal shape before hanging in the shade. This saves on ironing too.

Hang wool items without folds or - creases, or spread them out to dry.

Two technical illustrations of fabric or material components, one with a bandage and the other with folded sheets (no text or symbols)

Use hangers for shirts, blouses and - trousers.

You may wrap a towel around the hanger to approximate the clothing's shoulder width so that it will retain its shape as it dries.

Illustration of three clothing items: a collared shirt, a pair of trousers, and a hanger (no text or symbols)

If clothing shrinks in the wash

Spread the item out to its original size on an ironing board. Use dress pins to hold the size and shape. Then, use an iron to steam it and leave it to dry.

Illustration of two 3D printing sheets: one with a patterned sheet, the other with a textured surface and a small object (no text or symbols)

28 - Washing Instructions

Washing Blankets and Bedspreads

Bedding programme

For details about washing instructions, see pages 20-21.

Make sure that the label of each item - to be washed shows either the wash or handwash symbol (☐, ☐).

Wash only one blanket at a time. -

Washable

100 % synthetic fibre blankets – up to -3 kg

100 % synthetic fibre futons and 100 % - cotton blankets – up to 1.5 kg (single bed size)

Sheets -

Bedspreads -

100 % synthetic fibre undersheets -

Non-washable

100 % wool blankets -

Long-piled blankets -

Electric blankets (including cover) -

Putting bedding into the drum

Fold down blankets or bedspreads 1. into a quarter of their original size.

Put the blanket or bedspread to the 2. drum.

Fold it while putting it into the drum.

Both ends of blanket should be directed inward the drum

Caution

Do NOT roll blankets or bedspreads into balls, nor haphazardly fold them.

This may cause excessive vibration and damage the laundry or the appliance.

Note

Avoid using blanket nets. They prevent the laundry from spinning properly.

Washing Instructions - 29

Optional Functions

Extra Rinse

You can rinse your laundry more thoroughly with an extra rinsing process.

Speed/Eco

You can shorten wash cycles or conserve energy.

Function	Description
Normal Wash	Normal wash cycle
Speed [52H5]	Washing times will be shorter than those of the basic programmes, suitable for lightly soiled laundry.
Eco	Washing consumes less energy.

Child lock

When the child lock is activated, the controls are locked. This prevents children from changing the wash settings or playing with the appliance.

Activating/deactivating child lock

Switch on the appliance.1.

Press and hold the Speed/Eco button 2. for at least 5 seconds.

The On symbol is displayed to show that the child lock is activated.

To deactivate, hold down the Speed/3. Eco button again for 5 seconds (please ignore three beeps heard, keep Speed/Eco button pressed until it deactivates).

Preset timer

You can use the timer to preset the wash to start anywhere from 1 to 24 hours later.

Note

Do NOT use detergent which does not dissolve thoroughly with the preset function, because the detergent might cake up before the wash starts and not flow out.

Setting a preset time

Set a preset time after you have selected the programmed and optional functions (see page 20).

Continuously press the Time button 1. until the desired preset time is displayed.

Press the Temperature button or the 2. Extra Rinse button to set the preset time.

The countdown has not started.

To cancel the preset time - Press the Time button.

To change the preset time -

Press the Time button, then redo the setting from step 1.

Press the Start/Pause button to 3. activate the countdown.

To cancel the preset time -

Turn the programme selection dial to 'Off'. (All settings will be cancelled.)

To change the preset time -

Turn the programme selection dial to 'Off'. After reselecting the programme and optional functions, redo the setting from step 1.

Easy Iron

This function makes ironing easier by spinning your laundry more gently (at 1000 r/min or less).

After washing has finished, the laundry - is rotated intermittently for up to 5 minutes.

Reduces wrinkles and helps to unravel - tangled laundry.

30 - Maintenance

Maintenance

Cleaning the outside of the appliance

Clean the outside of the appliance with a soft cloth and mild detergent, for example, kitchen detergent, and soapy water.

Warning

Do NOT splash water over the - appliance.

Do NOT use cream cleansers, - thinners, nor products containing alcohol or paraffin oil.

Cleaning the door seal and window

After each wash, perform the following:

Remove any objects from the door seal. -

Wipe the window and seal to remove lint - and stains.

If lint builds up, it can cause leaks.

Cleaning the drain filter

We recommend cleaning the drain filter once a month. The filter will have lint build up, which can reduce drainage water flow.

Switch off and unplug the appliance.1.

Remove the drain filter cover using 2. the supplied liquid detergent level plate.

Place a container to receive the drain water in front of the drain filter.

Illustration of a hand using a tool to add a small component into a rectangular block (no text or symbols visible)

Carefully turn the drain filter 3. anticlockwise to unscrew it.

Water may drain out. This is normal.

Hand pressing a button on a circular mechanical component (no text or symbols visible)

Then, remove the drain filter.4.

Mechanical assembly diagram showing a hand pressing a component with a downward arrow indicating motion (no text or symbols present)

Remove any lint and debris.5.

Replace the drain filter and drain filter 6. cover.

Reinsert the drain filter. Then turn it clockwise until it touches the stopper.

Caution

BE CAREFUL when draining hot water.

Maintenance - 31

Maintenance

Cleaning the drum

If you keep using cold water in the appliance, bacteria may build up inside the drum and give off an odour. You can avoid this by running the 90 °C Cotton programme once a month. (If you use a scale remover, follow the manufacturer's instructions.)

Caution

Viruses and bacteria are not killed in water temperature of 40 °C. Pathogens can spread via the commingling of clothes and thus transmit diseases.

Pathogens die at 60 °C or higher. However, using water temperatures up to 90 °C is unnecessary.

Note

Do NOT put laundry nor laundry detergent into the appliance while it is being cleaned.

If you use tub cleaning detergent or bleach, put it into the detergent drawer before starting the wash. The appropriate amount to be used is about 30 ml. (See page 15.)

Cleaning the detergent drawer

Detergent residue soon builds up if the detergent drawer is not cleaned regularly. Detergent build up may develop mould.

Technical line drawing of a door handle with a highlighted interior component (no text or symbols)

Pull out the detergent drawer.1.

Illustration of a hand inserting a drawer into a file into a rack (no text or symbols visible)

Remove the detergent drawer by 2. pulling it out while pressing down on the tab as shown in the figure below.

32 - Maintenance

Pull your finger on the tab near the 3. front of the softener cover then pull it up to remove it from the detergent drawer.

Diagram of a mechanical device interior showing internal components and a directional arrow (no text or symbols)

Wash out the old detergent with 4. water.

Use a cloth to wipe the water from the appliance.

Replace the softener cover.5.

Reinsert the detergent drawer while 6. pressing down on the tab as shown in the figure below.

Cleaning the water-supply filter

Clean the filter if water is not supplied properly.

Turn the tap off.1.

Switch on the appliance.2.

Select the Cotton programme, and 3. then press the Start button. Drainage begins when the appliance is started.

After 2 minutes, switch off the 4. appliance. Water has been drained out of the water-supply hose.

Disconnect the water-supply hose 5. from the appliance.

Clean the filter, which is on the rear 6. of the appliance.

Use a small brush, for example, a toothbrush.

Hand turning a button into a mechanical component (no text or symbols visible)

If the unit is supplied with the hose 7. fitted with a water-supply valve, turn off the tap supplying the appliance, disconnect the hose from the tap, and then clean the filter on hose in the same way.

Illustration of a hand using a tool to adjust a device with a faucet above (no text or symbols)

Maintenance

Reconnect the water-supply hose.8.

Tighten the plastic joint firmly.

Turn on the tap, then check for leaks.9.

Preventing a frozen water-supply hose

If the appliance is delivered in freezing weather conditions, after setting up, leave it at room temperature for 24 hours before using. This will ensure that the water-supply hose does not get clogged up with ice.

If your water-supply hose freezes, perform the following procedures:

Wrap warm towels around the joints 1. of the water-supply hose.

Add 2 to 3 litres of warm water to the 2. drum.

Run the Drain programme. (See page 3.20.)

34 - Maintenance

Problem Cause
Washing machine	Buttons do not work.	The programme, temperature, spin speed, preset time, -Extra Rinse, Easy Iron or Speed/Eco function settings cannot be changed while washing is in progress.Child lock may be activated. (See page 30.) -
	Door does not open.	Door lock may be activated. (See page 19.) -The water temperature or level may be too high. (See -page 19.)
	Unusual odour Rubber	parts may give off a smell when you start using -the appliance, but the smell will go away over time.You can wash the drum by running the 90 °C programme.(See page 32.)
Wash	No water going into the appliance.	The water tap might be turned off. -The water-supply hose may be frozen. (See page 34.) -The water supply may be disrupted. -The water-supply filter may be clogged. (See page 33.) -
	There is only a small amount of water.	If you have paused the washing and then restart it, the -appliance may drain out some water.Do NOT pour water in through the door.
	Water builds up during the washing.	This is normal; water is automatically supplied if the amount of water has decreased. For heavy loads, the water may fill up repeatedly.
Rinse/Spin	No water flows into the appliance during the rinsing process.	Before rinsing, the appliance spins to drain out remaining water. The water will fill up after that.
	Rinsing begins before the spin process finishes.	After washing, excess foam may remain, so the water is drained out and refilled to wash it away. This feature is called foam detection.
	During spin-dry, the drum stops and rotates several times.	This is normal; the appliance has detected an unbalanced load and is trying to correct it.
	Foam and water remain in the door or door seal.	Although some foam and water might remain depending upon the state of the laundry and the amount of detergent used, the performance of the rinse cycle is unaffected.
	Spin cycle repeatedly starts and stops.	This is normal; intermittent spinning of the tub helps the spin process to operate quietly.The laundry may be too light. If so, add one or two bath towels.
	The laundry is still wet after the spinning finishes.	An unbalanced load is not corrected automatically.If the laundry is too light, add one or two bath towels.If the laundry gets tangled up, untangle it.

Troubleshooting - 35

Fault Checklist

Problem Cause
Detergent and foam	There is no foam or hardly any foam.	The amount of foam varies, depending on the - temperature, level and softness of the water.You may have put powdered detergent directly into the - drum; you must put it in the detergent drawer.You may not be using enough detergent. -You may be using a reduced-foam type of detergent. -Heavily soiled laundry and larger loads of laundry may - reduce the amount of foam.
	There is a lot of foam.	The amount of foam varies, depending on the - temperature, level and softness of the water.You may have used too much detergent. -The type of detergent you are using may cause excess - foam.
	Fabric softener overflows.	The softener may have exceeded the MAX level for the - detergent drawer. (See page 17.)You may have spilt the liquid by closing the detergent - drawer too strongly.
	After the wash has finished, powdered detergent residue remains.	You may have put powdered detergent directly into the - drum; you must put it in the detergent drawer.

Fault Checklist

Problem Cause
Time	The displayed remaining time changes.	The remaining time is estimated and corrected continually. - Thus, the time displayed may change.
Noise	There is an unusual noise or vibration.	There may be metal items in the drum. - The anchor bolts may not have been removed. (See page 40.) The appliance may be on a sloping or unstable surface. - If none of the above is the cause, contact your local Customer Communications Centre.
	There is noise when the water drains out.	This is normal; it is noise created by the operation of the - drain pump.
	Noise increases during high spin speed.	This is normal; Motor noise increases gradually with the - spin speed.
	There are noises during washing or rinsing.	This is normal; They are noises from the pump that - circulates washing or rinsing water. (148VB5, 128VB5, 147VB5 and 127VB5)
Others	The electricity supply cuts out while the appliance is on.	The appliance stops operating. When power is restored, it resumes operation from the point that it had stopped.
	A circuit breaker trips the electricity supply.	The appliance stops operating. When the breaker is reset, it resumes operation from the point that it had stopped. However, you have to find out what caused the breaker to trip and solve it.
	The water supply is disrupted.	When the water is supplied again, it may be impure at first. You have to disconnect the water-supply hose and drain away the impure water through the tap. Make sure that the water-supply hose has been reconnected before using the appliance.
	The display is not clear.	The appliance may be in a brightly lit or sunlit area. -

Error Display

Error What to	do
E01Door is open	Make sure that the door is shut properly.
E02Unable to supply water	Check for any of following problems.The tap is closed. -The water pipe or hose is frozen. -The water supply has been disrupted. -The water-supply filter is clogged. (See page 33.) -
E03Unable to drain	Check the drain hose for any of following problems.It clogs up. -Its tip is immersed in water. -It extends with joints. -The water is frozen. -Clean the drain filter if it clogs up. (See page 31.)
E04Overflow	Check for any of following problems.The water-supply valve has failed. -The water-supply valve triac has failed. -Switch off and unplug the appliance. Shut off the tap and contact your local Customer Communications Centre.

To restart the operation after an error message appears, set the programme selection dial to Off, and then select a programme and start the operation.

Choosing the Right Location

Carrying the appliance

The appliance must be carried by 2 or more people.

Line drawing of two workers in hard hats holding a large washing machine (no text or symbols)

Start by tilting the appliance backwards. The appliance should be carried by two people, one on each side holding it from the bottom.

The right place for the appliance

Make sure that there is enough space for the appliance and that openings on the base are not obstructed by a carpet.

Dimension in millimetres
* for NA-147VB5, 127VB5, 147VC5 and 127VC5

Caution

Install the appliance on a flat, - stable surface to avoid excessive vibration and noise.

Do NOT install the appliance on a - carpet or similar type of flooring.

Do NOT install the appliance in - direct sunlight or in a place where temperatures reach freezing.

Do NOT let metallic portions of the appliance come into contact with metal sinks or other appliances.

Installing a built-in washing machine

You need a space at least 60 cm wide. - At least 2 mm of clearance on the sides, and 5 mm of clearance above and behind the appliance are required.

The counter above the appliance - must be firmly fixed to the adjoining cupboards.

Caution

Do NOT install the appliance as a built-in washing machine with the cover panel removed.

Moving and Installing

Removing the anchor bolts

Four anchor bolts keep the interior of the appliance in place while the appliance is being moved. Remove them before installation, using a spanner. Follow the following instructions.

Note

The anchor bolts must be removed before the appliance is operated. They may cause excessive vibration.

Isometric line drawing of a cube with internal geometric patterns and circular elements (no text or symbols)

Use the spanner to loosen the four 1. bolts.

Rotate the bolts anti-clockwise.

Pull the bolts out horizontally.2.

Push each cover cap (included with 3. the accessories) over each bolt hole.

Note

Make sure that you store the anchor bolts, because they are used when transporting the appliance. If the appliance is passed on to another person, make sure to give the anchor bolts to that person.

Make sure the cover caps are attached without fail. Failure to observe this may result in water entering the washing machine, leading to malfunctions.

Moving the appliance

Note

Make sure to install the anchor bolts in the appliance.

Before you move the appliance

Shut the tap and run the appliance to - drain the water. Drain any remaining water from the drain filter. (See page 31.)

Depressurize the water-supply hose and - remove it.

Disconnect the power cable. -

Install the anchor bolts. (See page 41.) -

40 - Installation Instructions

Moving and Installing

Installing the anchor bolts

Remove the four cover caps.1.

Insert the anchor bolts into each 2. anchor bolt hole.

Diagram showing a door panel with internal components and a close-up of a mechanical component (no text or symbols)

Tighten each bolt with the spanner.3.

Mechanical diagram showing a wrench and nut assembly with a curved arrow indicating rotation (no text or symbols)

Levelling the appliance

On each foot, loosen the plastic nut 1. by turning it clockwise.

Adjust each foot by turning it 2. clockwise or anticlockwise.

Use a spirit level to make sure that 3. the appliance is properly levelled.

Tighten each plastic nut by turning it 4. anticlockwise.

Caution

Make sure that all plastic nuts are tightened securely and the feet are still bolted to the appliance.

If they are unbolted, the appliance will move around.

Do NOT put cardboard, wood - or similar materials under the appliance to compensate for unevenness.

Be careful not to destabilize the - appliance when cleaning the floor.

Connecting Hoses and Power Supply

Follow the instructions in this section to prevent water leaks. If you are unsure, ask a service agent to connect the hoses.

Hoses and cable lengths

Left side connections

Right side connections

* for NA-147VB5, 127VB5, 147VC5 and 127VC5

Water-supply hose

Caution

Do NOT connect the water-supply - hose to a combination tap.

Do NOT twist, squash, modify, or - cut the hose.

Optimum mains water pressure is 0.1 - - 1.0 MPa. If the water pressure exceeds this value, install a pressure reducing valve.

Water-flow from the tap should be more - than 5 L/min.

Connecting the water-supply hose

Attach one end of the hose to 1. the water inlet on the back of the appliance and tighten the joint by hand.

Mechanical assembly diagram showing a connector inserted into a housing (no text or symbols)

42 - Installation Instructions

Attach the other end of the hose to 2. the tap and tighten it the same way.

Standard hose -

Hose with water-supply valve -

Open the tap slowly and make sure 3. that there are no leaks around the joints.

The joints are subject to water pressure.

Connecting Hoses and Power Supply

Leak-proof System

The appliance is installed with the system that is designed to prevent water leaks. The system includes the following components.

1) Aquastop system

If a water leak is detected in the water inlet hose, the system stops supplying water automatically. This system is only functions with hoses with water supply valves.

2) Overflow detection

If water in the appliance increases to a certain level, this function stops the water supply and activates the drain pump.

Water-drain hose

Caution

Do NOT twist, pull out, or bend the drain hose.

Do NOT use joints to extend the - water-drain hose.

Draining to a sink or wash-basin

Caution

The water-drain hose must be - removed from the hook on the rear side of the appliance before the appliance is operated.

If the water-drain hose is close to the appliance, the hose may come in contact with the appliance and generate noise during the spin cycle because of vibrations.

Secure the water-drain hose so - that it will not come out of the basin.

Do NOT block the basin, where - the drain outlet is. Make sure that drainage into the drain is sufficient.

Do NOT let the tip of the - water- drain hose dip into the drained water.

This can cause water to flow back into the appliance.

Draining to a drain hose

Diagram of a mechanical valve assembly with threaded components and a central hub (no text or labels)

Connecting Hoses and Power Supply

Connecting to the power supply

Caution

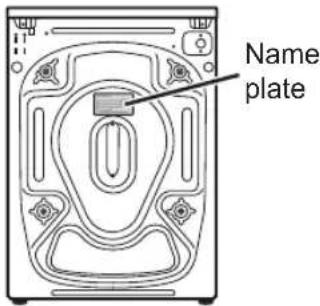

The name plate indicates the rated power that the appliance needs. Make sure that the power supply specifications in your residence match the information mentioned here. The information on the power supply specifications are also mentioned on page 46 of these instructions.

If the product is not correctly - grounded, the user will be liable for any damage incurred.

44 - Installation Instructions

Checking After Installation

Installation checklist

1) Anchor bolts Have you removed them and attached the cover caps properly?
2) Location Is the appliance on a flat, stable surface? Does it run without vibrating?
3) Water-supply hose Is it free from leaks? Is the water supply normal?
4) Water-drain hose Is it free from leaks? Does it drain normally?

5) Adjustable feet Are they bolted securely to the appliance?
6) Feet cushions Are they standing flat? If the appliance is not level, there may be abnormal sounds when water is drained out.
7) Power supply Is the household dedicated mains socket, fully rated at AC 220 V to 240 V?

Specifications

		NA-148VB5NA-128VB5	NA-147VB5NA-127VB5	NA-147VC5NA-127VC5
Rated voltage 220 - 240 V
Rated frequency 50 Hz
Maximum energy rated power input 2200 W		W
Heating energy rated power input 2000 W
Product weight		77 kg	73 kg	72 kg
Maximum mass of dry cloth		8 kg	7 kg	7 kg
Product dimensions	Height 845 mm
	Width 597 mm
	Depth 572 mm 542 mm 542 mm
Water consumption Refer to “Power and Water Consumption”.
Pressure of tap water 0.1 - 1 MPa

Customer Communications Centre

Fridge-Freezer and Washing MachinePlease note, we are unable to assist with calls regarding Audio Visual and other Home Appliance products on this line.
Monday to Friday 9:00 - 17:00Excluding public holidays.	0844 844 3899
Monday to Friday 9:00 - 17:00Excluding public holidays.(For Republic of Ireland)	If calling from the Republic of Ireland, please call01 289 8333

Washing machine - Product fiche

(EU)Nr.1061/2010

Supplier's name Panasonic
Model identifier			NA-148VB5NA-128VB5	NA-147VB5NA-127VB5	NA-147VC5NA-127VC5
Capacity kg8 7 7
Energy efficiency class ^1) A+++ (most efficient) : EEI<46A++ : 46≤EEI<52			A+++ A+++ A++
Annual energy consumption ^2)		kWh/year	194 162 195
Energy consumption(Cotton + Ecooption programme)	60 °C at full load kWh	0.95 0.83	1.05
	60 °C at partial load	kWh 0.7	7 0.68 0.72
	40 °C at partial load	kWh 0.7	1 0.64 0.65
Powerconsumption	Off-mode	W	<0.5 <0.5	<0.5
	Left on-mode W	<1.0 <1.0	<1.0
Annual water consumption ^3)		L/year	9900	9240 10346
Spin drying efficiency classA (most efficient) to G (least efficient)			B	B	B
Maximum spin speed		r/min	NA-148VB5, 147VB5 and 147VC5: 1400NA-128VB5, 127VB5 and 127VC5: 1200
Remaining moisture content		%	53	53 53
The “Cotton + Eco option 60 °C programme” and the “Cotton + Eco option 40 °Cprogramme” are the standard washing programmes to which the information in the labeland the fiche relates. These programmes are suitable to clean normally soiled cottonlaundry and that they are the most efficient programmes in term of combined energy andwater consumption.
Programme time ^4) (Cotton + Ecooption programme)	60 °C at full load	min 200	200 205
	60 °C at partial load	min 175	170 165
	40 °C at partial load	min 170	160 160
Airborne accousticalnoise emissions ^5)	Wash	dB	58	58 58
	Spin	dB	NA-148VB5, 147VB5 and 147VC5: 76NA-128VB5, 127VB5 and 127VC5: 74

1) The energy efficiency class of a household washing machine shall be determined on the basis of its Energy Efficiency Index (EEI).

2) Based on 220 standard washing cycles for Cotton + Eco option programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.

3) Based on 220 standard washing cycles for Cotton + Eco option programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual water consumption will depend on how the appliance is used.

4) In minutes and rounded to the nearest minute

5) Expressed in dB (A) re 1 pW and rounded to the nearest integer during the washing and spinning phases for the standard 60 °C Cotton Eco programme at full load.

Installation Instructions - 47

Setting of the course for the energy consumption values

By the following procedures the energy consumption values for the standard programmes can be realised. These programmes “Cotton 60 °C” or “Cotton 40 °C” are the standard programmes in accordance with the EU Regulations 1061/2010 and 1015/2010. Those programmes are suitable to clean normally soiled cotton laundry and are the most efficient programmes in term of combined energy and water consumptions for washing that type of cotton laundry.

1. Set the dial to Cotton.
2. Eco Choose Eco function. (See page 30.)
3. 1400 or 1200 Choose maximum spin speed. (See page 27.)
4. 60°C or 40°C Choose water temperature of 60 °C/40 °C.

- The actual water temperature may differ from the declared cycle temperature.

Panasonic Corporation

Web Site: http://panasonic.net

Pursuant to the directive 2004/108/EC, article 9(2)

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

© Panasonic Corporation 2013

Printed in Turkey

July 2013

W9901-8PK10
