Product Type	Top-loading washing machine
Capacity	11.5 kg
Dimensions (W x H x D)	600 x 1000 x 600 mm
Net Weight	40 kg
Power Supply	220-240 V, 50 Hz
Energy Class	A
Maximum Spin Speed	1200 rpm
Number of Programs	10
Control Type	Electronic with LED display
Water Consumption (per cycle)	85 L
Noise Level (Wash/Spin)	58 / 72 dB(A)
Key Features	Drum Clean, Delay Timer, Child Lock
Maintenance	Clean filter monthly; descale every 3 months
Safety	Overflow protection, unbalanced load detection
Spare Parts Availability	Service centers and online retailers
Warranty	2 years

Frequently Asked Questions - NA-FD115X3 PANASONIC

How do I use the Panasonic NA-FD115X3 washing machine?

Refer to the user manual for detailed instructions. Generally, load the laundry, add detergent, select a program using the control panel, and press start. Ensure the water supply is connected.

What is the maximum load capacity of this machine?

The Panasonic NA-FD115X3 has a capacity of 11.5 kg for cotton or mixed fabrics. Do not exceed this to avoid damage.

How to clean the filter?

Locate the filter at the bottom front of the machine. Turn it counterclockwise to remove, clean under running water, and reinsert. Perform this monthly.

What should I do if the machine displays an error code?

Error codes indicate issues like drainage problems or unbalanced load. Consult the manual's error section, or contact Panasonic support. Common codes: E1 (water inlet), E2 (drainage).

Can I use bleach or fabric softener?

Yes, but add them to the designated compartments. Do not pour directly on clothes. Use recommended amounts to avoid residue.

How often should I descale the machine?

Descaling every 3 months is recommended, especially in hard water areas. Use a descaler or run a hot cycle with vinegar.

What are the dimensions of the Panasonic NA-FD115X3?

Approximate dimensions: 600 mm wide, 1000 mm high, 600 mm deep. Ensure adequate space for ventilation and door opening.

Is the machine energy efficient?

Yes, it has an Energy Class A rating, meaning low power consumption. Use eco programs to save energy further.

How to activate child lock?

Press and hold the Child Lock button for 3 seconds until the indicator lights up. To deactivate, repeat the process.

Where can I find spare parts?

Spare parts are available at authorized Panasonic service centers or online stores. Search using model number NA-FD115X3 for compatibility.

USER MANUAL NA-FD115X3 PANASONIC

Operating & Installation Instructions

Fully Automatic Washing Machine (Household Use)

Model No. NA-FD135X3

NA-FD115X3

Thank you for purchasing this product.

• Read these instructions carefully for optimum performance and safety before use.
• Keep this manual for future reference.

Contents

Safety Precautions	2
Part Names / Accessories	6
Before Washing	7
Operation Panel	8
Washing	9
Variety of Programs	10
Detergent / Softener / Bleach	12
Washing Options	14
• Preset
• Wash / Rinse / Spin
• Delicates
• Blanket
• Stain Master
• Air Dry (90 min)
Convenient Functions	18
Contents of Programs	19
Maintenance	20
Installation	24
Error Display	28
Troubleshooting	30
Specifications	32

Safety Precautions

WARNING

May cause serious injury or death.

Children must not use it alone.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Do not touch the tub until it stops.

- If the tub does not stop within 15 sec:

May cause fire or electric shock.

Do not touch it with wet hands.

Do not hold or pull on the cord.

Do not use.

Fully insert it. Do not use.

- If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

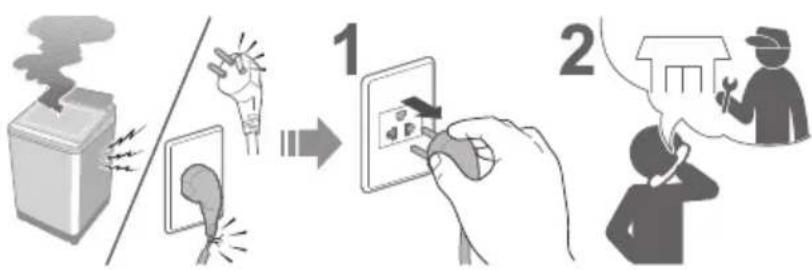

In case of failure or damaged power cord, stop use and ask the service centre.

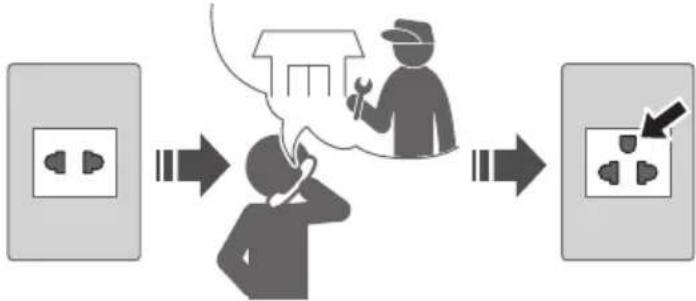

Securely insert the ground prong. Call your local dealer for a new socket.

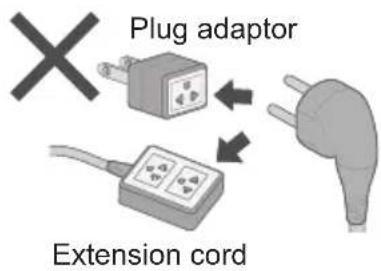

Use a socket appropriate for this appliance.

● The plug shape, socket shape and rating requirement varies with the region.

Accumulated dust may cause fire.

Wipe the power plug periodically.

Keep away from flammable materials.

May cause failure.

Never disassemble, repair or modify it by yourself.

Safety Precautions (continued)

CAUTION

May cause injury.

Be careful not to get your fingers caught.

Do not climb or put objects on the appliance.

- If the lid is broken, immediately stop using.

Be careful of your hands and feet.

May cause water leakage.

Turn off the water faucet. Use new hose-sets.

- New hose-sets supplied with the appliance are to be used and old hose-sets should not be reused.

■ For maximum mass of dry cloth and pressure of tap water, see Page 32.

May cause failure.

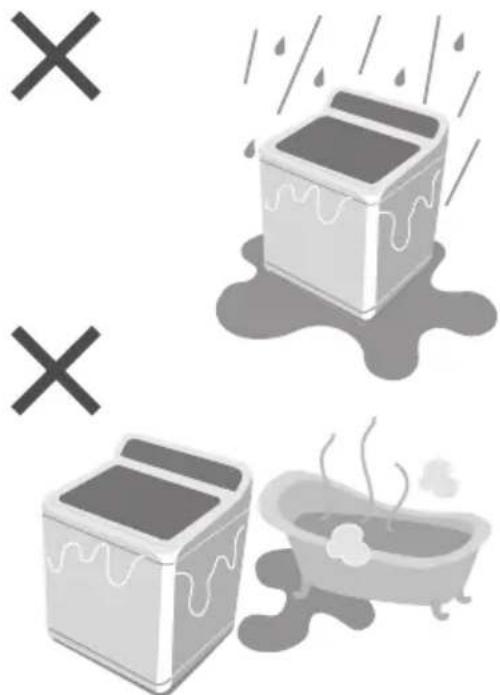

Keep away from heat and direct sunlight.

Do not wash waterproof items.

Do not obstruct. Do not use hot water.

- Do not obstruct the openings of the bottom face with carpet, etc.

For Machine-washable items only.

- This appliance is intended to be used in household. This appliance is not intended to be used in applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• areas for communal use in blocks of flats or in launderettes.

Part Names / Accessories

Part names

Accessories

Water supply hose (1) (P. 26)

Length: 1.0 m

External drain water hose (1) (P. 25) Water tap adaptor (1) (P. 26)

Bottom cover (1) / Screw (1) (P. 25)

Before Washing

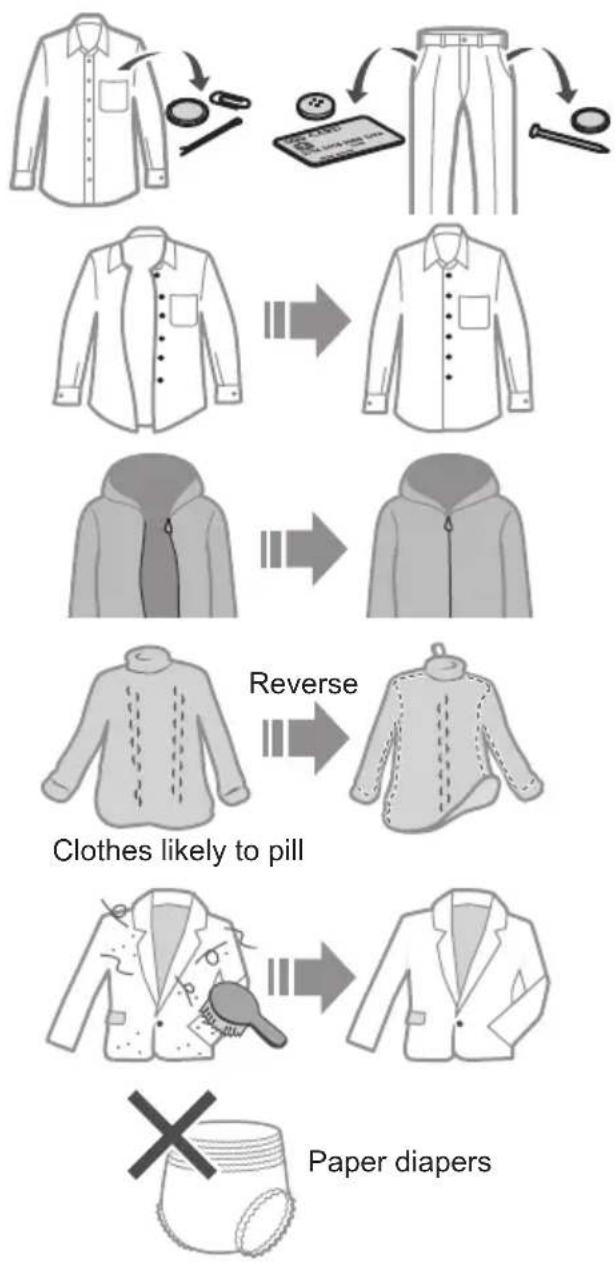

Laundry preparation and check

Pre-laundry check

To prevent colour staining

Use laundry nets for delicates

For "Stain Master" (P. 16)

Pretreatments for heavily stained clothes

Observe the clothes' care labels

Operation Panel

NOTE

In case of a power failure, operation will resume from where it stopped when the power recovers. If you do not press Start/Pause within 10 minutes after power-on, auto power off.

- The wash process setting of the “Stain Master” and “Soak” programs cannot be changed.

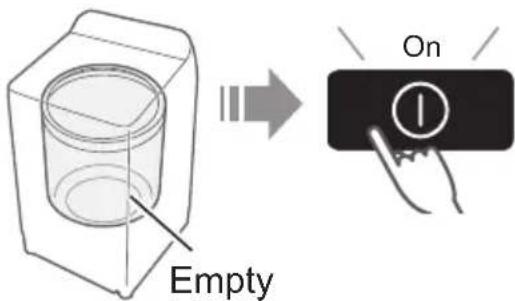

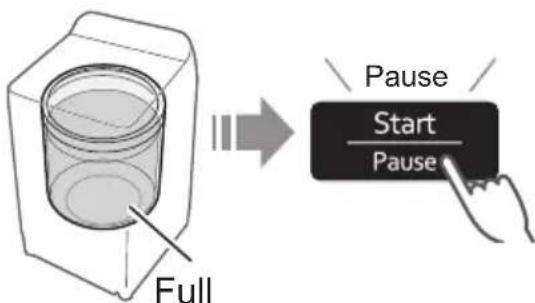

Washing

1

2

3

4

5

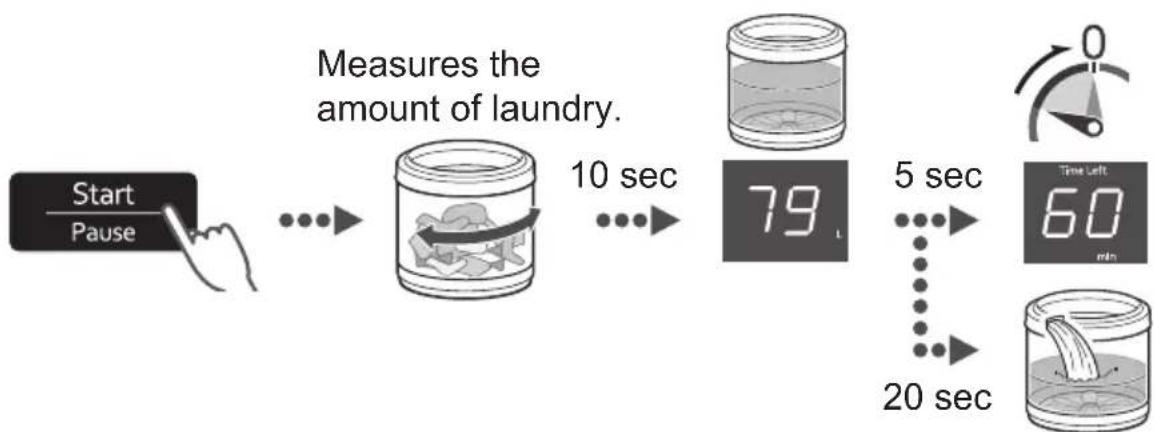

■After pressing "Start"

- To change each operation (while washing).

To check or change the water level (while washing)

- You cannot change the program.

Variety of Programs

	Program Purpose			Max. capacity * (kg)
Wash		Normal (P. 9)	Everyday clothes	13.511.5
		Tangle Care (P. 9)	Anti-tanglingWashing more gently than “Normal” to reduce tangle.Disentangling clothes after spin: 6 kg or less.
		Speedy (P. 9)	For light soil	13.511.5
		Delicates (P. 15)	Washing gently	4.2
		Baby Care (P. 9)	Clothes for babies & sensitive skinRinsing thoroughly	13.511.5
		Water Save (P. 9)	Saving water	13.511.5
		Blanket (P. 15)	Comforters and blanketsWith a machine-washable tag	4.2

* Top: NA-FD135X3 / Bottom: NA-FD115X3

	Program Purpose			Max. capacity * (kg)
Wash	Soak (P. 9)		For heavy soil Presoaking to wash
	(P. 16)		For the following stains	6.0
	Light	Odour/ Aroma+	Use more softener to keep the scent longer
		Mud		5.0
		Soya/Sauce
Dry	Air Dry (90 min) (P. 17, 23)		Drying synthetic fibre clothes	2.0
Maintenance			Tub drying —
	Tub Hygiene (P. 23)		Tub cleaning Removing black mould and smell	—

NOTE

- “Normal” program and “Water Save” program are recommended for a normally soiled load at the rated capacity of this washing machine.

Detergent / Softener / Bleach

• Follow the instructions on each package. For cleaning (P. 21)
• Close auto dosing drawer completely before use.

Detergent

• Do not pour detergent directly into the tub. ● The level of foaming depends on the load size, soil, detergent, and water hardness.

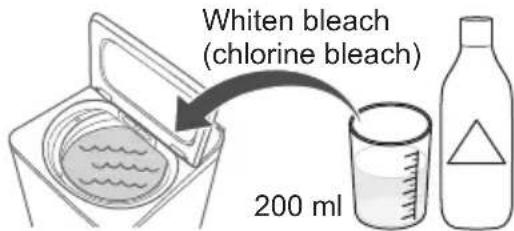

Bleach

Whiten bleach (chlorine bleach)

- To use bleach, put bleach in the powder detergent case (if bleach is in powder form) or liquid detergent case (if it is liquid bleach).

Softener

- To put softener while the machine is operating:

Water

- Softener cannot be used with the "Water Save" program.

Washing Options

Preset

Set how many hours later to finish operation.

1

2

2 min

All other indications turn off.

Normal	2 - 24
Speedy	1 - 24
Delicate	-
Baby Care	2 - 24
Water Save	2 - 24
Blanket	-
Soak	3 - 24
StainMaster	2 - 24
Air Dry(90 min)	-
Tub Hygiene	-

To confirm

To cancel or change

Wash / Rinse / Spin

1

2

3

NOTE

- Not available for "Tangle Care".

Delicates

65 L 4.2 kg
55 L 3.0 kg

NOTE

■ After operation ends

Blanket

Max.water amount *

4.2 kg100 % synthetic fibre100 % cotton

* NA-FD135X3: 79 L / NA-FD115X3: 75 L

NOTE

NOTE

- The water amount indication shows the maximum and cannot be changed.

Washing Options (continued)

Stain Master

Preparation: (P. 7)

NOTE

Max. capacity 11 (P).

• Max. water amount: 65 L - You cannot change the wash process setting of this program.

Air Dry (90 min)

The air blown from the tub rotation removes water from clothes.

- Dryable clothes: Synthetic fibre (Max. 2.0 kg)

1

2

3

NOTE

● Clothes may not be sufficiently dried (depends on amount and type of clothes, and the temperature). - This function does not use a heater. Clothes may be cold and half dry.

Convenient Functions

Setting Auto Tub Clean

Preventing black mould, available with all programs except "Water Save" and "Air Dry (90 min)".

■ Lamp indications

Operating

Function enabled

Function disabled

■ To turn on/off

1

2

3

Hold 3 sec

4

to select

5

Cancelling end buzzer

1

Hold 3 sec

■ To reset:

same procedure

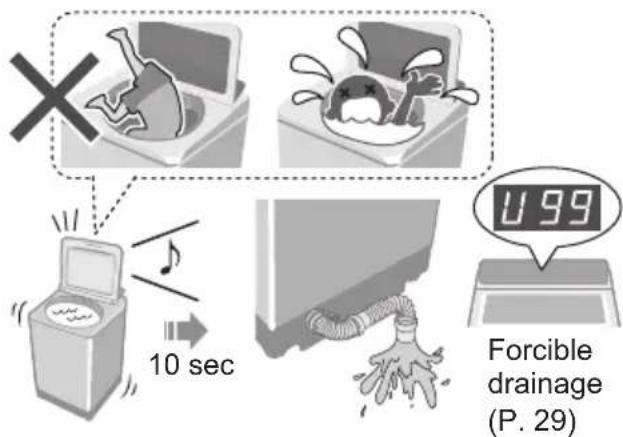

Setting Child Lock

Forcible drainage (P. 29)

* This function does not lock the lid and button operations.

1

2

Hold 5 sec

■ To cancel: same procedure

Contents of Programs

Program		Total time*1(min)	Wash(min)	Rinse(times)	Spin(min)
	Normal	60 9 2 7
	Tangle Care	70 13 2 7
	Speedy	45 3 2 5
	Delicates	50 9 2 1
	Baby Care	70 9 2 7
	Water Save	85 12 4 5
	Blanket	70 12 2 5
	Soak	125 *2	71 (Soak 59) 2	7
Stain Master	Odour/Aroma+	80 13 2 7
	Mud	90 40 2 7
	Soya/Sauce	115 *2	62 (Soak 29) 2	7
	Tub Hygiene	150 *2	65 (Soak 62) 2	30

*1 Total time is approximate (When the standard water supply rate is 15 L/min and the water temperature is 28 °C).

*2 Remaining time of 99 minutes or less will be displayed. --→99

- “Refill”: to fill the tub with water and rinse while supplying water.

Maintenance

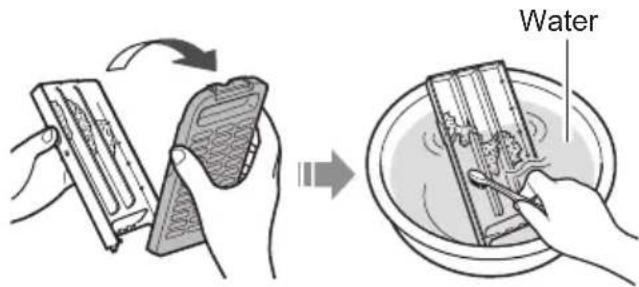

Lint filter

After each operation

1

2

3

NOTE

If it is difficult to remove the filter

If the filter is broken

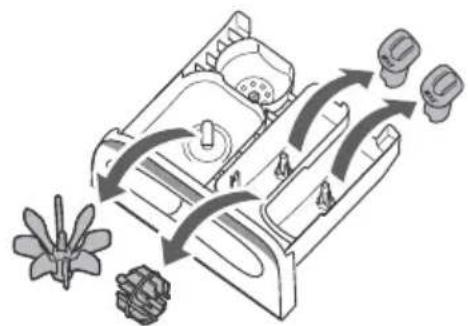

Detergent and softener drawer

If stained with detergent or softener

1

4

2

5

3

Main unit, lid

For heavy soil

Neutral kitchen detergent

Maintenance (continued)

Water supply filter

If water does not flow smoothly

1

5

2

6

3

7

4

8

Tub

Once a week

Once a month

1

5

2

6

3

4

Installation

Check the location.

Make sure to ask a service person for installation.

■ Do not install by yourself. ■ Follow this installation method. If you do not, Panasonic will not be liable for any accident or damage.

External drain water hose

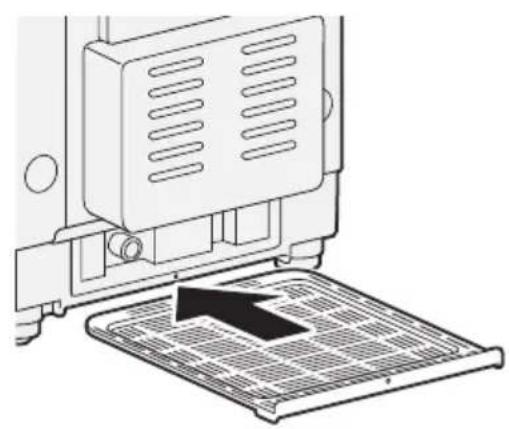

Attach the bottom cover

1

2

Attach the external drain water hose

1

NOTE

2

Installation (continued)

Connect the water supply hose

1

2

3

4

5

6

3 Check that the elbow is not loose.

CAUTION

• Tighten the nut firmly.
• Do not twist, squash, modify or cut the hose.

Connect the power plug and grounding

Check that the washing machine is level

■ If the washing machine wobbles

Trial operation

Error Display

■ Preparation

Cancel Child Lock (P. 18) if it is set.

Error Display Points to be checked

Water cannot drain.

1

Check

2

The lid is open.

1

Spin or "Air Dry" is not possible.

Uneven

1

Even

2

Unstable or incline

1

Stable

2

Error Display Points to be checked
Water cannot be supplied.	1	2
		water supply
U99	With Child Lock set		Forcible drainage
Water has been forcibly drained.	1
	1	2	3
Inspection is required.

Troubleshooting

	Symptoms Points to be checked
Time	Indication increases or does not decrease.	Time indication is approximate.Remaining time is corrected during operation.
	Longer than the indication.	When clothes are uneven.	When the water drainage is not good. When the water supply is not good.
	Operation passes the preset time.	The operation time may be longer.
Main unit	No operation	□ Check● Power failure □ Try● Close the lid. □ Press "Start". □ Timer preset □ Turn on. □ Insert the power pl completely. □ Turn breaker c
	Cannot change process settings (after start).	□ Try● During wash process □ After wash process □
Wash	Water is supplied while washing.	When water level drops.	When amount of laundry is large.
		→ Water is added automatically.
	The water leveltoo high	When laundry is wet.	When there is water in the tub before operation.
		→ The water level may be higher.
	too low	When clothes are light (synthetic fibre, etc.).
		→ The water level may be lower.
Rinse	Operation started with rinse, but water is not supplied.	When there is no water in the tub.	→ Water is supplied after spin.
		When there is water in the tub.	→ Water is supplied after water discharge and spin.
Spin	Spin changes to rinse.
	Rinse starts instead of spin.	If clothes are uneven, this appliances automatically corrects unevenness by rinse process.
	Irregular rotation	The tub rotation speed is adjusted to reduce vibration.

Troubleshooting (continued)

	Symptoms Points to be checked
Others	Power failure/Breaker off.	Operation will resume from where it stopped when the power is recovered.
		On
	ha	☐ ☐

Specifications

Model No. NA-FD135X3 NA-FD115X3
Rated voltage 220 - 240 V
Rated frequency 50 Hz
Rated power consumption 480 W
Standard water amount 79 L 75 L
Maximum mass of dry cloth	13.5 kg	11.5 kg
Product dimensions	639 mm (W) x 725 mm (D) x 1085 mm (H)	639 mm (W) x 725 mm (D) x 1065 mm (H)
Product weight	39 kg
Pressure of tap water	0.01 - 1 MPa
No. Model NA-FD135X3 NA-FD115X3
Voltan terkadar 220 - 240 V
Frekuensi terkadar 50 Hz
Jumlah air standard 79 L 75 L
Bert malaksimum kain kering	13.5 kg	11.5 kg
Ukuran produk	639 mm (W) x 725 mm (D) x 1085 mm (H)	639 mm (W) x 725 mm (D) x 1065 mm (H)
Bert produk	39 kg
Tekan air pair	0.01 - 1 MPA

Specifications

Irregular rotation

The cycle does not start properly.

Appliance is noisy.

Too high

Water level

Water is added automatically.

Whatever the load size.

Whatever the water level drops.

Error Display

Main unit, lid

Makes. kapatiti(H).

NOTA

Persediain: (H.7)

Stain Master

Pilihan Membash (sambagan)

Therefore m = 3/11

auro after

The quick brown fox jumps over the lazy dog.

u|w

(1)

Time let

Therefore m = 3/11

Therefore m = 3/11

Therefore m = 3/11

Therefore m = 3/11

The image is too blurry to recognize any text content.

Therefore m = 3/11

Therefore, m = 3/11

* NA-FD135X3: 79 L / NA-FD115X3: 75 L

MaksimumJumlah air*

4.2 kgGentian sintetik 100 %• Kaps 100 %

Blanket (Selmut)

NOTE

65 L 4.2 kg

Delicates (Halus)

2

L

during operation:

Fabric softener

Determineclear

Detragen scrubuk

Peiuntur

The amount of foam depends on conditions such as load size, degree of soiling, type of detergent, and water hardness.

Do not put detergent directly into the tub.

Detergent

Follow the garment care labels.

Turn off the water tap. Use a new hose set.

May cause water leakage.

Do not sit or place objects on top of the washing machine.

Be careful not to pinch your fingers.

Do not touch the tub until it has completely stopped.

NA-FD115X3

Model No. NA-FD135X3

(Household Use)

Fully Automatic Washing Machine

Operating & Installation Instructions
