PREDATOR G3620 - Desktop computer ACER - Free user manual and instructions

Product type	Desktop computer
Brand	ACER
Model	PREDATOR G3620
Dimensions (L x D x H)	Approximately 200 x 450 x 500 mm
Weight	Approximately 10 kg
Power supply	500 W (estimated)
RAM memory	Up to 8 GB DDR3, 4 DIMM slots
Hard drive	SATA 3.5-inch, easy swap
Optical drive	SuperMulti burner (Blu-ray option)
Front USB ports	4 USB 3.0 and USB 2.0 ports
Rear USB ports	4 USB 2.0 ports
Rear connectors	PS/2 (keyboard and mouse), DVI, S-video, RJ-45, audio
Memory card reader	Yes, multiple slots
Network	Gigabit Ethernet
Audio	Headphone and microphone jacks front and rear
Preinstalled operating system	Windows (version not specified)
Main features	Gaming, multimedia, Acer clear.fi (DLNA network sharing)
Maintenance and cleaning	Unplug before cleaning, use a dry cloth
Safety	Grounding required, ventilation unobstructed
Repairability	RAM and hard drive user-accessible

Frequently Asked Questions - PREDATOR G3620 ACER

How to properly shut down the computer?

Click the Start button then Shut Down. If normal shutdown fails, press and hold the power button for at least four seconds.

What to do if the screen remains black after turning on the computer?

Press a key on the keyboard to reactivate the display (power saving). If that doesn't work, restart the computer. If the problem persists, contact technical support.

The printer is not working, what to check?

Make sure the printer is powered on and plugged in. Check the connection between the printer and the computer. Refer to the printer documentation for further diagnostics.

No sound from the speakers, how to fix?

Check that the sound is not muted (volume icon in the taskbar). If headphones or external speakers are plugged into the front jack, the internal speakers are disabled. Use the volume button on the keyboard.

How to insert a memory card?

Hold the card with the label facing up and toward the computer. Slide it into the slot until it is installed. To remove, use Windows' Safely Remove Hardware function.

Can I upgrade the RAM?

Yes, the computer supports up to 8 GB of DDR3 RAM (4 slots). Use identical modules (size and speed). Follow the instructions in the manual for installation.

How to connect the computer to the network?

Connect an Ethernet cable to the network port (RJ-45) on the back of the computer, then connect the other end to your modem or router. Configure the network through the operating system.

The optical drive is not reading the disc, what to do?

Check that the disc is inserted correctly (label up). Clean the disc with a soft cloth. Try another disc. If the problem persists, the drive may be defective, contact customer service.

How to share files with other devices?

Use the Acer clear.fi application (if available). Enable sharing in the application and make sure all devices are on the same network. You can stream photos, videos, and music.

Where to find the complete manual in PDF?

The manual is available on the website notice-facile.com or directly on the computer via Start menu > All Programs > AcerSystem User Guide.

USER MANUAL PREDATOR G3620 ACER

www.acer-group.com/public/Sustainability/sustainability01.htm www.acer-group.com/public/Sustainability/sustainability04.htm.

Symbol of a trash bin crossed with no text or labels, representing environmental restriction (no text present)

Avis sur le Mercure

Instructions de post-installation 25

Federal Communications Commission 43

1 Pour commencer

Close-up of a black and white electronic device casing with ventilation slots and a triangular indicator symbol (no readable text or symbols)

Viewing distance Lower back support Seat height

Close-up of a hand pressing a button on a computer tower (no visible text or symbols)

User interface toolbar with playback, pause, and audio control icons (no text or symbols)

Preferences Libraries Home Shared ✓ Share my library on local network All files under My Library will be shared. □ Change to folder view for remote devices. OK Cancel

Play to My Computer Vincent-SJ GPAC My Computer

Close-up of a hand pressing a button labeled '1' with circular buttons, no visible text or symbols beyond the number

Diagram of a CD or DVD printer with an open disc and three labeled parts (no text or symbols present)

Instructions de post-installation

Close-up of a black server rack with ventilation grilles and a labeled component '1' (no text or symbols on the rack itself)

Diagram showing a device with labeled parts, including '2', '3', and '40' annotations indicating process steps.

Exterior view of a black hard disk drive with a magnified inset showing internal components (no text or symbols visible)

Three-panel image showing hands installing a hard disk drive case, with one being inserted and the other holding a cable (no visible text or symbols)

Close-up of a computer tower with an AC/DC drive and a hand inserting a USB into the slot (no text or symbols visible)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical diagram showing mechanical assembly steps with numbered annotations and directional arrows indicating motion

This Class B digital apparatus complies with Canadian ICES-003.

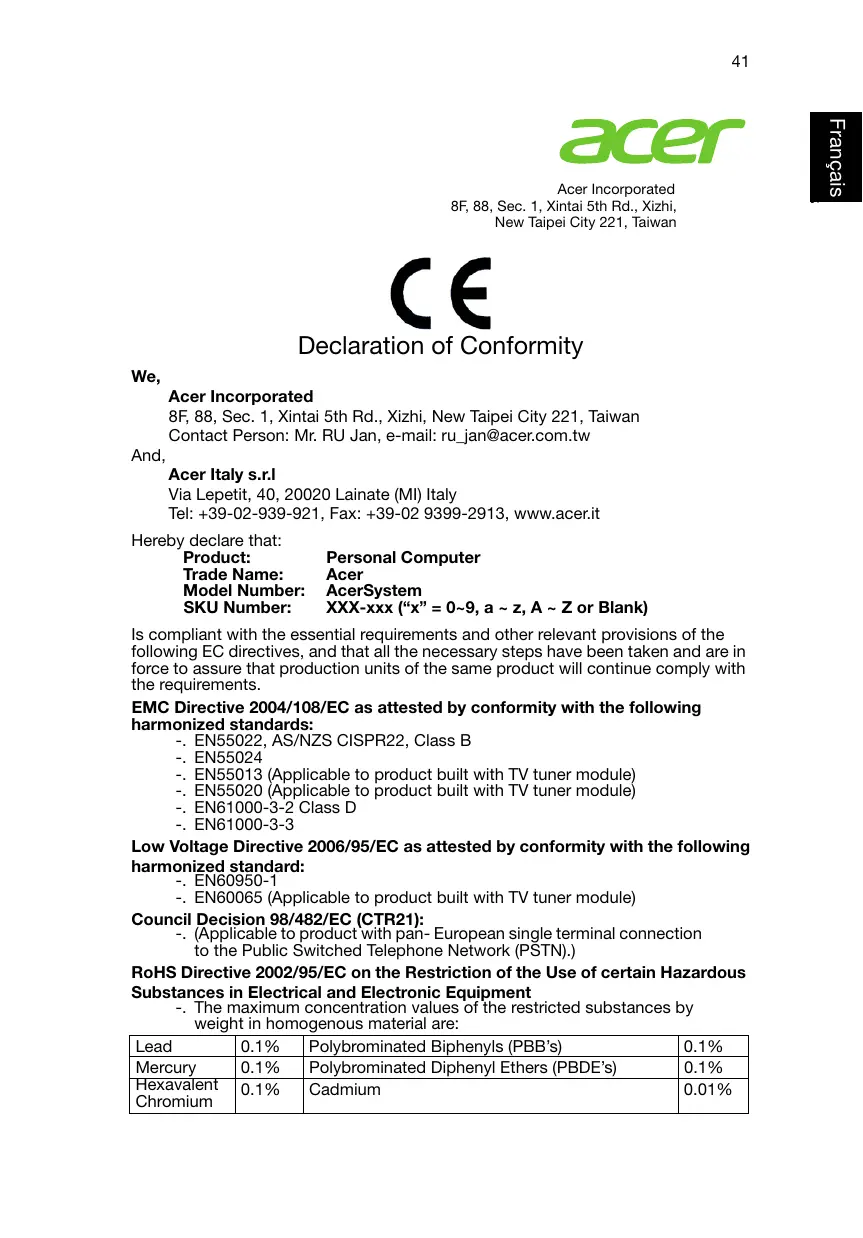

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product: Personal Computer

Trade Name: Acer

Model Number: AcerSystem

SKU Number: XXX-xxx ("x" = 0\~9, a \~ z, A \~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

-. EN55022, AS/NZS CISPR22, Class B
-. EN55024
-. EN55013 (Applicable to product built with TV tuner module)
-. EN55020 (Applicable to product built with TV tuner module)
-. EN61000-3-2 Class D
-. EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

-. EN60950-1
-. EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

- (Applicable to product with pan-European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

- The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB’s)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE’s)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

• Article 3.1(a) Health and Safety

-. EN60950-1
-. EN62311

• Article 3.1(b) EMC

-. EN301 489-1
- EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).
-. EN301 489-17

• Article 3.2 Spectrum Usages

• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
  -. EN300 328
  -. EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2012.

NuJaw

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

FC

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147
