ASPIRE XC100-011 - Desktop computer ACER - Free user manual and instructions

Product type	Desktop computer
Brand	Acer
Model	ASPIRE XC100-011
Category	Mini PC
Dimensions (approx.)	10.2 x 10.2 x 5.4 cm
Weight (approx.)	Approximately 1.2 kg
Power	External power adapter, 100-240 V, 50-60 Hz
Supported operating systems	Microsoft Windows, Linux
Front ports	2 USB ports, microphone jack, headphone/speaker jack, multimedia card reader (depending on model)
Rear ports	2 USB ports, HDMI port, RJ-45 Ethernet port, audio input/output jacks, VGA port, PS/2 keyboard and mouse ports (depending on model)
Network connectivity	Ethernet 10/100/1000, optional Wi-Fi and Bluetooth
Optical drive	DVD reader/burner or combo (depending on model)
Operating temperature	5 °C to 35 °C
Operating humidity	20% to 80% (non-condensing)
Cleaning	Use a soft cloth slightly dampened with water; do not use liquids or aerosols
Maintenance	Do not open the device; entrust all repairs to a qualified technician
Electrical safety	Grounded outlet mandatory; do not overload outlets
Disposal	Do not throw in household trash; recycle according to WEEE regulations
Energy saving	ENERGY STAR certified; automatic sleep after 10-30 minutes
Warranty	Consult your dealer for warranty conditions

Frequently Asked Questions - ASPIRE XC100-011 ACER

What to do if the computer does not start?

First, check the power indicator. If it is off, make sure the power cord is plugged in and the voltage selector is correct. If the indicator is on, remove any non-system disk and restart with Ctrl+Alt+Del. If the problem persists, use the startup disk created during Windows installation.

The screen stays black, what to do?

The screen saver may be active. Press any key on the keyboard or move the mouse. If that does not work, restart the computer. If the problem persists, contact technical support.

The printer does not work with the computer.

Check that the printer is on and properly connected to the parallel or USB port. Refer to the printer documentation for more information.

No sound comes out of the computer.

Check the volume icon in the taskbar: if it is crossed out, click on it and disable Mute. Also ensure that no headphones or external speakers are plugged into the output jack, as this disables the internal speakers.

The computer cannot read a CD or DVD.

Check that the disc is inserted correctly, is clean and not scratched. Test with a disc in good condition. If the problem persists, the drive may be defective; contact technical support.

How to clean the computer?

Turn off the computer and unplug the power cord. Use a soft cloth slightly dampened with water to wipe the exterior and keyboard. Never use liquids or aerosol cleaners.

What are the important safety precautions?

Use a grounded electrical outlet. Do not place the computer near water or heat sources. Do not block the ventilation slots. Do not spill any liquid on the device. In case of damage, unplug the device and contact a technician.

How to set up sound and display?

For sound, right-click the Volume icon and select Playback devices to choose the default device. For display, right-click on the desktop, select Screen resolution, then select the main monitor and the extend or duplicate option.

How to use Acer clear.fi for media sharing?

Make sure all devices are on the same network. Open clear.fi Media or Photos, then allow network access via Windows Firewall. To play content on another device, click Play on and select the remote device.

How can I upgrade the hardware?

Turn off the computer, unplug the power, then remove the screws from the side panel. You can add or replace compatible components such as the hard drive, memory, or expansion cards. Refer to the instructions provided with the new components or contact an authorized Acer dealer.

USER MANUAL ASPIRE XC100-011 ACER

Federal Communications Commission 20

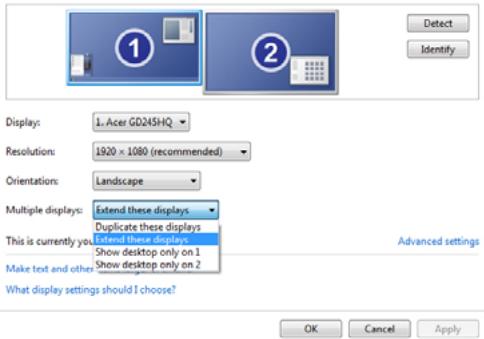

Change the appearance of your displays

This Class B digital apparatus complies with Canadian ICES-003.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-. (Applicable to product with pan- European single terminal connection

to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by

weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

. EN301 489-1
- EN301 489-3 (Applicable to non-bruethooth wireless keyboard mouse set).

EN301489-17

• Article 3.2 Spectrum Usages

• EN300 440-2 (Applicable to non-bruethooth wireless keyboard mouse set).

• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

R1I1

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147
