USER MANUAL HWF 5300 AW HAIER

User Manual Model # HWF5300AW Designed to use only HE (High Efficiency) Detergent

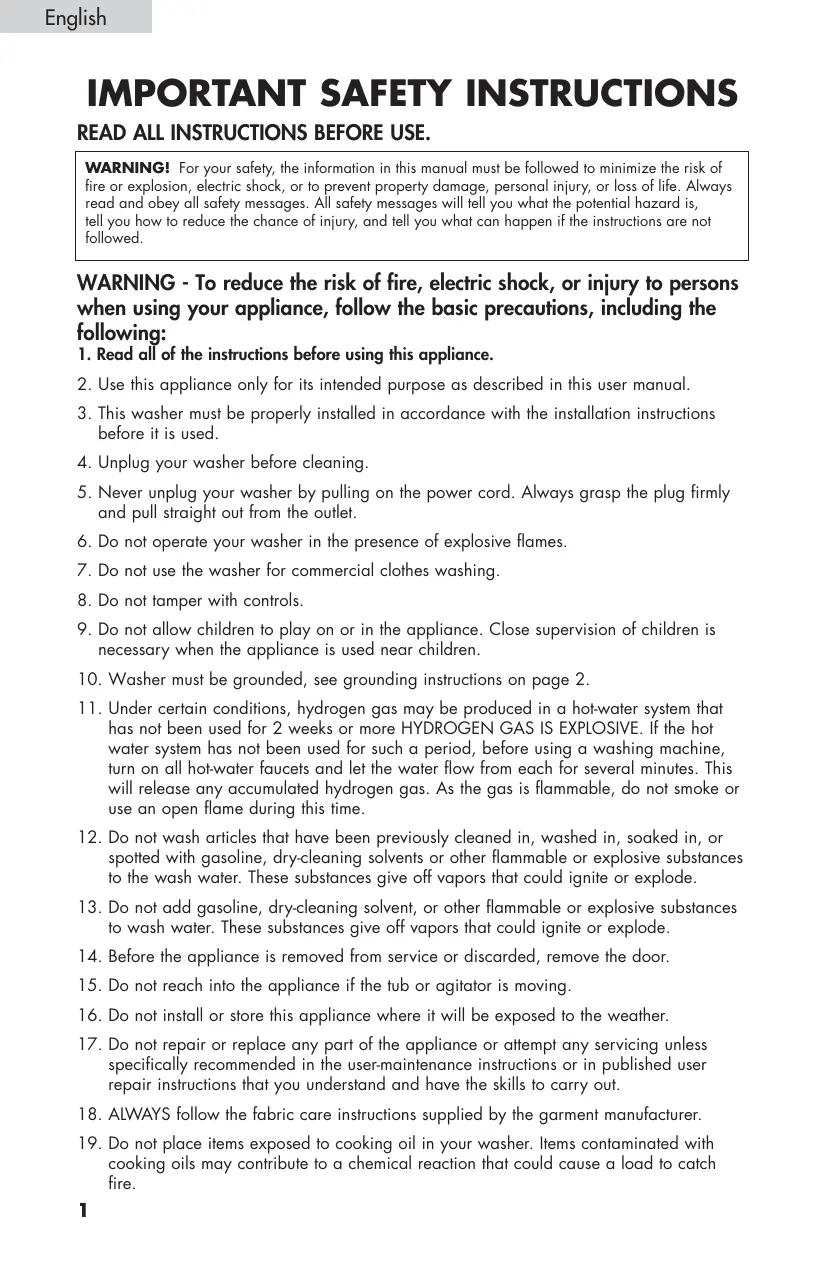

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE. WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. Always read and obey all safety messages. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. WARNING - To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow the basic precautions, including the following:

1. Read all of the instructions before using this appliance.

2. Use this appliance only for its intended purpose as described in this user manual.

3. This washer must be properly installed in accordance with the installation instructions

4. Unplug your washer before cleaning.

5. Never unplug your washer by pulling on the power cord. Always grasp the plug firmly

and pull straight out from the outlet.

6. Do not operate your washer in the presence of explosive flames.

7. Do not use the washer for commercial clothes washing.

8. Do not tamper with controls.

9. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

10. Washer must be grounded, see grounding instructions on page 2.

11. Under certain conditions, hydrogen gas may be produced in a hot-water system that

has not been used for 2 weeks or more HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a washing machine, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

12. Do not wash articles that have been previously cleaned in, washed in, soaked in, or

spotted with gasoline, dry-cleaning solvents or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

13. Do not add gasoline, dry-cleaning solvent, or other flammable or explosive substances

to wash water. These substances give off vapors that could ignite or explode.

14. Before the appliance is removed from service or discarded, remove the door.

15. Do not reach into the appliance if the tub or agitator is moving.

16. Do not install or store this appliance where it will be exposed to the weather.

17. Do not repair or replace any part of the appliance or attempt any servicing unless

specifically recommended in the user-maintenance instructions or in published user repair instructions that you understand and have the skills to carry out.

18. ALWAYS follow the fabric care instructions supplied by the garment manufacturer.

19. Do not place items exposed to cooking oil in your washer. Items contaminated with

cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

20. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

21. This appliance is not intended for use by persons (including children) with reduce

physical, sensory or mental capabilities, of lack of experience and knowledge, unless they have been supervision or instructions concerning use of the appliance by a person responsible for their safety.

22. If the supply cord is damaged, it must be replaced by the us, ours service agent or

similarly qualified persons in order to avoid a hazard.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Warning – Improper connections of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the washer - if it does not fit the outlet, have a proper outlet installed by a qualified electrician. DANGER Risk of child entrapment. Before you throw away your old appliance, take off the door so that children may not easily get trapped inside. Thank you for purchasing our Haier product. This easy-to-use manual will guide you in getting the best use of your washer. Remember to record the model and serial number. They are on a label in back of the washer. Model number Serial number Date of purchase Staple your receipt to your manual. You will need it to obtain warranty service.

English ELECTRICAL CONNECTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounded plug. The plug must be inserted into an outlet that is properly installed and grounded. t*NQSPQFSVTFPGUIFQMVHDBOSFTVMUJOBSJTLPGFMFDUSJDTIPDL

t$POTVMUBRVBMJGJFEFMFDUSJDJBOPSTFSWJDFQFSTPOJGUIFHSPVOEJOH instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. Wiring Requirements: t5IJTBQQMJBODFNVTUCFQMVHHFEJOUPBUMFBTU".170-5 ); GROUNDED OUTLET. Note: Where a standard two-prong outlet is encountered, it is the personal responsibility and obligation of the consumer to have it replaced with a properly grounded three-prong outlet. Extension Cords: We do not recommend that you use an extension cord. Power Interruptions Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from AC outlet when a power outage occurs. When power has been restored re-plug power cord to AC outlet. If outage is for a prolonged period, clean washer before using it again.

PARTS AND FEATURES

1. Detergent / Bleach / Softener

4. Control Panel

2. See-through Glass Door

6. Adjustable Leveling Legs (2)

3. Button / Coin Trap Cover

5. Door Handle

PARTS AND FEATURES

1. Top Cover

8. Transportation Bolt (2 Per Brace)

2. Brace

9. Back Cover

3. Power Cord

10. Hose Clip (3)

4. Transportation Bolt (2 Per Brace)

11. Adjustable Leveling Legs (2)

5. Air Vent for Safety

12. Cap (4)

6. Water Inlet Valve (C & H)

7. Drain Hose Connection

English INSTALLATION INSTRUCTIONS

5PPMTBOE.BUFSJBMT3FRVJSFE

You will need to have the following tools to help you in the installation of your washer:

t4DJTTPST t4UBOEBSE4DSFXESJWFS t1MJFST t8SFODI t5BQF.FBTVSF t(MPWFT t-FWFM Accessories Supplied

1. Hot & Cold Water Inlet Hoses

2. Flat Water Inlet Hose Washers (Already

Installed in each end of water inlet hoses) 6TFS.BOVBM

4. Energy Label

5. Drain Hose Holder

6. Tie Strap

7. Clamp for drain hose

8. Drain Hose

9. Bottom Cover

10. Bolts to Install Bottom Cover

11. Wrench

UNPACKING YOUR APPLIANCE

WARNING: Two or more people may be needed to install and move the appliance.

Follow the procedure below to unpack your washer remove packing materials. As shown in the figure, remove all the packing materials. Upon opening of the package, water drops may be seen on the plastic bag and the porthole. This is a normal phenomenon resulting from water tests in the factory. 1-Base (1) 6-Spacer Pad (2) 2-Front post (2) 7-Back Post (2) 3-Sleeve (1) 9-Adhesive tape (2) 5-Back pad (2) 10-Package bag (1) NOTE:

1. A bottom cover is wrapped in the stepper.

2. Be careful while handling the bottom cover.

3. Remove all anti-scratch film from the washer.

WARNING: To avoid danger of suffocation, please keep the package bag and

the accessories bag away from children.

English Install the bottom cover

1. Lay the package carton on the ground.

2. Lay the washer slowly down on the package carton on the back panel side.

3. Install the bottom cover on the bottom panel by screwing 8 bolts provided in the

4. Lift and straighten the washer to the upright position.

1. At least two people are needed to complete the above work.

2. Install the bottom cover before removing transport bolts.

3. While laying down the washer be sure the front side is upward.

4. The direction of the bottom cover must be installed according to the following

figure indicated. Front Side Package Carton Transportation Bolts The washer is fitted with transportation bolts to prevent internal damage during transportation. Transportation bolts must be removed before using the washer. Removing Transportation Bolts

1. Unscrew the 4 bolts with a wrench. At first undo the lower side to remove easily. One

of the bolts retains the power cord of the washer to prevent operating with out removing bolts. Brace Screws Transportation Bolts

2. Remove the bolts and the sleeves to release the power cord. Keep the 4 bolts and sleeves

for future use. NOTE: If transportation bolts and sleeves are not removed, it may cause severe vibration, noise and malfunction. NOTE: When the washer is transported the transportation bolts and the sleeves must be reinstalled.

3. Close the 4 holes with the caps supplied.

English INSTALLATION Location Requirements

1. The proper location for your washer should have a flat and even floor. This will improve

performance, minimize noise and decrease washer movement.

2. The unit can be installed under a custom counter, in basement, laundry room, closet, or

other recessed area. Additional Requirements

1. A grounded electrical outlet. Recommended less than 6 feet

from washer. 50ʾ mm˅ ˄1270 27ʾ ˄686m

2. Hot and cold water faucets located less than 4 feet from

water fill valves with a water pressure of 4.4-145 psi.

3. It is not recommended to use washer on soft flooring such as

4. Do not operate washer if ambient room temperature is less

than freezing, may cause damage to unit.

3113/16 ˄808m Installation clearances

1. The optimal location for your

washer should be big enough to open the washer door completely for easy installation and servicing.

2. Allow some additional space

on the sides and rear for easy installation, service and reduced noise.

(2.5 cm) 27" (68.6 cm)

(2.5 cm) Water Connection First, connect the elbow coupling end of the water inlet hose to the valve on the washer. Then, connect the straight coupling end of the inlet hose to the water tap. NOTE: 1.Do not crossthread when connecting inlet hose to the valve. Connect the cold water tap to cold inlet on the washer and hot to hot.

2. Water supply pressure must be between 4.4 and 145 psi (30~1000kPa).

3. Over tightening may cause damage to the valve.

4. Check for leakage of washing machine connections by turning the tap completely

.BLFTVSFUIBUUIFSFJTOPLJOLJOUIFIPTFBOEUIBUJUJTOPUDSVTIFE

6. Be sure that the two water inlet hoses are connected to the correct

English NOTE: This washer is to be connected to the water mains using new hoses. Old COLD HOT hoses should not be used. Do not install your washing machine in a room where temperatures may be below freezing. Frozen hoses may burst under pressure. If the washer is delivered in the winter months and temperatures are below freezing, store the washing machine at room temperature for a few hours before putting it into operation. Drain System t5PQSFWFOUXBUFSMFBLBHF EPOPUQMBDFUIFESBJOIPTF higher than 96 inches from the bottom of the washer and secure drain hose tightly and securely. Using the provided clamp connect the drain hose to the washer. NOTE: 1) Drain hose, clamp, drain hose holder and tie strap are placed in the accessory bag in the drum.

2) Use tie strap to secure the drain hose to a stand

pipe, inlet hose or laundry tub.

3) Care should be taken so the drain hose

is not immersed in water. Level the Washer t-FWFMJOHUIFXBTIJOHNBDIJOFQSPQFSMZQSFWFOUT excessive noise and vibration. Install your washer on a solid and level floor surface. t*GUIFGMPPSJTVOFWFO BEKVTUUIFBEKVTUBCMFMFHTBTSFRVJSFE The legs can be extended to level the washer. The more the legs are extended, the more the washer will vibrate.

(244cm) max. t-FWFMJOHPGZPVSXBTIFSNVTUCFEPOFXIJMFUIFXBTIFSJT spinning with a load. Use a wrench to adjust the legs until there is no vibration. Once done, tighten the lock nuts to level the washer. figure 4 NOTE: Do not lift the washer using the dispenser drawer or door as a handle. Steps to Level the washer (As shown in the figure)

1. Loosen the lock nut using a wrench.

2. Level the washer by turning the adjustable legs.

3. Turn the lock nut on each leg towards the base of the

washer with a wrench.

4. Once leveled tighten lock nut against the housing.

lock nut leg English OPERATIONAL INSTRUCTIONS Control Panel

WARNING: To reduce risk of fire, electric shock or injury to persons, read

"Important Safety Instructions" before operating this appliance.

TOUCH SENSITIVE CONTROL PANEL

1) Power ON/OFF Pad

t Touch pad to power ON or turn OFF the washer. In off status touch power pad for 1 second washer will turn on in default program status (Normal/Casual Cycle). To turn off washer touch pad for at least 2 seconds during running or just one second during the pause and stand by status. To change or cancel a running cycle touch this pad to power off and then reprogram.

2) Cycle Select

t(FOUMZNPWFZPVSGJOHFSTBMPOHUIFQBEUPTFMFDUZPVSXBTIDZDMF&BDIDZDMFIBTQSFTFU water temperature, soil level spin speed and options. In certain cycles the settings can manually be programmed to suit your needs.

3) Start/Pause Pad

t5PVDIUIJTQBEPODFUPTUBSUUIFXBTIDZDMF5PVDIUIJTQBEPODFBHBJOUPQBVTFUIF activity during the wash cycle. If you don't touch the start/pause pad within 5 minutes of selecting a cycle, the washer will automatically shut off. You could pause the running cycle to change the options by pressing the "Start / Pause" pad.

4) Soil Level

t4FMFDUDMPUIFTTPJMMFWFM5IFSFBSFMFWFMTUPDIPPTFGSPN)FBWZ .FEJVNBOE-JHIU t8BTIDZDMFJODSFBTFTJOUJNFGPSFBDIMFWFMJODSFBTFE4FMFDUJPOTIPVMECFCBTFEPOUIF soil level in clothes. The dirtier the clothes the heavier the level.

5) Rinse Level

t5IFSFBSFTFMFDUJPOTUPDIPPTFGSPN#BCZ$BSFXIJDIHJWFTZPVUIFNBYJNVNSJOTFUJNF to Eco which gives you the least. Baby Care rinse level gives extra rinse time to remove any soap and detergent left on clothes after wash. While Eco. rinse would be used on the cycle where extra rinse time may not be needed.

6) Spin Speed

t&OBCMFTUIFTFMFDUJPOPGTQJOTQFFEEVSJOHUIFXBTIDZDMF5PVDIUIJTQBEJGZPVXBOU to change the preprogrammed selection. Selections may vary per the cycle chosen. All selections are not available in all cycles. Certain clothes are not recommended to be spun at high speeds. Please see clothes manufacturer recommendation for best results.

7) Water Temperature (Wash / Rinse)

t5PTFMFDUJOMFUXBUFSUFNQFSBUVSFGPSXBTIBOESJOTF4FMFDUJPONBZWBSZQFSUIFDZDMF chosen. All selections are not available in all cycles. Follow fabric care labels for best results.

8) Beeper (Signal)

t4JHOBMWPMVNFDBOCFBEKVTUFETPGUoMPVEPSPGG"TBEKVTUFE TJHOBMXJMMTPVOEEVSJOH selection of cycles or options and when wash cycle is completed. At the end of washing cycle the unit will sound 3 long beeps. When choosing an option, if signal beeps twice it means that the option is not available. A signal will sound if the washer goes in error status.

9) Extended Spin

t5PJODSFBTFTQJOUJNFBDUJWBUFUIJTPQUJPO5IJTIFMQTUPSFNPWFFYUSBXBUFSBOETBWFT drying time. Once the wash load is in the spin cycle this pad can not be activated.

10) Stain Treat

t5IJTGVODUJPOJODSFBTFTUIFXBTIUJNFJOEJGGFSFOUDZDMFT6TFUIJTGPSWFSZIFBWJMZTPJMFE clothes.

11) Rinse& / Spin

t5IJTPQUJPOJTVTFEGPSDMPUIFTUIBUEPOPUOFFEUPCFXBTIFE$MPUIFTTJUUJOHJOBESBXFS or hanging in the closet for a long time may not only need to be rinsed and spun to make them feel fresh again. Touch pad to select this option. The washer will now switch off the wash mode and will be in the rinse and spin cycle. Touching the pad for a second time will set the washer to spin only. The rinse and spin speeds could be changed by touching their respective pad (5 & 6). 5IF8BTI3JOTF4QJOJDPOTCZUIF5JNF%JTQMBZ;POF XJMMCFMJUUPJOEJDBUFUIF selected function.

12) Delay

t8JUIUIFNBDIJOFJOTUBOECZ ZPVDBODIPTFBEFMBZTUBSUUJNFGSPNIPVST5PEPTP touch the delay pad. Each touch of this pad advances the delay in one hour increments. To activate the delay function touch the Start / Pause (3) pad. Doing so will cause the delay QBEUPnBTI8IFOTFUBU QVTIUIFEFMBZQBEBHBJOBOEUIFEFMBZUJNFJT cancelled. After setting if wash program is change delay time is cancelled.

13) Prewash

t6TFUIJTPQUJPOGPSIFBWJMZTPJMFEDMPUIFT#ZBDUJWBUJOHUIJTJUXJMMBEEXBTIUJNFCFGPSF the main wash to the wash cycle. The RINSE &/ SPIN option can not be selected if this function is activated.

/PUF3FNFNCFSUPBEEEFUFSHFOUUPUIF1SFXBTIDPNQBSUNFOUPGUIFEJTQFOTFSESBXFS

14) Custom Program

t5PDVTUPNJ[FZPVSGBWPSJUFXBTIQSPHSBNTTJNQMZDIPPTFZPVSDZDMF XBTITFUUJOHTBOE options and touch the "Custom Program" pad (Approximately 3 Seconds) until a beep confirms the settings. Time display will show “rb”. A maximum of 10 programs can be stored, one for each cycle. To use your saved setting, go to the desired cycle and touch the "Custom Program" pad. The washer will automatically go to the saved setting.

15) Child Lock

t8IFOUIFNBDIJOFJTSVOOJOH JOQBVTFPSJOEFMBZDZDMF QSFTTUIF3*/4&41*/QBE for more than 3 seconds, child lock will activate. Touch again to cancel the child lock. You can unlock the child lock function only by touching this pad. Power off, program finish, or unplugging the power will not unlock the child lock! If the child lock function is activated, the child lock LED is on; if not, the child lock LED is off.

16) Time Display Zone

t5JNFEJTQMBZ[POFXJMMTIPXUJNFBTGPMMPXJOH*GUJNFJTMFTTUIBOIPVS EJTQMBZBT99

TVDIBT NPSFUIBOIPVSCVUMFTTUIBOIPVSTEJTQMBZBT9:: TVDIBT

NPSFUIBOIPVST EJTQMBZBT99:: TVDIBT

17) Door Lock LED

t*GUIFEPPSMPDLJTTFDVSFEUIFEPPSMPDL-&%XJMMCFPO*GEPPSMPDLJTOPUMPDLFE BOEUIF door can open, door lock LED is off. To add a garment touch the Start / Pause pad (3). The door lock icon will be Off. Once the garment is added, close the door and touch the Start / Pause pad again. The washer will resume its operations. Washer Operating Procedure:

1. Lightly touch the On/Off pad to power on the washer.

2. Select wash cycle by touching the pad by the cycle. A light will illuminate the cycle

3. Once selection is made, the soil level, rinse level, spin speed and the wash/rinse water

temperatures are pre-set. At this point, if you choose not to have any other options, lightly touch the start/pause pad to start the wash cycle. If you want to change the preset settings before you touch the Start / Pause pad.

1. Lightly touch the soil level, rinse level, spin speed and water temperature to select.

"OZPGUIFTVQQMJFEPQUJPOT%FMBZ4UBSU 1SFXBTI #FFQFSTFUUJOH &YUFOEFE4QJO 4UBJO treatment, Rinse & Spin or Custom Program can be now chosen.

3. After option selection, lightly touch the start/pause pad to start the wash cycle. (All

options not available in all cycles).

4. To customize your settings, once your favorite settings are selected touch the Custom

Program pad and hold for 3 seconds.

5. To child lock the control panel touch the Rinse&/Spin pad and hold for 3 seconds. To

unlock the child lock function only touch the Rinse&/Spin pad. Power off pad cannot unlock the child lock function. During activation of the child lock function, the child lock LED is on.

6. You could pause the washer and if the door lock light on the control panel will be Off

during this time the door of the washer can be opened to Add a Garment.

7. With the machine in standby, you can chose a delay start time from 1-24 hours. To

do so, touch the delay pad. Each touch of this pad advances the delay in 30 minutes increments. To set the delay function touch the Start / Pause (3) pad. Doing so will cause UIFEFMBZ QBEUPnBTI8IFOTFUBU QVTIUIFEFMBZQBEBHBJOBOEUIFEFMBZ time is cancelled. After setting wash program is change, delay time is cancelled. Program changes, delay time is also cancelled. Features: Electronic Touch Pad Controls: Allows you to use the washer at the touch of your fingertips. 5 Compartment Dispenser: Use liquid or powdered detergent for prewash, powdered detergent for main wash, liquid detergent for main wash, liquid bleach and liquid fabric softener for optimum wash. Designed specially to use only HE (High Efficiency) detergent Energy Star unit saves you water and energy Sanitary Cycle: An additional internal water heater automatically heats the water to ideal levels to clean those hard to remove stains.

English Custom Cycle: You do not have to remember your favorite setting. Simply program and set it. Automatic Setting: Once you choose your required wash cycle, the soil level, rinse level, spin speed, water temperature and signal will set automatically making the unit automatic operation. If desired in certain cycles you could change these settings and choose options to personalize your needs. Capacity: The absence of an agitator gives you additional space to wash large and bulky items like bed sheets, comforters and large loads. Drum: The stainless steel drum keeps the unit looking clean and avoids rust. Add a Garment: When the lock sign is Off on the panel, during this period an additional garment can be added to the wash cycle. AMT door Seal: Reduces the collection of mildew and bacteria that is harmful to the wash. Heavy Duty Suspension System: The washtub uses shock absorbers in suspension system that maintains an equal balance when heavier loads are being washed. This system can control tension softly and tenderly so the machine will balance quietly without shutting down. Thus helping in reduction of noise and vibration. Control Panel Display: Will display the remaining wash time or error message during a wash cycle. If the delay start function is chosen, it will display the remaining time for wash cycle to begin. CYCLES Heavy Duty - Use this cycle for heavily soiled durable garments. Combined with extra high spin speed, hot water temperature and a medium soil level this cycle is designed for a perfect wash. Whitest Cotton – Use this cycle to wash your whites and cottons garments. Extra high spin speed, hot water temperature and a medium soil level this cycle gives you a well-balanced wash. Green Wash – This cycle saves eneregy with out sacrficing performance or quality of washing. Extra High Spin Speed, tap cold water temperature and medium soil level are preset for this cycle. Delicate/Silk - Use this cycle to wash light clothing like lingerie and washable silk garments that need gentle washing. Low spin speed, warm water temperature and medium soil level are an ideal combination here. Hand Wash – Use this cycle to clean hand washable garments that need special handling. The wash here is low spin speed, cold water temperature and medium soil level. Active Wear – For loads of exercise and work out clothes use this cycle. A high spin speed, warm water temperature and a medium soil level are perfect for this type of fabrics. Quick Wash - Use this cycle to wash small, lightly soiled loads that are needed in a hurry. High spin speed, warm water temperature and a light soil level are designed for the wash. Perm Press - Use this cycle to wash loads of no-iron fabrics such as shirts, blouses, casual business clothes, permanent press and blends. Low spin speed, warm water temperature and a medium soil level enable you to achieve optimum results here. Normal / Casual - Use this cycle for normally soiled and casual loads. Clothes of cottons, linens and synthetics fabrics are normal here. Extra High spin speed, warm water temperature and medium soil level selections are pre-set for the best wash. Sanitary - Use this cycle for heavily soiled and casual loads. Clothes of cottons, linens and synthetics fabrics are normal here. Extra High spin speed, Extra Hot water temperature and medium soil level selection help in achieving the extra strong clean that is needed.

English NOTE: All functions may not be available in all cycles. NOTE: It is important to check instructions on clothes label to select the ideal wash cycle. Wrong cycle selection could damage and discolor the clothing. Certain clothes should only be dry cleaned. Preset Cycle Cycles Cycle Time Wash Speed Spin Speed Normal / Casual

40rpm .BY Warm / Cold .FEJVN Perm Press

40rpm .BY Warm / Cold .FEJVN Quick Wash

40rpm .BY Warm / Cold Light Active Wear

40rpm .BY Warm / Cold .FEJVN Hand wash

40rpm .BY Cold / Cold .FEJVN NOTE: The cycle time may vary in different environments. The temperature of water and water pressure will specially affect the timing.

English CYCLE SELECTION Select Cycles Desired According To Fabric Types And Soil Level Cycle Fabric type Normal / Casual Clothes of cottons, linens and synthetic fabrics, work clothes, jeans, shirts Perm Press Dress shirt / pants wrinkle free clothing, poly / cotton blend clothing, table cloths Quick Wash Lightly soiled clothing and small loads Active Wear Active sports and some casual ware clothes Hand Wash Items labeled "hand washable" Dress shirts / blouses nylons, sheer or lacy garment Green Wash Clothes of cottons, linens and synthetic fabrics, work clothes, jeans, shirts Whitest Cotton Cotton, linen. towels, shirts, sheets, jeans, mixed loads Heavy Duty Large item such as blankets and comforters Sanitary Heavily soiled work clothes, etc. Soil Level Rinse Level Spin Speed Water Temperature .FEJVN Normal Extra High Warm / Cold Heavy Light WASHING METHODS CAUTION: When first using the washing machine, choose the SANITARY cycle and run it without clothes. Use only HE High Efficiency detergent. Use 1/2 the manufacturer’s recommended amount for a medium sized load. This initial cycle serves to ensure the interior is clean before washing clothes. Sorting Of Clothes t4PJM )FBWZ .FEJVN -JHIU 4FQBSBUFDMPUIFTBDDPSEJOHUPUIFBNPVOUPGTPJMDPOUFOU t$PMPST 8IJUFT -JHIUT %BSL 4FQBSBUFEBSLDPMPSTGSPNUIFXIJUFTBTDPMPSTDBOUSBOTGFS causing discoloration. tLint (Produce & Collectors) - Separately wash the lint producer's and collectors. Loading The Washer t-PBEFBDIJUFNMPPTFMZ t4FQBSBUFUIFXIJUFBOEDPMPSFEDMPUIFT4FQBSBUFIFBWZDMPUIFTGSPNMJHIUDMPUIFT t$BSFGVMMZDIFDLBMMQPDLFUTBOEDVGGTGPSTNBMMJUFNT5IFZNBZEBNBHFUIFESVN t1SFUSFBUBMMTUBJOTBOEIFBWJMZTPJMFEBSFBTGPSCFTUSFTVMUT t%POPUPWFSMPBEUIFXBTIFS t$MPTFUIFEPPSQSPQFSMZBGUFSMPBEJOHUIFDMPUIFT t$PNCJOFMBSHFSTNBMMJUFNTJOBMPBE t4JOHMFJUFNTNBZDBVTFVOJUUPHPPGGCBMBODF4JOHMFCVMLZJUFNTTVDIBTCMBOLFUT comforters or bedsheets can be washed separately. NOTE: Do not wash water proof clothing. Do not overload the drum with items. The door should close easily. When unloading check under door seal for small items. Laundry loading A) Open the washer door. # 6OGPMEUIFTPSUFEJUFNTPGDMPUIJOHBOEQMBDFUIFNMPPTFMZJOUPUIFESVN.JYVQMBSHFBOE small items so they distribute evenly during the spin cycle. NOTE: Do not exceed the maximum load. Overloading will cause poor wash results and encourage creasing. C) Close the door watching for trapped items of clothing between the door and door seal. Door must close easily and not by force. D) Filling laundry detergent additive. Open the dispenser drawer and add laundry products to the detergent, bleach, or fabric softener compartments. Close drawer slowly to avoid spills. See “Using the Dispenser.” NOTE: 1) Keep detergent and additives out of the reach of children.

2) If too little detergent is used the laundry will not clean properly and will eventually

become gray and stiff.

3) If too much detergent is used excessive suds reduce wash movement producing

poor washing and rinsing results.

English E) Select wash cycle. Turn on the washer by pressing Power. Select the desired cycle and options. Not all options are available with all cycles. For available options, buzzer sounds a short beep. If option is not available buzzer sounds 2 short beeps. See “Cycle Selection” for details (pg.17). NOTE: When delaying a cycle, use only powered detergents in the main wash compartment since liquid detergents may seep out of the compartment during Delay Wash, before the wash cycle begins. F) Select Start/Pause Select Start/Pause to start the wash cycle.

NOTE: 5PDIBOHFBDZDMF5PVDIBOEIPMEUIF1PXFSQBEGPSTFDPOETUPUVSOPGG

the washer. Turn on the power and reselect the desired cycle and options. Touch "Start/Pause" to restart the cycle.

5PPQFOEPPS5PVDI4UBSU1BVTFUPQBVTFUIFDZDMFPOMZXIFOUIFEPPSMPDL

LED is Off you can open the door. Door can not be unlocked under the following conditions.

.PUPSJTSVOOJOH - Water temperature is high inside the washing machine - Water level is high CAUTION: The door of the washer may get hot during wash cycle.

USING THE DISPENSER

1. The dispenser has 5 compartments.

1. Liquid or powder detergent for prewash

2.1 Powder detergent for main wash

2.2 Liquid detergent for main wash

3. Liquid bleach

4. Liquid fabric softener

"GUFSDIPPTJOHZPVSEFUFSHFOUT MPBEUIFNJOUPUIFEJTQFOTFSTCZ a. Open the dispense drawer b. Load into compartments and close drawer slowly so no detergent spills out or enters washer too quickly. Your washer is designed to use only HE "High Efficiency" detergents. HE detergents are formulated specifically for front load washers and contain suds reducing components. HE detergents make less suds improve washing and rinsing performance, and help to keep the interior of your washer clean. If a regular detergent is used, it may cause oversudsing and unsatisfactory performance. For the best washing and rinsing performance, low-suding HE detergents are strongly recommended.

1. Prewash Detergent Compartment

• Add detergent to this compartment when using the Prewash option. Liquid or powered detergent may be used in this compartment. The detergent will automatically be dispensed during Prewash if the Prewash option is selected. NOTE: Liquid detergent will drain into the washer drum as it is added.

2. Main Wash Detergent Compartment

"EENFBTVSFEEFUFSHFOUUPUIJTDPNQBSUNFOUGPS.BJOXBTI%FUFSHFOUJTnVTIFEGSPN the dispenser at the beginning of the cycle. Either powdered or liquid detergent can be used.

• Liquid detergent can be added only to the liquid detergent compartment.
• Powdered detergent can be added only to the powdered detergent compartment.

%POPUFYDFFE.BYmMMMJOF

3. Liquid Chlorine Bleach Compartment

• Add appropriate amount of bleach to compartment. The bleach will be automatically dispensed during the wash cycle.

%POPUFYDFFEUIF.BYmMMMJOF0WFSmMMJOHNBZDBVTFEBNBHFUPDMPUIJOH

• Do not pour undiluted liquid bleach directly onto the clothes or into the drum. Fabric damage can occur.
• Do not use powdered bleach in this compartment.

4. Fabric Softener Compartment

• Add recommended amount of fabric softener to this compartment.
• Dilute concentrated softeners with warm water to the fill line.
• Do not exceed the maximum fill line. Overfilling may cause early dispensing of the fabric softener, which could result in stained clothes.
• Do not pour fabric softener directly on clothes.
• The fabric softener will be automatically dispensed during the last rinse cycle. NOTE: If there is a leak or spill with laundry products (soap, detergent, bleach, softener, etc.) on the top of your washer, clean immediately. These products can damage the finish or controls if left there too long. After Washing 8IFOUIFQSPHSBNIBTFOEFE

1) Turn the Power off.

"EEJUJPOBM"UFOEPGXBTIJOHDZDMF CFFQTJHOBMXJMMTPVOE UIFOQBOFMXJMMEJTQMBZi&/%w 5 minutes later the machine powers off.

2) Open the door.

NOTE: (A) If the Child Lock was selected, you should release it;

# 5IFEPPSDBOUCFVOMPDLFEJOUIFGPMMPXDPOEJUJPOT - The motor is running. - Water temperature inside the washing machine is high. - Water level is high.

3) Remove the laundry.

4) Leave the loading door ajar to allow the inside of the washing machine to dry.

CARE AND CLEANING GUIDE

WARNING: To reduce the risk of electric shock, disconnect this appliance from the power

supply before attempting any user maintenance. Turning the power OFF does not disconnect this washer from the power supply. You must disconnect the plug from the electrical source.

WARNING: Always unplug your appliance to avoid electric shock before cleaning.

Ignoring this warning may result in death or injury. Before using cleaning products, always read and follow manufacturers instruction and warnings to avoid personal injury or product damage.

CLEANING AND MAINTENANCE

Use a damp or sudsy cloth for cleaning control panel t5PBWPJEBOZLJOEPGEBNBHFUPDBCJOFUmOJTI XJQFBQQMJBODFDBCJOFUBTOFFEFE*G you spill liquid / powdered softener, bleach or detergent on the cabinet, wipe cabinet immediately because it can damage the finish. t%POPUVTFBOZBCSBTJWF IBSTIDIFNJDBMT BNNPOJB DIMPSJOFCMFBDI DPODFOUSBUFE detergent, solvents or metals scouring pads. Some of these chemicals may dissolve, damage and / or discolor your appliance. t3FNPWFQJOTPSPUIFSTIBSQPCKFDUTGSPNDMPUIFTUPQSFWFOU scratching interior parts. valve filter t5IF%FUFSHFOU%JTQFOTFS$PNQBSUNFOUIBTBSFNPWBCMFJOTFSU Over time, this compartment may accumulate dried detergent, dirt and debris. You must remove the insert, then rinse in a sink or remove debris with a soft brush. Cleaning the water inlet filter

• To prevent blockage to water supply or the accumulation of contaminants clean the water inlet filter regularly. inlet hose filter

• If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. NOTE: We recommend cleaning it every few months. 1.Turn off the water tap. 2.Disconnect the water inlet hose from both the valve and the water tap. Pull out the filter from the valve. 3.Clean the filter using a hard bristle brush. 4.Insert the filter and reconnect the hose to the valve, 5.Rinse the filter in the straight coupling end of the inlet hoses under flowing water. 6.Reconnect the hose to the water tap.

English Cleaning the Button / Coin Trap CAUTION: t%JTDPOOFDUQPXFSCFGPSFDMFBOJOHUIF#VUUPO$PJOUSBQ t'BJMVSFUPTDSFXUIF#VUUPO$PJOUSBQBOEFNFSHFODZDBQ tightly can result in leakage. t$MFBOUIF#VUUPO$PJOUSBQPODFJONPOUIT t#FXBSFPGIPUXBUFSJOTJEFUIF#VUUPO$PJOUSBQ Step 1. Drain the remaining water

t6OTDSFXUIFFNFSHFODZDBQ BMMPXUIFSFNBJOJOHXBUFSUP flow into a vessel by the washer. t3FQMBDFUIFUVCFXJUIDBQ

Step 3. Close the trap cover (4) Cleaning the Door Seal .BLFTVSFXBTIFSJTDPNQMFUFMZFNQUZ $BSFGVMMZDIFDLTFBMCFUXFFOUIFEPPSPQFOJOHBOEUIFUVCGPSTUBJOT.BLFTVSFUPQVMM back seal and check for foreign objects.

3. Wipe area with dry cloth and let air-dry.

IMPORTANT: Wear rubber gloves when cleaning for prolonged periods. Cleaning the Drum .BLFTVSFESVNJTFNQUZ

2. Use a soft cloth or sponge to wipe clean, but do no use

abrasive cleaning products. Wipe outside of unit to keep clean and wipe up spills immediately.

3. Only use HE detergents. For optimal washer freshness

and keep washer open to allow drum to air dry. Cleaning the dispenser Glass Door Seal t5PQVMMUIFEJTQFOTFSESBXFSPVUQSFTTEPXOUIFMPDLMFWFS to remove. Remove the liquid detergent compartment. Remove liquid bleach and liquid fabric softner cap. Clean with soft brush. Reinstall, and replace the dispenser compartment and caps. A) Liquid detergent compartment B) Lock lever C) Liquid bleach compartment D) Liquid fabric softner compartment.

English Always do the following to maintain washer freshness t6TFPOMZ)&)JHI&GmDJFODZEFUFSHFOU-FBWFUIFEPPSTMJHIUMZPQFOBGUFSFBDIDZDMFUP allow for better ventilation and drying of washer interior. t*GUIFQSPDFEVSFEPFTOPUTVGmDJFOUMZJNQSPWFUIFNBDIJOFGSFTIOFTT FWBMVBUFZPVS installation and usage conditions for other causes. CAUTION: If there are small children in the house, care must be taken so that they can not climb into or play inside the washer while it is open for drying. t8BUFS*OMFU)PTFT1FSJPEJDBMMZJOTQFDUIPTFTGPSCVMHFT LJOLT DVUT XFBSBOEUFBSBOE leaks. Replace if necessary.

MOVING AND VACATION AND STORAGE

Store your washer where it will not freeze. Frozen, water can damage your unit. Also disconnect washer and turn off water supply. Drain water from hoses and keep washer door open to allow drum to air dry. t4UBSU6Q"GUFS8BTIFSJT4UPSFE'MVTIXBUFSQJQFTBOESFDPOOFDUIPTFTBOEQPXFS3VO one empty load with HE detergent to clean out drum. Choose sanitary cycle and run without loading clothes. Use half the manufacturer's recomended amount of detergent for a medium size load. CAUTION: This equipment is not designed for maritime use or for mobile installations such as in RV's, air craft, etc. When disposing of the washer, cut off the power cord, and destroy the plug. Disable the door lock to prevent young children being trapped inside.

English TROUBLESHOOTING

WARNING: Repairs to the washing machine must only be carried out by qualified

personnel. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. To reduce the risk of electric shock, disconnect this appliance from the power supply before attempting any user maintenance. Turning off the "Power" pad does not disconnect this appliance from the power supply Contact your local service center. Problem Noise in Button / Coin Trap Vibrating noise Water leaks Excessive suds Possible Cause Solution

• Foreign objects such as coins or safety pins may be in drum or trap. Stop washer and check drum and trap filter. If noise continues after washer is restarted, call for service.

• Have all the transportation bolts and packing been removed?
• Wash load may be unevenly distributed in the drum.
• Are all the feet resting firmly on the ground? See Installation Instructions for removing transportation bolts.

• Fill hose connection is loose at tap or washer.
• House drain pipes are clogged. Check and tighten hose connections.

• Too much detergent or unsuitable detergent. Reduce detergent amount or use low sudsing detergent. Stop washer and rearrange wash load. Adjust the leveling leg. .BLFTVSFBMMGPVSMFHTBSF in firm contact with the floor or the pedastal. Unclog drain pipe. Contact plumber if necessary. Your washer is designed specially to use only HE "High Efficiency" detergent Water does not enter washer or it enters slowly

• Water supply is not adequate in area.
• Water supply tap is not completely open.
• Water inlet hose is bent.
• The filter of the inlet hose clogged.
• Water pressure is less than .1B Check another tap in the house. Fully open tap. Straighten hose. Check the filter of the inlet hose. Check water pressure.

English Repairs to the washing machine must only be carried out by qualified personnel. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local service center. Problem Water in the washer does not drain or drains slowly Washer does not start Possible Cause Drain hose is bent or clogged. The Button/Coin trap is clogged. Check height of drain hose it should be less than 96".. Clean and straighten the drain hose. Clean the Button/Coin trap. See "Drain System" Adjust height of drain hose. Electrical power cord may not be plugged in or connection may be loose. House fuse is blown, circuit breaker tripped, or a power outage has occurred. Reset circuit breaker or replace fuse. Do not increase fuse capacity. If problem is a circuit overload, have it corrected by a qualified electrician. Water supply tap is not turned on. Turn on water supply tap. Check that the door is firmly shut. Long wash cycle time The water supply and drainage does not stop

Close the door and Touch the Start/Pause pad. After Touching the Start/Pause pad, it may take a few moments before the clothes washer begins to spin. The washing time may vary with the amount of laundry, water pressure, water temperature, and other using conditions. If imbalance is detected or if the suds removing program operates, the wash time shall be increased. Does not use HE detergent. Stains under the door seal. Use only HE detergent. Washer odor The door cannot be unlocked by touching the Start/Pause pad to stop the washer. Solution Wipe off the stains. Leave door ajar after use. The water temperature or the level is high. Drain the water by using Rinse&/Spin cycle. (The door may be opened after the Rinse&/Spin cycle is complete.) Check that the height of the drain hose is below 30". Adjust the height of the drain hose. Check if the end of the drain hose is in the water. Place the end of the drain hose away from the water surface. English Repairs to the washing machine must only be carried out by qualified personnel. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local service center. Warning code Abnormal item ErLC door lock abnormal ErUL door unlock abnormal Solution Pushing the door to check whether it is properly close; cut off the power and then turn on again. If error still exist, please contact service personnel. Cut off the power and then turn on again. If error still exist, please contact service personnel. Cut off the power. Check if the drain hose is bent or clogged. Check if the height of the drain hose end is more than 96" above the floor. Check if the drain filter is clogged. If error still exist, please contact service personnel. bloc punp drainage abnormal Err3 temperature sensor error Please contact service personnel. Err4 heating resistor failure Please contact service personnel. Check the two water inlet hose nuts to see if they are properly fixed. Check if the inlet hoses are bent or clogged. $IFDLUIBUXBUFSQSFTTVSFJTMFTTUIBO.1B no taps water inlet error Check if the water tap is not turned on. Check if the water supply is failed. If the problem is solved, touch the Start/Pause pad to continue the cycle; If error still exist, please contact service personnel. Err7 water over flow error Er10 water level sensor error Please contact service personnel. The washer will auto drain out of water, and then auto clean up; If error still occur, please contact service personnel. Please contact service personnel. It is not recommended to wash single item. 1.Cut off the power. UNB unbalance error 2.Redistribute the washing clothes.

3. Restart the spin cycle by touching “RINSE&/SPIN”

pad twice. EUAr communication error between user interface board and power board door door not closed

The Power is Low Please contact service personnel. Close door, then touch the “start” pad again. Please Contact Service Personel

English Problems with clothes: t$MPUIFTBSFUPPXSJOLMFE5IJTJTEVFUPJNQSPQFSTPSUJOH PWFSMPBEJOHBOEXBTIJOHJOUPP hot water repeatedly. Avoid overloading and resort your load. Do not mix heavy clothes such as work clothes with light clothes such as blouses, light shirts and delicate items. You may need to wash in warm or cold water. t4PBQSFTJEVF%FUFSHFOUNBZOPUCFEJTTPMWJOHJOXBUFS$IFDLXBUFS temperature. Use less detergent. t4QPUTPSTUBJOTPOZPVSDMPUIFT5IJTJTEVFUPJODPSSFDUVTFPGGBCSJDTPGUFOFS:PVNBZ need to read proper instructions on the detergent container and follow proper directions for using the softener. t$MPUIFTBSFHSBZFEPSZFMMPXFE5IJTJTEVFUPOPUVTJOHFOPVHIEFUFSHFOUGPSMBSHFMPBET You may have to add more detergent to the load. t$MPUIFTBSFSJQQFEIBWFIPMFTFYDFTTJWFXFBSUFBS5IJTJTEVFUPTIBSQPCKFDUTTVDI as pins and belt buckles left in pockets. You will need to remove small loose sharp objects. Fasten belts, zippers, metal snaps etc. TECHNICAL SPECIFICATION Power Supply

.BY8PSLJOH$VSSFOU "

Water Pressure (PSI) Washing Power Spinning Power Spinning Speed Size (High, Depth, Width) Weight (lbs.)

4.4 ~ 145 (30~1000kPa)

300 Watts 800 Watts 1300 rpm 1010mm x 808mm x 686mm 39-3/4" x 31-13/16" x 27" 242 (110kg) English LIMITED WARRANTY In Home Service Full ONE Year Warranty For 12 months from the date of original retail purchase, Haier will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Limited Warranty After one year from the original retail purchase date, Haier will provide a part at no cost, as indicated below, to replace said part as a result of a defect in materials or workmanship. Haier is solely responsible for the cost of the part. All other costs such as labor, trip charge, etc are the responsibility of the owner. Second through Fifth Year Haier will provide the cabinet assembly should the cabinet rust through. Second through Tenth Year Haier will provide the inner stainless steel wash tub. NOTE: This warranty commences on the date the item was purchased and the original purchase receipt must be presented to the authorized service representative before warranty repairs are rendered. Exceptions: Commercial or Rental Use Warranty 90 days labor from date of original purchase 90 days parts from date of original purchase No other warranty applies For Warranty Service Contact your nearest authorized service center. All service must be performed by a Haier authorized service center. For the name and telephone number of the nearest authorized service center please call 1-877337-3639. Before calling please have available the following information: .PEFMOVNCFSBOETFSJBMOVNCFSPGZPVS appliance. The name and address of the dealer you purchased the unit from and the date of purchase. A clear description of the problem. A proof of purchase (sales receipt). This warranty covers appliances within the continental United States, Puerto Rico and Canada. What is not covered by this warranty: Replacement or repair of household fuses, circuit breakers, wiring or plumbing. A product whose original serial number has been removed or altered. Any service charges not specifically identified as normal such as normal service area or hours. Damage to clothing. Damage incurred in shipping. Damage caused by improper installation or maintenance. Damage from misuse, abuse accident, fire, flood, or acts of nature. Damage from service other than an authorized Haier dealer or service center. Damage from incorrect electrical current, voltage or supply. Damage resulting from any product modification, alteration or adjustment not authorized by Haier. Adjustment of consumer operated controls as identified in the owners manual. Hoses, knobs, lint trays and all attachments, accessories and disposable parts. Labor, service transportation, and shipping charges for the removal and replacement of defective parts beyond the initial 12-month period. Damage from other than normal household use. Any transportation and shipping charges. 5)*4-*.*5&%8"33"/5:*4(*7&/ IN LIEU OF ALL OTHER WARRANTIES,

EXPRESSED OR, INCLUDING THE

8"33"/5*&40'.&3$)"/5"#*-*5:"/%

FITNESS FOR A PARTICULAR PURPOSE

The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies. This warranty does not cover incidental or consequential damages, so the above limitations may not apply to you. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary, from state to state. Haier America New York, NY 10018

Français Très sales Peu sales Très sales Peu sales Extra Éco. Moyenne Normal Élevée Tiède/froide Extra Éco. Très sales Peu sales Très sales Peu sales Coton, lin, serviettes, chemises, draps, jeans, charges mixtes Très sales Peu sales Très sales Peu sales Durée du délai Prélavage Essorage prolongé Causes possibles

Cycle de lavage long. Do Not Return This Product To The Store If you have a problem with this product, please contact the "Haier Customer Satisfaction Center" at 1-877-337-3639. DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE IMPORTANT Haier America New York, NY 10018 Printed in China HWF5300AW *TTVFE'FCSBVSZ ©2010 Haier America Trading, LLC. All Rights Reserved. 100686 0608
