Brilliance 190SL1 - Screen PHILIPS - Free user manual and instructions

Product Type	LCD Monitor
Screen Size	19 inches (48 cm)
Native Resolution	1280 x 1024 (5:4 aspect ratio)
Brightness	250 cd/m²
Contrast Ratio	1000:1 (typical)
Response Time	5 ms
Viewing Angle	170° horizontal / 160° vertical
Connectivity	VGA, DVI-D
Power Consumption	30 W (typical), <0.5 W (standby)
VESA Mount	100 x 100 mm
Tilt	-5° to 20°
Weight	3.5 kg (with stand)
Dimensions (with stand)	443 x 376 x 207 mm
Security	Kensington lock slot
On-Screen Display (OSD)	Yes (Color, Eco Power, Options, etc.)
Auto Pivot	Supported (via software)
Environmental Standards	TCO Certified, EPEAT, ENERGY STAR
Regulatory Compliance	CE, FCC Class B, RoHS, China RoHS
Package Contents	Monitor, stand, power cable, VGA cable, DVI cable, user manual

Frequently Asked Questions - Brilliance 190SL1 PHILIPS

How do I connect my Philips Brilliance 190SL1 monitor to my computer?

Connect the VGA or DVI cable from your computer to the corresponding input on the monitor. Then connect the power cable and press the power button. The monitor should automatically detect the signal.

What is the native resolution of the 190SL1?

The native resolution is 1280 x 1024 at 60 Hz. For best image quality, set your computer to this resolution.

How can I clean the monitor screen safely?

Turn off the monitor and unplug it. Use a soft, lint-free cloth slightly dampened with water. Do not use alcohol, ammonia, or abrasive cleaners. Wipe gently to avoid damaging the screen.

What should I do if the monitor shows no picture?

Check that the power cable is securely connected and the monitor is turned on. Ensure the video cable is properly attached to both the monitor and computer. Try switching the input source using the OSD menu. If the problem persists, test with another device.

Does the monitor support wall mounting?

Yes, it supports VESA 100 x 100 mm mount. You can remove the stand and attach a compatible wall mount bracket.

How do I enable the Auto Pivot feature?

Install the Philips SmartControl software (if available). In the OSD menu, go to Options > Preferences > Auto Pivot and enable it. The screen orientation will adjust automatically when you rotate the monitor.

What is the energy consumption of the monitor?

Typical power consumption is 30 W. In standby mode, it consumes less than 0.5 W. To save energy, turn off the monitor when not in use for extended periods.

How can I dispose of my old monitor responsibly?

This product complies with WEEE Directive. Do not dispose of it with household waste. Take it to a designated collection point for recycling. Check with your local authorities or the store where you purchased it for drop-off locations.

What is TCO Certified and why is it important?

TCO Certified is a third-party verified program that ensures high visual ergonomics, low energy consumption, and environmental responsibility. It means the monitor meets strict criteria for image quality, safety, and recyclability.

Are there any known pixel defects?

The monitor is manufactured to high standards, but a few stuck or dead pixels may occur within acceptable tolerances (e.g., up to 3 bright dots). This is normal and does not warrant replacement under warranty unless exceeding the policy.

USER MANUAL Brilliance 190SL1 PHILIPS

www.philips.com/welcome

This marking on the product or on its packaging illustrates that, under European Directive 2002/96/EC governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection. To determine the locations for dropping off such waste electrical and electronic, contact your local government office, the waste disposal organization that serves your household or the store at which you purchased the product.

Your new monitor contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.

All redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into mono materials.

Please find out about the local regulations on how to dispose of your old monitor and packing from your sales representative.

Taking back/Recycling Information for Customers

Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities.

1. Belangrijk

From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors, which recycle all materials (products and related packaging material) in accordance with all Environmental Laws and taking back program with the contractor company.

Your display is manufactured with high quality materials and components which can be recycled and reused.

To learn more about our recycling program please visit

http://www.philips.com/sites/philipsglobal/about/sustainability/ourenvironment/productrecyclingservices.page

2. De monitor instellen

2. De monitor instellen

2.1 Installatie

1 Inhoud verpakking

2. De monitor instellen

1 Kensington antidiefstalslot
2 Voedingsingang
3 DVI-ingang
4 VGA-ingang

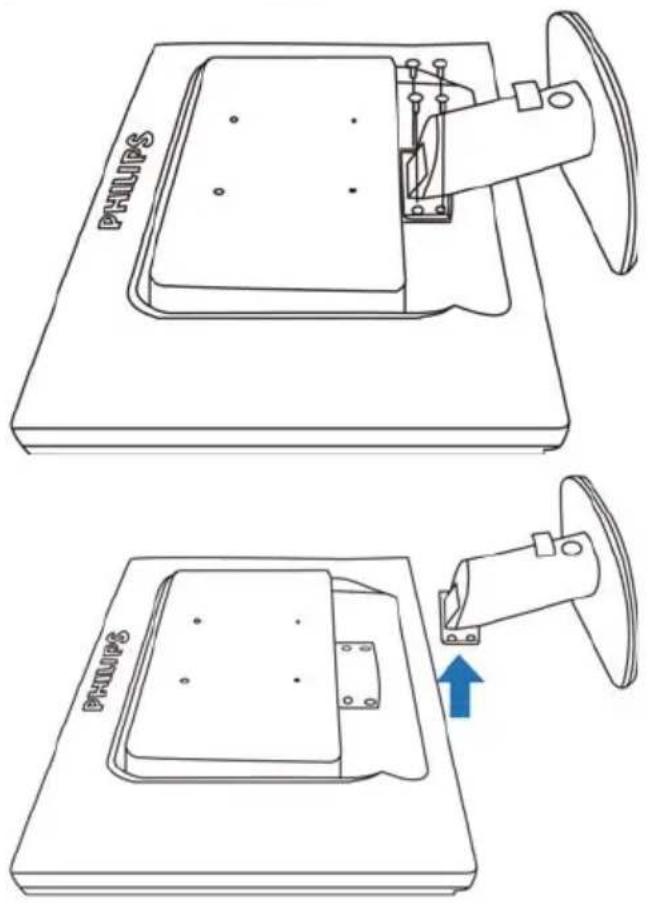

Aansluiten op de pc

1. De monitor instellen

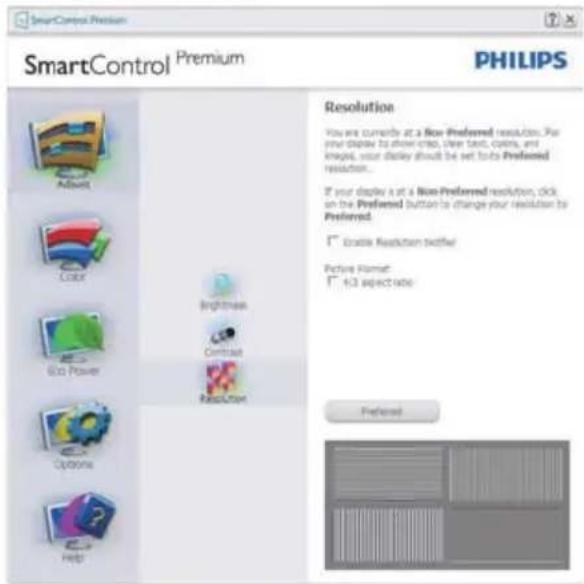

Opmerking

1. Beeldoptimalisatie

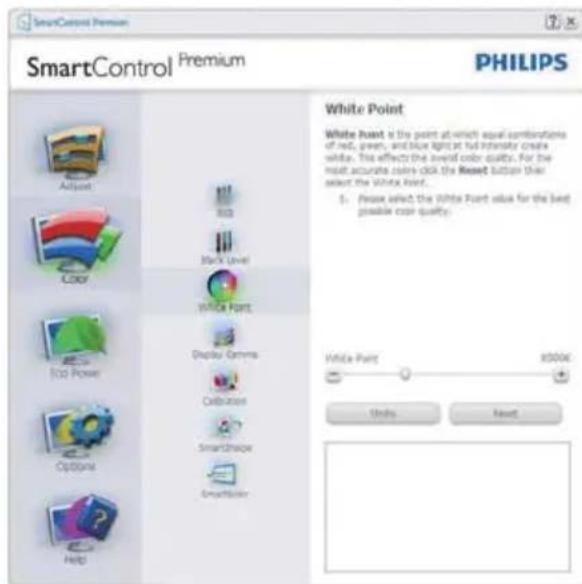

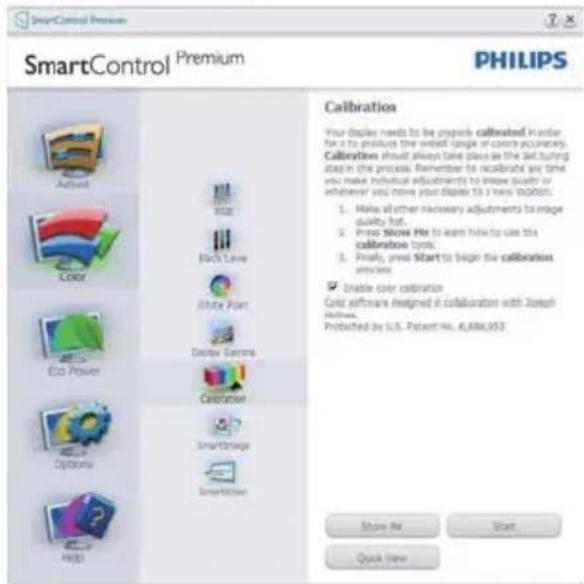

Menu Color (Kleur)

3. Beeldoptimalisatie

3. Beeldoptimalisatie

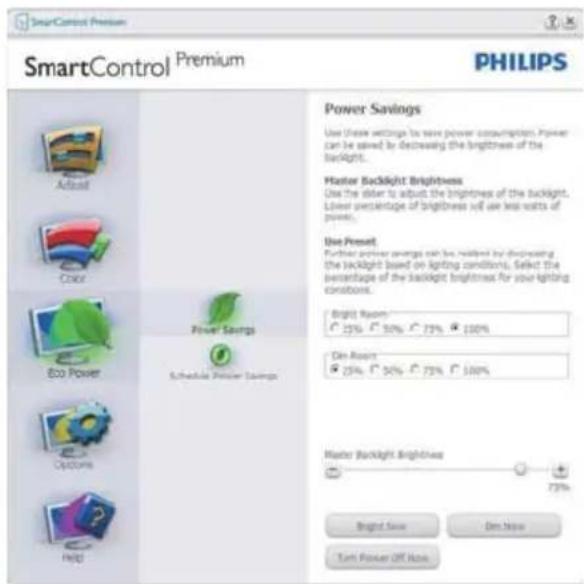

Menu Eco Power

Menu Options (Options)

Options (Opties)>Preferences (Voorkeuren)

Option (Optie) >Auto Pivot (Auto Pivot).

3. Beeldoptimalisatie

4 Højreklik-menuen

3. Beeldoptimalisatie

Bemærk

This display is designed for both you and the planet.

The display you have just purchased carries the TCO Certified label. This ensures that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on the climate and our natural environment.

TCO Certified is a third party verified program, where every product model is tested by an accredited impartial test laboratory. TCO Certified represents one of the toughest certifications for displays worldwide.

Some of the Usability features of the TCO Certified for displays:

• Visual ergonomics for good image quality is tested to ensure top performance and reduce sight and strain problems. Important parameters are luminance, contrast, resolution, black level, gamma curve, colour and luminance uniformity and colour rendering.
• Products are tested according to rigorous safety standards at impartial laboratories.
  • Electric and magnetic fields emissions as low as normal household background levels.
• Low acoustic noise emissions (when applicable).

Some of the Environmental features of the TCO Certified for displays:

- The brand owner demonstrates corporate social responsibility and has a certified environmental management system (EMAS or ISO 14001).

• Very low energy consumption both in on-and standby mode minimize climate impact.
• Restrictions on chlorinated and brominated flame retardants, plasticizers, plastics and heavy metals such as cadmium, mercury and lead (RoHS compliance).

- Both product and product packaging is prepared for recycling.

• The brand owner offers take-back options.

The requirements can be downloaded from our web site. The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labeling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. About 50% of all displays worldwide are TCO certified.

For more information, please visit: www.tcodevelopment.com

TCOF1058 TCO Document, Ver. 2.1

Technology for you and the planet

Lead free display promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment. Toxic substances like Lead has been eliminated and compliance with European community's stringent RoHs directive mandating restrictions on hazardous substances in electrical and electronic equipment have been adhered to in order to make Philips monitors safe to use throughout its life cycle.

EPEAT

(www.epeat.net)

The EPEAT (Electronic Product Environmental Assessment Tool) program evaluates computer desktops, laptops, and monitors based on 51 environmental criteria developed through an extensive stakeholder consensus process supported by US EPA.

EPEAT system helps purchasers in the public and private sectors evaluate, compare and select desktop computers, notebooks and monitors based on their environmental attributes. EPEAT also provides a clear and consistent set of performance criteria for the design of products, and provides an opportunity for manufacturers to secure market recognition for efforts to reduce the environmental impact of its products.

Benefits of EPEAT

Reduce use of primary materials Reduce use of toxic materials

Avoid the disposal of hazardous waste EPEAT'S requirement that all registered products meet ENERGY STAR's energy efficiency specifications, means that these products will consume less energy throughout their life.

CE Declaration of Conformity

This product is in conformity with the following standards

• EN60950-1:2006+A11:2009+A1:2010+A12:2011 (Safety requirement of Information Technology Equipment).
• EN55022:2010 (Radio Disturbance requirement of Information Technology Equipment).
• EN55024:2010 (Immunity requirement of Information Technology Equipment).
• EN61000-3-2:2006 +A1:2009+A2:2009 (Limits for Harmonic Current Emission).
- EN61000-3-3:2008 (Limitation of Voltage Fluctuation and Flicker) following provisions of directives applicable.
• 2006/95/EC (Low Voltage Directive).
• 2004/108/EC (EMC Directive).
- 2009/125/EC (ErP Directive, EC No. 1275/2008 Implementing Directive for Standby and Off mode power consumption) and is produced by a manufacturing organization on ISO9000 level.

The product also comply with the following standards

• ISO9241-307:2008 (Ergonomic requirement, Analysis and compliance test methods for electronic visual displays).
• GS EK1-2000:2011 (GS mark requirement).
- prEN50279:1998 (Low Frequency Electric and Magnetic fields for Visual Display).
- MPR-II (MPR:1990:8/1990:10 Low Frequency Electric and Magnetic fields).

Energy Star Declaration

(www.energystar.gov)

As an ENERGY STAR ^® Partner, we have determined that this product meets the ENERGY STAR ^® guidelines for energy efficiency.

Note

We recommend you switch off the monitor when it is not in use for a long time.

Federal Communications Commission (FCC) Notice (U.S. Only)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device.

To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture.

THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.

FCC Declaration of Conformity

Declaration of Conformity for Products Marked with FCC Logo,

United States Only

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Commission Federale de la Communication (FCC Declaration)

EN 55022 Compliance (Czech Republic Only)

This device belongs to category B devices as described in EN 55022, unless it is specifically stated that it is a Class A device on the specification label. The following applies to devices in Class A of EN 55022 (radius of protection up to 30 meters). The user of the device is obliged to take all steps necessary to remove sources of interference to telecommunication or other devices.

Polish Center for Testing and Certification Notice

The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, monitor, printer, and so on) should have the same power supply source.

The phasing conductor of the room's electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).

To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible.

A protection mark "B" confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/E-06251.

North Europe (Nordic Countries) Information

Placering/Ventilation

WARNING:

FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÄTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS.

Placering/Ventilation

ADVARSEL:

S∅RG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE.

Paikka/llmankierto

VAROITUS:

SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOST IRROTTAA PISTORASIASTA.

BSMI Notice (Taiwan Only)

符合乙類資訊產品之標準

The European Energy Label informs you on the energy efficiency class of this product. The greener the energy efficiency class of this product is the lower the energy it consumes.

On the label, you can find the energy efficiency class, the average power consumption of this product in use and the average energy consumption for 1 year.

Note

The EU Energy Label will be ONLY applied on the models bundling with HDMI and TV tuners.

China RoHS

The People's Republic of China released a regulation called "Management Methods for Controlling Pollution by Electronic Information Products" or commonly referred to as China RoHS. All products produced and sold for China market have to meet China RoHS request.

Pixeldefecttoleranties
