Product Type	2-in-1 Tablet / Convertible Laptop
Brand	Acer
Model	TravelMate C210
Operating System	Windows Vista Ultimate / Home Premium / Business
Processor	Intel Core 2 Duo T5500/T5600/T7200/T7400 (1.66 to 2.16 GHz, 2 or 4 MB cache)
RAM Memory	Up to 2 GB DDR2 533/667 MHz, expandable to 4 GB (2 soDIMM slots)
Display	12.1-inch TFT XGA (1024 x 768), 16.7 million colors, EMR stylus input
Graphics Card	NVIDIA GeForce Go 7300 with 128 MB dedicated GDDR3, TurboCache
Hard Drive	80 / 100 / 120 / 160 GB
Optical Drive	8X DVD Super Multi double layer (Slot-load) or DVD/CD-RW combo
Battery	9-cell 80 Wh (7200 mAh) Lithium-ion or 6-cell 53 Wh (4800 mAh)
Battery Life	Fast charge in 2.5 h; battery life varies with usage
Dimensions	315 x 238 x 35.3 mm
Weight	2.5 kg (with 6-cell battery and optical drive)
Wireless Connectivity	Intel PRO/Wireless 3945ABG (802.11a/b/g) WLAN, Bluetooth 2.0+EDR
Network Connectivity	Gigabit Ethernet (RJ-45), 56K Modem (RJ-11)
Ports	3x USB 2.0, IEEE 1394, VGA, Fast Infrared (FIR), audio out, microphone in, audio in
Card Reader	4-in-1: Secure Digital, MultiMediaCard, Memory Stick, Memory Stick PRO
Expansion Slot	1 x PCMCIA Type II
Security	Fingerprint reader, Kensington lock slot, BIOS passwords (user, HDD, supervisor)
Warranty	1 year international (ITW)

Frequently Asked Questions - TRAVELMATE-C210 ACER

How do I convert the computer to tablet mode?

Slide the LCD latch to the right, then gently pull the screen upward until it locks into the vertical position. To return to tablet mode, push the screen down by pressing on both sides until you hear a click.

What should I do if the computer does not turn on?

Check the power indicator. If it is off, ensure the battery is charged or the AC adapter is plugged in. If it is on but nothing displays, press a key to exit sleep mode or adjust brightness with Fn + Up Arrow.

How can I maximize battery life?

Use the power saving profile in Acer ePower Management. Lower screen brightness (Fn + Down Arrow), disable Wi-Fi and Bluetooth when not in use, and avoid extreme temperatures.

Can I eject the optical drive without turning on the computer?

Yes, the drive has a manual eject hole. Insert the tip of a paper clip into the hole and press gently to eject the tray.

How do I reset the computer to factory settings?

Restart the computer and when the Acer logo appears, press Alt + F10 to launch Acer eRecovery Management. Follow on-screen instructions to restore the C: drive (caution: all data will be erased).

What should I do if the keyboard stops responding?

Connect an external USB keyboard. If it works, the internal keyboard cable may be disconnected; contact an authorized service center.

How do I use the fingerprint reader to lock the computer?

Use Acer Protector Suite QL accessible from the taskbar. Register your fingerprints following the wizard, then enable startup security so the computer requests a fingerprint at boot.

How do I connect an external monitor?

Plug the monitor into the VGA port. Press Fn + F5 to toggle display between the internal screen, external monitor, or both simultaneously.

What should I do if sound is not working?

Check that the volume is not muted: click the speaker icon in the taskbar. Ensure no headphones are plugged in (they disable internal speakers). Use Fn + F8 to toggle sound on/off.

How do I properly clean the computer?

Turn off the computer and remove the battery. Unplug the AC adapter. Use a soft cloth slightly dampened with water only. Never use cleaning liquids or aerosols.

USER MANUAL TRAVELMATE-C210 ACER

Acer Empowering Technology

1

Mot de passer de Empowering Technology

1

Acer eNet Management

Acer ePresentation Management

7

Acer eDataSecurity Management

Acer eRecovery Management

11

Acer eSettings Management

13

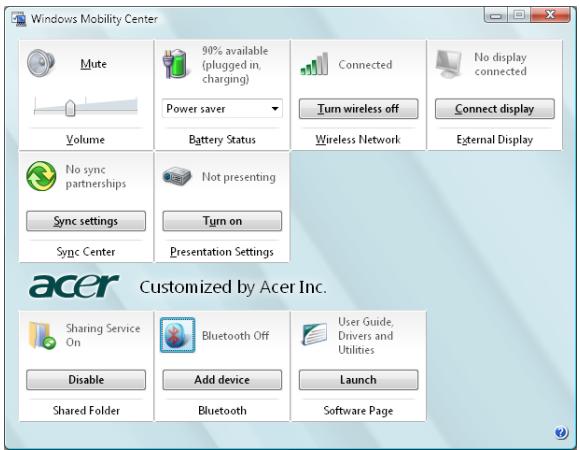

Windows Mobility Center

14

Considerations speciales 73

Considerations speciales 74

Considerations speciales 75

Acer eRecovery Management 87

Acer Empowering Technology

Acer ePresentation Management

Acer eRecovery Management

Windows Mobility Center

Acer Empowering Technology
eNet Management
ePower Management
ePresentation Management
eDataSecurity Management
eLock Management
eRecovery Management
- eSettings Management
ePerformance Management

Acer Launch Manager
Acer Protector Suite QL fingerprint utility
Acer Arcade
Acer Arcade Deluxe
Norton Internet Security
Adobe Reader
- CyberLink® PowerDVD™
- CyberLink® PowerProducer™
NTI CD-Maker

Acer eRecovery Management

This Class B digital apparatus complies with Canadian ICES-003.

"Brevets U.S. Nos. 4,631,603, 4,819,098, 4,907,093, 5,315,448 et 6,516,132."

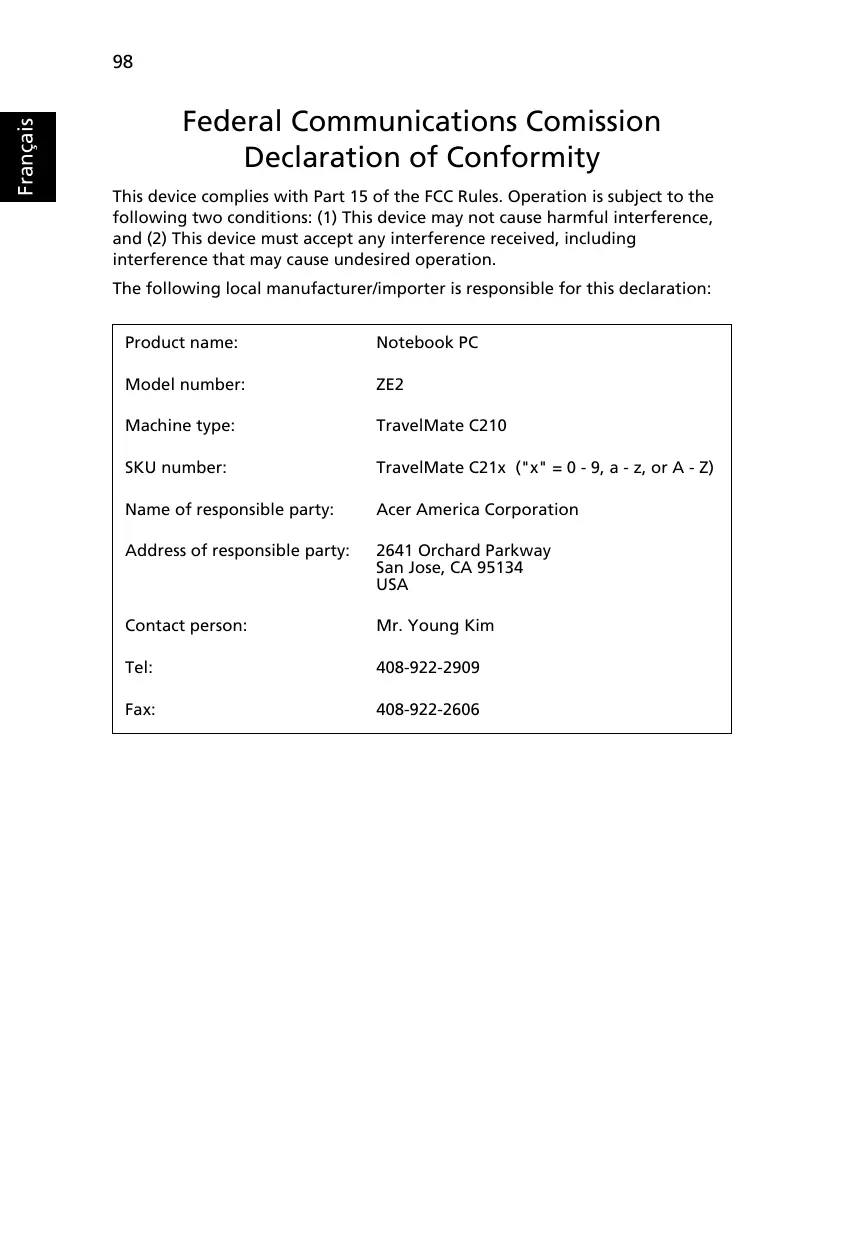

Federal Communications Comission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

The following local manufacturer/importer is responsible for this declaration:

Product name:	Notebook PC
Model number:	ZE2
Machine type:	TravelMate C210
SKU number:	TravelMate C21x ("x" = 0 - 9, a - z, or A - Z)
Name of responsible party:	Acer America Corporation
Address of responsible party:	2641 Orchard Parkway San Jose, CA 95134 USA
Contact person:	Mr. Young Kim
Tel:	408-922-2909
Fax:	408-922-2606

C E O

Declaration of Conformity

We,

Acer Computer (Shanghai) Limited

3F, No. 168 Xizang medium road, Huangpu District,

Shanghai, China

Contact Person: Mr. Easy Lai

Tel: [phone] Fax: [phone]

Hereby declare that:

Product: Personal Computer

Trade Name: Acer

Model Number: ZE2

Machine Type:TravelMate C210

SKU Number: TravelMate C21x ("x" = 0~9, a ~ Z, or A ~ Z)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 89/336/EEC as attested by conformity with the following harmonized standards:

EN55022:1998 + A1:2000 + A2:2003, AS/NZS CISPR22:2002, Class B
EN55024:1998 + A1:2001 + A2:2003
EN61000-3-2:2000, Class D
EN61000-3-3:1995 + A1:2001
EN55013:2001 + A1:2003 (applied to models with TV function)
EN55020:2002 + A1:2003 (applied to models with TV function)

Low Voltage Directive 73/23/EEC as attested by conformity with the following harmonized standard:

EN60950-1:2001
EN60065:2002 (applied to models with TV function)

Council Decision 98/482/EC (CTR21) for pan-European single terminal connection to the Public Switched Telephone Network (PSTN).

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

LCD panel ergonomic specifications

Design viewing distance	500 mm
Design inclination angle	0.0°
Design azimuth angle	90.0°
Viewing direction range class	Class IV
Screen tilt angle	85.0°
Design screen illuminance	• Illuminance level: [250 + (250cosα)] lx where α = 85° • Color: Source D65
Reflection class of LCD panel (positive and negative polarity)	• Ordinary LCD: Class I • Protective or Acer CrystalBrite™ LCD: Class III
Image polarity	Both
Reference white:	• Yn
Pre-setting of luminance and color temperature @ 6500K (tested under BM7)	• u'n • v'n
Pixel fault class	Class II

Index

A

Verrouillage Maj. 28

Verrouillage Num. 28
