Product Type	Upright Freezer
Brand	Orima
Model	ORHC-331-W
Total Gross Capacity	331 Litres
Net Freezer Capacity	Approx. 300 Litres
Dimensions (H x W x D)	1850 x 600 x 650 mm
Weight	Approx. 65 kg
Energy Class	A+
Annual Energy Consumption	Approx. 280 kWh
Noise Level	42 dB
Climate Class	N-ST
Temperature Range	-18°C to -24°C
Defrost Type	Manual Defrost
Power Supply	220-240 V, 50 Hz
Refrigerant	R600a
Main Features	Adjustable Shelves, Quick Freeze Function, Door Alarm
Interior Light	Yes, LED
Lock	Yes
Castors	Yes, 4 Castors
Cleaning	Clean with mild detergent and water; avoid abrasive cleaners.
Safety Features	Child Lock on Control Panel

Frequently Asked Questions - ORHC-331-W Orima

How do I adjust the temperature on my Orima ORHC-331-W freezer?

The temperature is controlled by a thermostat dial located inside the freezer. Turn the dial to a higher number for colder temperature, or lower for warmer. The recommended setting for freezing is usually between -18°C and -24°C.

How often should I defrost the freezer?

You should defrost the freezer when the frost layer reaches about 5-10 mm thickness. This typically occurs every 6-12 months depending on usage and humidity. Follow the manual's defrosting instructions.

What should I do if the freezer is not cooling enough?

Check if the temperature setting is correct. Ensure the door is fully closed and not obstructed. Verify the condenser coils are clean and free of dust. If the issue persists, the refrigerant may be low, and you should contact customer support.

How do I clean the exterior and interior of the freezer?

Unplug the freezer first. For the interior, use a mixture of mild detergent and warm water. Wipe dry with a soft cloth. For the exterior, use a damp cloth. Avoid harsh chemicals or abrasive sponges.

What is the noise level of the Orima ORHC-331-W?

The noise level is approximately 42 dB, which is comparable to a quiet conversation or a refrigerator hum. It is designed to operate quietly.

Can I lock the freezer to prevent children from opening it?

Yes, the Orima ORHC-331-W comes with a lock. You can lock the door with the supplied key. Keep the key out of reach of children.

What should I do if the door alarm sounds?

The door alarm sounds if the door has been left open for more than 60 seconds. Close the door securely. If the alarm continues, check if something is preventing the door from closing fully.

How do I activate the Quick Freeze function?

The Quick Freeze function is activated by pressing the 'Quick Freeze' button on the control panel. This runs the compressor continuously for 24-48 hours to rapidly freeze fresh food. After that, it automatically returns to normal operation.

What should I do if the freezer is making unusual noises?

Some noises are normal, such as the compressor humming or refrigerant flowing. If you hear loud vibrations or rattling, check if the freezer is level on the floor and that all internal shelves are secure. If the noise persists, consult the manual.

How do I change the interior LED light?

The interior LED light is designed to be long-lasting. If it fails, please contact a qualified technician or Orima customer service for replacement. Do not attempt to replace it yourself.

USER MANUAL ORHC-331-W Orima

MANUAL DE INSTRUÇÕES

INSTRUCTION MANUAL

LIVRE D'INSTRUCTIONS

facebook.com/orima.pt

Front view of a plain white refrigerator with no visible text or symbols on the door or side.

MMA

MÁRIO MIRANDA DE ALMEIDA

CONGELADOR VERTICAL

Vertical Freezer | Congelador Vertical | Congélateur Vertical

ORHC-331-W

SERVIÇO DE APOIO AO CLIENTE

Apoio ao Cliente:

Tel.: [phone]

Isometric line drawing of a cabinet with ladder and support structure (no text or symbols)

Isometric line drawing of a cabinet with ladder and door, no text or symbols present

Line drawing of a server cabinet with rack panels (no text or symbols)

Technical line drawing of a mechanical frame with a circular inset showing internal components (no text or symbols)

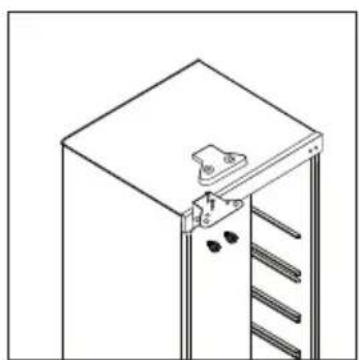

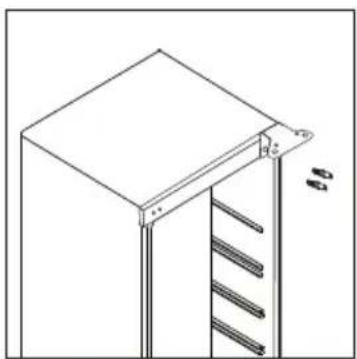

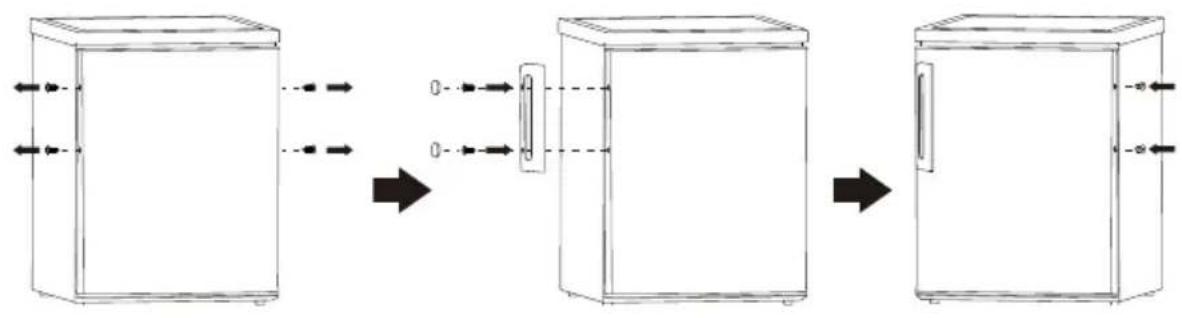

Porta Reversível

Diagram showing a mechanical clamp or bracket being adjusted from left to right, with no visible text or symbols.

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Two mechanical bracket components with mounting holes and a tool, shown in line drawing without any text or symbols.

Technical line drawing of a mechanical assembly with a bracket and ladder (no text or symbols)

Espaço Requisito

Pure geometric diagram with lines and shapes, no text or symbols present

Posicionamento

Instale este aparelho num local onde a temperatura ambiente corresponda à classe climática indicada na placa de características do aparelho:

Classe Climatica	Temperatura Ambiente
SN	+10°C a +3°C
N	+16°C a +3°C
ST	+16°C a +3°C
T	+16°C a +43°C

Localização

Congelamento de alimentos frescos

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

Technical line drawing of a multi-level storage unit with internal compartments and ventilation slots (no text or symbols)

Isometric line drawing of a cabinet with ladder and support structure (no text or symbols)

Isometric line drawing of a mechanical structure with a ladder and bracket (no text or symbols)

Line drawing of a server cabinet with rack-mounted doors (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Technical line drawing of a mechanical assembly with a circular inset showing a vertical component (no text or symbols)

Two identical mechanical bracket components with mounting holes and a screw end (no text or symbols)

Technical line drawing of a mechanical device with a bracket and ladder (no text or symbols)

Two vertical gray gradient bars with no text or symbols

Freezer drawer(s)/shelf

·Foods for long-term storage.·Bottom drawer/shelf for raw meat, poultry, fish.·Middle drawer/shelf for frozen vegetables, chips.·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

This list provides all Eco-design requirements (following the (EU)2019/2019 Eco-design and (EU)2019/2016 Energy labelling), if the requirement is applicable to your product.

The refrigerating appliance is not intended to be used as a built-in appliance, unless specifically shown as such into its instruction manual.

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this document.

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

Recommended setting:

Refrigerator compartment: +4°C

Freezer compartment: -18°C

FAST FREEZE

The use of this function is recommended when placing a very high quantity of food to be frozen in the freezer compartment. 24 hours before freezing fresh food, press the Fast Freeze button to activate the Fast Freeze function. When activated, the Fast Freeze indicator turns on. After 24 hours place the food to be frozen in the freezing zone of freezer compartment. The function is automatically disabled after 72 hours, or can be manually disabled by pressing Fast Freeze button.

FAST COOL

Using Fast Cool function it is possible to increase the cooling capacity in the refrigerator compartment. The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press the Fast Cool button to activate Fast Cool function. When activated, the Fast Cool indicator turns on. The function is automatically disabled after 6 hours, or can be manually disabled by pressing Fast Cool button again.

How to store foodstuffs:

To avoid food waste, please refer to the recommended setting and storage times:

Fridge compartment: Different food, especially vegetable and fruit, have different storage temperature. The storage time is 1 to 3 days （temp setting: middle）

Freezer compartment: 1 week (temp setting: Min) and 1 month (temp setting: Max)

To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

To avoid food waste, please refer to the recommended setting and storage times found in the user manual.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at

https://eprel.ec.europa.eu

This product contains a light source of energy efficiency class G (if present).

Technical Information

Model	ORHC 331 W
Total Net Volume, L	242
Refrigerator Net Volume, L -
Freezer Net Volume, L 242
Actual consumption depends on how the device is used and the location
Energy efficiency class	F
Power consumption: kWh/year 267
Climate Class	N,ST
Dimensions (A x L x P), mm	1700x600x600
Noise Level, db(A) re 1pw 40
Eletrical Information	See in the product rating label
Note: The manufacturer reserves the right to make future changes to the Specifications and technical parameters.
