Product Type	Freestanding Refrigerator
Brand	Beko
Model	DSF5240M00W
Total Gross Capacity	340 L
Refrigerator Capacity	240 L
Freezer Capacity	100 L
Energy Efficiency Class	F
Annual Energy Consumption	280 kWh/yr
Noise Level	39 dB
Climate Class	SN-T (10°C to 43°C)
Defrost System	Automatic (Frost Free)
Cooling System	Static with Fan
Number of Shelves	4 Glass Shelves
Number of Drawers	1 Crisper Drawer
Freezer Drawers	3 Drawers
Door Reversibility	Yes
Dimensions (H x W x D)	186 x 60 x 65 cm
Weight	65 kg
Power Supply	220-240 V, 50 Hz, 1.2 A
Maintenance	Clean with mild detergent, defrost freezer periodically
Safety Features	Child Lock (Freezer), High Temperature Alarm
Spare Parts Availability	Available from Beko authorized service centers

Frequently Asked Questions - DSF5240M00W BEKO

How do I install the Beko DSF5240M00W fridge?

Ensure the appliance is placed on a flat, stable surface. Allow at least 5 cm clearance on the sides and back for ventilation. Connect to a grounded power outlet. Refer to the manual for detailed installation instructions.

What is the ideal temperature setting for the refrigerator?

Set the refrigerator temperature between 3°C and 5°C (37°F to 41°F). The freezer should be set to -18°C (0°F) for optimal food preservation.

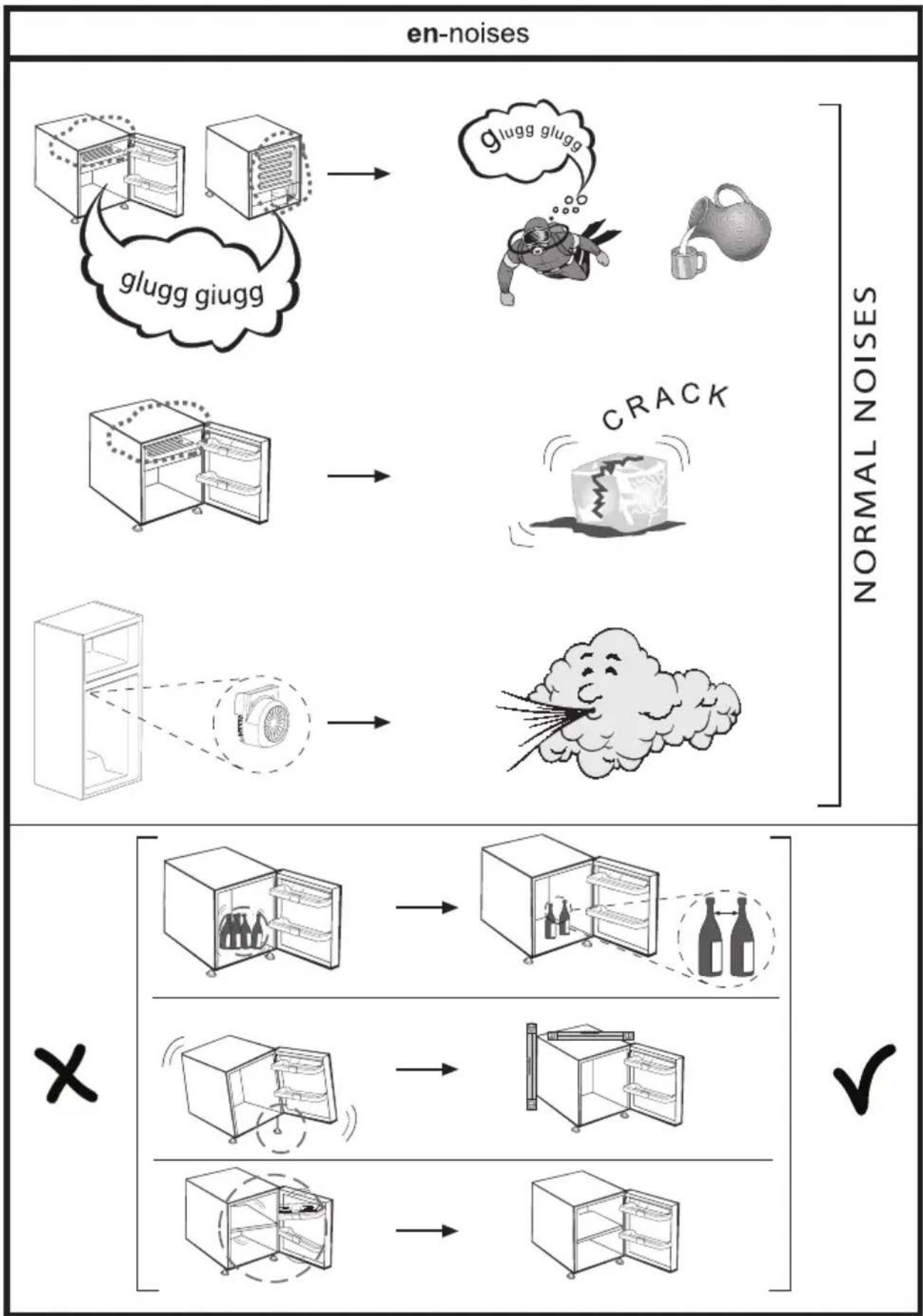

Why is the fridge making a loud noise?

Normal operation includes sounds from the compressor, fans, and refrigerant flow. If noise is excessive, check if the fridge is level and not touching walls. A banging sound may indicate loose parts.

How do I defrost the freezer?

This model features automatic defrost (frost free). No manual defrost is required. If ice builds up, check the door seal and ensure proper closure.

What is the energy consumption of the DSF5240M00W?

The annual energy consumption is approximately 280 kWh per year, placing it in energy efficiency class F. Actual consumption depends on usage and ambient temperature.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to change the hinges. You may need a screwdriver and assistance.

How do I clean the fridge?

Unplug the appliance. Remove all shelves and drawers. Clean interior with a mild soap solution and a soft cloth. Avoid abrasive cleaners. Rinse and dry thoroughly before reassembling.

What should I do if the fridge stops cooling?

Check the power supply and circuit breaker. Ensure the thermostat is set correctly. Clean the condenser coils if dirty. If problem persists, contact Beko service.

How long does the warranty last?

Standard warranty is 2 years for parts and labor. Some regions offer extended warranties. Register your product at Beko's website for details.

Where can I find spare parts like shelves or filters?

Authorized Beko service centers and online retailers sell genuine parts. Use the model number DSF5240M00W to ensure compatibility.

USER MANUAL DSF5240M00W BEKO

Simple diagram of a refrigerator with two vertical bars (no text or symbols)

DSF5240M00W

RU | KZ | EN

beko

Diagram showing a lightning bolt striking down inside a refrigerator with an electrical plug attached (no text or symbols)

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement (no text or symbols)

Diagram showing a mechanical or electrical component with a downward arrow and a tool, no text or symbols present.

Diagram showing a beam supported at both ends with directional arrows indicating motion or force (no text or symbols)

3.4. Куат косылымы

Line drawing of a hand holding a small object inside a cabinet (no text or symbols)

Hand holding a screwdriver to touch a curved surface with a circular object (no text or symbols visible)

Hand holding a tool interacting with a device (no text or symbols visible)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Line drawing of a hand holding a rectangular object with a circular top (no text or symbols)

Please read this guide first!

Dear Customer,

We'd like you to achieve the optimal efficiency from our product, which has been manufactured in modern facilities with meticulous quality controls.

For this purpose, please fully read the user guide before using the product and keep the guide as a reference source. If you turn the product over to another person, provide this guide along with the product.

User guide ensure the quick and safe use of the product.

• Please read the user guide before installing and operating the product.
  • Always observe the applicable safety instructions.
• Keep the user guide within easy reach for future use.
• Please read any other documents provided with the product.

Keep in mind that this user guide may apply to several product models.

The guide clearly indicates any variations of different models.

Symbols and Remarks

The following symbols are used in the user guide:

	Important information and useful tips.
	Risk of life and property.
	Risk of electric shock.
	The product's packaging is made of recyclable materials, in accordance with the National Environment Legislation.

"Dear Customer,

Thank you for choosing “beko” product, produced in modern facilities according international standards ISO 9001 and ISO 14001 from high quality and environmental friendly materials.

Our product is environmental friendly if you'll use and utilize it according our recommendations."

This section provides the safety instructions necessary to prevent the risk of injury and material damage.

Failure to observe these instructions will invalidate all types of product warranty.

1.1. General safety

• This product should not be used by persons with physical, sensory and mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device.
• In case of malfunction, unplug the device.
• Unplug the product when not in use.
• Do not pull the cable to plug off, always hold the plug.
• Wipe the power plug's tip with a dry cloth before plugging in.
• Do not plug in the refrigerator if the socket is loose.
• Unplug the product during installation, maintenance, cleaning and repair.
• If the product will not be used for a while, unplug the product and remove any food inside.
• Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!
• Do not wash the product by spraying or pouring water on it! Danger of electric shock!
• In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorized service before doing anything.

• Plug the product into an earthed socket. Earthing must be done by a qualified electrician.

• If the product has LED type lighting, contact the authorized service for replacing or in case of any problem.

• Do not touch frozen food with wet hands! It may adhere to your hands!
• Do not place liquids in bottles and cans into the freezer compartment. They may burst out!
• Place liquids in upright position after tightly closing the lid.
• Do not spray flammable substances near the product, as it may burn or explode.
• Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator.
• Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.
• Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.
  • Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.
• Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts.
  • Take care not to trap the power cable.

Diagram showing a device with a cable plugged into a grid, no text or symbols present

1.1.1 HC warning

If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

The label on the inner left side indicates the type of gas used in the product.

1.2. Intended use

• This product is designed for home use. It is not intended for commercial use.
• The product should be used to store food and beverages only.
• Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.
• The manufacturer assumes no responsibility for any damage due to misuse or mishandling.
• The product's bench life is 10 years. The spare parts necessary for the product to function will be available for this period.

1.3. Child safety

• Keep packaging materials out of children's reach.
• Do not allow the children to play with the product.
• If the product's door comprises a lock, keep the key out of children's reach.

1.4. Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol

for waste electrical and electronic equipment (WEEE).

Pure electrical circuit lines without any symbols

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.5. Compliance with RoHS Directive

• This product complies with EU WEEE Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6. Package information

- Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your Refrigerator

1. Cooler compartment door shelf
2. Bottle shelf
3. Adjustable legs
4. Vegetable bin
5. Cover vegetable bin

6. Cooler compartment glass shelf

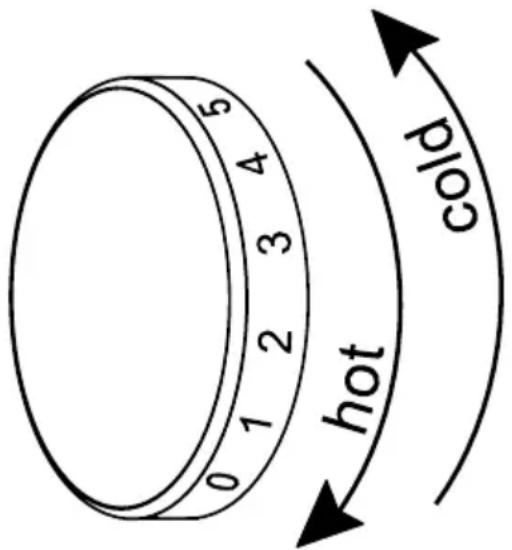

7. Temperature adjustment button / Interior light (LED)

8. Shelf in the freezer
9. Freezer compartment
10. Cooler compartment

*optional: Pictures given in this manual are given as example figures and they may not be exactly the same as your product. If your product does not comprise the relevant parts, the information pertains to other models.

3.1. Right place for installation

Contact the Authorized Service for the product's installation. To ready the product for installation, see the information in the user guide and make sure the electric and water utilities are as required. If not, call an electrician and plumber to arrange the utilities as necessary.

	WARNING: The manufacturer assumes no responsibility for any damage caused by the work carried out by unauthorized persons.
	WARNING: The product's power cable must be unplugged during installation. Failure to do so may result in death or serious injuries!
	WARNING: If the door span is too narrow for the product to pass, remove the door and turn the product sideways; if this does not work, contact the authorized service.

• Place the product on a flat surface to avoid vibration.
• Place the product at least 30 cm away from the heater, stove and similar sources of heat and at least 5 cm away from electric ovens.
• Do not expose the product to direct sunlight or keep in damp environments.
• The product requires adequate air circulation to function efficiently.
• If the product will be placed in an alcove, remember to leave at least 5 cm distance between the product and the ceiling and the walls.
• Do not install the product in environments with temperatures below -5^ircC .

3.2. Attaching the plastic wedges

Use the plastic wedges in the provided with the product to provide sufficient space for air circulation between the product and the wall.

1. To attach the wedges, remove the screws on the product and use the screws provided with the wedges.

2. Attach 2 plastic wedges on the ventilation cover as shown in the figure.

3.3. Adjusting the stands

If the product is not in balanced position, adjust the front adjustable stands by rotating right or left.

Pure diagram of a beam supported at both ends with directional arrows indicating force or motion (no text or symbols)

3.4. Power connection

	WARNING: Do not use extension or multi sockets in power connection.
	WARNING: Damaged power cable must be replaced by Authorized Service.
	When placing two coolers in adjacent position, leave at least 4 cm distance between the two units.

• Our firm will not assume responsibility for any damages due to usage without earthing and power connection in compliance with national regulations.
• The power cable plug must be easily accessible after installation.
• Connect the refrigerator to an earthed socket with 220-240V/50 Hz voltage. The plug must comprise a 10-16A fuse.
• Do not use multi-group plug with or without extension cable between the wall socket and the refrigerator.

Illustration of a modern kitchen with a double door, stove, and sink (no text or symbols)

Diagram showing two mechanical or electrical setups with a box and wiring, no text or symbols present

	Attention! Damage of insulation of electrical components and/or noncompliance to refrigerator installation requirements may occurs electric shock and / or fire.
	Don’t install appliance near ovens, radiators, heating and gas pipes;Don’t install appliance near sources of heat or cold, it is complicate the work of appliance;Below recommendations must be applied during installation.

From ovens 300 mm (12") From the wall 50 mm (2")
From radiators 300 mm (12") From heater pipes 300 mm (12")
From freezers 25 mm (1") From gas tubes 300 mm (12")

3.5. Reversing the doors

Proceed in numerical order.

4.1. What to do for energy saving

Connecting the product to electronic energy-saving systems is harmful, as it may damage the product.

• Do not keep the refrigerator doors open for long periods.
• Do not place hot food or beverages into the refrigerator.
• Do not overfill the refrigerator; blocking the internal air flow will reduce cooling capacity.
• In order to store the maximum amount of food into the cooler compartment of your refrigerator, you should take out the upper drawers and place it onto the glass rack. The declared energy consumption of your refrigerator was determined by taking out the cooler, ice tray and upper drawers in a way that will enable maximum storage. Using the below drawer when storing is strongly recommended. Energy saving function should be activated for best energy consumption.
• You should not block the airflow by putting food in front of the cooler fan. A space of minimum 3cm must be left in front of the protective fan wire when placing food.
• Depending on the product's features; defrosting frozen foods in the cooler compartment will ensure energy saving and preserve food quality.
• Food should be stored using the drawers in the cooler compartment in order to ensure energy saving and protect food in better conditions.
• Food packages should not be in direct contact with the heat sensor located in the cooler compartment. If they are in contact with the sensor, energy consumption of the appliance might increase.

• Make sure the foods are not in contact with the cooler compartment temperature sensor described below.

4.2. First Use

Before using your refrigerator, make sure the necessary preparations are made in line with the instructions in "Safety and environment instructions" and "Installation" sections.

- Keep the product running with no food inside for 6 hours and do not open the door, unless absolutely necessary.

	A sound will be heard when the compressor is engaged. It is normal to hear sound even when the compressor is inactive, due to the compressed liquids and gasses in the cooling system.
	Front edges of the product might heat up. This is normal. These areas are designed to warm up in order to prevent condensation.

5.1. Temperature adjustment button

Internal temperature of your refrigerator varies depending on the following reasons:

• Seasonal temperatures,
• Opening the door frequently and leaving it open for long periods,
• Meals put into the refrigerator without being cooled to room temperature,
• Location of the refrigerator in the room (e.g. exposed to sunshine).
• Internal temperature varying due to these factors can be adjusted via the adjustment button.

Temperature levels.

If the ambient temperature from 18^irc C till 22^irc C, it is recommended to use the refrigerator temperature adjustment at 3 set. In other ambient temperatures this value can be customised.

5.2. Ice bucket

(Optional)

• Take the ice bucket from the freezer compartment.
- Fill the ice bucket with water.
- Place the ice bucket into the freezer compartment.
• The ice will be ready after approximately two hours. Take the ice bucket from the freezer compartment and bend in sightly over the holder that you are going to serve.

5.3. Eggholder

You can put the eggholder on the door or body rack of your choice. If you decide to put it on the body rack, it is recommended to prefer the shelves below as they are colder.

Do not put the eggholder into the freezer compartment.

5.4. Vegetable bin

(Optional)

Product's vegetable bin is designed to keep vegetables fresh by preserving humidity. For this purpose, the overall cold air circulation is intensified in the vegetable bin.

5.5 Deep freezer details

As per the IEC 62552 (Protection degree 42, Protection class 1) standards, the freezer must have the capacity to freeze 4,5 kg of food items at -18°C or lower temperatures in 24 hours for each 100 litres of freezer compartment volume.

Food items can only be preserved for extended periods at or below temperature of -18^irc C.

You can keep the foods fresh for months (in deep freezer at or below temperatures of 18^irc C).

The food items to be frozen must not contact the already-frozen food inside to avoid partial defrosting.

Boil the vegetables and filter the water to extend the frozen storage time.

Place the food in air-tight packages after filtering and place in the freezer. Bananas, tomatoes, lettuce, celery, boiled eggs, potatoes and similar food items should not be frozen. In case this food rots, only nutritional values and eating qualities will be negatively affected. A rotting threatening human health is not in question.

5.6 Placing the food

Freezer compartment shelves	Various frozen goods including meat, fish, ice cream, vegetables etc.
Cooler compartment shelves	Food items inside pots, capped plate and capped cases, eggs (in capped case)
Cooler compartment door shelves	Small and packed food or beverages
Vegetable bin	Fruits and vegetables
Fresh food compartment	Delicatessen (breakfast food, meat products to be consumed in short notice)

5.7 Changing the opening direction of the door

You can change the direction of opening of your refrigerator depending on the location where you use it. When you need this, consult the closest Authorized Service.

The explanation above is a general statement. You should check the warning tag located inside the product package about the changeability of direction of the door.

5.8 Interior light

If interior light uses a LED type lamp. Contact the authorized service for any problems with this lamp.

5.9 Defrosting

a)Fridge compartment

The fridge compartment defrosts automatically. The defrost water runs to the drain tube via a collection container at the back of the appliance. During defrosting, water droplets may from at the back of the fridge compartment

where a concealed evaporator is located. Some droplets may remain on the liner and refreeze when defrosting is completed. Do not use pointed or sharp-edged objects such as knives or forks to remove the droplets which have refrozen. If, at any time, the defrost water does not drain from the collection channel, check that no food particles have blocked the drain tube. The drain tube can be cleared with a pipe-cleaner or similar implement. Check that the tube is permanently placed with its end in the collecting tray on the compressor to prevent the water spilling on the electric installation or on the floor.

b) Freezer compartment

Defrost twice a year or when a frost layer of around 7 (1/4") mmhas formed. To start the defrosting procedure, switch off the appliance at the socket outlet and pull out the mains plug. All food should be wrapped in several layers of paper and stored in a cool place (e.g. fridge or larder). Containers of warm water may be placed carefully in the freezer to speed up the defrosting.

Do not use pointed or sharp-edged objects, such as knives or forks to remove the frost.

Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.

Sponge out the defrost water collected in the bottom of the freezer compartment. After defrosting, dry the interior thoroughly (picture 8 & 9). Insert the plug into the wall socket and switch on the electricity supply.

6 Maintenance and cleaning

Product life extends if it is cleaned regularly

WARNING: Cut off power before cleaning your refrigerator.

• Do not use sharp and abrasive tools, soap, house cleaning materials, detergents, gas, gasoline, varnish and similar substances for cleaning.
• Melt a teaspoonful of carbonate in the water. Moisten a piece of cloth in the water and wring out. Wipe the device with this cloth and dry off thoroughly.
  Take care to keep water away from the lamp's cover and other electrical parts.
• Clean the door with a damp cloth. Remove all contents to remove the door and body racks. Remove the door racks by lifting them upwards. Clean and dry the shelves, then attach back in place by sliding from above.
• Do not use chloric water or cleaning products on the exterior surface and chrome-coated parts of the product. Chlorine causes rust in such metal surfaces.

6.1. Preventing malodour

The product is manufactured free of any odorous materials. However, keeping the food in inappropriate sections and improper cleaning of internal surfaces may lead to malodour.

To avoid this, clean the inside with carbonated water every 15 days.

• Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour.
• Do not keep expired and spoilt foods in the refrigerator.

Tea is one of the best known odour-removers. Place the pulp of the brewed tea in the product inside an open container and remove it after 12 hours at the latest. If you keep the tea pulp inside the product for longer than 12 hours, it will collect the organisms that cause the odour so it can be the source of odour itself.

6.2. Protecting plastic surfaces

Oil spilled on plastic surfaces may damage the surface and must be cleaned immediately with warm water.

6.3. Door glass

For routine cleaning works, it is recommended to use water-based cleaning products that are non-alkali and non-abrasive.

In order to increase the durability of this glass against impact and breaking, it has gone through a tempering process.

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

• The power plug is not fully settled. >>> Plug it in to settle completely into the socket.
• The fuse connected to the socket powering the product or the main fuse is blown.

  Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The environment is too cold. >>> Do not install the product in environments with temperatures below -5°C.
• The door is opened too frequently >>> Take care not to open the product's door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders.
• The product's door is left open. >>> Do not keep the product's door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.

Compressor is not working.

• In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product's cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.
• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.
• The product is not plugged in. >>> Make sure the power cord is plugged in.
• The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• The power is out. >>>The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

- The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in higher room temperature.
• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.
• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.
• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
• The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature.

The temperature in the cooler or the freezer is too high.

• The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.
• The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise.

• The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.
• Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

- The product's operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

- The product uses a fan for the cooling process. This is normal and not a malfunction.

Troubleshooting

There is condensation on the product's internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.
• The door may be ajar. >>> Fully close the door.

There is condensation on the product's exterior or between the doors.

- The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.
• Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour.
• The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.

The door is not closing.

• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
• The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product.
• The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

- The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer.

WARNING: If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Do not try to repair the product.

Producer "Beko LLC"

Address: Selskaya street, 49, Fedorovskoe village, Pershinskoe rural settlement, Kirzhach district, Vladimir region, Russian Federation 601021

The manufacture date is included in the serial number of a product specified on rating label, which is located on a product, namely: first two figures of serial number indicate the year of manufacture, and last two - the month. For example, “15-100001-05” indicates that the product was produced in May, 2015.

You can ask for certification number from our Call Center 8-800-200-23-56

The manufacturer reserves the right to itself to make changes of construction, design, and completion of the product.

Model	DSF5240M00W
Voltage (V)	220-240
Climate Class	SN
Cooling Type	static
Total Gross Volume (lt)	240
Total Net Volume (lt)	177
Freezer Net Volume (lt)	46
Freezing Capacity	4
Energy Class	A
Power(W)	85
25°C energy consumption (kWh/year)	284
Temperature rise	16
Noise (dB(A))	40
Protection/class	IP42/1
Height with package/wo package (cm)	148,5/145,8
Dept with package/wo package (cm)	62/60
Width with package/wo package (cm)	57,5/54
Crisper (pc)	1
Number of shelves (pc)	3
Number of Door racks (pc)	3
Ice cube tray (pc)	1
PRODUCT FICHE
Supplier	Beko
Model name	DSF5240M00W
Category	7
Energy Efficiency Class	A
EU EcoLabel Award	N/A
Annual Energy Consumption [kWh/year]*	284
Fridge Net Volume [liter]	177
*** Net Volume [liter]	46
** Net Volume [liter]	-
* Net Volume [liter]	-
Zero-Star Net Volume [liter]	-
Frost Free Freshfood Storage	-
Frost Free Chill Compartment	-
Frost Free Wine Storage **	-
Frost Free ***	-
Frost Free	-
Frost Free Cellar Compartment	-
Frost Free Other Compartment	-
Temperature Rise Time [h]	16
Freezing Capacity [kg/24h]	4
Climate Class ***	SN
Airborne Acustical Noise Emission [dB(A)]	40
Built-In	-
Note	-
* Energy consumption "XYZ" kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.**The coldest storage temperature, capable of being set by the consumer, of wine storage compartment is 5°C.*** According to declared climate class, this appliance is intended to be used at an ambient temperature range listed below:Climate class SN: + 10°C and + 32°CClimate class N: + 16°C and + 32°CClimate class ST: + 16°C and + 38°CClimate class T: + 16°C and + 43°C+: Yes- : NoN/A: Not Applicableprepared and declared in accordance with EU 1060/2010
