Product Type	Canister Vacuum Cleaner
Model	V-C3815N
Brand	LG
Power Supply	220-240 V ~ 50/60 Hz
Power Cord Length	Approx. 6 m
Dust Bag Type	Paper or fabric dust bag
Dust Bag Capacity	Approx. 2.5 L
Filtration System	Motor safety filter + washable HEPA filter
Weight	Approx. 5.5 kg
Dimensions (L x W x H)	Approx. 400 x 250 x 300 mm
Suction Control	Electronic variable power control
Cord Rewind	Automatic with foot pedal
Bag Full Indicator	Red indicator window
Accessories Included	Crevice tool, dusting brush, upholstery nozzle, turbine brush nozzle (optional), hard floor nozzle
Telescopic Tube	Yes, with spring latch
Motor Protection	Thermal protector with auto shut-off
Safety Features	Dust bag check safety device; HEPA filter cleaning reminder
Maintenance	Clean motor filter periodically; wash HEPA filter every 6 months
Compliance	EU Low Voltage Directive 2006/95/EC, EMC Directive 2004/108/EC, WEEE Directive 2002/96/EC

Frequently Asked Questions - V-C3815N LG

How do I change the dust bag in my LG V-C3815N?

To change the dust bag, first turn off and unplug the vacuum. Open the cover by pressing the hook (19) and lifting it up. Remove the old bag by pulling the handle. Insert a new bag (paper or fabric) by pushing its cardboard support into the bag mount (21) until it clicks. Close the cover. The appliance will not close if the bag is not fitted correctly due to the safety device.

How can I clean the HEPA filter?

Check the HEPA filter occasionally. Unplug the vacuum, open the filter cover (26), and remove the filter. Wash the washable HEPA filter with water at least once every six months. Let it dry completely before reinstalling. Do not dry in an oven, microwave, or near open flames.

Why is my vacuum cleaner losing suction?

Loss of suction may be due to a full dust bag (change if indicator is red), blocked hose or tube, or clogged filters. Unplug the vacuum and check these areas. Also ensure the dust bag is not full of fine dust that clogs pores. Clean the motor filter and HEPA filter if needed.

What should I do if the vacuum suddenly shuts off?

The vacuum has a thermal protector that turns it off if the motor overheats. Turn off the switch and unplug. Check for a full dust tank, blocked hose, or clogged filter. Fix any issues and wait at least 30 minutes before plugging in and turning on again.

Can I use extension cords with this vacuum?

No, do not use an extension cord with this vacuum cleaner. It can create a fire hazard or cause product damage. Plug directly into a wall outlet with proper voltage as listed on the bottom of the vacuum.

How do I rewind the power cord?

After switching off and unplugging the appliance, hold the plug and press the button (12) to automatically rewind the cord. Keep children away and beware of obstructions as the cord moves rapidly.

Can I use the vacuum to pick up water or liquids?

No, this is a dry vacuum cleaner only. Do not use it to pick up water, liquids, or anything that is burning or smoking (cigarettes, hot ashes). Doing so could result in death, fire, or electrical shock.

How do I assemble the telescopic tube?

To assemble the telescopic tube (5), push the spring latch (6) forward, pull the tube to the required length, and release the latch to lock. Fit the tubes together by twisting slightly if using metal or plastic pipes.

What is the bag full indicator and how does it work?

The bag full indicator window (18) becomes completely red when the dust bag needs changing, even if it doesn't appear full. This can happen if fine dust clogs the bag pores. Change the bag when the indicator shows red at maximum power with the head off the floor.

How should I store the vacuum cleaner?

Store the vacuum cleaner indoors in a vertical position. After use, you can slide the hook on the large cleaning head into the clip on the underside of the appliance to keep it upright. Always unplug and rewind the cord before storage.

USER MANUAL V-C3815N LG

Model	VC38**R**/VC38**N**
Language	English+Estonian+Latvian+Lithuanian+Ukrainian+Russian
Page	40	Color(cover/body)	1/1
Material Size(Mg)	100g		145*215(mm)
Date	2009.12.10	Designer	w.z.y
Part No.	MFL47170606	Description	Owner's Manual

Change Record

No.	Date	Change content	ECO No.		Designer	Confirm
1
2
3	add warning sentences and new language Russian		ACTT905240 09.08.07 Xu.C.Q			C.Y.T
4	improve Lithuanian language ACTT907418 09.12.10 w.z.y					C.Y.T
5	change the web 277300TTCA				CEA10.05.24	Zixiang
6	Add warning words		ACTT009191	10.12.15	WZY	Zi Xiang
7	Add warning words		ACTT009357	10.12.20	WZY	Zi Xiang
8
9

Line drawing of a vacuum cleaner device (no text or symbols)

VC38**R**

VC38**N**

E | English

ES| Eesti keel

LV | Latviešu

LT | Lietuvių

у | Українська

РІ Русский язык

Basic Parts

Põhiosad

Galvenās detalas

Pagrindinès detalès

Основні компоненти

Корпусные детали

Optional Parts

Valikulised osad

Papildu detalas

Körpuso détalès

Accessory

Tarvikud

Piederumi

Priedai

Допоміжні насадки

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following ECDirectives:-2006/95/EC Low Voltage Directive-2004/108/EC EMC Directive.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION.” These words mean:

WARNING

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

WARNING

• Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use.
  Failure to do so could result in electrical shock or personal injury.
• Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes.
  Doing so could result in death, fire or electrical shock.

- Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases).

The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.

- Do not handle plug or vacuum cleaner with wet hands.

Doing so could result in death or electrical shock.

- Do not unplug by pulling on cord. Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.

- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.

Failure to do so could result in electrical shock or personal injury.

• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.
  Failure to do so could result in electrical shock or personal injury or fire or product damage.
• Do not allow to be used as toy. Close attention is necessary when used by or near children.
  Personal injury or product damage could result.
• Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.
  If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.
• Do not use vacuum cleaner if it has been under water.
  Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

WARNING

- Do not continue to vacuum if any parts appear missing or damaged.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use an extension cord with this vacuum cleaner

Fire hazard or product damage could result.

• Using proper voltage.

Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.

- Turn off all controls before unplugging.

Failure to do so could result in electrical shock or personal injury.

- Do not change the plug in any way.

Failure to do so could result in electrical shock or personal injury or product damage. Doing so result in death. If plug does not fit, contact a qualified electrician to install the proper outlet.

- Repairs to electrical appliances may only be performed by qualified service engineers.

Improper repairs may lead to serious hazards for the user.

- Do not plug in if control knob is not in OFF position.

Personal injury or product damage could result. (Depending on model)

- Keep children away and beware of obstructions when rewinding the cord to prevent personal injury.

The cord moves rapidly when rewinding. (Depending on model)

- The hose contains electrical wires. Do not use it if it is damaged, cut or punctured.

Failure to do so could result in death, or electrical shock. (Depending on model)

CAUTION

• Do not put any objects into openings. Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow.

Failure to do so could result in product damage.

- Do not use vacuum cleaner without dust tank and/or filters in place.

Failure to do so could result in product damage.

- Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc.

They may damage the cleaner or dust bin.

• Store the vacuum cleaner indoors. Put the vacuum cleaner away after use to prevent tripping over it.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

- Only use parts produced or recommended by LG Electronics Service Agents.

Failure to do so could result in product damage.

- Use only as described in this manual. Use only with LG recommended or approved attachments and accessories.

Failure to do so could result in personal injury or product damage.

- To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs.

Failure to do so could result in personal injury or product damage.

• Use accessory nozzles in sofa mode. Failure to do so could result in product damage.
• Make sure the filters (exhaust filter and motor safety filter) are completely dry before replacing in the machine.

Failure to do so could result in product damage.

• Do not dry the filter in an oven or microwave.
  Failure to do so could result in fire hazard.
• Do not dry the filter in a clothes dryer. Failure to do so could result in fire hazard.
• Do not dry near an open flame. Failure to do so could result in fire hazard.
  • Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust.

These products clog the filters, reduce airflow and can cause damage to the cleaner. Failure to clean the dust bin could cause permanent damage to the cleaner. (Depending on model)

• Don't grasp the tank handle when you are moving the vacuum cleaner.
  The vacuum cleaner's body may fall when separating tank and body. Personal injury or product damage could result. You should grasp the carrier handle when you aremoving the vacuum cleaner. (Depending on model)
• If after emptying the dust tank the indicator light is on(red), clean the dust tank.
  Failure to do so could result in product damage. (Depending on model)

CAUTION

Thermal protector :

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch.

OLULISED OHUTUSJUHISED

OLULISED OHUTUSJUHISED

ETTEVAATUST

Kuumakaitse :

Connecting the flexible hose

Push the end of the head(1) on the flexible hose(2) into the attachment point on the vacuum cleaner.

To remove the flexible hose from the vacuum cleaner, press on the button(3) situated on the head, then pull upwards.

Assembling the tubes

(depending on model)

• Metal(or Plastic) Pipe(4)

- Fit together the two tubes by twisting slightly.

•Telescopic tube(5)

• Push spring latch(6) forward.
• Pull out tube to required length.
• Release spring latch to lock.

Using the cleaning head and Accessory Nozzles (depending on model)

Fit the large cleaning head onto the end of the tube.

- The 2 position head(7) is equipped with a pedal(8) which allows you to alter its position according to the type of floor to be cleaned.

Hard floor position(tiles, parquet floors...). Press on the pedal to lower the brush.

Carpet or rug position. Press on the pedal to lift the brush up.

- Crevice Tool(9)

For vacuuming in those normally inaccessible places i.e. reaching cobwebs, or down the side of a sofa!

• Dusting brush(10)

For vacuuming picture frames furniture outlines, books and other uneven objects.

• Upholstery Nozzle(11)

For vacuuming upholstery, mattresses, etc. The thread collectors help to pick up the threads and fluff.

How to plug in and use

Pull out the supply cord to the desired length and plug into the socket.

Press button (14) to start the vacuum cleaner. To stop it press the button (14) again.

Adjusting the power level

• If your appliance is equipped with an electronic variable power control(13), you can choose the power appropriated for the task. The more you rotate the button towards the right, the greater the suction power.
• The flexible hose handle(15) has a manual air flow regulator(16) which allows you to briefly reduce the suction level.

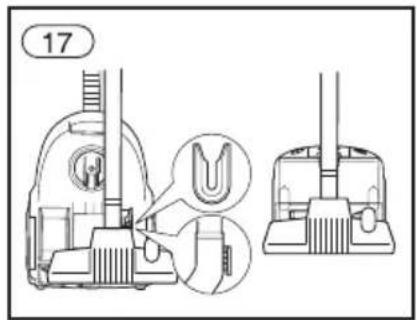

Storage(17)

When you have switched off and unplugged the appliance, hold the plug and press on the button (12) to automatically rewind the cord. You can move or store your appliance in a vertical position by sliding the hook on the large cleaning head into the clip on the underside of the appliance.

Changing the dust bag

The dustbag needs changing when the cleaner is set to maximum power and the cleaner head is off the floor but the "bag full" indicator window(18) is completely coloured red.

Even if the dustbag does not appear to be full at this stage, it should be changed.

It could be that a great deal of very fine dust has clogged up the pores of the dust bag.

• Turn off the appliance and unplug it.
• Open the cover by pressing the hook(19) and lifting it up until it snaps into place.

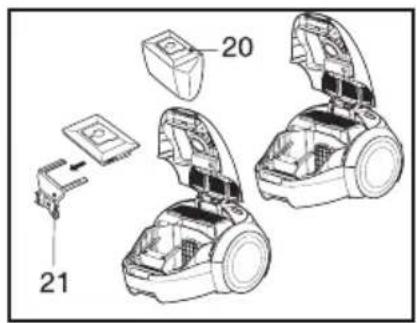

Your appliance is equipped with either a paper dust bag (20) or a fabric dust bag (22)(depending on model).

• Take hold of the dust bag by the handle and pull. Remove the bag and throw it away.
• To refit a new bag push the cardboard support of a new bag into the bag mount (21) until it will go no further.

If your appliance is fitted with a fabric dust bag follow the same instructions as above.

Empty it and replace it(22).

Note: as the appliance is fitted with a safety device which checks that the bag is in place you cannot close the lid if the bag is not fitted correctly.

Cleaning the motor filter (24)

The motor filter is situated inside the appliance between the filter supporter (23) and the motor. Each time that you change the air outlet filter we advise you to pull the handle on the filter supporter, remove the motor filter (24) and to clean it by tapping to remover the dirt and then replacing it in the vacuum cleaner.

Cleaning the Hepa filter (25)

• Check the Hepa filter occasion-ally and clean when dirty.
• Unplug cord from outlet.
• Open the filter cover (26) and remove the Hepa filter as shown.
• Cleaning the washable HEPA filter with water at least once half a year.
• Hard floor Nozzle (28)

Efficient cleaning of hard floors (wood, linoleum, etc.)

- Cleaning turbine brush nozzle (27)

Press the button on the rear side of the nozzle to separate the air cover. Use the dusting brush & crevice tool to vacuum clean the brush and fan.

What to do if your appliance does not work?

Check that the appliance is correctly plugged in and that the electrical socket is working.

What to do when the suction performance reduces?

• Stop the appliance and unplug it.
• Check that the tubes, flexible hose and cleaning tool are not blocked.
• Check that the dust bag is not full. Replace if necessary.

Kasutamine

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Vana masina körvaldamine

The equipment complies with requirements of the Technical Regulation, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.
