Product Type	Wireless Charger
Model	LÖRBY 103.819.71
Dimensions	15.5 x 8.5 x 1.2 cm
Weight	150 g
Input Voltage	5V DC, 2A (via Micro USB)
Output Power	5W (Qi-compatible devices)
Charging Standard	Qi wireless charging
LED Indicator	White LED (charging), Green LED (fully charged), Flashing (error)
Compatible Devices	Smartphones and other Qi-compatible devices up to 5W
Material	Plastic and silicone
Cable Length	1.5 m (Micro USB to USB-A)
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Safety Features	Overcharge protection, short-circuit protection, temperature control
Care and Cleaning	Wipe with a dry, soft cloth. Do not use water or cleaning agents.
Spare Parts and Repairability	No user-serviceable parts. Do not disassemble.
General Information	Designed for indoor use only. Keep away from liquids and heat sources.

Frequently Asked Questions - LÖRBY 103.819.71 IKEA

Is the LÖRBY wireless charger compatible with all smartphones?

The LÖRBY charger is Qi-compatible and supports devices that adhere to the Qi wireless charging standard, such as recent iPhones and Android phones. However, it outputs only 5W, so fast charging may not be supported.

Can I use the LÖRBY charger with a phone case?

Yes, but the case must be thin (less than 3 mm) and not made of metal or magnetic materials. Thick or metallic cases may interfere with charging.

What does the LED indicator mean?

A steady white light indicates charging is in progress. A green light means the device is fully charged. Flashing white or green indicates an error, such as misalignment or foreign object detection.

How do I clean the LÖRBY charger?

Unplug the charger and wipe it with a dry, soft cloth. Do not use water, cleaning solvents, or abrasive materials, as they may damage the surface.

What power adapter should I use?

Use a USB-A power adapter that provides at least 5V/2A (10W). Using a lower-rated adapter may result in slow or no charging. IKEA recommends their own adapters, but any reputable brand with the correct specs will work.

Can I charge multiple devices at once?

No, the LÖRBY charger is designed to charge one device at a time. It has a single charging coil.

Is the LÖRBY charger safe to use overnight?

Yes, it has overcharge protection and temperature control, so it is safe to leave connected. However, to prolong battery life, it is recommended to unplug once fully charged.

What should I do if the charger stops working?

First, check the power adapter and cable. Try a different outlet or cable. Ensure the device is centered on the charger. If the LED is flashing, realign the device. If problems persist, contact IKEA customer service.

Can I use the LÖRBY charger with a non-Qi device?

No, it only works with Qi-compatible devices. For non-Qi devices, you would need a Qi receiver adapter that plugs into the charging port.

Does the LÖRBY charger support fast charging?

No, the LÖRBY charger has a maximum output of 5W, which is standard wireless charging speed. It does not support fast wireless charging protocols like Quick Charge or Apple's Fast Wireless.

USER MANUAL LÖRBY 103.819.71 IKEA

Design and Quality IKEA of Sweden

Technical line drawings of electrical components including a U-shaped magnet, cable, and terminal block (no text or symbols)

ENGLISH 6

中文 10

繁中 14

한국어 18

日本語 22

BAHASA INDONESIA 26

BAHASA MALAYSIA 30

عربي 34

ไทย 38

ENGLISH 6

Charger features

— Charges 3 devices simultaneously.
— One single USB outlet can provide up to 2400 mA load.

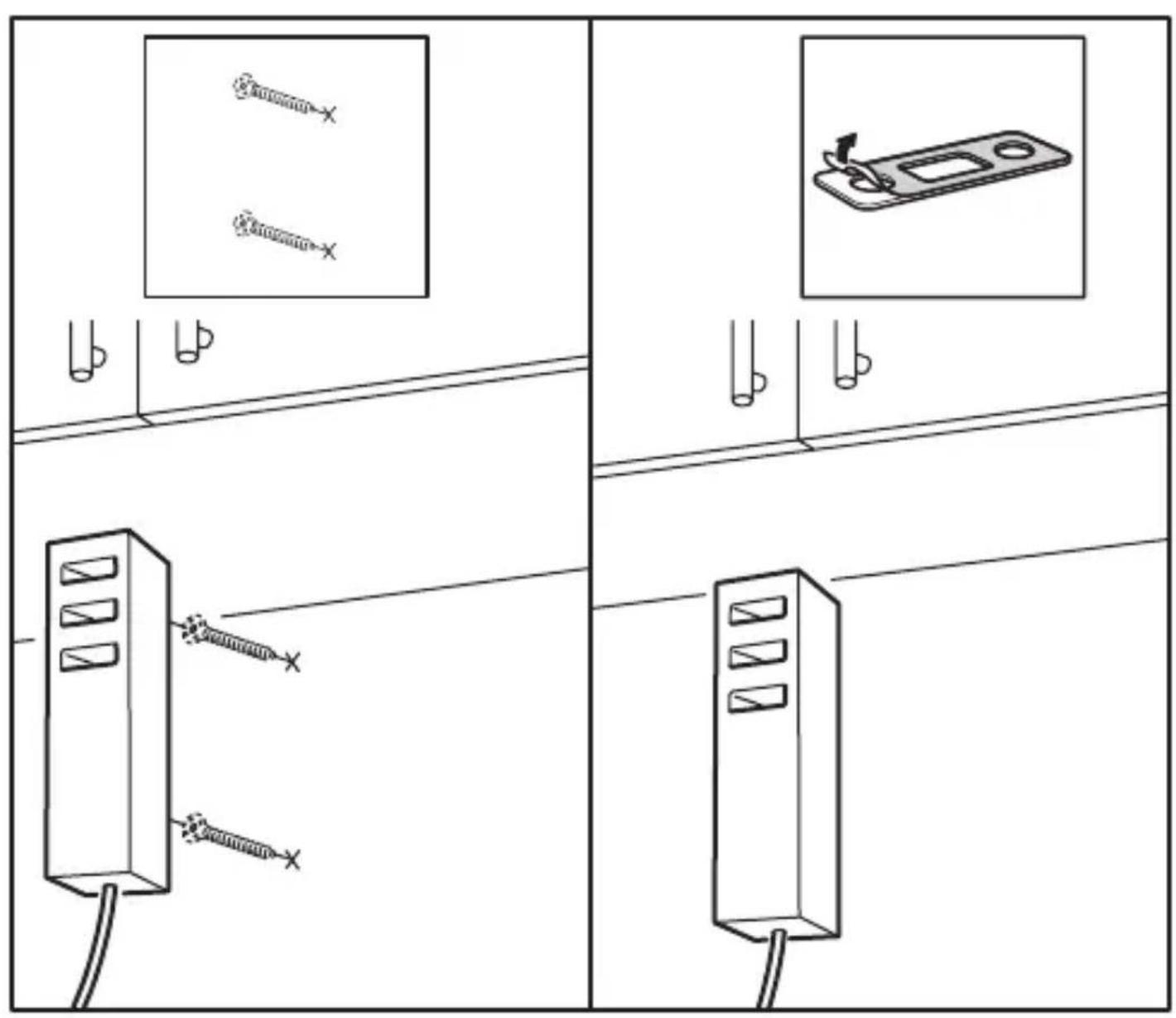

— Can be attached with the clip provided or the built-in magnetic plate or the adhesive label or screws.

Instructions for use

— Connect the power adapter into the wall socket, insert USB cable one by one into the free slots and the other end to the device you want to charge.
— If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.
— When charging only use a recommended USB cable for your device.
— Be sure to not exceed the maximum USB cable length recommended for the appliance or the device.

Good to know

— USB cable length and quality influences charging speed and performance.
— Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
- Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
— Charger storage temperature: -20^ to 25^ .
— Charger operating temperature: 0°C to 40°C.

Unplug the charger from the power source before cleaning and when it is not in use.

To clean the charger, wipe with a moist cloth. Never submerge the charger in water.

Recommended precautionary measures and technical data, see the back of the charger.

Save these instructions for future use.

WARNING:

— The wall socket must be located near the equipment and must be easily accessible.
— Only use in dry locations.
— Children should be supervised to ensure they do not play with the product.
— If the cord is damaged the appliance shall be destroyed.
— Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E1605 LÖRBY

Input: 24V DC

Output: 5V DC

Indoor use only

Max total load: 3400 mA

Max load per USB-outlet: 2400mA

Max USB cable length: 1.5 m/4'11"

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
