Product Type	Blender with mill attachment
Brand	Philips
Model	HR1799
Voltage	110-127V or 220-240V
Jar Capacity	1.5 liters (max fill), 1.1 liters for hot liquids
Speed Settings	3 speeds (1, 2, 3) plus Pulse (M-button)
Motor Protection	Automatic shut-off in case of jam; reset button at bottom
Safety Switch	Motor only starts when blender jar or mill is correctly assembled
Quick Clean Function	Yes, at 500 ml level
Filter Accessory	For model HR1797 only (not included with HR1799)
Mill Attachment	Included, for grinding dry ingredients (max capacity varies)
Maximum Processing Time (Blender)	3 minutes continuous, then 1 minute rest
Maximum Processing Time (Mill)	30 seconds continuous
Hot Liquid Temperature Limit	80°C (175°F)
Ice Crushing Capacity	Max 5 ice cubes per batch
Material	Plastic jar, stainless steel blades
Cleaning	Hand wash only; not dishwasher safe
Accessories Included	Blender jar, lid with stopper, mill beaker, blade unit, rubber ring, shaker lid
Recipes Included	Mayonnaise, carrot cake, salad dressing

Frequently Asked Questions - HR1799 PHILIPS

What should I do if the blender motor stops during use?

The appliance has a motor protection device that switches off the motor if it jams. Switch off and unplug the appliance, check that the quantity of ingredients does not exceed the recommended limit, or remove any blockage. Press the reset button at the bottom of the appliance before continuing.

Can I put hot liquids in the blender jar?

Yes, but the maximum temperature is 80°C (175°F). For hot liquids, do not fill beyond the 1.1 liter mark to avoid spillage.

How do I clean the blender jar quickly?

Pour lukewarm water and washing-up liquid up to the 500 ml (Quick Clean) level, close the lid, insert the stopper, and press the Quick Clean button. Rinse with clean water afterward.

What is the maximum capacity of the blender jar?

The maximum fill level is 1.5 liters for general use. For hot liquids or foaming liquids, do not exceed 1.1 liters or 1.2 liters respectively.

Can I use the mill attachment for wet ingredients?

No, the mill is intended for dry ingredients only. Do not process wet items like ice cubes or nutmeg in the mill.

How do I attach the blender jar correctly?

Place the rubber sealing ring on the blade unit, mount it onto the jar, then mount the jar onto the motor unit and turn it until the notch on the jar aligns with the line above the buttons on the motor housing.

Is the filter accessory included with the HR1799?

No, the filter is only for model HR1797. For the HR1799, it is not included.

What is the maximum processing time for the blender?

Do not run the blender for more than 3 minutes continuously. If more time is needed, switch off for 1 minute before continuing. Dry ingredients should not exceed 1 minute.

How do I avoid spillage when blending?

Always insert the stopper into the lid before starting. Do not fill the jar beyond the maximum level indication, especially with hot liquids or foamy mixtures.

What should I do if ingredients stick to the jar wall?

Switch off and unplug the appliance, then add liquid or use a spatula to loosen the ingredients. Never reach into the jar while the appliance is running or plugged in.

USER MANUAL HR1799 PHILIPS

White plastic blender with handle and control buttons, set against a pink background (no text or symbols visible)

PHILIPS

ENGLISH 4

BAHASA MELAYU 20

BAHASA INDONESIA 38

TIÊNG VIÊT 55

ภาษาไทย 70

简体中文 83

繁體中文 98

Introduction

The appliance is equipped with a motor protection device that will SWITCH OFF the motor in case of a motor jam (which might occur during heavy processing jobs or if the appliance is not used in accordance with the instructions). If this happens, SWITCH OFF and UNPLUG the appliance first, then check if the quantity of ingredients you are processing does not exceed the quantity mentioned in the directions for use, or if something is blocking the blades. Then press the button at the bottom of the appliance and continue processing. We advise you to process large quantities of ingredients in a series of smaller batches. DO NOT exceed the processing time indicated in the directions for use when processing a batch.

Safety notice

Always unplug the appliance from the mains before assembling, disassembling or making adjustments to any of the accessories.

Keep the appliance out of the reach of children.

The motor only starts if the blender jar or the mill attachment has been correctly assembled onto the motor unit.

Make sure the blade unit is securely fastened onto the mill beaker before you screw the mill attachment onto the motor unit.

Never touch the blade unit when it is assembled on the appliance and the appliance is plugged in.

Avoid touching the cutting edges of the blade units when cleaning them. They are very sharp and you could easily cut your fingers on them.

Important

Read these instructions for use carefully and look at the illustrations before using the appliance.
- Keep these instructions for future reference.
▶ Check if the voltage indicated on the appliance corresponds to the local mains voltage (110-127V or 220-240V) before you connect the appliance.
Never use any accessories or parts from other manufacturers or that have not been specifically advised by Philips. Your guarantee will become invalid if such accessories or parts have been used.
Do not exceed the maximum level indicated on the accessories.
Do not exceed the quantities and preparation times indicated in the table.
▶ Never remove accessories or parts from the motor unit while the appliance is running. Always unplug the appliance first.
▶ Never use the accessories to switch the appliance on and off!
▶ Never let the appliance run unattended.
Do not use the appliance if the mains cord, the plug or other parts are damaged.
If the mains cord of this appliance is damaged, it must always be replaced by Philips or a service centre authorised by Philips in order to avoid hazardous situations.
Let hot ingredients cool down before chopping them or pouring them into the jar (max. temperature 80^ C/175°F), especially for recipes that require large quantities of oil or fat.

Illustration of a red football receiver with motion arrows indicating speed (no text or symbols)

To avoid spillage, never fill the jar beyond the maximum level indication (1.5 litres), particularly not if you are blending hot liquids (maximum 1.1 litres).
To avoid spillage, always insert the stopper into the lid before you start processing.
▶ Never reach into the jar with your fingers or an object while the appliance is running or when the appliance is connected to the mains.
If the ingredients stick to the wall of the blender, switch the appliance off, unplug the appliance and loosen the ingredients from the wall by adding liquid or using a spatula.

Preparing the appliance for use

Wash all accessories and detachable parts (see 'Cleaning').

- Wind excess mains cord round the base of the appliance.

Using the appliance

Blender

The blender is intended for:

• Blending fluids, e.g. dairy products, sauces, fruit juices, soups, mixed drinks, shakes.
• Mixing soft ingredients, e.g. pancake batter or mayonnaise.
• Pureeing cooked ingredients, e.g. for making baby food.

Illustration of a hand using scissors to cut a piece of material on a floured base (no text or symbols)

Illustration of hands holding a mechanical component with a red curved arrow indicating rotation (no text or symbols)

Illustration of a mechanical device with a lid and two wheels, showing alignment and movement (no text or symbols)

I Place the rubber sealing ring on the rim of the blade unit.

2 Mount the blade unit onto the jar by turning it firmly in the direction of the arrow.

3 Mount the jar onto the motor unit. Fasten it by turning it in the direction of the arrow. The jar is properly fixed when the notch in its lower rim is in line with the line above the buttons on the motor housing.

Do not exert too much pressure on the handle of the jar.

4 Open the lid by pressing the projection on the side of the handle.

To remove the lid, open it and then pull it upwards.

Only remove the lid for cleaning purposes.

5 Put the ingredients in the jar.

Never fill the jar with ingredients that have a temperature of over 80^ C.

Illustration of a blender with a lid and handle, showing a red downward arrow indicating compression (no text or symbols)

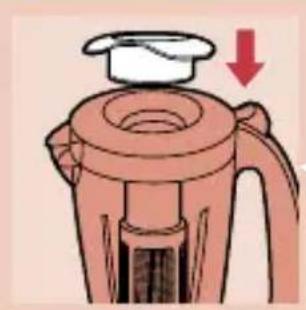

6 Close the lid
7 insert the stopper into the lid.

To avoid spillage, always insert the stopper into the lid before you start processing.

8 Put the mains plug in the wall socket.

9 Select the required setting by pressing the appropriate button and the appliance will switch on automatically.

The speed buttons allow you to choose the right speed to obtain optimal results. See the table for the recommended speeds.

Ingredients	Speed
liquid ingredients (e.g. chocolate milk, milk with fruit, mayonnaise)	speed 1
heavier ingredients e.g. a combination of liquid and solid ingredients (e.g. tomato sauce or pate)	speed 2
heavy, mainly solid ingredients (e.g. ice cubes, soups, beans, etc.)	speed 3

Press the pulse button (M-button) a few times to let the appliance run for only a few econds at a time. The appliance will stop when you release the button. Press the pulse button as often as is necessary.

Always switch the appliance off before you open the lid.

10 Press the 0-switch to switch the appliance off.

Never switch the appliance on or off by turning the jar.

Recipes can be found in the 'Recipes' chapter below.

Tips

To avoid spillage, never fill the jar above the maximum level indication (1.5 litres), particularly not if you are blending hot liquids (maximum 1.1 litres).

If you are blending foaming liquids, never fill the jar beyond the 1.2 l indication.
Liquid ingredients (e.g. oil) can be poured into the blender jar through the opening in the lid while the appliance is running.

Do not let the blender run for more than 3 minutes at a time. If you have not finished blending after 3 minutes, switch the appliance off for one minute before you continue blending.

Dry ingredients must not be processed for more than 1 minute.

Illustration of a hand pouring liquid into a container (no text or symbols)

• Cut solid ingredients into smaller pieces before putting them in the blender jar. Do not process a large quantity of solid ingredients at the same time. Process these ingredients in a series of small batches instead.
  If you are not satisfied with the result when blending solid ingredients, switch the blender off and press the pulse button (M-button) a few times to let the blender run briefly. You can also stir the ingredients with a spatula (not while the blender is running!) or pour out some of the contents of the jar and process smaller amounts.
  To crush ice cubes, drop max. 5 cubes per batch through the opening in the lid onto the rotating blades.
  To make tomato juice, cut the tomatoes in four and drop the pieces through the opening in the lid onto the rotating blades.

Never reach into the jar with your fingers or an object (e.g. a spatula) while the blender is running.

If you are processing solid and liquid ingredients at the same time, pour the liquid ingredients in the jar before switching the appliance on. Add the solid ingredients while the appliance is running.

Filter (HRI797 only)

- You can use the filter accessory to obtain extra finely blended sauces, fresh fruit juices or cocktails. All pips and skins will be caught in the filter.

Illustration of a hand pouring liquid into a container with a red arrow indicating downward motion (no text or symbols)

Make sure the appliance is unplugged. Remove the blender jar from the appliance and put the filter in the blender jar.

Make sure the filter is properly fitted onto the bottom of the jar. The grooves of the filter and the ribs inside the blender jar will help you put the filter in the right position.

Illustration of a medical procedure showing a bottle being inserted into a cup (no text or symbols present)

2 Put the lid on the jar to fix the filter in its proper position.

3 Put the blender jar back on the motor unit and insert the plug into the wallsocket.

Illustration of a hand pouring liquid into a mechanical device with a downward arrow indicating flow (no text or symbols)

4 Put the ingredients in the filter through the opening in the lid.

Never fill the filter beyond its metal part. Do not use the filter to process hot ingredients.

Illustration of a blender with a lid and handle, showing a red downward arrow (no text or symbols)

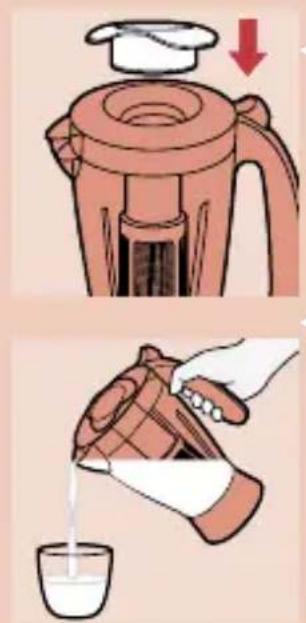

5 Add water or another liquid.

6 Insert the stopper into the opening in the lid and switch the appliance on. Select the highest speed and let the appliance run for max. 40 seconds.

Illustration of a hand pouring liquid into a glass (no text or symbols)

7 Switch the appliance off. Pour out the drink through the spout of the blender jar.

8 For optimal results, put the jar with the remaining ingredients back onto the appliance and let it run for a few more seconds.

9 Pour out the rest of the drink.

Tips

Particularly when you are processing large quantities, we advise you not to put all the ingredients in the filter at the same time. Start processing a small quantity, let the appliance run for a moment, switch it off and then add another small quantity. Repeat this procedure until you have processed all the ingredients.

▶ For making soy milk:

Soak soy beans for 4 hours before processing them. You can process max. 50 g. of dry soy beans with max. 500 ml. water at a time.

Do not process this recipe more than 2 times. If you want to proces more, the appliance has to cool down first.

For making fruit juices and cocktails:

For the best results, add approx. 300 ml water (or another liquid if you are making e.g. cocktails, etc.) to 150 g fruit.

Mill

The mill attachment can be used for grinding and chopping ingredients such as peppercorns, sesame seeds, rice, wheat, coconut flesh, nuts (shelled), coffee beans, soy beans, dried peas, cheese, breadcrumbs, etc.

Always process cloves, star anise and aniseed together with other ingredients. If processed separately, these ingredients may attack the plastic materials of the appliance.

Hand pouring red granular substance into a glass jar with arrows indicating direction (no text or symbols)

Illustration of a hand placing a spoon into a container with arrows indicating direction (no text or symbols)

The mill is not suitable for chopping very hard ingredients like nutmeg and ice cubes.

I Put the ingredients in the beaker.

Process only dry ingredients. Do not fill the beaker beyond the 'MAX' indication. See the table for the advised quantities.

Ingredients	Quantities
pepper coms	5-25 g
sesame seed	10-50 g
rice, wheat	25-75 g
soy beans	25-75 g
dried peas	25-75 g
coconut flesh	25-75 g
coffee beans	25-50 g
cheese	25-75 g
bread crumbs	20-40 g
sugar cubes	25-50 g
nuts (shelled)	25-75 g

2 Make sure the rubber ring on the blade unit is properly placed.

Illustration of hands holding a small object with a red arrow indicating rotation (no text or symbols)

3 Screw the blade unit onto the beaker. If this requires some effort, moisten the rubber ring with a drop of water.

Illustration of a hand holding a cup with a partially open lid and a red circular arrow indicating rotation (no text or symbols)

4 Turn the assembled mill upside down and screw it onto the motor unit in the direction of the arrow.

5 We advise you to operate the mill by means of the pulse button (M-button).

Illustration of a hand holding a mechanical component with a red arrow indicating rotation (no text or symbols)

Never use the mill for more than 30 seconds without interruption.

After processing, you can use the shaker lid to sprinkle the ingredients evenly onto a dish.

Cleaning

Cleaning of the appliance, its parts and the accessories is easiest immediately after use.

Never clean the accessories or parts of the appliance in the dishwasher.

Clean the motor unit with a moist cloth.

Do not use abrasives, scourers, alcohol, etc.

Unplug the appliance, detach the accessories and parts you have used and clean them in warm, soapy water.

2 Then rinse them under the tap to wash away soap residues.

Quick cleaning of the blender jar

Pour lukewarm water and some washing-up liquid into the blender jar, up to the Quick Clean level indication (500 ml) on the jar. Do not exceed this level when using the Quick Clean function.

2 Close the lid. Insert the stopper into the lid.

3 Press the Quick Clean button and let the appliance run for a few moments. Stop as soon as the jar is clean.

4 Detach the blender jar and rinse it with clean water.

5 Only remove the lid (by pulling it off the blender jar) for cleaning purposes!

Illustration of a mechanical device with rotating parts and directional arrows indicating motion (no text or symbols)

Cleaning the filter

Take the filter out of the blender jar.
2 Hold the filter over a waste bin and gently shake out its contents.
3 Rinse the filter under the tap.

Information & service

If you need information or if you have a problem, please visit the Philips Web site at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Recipes

The hole in the lid can be used to add drops of liquid to the ingredients in the jar in order to obtain the required level of consistency.

Mayonnaise (about 300 ml)

• 2 egg yolks or 1 whole egg
• I tsp mustard powder
• | tsp salt
• 1/2 tsp pepper
• | tsp sugar
• 30 ml vinegar or lemon juice
• 300 ml oil

▶ All the ingredients have to be at room temperature.
- Put the egg or egg yolks in the blender jar, add salt, pepper and mustard powder and half of the vinegar or lemon juice and blend at average speed. Pour oil through the hole in the lid until the mayonnaise becomes thick. Then add the remaining vinegar or lemon juice and season according to taste.
▶ Store in the refrigerator.

Carrot cake

• 4 eggs
• 200 g sliced carrot
• 200 ml milk
• 100 g condensed milk
• 300 g sugar
• 300 g wheat flour
• 150 g oil

• I tsp dried yeast

• Put the eggs, the sliced carrots, the milk, the condensed milk and the sugar in the blender jar and process it for approx. 15 seconds at max. speed.

• Add the wheat flour spoon by spoon and oil during the next 45 seconds and then continue mixing for another 30 sec. to get a good mixture. Total processing time is 90 seconds.
• Do not process this recipe more than 2 times. If you want to process more, the appliance has to cool down first.
• Put the mixture in a baking tin and bake it at 180° for approx. 40 minutes.

Salad dressing

• I part vinegar or lemon
• 3 parts oil
• salt, pepper

Pour vinegar or lemon juice into the blender jar, add salt and pepper and switch the appliance on. Process until the salt and pepper have dissolved. Then add the oil through the hole in the lid until a homogeneous dressing has formed.

- You can also prepare a larger quantity of this basic dressing and store it in the refrigerator. Always shake before use to mix the ingredients.

Trouble shooting guide

Problem	Solution
The appliance does not work	The appliance is provided with a safety system. The appliance will not work if the accessories have not been assembled properly on the motor unit or have not been assembled at all. Check whether the accessories have been assembled properly (see various sections of these direction for use). Switch off the appliance first!
The blade unit or motor unit is blocked.	Switch off the appliance and process a smaller quantity.
The motor unit gives off an unpleasant smell the first few times the appliance is used.	This is normal. If the appliance continues to give off this smell after you have used it a few times, check whether the quantity you are processing, the processing time or the processing speed are correct.
The appliance makes a lot of noise, smells, feels hot to touch, emits smoke, etc.	Switch off the appliance and unplug it. Contact the nearest Philips service or take the appliance to your dealer.
The mill vibrates strongly, produces a lot of noise or the blade unit is out of alignment.	Check whether the blade unit has been properly assembled onto the beaker.
Powder leaks from the mill	Check whether the rubber ring has been properly assembled.
	Make sure the rubber ring has been assembled properly. The ring should lie flat round the interface. Note: a small amount of leakage is normal.
Although the filter has been assembled, the fruit juice or soy milk contains pulp.	Make sure that the filter has been assembled properly in the blender jar.

* If problems persist or if other problems occur, please contact the Philips Customer Care Centre or the nearest Philips service centre.

Pengenalan

Illustration of a stylized object with a red curved arrow indicating rotation or motion (no text or symbols)

The blender is intended for:

Illustration of a hand using scissors to cut a fluted cake with a red downward arrow (no text or symbols)

Illustration of hands holding a mechanical component with a red arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid from a small container into a red teapot (no text or symbols)

Panduan

Illustration of a hand using a tool to press or install a mechanical component, with a red arrow indicating downward motion (no text or symbols present)

Illustration of a medical procedure showing a tool injecting a bottle into a container (no text or symbols present)

Particularly when you are processing large quantities, we advise you not to put all the ingredients in the filter at the same time. Start processing a small quantity, let the appliance run for a moment, switch it off and then add another small quantity. Repeat this procedure until you have processed all the ingredients.
▶ Untuk membuat susu soya:

Hand placing a red object into a glass jar with small red objects (no text or symbols)

soya, kacang pea yang kering, keju, serbuk roti, dsb.

Illustration of a hand placing a small object into a bowl with arrows indicating rotation (no text or symbols)

Illustration of hands holding a small object with a red arrow indicating rotation (no text or symbols)

3 Skrukan unit mata pisau ke bikar. Jika ia memerlukan sedikit tenaga, basahkan gegelung getah dengan setitik air.

Illustration of a hand holding a cup with a red curved arrow indicating rotation (no text or symbols)

Illustration of hands holding a mechanical component with a red arrow indicating rotation (no text or symbols)

Illustration of a mechanical component with two views showing a cutting edge and a pair of parts (no text or symbols)

Illustration of a stylized football receiver with motion arrows indicating speed (no text or symbols)

Menggunakan alat

Blender

Illustration of a hand using scissors to lift batter into a fluted tart, with a red downward arrow indicating the process (no text or symbols)

Pasang karet blender pada unit pisau.

Illustration of a hand holding a mechanical component with a red curved arrow indicating rotation (no text or symbols)

Illustration of two hands holding a lid, with arrows indicating direction of movement (no text or symbols)

Illustration of a blender with a lid and handle, showing a red downward arrow indicating compression (no text or symbols)

Illustration of a hand pouring liquid from a bottle into a red mug (no text or symbols)

Illustration of a hand pouring liquid into a mechanical component (no text or symbols)

Illustration of a medical procedure showing a tool injecting into a cup (no text or symbols present)

Illustration of a hand pouring liquid into a mechanical device with a downward arrow (no text or symbols)

Illustration of hands holding a small container with a red arrow indicating rotation (no text or symbols)

Illustration of a hand holding a glass container with a red curved arrow indicating rotation (no text or symbols)

Bahan-bahan	Jumlah
biji lada	5-25 g
biji wijen	10-50g
beras, gandum	25-75g
kacang kedelai	25-75g
kacang polong kering	25-75g
daging buah kelapa	25-75g
biji kopi	25-50g
keju	25-75g
bubuk roti	20-40g
gula batu	25-50g
biji-bijian (berkulit keras)	25-75g

Illustration of hands holding a cylindrical container with a red arrow indicating rotation (no text or symbols)

Illustration of a mechanical assembly with two rotating components and directional arrows (no text or symbols)

Illustration of a red and pink object with a curved arrow indicating motion or rotation (no text or symbols)

Illustration of a hand using scissors to cut a decorative piece with liquid, no text or symbols present

Illustration of a hand holding a circular mechanical component with a red arrow indicating rotation (no text or symbols)

Illustration of a mechanical component being cut off or tilted, with arrows indicating direction (no text or symbols)

Illustration of a red and white object resembling a blender or blender with a downward arrow, no text or symbols present.

Illustration of a hand pouring liquid into a small container (no text or symbols)

Meo

Illustration of a hand pressing down on a cylindrical object into a container, with a red arrow indicating downward motion (no text or symbols)

Illustration of a medical procedure showing a tool injecting into a cup (no text or symbols present)

Illustration of a hand using a tool to press down a mechanical component (no text or symbols visible)

Illustration of a mechanical device with a lid and handle, showing a downward arrow (no text or symbols)

Illustration of a hand pouring liquid from a glass bowl into a mitten (no text or symbols)

Hand pouring red granular substance into a glass container with scattered food items (no text or symbols)

Illustration of a hand placing a small object onto a lid with arrows indicating rotation (no text or symbols)

Illustration of hands holding a small container with a red arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cup with a red circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with a red arrow indicating rotation (no text or symbols)

Illustration of a mechanical component with two rotating parts and directional arrows indicating motion (no text or symbols)

Illustration of a stylized football helmet with red buttons and a curved arrow indicating motion (no text or symbols)

การใช้งานเครื่องปัน

เครื่องปัน

Illustration of a hand using scissors to cut a floured cake with a red downward arrow (no text or symbols)

Illustration of a hand holding a circular mechanical component with a red arrow indicating rotation (no text or symbols)

Illustration of a mechanical device with two rotating parts and directional arrows indicating motion (no text or symbols)

Illustration of a red blender with a lid and handle, showing a downward arrow (no text or symbols)

5 ส่วนผสมลงในโลก

Illustration of a hand pouring liquid from a bottle into a cup (no text or symbols)

Illustration of a hand pouring liquid into a container with a red arrow indicating downward motion (no text or symbols)

Illustration of a medical procedure showing a tool injecting into a container with a red arrow indicating direction (no text or symbols present)

Illustration of a hand pouring liquid into a container with a downward arrow (no text or symbols)

Illustration of a blender with a lid and handle, showing a red downward arrow (no text or symbols)

Illustration of a hand pouring liquid from a mitten into a glass (no text or symbols)

Hand pouring red granular substance into a glass jar with a downward arrow (no text or symbols)

Illustration of a hand placing a small object into a lid with arrows indicating direction (no text or symbols)

Illustration of hands holding a small object with a red arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cup with a red circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a mechanical component with a red arrow indicating rotation (no text or symbols)

Illustration of a football receiver with red motion arrows indicating speed (no text or symbols)

清洗所有的附件和可分离件（参阅清洗）。

将多余的电源线绕在设备的底座上。

使用设备

混合器

本混合器适用于：

Illustration of a hand using a knife to lift a piece of dough on a floured surface (no text or symbols)

Illustration of hands holding a mechanical component with a red curved arrow indicating rotation (no text or symbols)

Illustration of a pair of kitchen utensils with a diagonal line, showing mechanical assembly (no text or symbols)

Illustration of a mechanical device with a white top and red arrow indicating downward motion (no text or symbols)

8 将电源线插入墙壁上的插座中。

Illustration of a hand pouring liquid from a bottle into a container (no text or symbols)

Illustration of a hand pouring liquid into a container with a red arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a small object with a red arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a mechanical device with a red arrow indicating downward motion (no text or symbols)

Illustration of a blender with a lid and handle, showing a red downward arrow indicating compression (no text or symbols)

Illustration of a hand pouring liquid from a bowl into a glass (no text or symbols)

Hand pouring red granular substance into a glass container with a downward arrow (no text or symbols)

Illustration of a hand pouring liquid into a container with arrows indicating direction (no text or symbols)

Illustration of hands holding a small container with a red arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cup with a red curved arrow indicating rotation (no text or symbols)

Illustration of hands holding a cup with a red arrow indicating rotation (no text or symbols)

Illustration of a mechanical device with a cutting tool and two pulleys, showing alignment (no text or symbols)

Illustration of a red and white object with a curved arrow indicating rotation or motion (no text or symbols)

Illustration of a hand using scissors to cut a decorative piece of dough (no text or symbols)

果汁機的用途：

Illustration of a hand holding a circular mechanical component with a red arrow indicating rotation (no text or symbols)

Illustration of two mechanical components with arrows indicating motion, no text or symbols present

Illustration of a kitchen blender with a lid and handle, showing a red downward arrow (no text or symbols)

Illustration of a hand pouring liquid from a bottle into a cup (no text or symbols)

Illustration of a hand pouring liquid into a mechanical device with a downward arrow indicating flow (no text or symbols)

Hand pouring red liquid into a glass with scattered food items (no text or symbols)

1 將食材放入研磨杯中。

Illustration of hands holding a small container with a red arrow indicating rotation (no text or symbols)

Illustration of a hand holding a glass container with a red circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a mechanical component with a red arrow indicating rotation (no text or symbols)

Illustration of a mechanical assembly with two rollers and a diagonal line, showing alignment or disassembly (no text or symbols)

4 拆下果汁容杯，用清水清洗。
