EBR3546 - Juicer ELECTROLUX - Free user manual and instructions

Product Type	Juicer
Brand	Electrolux
Model	EBR3546
Dimensions (H x W x D)	40 cm x 25 cm x 30 cm
Weight	4.2 kg
Power Supply	220-240 V, 50-60 Hz
Power Consumption	800 W
Motor Speed	Variable speed (12000-18000 RPM)
Speed Settings	2 speeds
Pulp Container Capacity	1.5 L
Juice Jug Capacity	1 L
Feed Chute Width	Large enough for whole fruits
Material	Stainless steel blade and housing, BPA-free plastic
Functions	Juicing, pulp separation, reverse function
Maintenance	Dishwasher-safe removable parts, cleaning brush included
Safety Features	Safety lock arm, non-slip feet, overload protection
Spare Parts Availability	Replacement parts available via Electrolux service centers
Repairability Index	8/10 (based on design and parts availability)
Warranty	2 years

Frequently Asked Questions - EBR3546 ELECTROLUX

How do I assemble the Electrolux EBR3546 juicer?

Place the motor unit on a flat surface. Attach the pulp container, then insert the filter basket. Secure the lid with the locking arm. Finally, put the juice jug in place. Refer to the manual for detailed diagrams.

Can I juice whole fruits without cutting?

The feed chute is large enough for most whole fruits like apples and oranges. However, for larger items, cut them into halves or quarters to prevent clogging.

How do I clean the juicer?

Disassemble all removable parts. Rinse immediately after use with warm water. Use the included brush to clean the filter basket. Most parts are dishwasher safe (top rack). Dry thoroughly before reassembling.

What is the reverse function for?

If ingredients get stuck during juicing, press the reverse button to briefly rotate the auger backward. This helps dislodge blockages without damaging the motor.

Is the juicer suitable for leafy greens?

Yes, the EBR3546 handles leafy greens like spinach and kale. For best results, use the lower speed setting and alternate with firmer ingredients.

Why is the juicer making noise or vibrating?

Ensure all parts are correctly assembled and the locking arm is secure. Check that the juice jug and pulp container are properly placed. Overloading may also cause vibration; reduce the amount of produce.

Can I juice frozen fruits or ice?

No, this juicer is not designed for frozen items or ice cubes. Only use fresh fruits and vegetables to avoid damage.

How often should I replace the filter basket?

With proper care, the filter basket can last several years. Replace it if you notice cracks, dents, or reduced juicing efficiency. Contact Electrolux for genuine spare parts.

What safety precautions should I take?

Always use the locking arm to secure the lid. Never operate the juicer without the pulp container and juice jug in place. Do not immerse the motor unit in water. Unplug before cleaning.

Where can I find the user manual?

The manual is available for free download on notice-facile.com in PDF format. You can also request a translated version by selecting your language and providing your email.

USER MANUAL EBR3546 ELECTROLUX

Love Your Day Collection

Blender

EBR3216

EBR3416

EBR3416A

EBR3526

EBR3546

EBR3646

Exterior view of a modern electric blender with visible control knob and brand logo (no text or symbols on the device itself)

EN INSTRUCTION BOOK

CNS 说明书

CNT 說明手冊

KR사용 설명서

ID Buku Panduan

Medical device with metallic tubing and a clear plastic container (no visible text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a component, no visible text or symbols

Illustration of a blender with a lid, side view, and top view showing liquid and brush (no text or symbols)

3D rendering of a blender with arrows indicating process flow (no text or symbols)

Close-up of a blender with a circular dial and an arrow indicating rotation (no text or symbols visible)

Close-up of a white plastic blender with a handle and arrow indicating a drop or compression (no text or symbols visible)

1.

Diagram showing a mechanical assembly with labeled parts A and B, no readable text or symbols present.

Close-up of a mechanical component with a circular inset showing internal structure (no text or symbols visible)

Medical implant device with mechanical components and a magnified inset showing upward and downward arrows (no text or symbols)

White blender with a side-view inset showing its interior design (no text or symbols visible)

White industrial machine with a grid-patterned cover and power outlet, no visible text or symbols

3D rendering of a blender with plastic lid, plastic holder, and plastic cap (no text or symbols)

	EBR3216	EBR3416	EBR3416A	EBR3526	EBR3546	EBR3646
		√	√	√
					√	√
	√	√	√	√

Close-up of a mechanical component with a hand pointing to a circular feature, no visible text or symbols.

INSTRUCTION MANUAL

Graphics and drawings in this manual are solely for illustration purposes and are subject to variations from actual product.

Read all instructions carefully before using the appliance for the first time.

Keep this manual for future reference.

COMPONENTS

A. Measuring cup

B. Lid with filler hole

C. Spout

D. Jug*

E. Rubber seal

F. Blade assembly, detachable*

G. Motor base

H. Speed selector

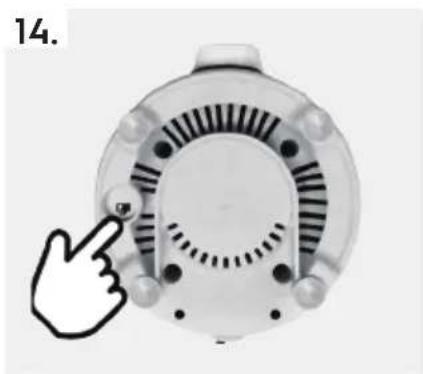

I. Cord storage device (underside of appliance)

J. Anti-slip feet

K. Filter*

L. Grinder bowl*

M. Blade assembly, detachable*

N. Spatula

* Specifications vary by model

SAFETY ADVICE

• Remove and safely discard any packaging materials before using the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Keep the appliance and its power cord out of reach of children. Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be performed by children without supervision.
• The appliance can only be connected to a power supply which voltage and frequency comply with the specifications on the rating plate.
• Never use or pick up the appliance if

- the power cord is damaged, or

- the housing is damaged.

- If the appliance or its power cord is damaged, it must be replaced by Electrolux or its service agent in order to avoid hazard.

Do not immerse the appliance, its power cord or plug in water or any other liquid.

• Do not use or place the appliance near the edge of the table or counter, near hot gas, stove, electric burner or heated oven.
  • Always place the appliance on a flat, level and dry surface.
  • Always switch off the appliance and disconnect it from the supply if it is left unattended and before changing of accessories, cleaning or maintenance.
• The blades and inserts are very sharp. Danger of injury. Care shall be taken when changing accessories, after use and during cleaning and maintenance.
• Never touch the blades or inserts with your hand or with any utensils while the appliance is plugged in and/or during operation.
• Keep hands and utensils away from the appliance during operation to avoid the risk of severe injury to persons or damage to the appliance.
• Ensure that the appliance is switched off before removing the jug or grinder from the motor base.
• Do not operate the appliance without food or liquid in the jug.
• Never operate the appliance without the lid or grinder cup.
• Do not use the appliance continuously for more than 2 minutes when processing heavy load. After using continuously for 2 minute with heavy loads, the appliance should be left to cool for at least 10 minutes before restarting.
• When using the grinder, do not use the appliance continuously for more than 30 seconds at any one time. After using the grinder for 3 times without interruption, the appliance should be left to cool for at least 60 minutes before restarting.
• The jug cannot be used for blending or grinding hard and dry substances, except for ice cubes. Use the grinder to grind hard and dry substances (Eg. nuts, candy, rice etc...)

• Never process hot liquids with this appliance (max 90°C).

• Do not exceed the maximum filling volume as indicated on the appliances.

• Do not use this appliance to stir paint. Danger, could result in an explosion.
• Do not let the power cord come into contact with hot surfaces or hang over the edge of a table or counter.
• Never use accessories or parts made by other manufacturers not recommended or sold by Electrolux as it may cause a risk of injury to persons.
  • This appliance is for indoor use only.
• This appliance is intended for domestic use only. Electrolux will not accept any liability for possible damage caused by improper or incorrect use.

GETTING STARTED

1. Before using the blender for the first time, make sure all the packaging has been removed before operating the appliance. Wash all parts except for the motor base (G).
   1a. For glass jug model: Ensure that the rubber seal (E) is properly placed on the blade assembly (F). Invert the jug (D) to have its base facing upward. Turn the blade assembly over and insert it into the jug base by aligning its slots with the catches on the jug base. Turn the blade assembly anti-clockwise to lock it securely.
   1b. For plastic jug model: Attach the blade assembly (M) to the bottom of the jug (D). Fix it firmly by turning it anti-clockwise.

Caution! The blades are very sharp!

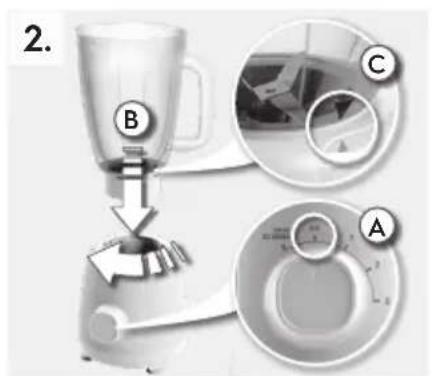

1. Place the motor housing on a flat surface. Ensure the speed selector (H) is set to "OFF" before placing the jug (D) on the motor base (G). Place the jug on the motor base. There are 2 possible positions, handle on the right or on the left. Rotate clockwise until it locks. The blender is designed with a safety locking system. When the arrow on the jug (▼) is aligned with the arrow (▲) on the motor base, the jug is locked in position. The blender will operate only if the jug or the grinder is locked correctly. Put the ingredients in the jug. (Do not exceed the maximum capacity indicated on the jug.)
   Processing hot liquids: allow hot liquids to cool down until lukewarm before filling the jug. Fill the jug only half full and start processing on low speed.
   For Glass Jug: For best result when processing diluted liquids, the maximum processing volume shall be 1.25L.

2. Close the lid and insert the measuring cup (A) in the filler hole and lock into position. Do not operate the blender if the lid is not locked in.

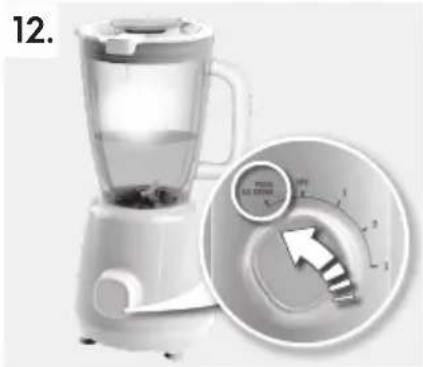

3. Start the blender by turning the speed selector (H) clockwise. Start at low speed, then progress to a higher speed if required. To use the PULSE function, turn the speed selector to PULSE position and release. For heavy load, please remove half of the contents and process them in 2 batches.

4. Ice crushing: Turn the speed selector (H) to PULSE position and hold for 3-5 seconds several times until you obtain a satisfactory result. You can add more ice through the filler hole while the blender is running. The PULSE function allows greater control when blending, e.g. when chopping nuts or chocolates, or crushing ice.

5. To make juice: Insert the filter (K)* as illustrated. Make sure it fits correctly. Add fruits in the filter*, close the lid (B) and process as usual. Caution! Always remove the seed from stone fruits such as plums, peaches, apricots, avocados before processing them in the blender.

USING THE GRINDER\*

The grinder* consists of a grinder bowl (L) and a blade assembly (M). It can be used to chop nuts, dried fruit, bread crumbs, garlic, onions etc.

1. Make sure the unit is unplugged and the speed selector (H) is set to "OFF" before placing the grinder on the motor base (G). Turn the grinder upside down and carefully remove the blade assembly (M) by turning it anti-clockwise. Fill the grinder bowl with the desired ingredients. Do not fill more than half full.

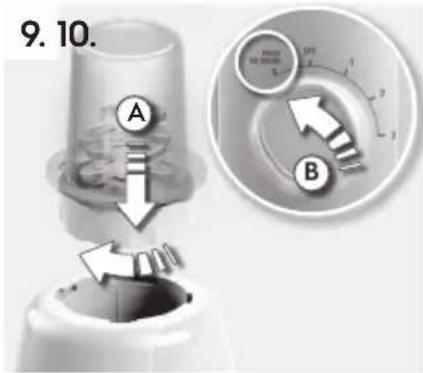

2. Attached the blade assembly (M) to the grinder bowl (L) by turning the blade assembly clockwise. NOTE: If it is not tightly attached together the blender will not work due to a safety mechanism.

3. Turn the grinder the right way up and lock into place on the motor base (G) by turning clockwise. Plug in the appliance and select the desired speed setting. Caution! Do not operate the grinder continuously for more than 30 seconds. For better results, use the PULSE setting.

* Specifications vary by model

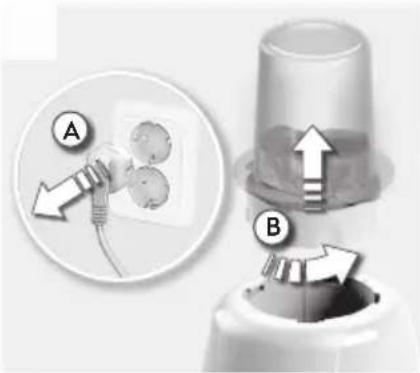

1. When the ingredients have been ground/chopped to the desired consistency, unplug the appliance, and remove the grinder from the appliance. NOTE: Do not remove the grinder bowl directly from the motor base as this will cause the ingredients to spill out and expose the blade assembly.
2. Turn the grinder upside down and carefully remove the blade assembly by turning it anti-clockwise. Remove the ingredients and wash the grinder bowl (L) and blade assembly (M) in soapy water immediately after use.

CLEANING AND CARE

1. Quick cleaning: Pour warm water into the jug (D) up to 750ml, add a few drops of detergent. Replace the lid and operate the blender for a few seconds by turning the speed selector (H) to the PULSE position briefly. Finally, remove the jug and rinse it under running water.
2. Thorough cleaning: Switch off the blender and unplug the power cord. Remove the jug (D) from the motor base (G).

13a. Cleaning the motor base: Wipe the motor base with a damp cloth. Never immerse the motor base in water or clean it under running water!
13b. Cleaning the jug: Remove the lid (B) and jug (D). Turn the blade assembly (F) clockwise and remove it by pulling it down. Rinse the blade assembly in water and detergent. Caution! Handle carefully, the blades are very sharp!

The lid, jug and measuring cup can be washed in the dishwasher. Be careful when re-assembling the blade assembly. Please see "Getting started" section, no. 1 for instructions on blade assembly.

TROUBLESHOOTING

Symptom Cause Solution
The blender does not start.	The components are not fixed properly.	Check if all the components are properly locked into position.
	The speed selector (H) is not on the right position.	Choose the appropriate speed. To use PULSE function, make sure the speed selector (H) is on PULSE position.
	The jug (D) is overfilled.	Reduce the content in the jug (D) so you do not exceed the maximum level.
	The plug is not properly connected to the power outlet.	Check the connection of the plug to the outlet or try another outlet.
	Power outage. Wait until power outage is over.
	Functional problem. Contact authorized service center.
	Check the circuit breaker*. When the electric current is over the setting value of the current restorer, it will disconnect immediately. This is a safety feature.	To restart, switch off the blender and unplug the power cord, allow the appliance to cool down, and then press the red salient point. Then put the plug back into the wall socket and switch the appliance on again. (Refer to Fig. 14)
Contents leaks from the lid (B).	The jug (D) is overfilled.	Reduce the content in the jug (D) so you do not exceed the maximum level.
	The lid (B) is not correctly positioned.	Lock the lid (B) correctly on the blender jug (D).
Leak from the base of the blender jug (D).	The rubber seal (E) is not positioned correctly or is missing.	Reposition the rubber seal (E) on the blade assembly (F) and lock it correctly onto the jug (D).
The blade does not turn easily.	Pieces of food too large or too hard.	Reduce the size or quantity of ingredients and add some liquid.

BLENDING QUANTITIES AND PROCESSING TIMES

Maximum Processing time with heavy load	2 min	Whisking/Whipping quantities and Processing Times
		Ingredients Quantity Time Speed
		Cream 200-400 g 50-60 sec 1
		Note: The temperature of the cream should be between 4 and 8 Degree Celsius.

Recommended blending speed
Recipe Ingredients Quantity Time Speed
Pureeing raw vegetables	Carrots	20-80 g	20-30 sec	3
	Potatoes	20-80 g
	Onions	20-80 g
	Water	60-160 g
Strawberry margaritas (Cocktail)	Tequila	240 ml	≤2 min	3
	Triple sec	60 ml
	Frozen strawberries	225 g
	Frozen lemonade concentrate	145 g
	Ice cubes	150 g
Fruits smoothie	Fruits in slices	200 g	≤2 min	3
	Ice	50 g
	Yoghurt/milk	100 g
Milkshake	Milk	150 - 300 ml	20-30 sec	2
	Vanilla Ice cream	200-400 g
	Banana	1/4-1/2 pcs
	Chocolate syrup	30-60 g
Potato leek soup	Cooked potatoes	150 g	50-60 sec	2
	Cooked leek 150 g
	Warm water 300 g
Pancake (Batter)	Wheat flour	150 g	40-50 sec	2
	Salt	1 Pinch
	Eggs	3 pcs
	Milk	250 ml
	Water	140 ml
	Butter	50 g

Chopping quantities and Processing Times
Ingredients	Quantity Time	Speed		Remarks
Bread crumbs	10-30 g	"ON for 3 sec, OFF for 3 secRepeat for 3 to 5 times"	PULSE	Coarseness of ingredients may vary. Repeat the steps if necessary until the desired result is achieved.
Almonds	60-120 g
Pepper	20-100 g

DISPOSAL

Recycle the materials with the symbol 📋. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances.

Do not dispose appliances marked with the symbol ■ with the household waste. Return the product to your local recycling facility or contact your municipal office.

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.

Due to the Electrolux policy of continual product development; specifications, colours, and details of our products and those mentioned in this manual are subject to change without notice.
